[KR] Feya's Swamp insert

Print Profile(3)

All
A1
H2D Pro
H2C
H2D
P2S
H2S
X2D
A2L
X1 Carbon
P1S
X1E
P1P
X1

Storage Box Set
Storage Box Set
Designer
18.3 h
6 plates
4.8(4)

Basic Insert, Card Tray Set
Basic Insert, Card Tray Set
Designer
5.2 h
2 plates
5.0(3)

X1C - 0.12mm layer
X1C - 0.12mm layer
22.8 h
8 plates

Open in Bambu Studio
Boost
23
40
26
4
72
42
Released

Bill of Materials

List other parts
  • Round Magnet 3x2mm x 52:

Description

Content has been automatically translated.
Show original

Released in Korea

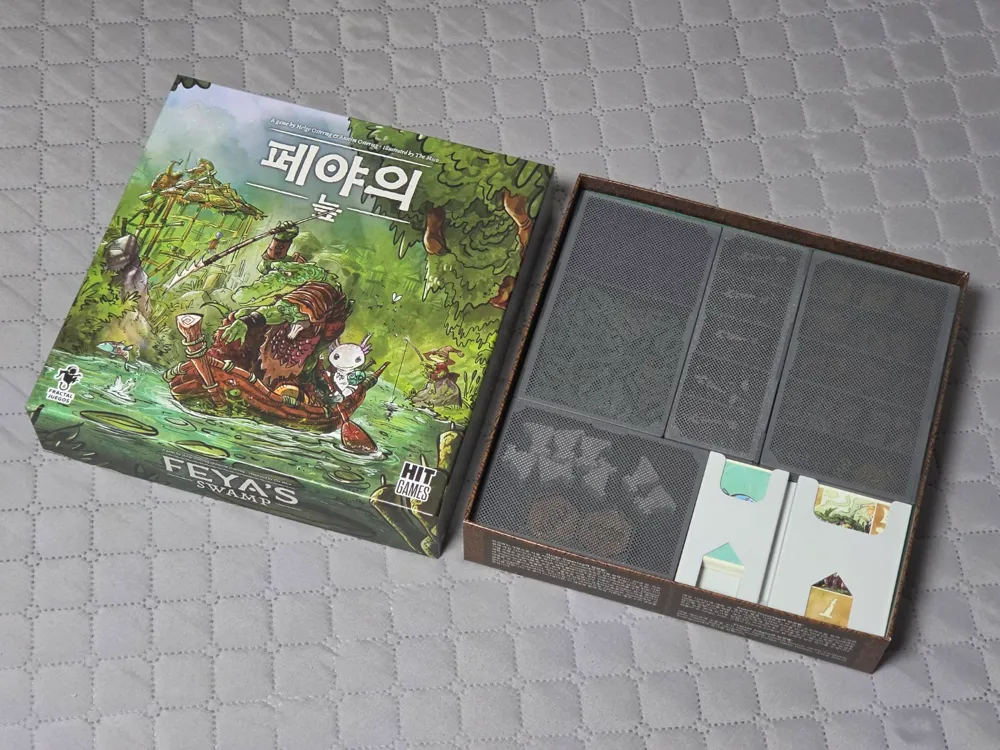

This is an organizer custom-made to fit the Feya's Swamp package case.





[Key Features]

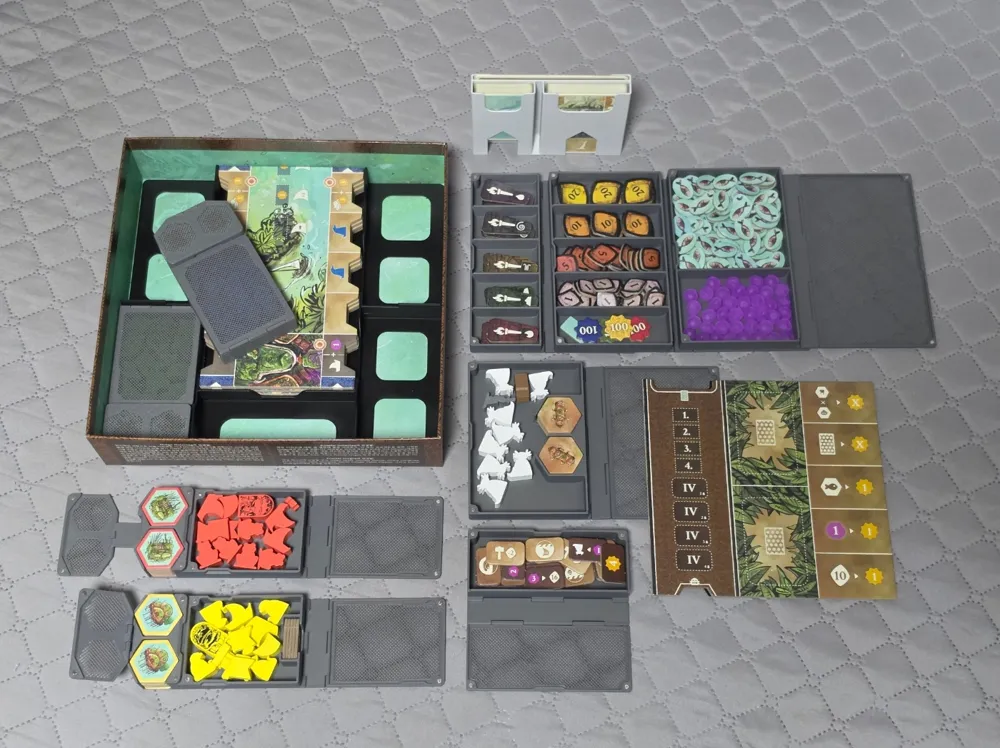

  • Individual storage configuration for each component by type
  • Can store cards including sleeves (based on 0.07mm)

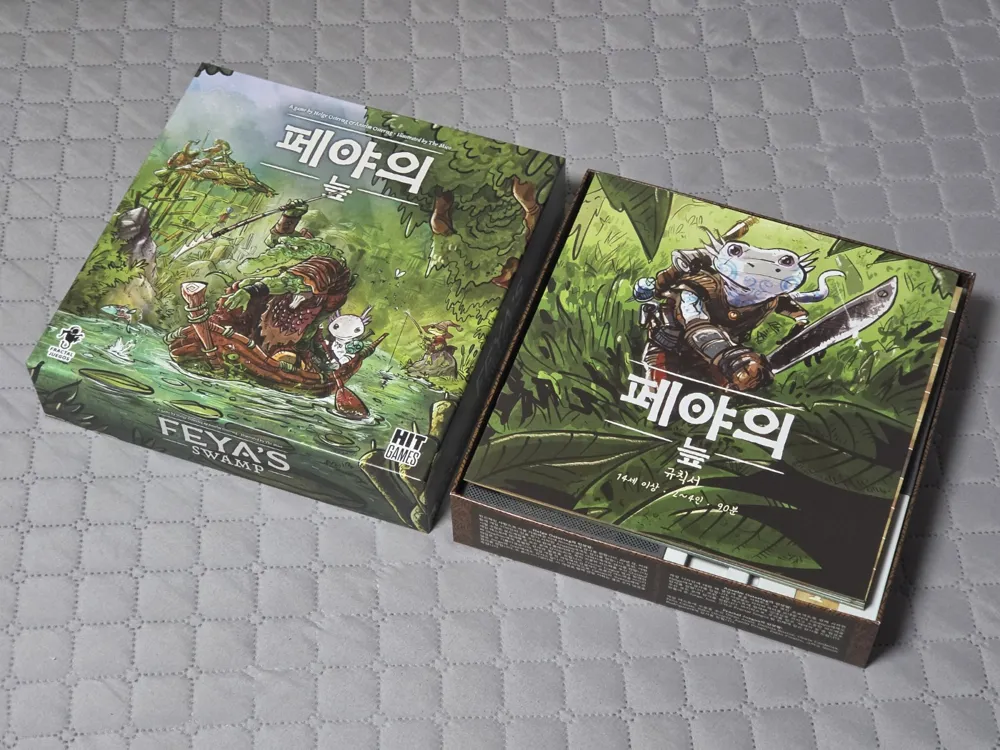

  • Sufficient internal height space for rulebook storage (approx. 1-2mm)

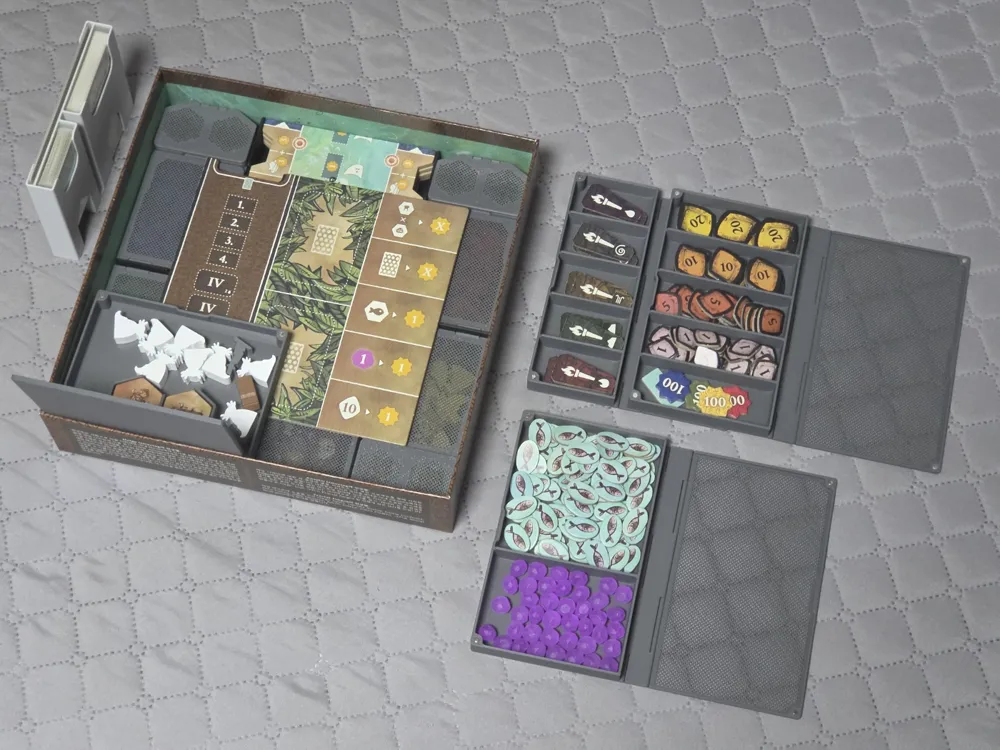

  • Designed with a hinged cover for the token box, allowing the game box to be stored upright (requires 3x2mm magnets)

(Caution: The hinge part of the case is thin, so if excessive force is applied, the lid's hinge part can easily break.)





[Additional Information]

  1. Please insert 3x2mm magnets into the hinge cover fixing parts of the token box, etc., using adhesive. (Storage can be secured)



※ If the bottom part appears fused when printing the case,

carefully fold the hinge part, and the fused thin part will separate relatively easily.

(For smooth operation when printing the hinge part, 0.12mm layer printing is recommended.)

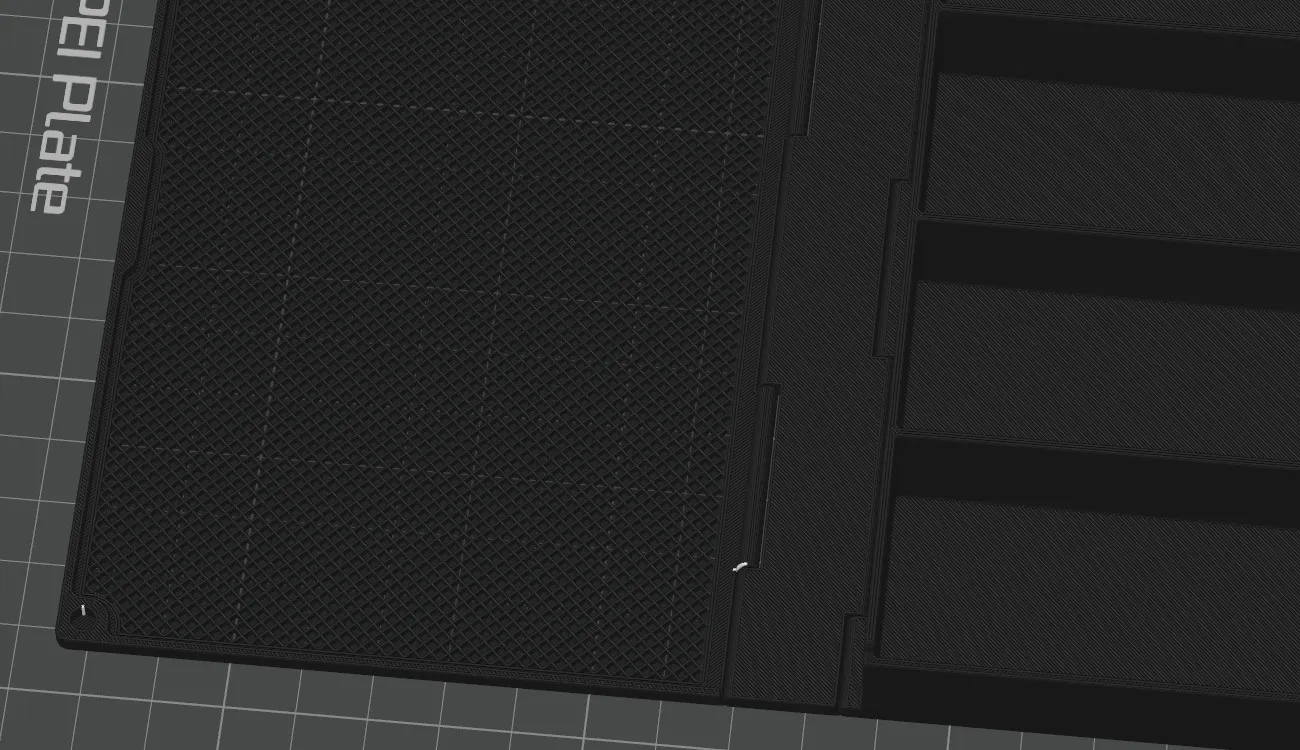

※ Please note that this method uses Bambu Studio's top/bottom layer 0 and infill printing settings.

(If printing with other slicers, please set the infill settings separately.)

(+ If you are concerned about the durability of the mesh net part, you can reset the print settings for that object to print it in a solid form.)
