Seat Ateca Air Vent Clip Replacement
IP Report
Print Profile(2)
0.1mm layer, 2 walls, 70% infill
Designer
2.3 h
1 plate
A1 0.1mm layer, 2 walls, 70% infill
Designer
2.3 h
1 plate
Open in Bambu Studio
Boost
16
33
3
1
25
11
Released
Description
🚗 Seat Ateca (2015) Air Vent Clip Replacement – Fix Loose or Broken Vent Clip.

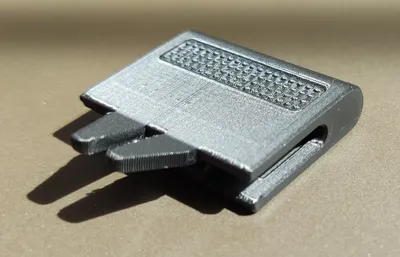

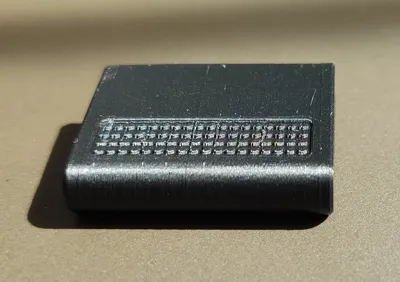

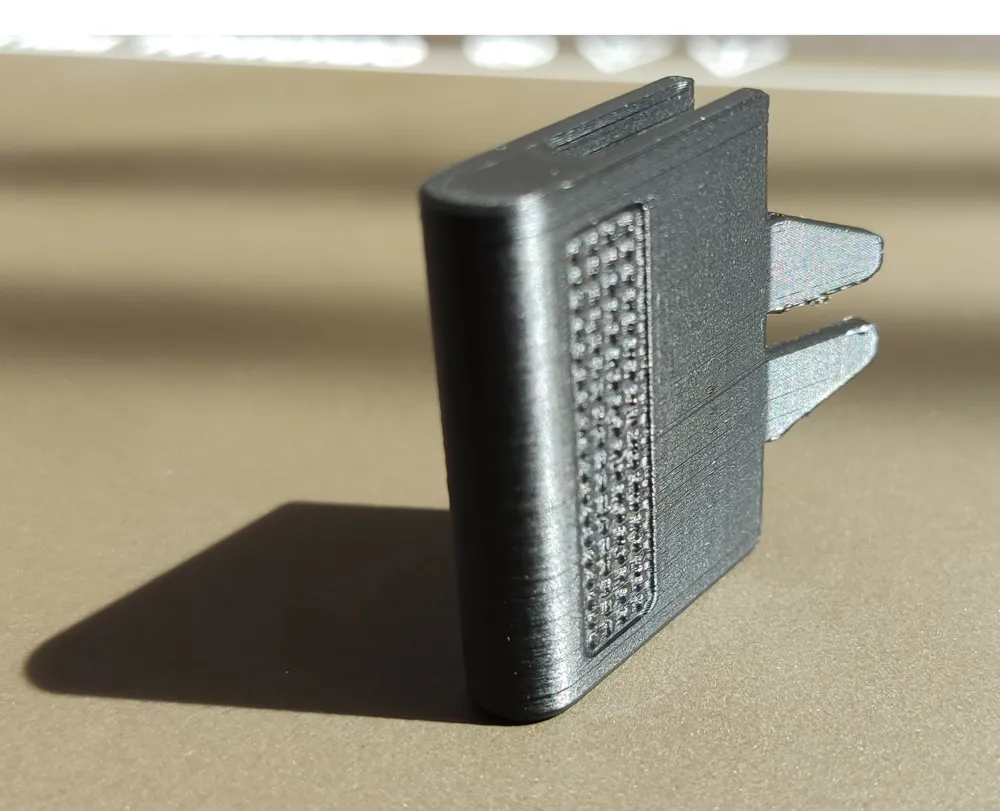

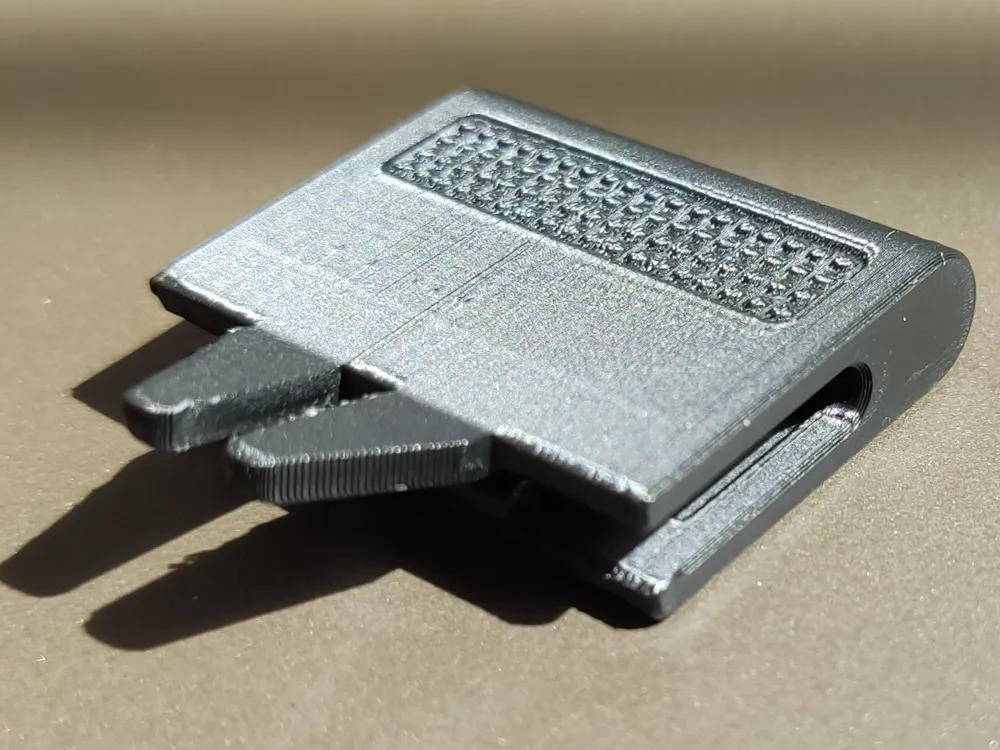

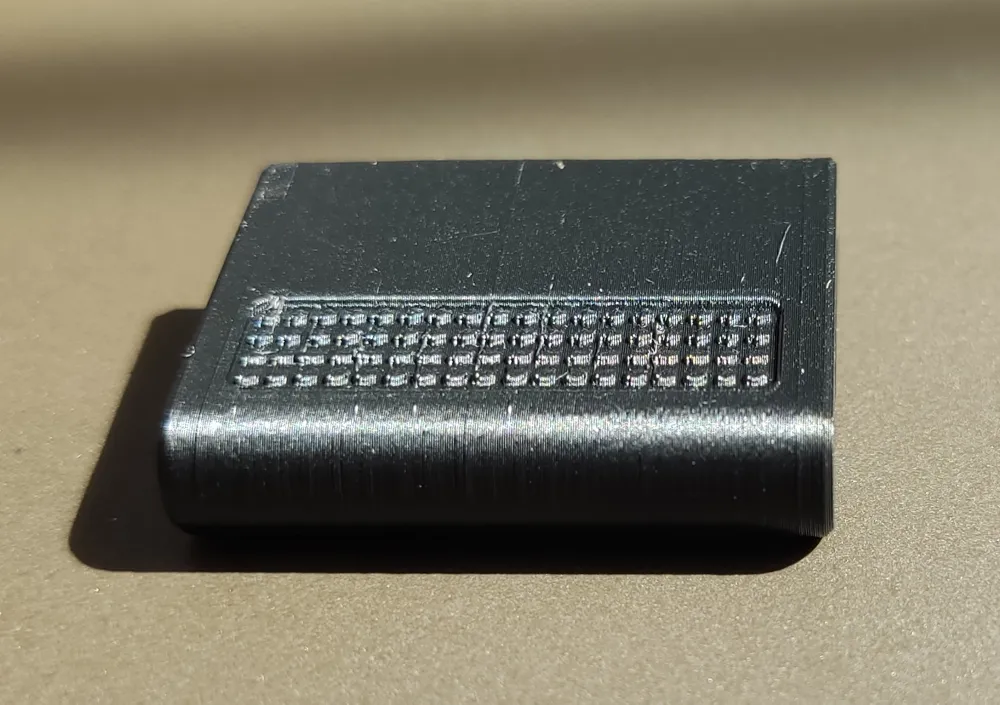

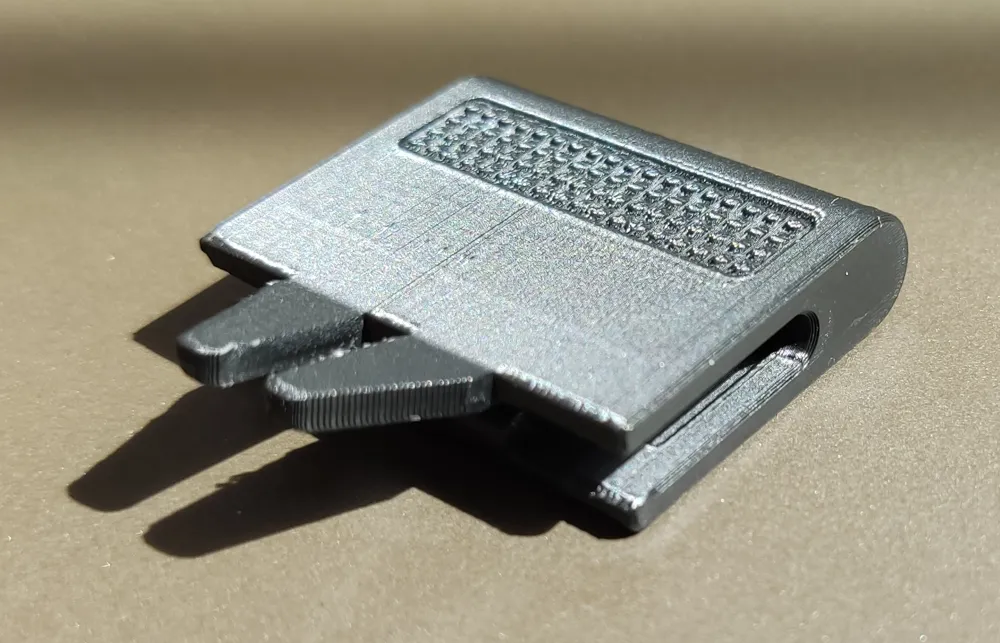

A purpose-built replacement clip for the center (left & right) air vent in the Seat Ateca.
🔧 Key Features
✔ Fixes common issue with worn or snapped vent clips
✔ Secure snap-fit design – no glue required
✔ Designed from real measurements and tested in a real car
✔ Strong and durable – optimized for stress and repeated use
✔ Optimized for 3d printing
🔧 Compatibility

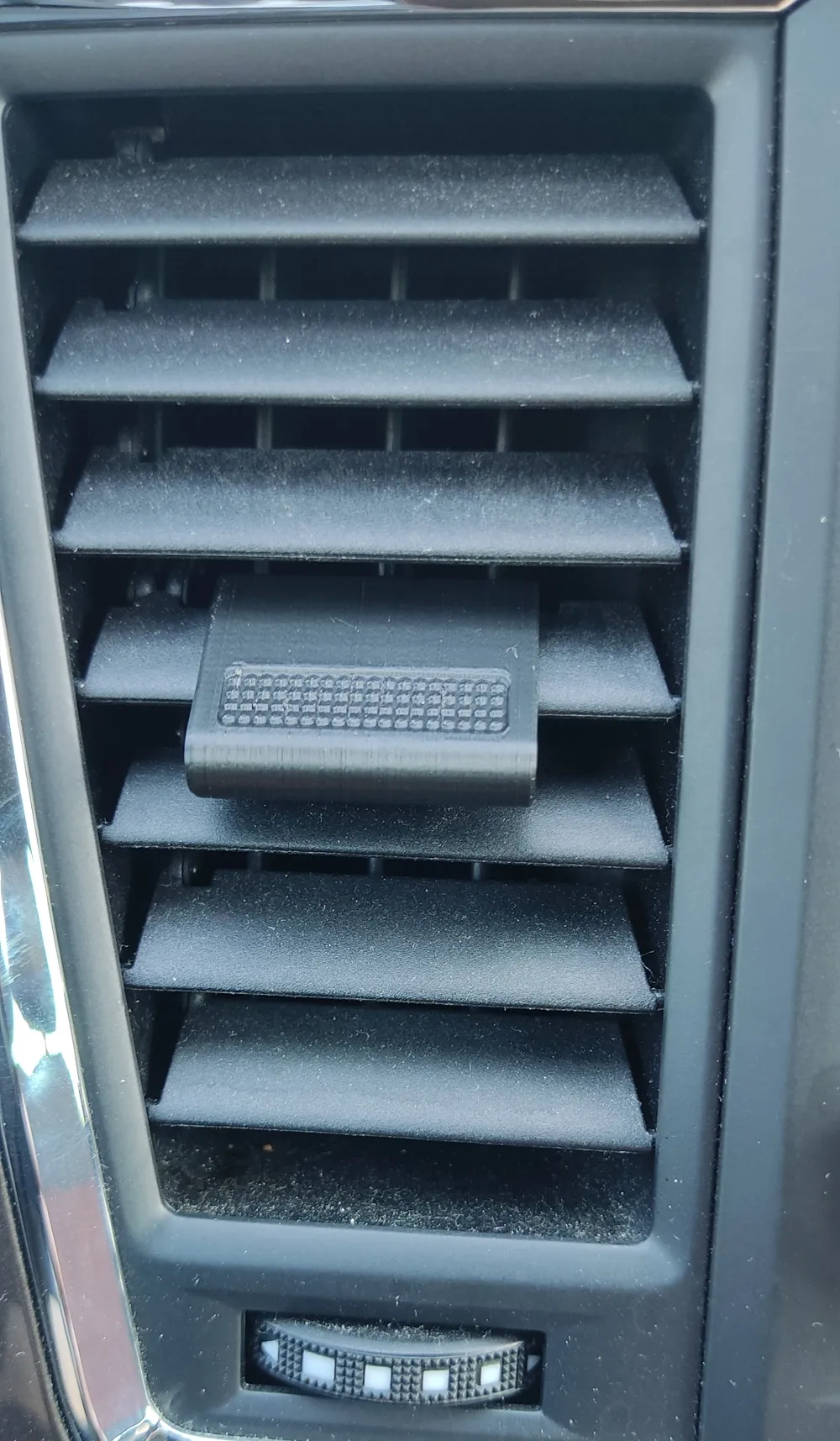

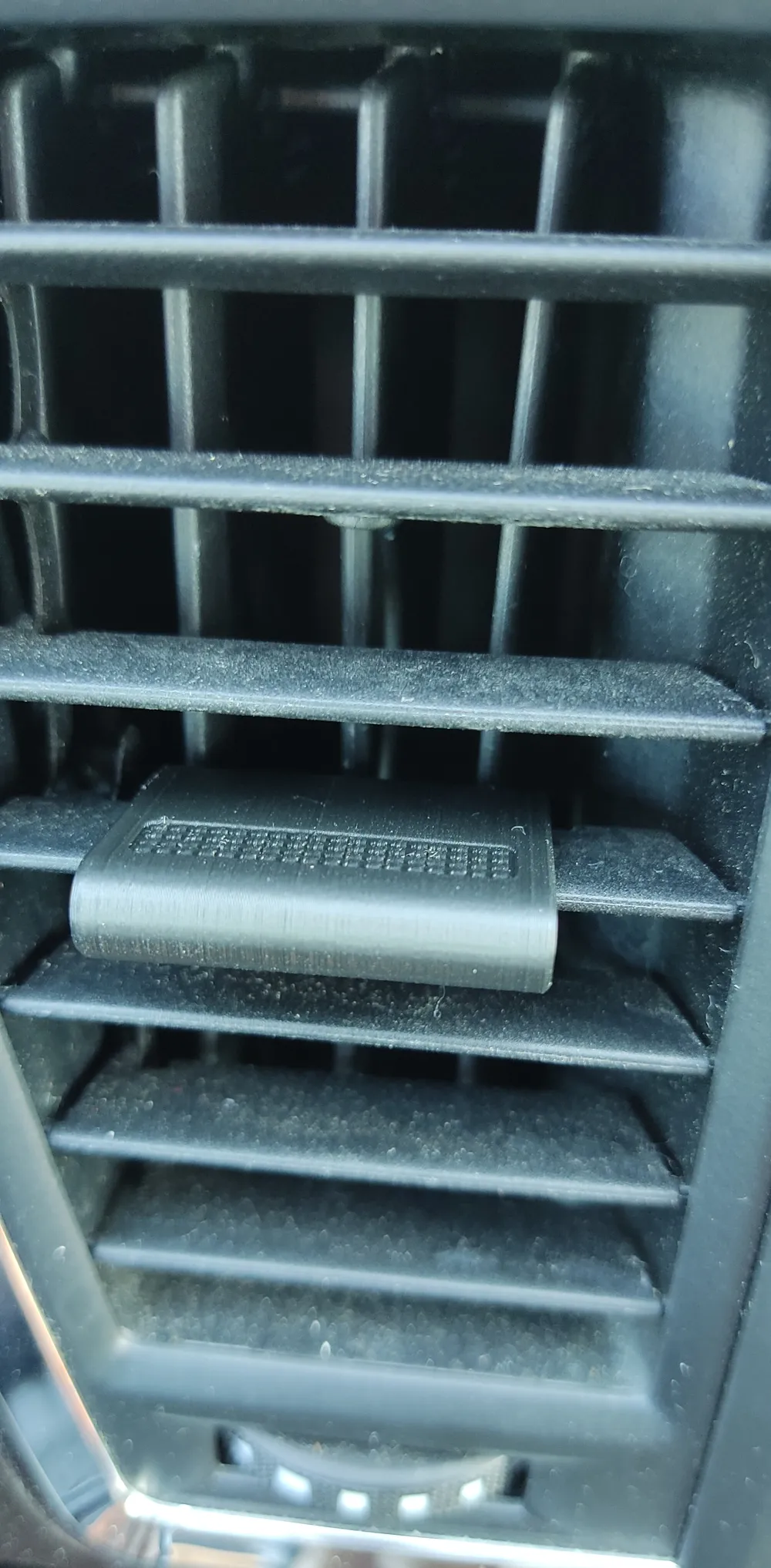

Seat Ateca 2015 (center air vents – left & right)
Also fits similar VW Group vent mechanisms (check dimensions)
🖨 My Print Settings
- Material: PETG (ABS | ASA | PA | PC recommended)
- Walls: 2
- Infill: Hilbert Curve 70%

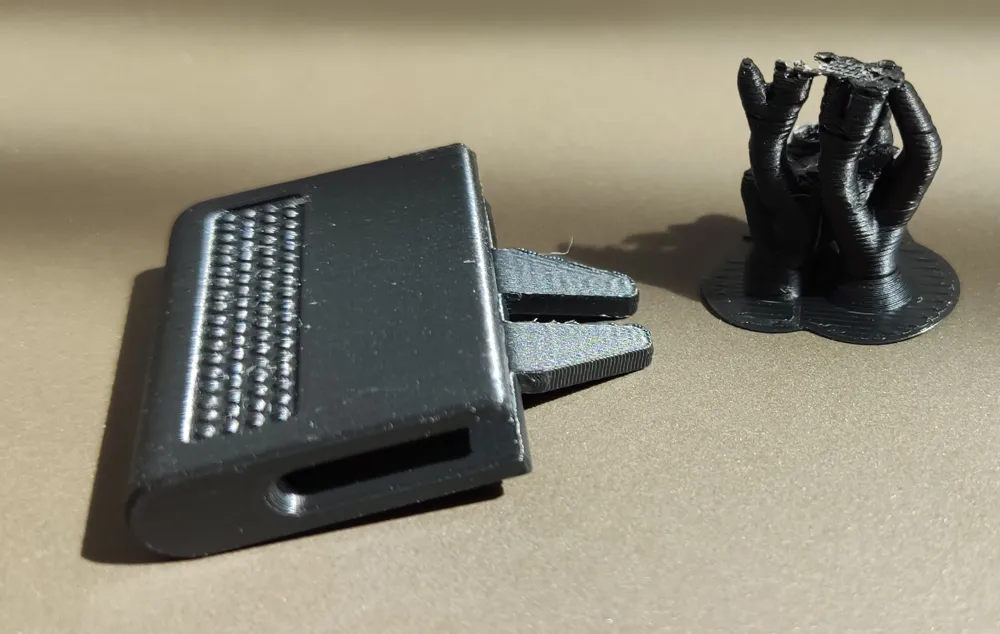

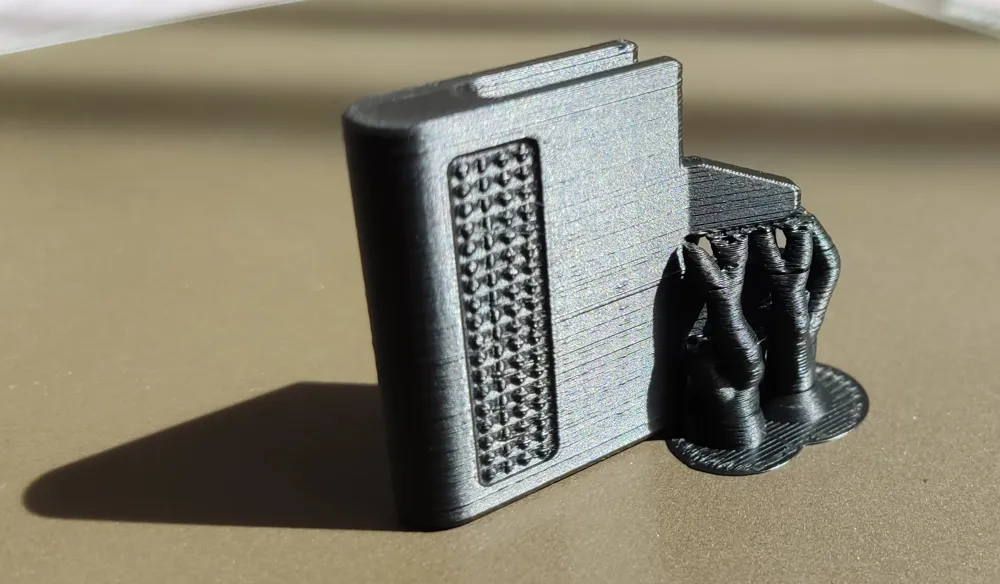

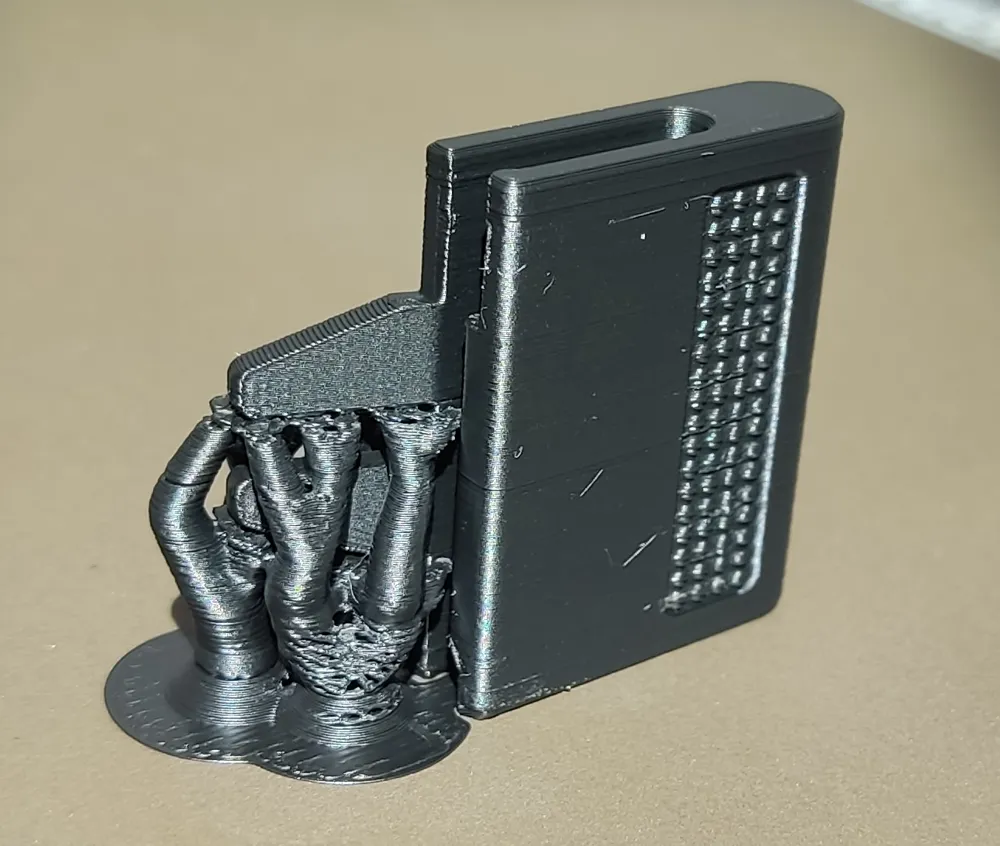

- Supports: required only on Tabs (easy to remove)
- Layer height: 0.1mm
I wanted high quality, so I used a very low layer height and ironing top layers. You can change the settings to suit your needs.
