Wardrobe bar holder/bracket (parametric, 3 screws)

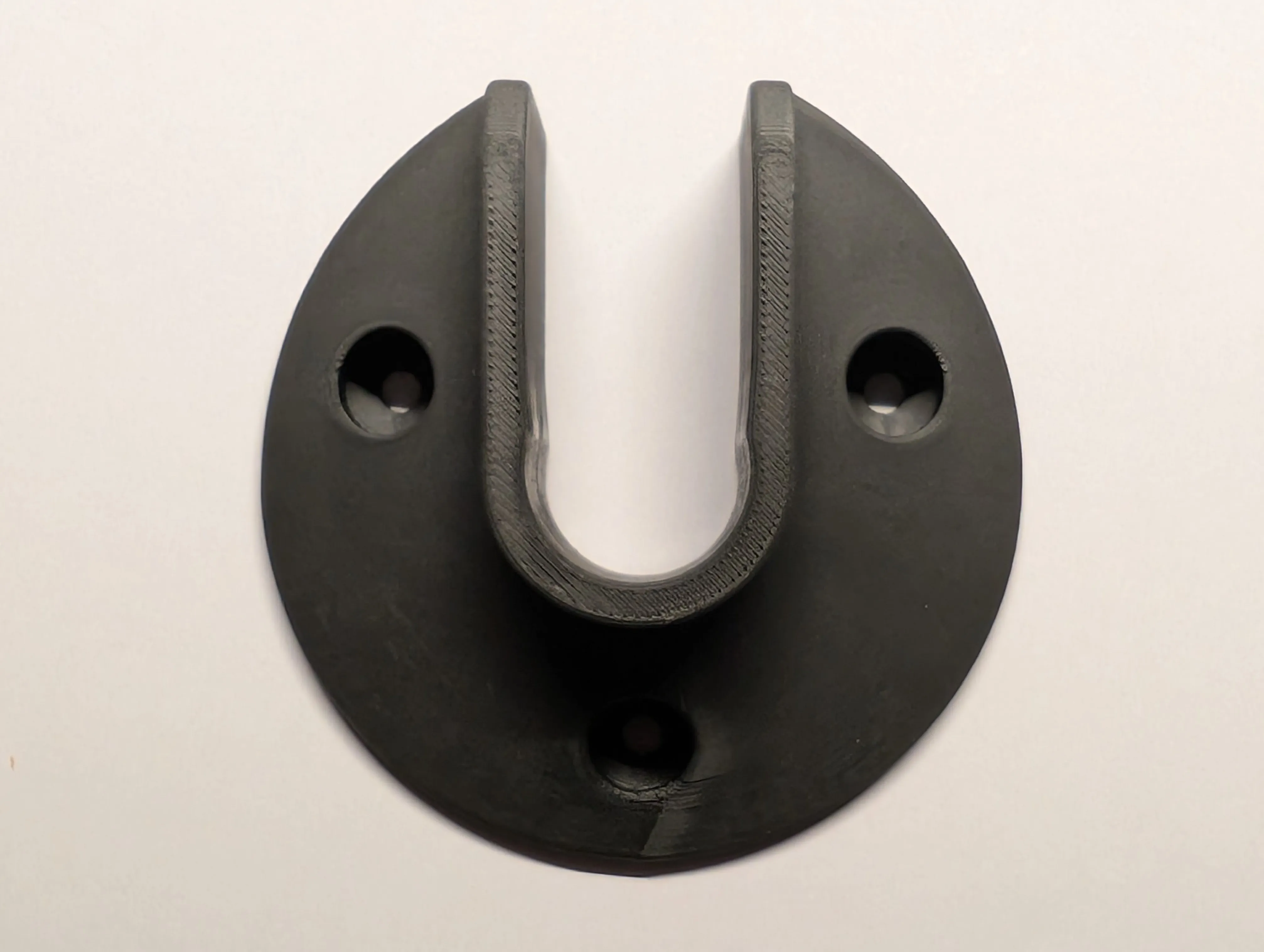

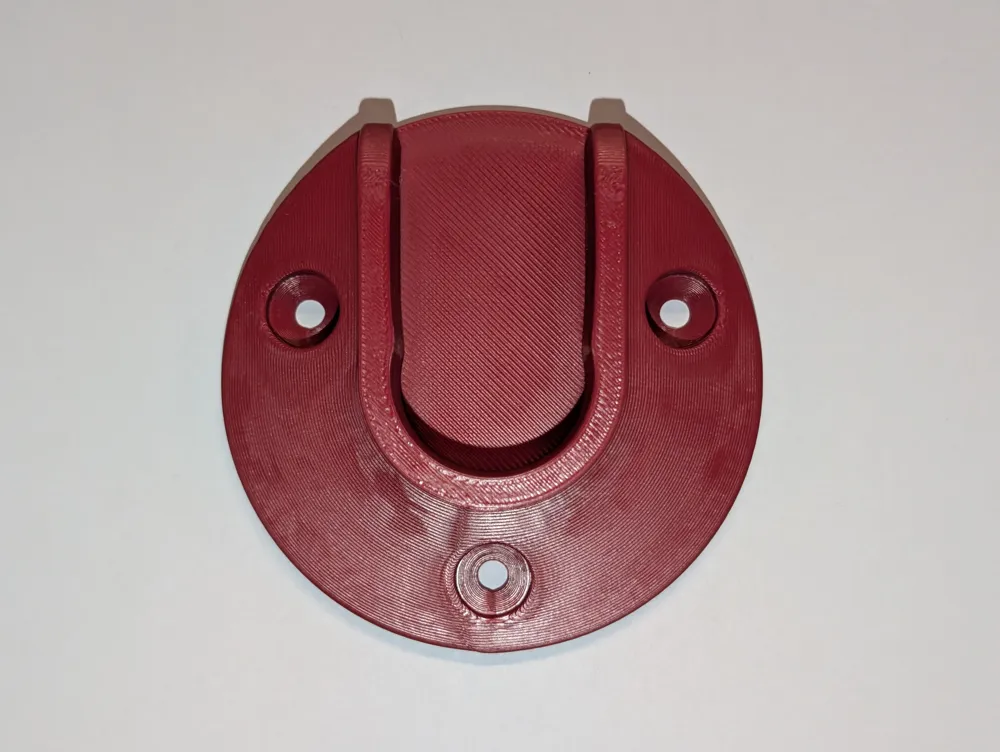

Wardrobe bar holder/bracket with three countersunk screw holes.

There are two profiles ("default" and “extra” for additional support); both of them have three models for 20mm, 22mm, or 25mm bar diameter. (Important note: the default profile is for wooden bars where the diameter is usually smaller than nominal amount; use 0.4mm clearance for metal bars!)

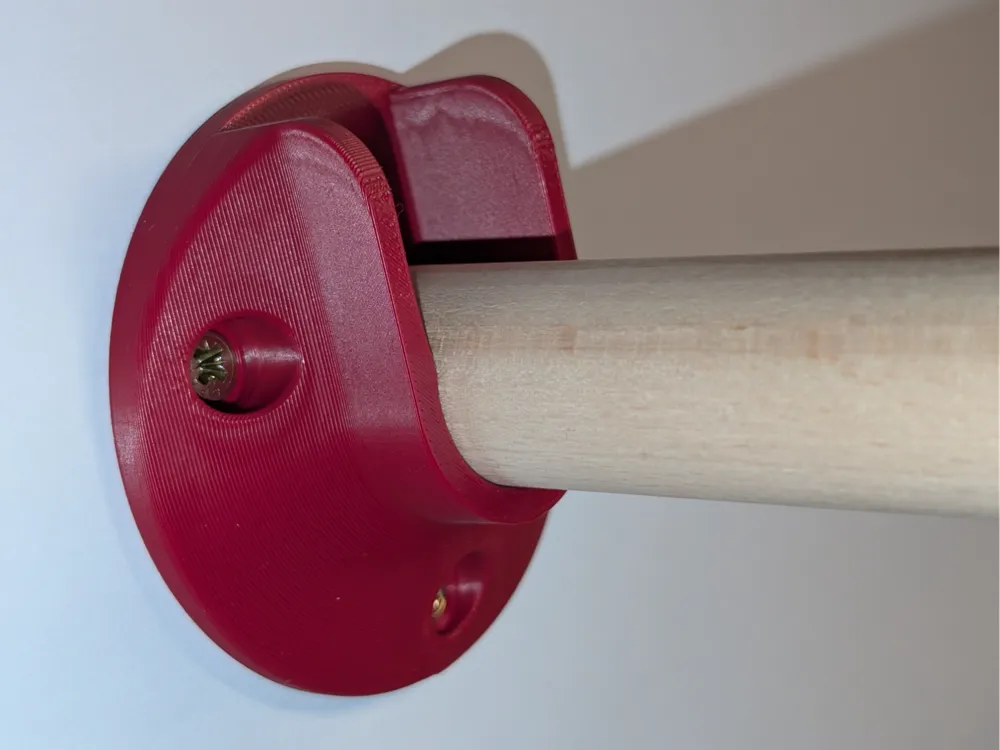

The models has small clip, that clicks the bar in place (inserted from above).



The model is fully configurable:

• diameter of the bar/rod,
• clearance for the diameter (0.1mm is default for loose fit),
• screw size (accepts 3.5mm, 4.0mm, 4.5mm, and 5.0mm; the clearance is calculated automatically),
• “clip width” for the mechanical lock for the rod (default is 0.5mm for secure click),
• base thickness (default is 4.0mm; you can add more thickness to dial down horizontal fit of the bar),
• support bracket length (this extends the support bracket for more secure width; important note: inserting 21–27mm bugs out the fillets; keep it at 20mm or 28mm and above),
• brim width (min. 20 mm).

If you are afraid that the model might break under the weight, I suggest increasing “support bracket length”. Also, print in “strength" print profile (6 wall loops and 25% infill density) for maximum strength.

Cut the final bar/rod to the closet width  –  2 × base thickness (by default 4mm); so: closet width – 8mm by default.

Check my other wardrobe bar holder/bracket models:

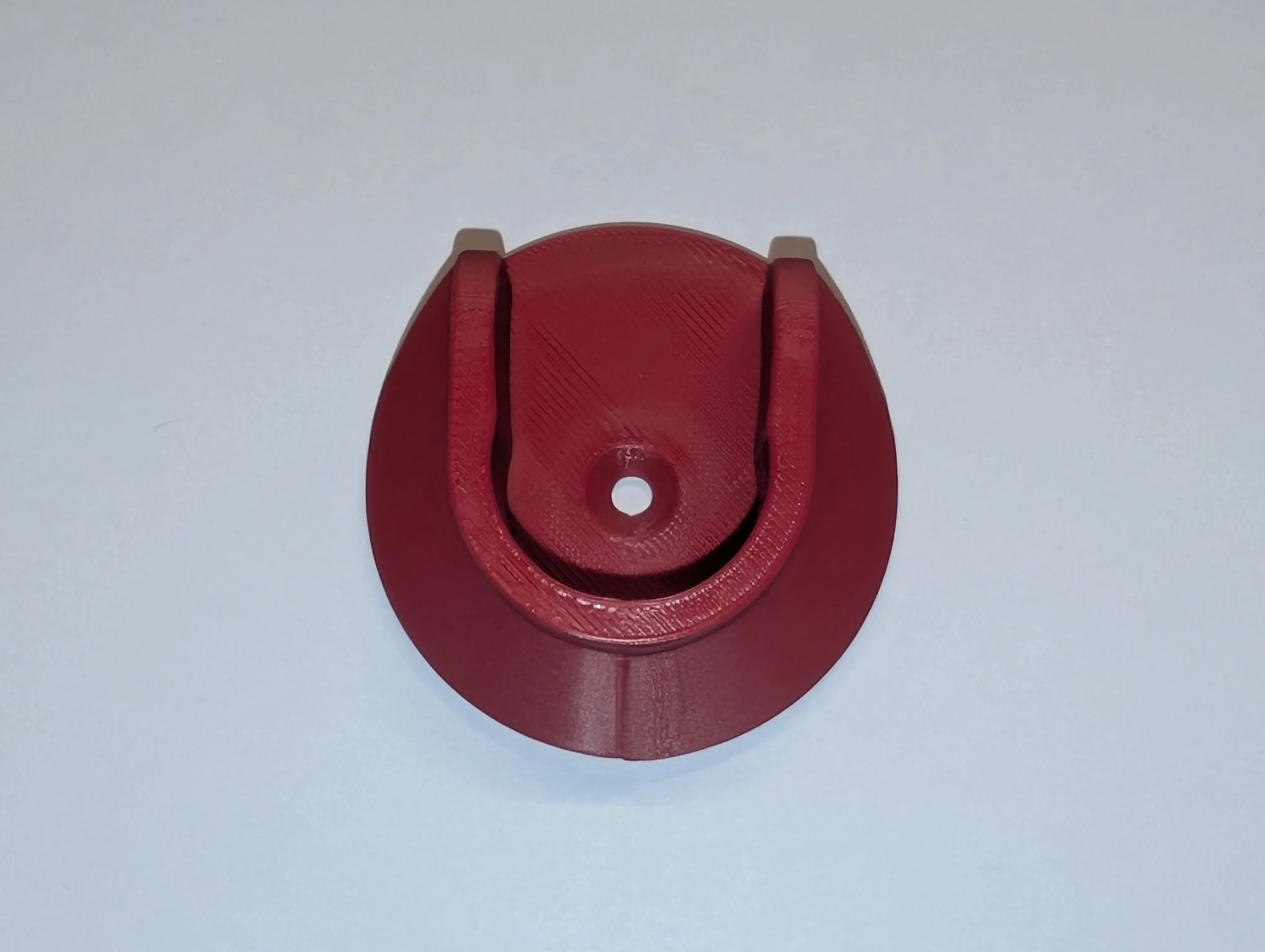

• One hole:  https://makerworld.com/en/models/2699470-wardrobe-bar-holder-bracket-parametric

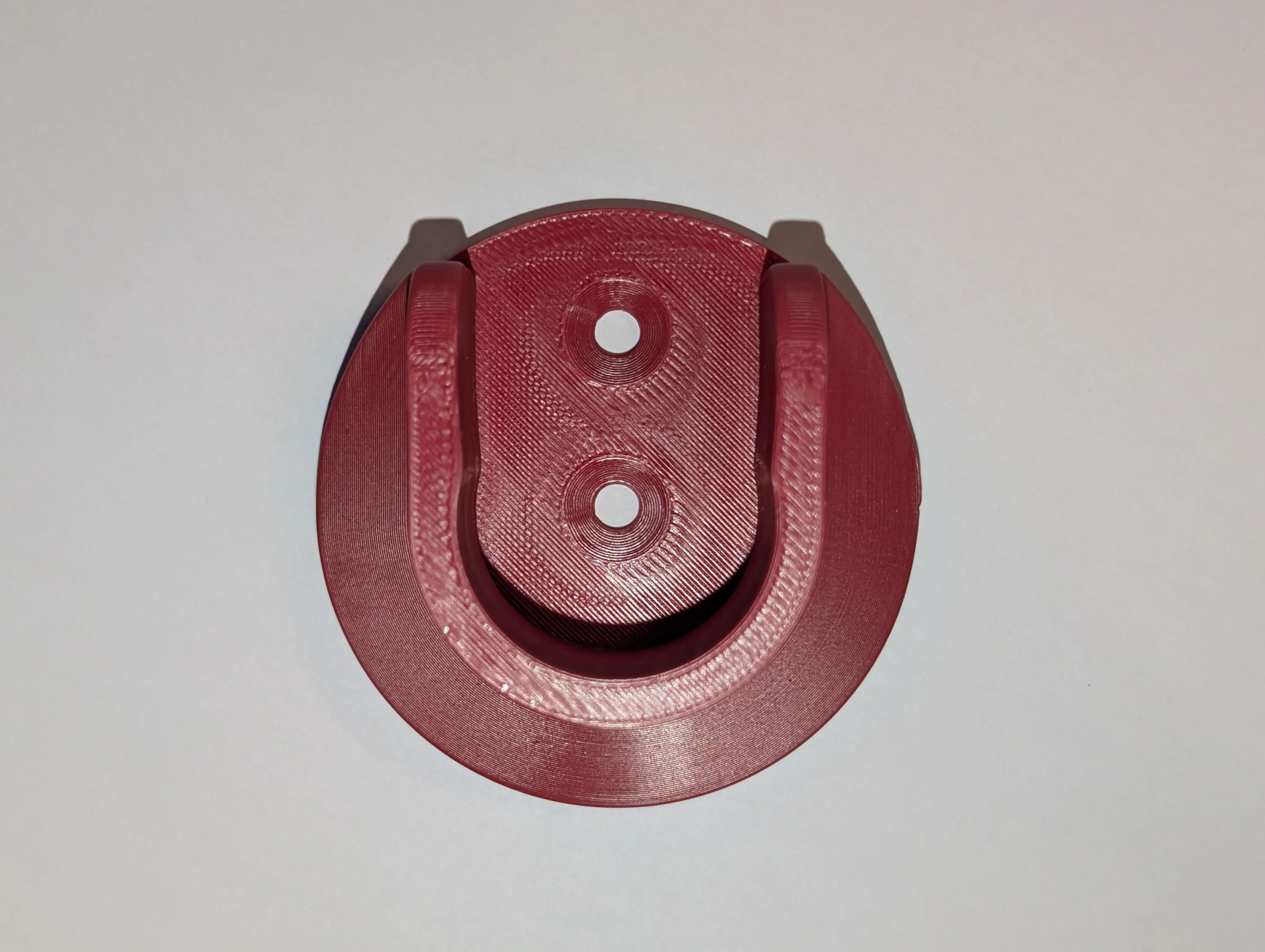

• Two holes:  https://makerworld.com/en/models/2699401-wardrobe-bar-holder-bracket-parametric
