Adapter set for mounting a removable cyclone pre-separator on the Parkside PPWD 30 B2 (also compatible with A1). Based on the Starmix Dustfixx pre-separator with custom 3D-printed interfaces.

🔧 Features
Removable pre-separator mounted directly on the vacuum
Compatible with Parkside PPWD 30 B2 / A1
Uses original hose plus additional connection hose
Mounted on a wooden board with retaining clips
Quick install via Parkside systainer interface
Adapters largely based on remixed designs
Printed in PETG for improved durability and heat resistance

🔗 Links to the used products can be found in the video description.

Short Description (Preview)

Adapter set for mounting a removable cyclone pre-separator on the Parkside PPWD 30 B2 (A1 compatible). Based on the Starmix Dustfixx pre-separator with 3D-printed interfaces for maximum flexibility.

🔧 Features
Removable pre-separator directly on the vacuum cleaner
Compatible with Parkside PPWD 30 B2 / A1
Uses original hose plus additional connection hose
Mounted on a wooden board with retaining clips
Quick install via Parkside systainer mount
Adapters largely based on remixed designs
Printed in PETG for improved durability and heat resistance

🔗 Links to the used products can be found in the video description.

Hello everyone,
this is a collection of adapters and mounting components for the Parkside PPWD 30 B2 (should also be compatible with the A1 version).

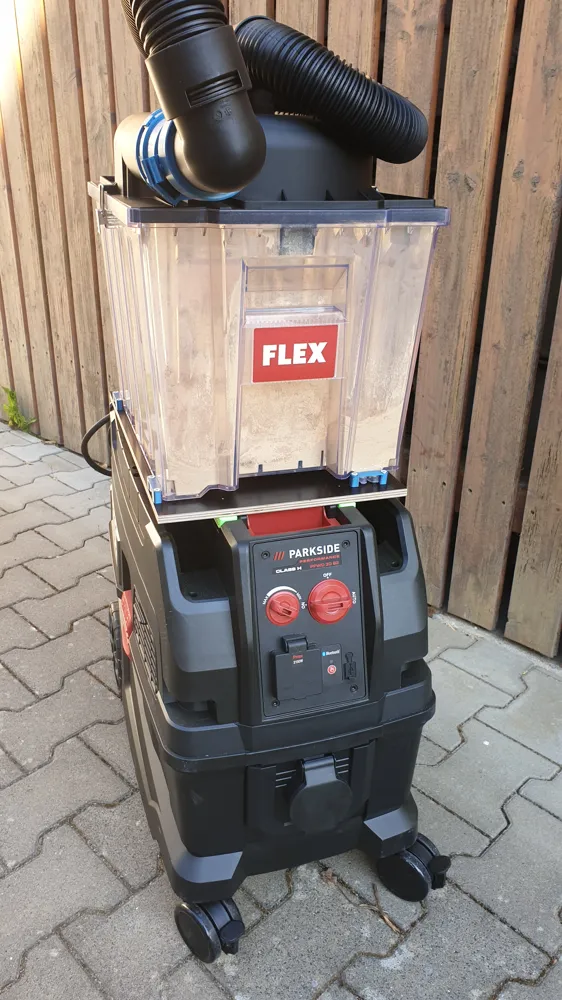

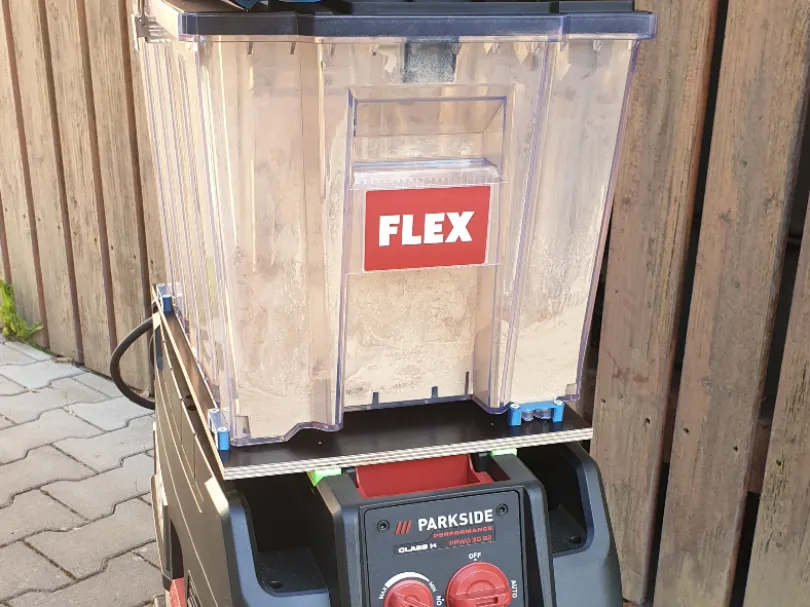

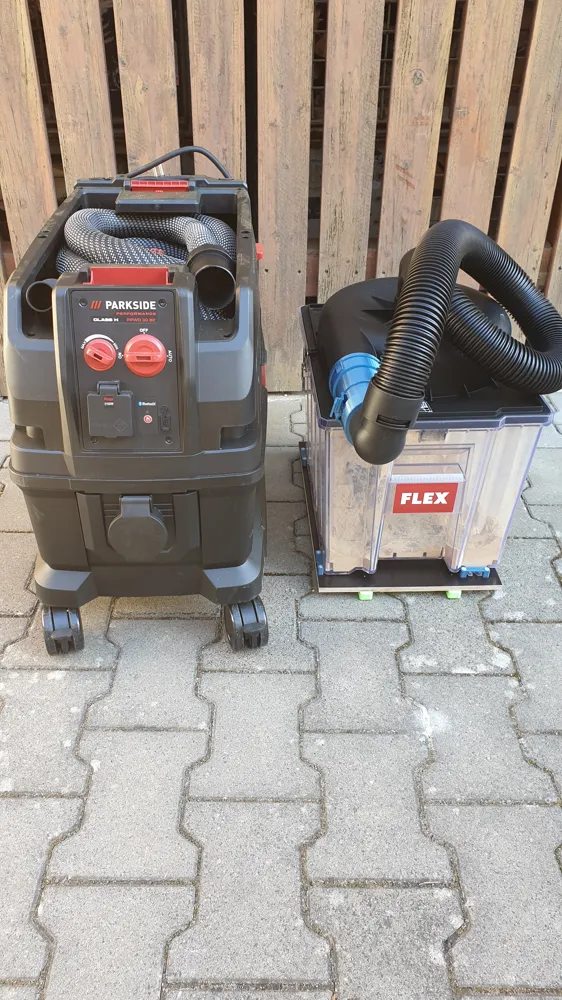

The goal of this project is to mount a removable pre-separator directly on top of the vacuum cleaner. The setup is based on a Starmix Dustfixx pre-separator, which appears to be identical to units from Flex, Metabo and Eibenstock.

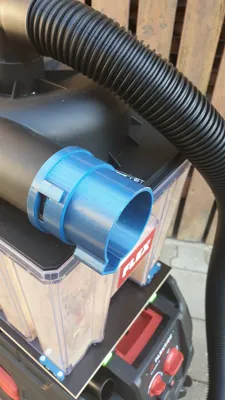

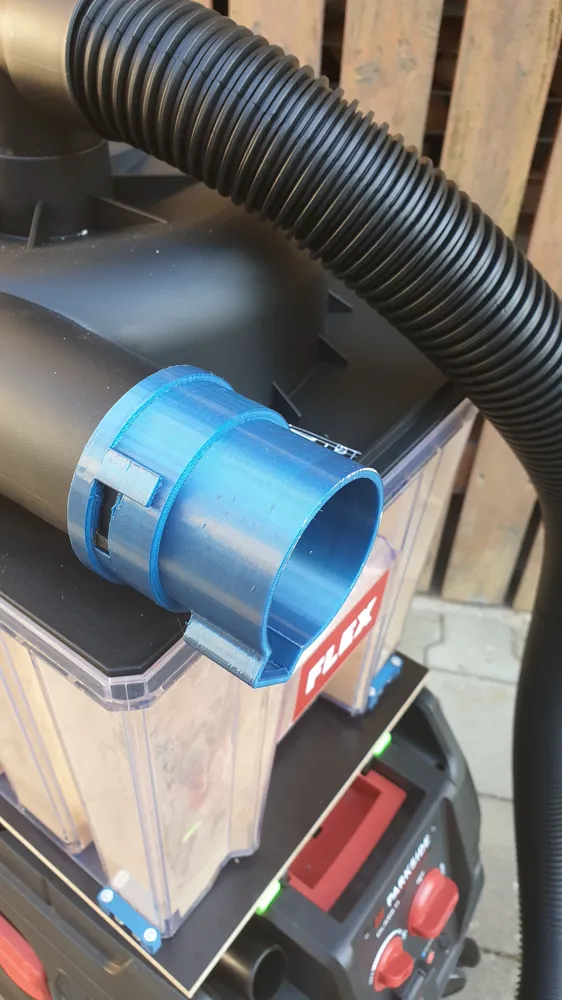

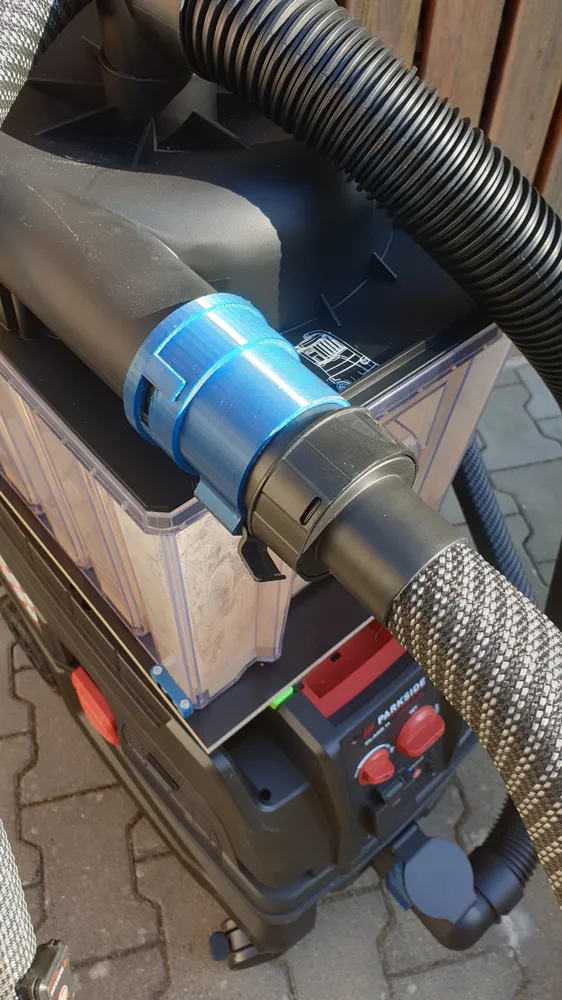

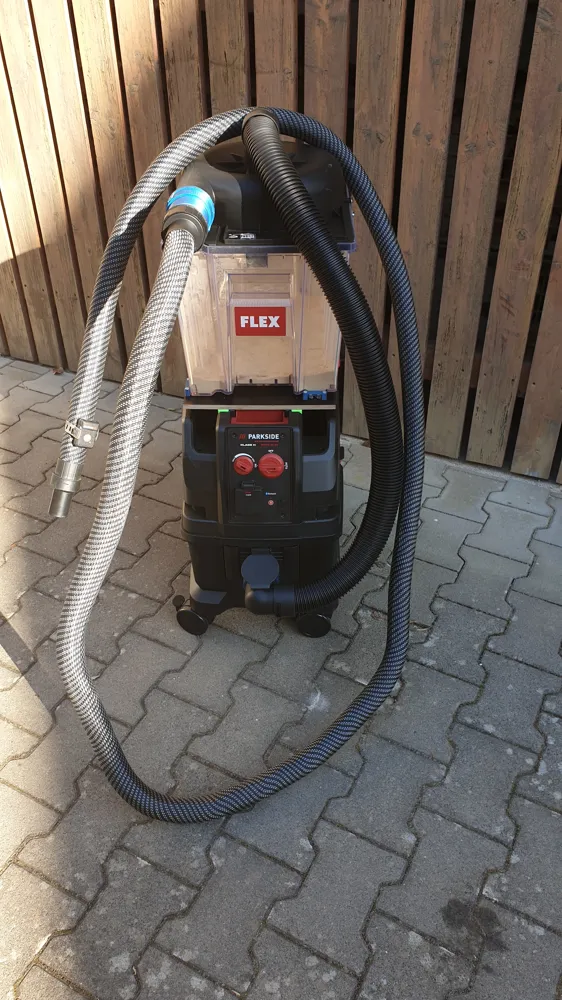

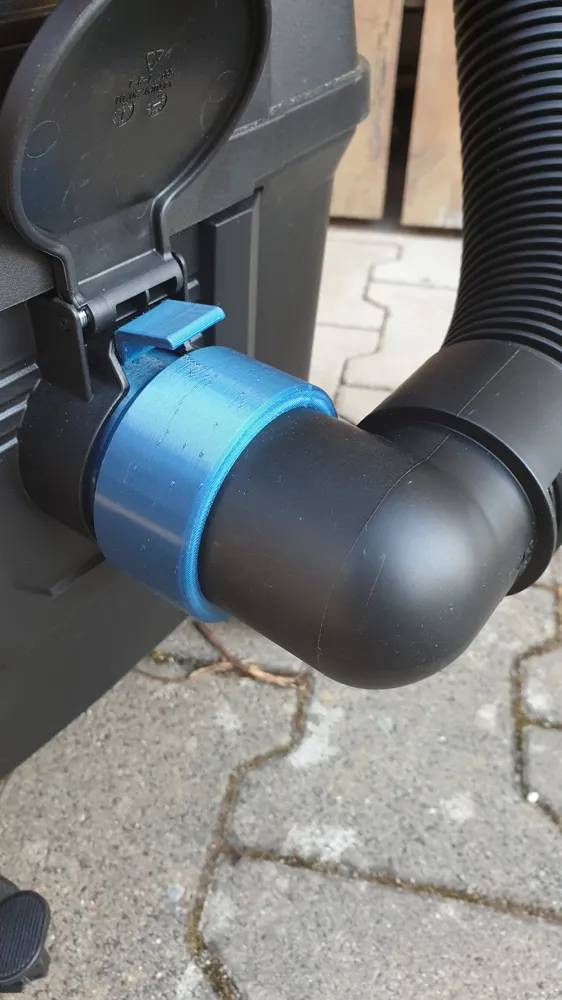

The pre-separator comes with a hose used to connect the vacuum to the cyclone. The original Parkside hose is still used on the cyclone side.

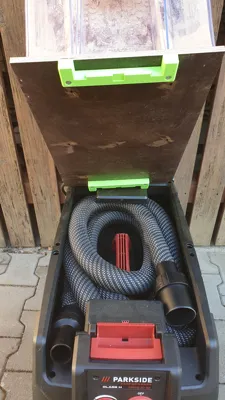

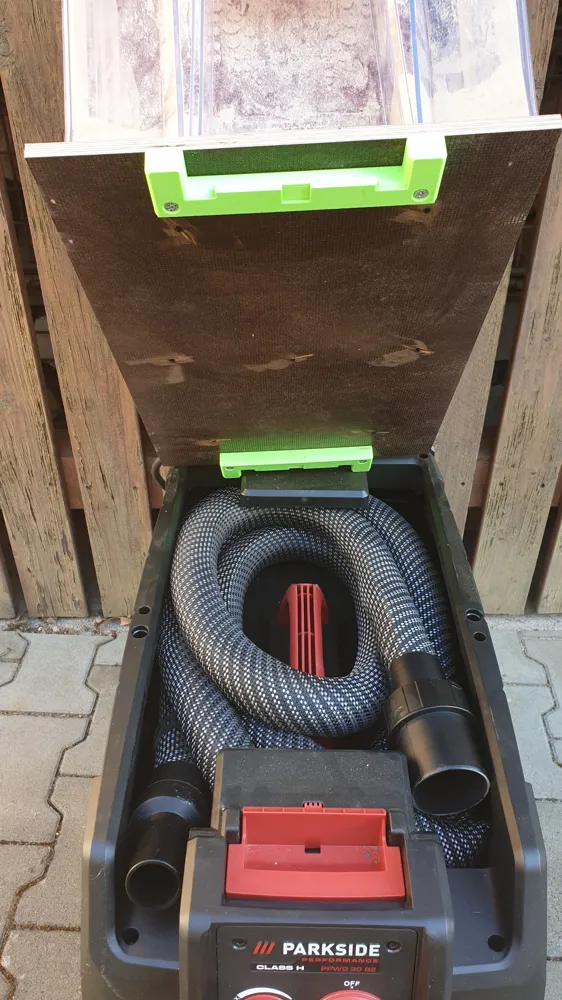

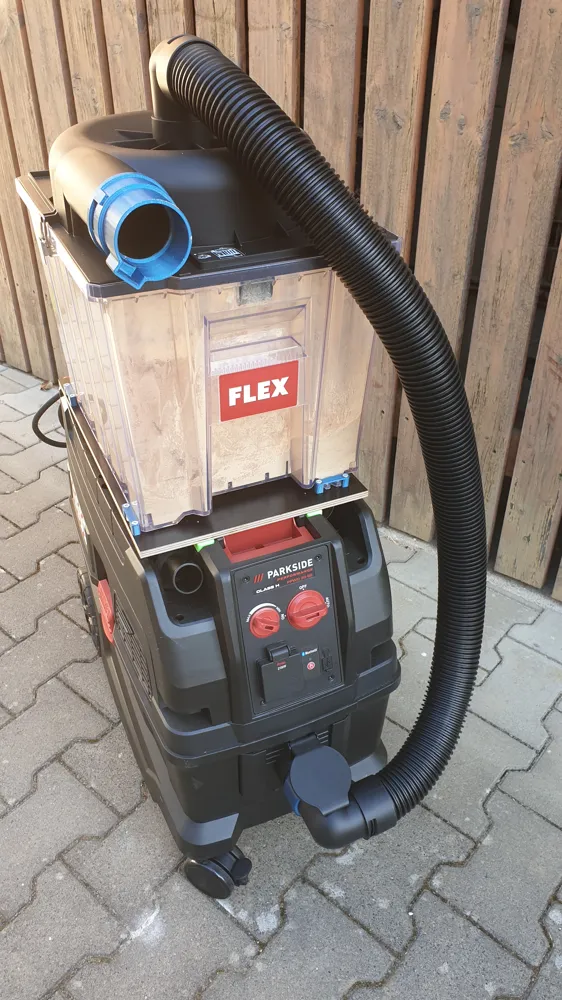

The assembly is mounted on a wooden board using retaining clips. Adapter mounts for the Parkside systainer interface are attached to the underside of the board, allowing the entire unit to be quickly installed and removed without tools.

The parts were printed in PETG to achieve a good balance of strength, impact resistance, and temperature stability.

Most of the adapter designs are based on remixes of the following original models:

Systainer Adapter for Wooden Board (by Peets Bastelstube CC BY-NC-SA) - https://makerworld.com/de/models/1089846-parkside-performance-ppwd-30-b2-clip?from=search#profileId-1083107
Hose Adapter Male (by Wolf_89 CC BY-NC-SA) - https://makerworld.com/de/models/1220416-suction-adapter-parkside-workshop-vacuum-cleaner-p?from=search#profileId-1237159
Hose Adapter Female (by Wolf_89 CC BY-NC-SA) - https://makerworld.com/de/models/1220580-suction-adapter-parkside-workshop-vacuum-cleaner-p?from=search#profileId-1237372
Hose Adapter Starmix Vacuum Cleaner Hose Holder (by Druckzilla CC BY-NC-ND) - https://makerworld.com/de/models/2270389-starmix-vacuum-cleaner-hose-holder?from=search#profileId-2476754

Note: The last adapter is licensed under a “NoDerivatives” license. However, explicit permission for its use in this project has been granted by the original designer. Many thanks for that!

🔗 Links to the used products can be found in the video description.

Have fun building!

Hello everyone,
here is a collection of adapters and mounts for the Parkside PPWD 30 B2 (should also be compatible with the A1 version).

The goal of this project is to mount a removable pre-separator directly on the vacuum cleaner. A Starmix Dustfixx pre-separator is used, which appears to be identical to models from Flex Power Tools, Metabo, and Eibenstock.

The pre-separator comes with a hose that is used for the connection between the vacuum cleaner and the cyclone. The original Parkside hose is still used on the cyclone side.

The assembly is mounted on a wooden board using retaining clips. Adapters for the Parkside systainer mount are attached to the underside of the board. This allows the entire unit to be quickly installed and removed without tools.

The project was printed in PETG to achieve a good combination of stability, impact resistance, and temperature resistance.

The adapter collection is largely based on remixes of the following models:

Note: The last adapter is subject to a “NoDerivatives” license. However, explicit permission for its use in this project has been granted by the original designer. Many thanks for that!

🔗 Links to the used products can be found below the video description.

Have fun building!
