Vacuum Pad for CNC Mill (Ø100 mm)
Print Profile(1)
Description

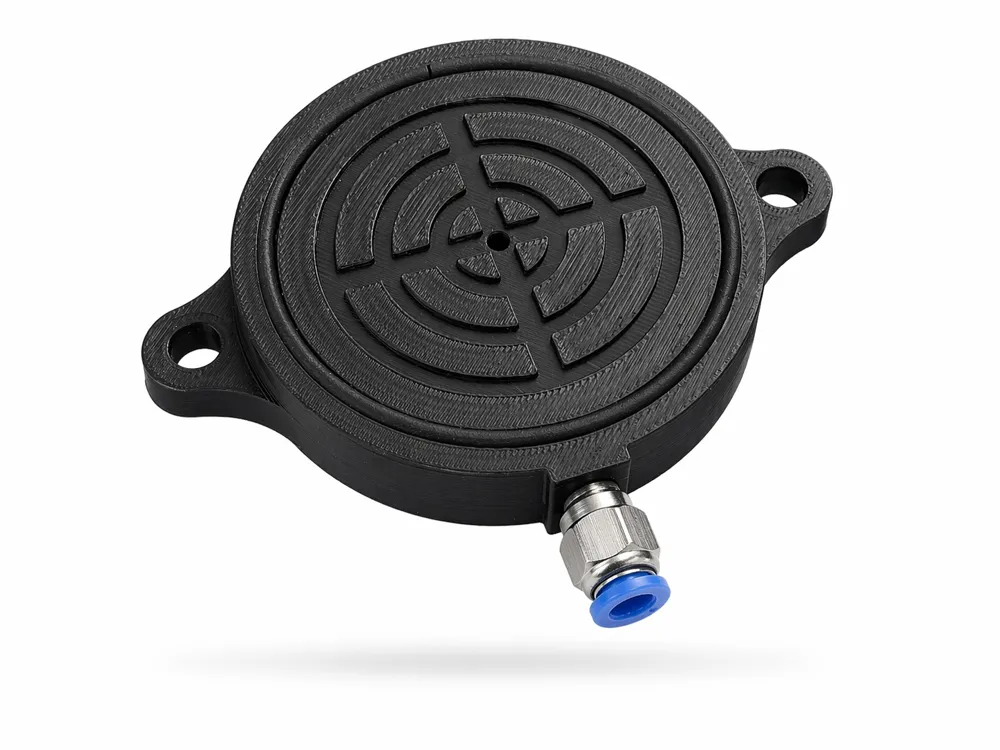

Compact, 3D-printable vacuum pad for fixing workpieces on CNC mills. Ideal for small parts, delicate surfaces, or when traditional clamping tools interfere.
Features:
Diameter: 100 mm
Overall height: approx. 15 mm
Integrated vacuum channel structure for even suction
Central vacuum port (Push-In Fitting possible)
Two mounting tabs with Ø8 mm holes
Flat design → good for low Z-heights
Advantages:
No mechanical clamping devices in the working area
Even holding force over the entire surface
Gentle on delicate workpieces
Quick to assemble and flexible in use
Applications:
Milling of plastic, wood, circuit boards
Engraving work
Thin or small components that are difficult to clamp
Print Notes:
Material: PETG or ABS recommended (PLA only conditionally)
100% infill for maximum airtightness
0.2 mm layer height or finer
Post-processing of the sealing surface (light sanding) improves adhesion
Optional: Seal (O-ring or foam rubber) for better sealing
Connection:
Standard pneumatic push-in connector (e.g., 6 mm hose)
Vacuum pump or Venturi system required
