Solid Cable and Hose Holder for Wall Mounting
Print Profile(2)
Description

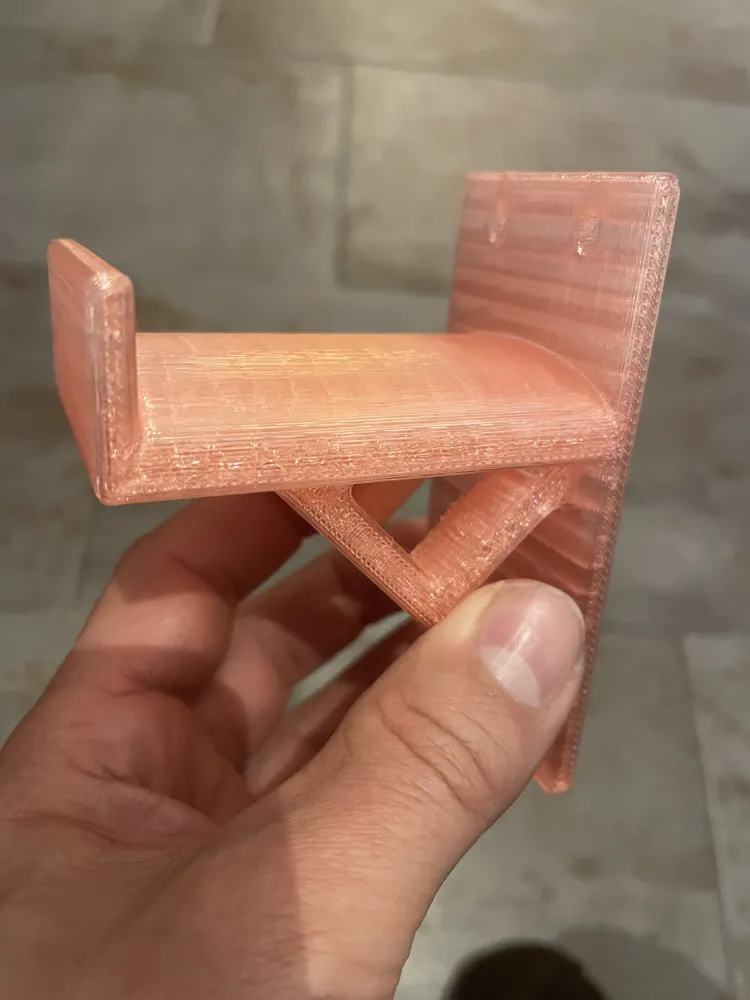

Massive cable holder, hose holder, or universal wall mount

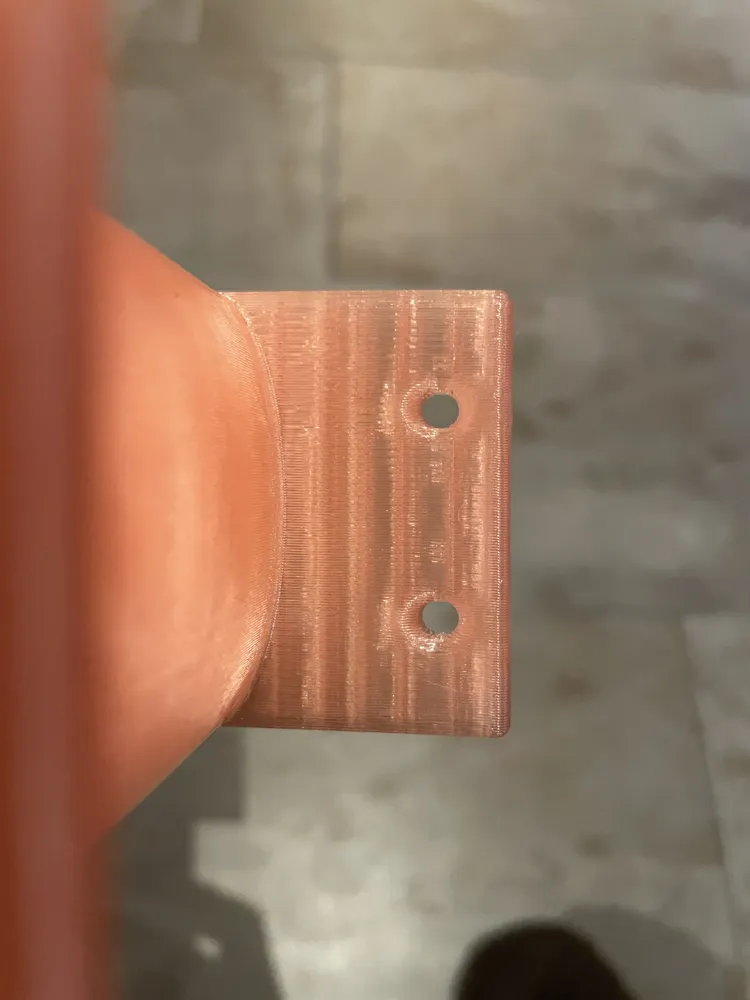

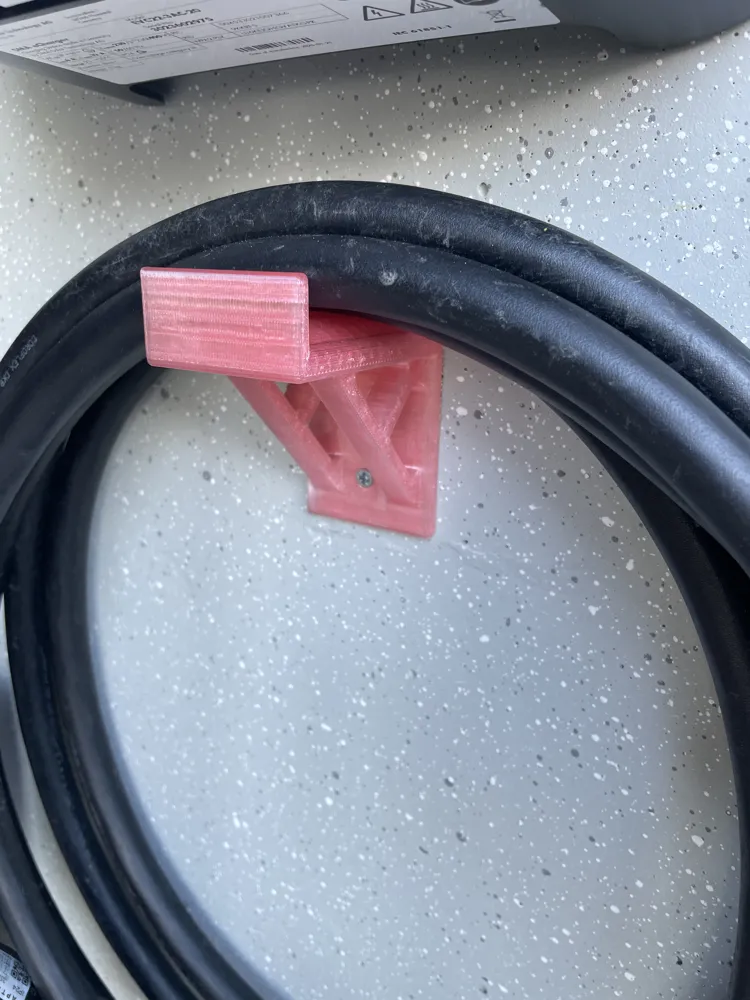

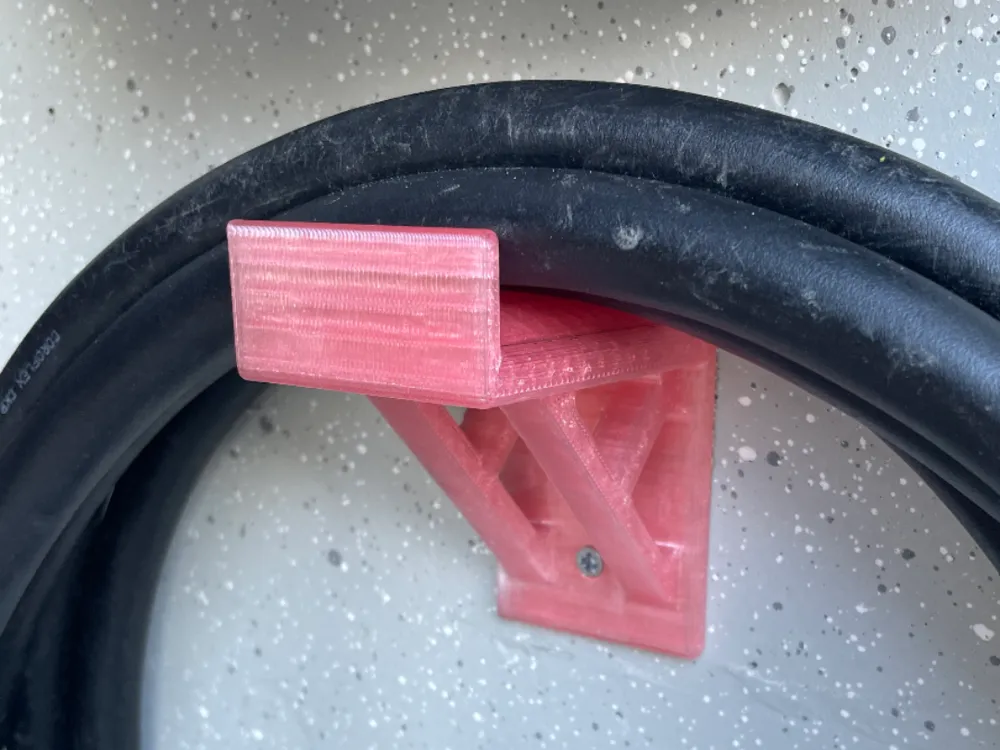

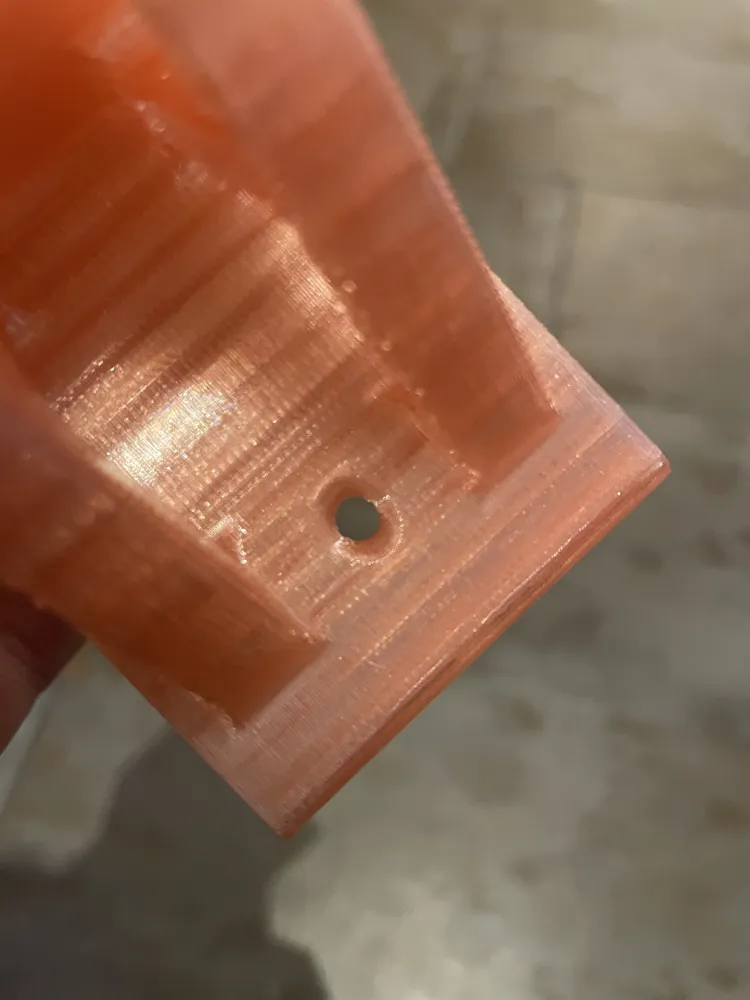

Since my wallbox didn't come with a cable holder, I quickly designed and printed a solid and strong one myself. The holder has 3 mounting holes (4mm) for countersunk screws; dome head screws with washers might be better. The holder is very solid and easily supports my heavy 4m Type 2 cable. I assume it can also hold extension cords or hoses very well

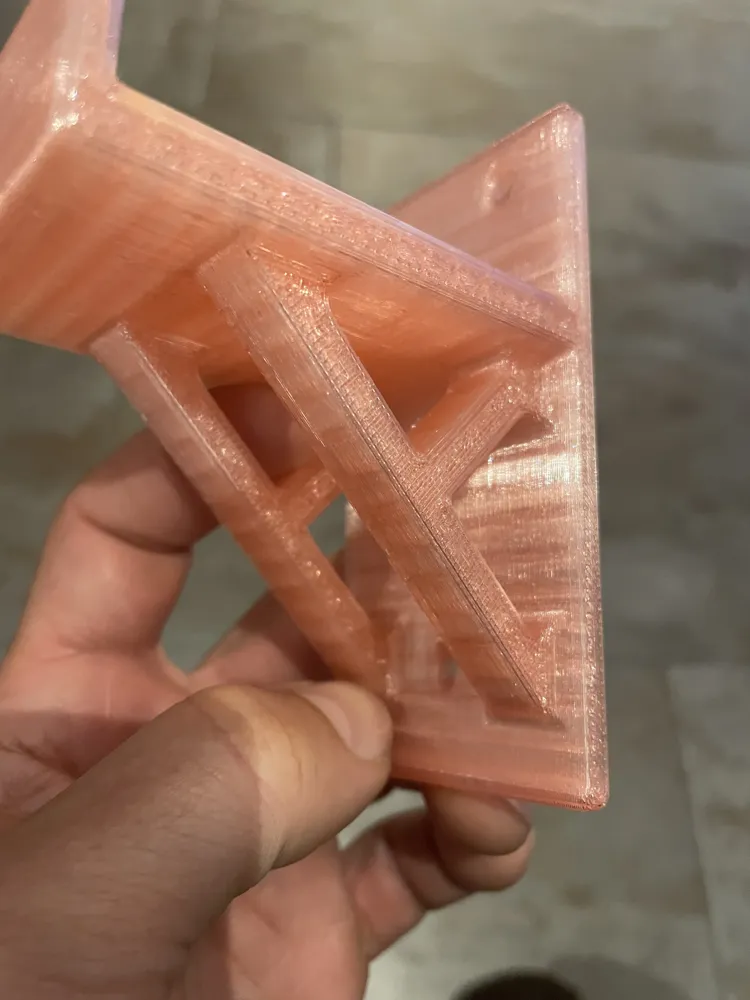

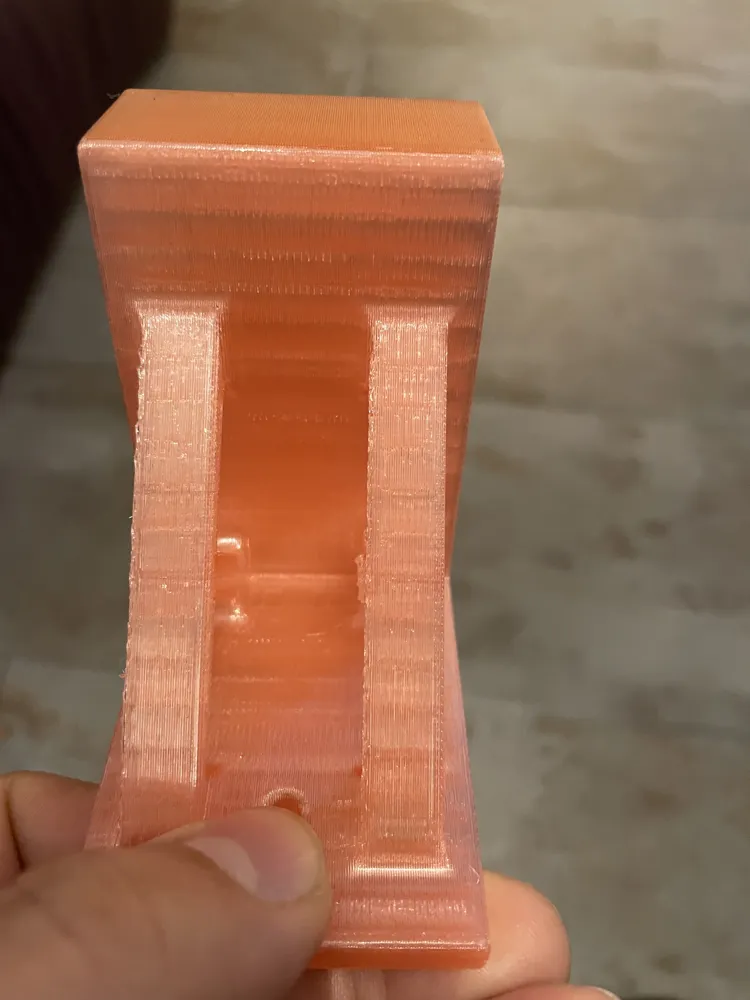

The construction is strongly supported and printed quite solidly. I used PETG (Transparent Pink - it was originally intended as a prototype, but I'm using it for now). I also recommend PETG or stronger filaments. For printing, I used a 0.6mm nozzle (I will also make a 0.4mm version)
It is important to maintain the orientation on the build plate so that the model remains robust and the lines transition directly from the wall into the holder and are not layered when, for example, it is placed on its back
Assembly: Especially if you drill into concrete, make an accurate template so the holes align perfectly. Use appropriate screws and wall plugs. I put double-sided tape behind the backplate - not necessarily for adhesion, but to compensate for unevenness. Tighten only hand-tight. Ideally, use dome head screws and/or washers
