Homemade Light Bar Holder
Print Profile(1)
Description
I'm now open for commission!
Are you a game player or designer and want something perfect for your game? Maybe you're making a new product and want something to match, or you're a player who wants their game to be more fun, look better, and be easier to play? If you want something designed or printed, get in touch with me at CSDesignCommissions@proton.me with the scope of what you want.
Although my publicly uploaded work will always be completely, 100% free, if you've downloaded my work and would like to support me then you can tip me on KoFi.
______________________________________________________________________________________

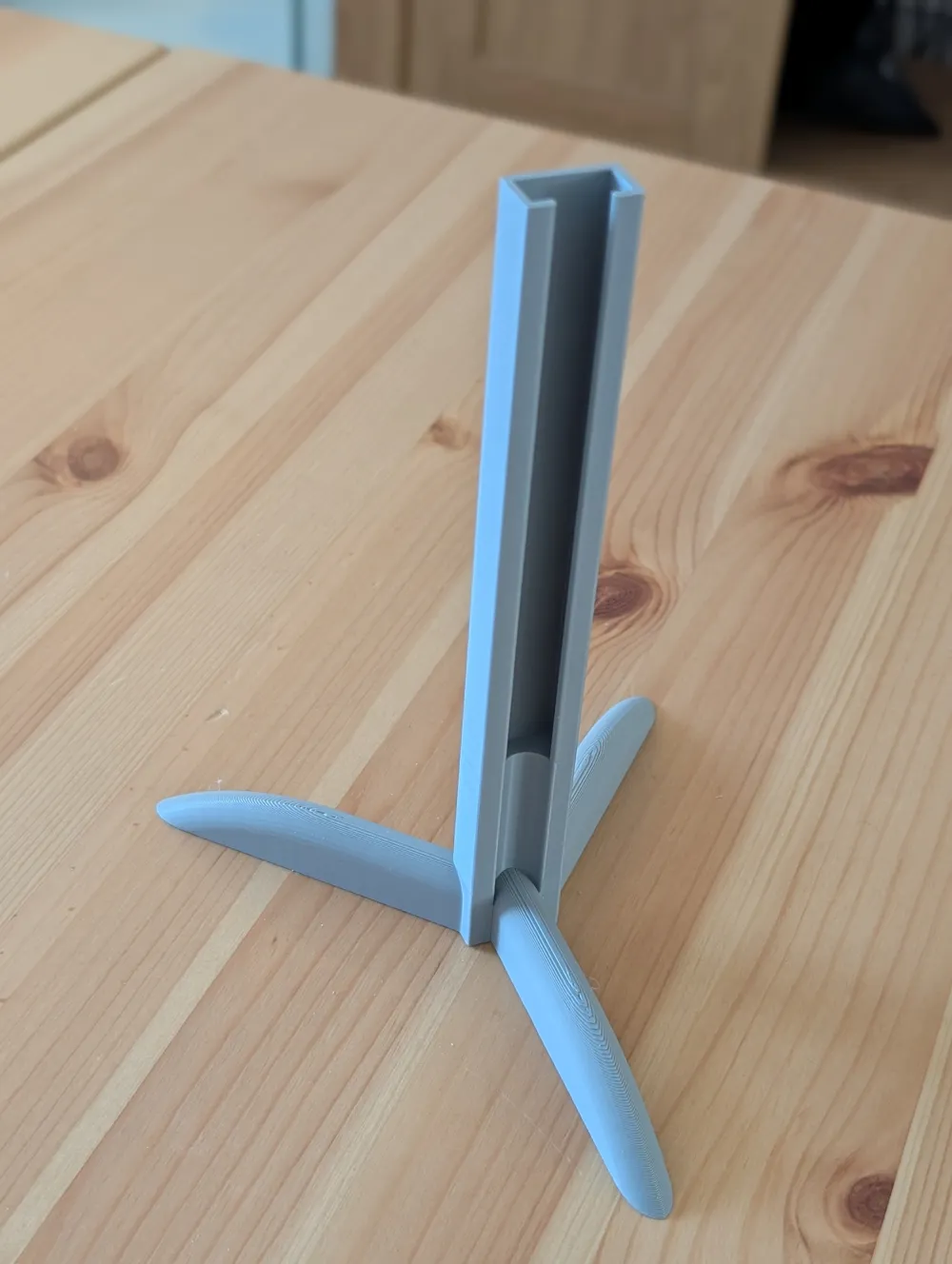

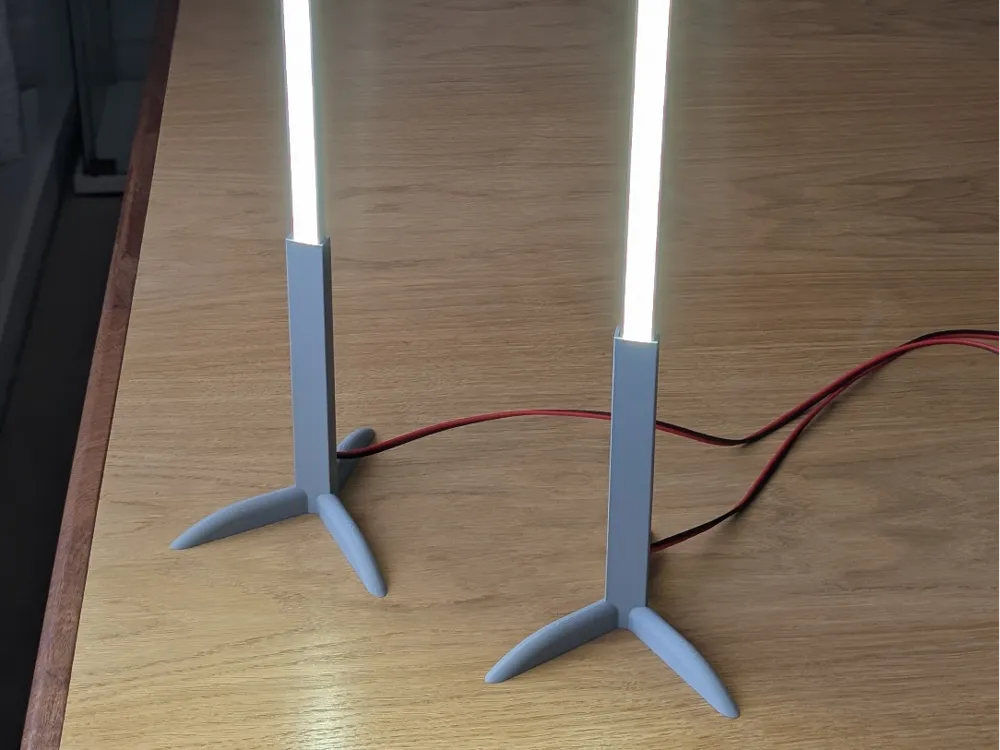

I wanted some light bars to use to make my model photography better, so I made my own! These are designed to hold custom light bars based on adding LED strip to a mounted profile. These are really solid and don't tip over at all. They've been designed to allow the soldered LED wires to come out at the bottom with plenty of space.
What you'll need:
LED strip - any will do as long as it fits in the channel.
LED mounting profile - this is designed specifically with this (https://www.screwfix.com/p/essentials-aluminium-led-mounting-profile-1m/9557k) in mind. So if you buy other profiles you'll need to edit the raw file (included) to change the size.
An LED driver (https://www.screwfix.com/p/robus-vegas-12v-constant-voltage-led-driver-15w/966ch)
Wire & soldering materials
A plug
- Cut the mounting profile in half with a saw and sanded it a bit.
- Stick the LED strip on the inside of the mounting profile.
- Solder the output connectors of the driver to the +/- pads on the LED strip.
- Wire the input connectors of the driver to the plug.
- Print the holders, place them in and enjoy.
