AMS PTFE Tube Multi Tool – Remove, Fix & Cut Tool
Print Profile(3)
Bill of Materials
Description

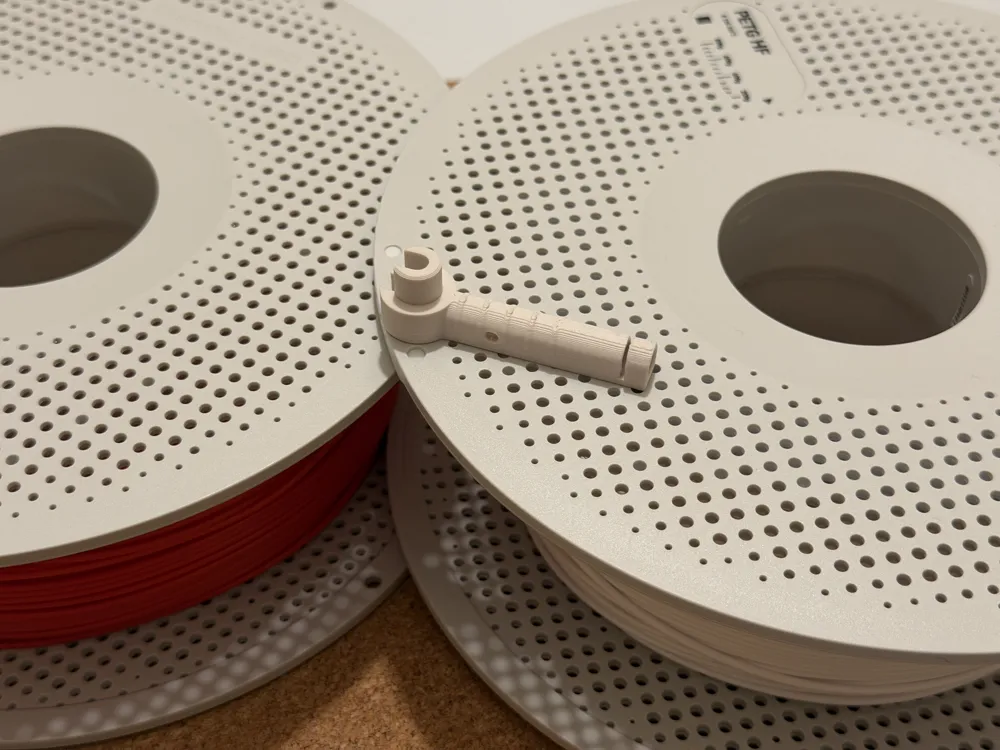

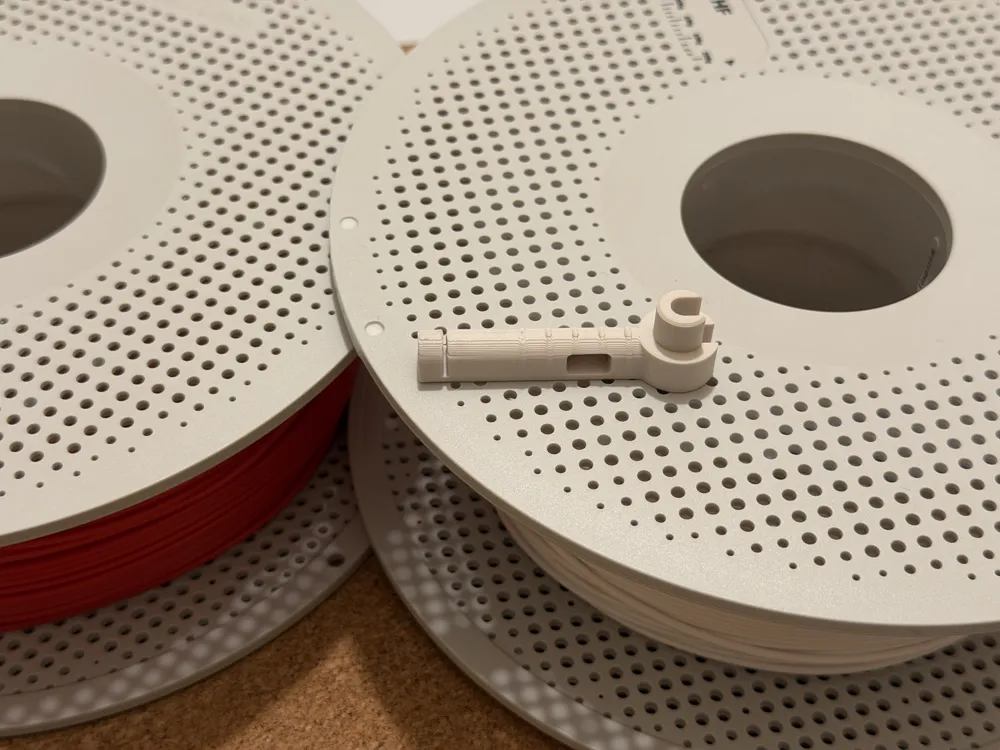

A compact multi tool for Bambu AMS PTFE tube maintenance.
Designed to help remove, fix and cut PTFE tubes without damaging the fittings.

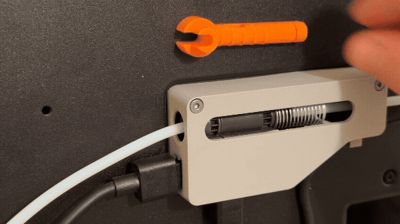

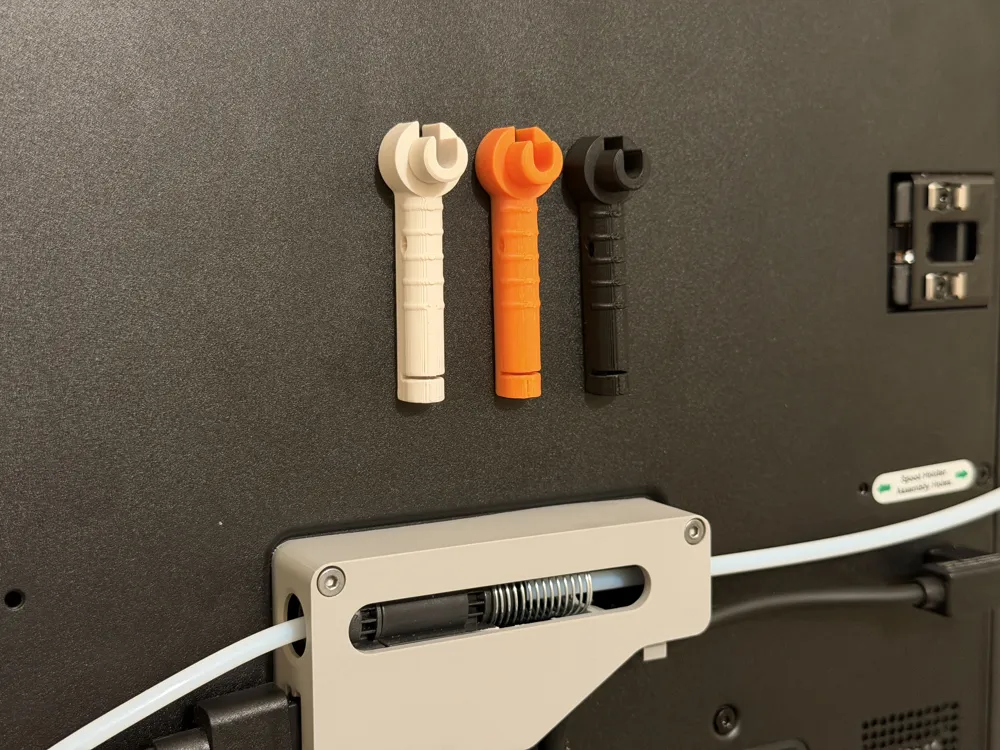

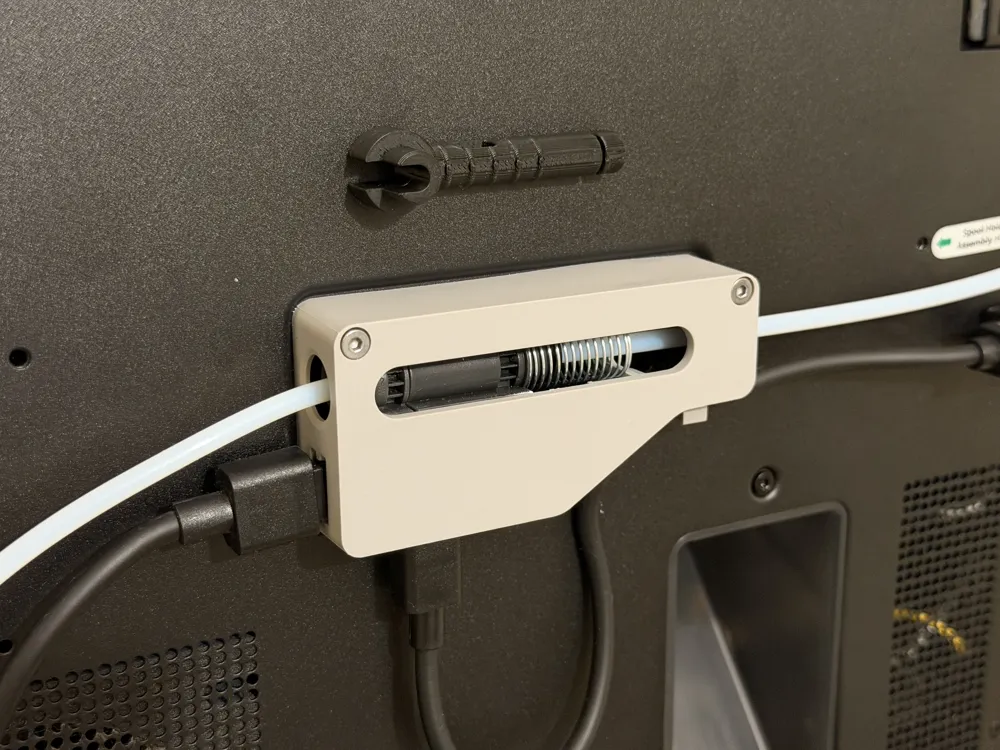

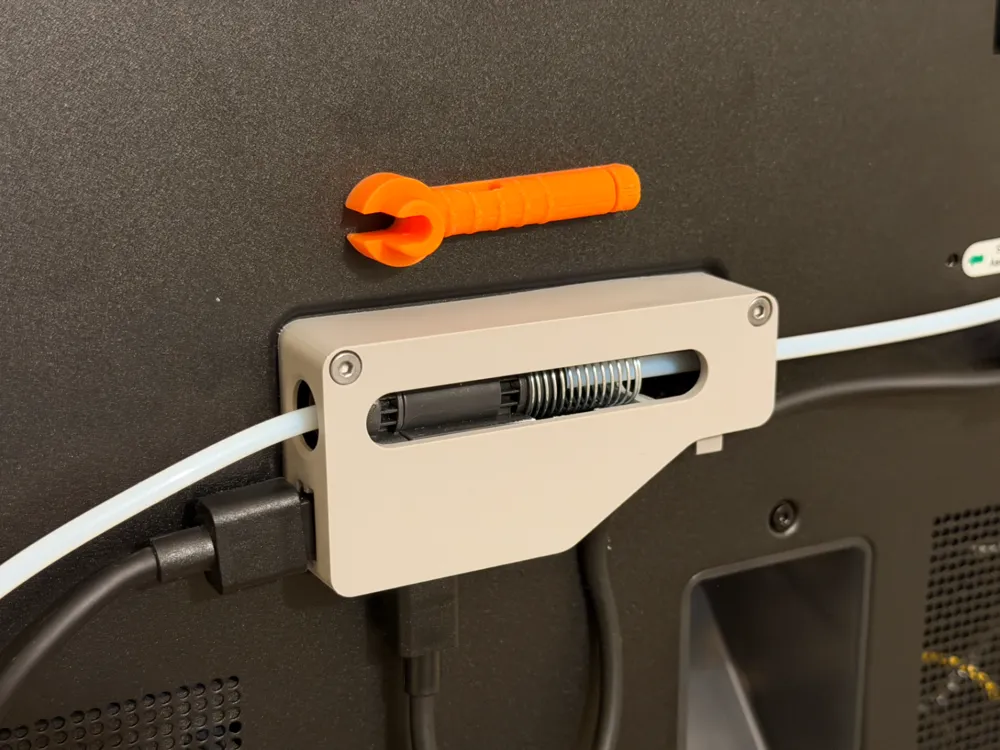

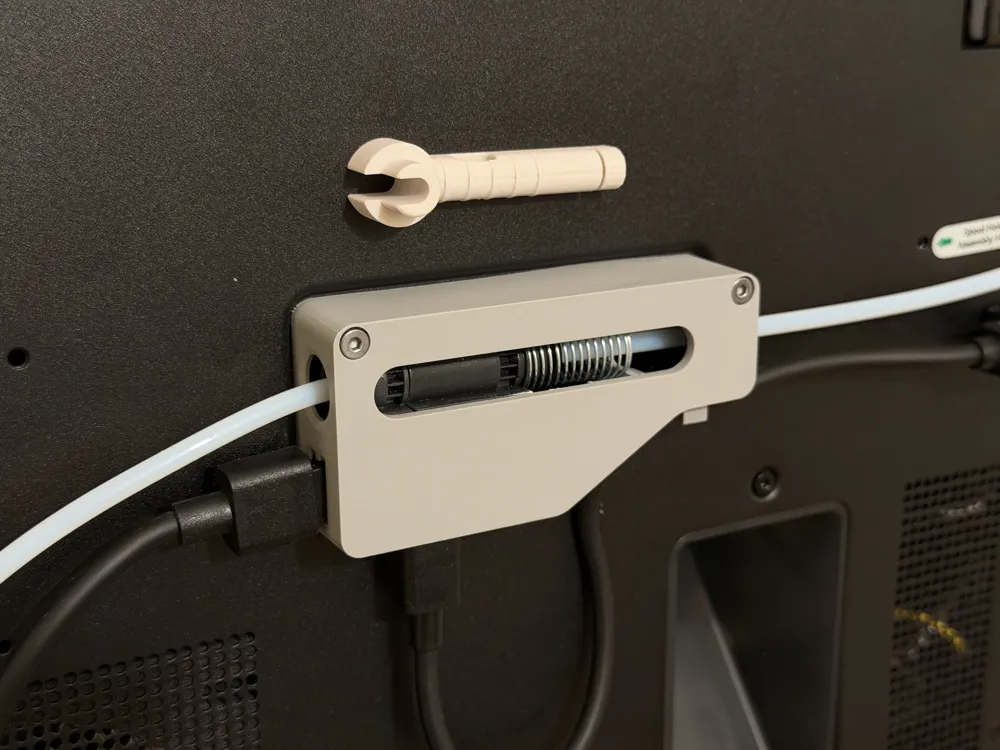

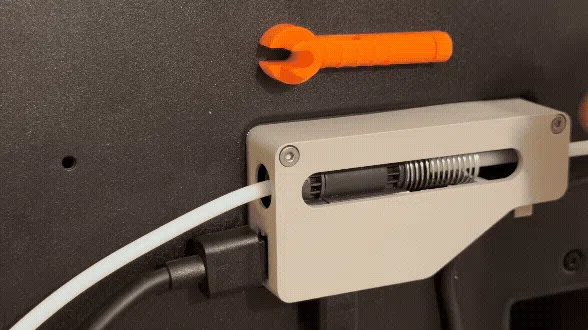

The tool can also be stored directly on the back of the printer with the optional magnet versions.
Included print profiles:
- Standard – No Magnet
- Glue-in Magnet – 5x2 mm
- Embedded Magnet – 5x2 mm / Pause Print
Features:
- PTFE tube release tool

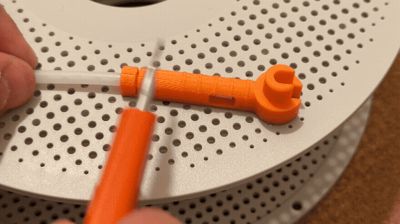

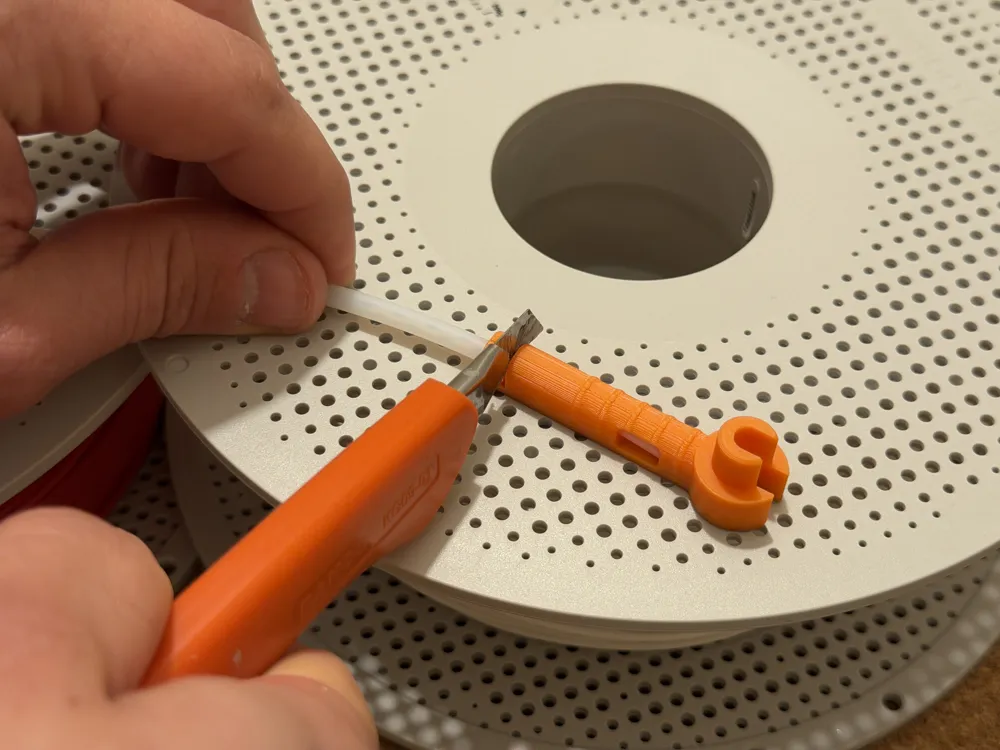

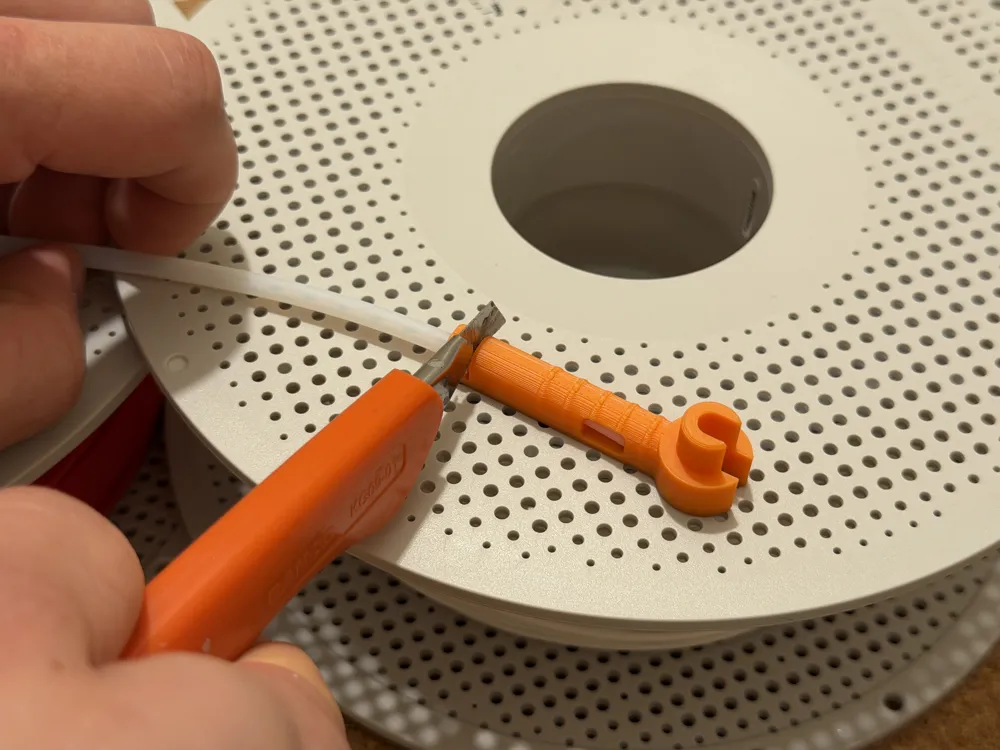

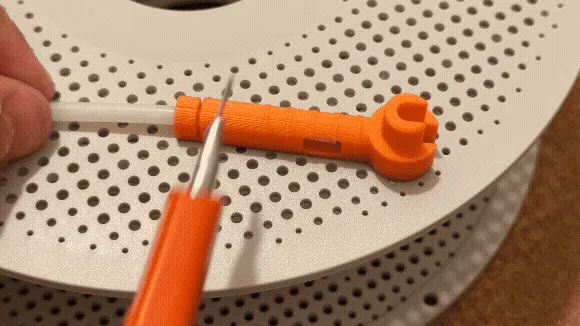

- Cutting guide for PTFE
- Push-through hole for stuck or bent PTFE tube

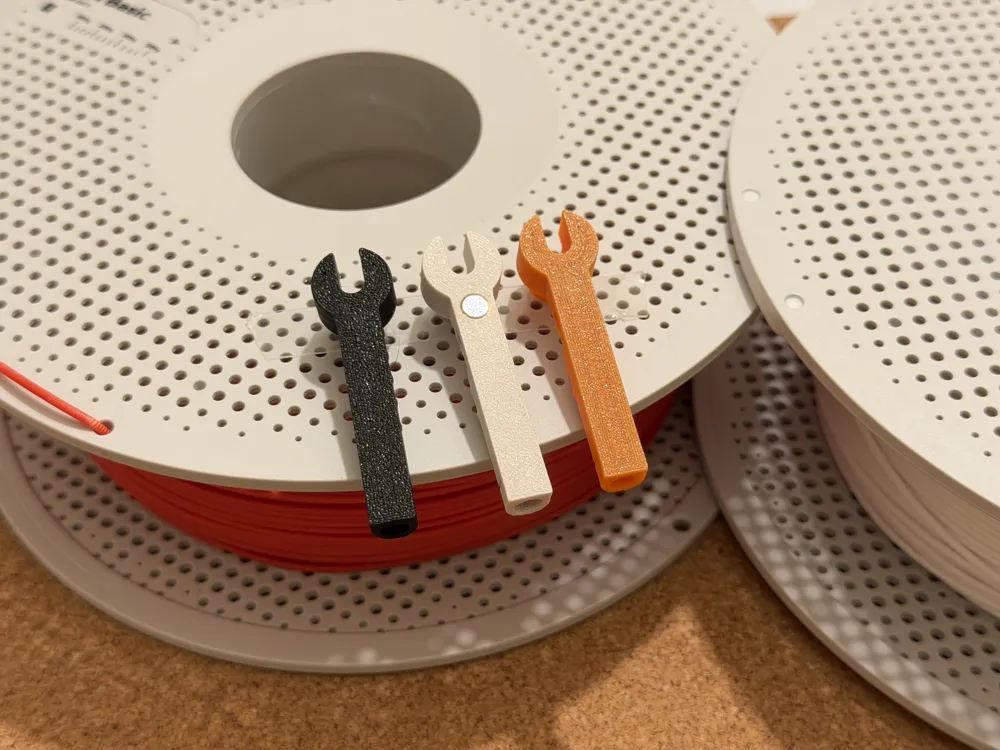

- Optional 5x2 mm magnet storage
- No supports needed
Print flat for best strength.
Magnet embedding instructions (5x2 mm):

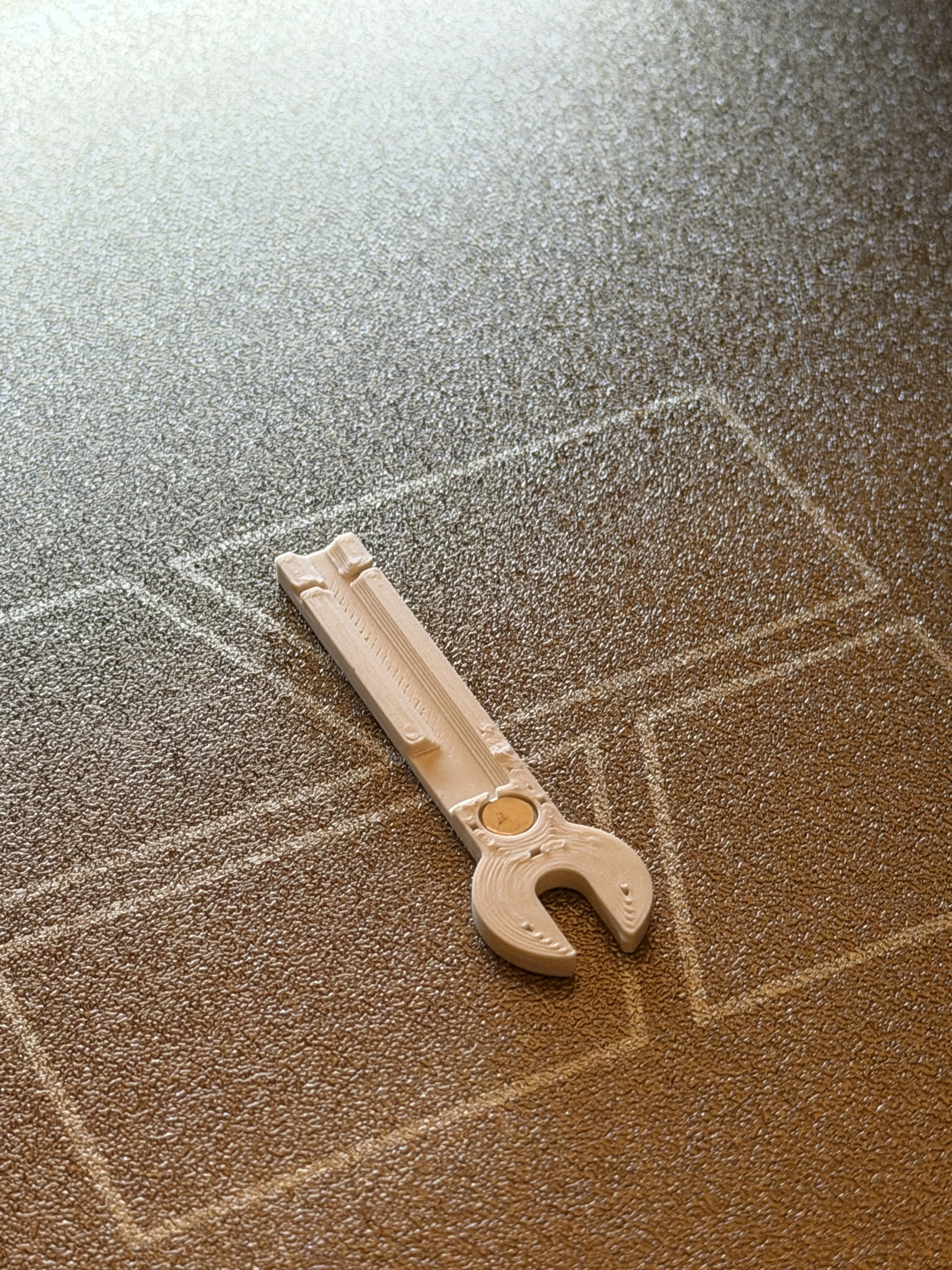

This version is designed to pause automatically at layer 14.
1. Start the print as normal.
2. When the printer pauses at layer 14, insert a 5x2 mm magnet into the slot.
3. Make sure the magnet sits flush and fully inside the pocket.
4. Resume the print.
The printer will continue and seal the magnet inside the part.
Tip:
Check magnet polarity before inserting if you plan to mount it on your printer.
