masking tape applicator

MaskingTape applicator – Fast & Accurate Masking

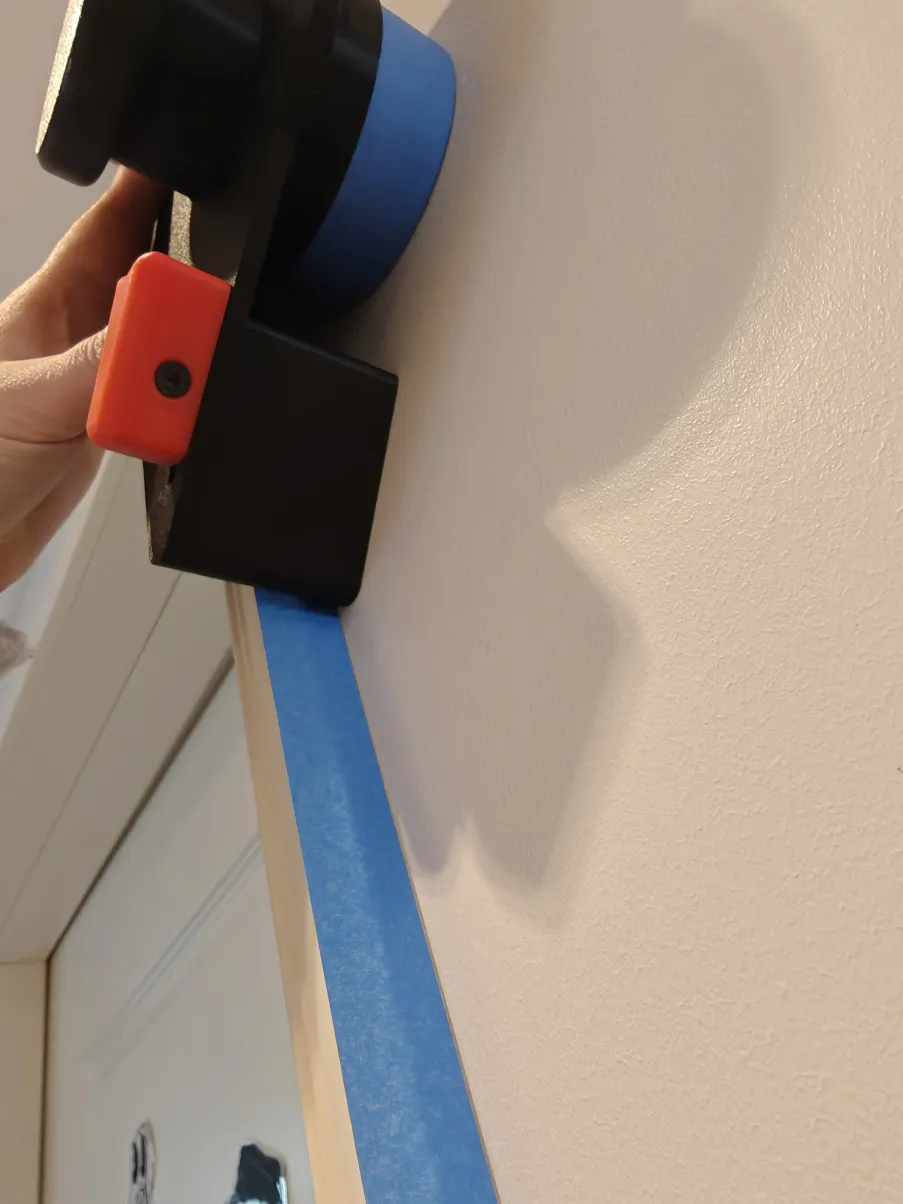

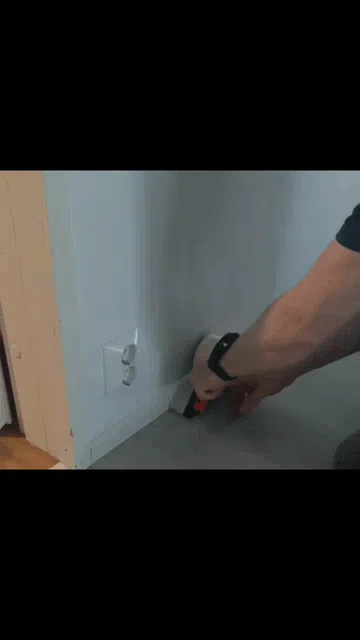

Tired of struggling with uneven tape edges? This Masking Tape applicator is designed for speed and precision. It allows you to apply masking tape quickly and easily, keeping it perfectly flush against the edge of your target area.

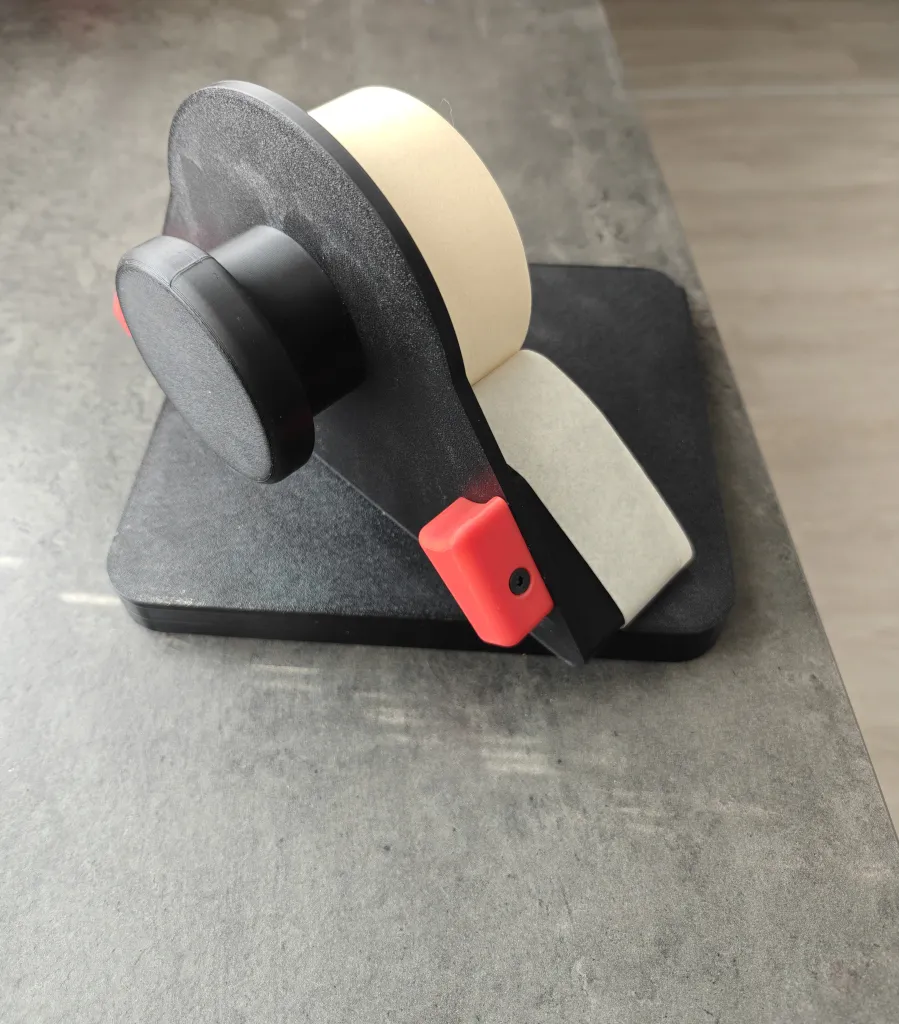

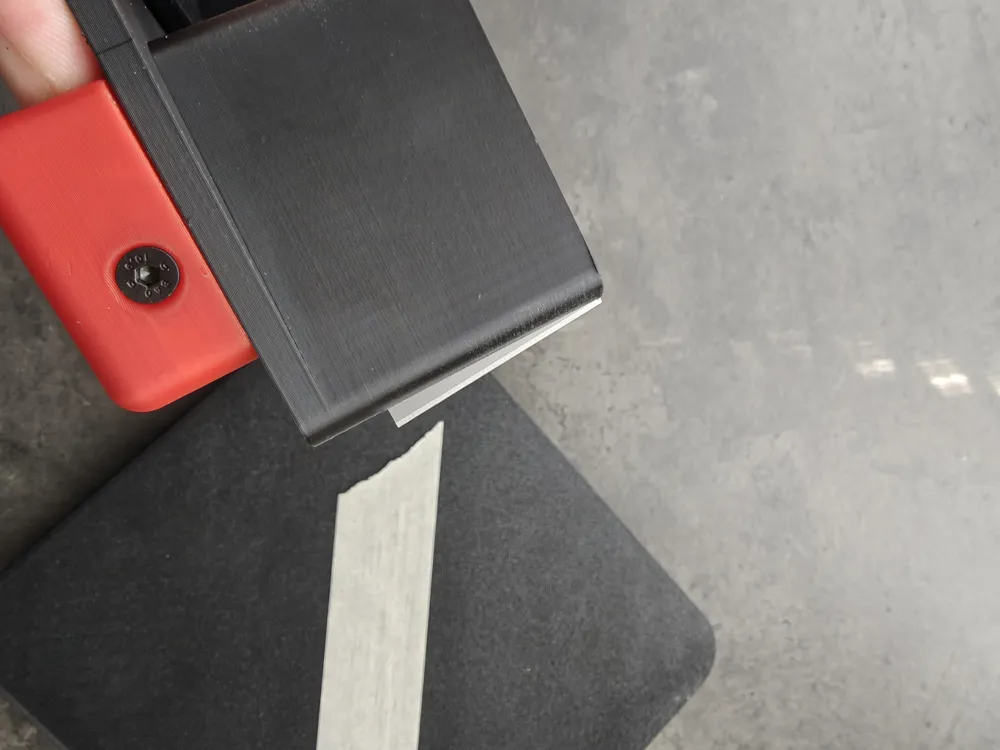

The tool features integrated cutters at both ends, making it a breeze to trim the tape exactly where you need it. It is fully adjustable with spacers to ensure your tape roll sits exactly where it should.

Features

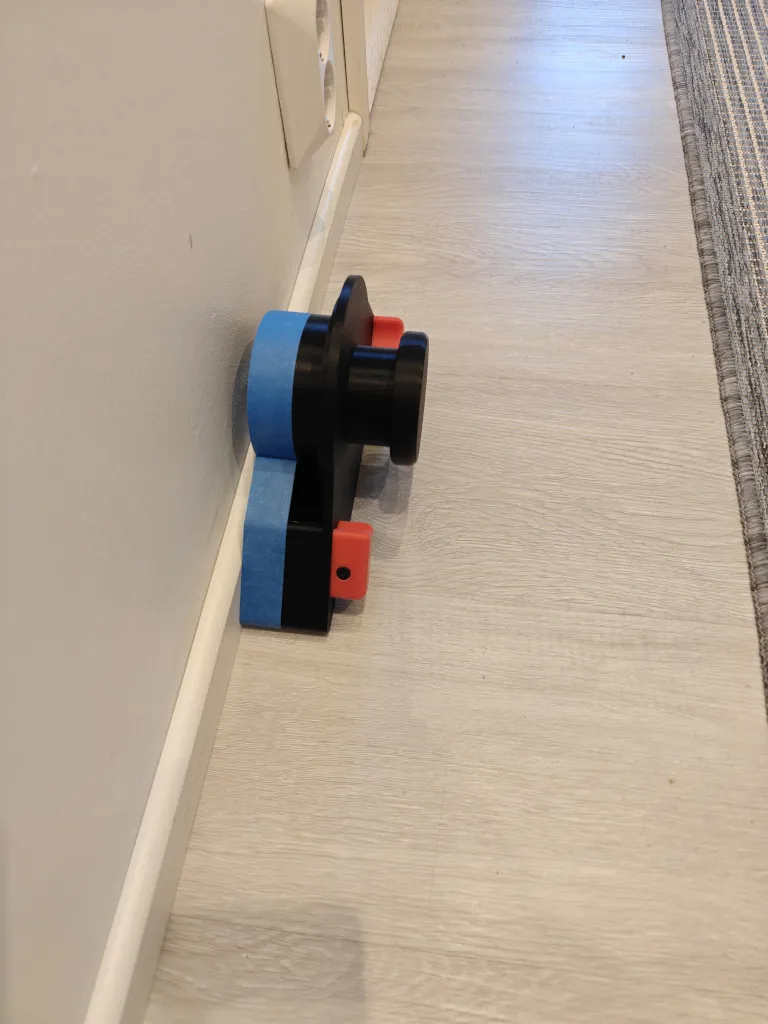

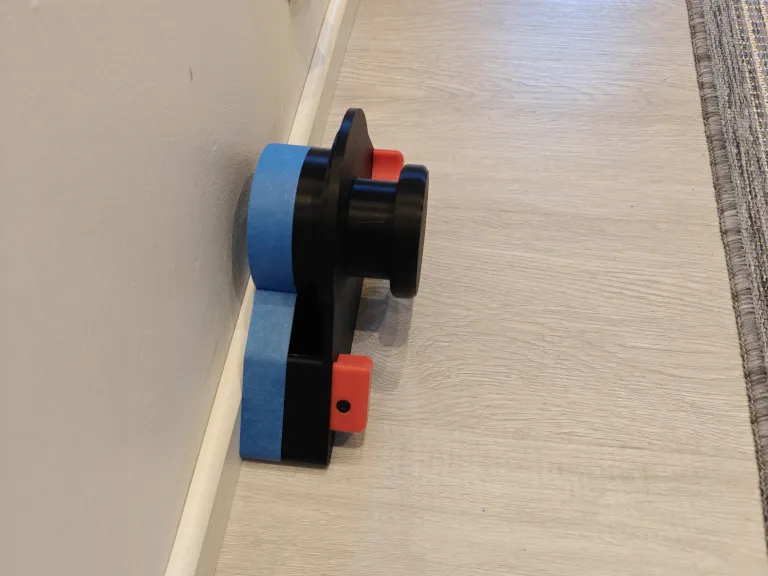

• Edge-to-Edge Precision: Designed to run flush against walls, trim, or components.

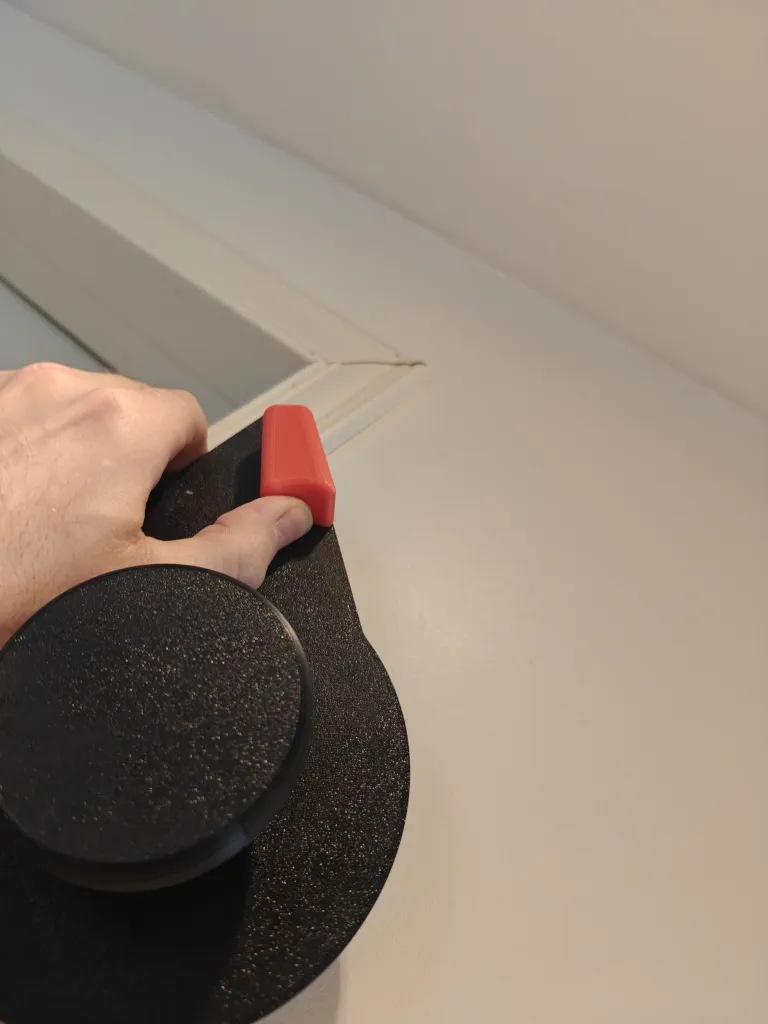

• Dual Cutters: Built-in cutter for 40mm scraper blades at both ends for quick, clean cuts.

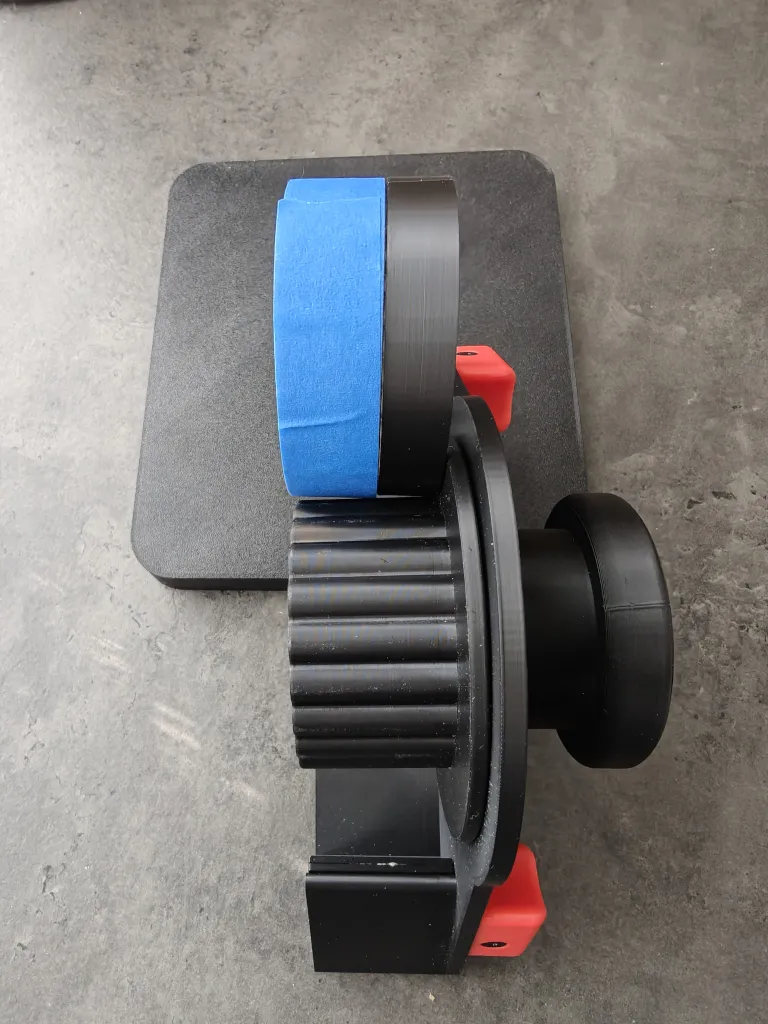

• Adjustable Alignment: Includes spacers to position the tape roll perfectly on the axle.
• Smooth Operation: 608 bearing ensures a smooth rolling experience.

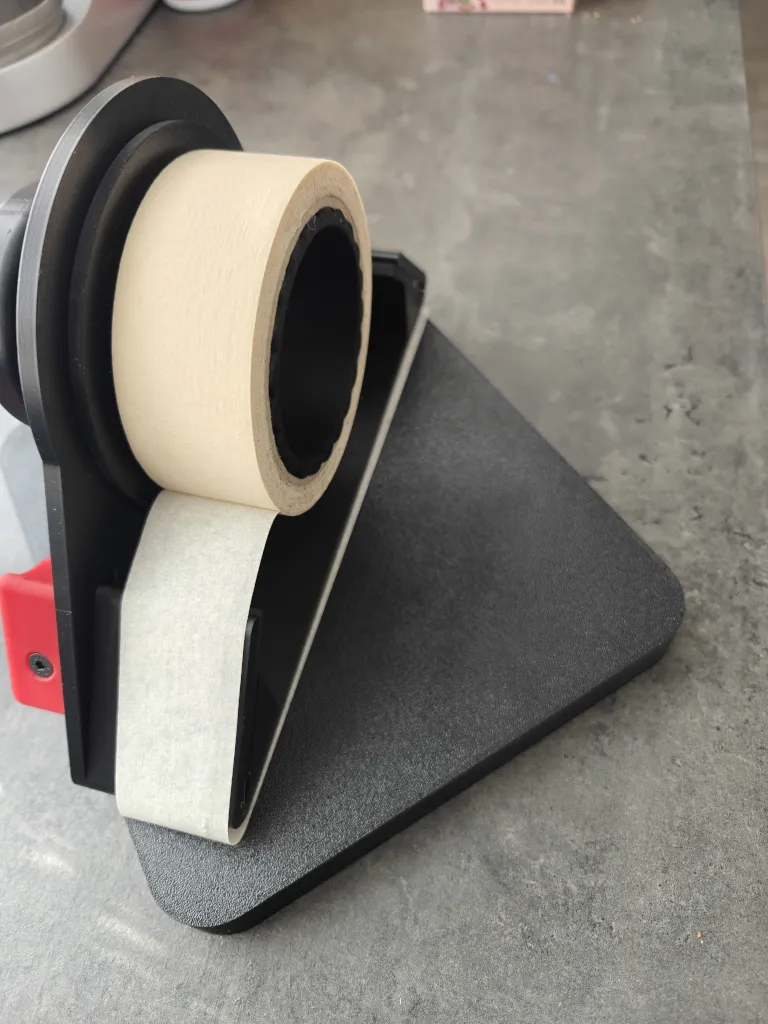

• Compatibility: Fits standard tape rolls with a 76mm inner diameter and up to 40mm width.

Bill of Materials (BOM)

To assemble this tool, you will need the following hardware:

• 6x M4x20 Countersunk screws
• 6x M4
•  Nuts
• 1x M8x40 Bolt
• 1x M8 Nut
• 2x 40mm Scraper blades
• 2x 608 Bearing
• 2x 5x40 spring
• A small amount of superglue for assembly
