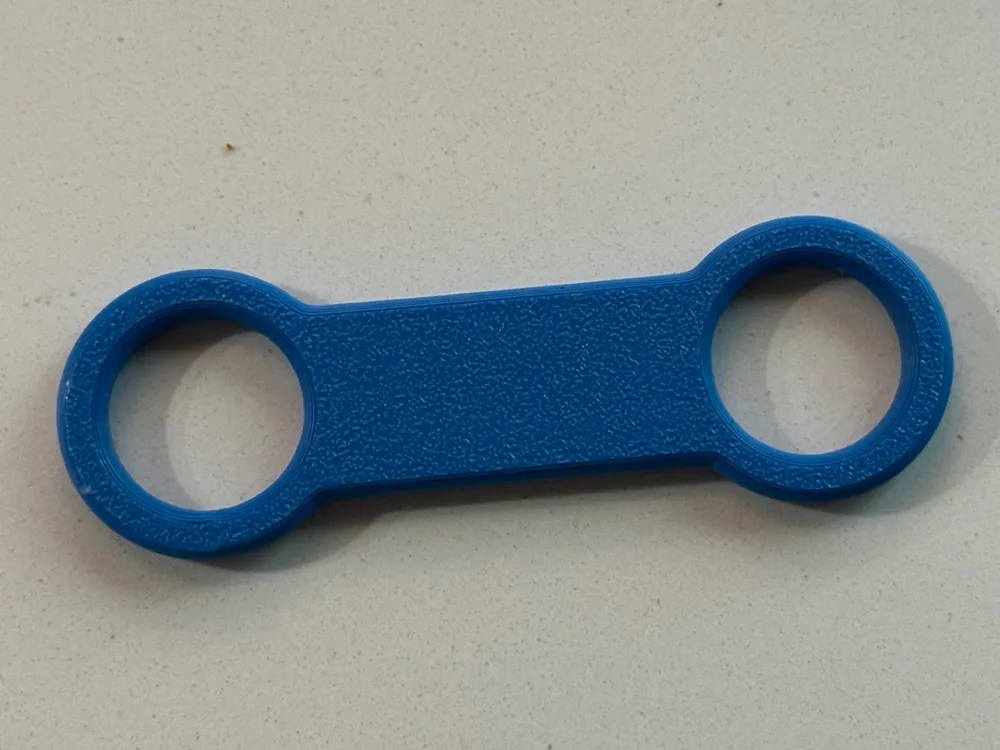

Dogbone Antenna Insulator

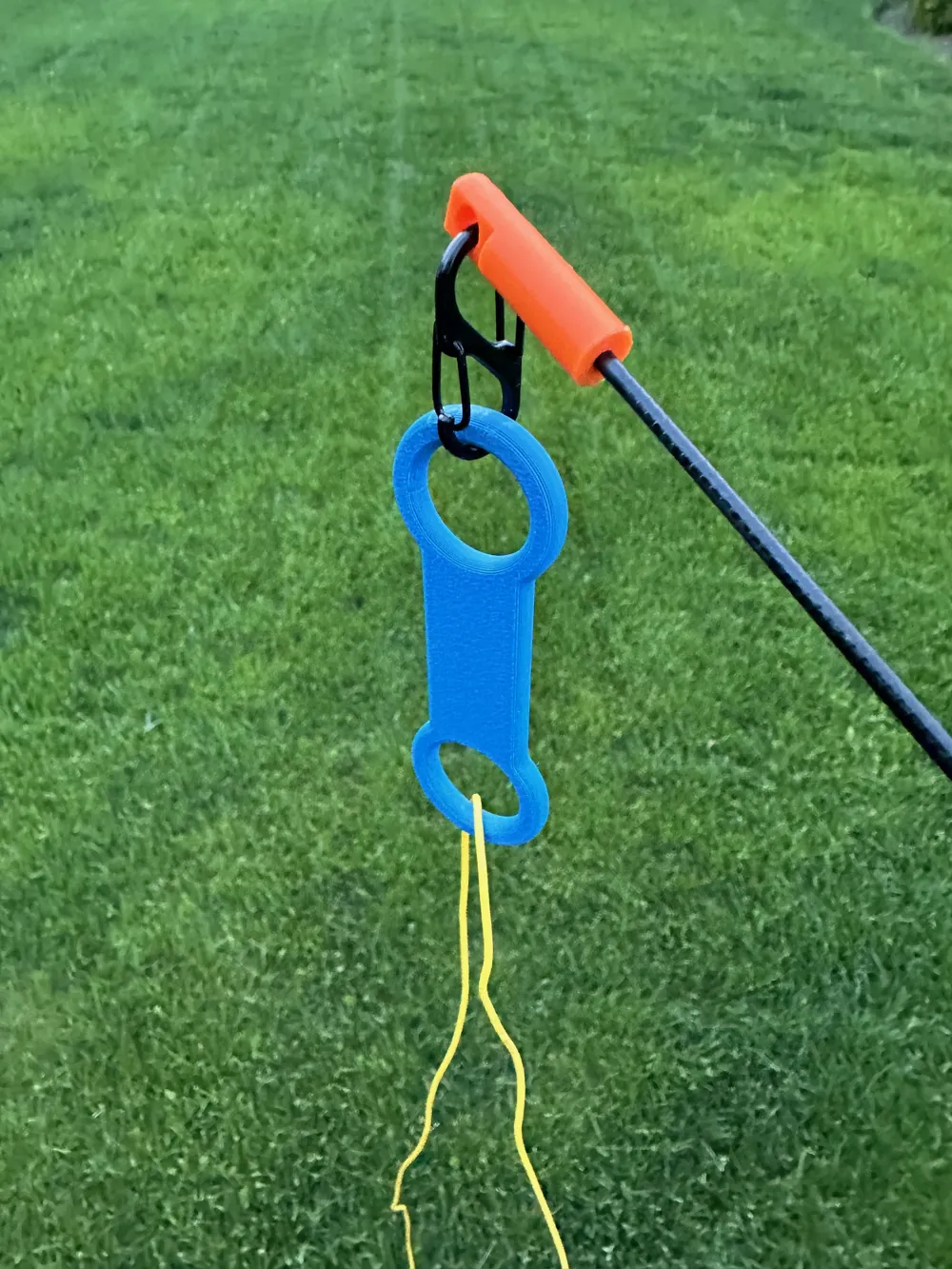

Rugged, double-eyelet extension designed to bridge the gap between your telescopic mast tip and your antenna wire or guy lines. Its "dogbone" geometry provides a flat, stable platform that prevents paracord from tangling with your hardware and makes it significantly easier to clip and unclip your gear in the field.

Features

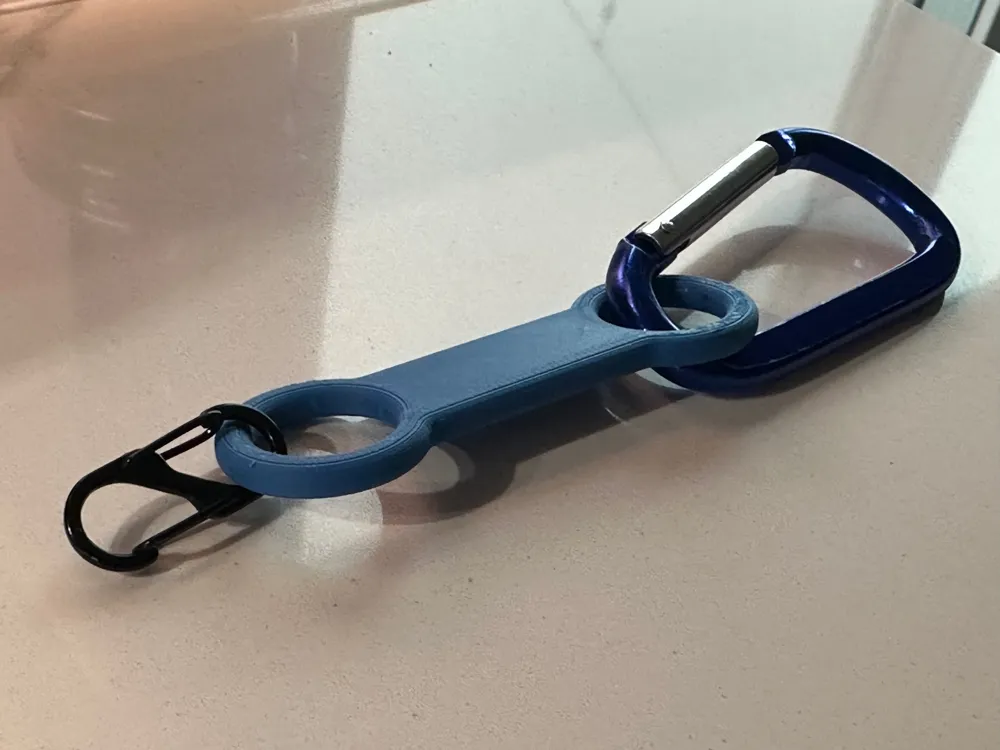

• High-Clearance Eyelets: Large openings designed to accommodate multiple carabiners.
• Strain Relief: Acts as a mechanical buffer to prevent sharp bends or chafing on your primary antenna wire.
• Ergonomic Handling: The flat center section provides a solid grip when you're wearing gloves or working in cold POTA/SOTA conditions.
• Modular System: Designed to work with my Pole Cap for Portable Antennas and Portable Antenna Pole Base.

Print Settings

• Material: PETG or ASA
• Walls: 6 Wall Loops (Use a "Strength" profile to ensure the eyes don't elongate or snap under high wind loads).
• Infill: 25%

Customizing the Fit

If you need larger eyelets for heavy-duty carabiners or smaller ones for lightweight micro-links, simply use the Scale tool in Bambu Studio or your preferred slicer.
