Handle Routing Template
Print Profile(1)
Description
This is a custom-designed routing template for creating clean and consistent handle cutouts.
The model was designed in Fusion 360 and 3D printed for precision and ease of use.

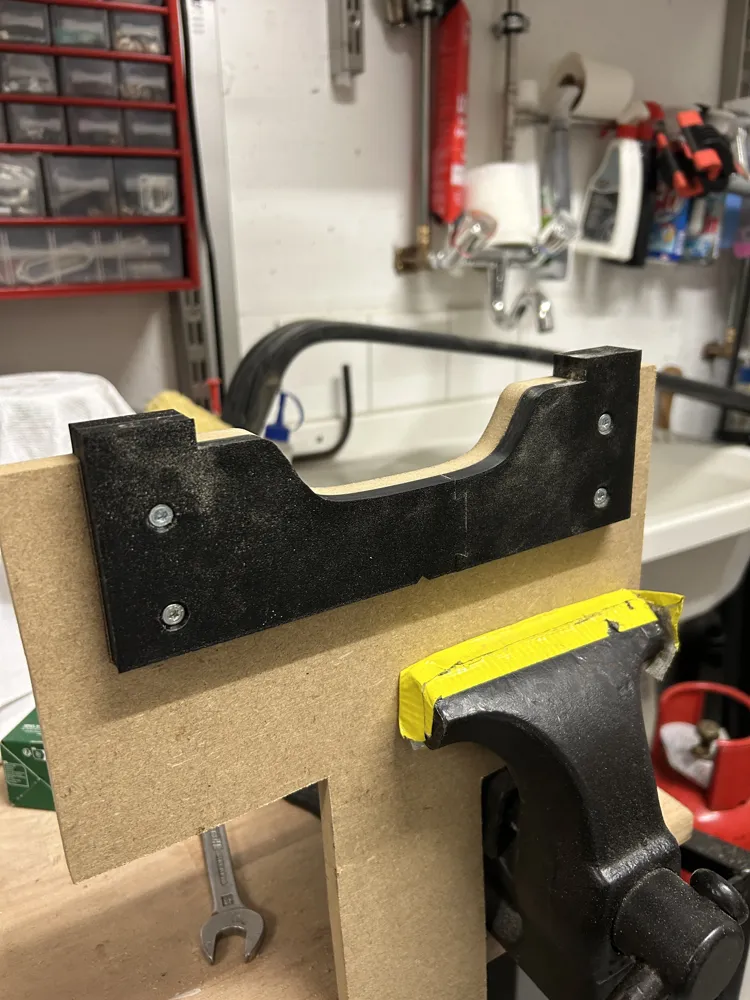

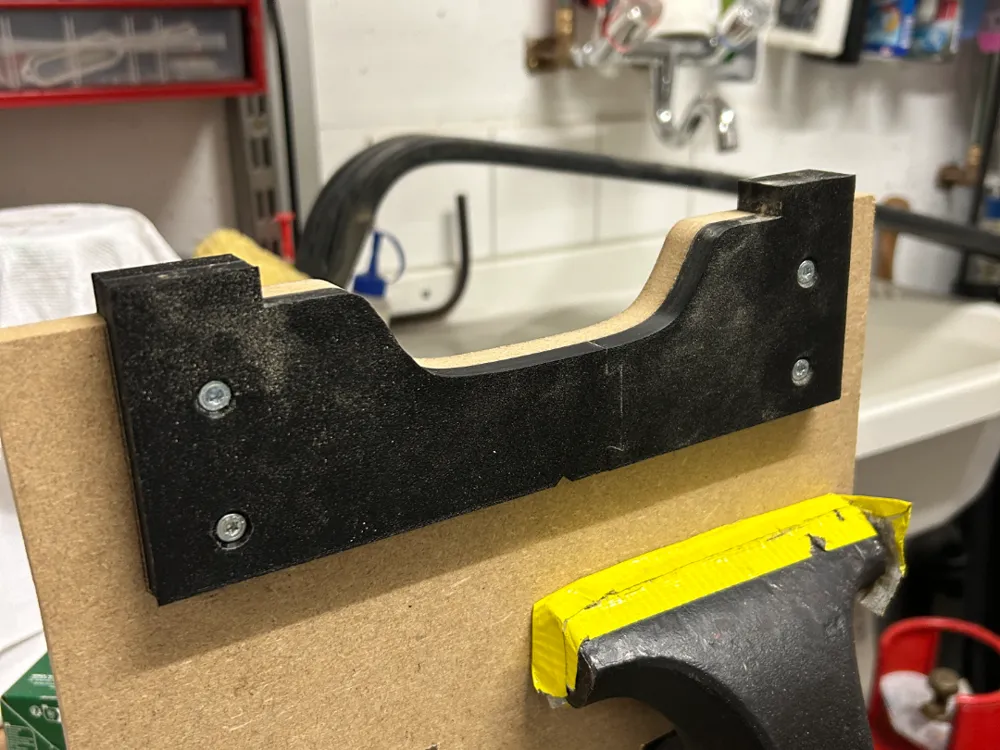

It is mounted onto a wooden base plate, allowing it to be securely clamped to the workpiece. This setup ensures stability and repeatable results, making it ideal for woodworking projects such as drawers, boxes, or custom furniture.
🔧 Features:
- Clean and repeatable handle cutouts
- Easy mounting on a wooden base
- Stable and precise guiding surface
💡 Notes:
- Pre-cut the handle opening roughly before routing to reduce stress on the router bit
- Best used with a flush trim router bit with bearing
- Light sanding may improve the final result depending on print quality
