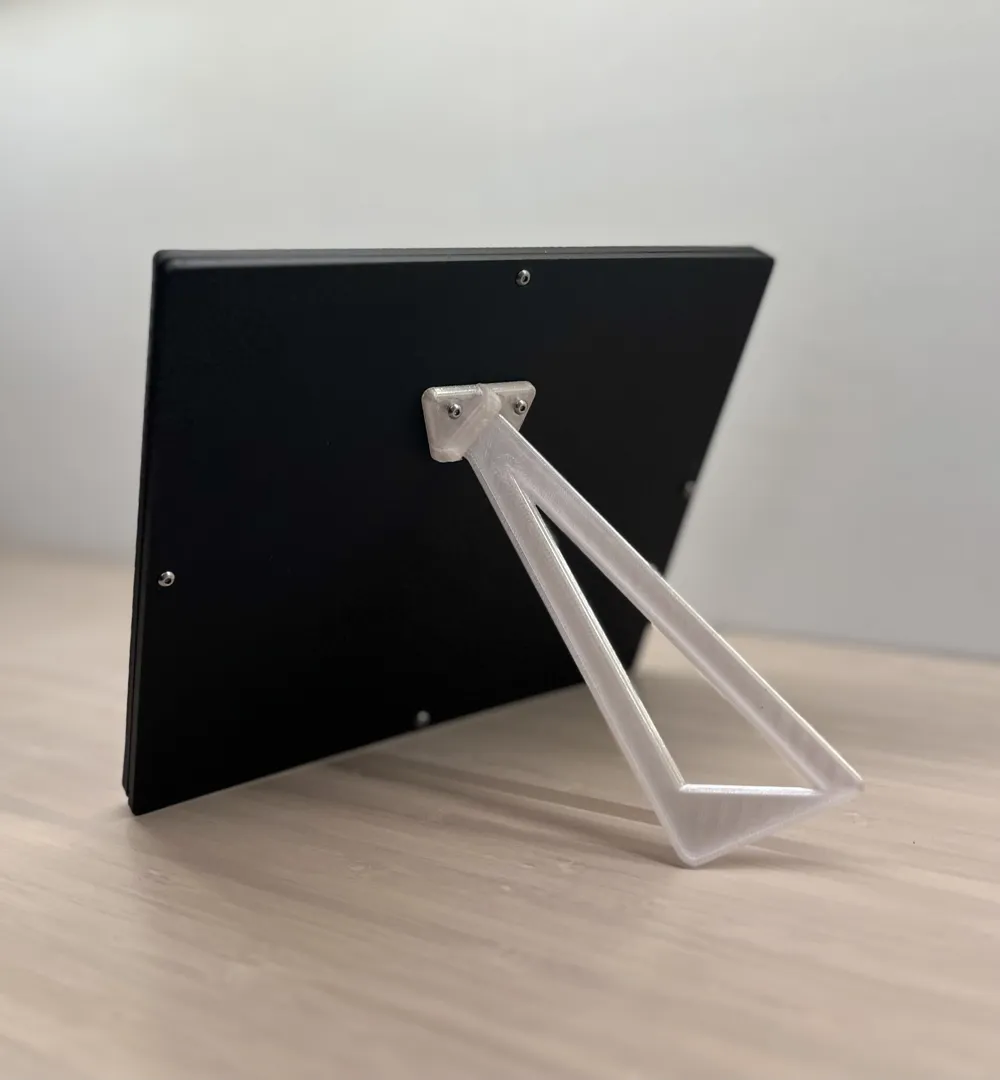

<h2>Minimalist Picture Frame (4×6&#34;) – Print Profile</h2><p>This profile is based on a standard <strong>0.20 mm layer height</strong>, with adjustments to improve surface finish, part fit, and structural reliability.</p><h3>Plate Layout</h3><p>The model is organized across five plates for clean printing and part separation:</p><ul><li><strong>Backing</strong></li><li><strong>Lower Matting</strong></li><li><strong>Upper Matting</strong></li><li><strong>Top Frame</strong></li><li><strong>Bracket (Stand)</strong></li></ul><h3>Key Settings</h3><p><strong>Ironing Enabled</strong><br>Applied to visible top surfaces for a smoother, more refined finish — especially effective on the frame face and matting.</p><p><strong>Aligned Rectilinear Top Surfaces &amp; Infill</strong><br>Improves visual consistency across flat areas and reduces surface artifacts.</p><p><strong>Arachne Wall Generator</strong><br>Enhances wall smoothness and dimensional accuracy, particularly on edges and corners.</p><p><strong>Increased Infill (Bracket Only)</strong><br>The stand/bracket uses 100% infill for improved strength and stability during use (still very minimal material use for this part).</p><h3>Printing Notes</h3><ul><li><strong>No supports required</strong> for all components</li><li>Print parts flat for best surface quality</li><li>Ensure clean top layers for best visual result (especially if using ironing)</li></ul><h3>Material Recommendations</h3><ul><li><strong>PLA</strong> – Ideal for clean finish and indoor display</li><li><strong>PETG</strong> – Optional for added durability</li></ul><p>Matte filaments work particularly well with this design.</p><h2>Feedback</h2><p>If you use this profile, I’d be interested to hear how the surface finish and assembly fit turn out. Photos are always appreciated.</p>

0.2mm layer, 2 walls, varied infill

You may create derivative works based on this object, provided that all such derivative works are published exclusively on the MakerWorld platform and include proper attribution to the original creator. You may not share, upload, host, distribute, or publish this object—or any derivative work of this object—on any other digital platform, marketplace, or distribution channel. Commercial use of this object and any derivative works is strictly prohibited. This includes, but is not limited to, selling, renting, sublicensing, or using the object in any context in which you receive monetary compensation or other financial benefits.

This user content is licensed under the MakerWorld Exclusive License.

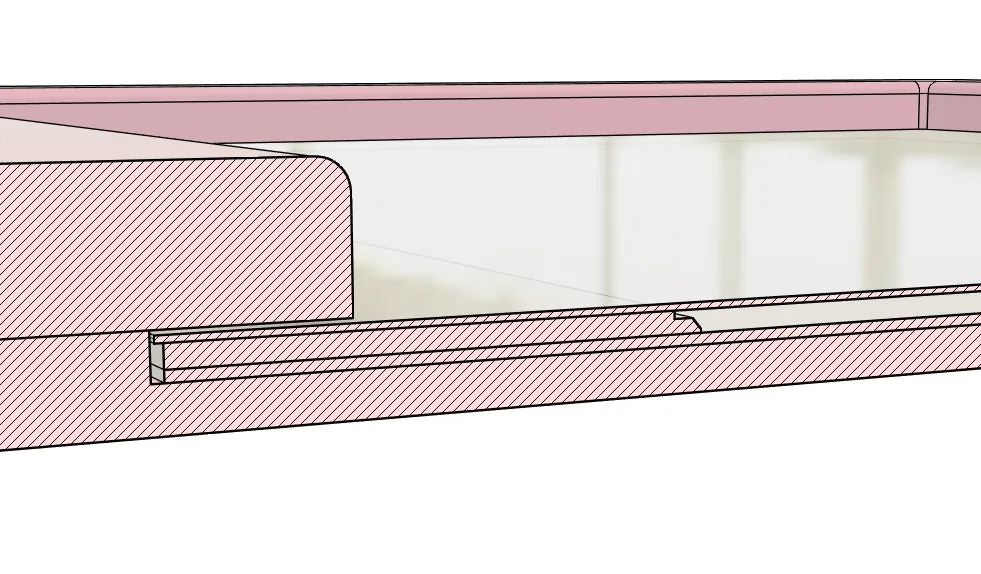

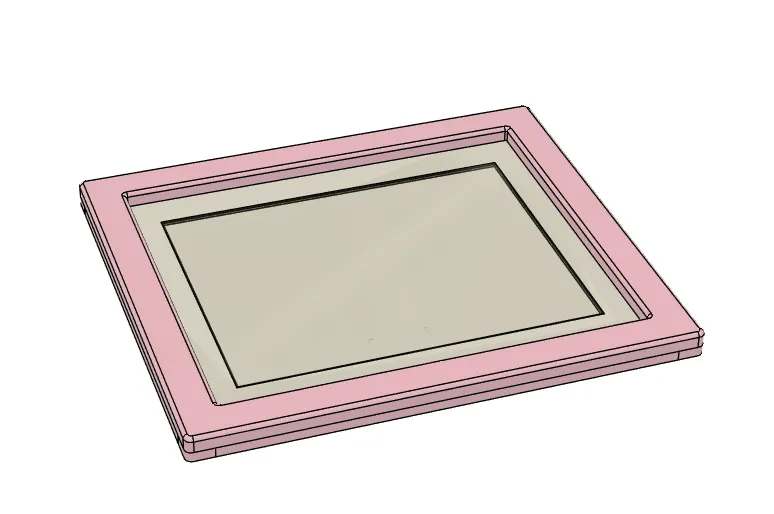

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>If you enjoyed this frame, then boost it. Your support helps me keep refining and sharing designs.</boostcontent></boostme><h2>Minimalist Picture Frame (4×6&#34;)</h2><p>A clean, modern picture frame designed with simple geometry and subtle detailing.</p><p>This version focuses on a more restrained, squared form with minimal filleting, creating a crisp and understated look that suits a wide range of spaces.</p><figure class="image image-style-side image_resized" style="width: 38.85%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000002727873/design/af75a0bdf4412379.png"></figure><h3>Features</h3><p><strong>Minimalist Geometry</strong><br>Straight edges with light, controlled fillets for a clean and contemporary appearance.</p><p><strong>Standard 4×6&#34; Photo Size</strong></p><ul><li>Interior: <strong>4 × 6 inches</strong></li><li>Exterior sized for compact desk or shelf placement</li></ul><p><strong>Layered Frame System</strong><br>Supports a full multi-layer assembly similar to commercial frames:</p><ul><li>Rigid backing</li><li>Printed lower matting (optional)</li><li>Photo or artwork</li><li>Printed upper matting (optional)</li><li>Clear acrylic, PVA, or thin glass (optional)</li><li><p>Rigid front frame<br> </p><p><img class="image_resized" style="width: 48.49%" src="https://makerworld.bblmw.com/makerworld/model/DSM00000002727873/design/2627e62289f3e661.png"></p></li></ul><p><strong>Print-in-Place Hinged Stand</strong><br>Integrated stand prints fully assembled and allows ~50° rotation for stable desk or mantel display.</p><h3>Assembly</h3><ul><li>Requires <strong>6 × M2.5 × 6 mm screws</strong></li><li>Matting components are optional</li><li>Designed for straightforward assembly with a secure fit</li></ul><h3>Printing</h3><ul><li><strong>PLA or PETG recommended</strong></li><li>Matte PLA works particularly well for a clean, low-reflection finish</li><li>Print components flat; no supports required for most parts</li></ul><h2>Support Me</h2><p>If this frame finds a place on your desk or as a gift, consider giving it a boost. Your support helps me continue refining and sharing new designs.</p><p>Photos, ratings, and feedback are always appreciated.</p>
