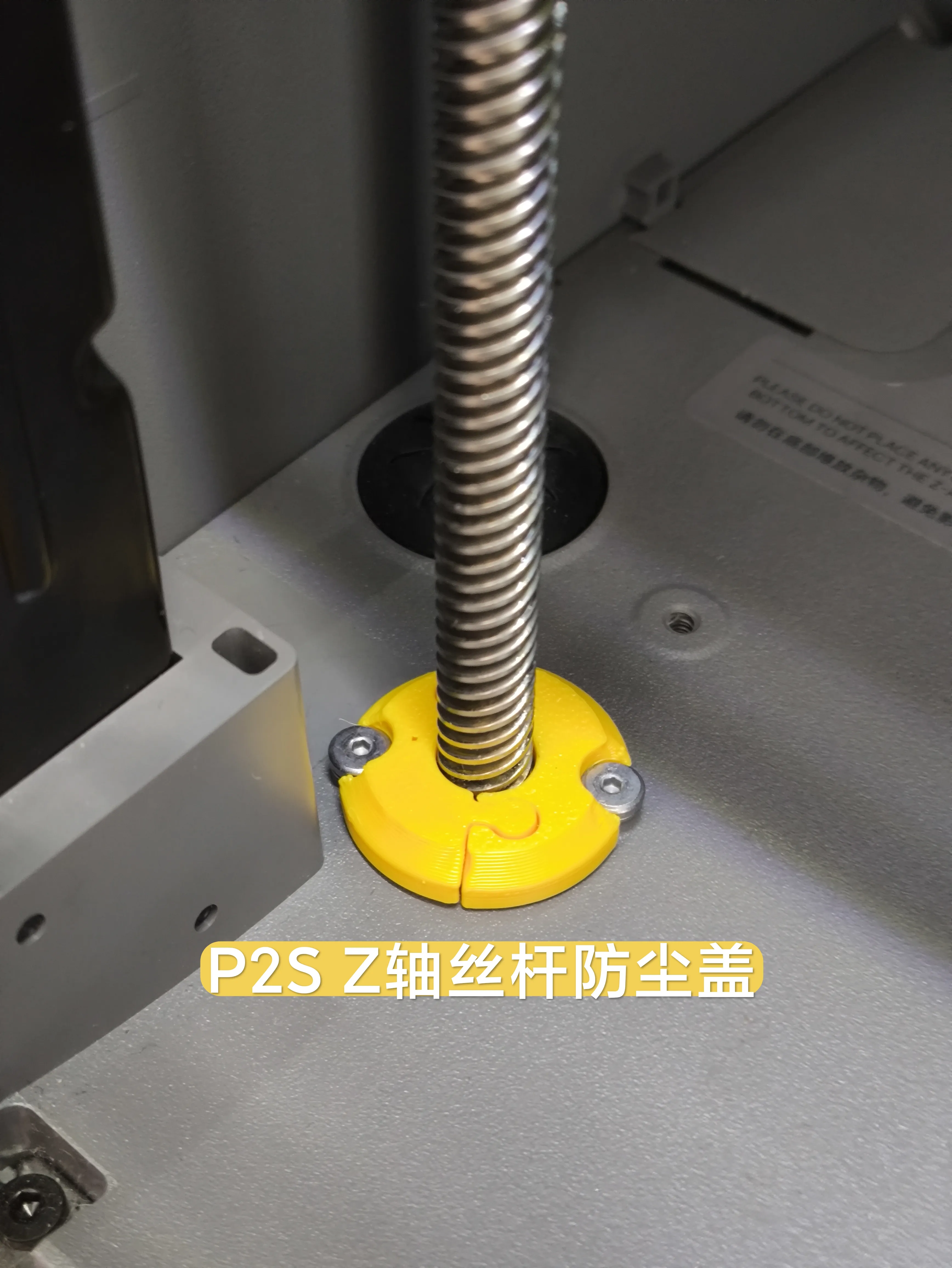

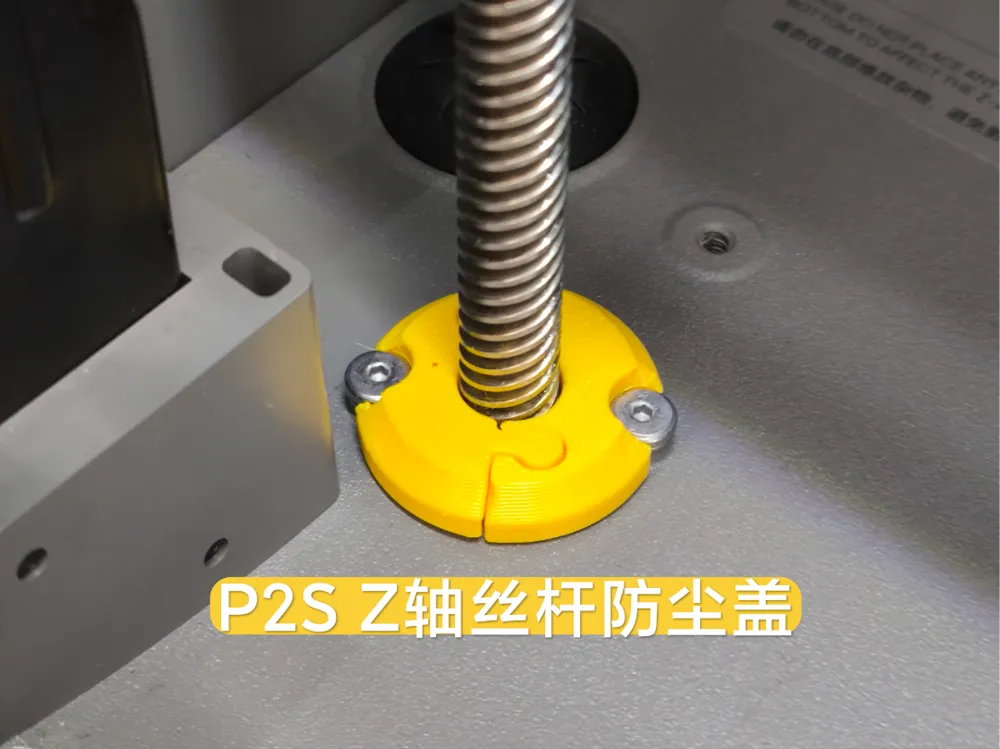

P2S Z-axis lead screw dust cover

Assembly Video【P2S Z-axis Lead Screw Dust Cover - Bilibili】 https://b23.tv/Sk6QilG

• Essential for Bambu Lab P2S! Z-axis lead screw dust cover, isolates purged filament debris, say goodbye to filament jamming issues

  Debris entering the lead screw? Abnormal noise from filament jamming? A dust cover adds a protective shield to your lead screw!

  No more worrying about purged filament debris getting stuck in the lead screw, easy to install, maximum effect

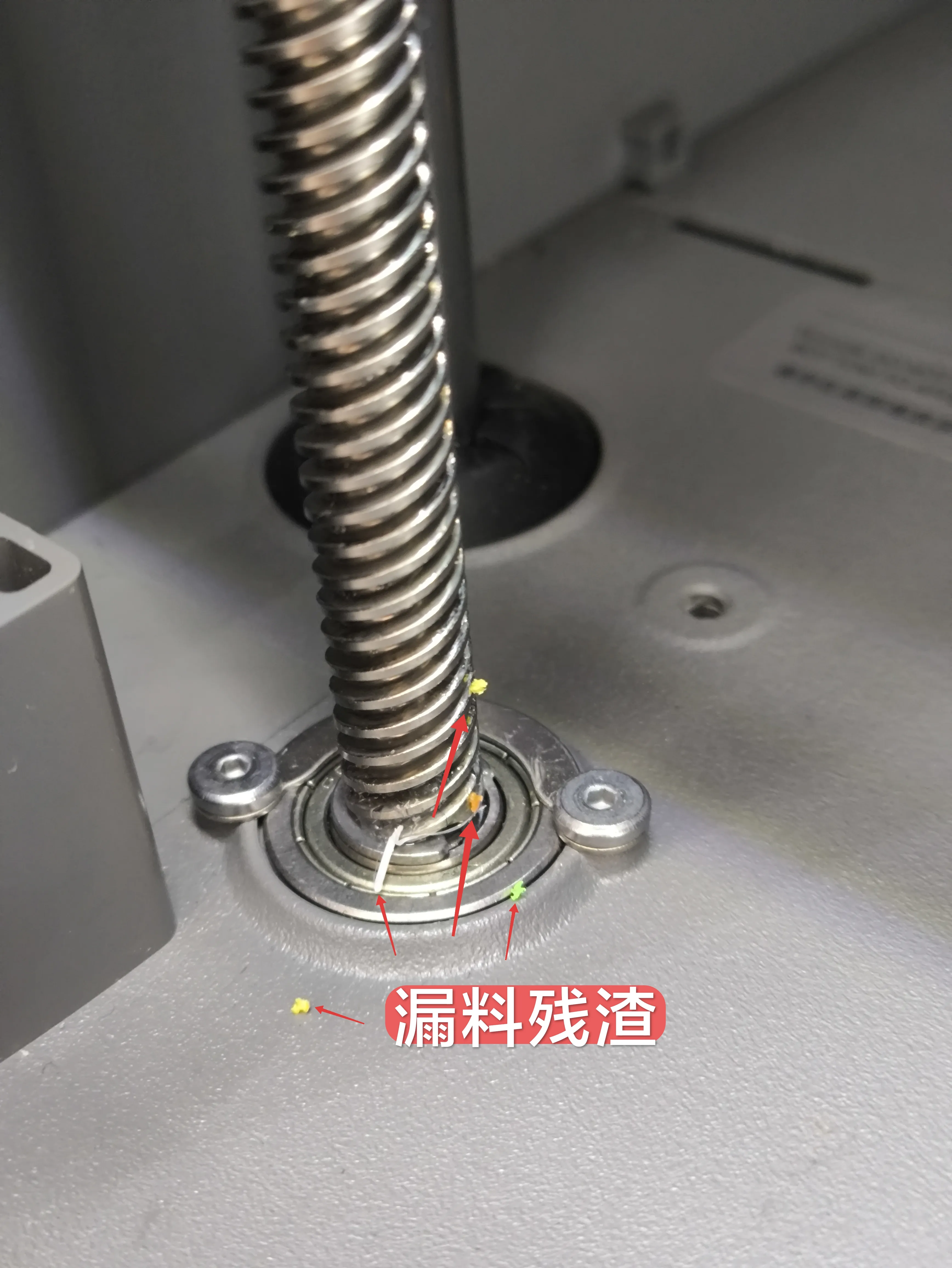

•  A common daily nuisance, grease sticking to purged filament residue, add a dust cover to avoid cleaning the lead screw

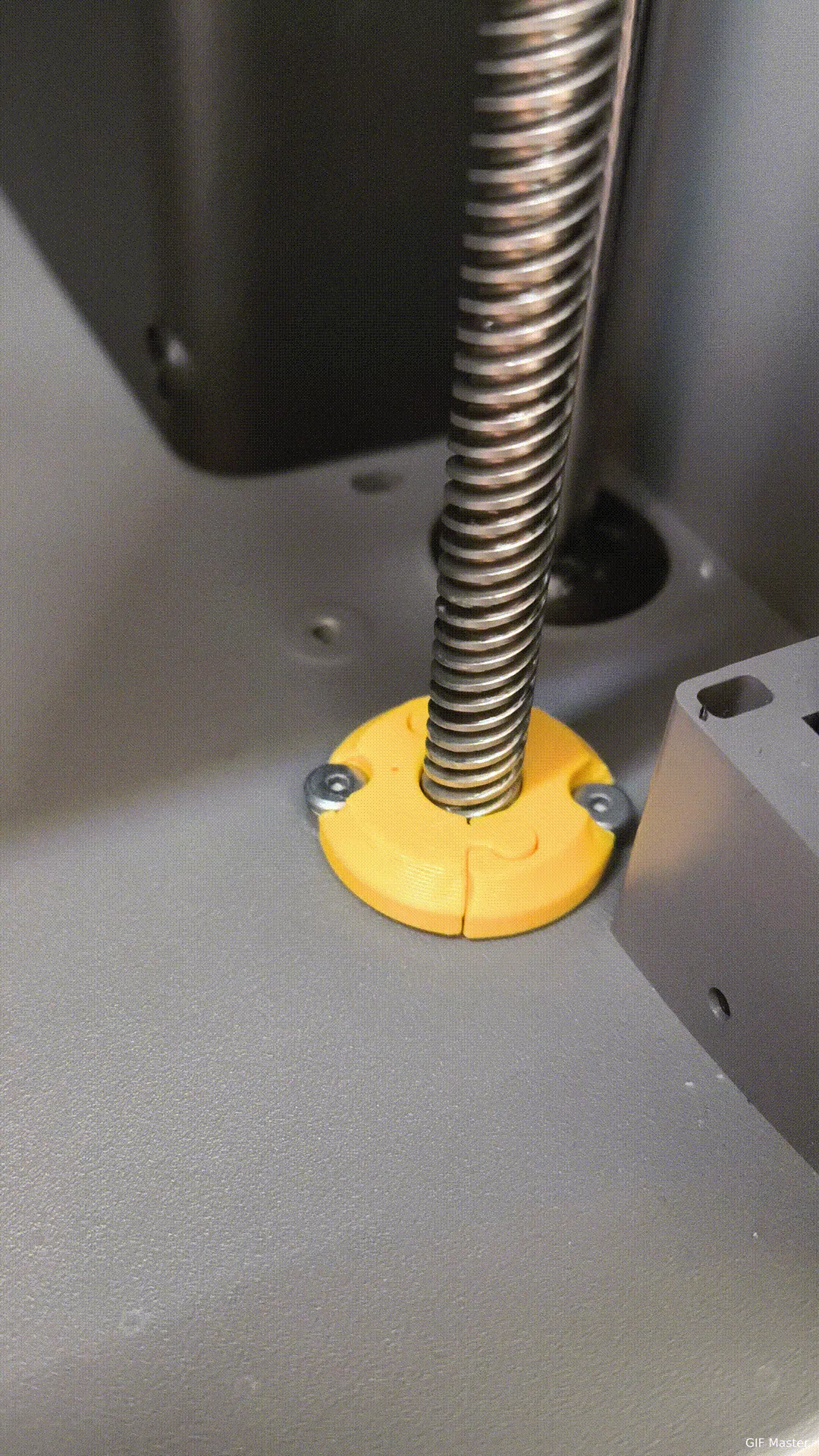

• The model does not interfere with the Z-axis lead screw operation

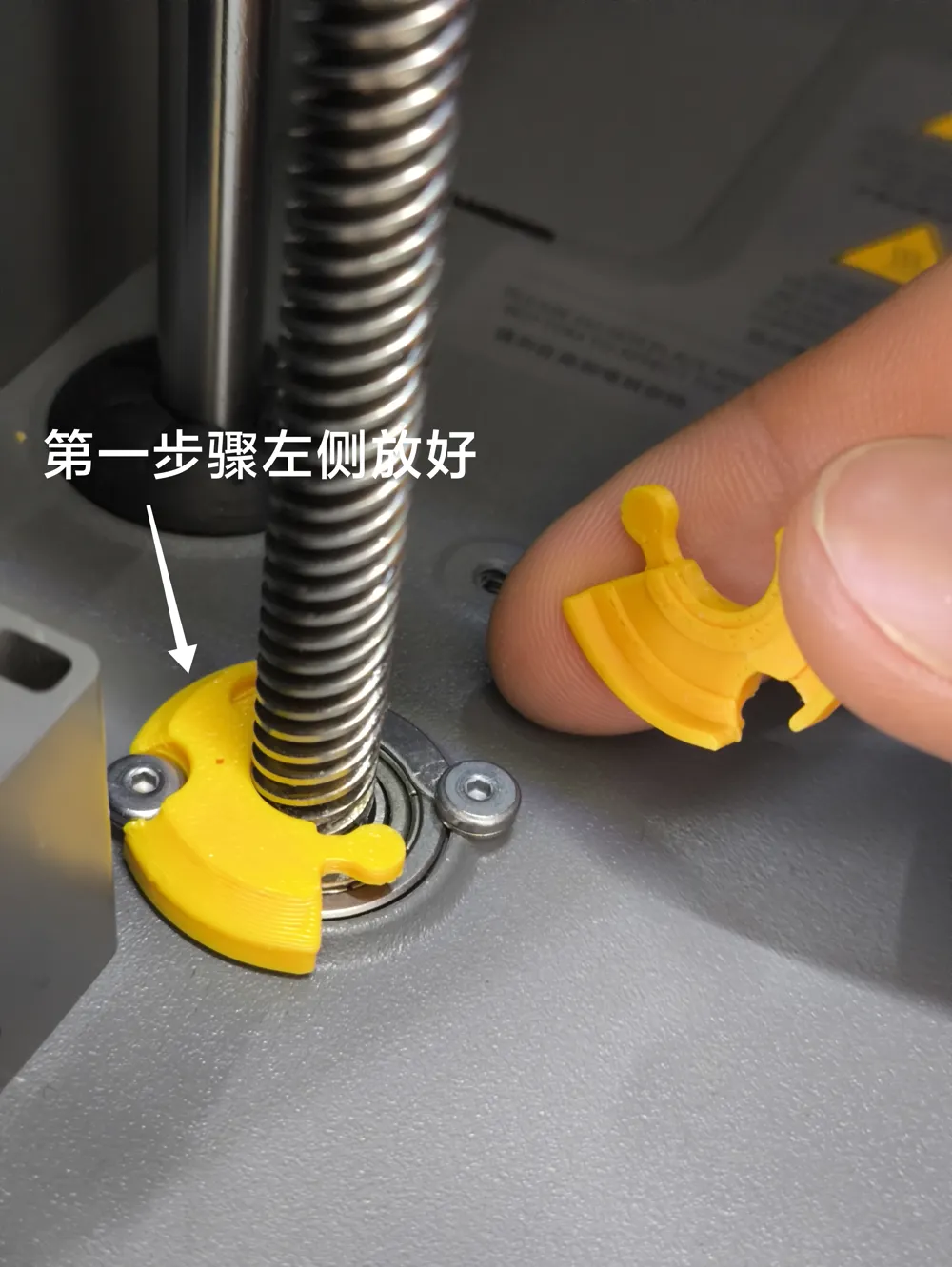

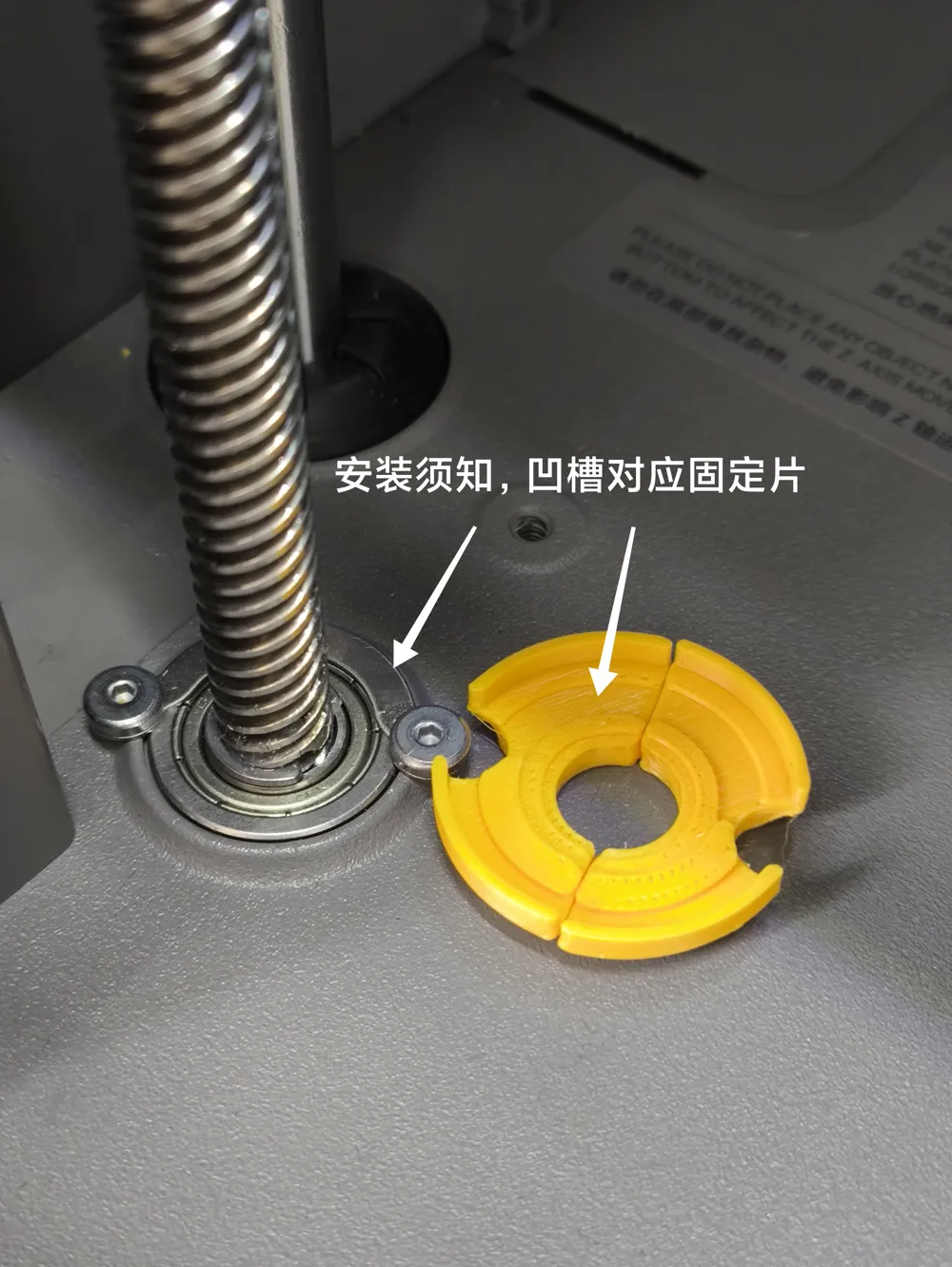

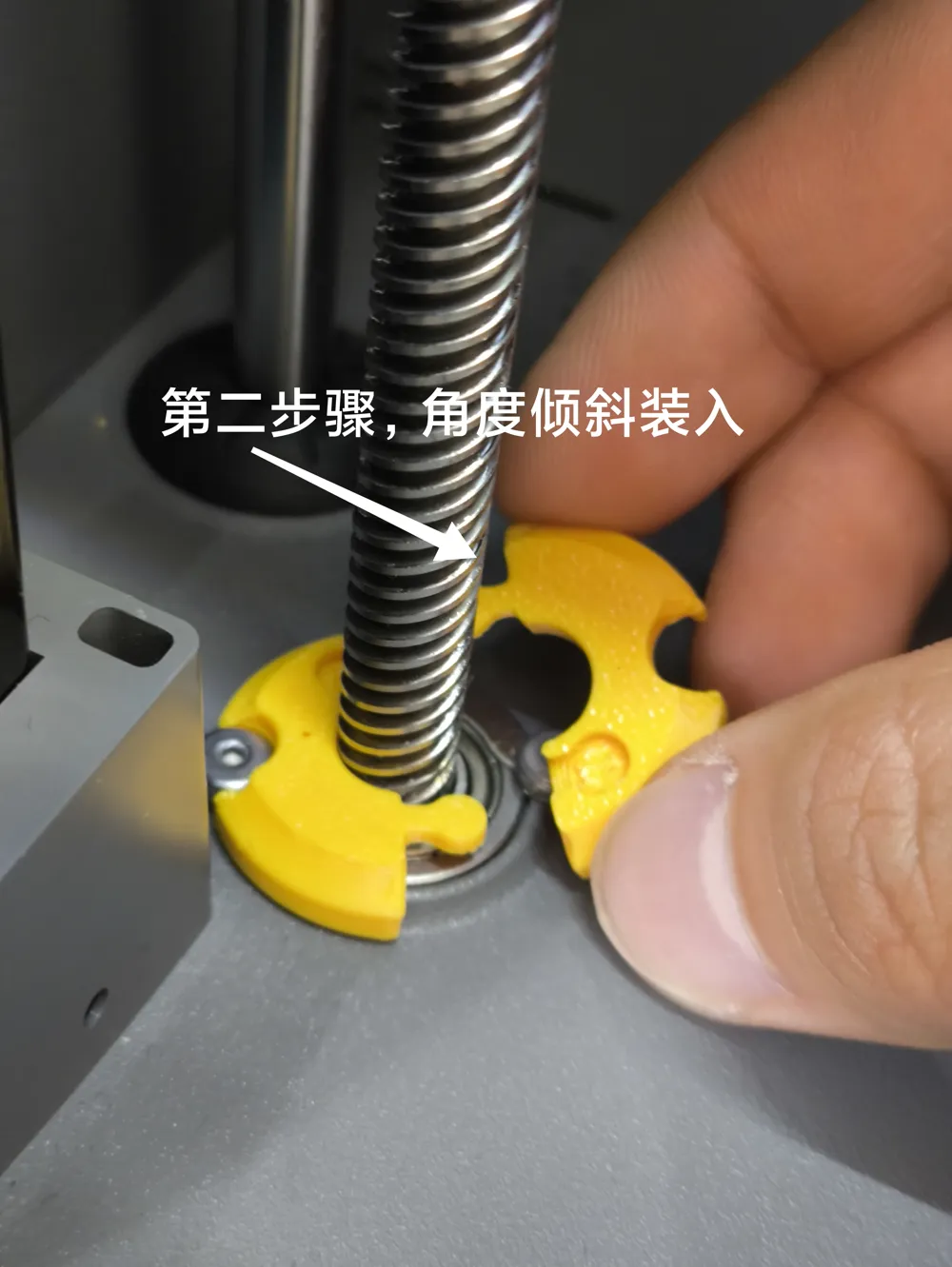

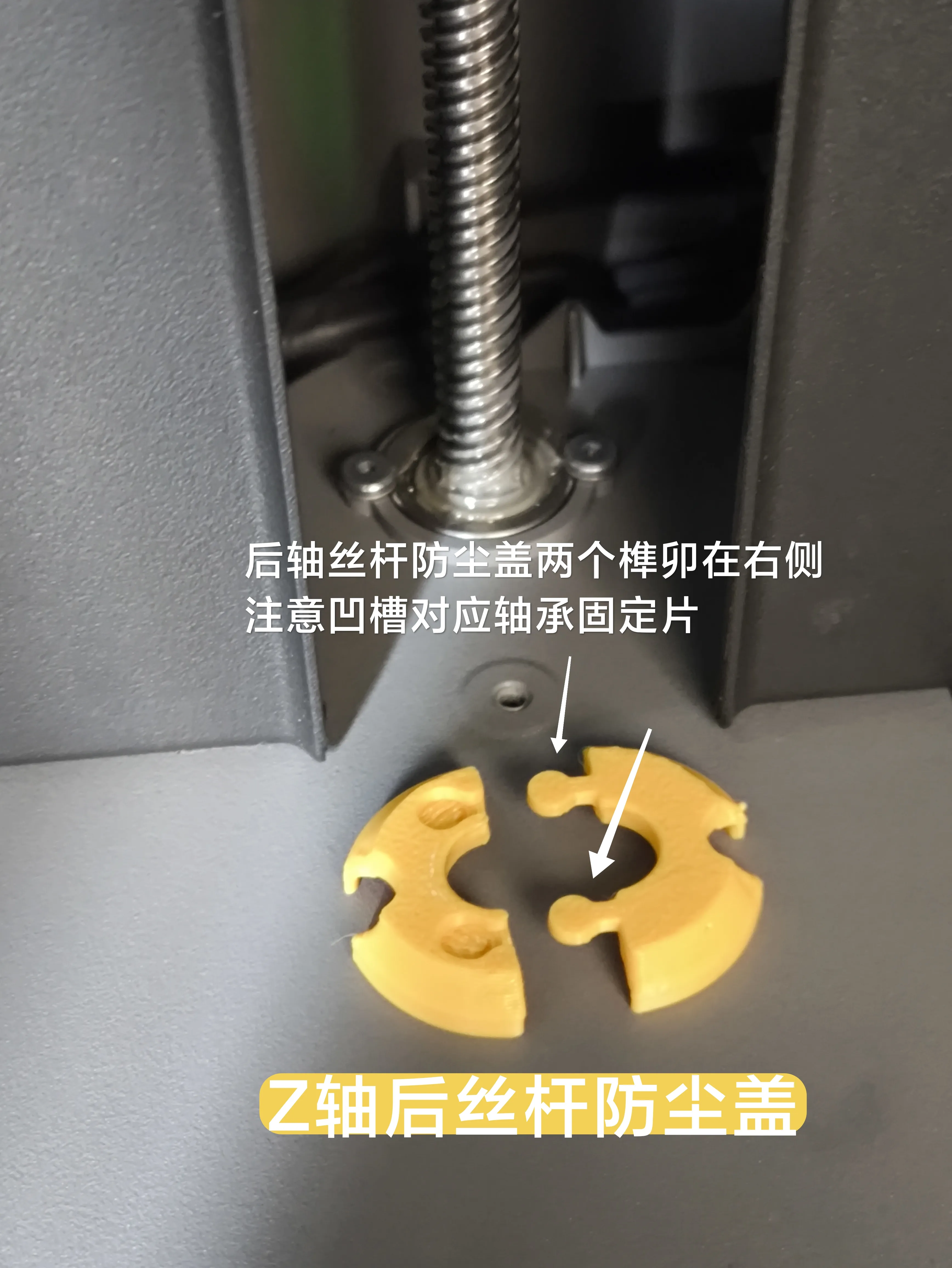

• This is the rear lead screw dust cover, the rear dust cover is different from the left and right ones, and the small space makes assembly difficult, for easier assembly, the tenon and mortise structure is placed on one side

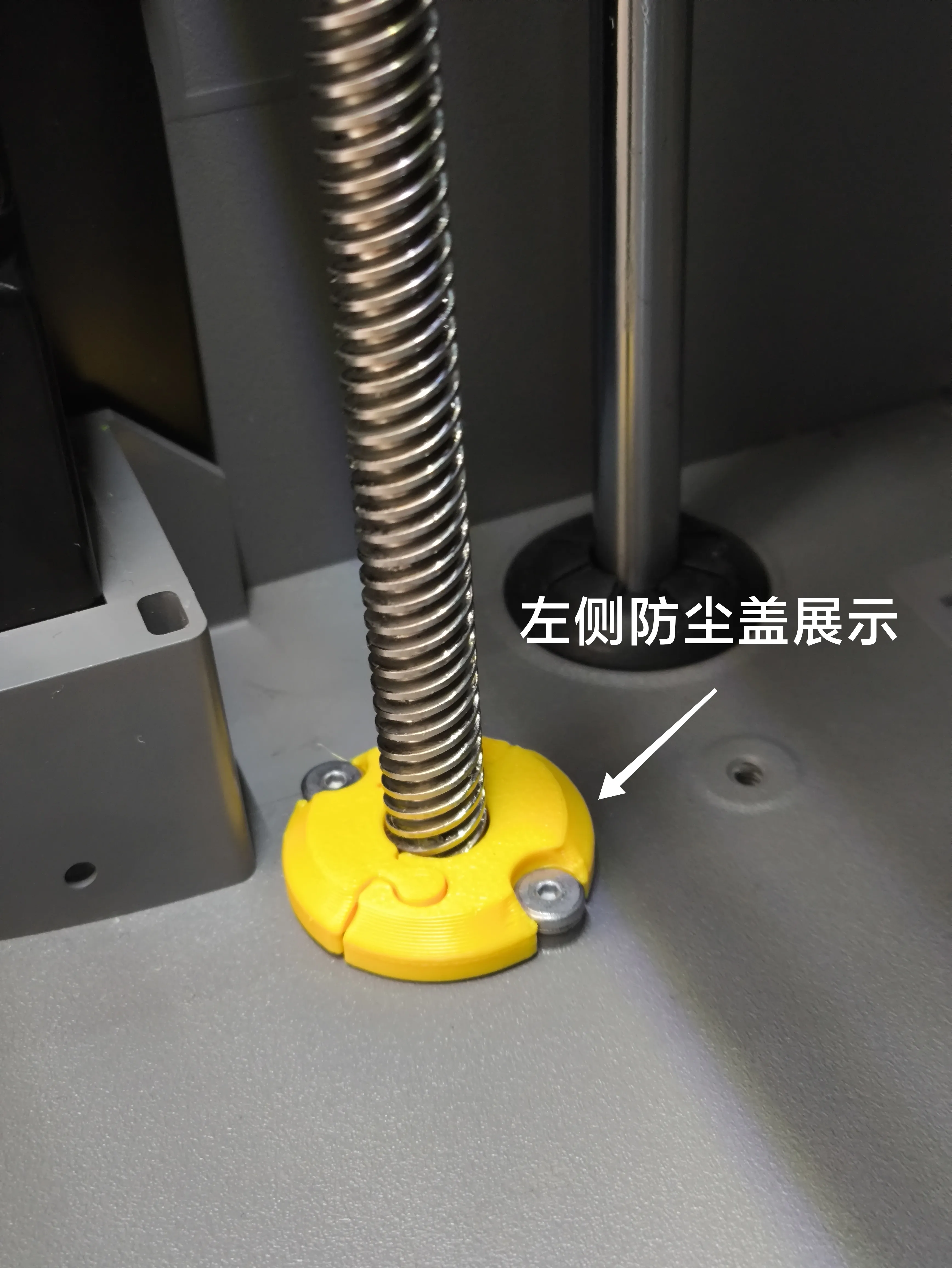

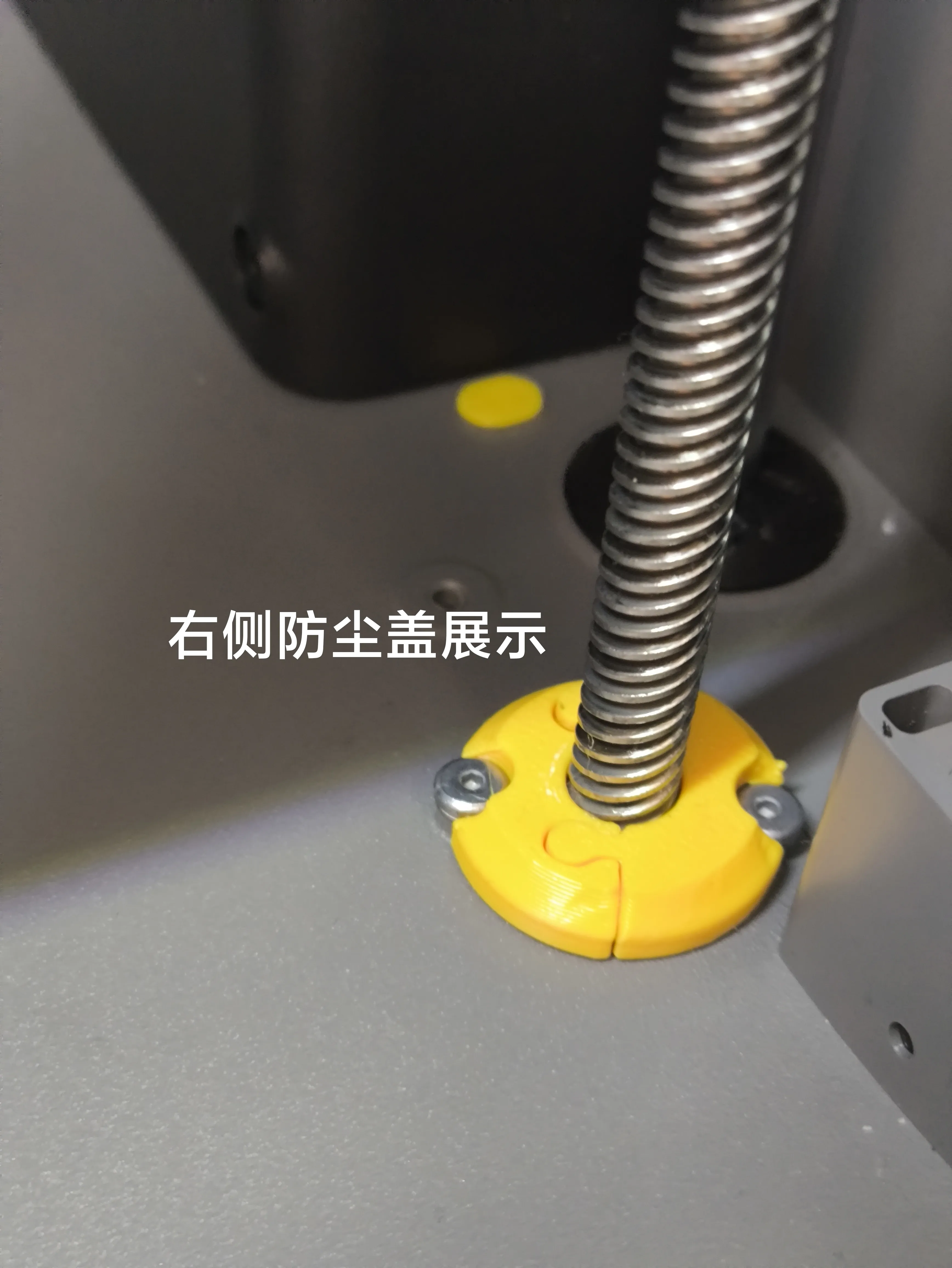

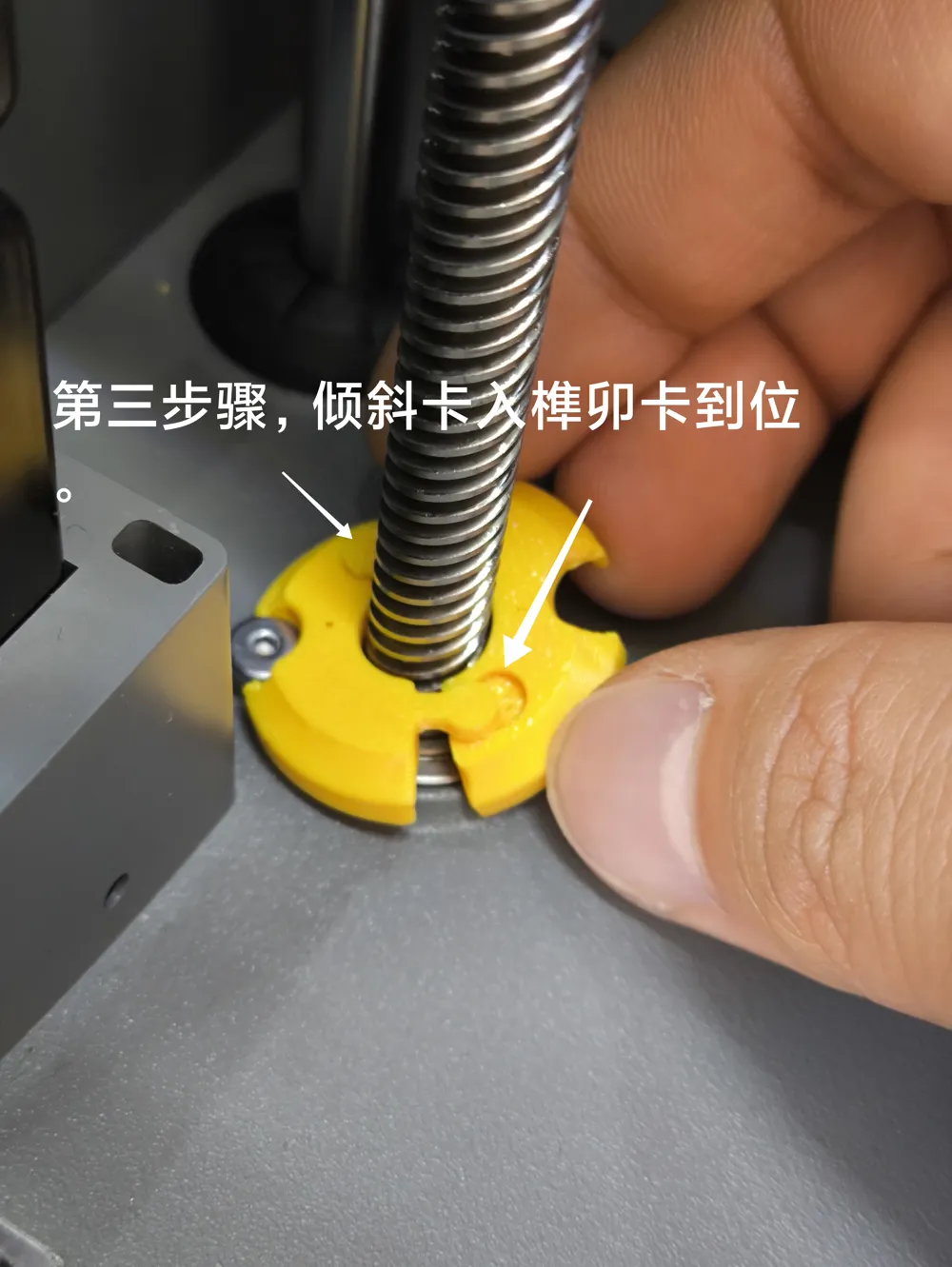

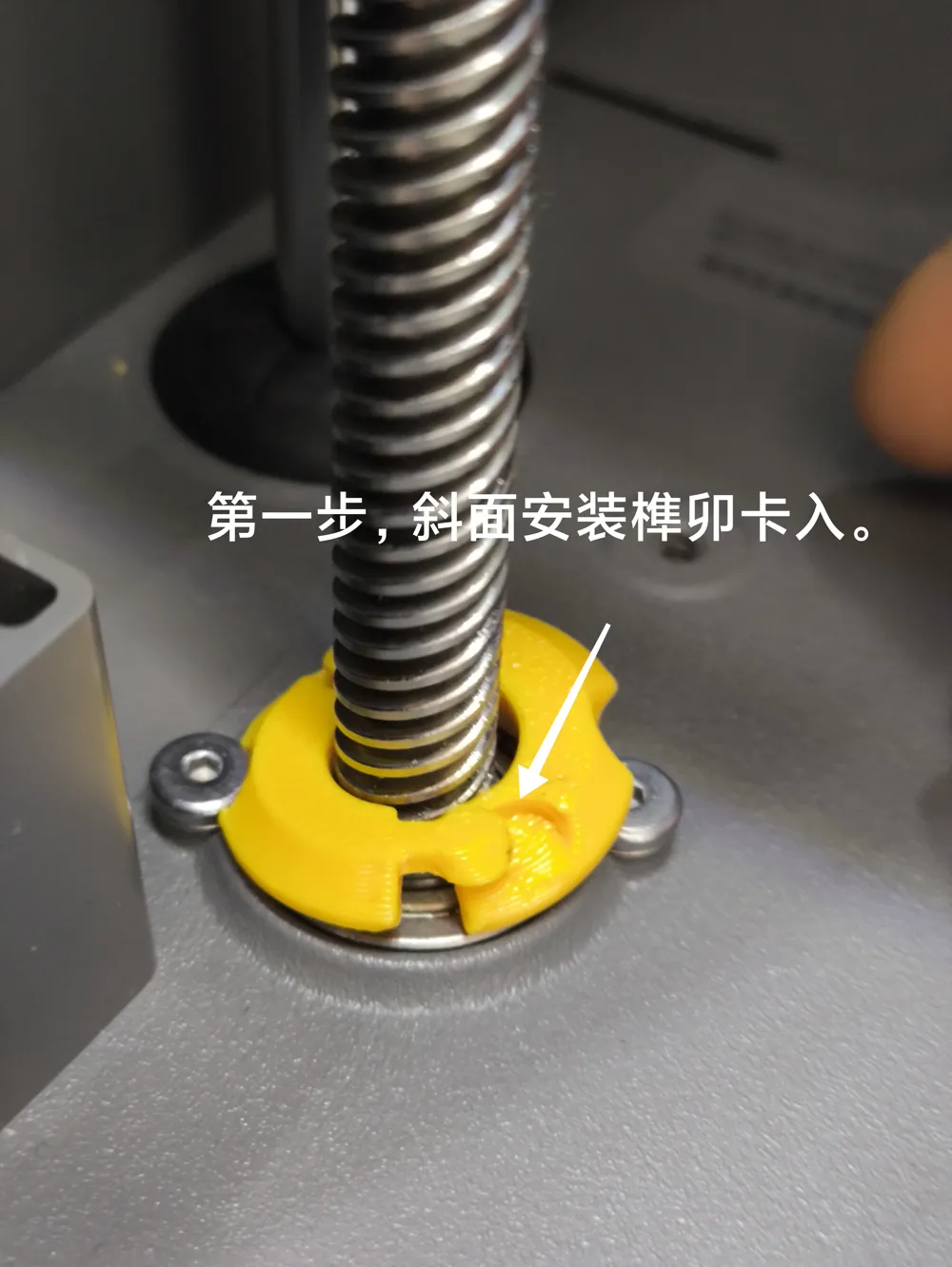

• The left and right dust covers have a slope to prevent them from falling off, the tenon and mortise structure uses interlocking to effectively prevent loosening

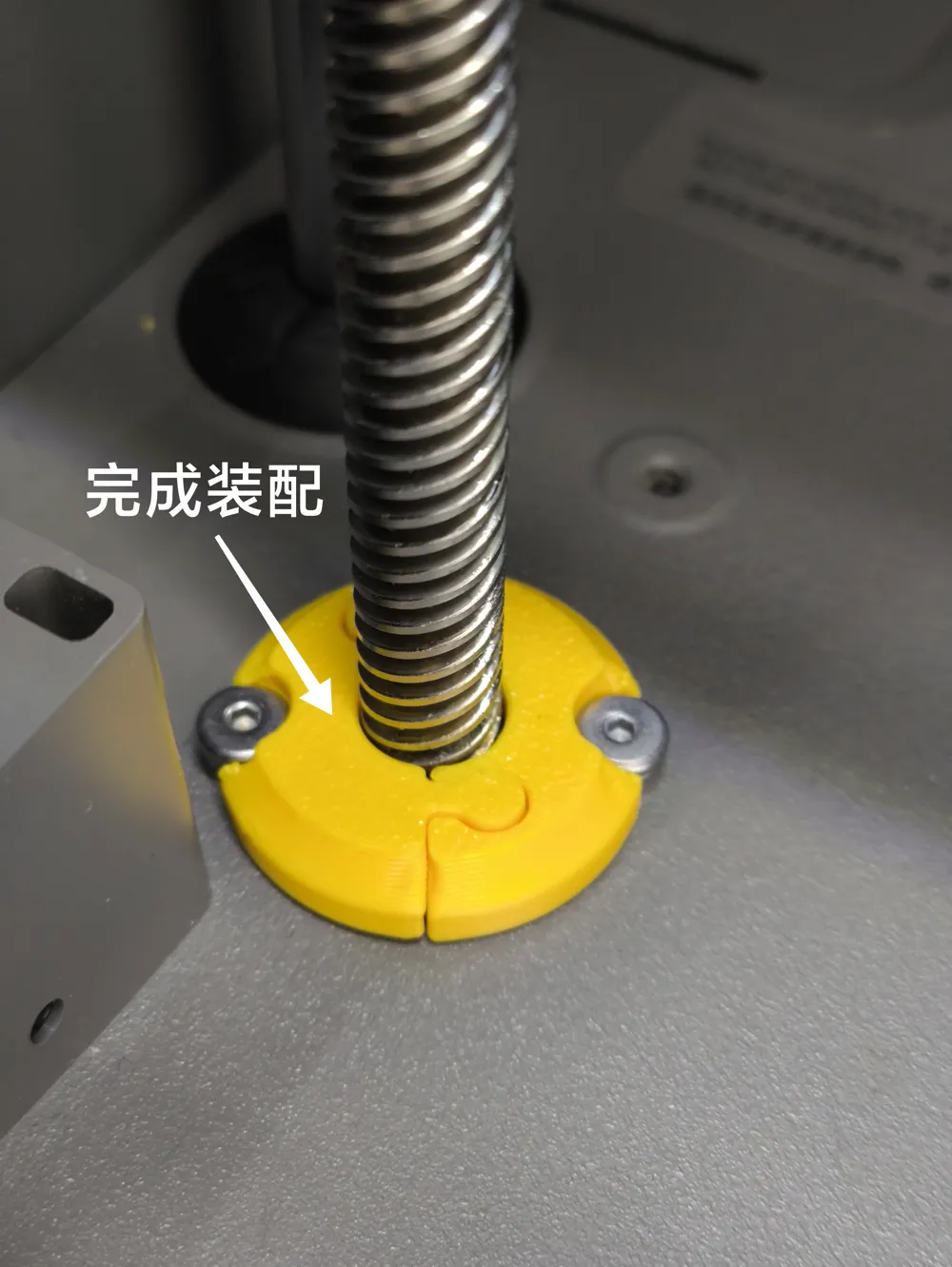

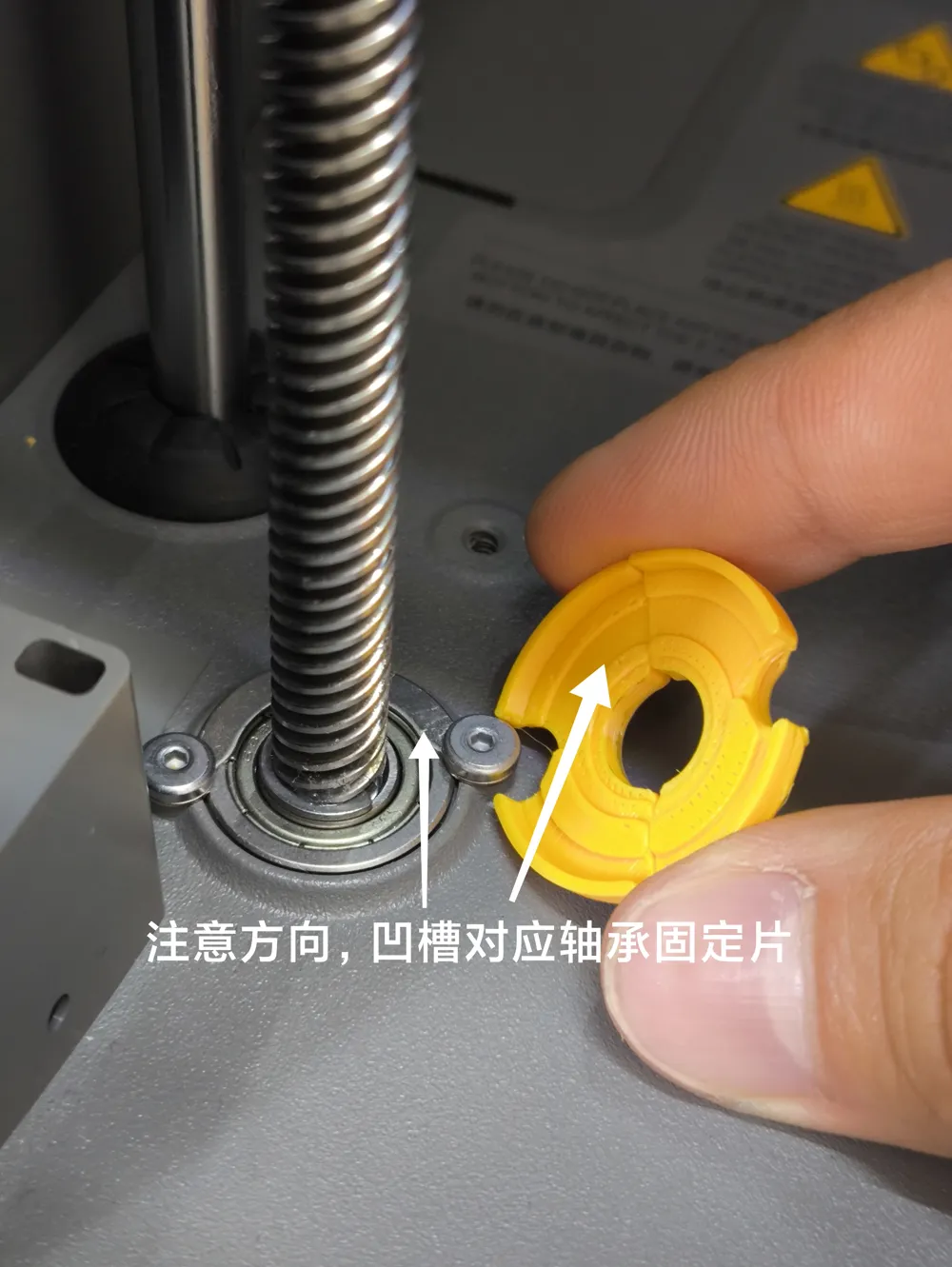

• A lead screw dust cover designed specifically for P2S, with an openable and closable structure, convenient for later maintenance, effectively blocks printing debris from entering the lead screw bearing, extending equipment life

•  Stable Version

• PLA filament 5g print time 20min


• PETG filament 4g print time 22min


• ABS filament 4g print time 21min

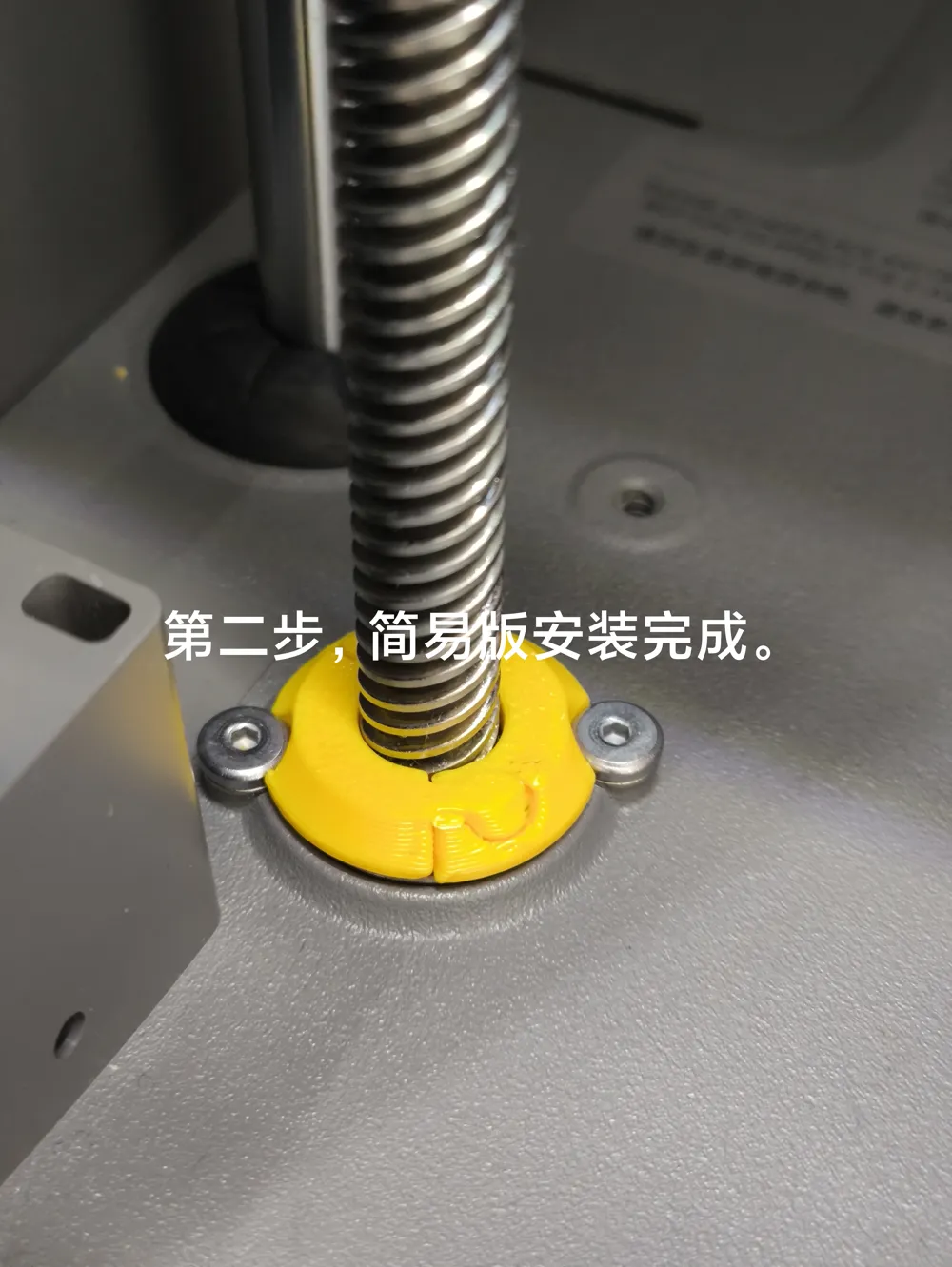

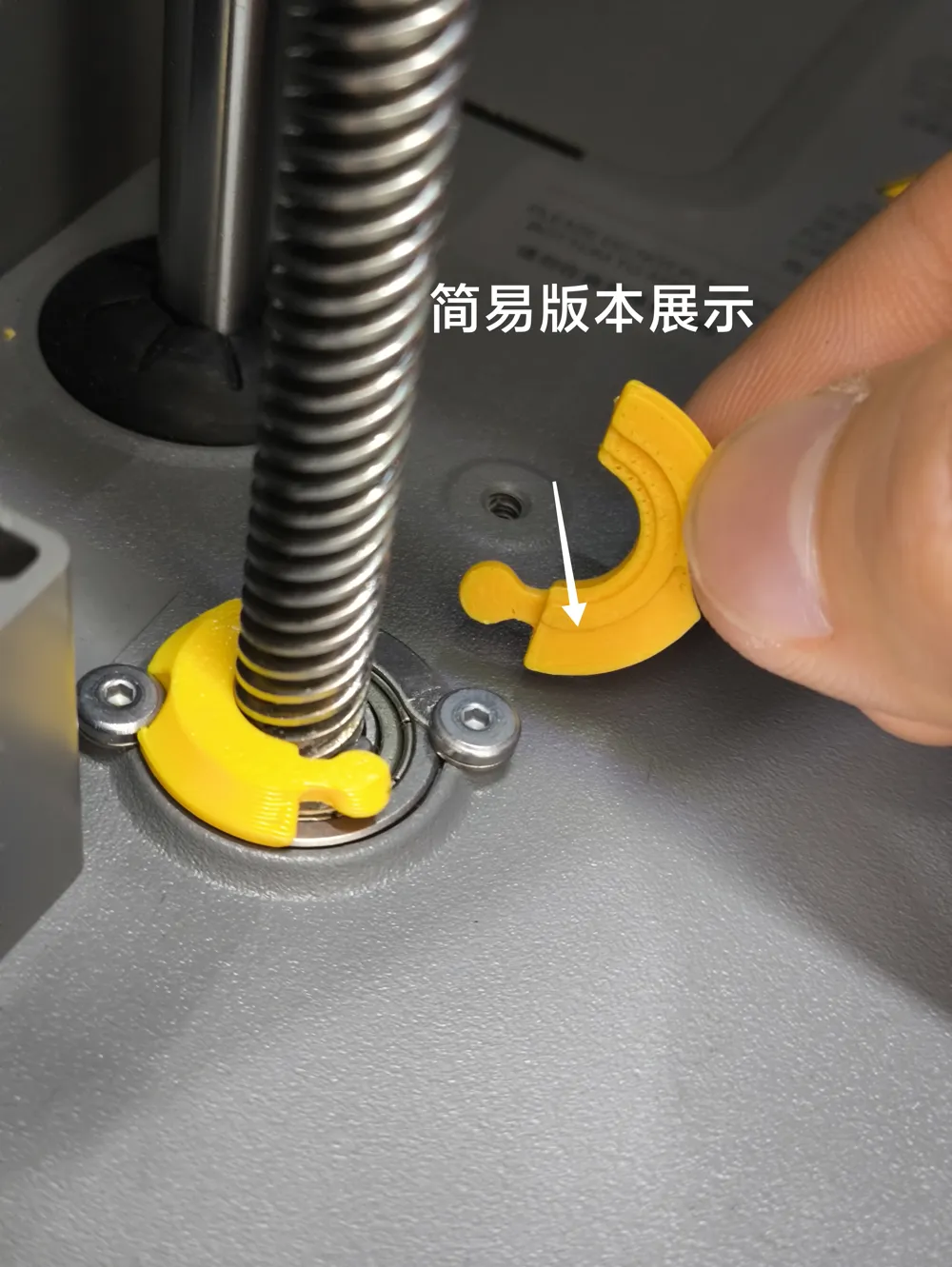

  A simple version (fast print) has also been added

• PLA filament 3g print time 16min


• PETG filament 3g print time 17min


• ABS filament 2g print time 16min
