Omni Press (Drill Press & Heated Insert Press)
Print Profile(1)
Bill of Materials
- Soldering Iron (for heated insert press) x 1: https://amzn.to/48rLeLG or https://de.aliexpress.com/item/1005007674507005.html
- M5 Hex Head Screw 14mm/15mm (for adjustment screw knob) x 1: https://amzn.to/49dtsfd or https://de.aliexpress.com/item/32968601031.html (Size: M5, Length: 14mm)
- M5 Pan Head Screw 8mm x 1: https://amzn.to/4eRPmbC (Screw Set) or https://de.aliexpress.com/item/32810852732.html (Size: M5, Length: 8mm)
- M5 Pan Head Screw 10mm x 2: https://amzn.to/4eRPmbC (Screw Set) or https://de.aliexpress.com/item/32810852732.html (Size: M5, Length: 10mm)
- M5 Washer x 3: https://amzn.to/4eRPmbC (Screw Set) or https://de.aliexpress.com/item/1005008724152831.html (Variant: M5x10x1)
- M5 Heated Inserts (OD 7mm, L 6mm) x 2: https://amzn.to/4cXbQFy or https://de.aliexpress.com/item/1005010298290044.html (Size: M5 (OD7mm), Length: 6mm)
- M5 T-Nut x 2: https://amzn.to/3OLoEa9 or https://de.aliexpress.com/item/4001105540110.html (Size: 2020-m5)
- Linear Bearing - SCS 8UU x 2: https://amzn.to/4ujTOVd or https://de.aliexpress.com/item/1005010078048374.html (Variant: SC8UU)
- 8mm smooth rod - 150mm x 2: https://amzn.to/4tpcYZ3 or https://de.aliexpress.com/item/1005006293171727.html (Length: 150mm, Diameter: 8mm)
- 2020 Aluminium Extrusion - about 200mm x 1: https://amzn.to/4tKxLHp or https://de.aliexpress.com/item/1005003311298946.html (Length: 150mm, Shape: 2020V)
- 40mm Expansion Spring (40mm x 11/12mm x 1.5mm) x 1: https://amzn.to/3QH0EFJ or https://de.aliexpress.com/item/1005010279047748.html (Length: 40mm, Wire Diameter: 1.5mm, Outer Diameter: 12mm)
Description

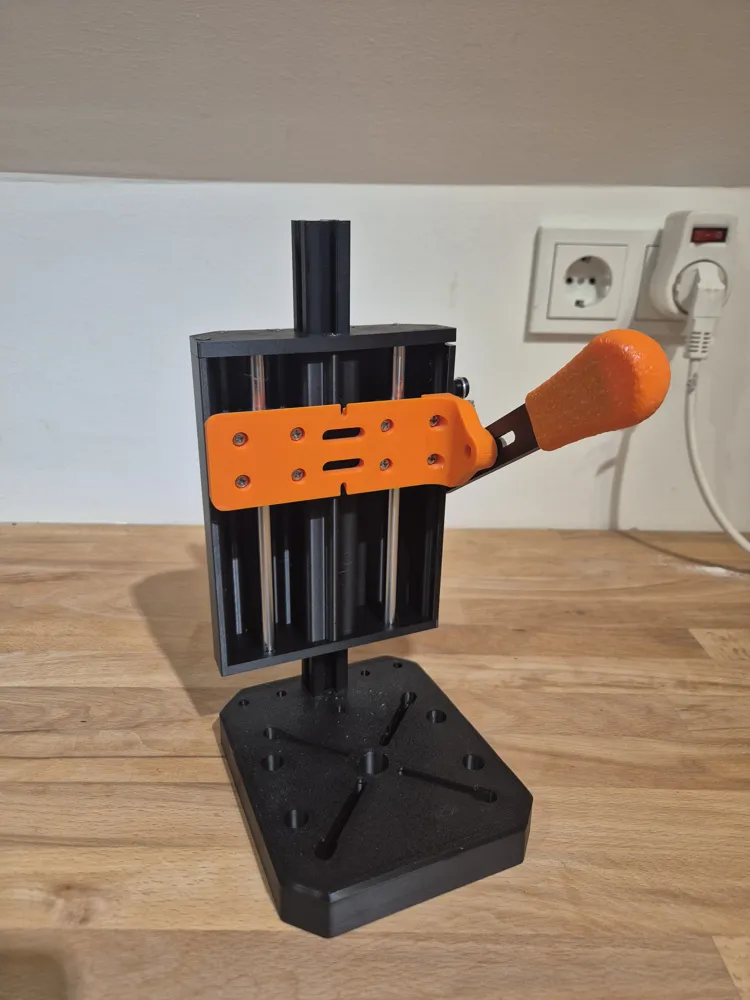

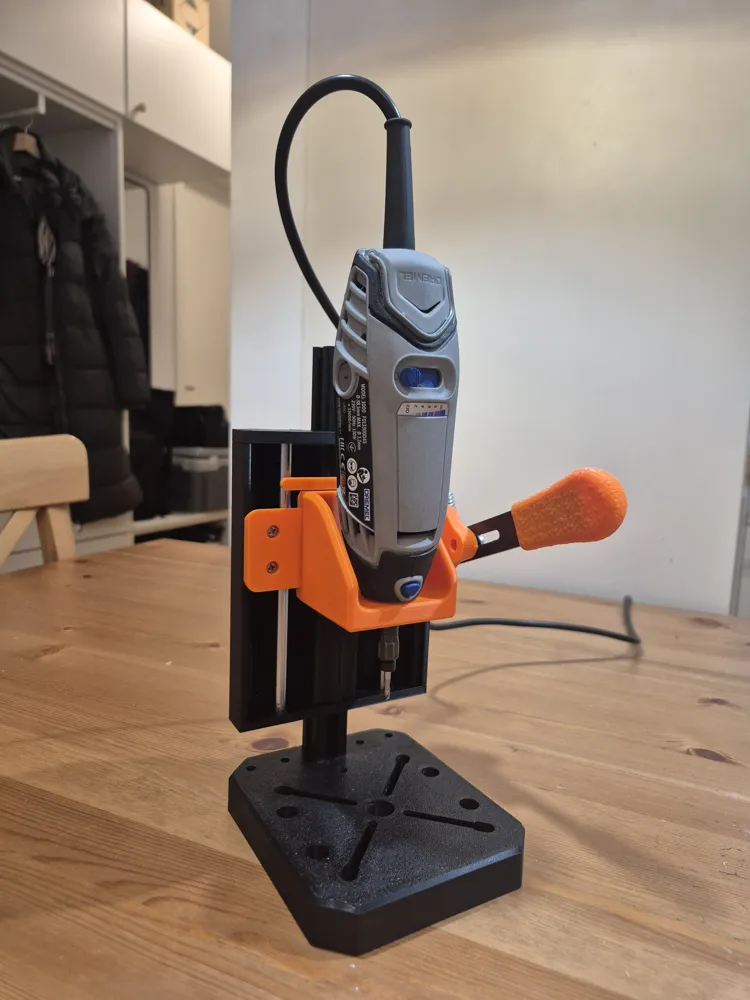

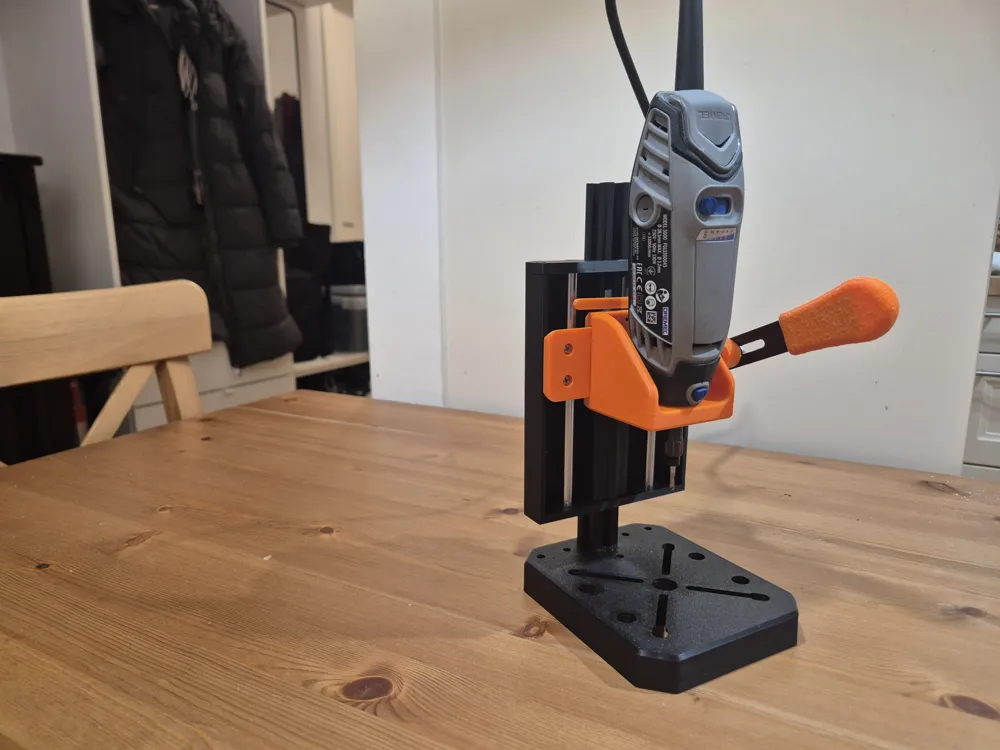

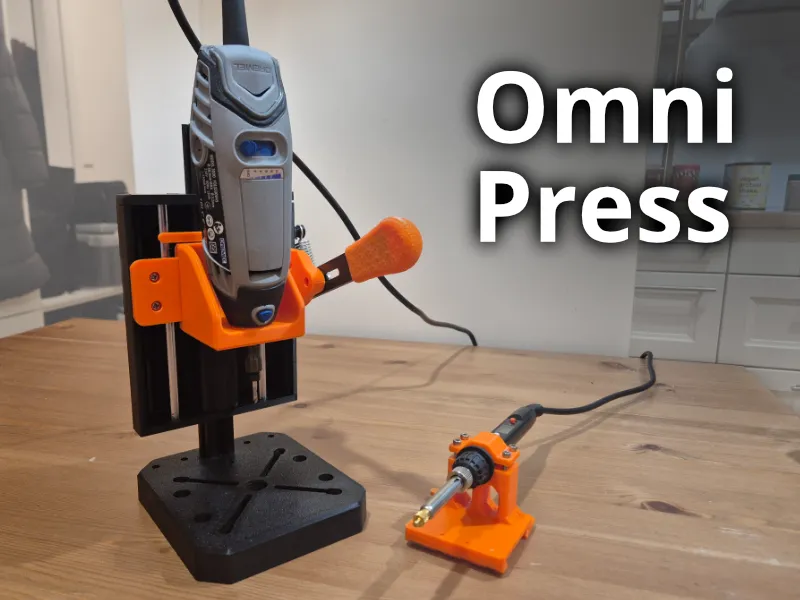

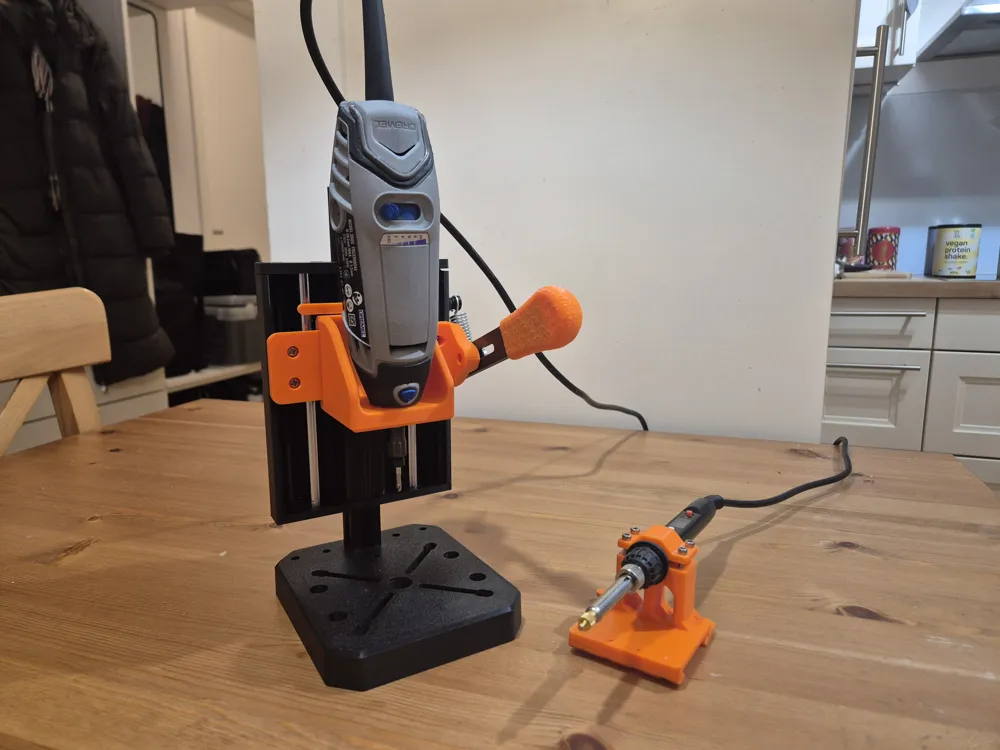

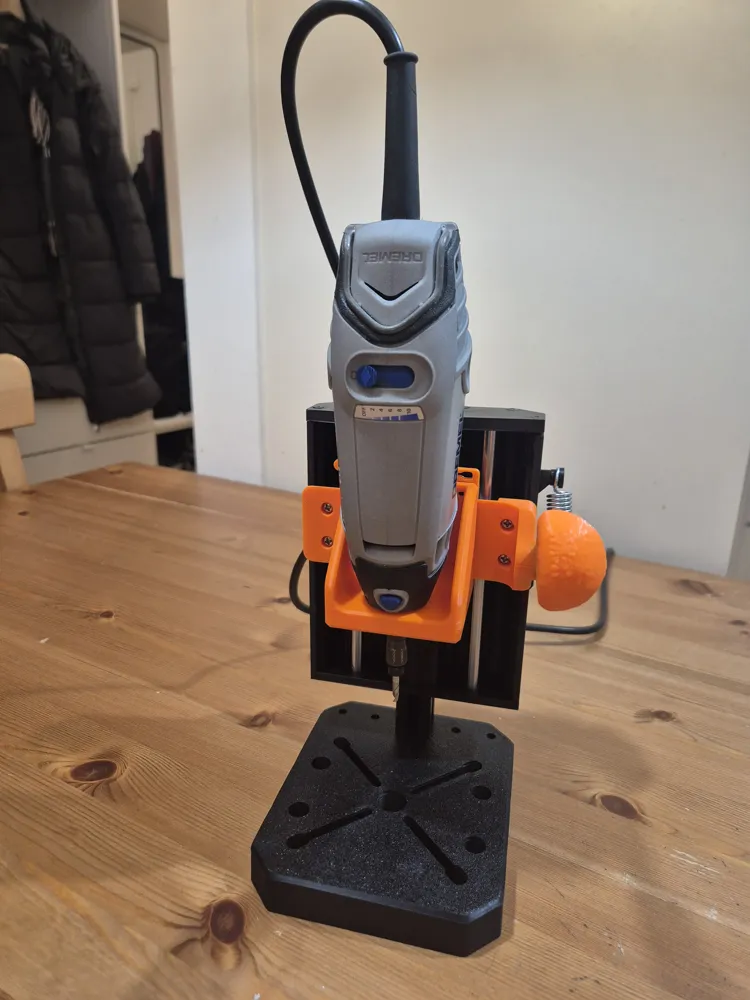

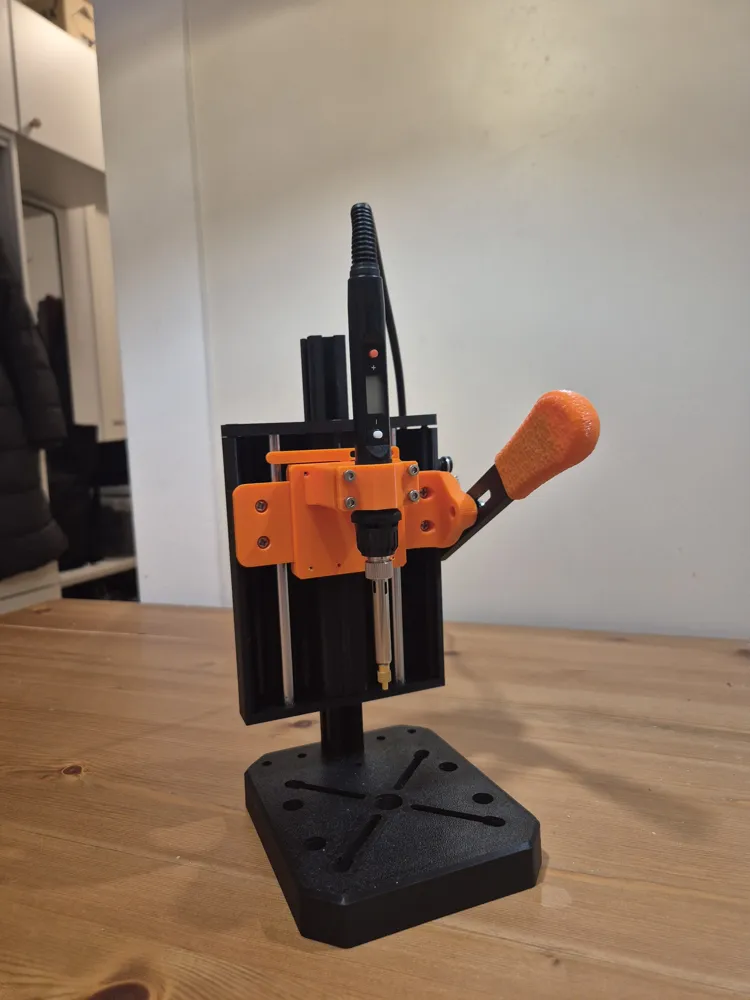

I wanted a drill press for my Dremel, as well as a dedicated press for installing heat-set inserts with my soldering iron. Since there are already many great standalone designs for both, I decided to combine these functions into a single, versatile tool.

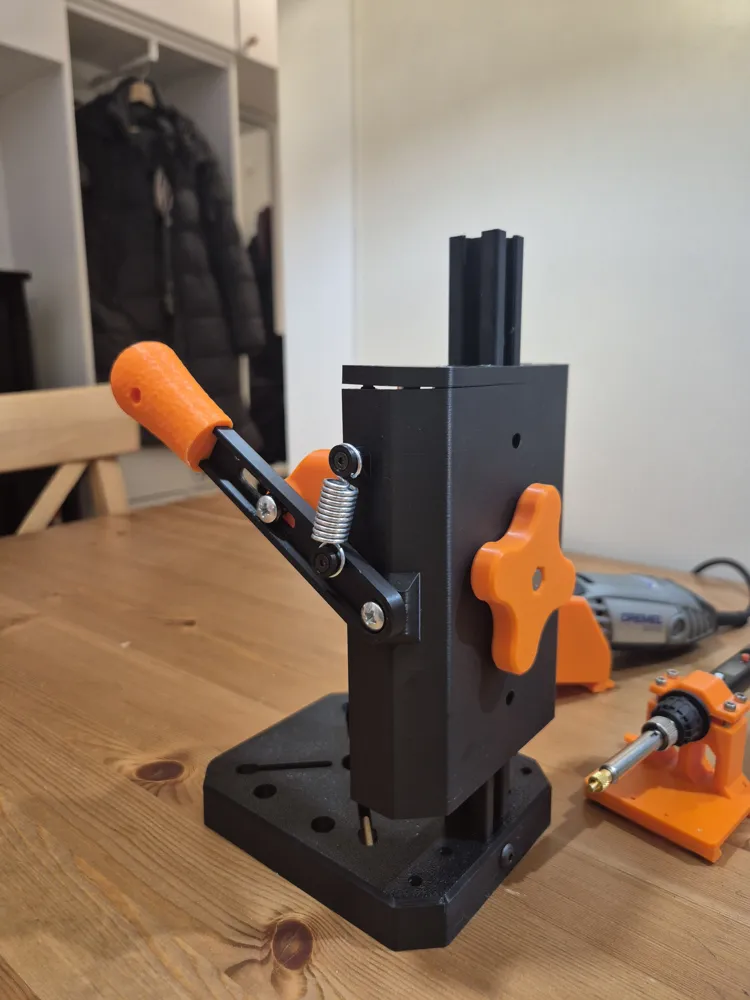

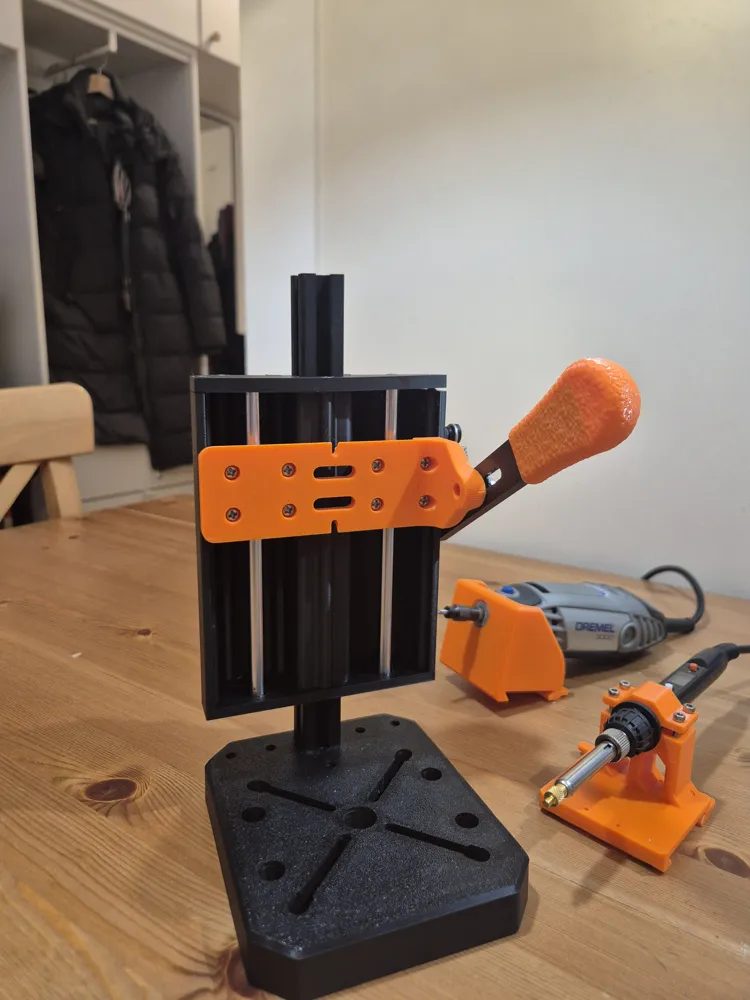

This press features a quick-lock system that allows you to easily swap between different tools in seconds. Whether you're drilling or working with heat-set inserts, the transition is fast and hassle-free.
I’ve included design references so you can create your own tool holders. You can adapt the system to fit other tools and expand its functionality. If you do create your own attachments, feel free to share them with others! I will try my best, to keep the description updated and link all available tools.
All design files are available on Onshape and a PDF with reference dimensions for custom tool holders is included to help you get started.
Detailed assembly instructions are available in the Assembly PDF.
Note: Good bed adhesion is critical for this model, as even slight warping can significantly affect tolerances. Make sure your print bed is clean, and use a brim if you experience adhesion issues.
Parts List - What you will need
For the basic drill press:
For dremel attachement (tested with Dremel 3000 and Dremel Lite 7760 - any other should work aswell):
| Quantity | Description | Amazon Link (DE) | AliExpress |
|---|---|---|---|
| 1 | Dremel | https://amzn.to/4trjY7H | |
| 4 | M3 Pan Head Screw 6mm | https://amzn.to/49dtNP1 (Screw Set) | https://de.aliexpress.com/item/4000981220901.html Length: 6mm, Variant: M3 |
For solder press attachement:
| Quantity | Description | Amazon Link (DE) | AliExpress |
|---|---|---|---|
| 1 | Soldering Iron | https://amzn.to/48rLeLG | https://de.aliexpress.com/item/1005007674507005.html |
| 8 | M3 Pan Head Screw 6mm | https://amzn.to/49dtNP1 (Screw Set) | https://de.aliexpress.com/item/4000981220901.html Length: 6mm, Variant: M3 |
| 4 | M3 Pan Head Screw 12mm | https://de.aliexpress.com/item/4000981220901.html Length: 12mm, Variant: M3 | |
| 4 | M3 Heated Inserts | https://amzn.to/4t3xi1O | https://de.aliexpress.com/item/1005010298290044.html Size: M3 (OD5mm), Length: 4mm |
You can also look for parts in your local hardware-store. For small quantities, they are usually way cheaper.
All amazon links are sponsored links that give me a small comission with no extra cost to you.
