Description
Optimized prints. Clean CAD. Complete drawings. Modular T-slot accessories for engineers who care about complete design packages.

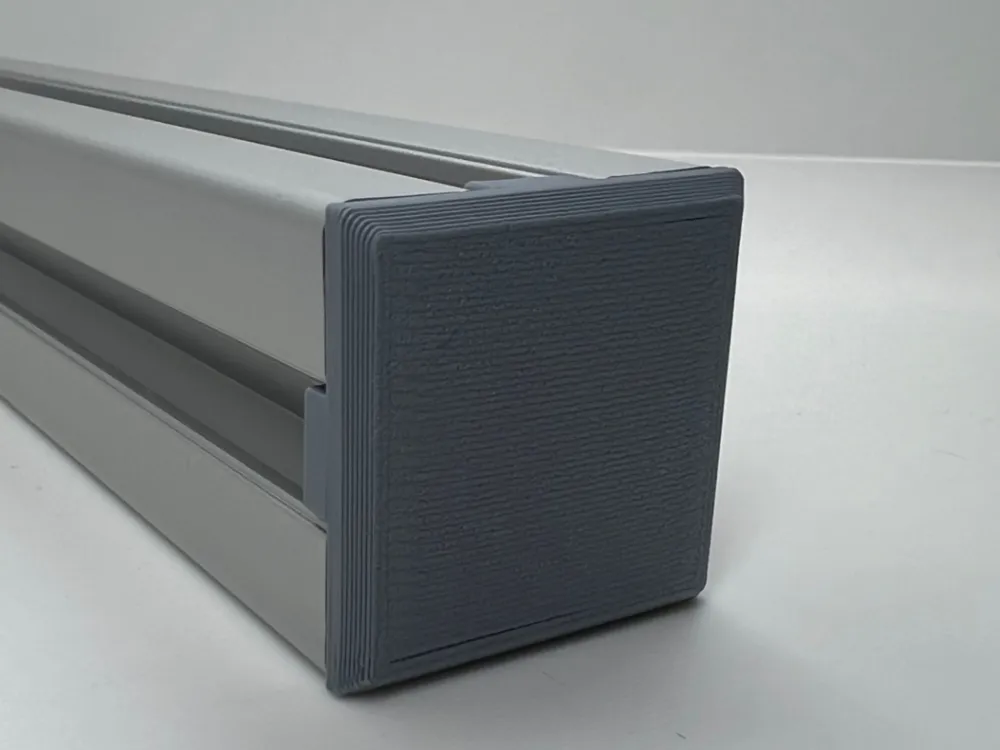

This is a press-fit End Cap for 30x30 T-slot aluminum extrusion profiles.

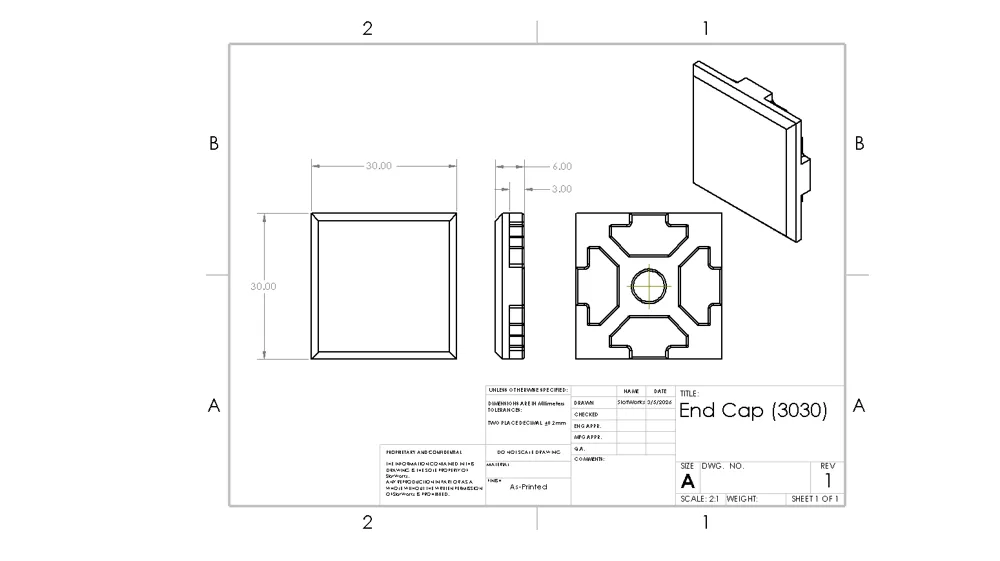

All dimensions are in millimeters.
Like, Boost and Follow me for more!
Recommended Print Settings
Material: PLA
Layer Height: 0.2 mm
Wall Loops: 2
Infill: 20%
Supports: None needed
Orientation: Print with the topside facing down.
Compatibility
Designed and Tested on 3030 T-slot Aluminum Extrusion: T-Slotted Framing, Single 4-Slot Rail, Black, 30 mm High x 30 mm Wide, Hollow | McMaster-Carr
If anyone has any improvements, suggestions, or requests please DM me.
