X2D/P2S Poop Bin

Designer

3.6 h

1 plate

4.9(15)

Official Vent Pipe Snap Version

Designer

3.6 h

1 plate

5.0(5)

Open in Bambu Studio

Boost

198

186

156

Released

Description

Content has been automatically translated.

Show original

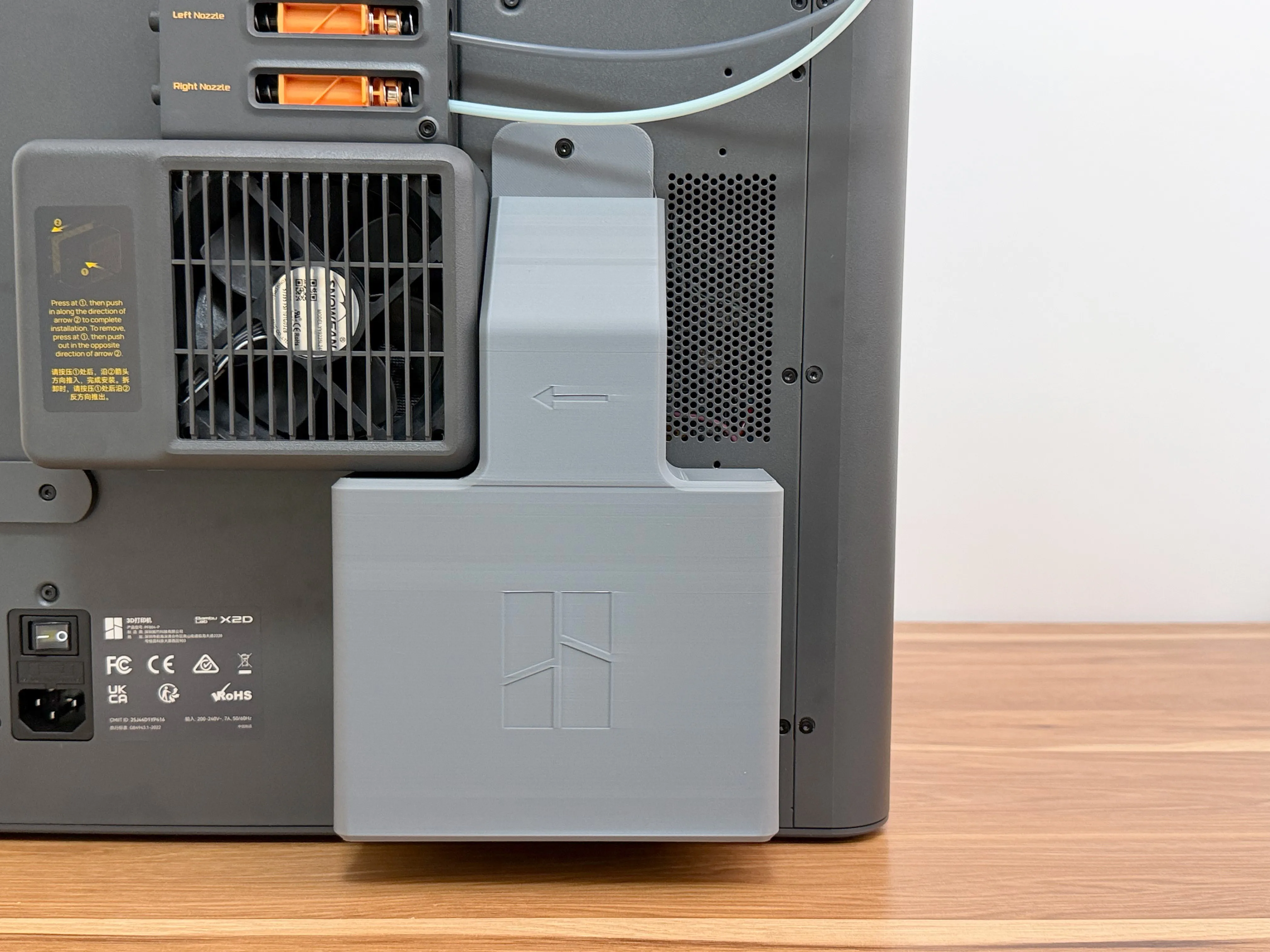

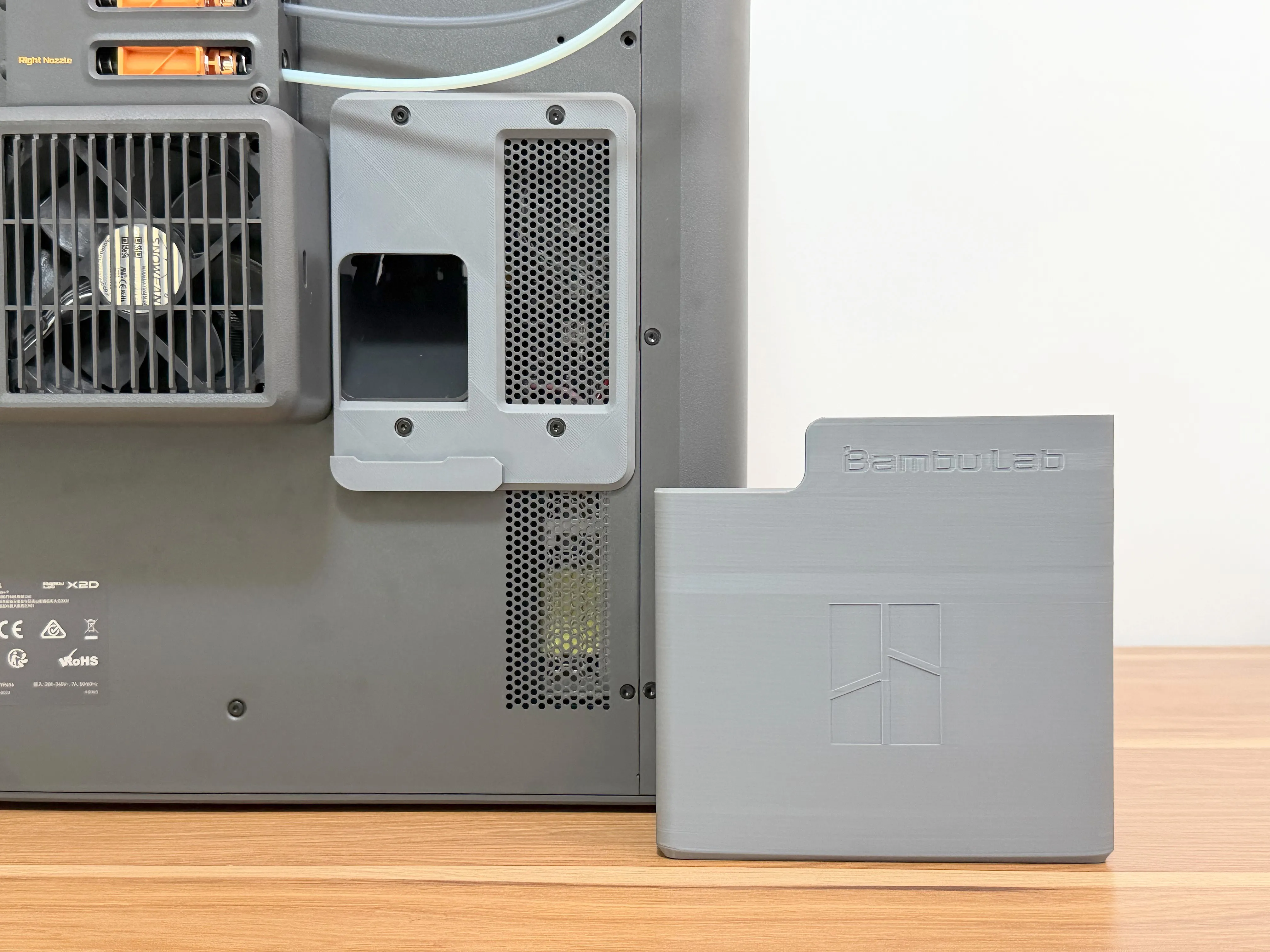

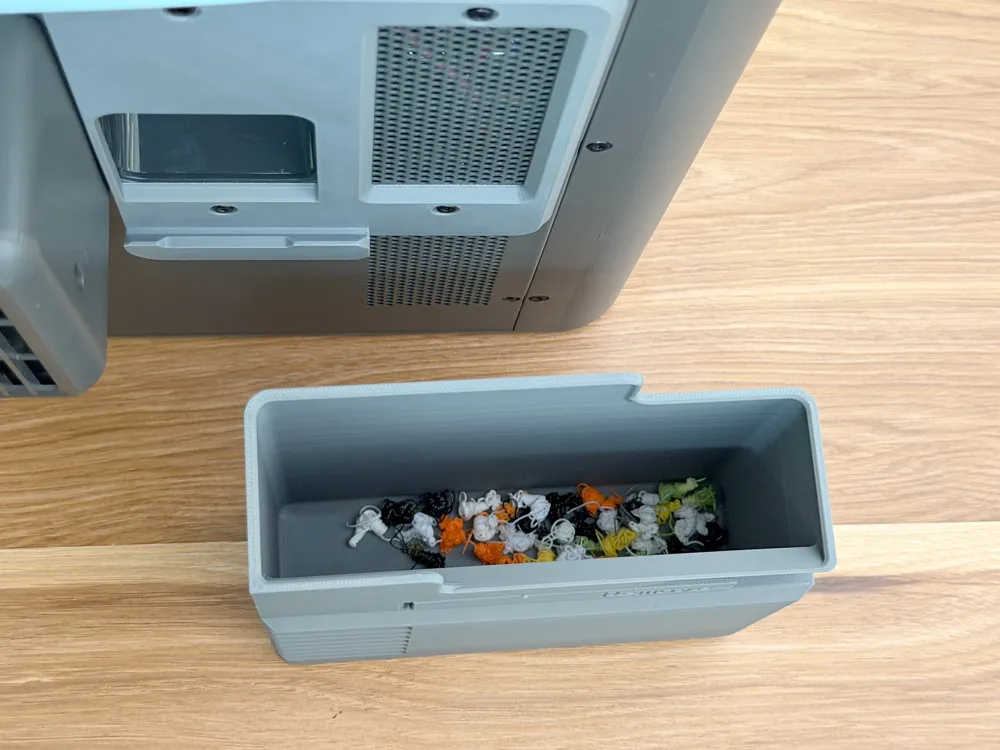

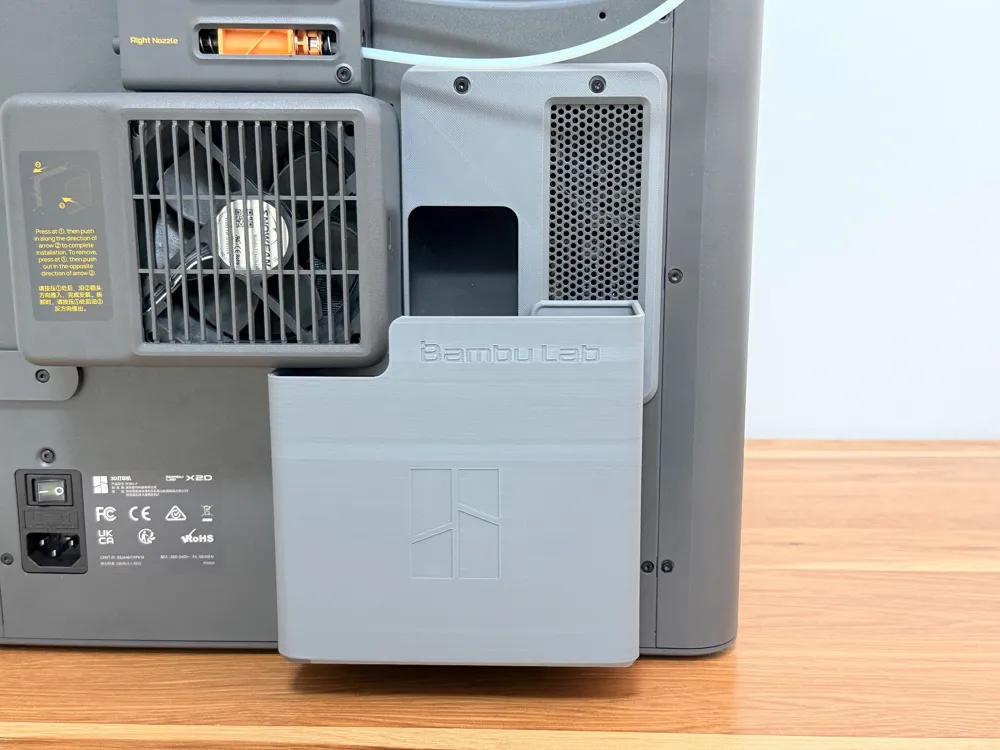

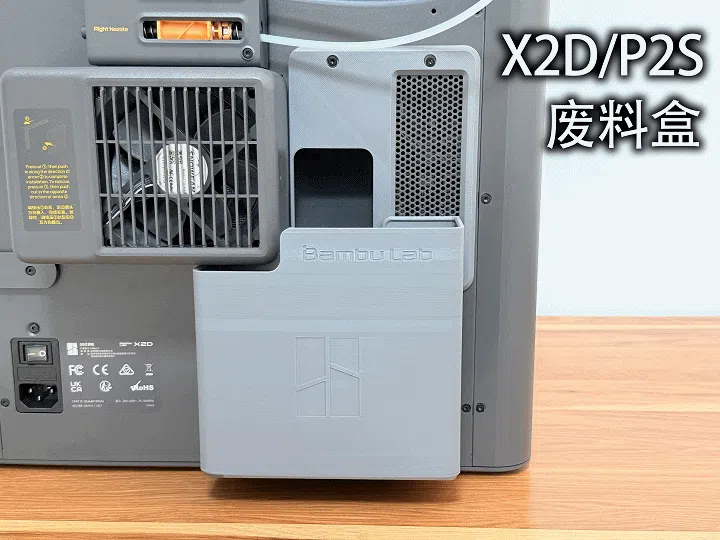

This model is a rear quick-release poop bin for the Bambu Lab X2D/P2S printer, with dimensions of: 155*55*150mm

It features easy printing, convenient use, sturdiness and durability, and an aesthetic appearance It is a dedicated accessory made specifically for the X2D/P2S

Features:

Convenient and practical, perfectly adapted, with precisely matched hole positions
Fast printing, requiring only 3.5 hours and 186g of filament
The model comes with support structures; no supports are needed for printing
Striped design around the heat dissipation holes, ensuring they are not obstructed
Smooth card slot, very convenient to pick up, and stable fixing
Original design, a dedicated accessory made specifically for the X2D/P2S, safe to use

Installation:

*To ensure precision in all parts, the model data was created by tracing hole positions and completely replicating the entire X2D printer to achieve perfect compatibility in terms of size, appearance, and more Now it will be an essential accessory for my P2S and X2D

Comment & Rating (23)

License

This user content is licensed under a Standard Digital File License.

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

Related Models

P2S / X2D Toolbox

Maxx Design

25.2 k

6 k

P2S / X2D Dustcover for the holes on the bottom

Domi1988

21 k

4 k

P2S/X2D Tool Box

compute4you

11.3 k

3.2 k

X2D P2S screen protector

Relaxed Fish

1.1 k

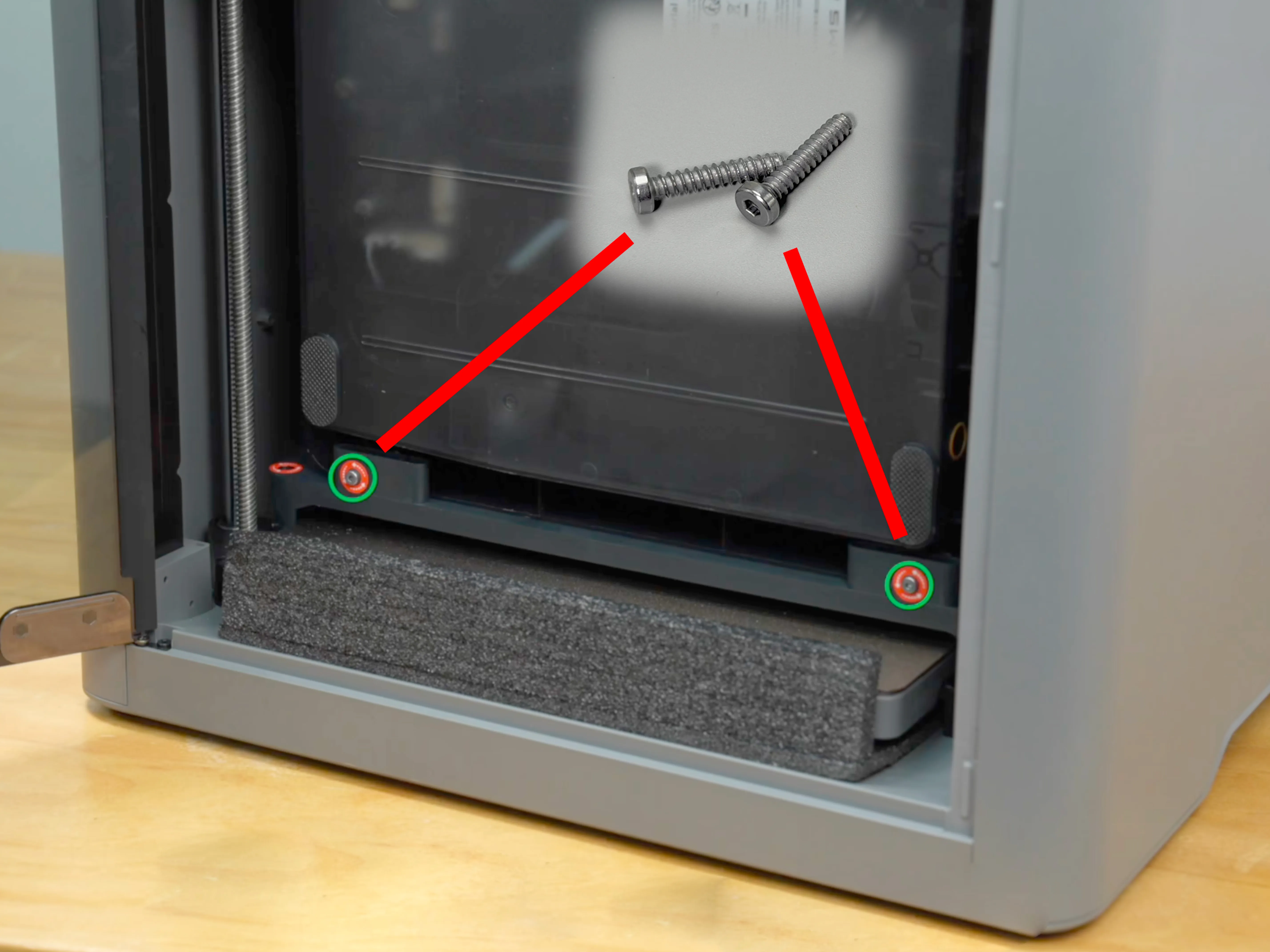

Remove the two screws directly above and below the poop chute outlet and use them to secure the two screw holes on the left side (the two screw holes above and below the heat dissipation holes) Find the two M3X18 self-tapping screws from disassembly (for securing the AMS) and use them to secure the two screws on the right side (the two screw holes directly above and below the poop chute outlet) If screws are not found, self-prepared M3 self-tapping screws can also be used, with a length of 10mm or more

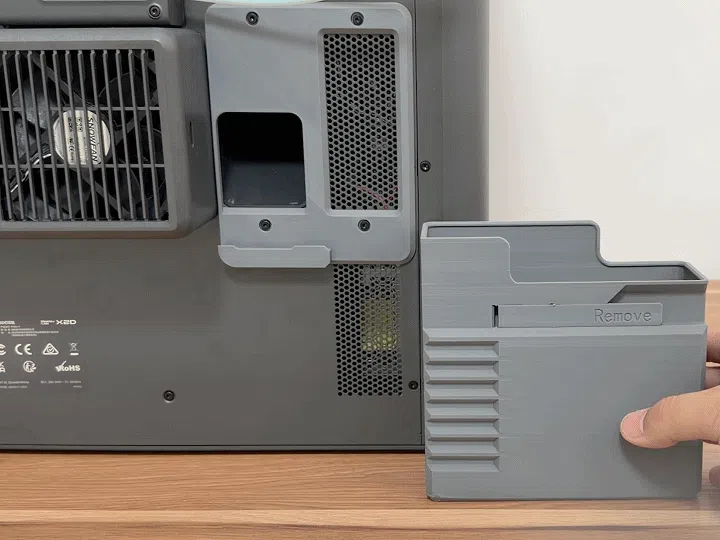

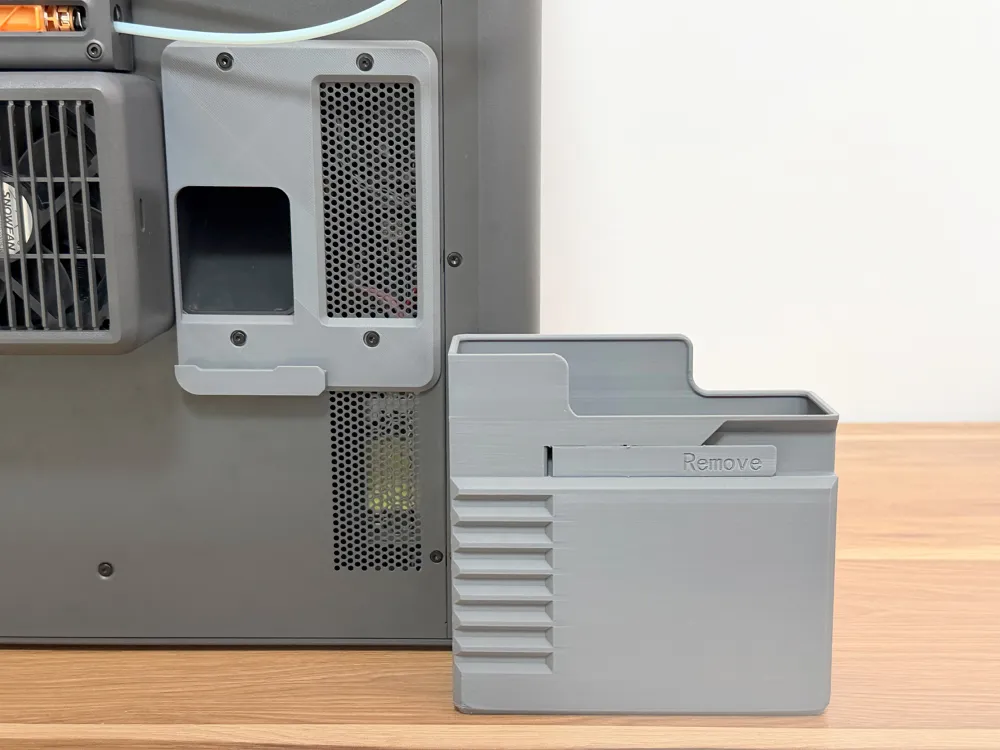

Before use, please remove the support structures that come with the model (marked remove) Gently slide it in from the side, aligning with the limit card slot
If you want to use the official exhaust pipe connector at the same time, you can print the "Official Ventilation Pipe Clip Version", which has a reserved notch at the clip position and will not interfere If you are interested in the official exhaust pipe connector, you can visit the official model files: International site、Chinese site
Multi-version compatibility: This version (open version) back panel is compatible with fully enclosed poop bins, but the sealing performance will be affected If you need an enclosed poop bin and a dedicated back panel, please visit: International site、Chinese site
