Modular Skateboard Wall Mount with Adjustable Rods

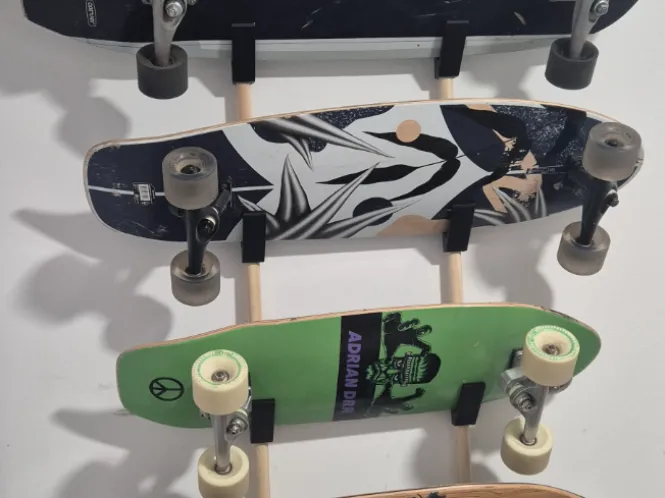

This is a modular skateboard wall rack system designed to hold multiple boards neatly on the wall while also serving as a stylish display.

The design uses standard broomstick rods (22.2mm diameter) as horizontal supports, making it inexpensive, strong, and easy to source anywhere.

Each board is held securely by printed brackets that grip the rod and support the deck without damaging it.

The model is fully parametric, allowing you to adjust:

• Rod diameter
• Skateboard deck thickness
• Spacing between boards
• Fit tolerance for your printer

Perfect for:

• Skateboard storage
• Wall display
• Kids rooms
• Garages and workshops

Key Features

• Parametric design (Fusion 360 / editable)
• Uses cheap, widely available broomsticks
• Scalable for any number of boards
• Clean and minimal look
• Strong and durable structure
• Easy to print, no supports required

Parameters (Important)

You can customize the model with the following parameters:

• rod_diameter – default: 22.2 mm
• deck_thickness – adjust based on your skateboard
• tolerance – recommended: 0.2–0.4 mm depending on printer
• hook_width – controls grip on the board
• spacing_between_brackets – depends on your layout

Printing Settings

• Material: PLA / PETG (recommended PETG for durability)
• Layer height: 0.2 mm
• Infill: 25–40%
• Walls: 3–4 perimeters
• Supports: Not required
• Orientation: Print flat on the base

Assembly Instructions

1. Print the brackets
2. Insert broomstick rods (22.2 mm diameter)
3. Cut rods to desired width
4. Mount brackets to the wall using screws
5. Slide rods through the brackets
6. Place skateboards on the rods

Hardware Needed

• Broomstick rods (22.2 mm diameter)
• Screws for wall mounting
• Wall anchors (depending on wall type)

Notes

• You can scale the system to hold 1 to 10+ boards
• For heavier longboards, increase infill and wall thickness
• PETG is recommended for better long-term strength
