Filament Switcher Bracket Mod (for X2D)
Print Profile(2)
Description
Boost Me (for free)
After using the official profile, I found some issues and made modifications

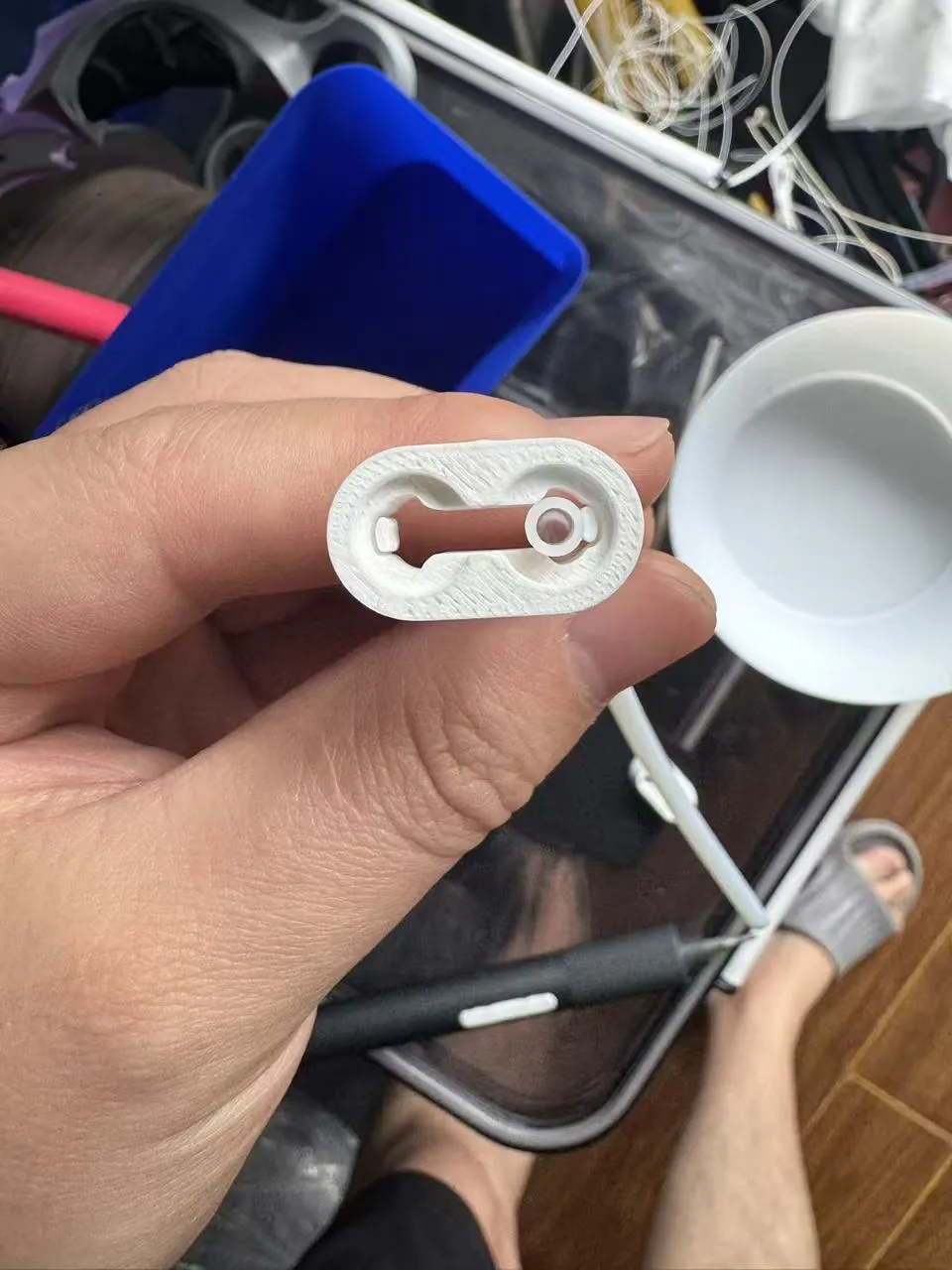

This filament tube quick-release clip serves to fix the tube angle and allow for quick removal. However, I found it was too tight, causing the filament tube to deform. So, I finely adjusted the clip's contact surface and tolerance to hold the tube without deforming it, thus preventing increased resistance.

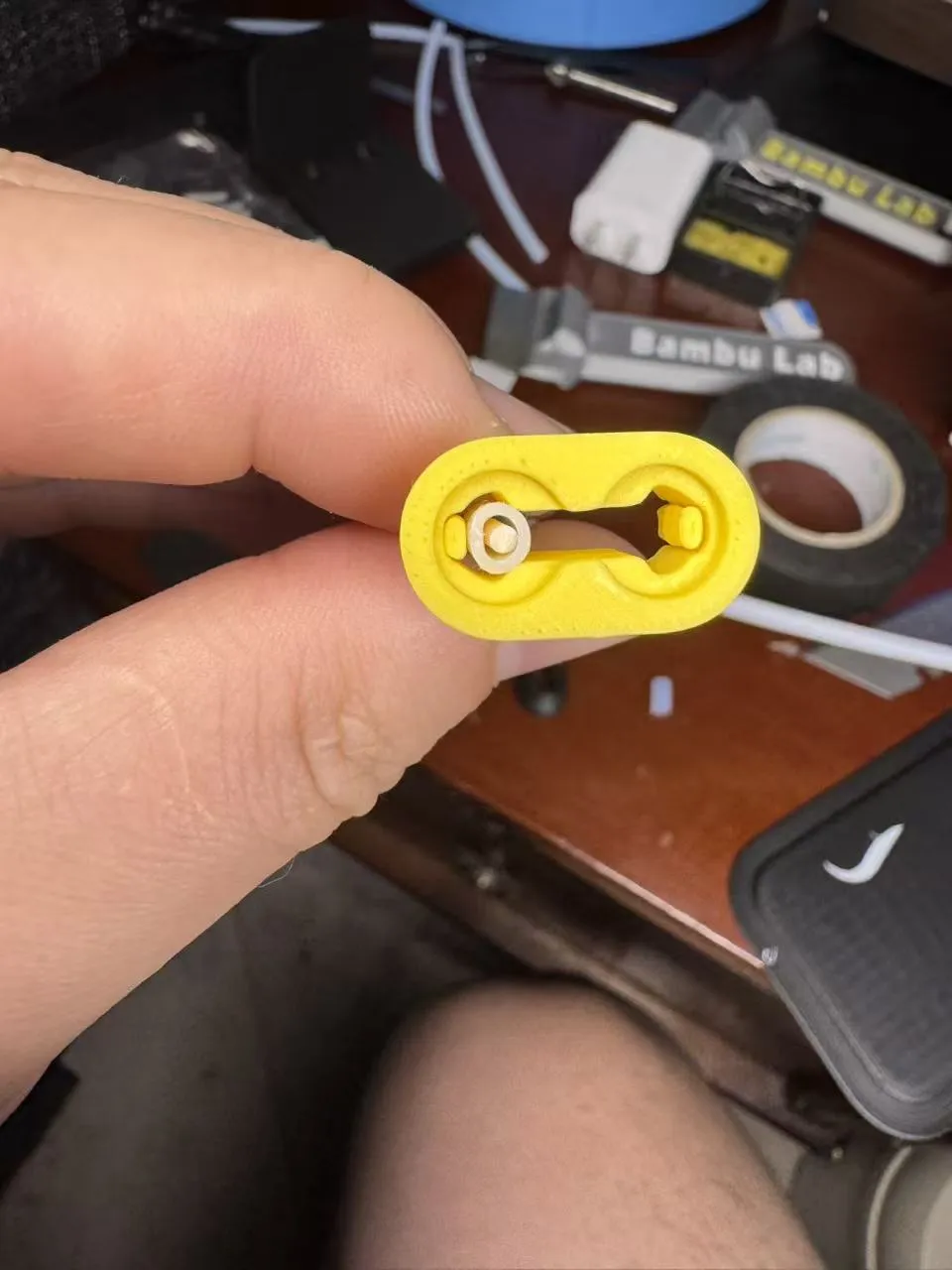

The modified clip can hold the tube without deforming its wall.

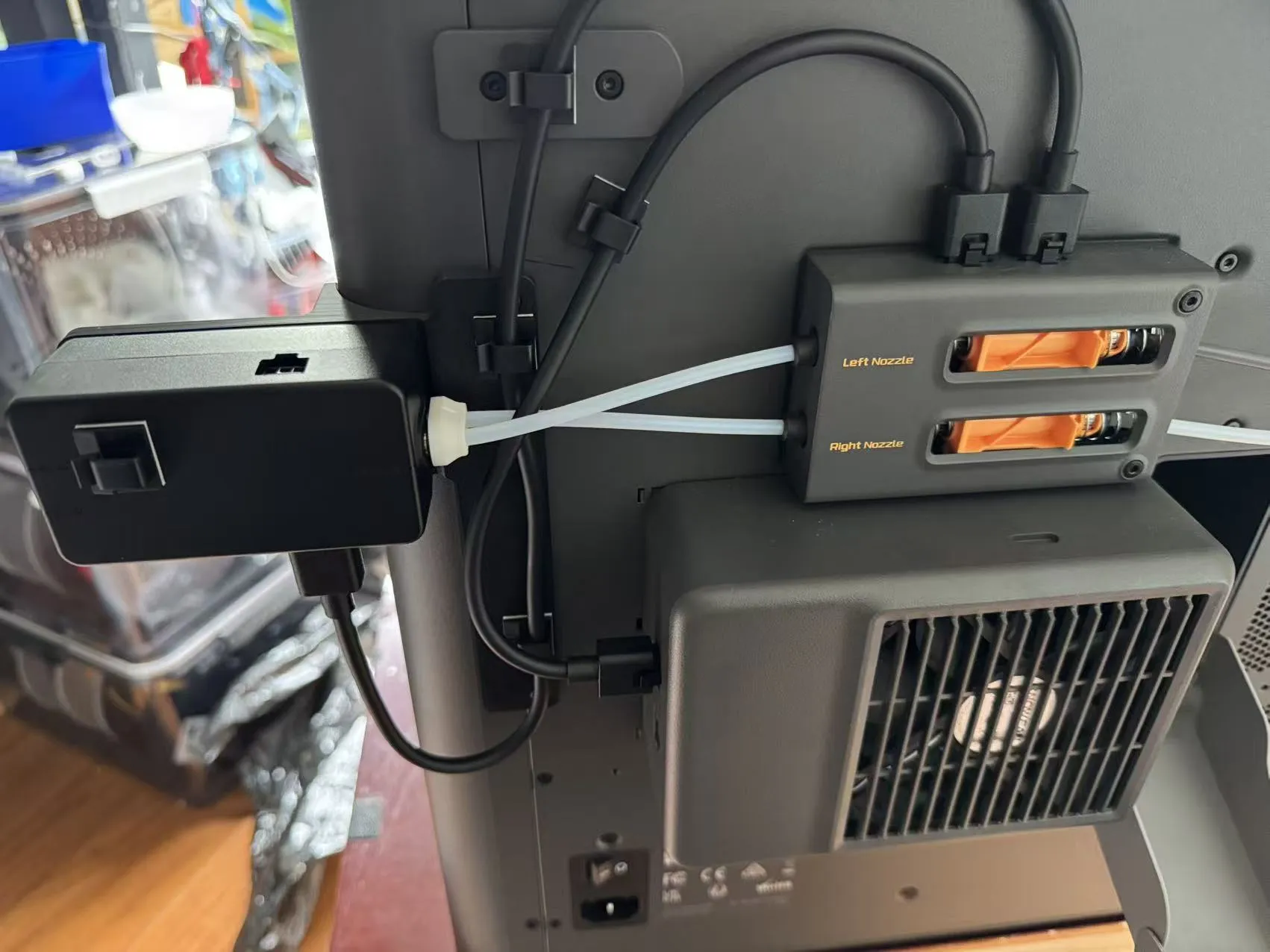

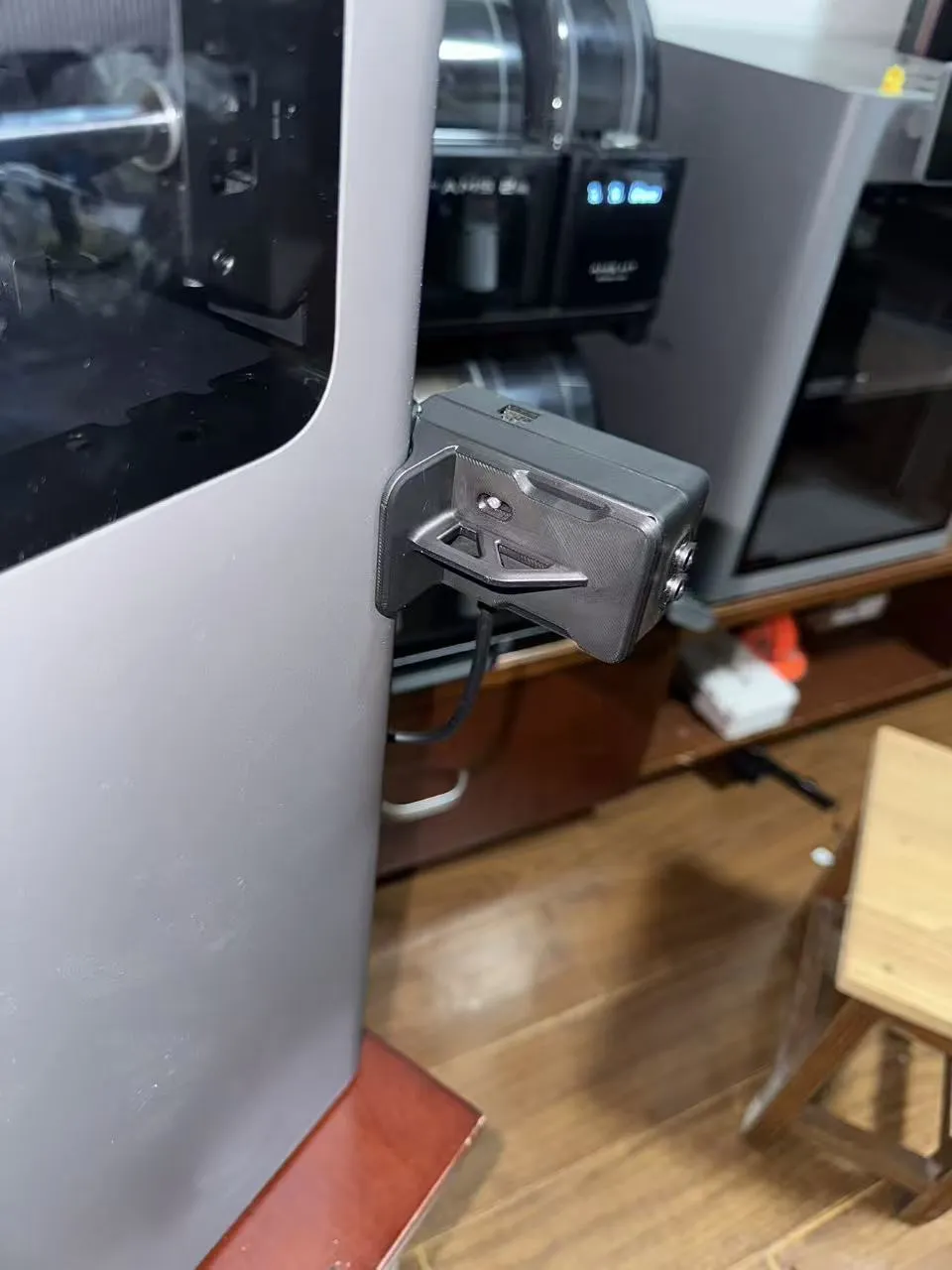

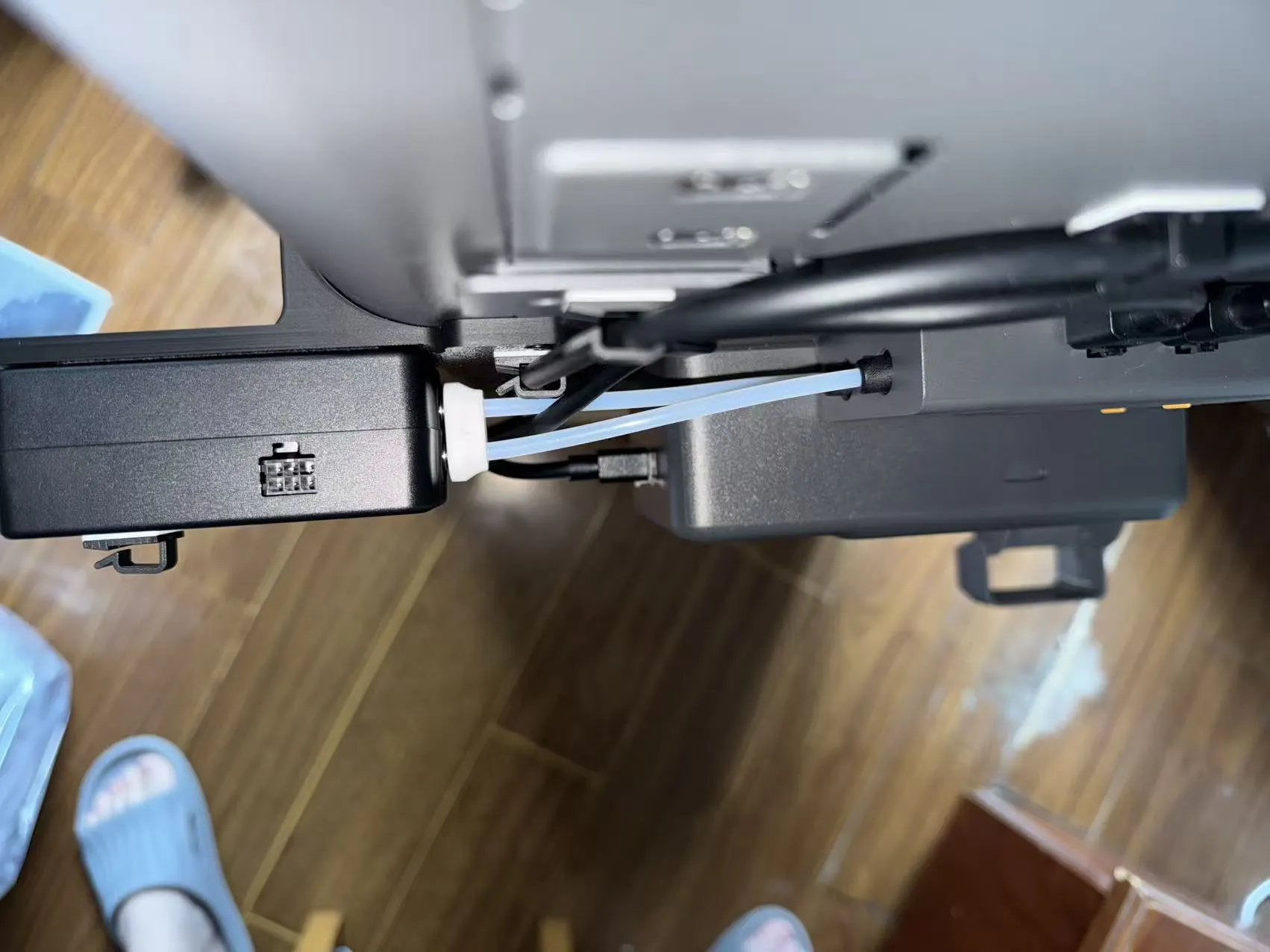

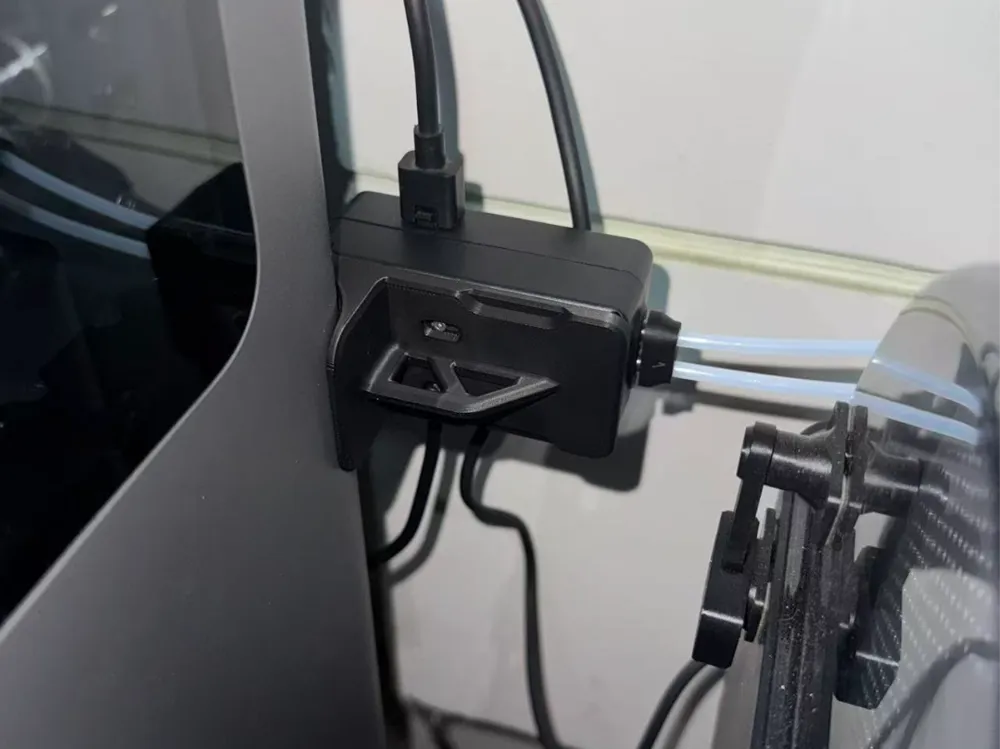

The current support frame is too far back, causing an excessive tilt angle of the A outlet tube and increased resistance. The new model offsets the mounting surface to align the switcher's outlet with the buffer's inlet, reducing filament feeding resistance. (Dual-material printing is required for an isolation layer to make overhanging surfaces smoother)
For the connecting filament tube, the officially recommended 115mm length can be used. I recommend using a 117mm long filament tube; both lengths are usable as the installation position has an adaptable range, but the 117mm tube yields better results. Using this profile will make your AMS feeding easier and reduce the possibility of feeding errors.
