3/4" Male Hose Barb Adapter Set Ø6–28 mm BSP

🔧 Description

Set consisting of 3D printable 3/4'' male hose barb fittings, designed to connect tubes of different diameters with good compatibility with standard fittings

The project has been prepared with multi-profile files + separate single models for each diameter (the indicated measurement refers to the internal diameter of the tube to be connected), so you can:

• print all fittings in a single print
• print only what you need
• avoid manual modifications to the plate
• quickly choose the most suitable diameter for your tube

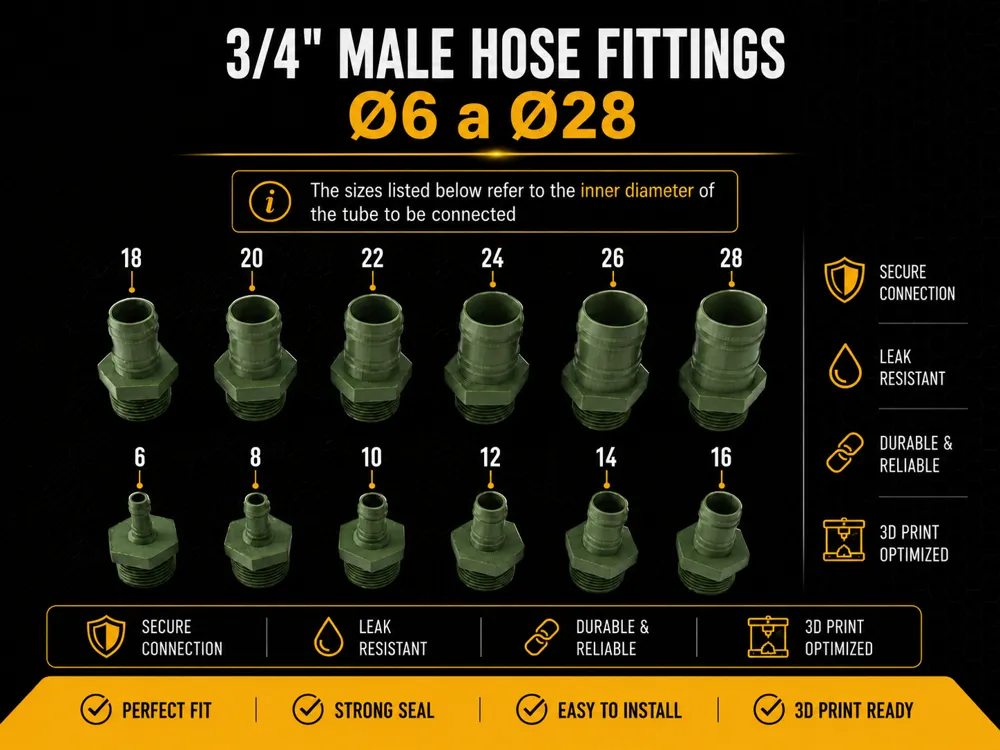

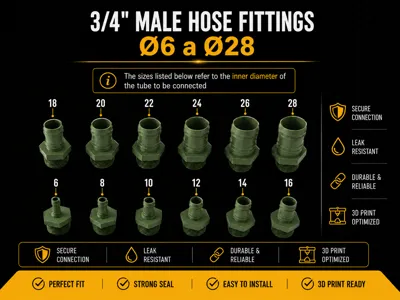

The package includes the following measurements referring to the internal diameters of the tube to be connected:

Ø6 mm
Ø8 mm
Ø10 mm
Ø12 mm
Ø14 mm
Ø16 mm
Ø18 mm
Ø20 mm
Ø22 mm
Ø24 mm
Ø26 mm
Ø28 mm

Ideal for:

• water or air tube connections
• irrigation systems
• workshop and DIY
• tests and prototypes
• quick adaptations on existing systems

✔ Thread compatible with GAS/BSP hydraulic standard 3/4'' male
✔ Complete set with tube diameters from Ø6 to Ø28 mm
✔ Multiple files for single or complete printing
✔ Geometry optimized for FDM printing
✔ Simple, compact and robust structure
✔ Useful for quick connections, tests and adaptations

The tube insertion area is designed with spaced hose barb profiles, designed to:

✔ improve grip on the tube
✔ reduce the risk of slipping under pressure
✔ allow correct tightening of the clamp, which can work between the teeth without deforming the fitting

This geometry ensures a more stable and secure attachment even with soft tubes

⚠️ Printing Notes

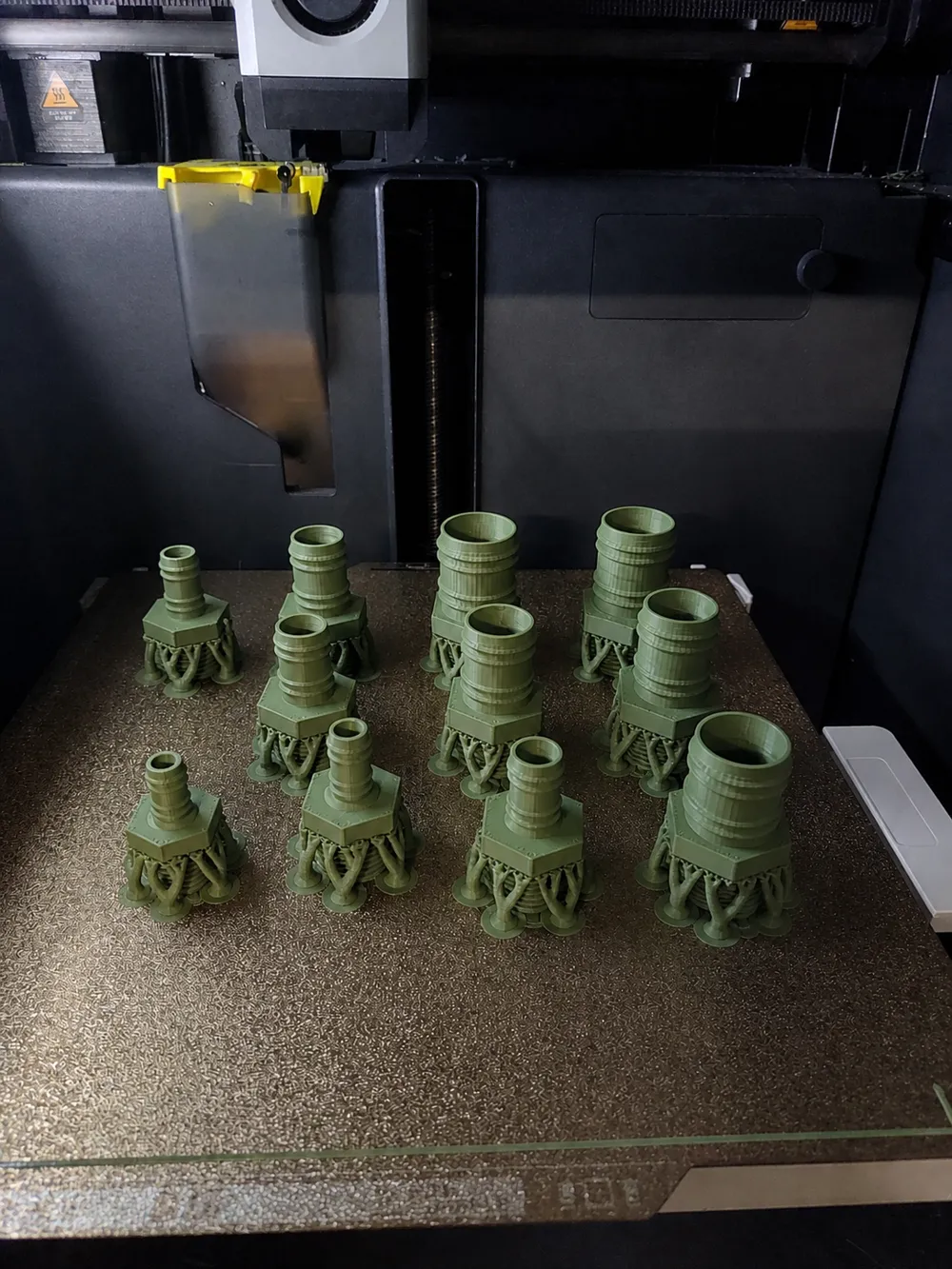

To ensure reliable printing, the models include supports and small internal brim

✔ The supports are structural and necessary to correctly support the geometry during printing
✔ They are designed to ensure stability and good surface quality in critical areas

✔ There are also small internal brims, designed to:

• improve adhesion to the print bed
• reduce the risk of detachment during printing
• increase stability, especially in larger diameter parts

👉 After printing, supports and brim must be removed
👉 The supports are optimized for easy removal without compromising the part

After numerous tests, complete removal of supports did not allow for adequate model quality to be maintained
For this reason, they have been optimized and maintained to ensure precision, stability, and a better final result

⚠️ Warning

Not suitable for high pressure, hot water, or critical systems
To improve sealing, the use of PTFE (Teflon) tape is recommended when necessary

📐 TECHNICAL SPECIFICATIONS

Type: male hydraulic hose barb fittings
Thread standard: GAS / BSP
Thread: 3/4'' male
Internal tube diameters to be connected: Ø6 – Ø28 mm (2 mm step)
Configuration: multi-profile + single models
Recommended technology: FDM printing
Recommended materials: PLA / PETG / ASA / ABS

🔧 Other versions available:

👉 1/2" Male Set Ø6–24 mm
https://makerworld.com/en/models/2687519-hydraulic-fittings-1-2-m-hoses-o-inner-6-24-mm#profileId-2977271


👉 1/2" Female Set Ø6–24 mm

https://makerworld.com/en/models/2717745-plumbing-fittings-1-2-f-pipes-with-6-24-mm-interna#profileId-3010208

👉 3/4" Female Set Ø6–28 mm
https://makerworld.com/en/models/2747643-hydraulic-fittings-3-4-m-internal-tube-o-6-28-mm#profileId-30479

🧾 Note

As with the other models in my collection, these fittings have also been tested with commercial components and designed to be practical, printable, and useful in technical, hobby, and workshop environments
