Poop bin P2S/P1S/X1D
Print Profile(1)
Bill of Materials
Description

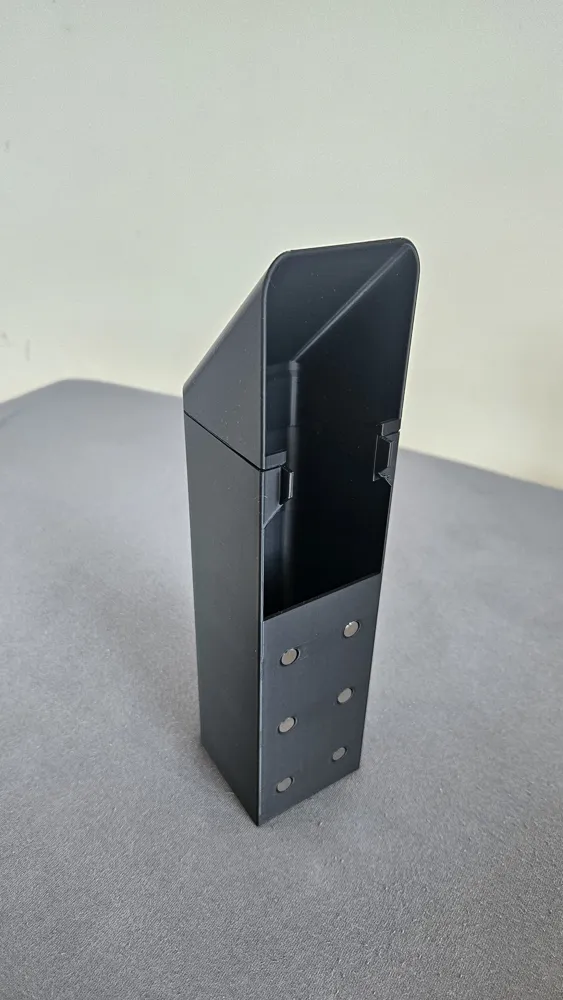

A magnetic side-mounted waste bin for the Bambu Lab P2S that catches purged filament.
Added cutomisable magnet holes and number of rows if smaller magnets are used
Features:

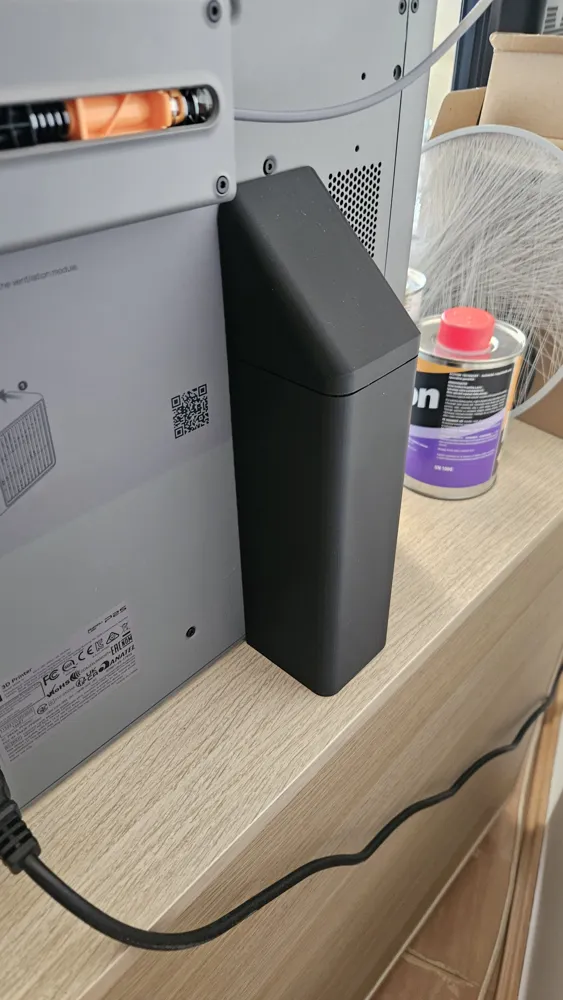

- Mounts magnetically to the back side panel of the P2S

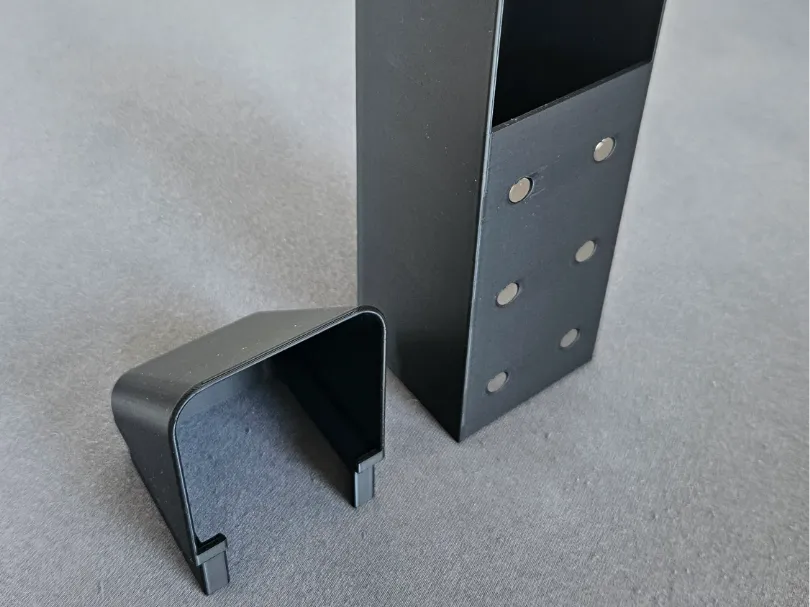

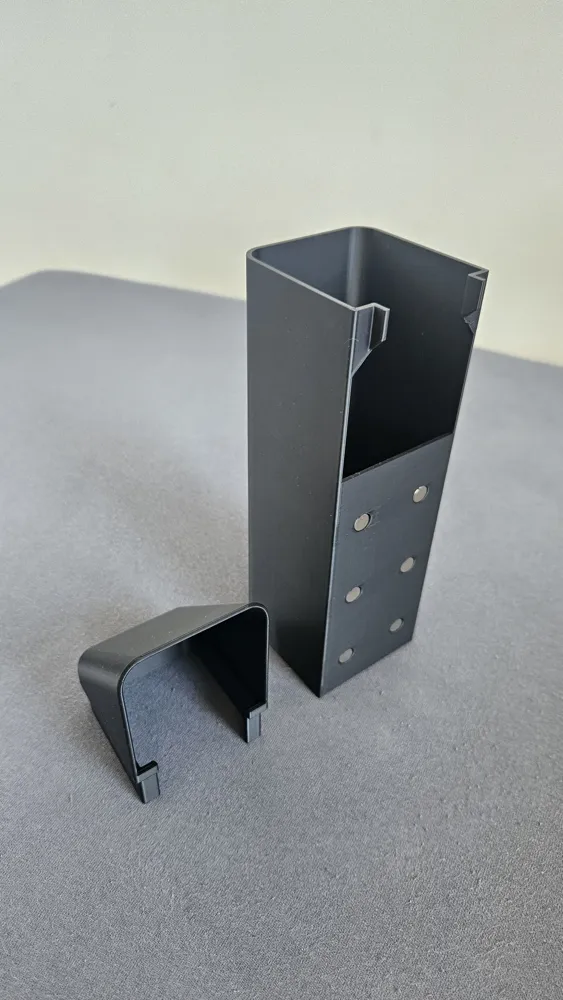

- Two-piece design: main chute body + removable cap for easy emptying
- 6× embedded magnets for secure, tool-free attachment
- Snap-fit bottom cap — no screws needed
- rattle-free, no printer modifications
Hardware required:
- 6× round neodymium magnets (press-fit magnets) 8x2 mm round magnets (if using cusomisable model dont forget to add clearance for magnet openings, i used 0,4 mm bigger diameter)
Assembly: Print both parts, insert magnets into the recessed pockets and snap onto the printer.
