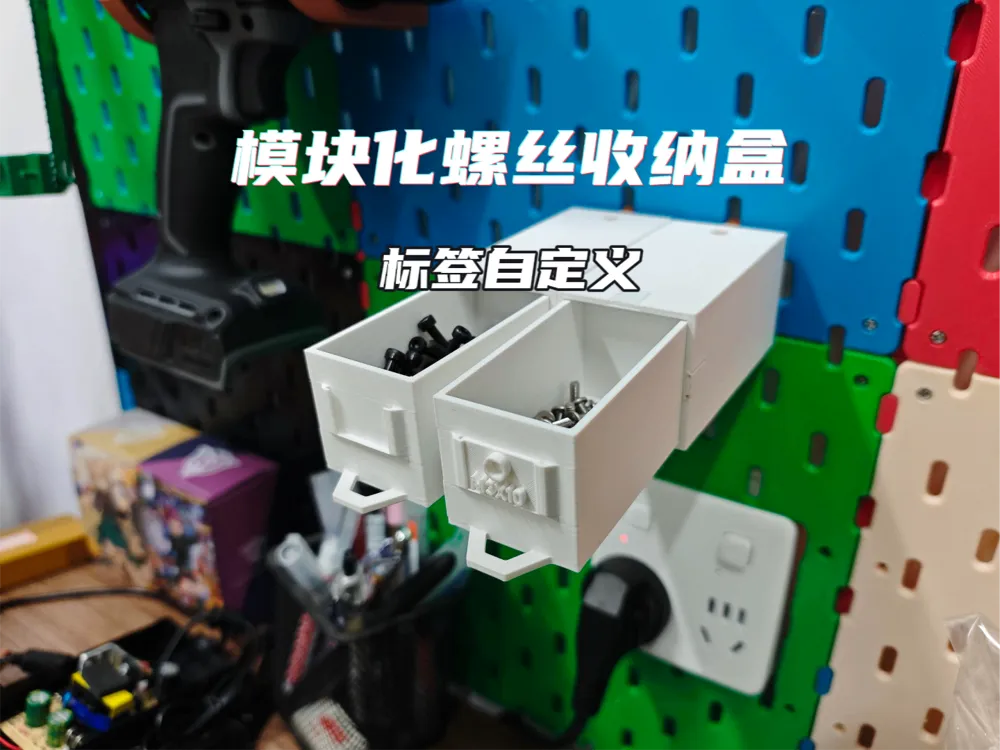

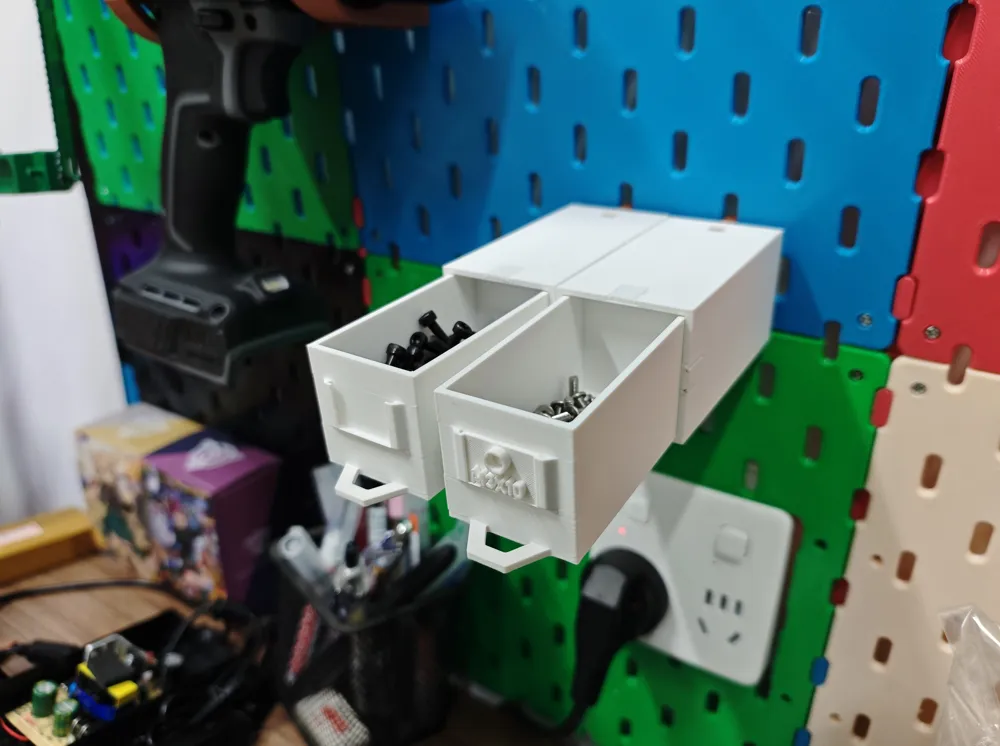

Modular IKEA Pegboard Screw Storage Box

May 13, 2026

Modified the gap from 0.15 to 0.2 The label thickness was changed from 1.2 to 1.0 When I printed with PETG, there was significant shrinkage, making the 0.15 gap difficult to insert and remove

External dimensions 40*40*81.50 (excluding handle and label slot)

Internal dimensions 65.8*31.70*33.70

There are 1X1, 1X2, 1X3, 2X2 sizes For every 1X1 added, the height and length increase by 40 based on the 1X1 base

It uses a detachable hook This hook design is very good; it has no thickness requirements for the pegboard As long as it is within 5mm thick and the hole positions are correct, it will fit very tightly

A storage box has been designed for this hook Please support the original author and print the hook from https://makerworld.com.cn/zh/models/562601 He has a set of Dr's IKEA pegboard accessories

I believe that all widely compatible accessories will use this set of detachable hooks in the future

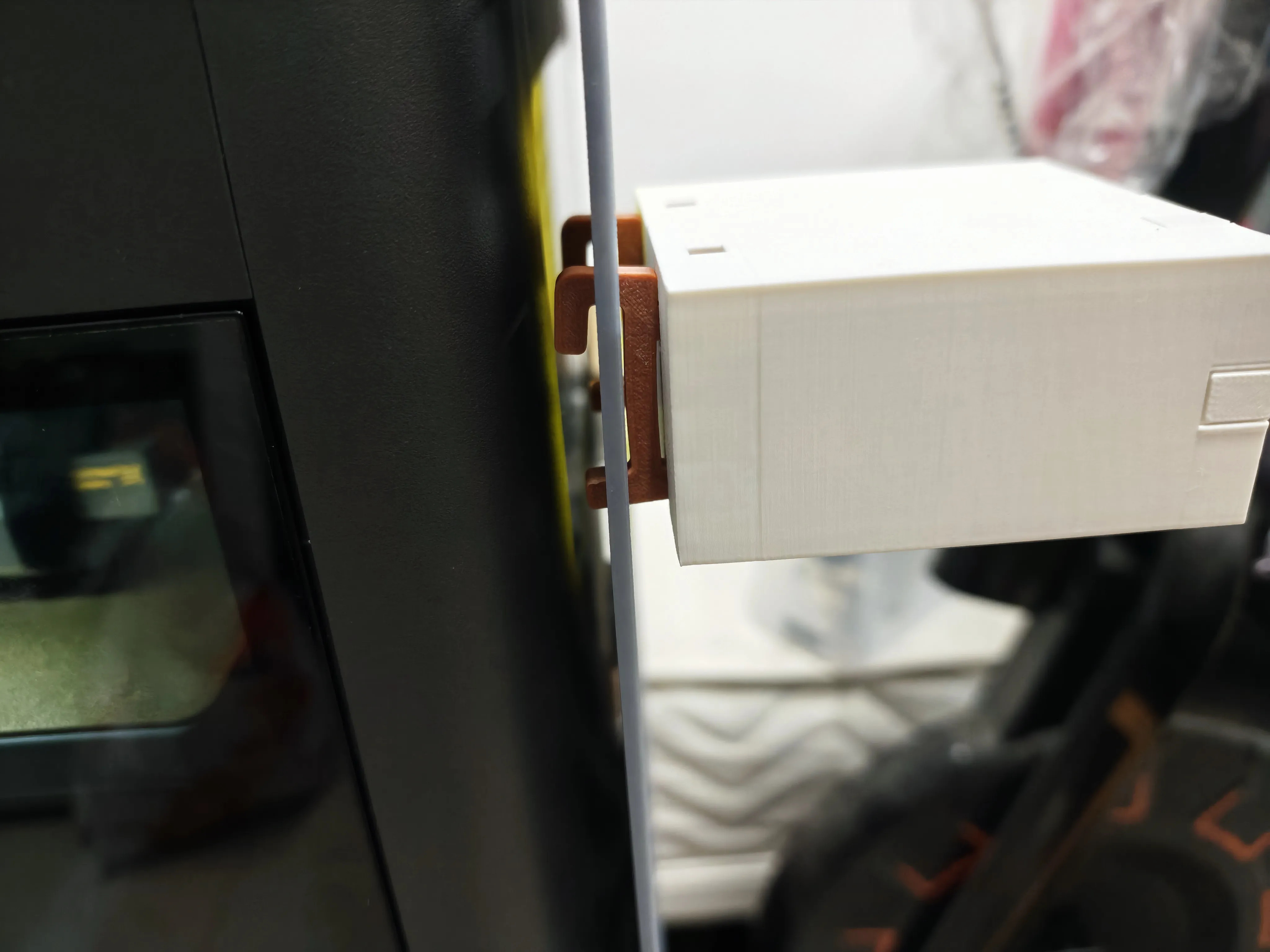

Effect on a 3mm pegboard

As you can see, the only drawback of this hook is that it takes up some space behind it, requiring an additional 4mm+ of space from the model Please measure if space is limited

The connectors for the boxes only provide a compact fit and no additional strength Edge pieces are also provided, so if your box is on the very edge, you can install them to fill the gap

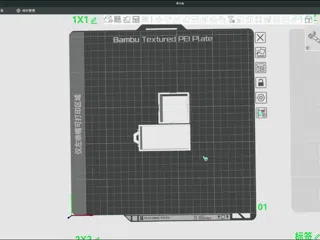

If you open this file on a computer, you should see models with four arrow names: ↖↙↗↘

These four models are for changing the corners to rounded ones when the box is placed in a corner If the box is in the upper left corner, change the ↖ model to a negative part

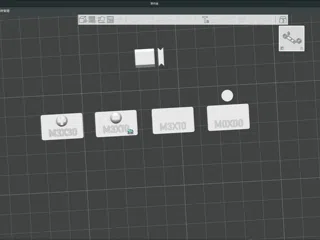

Cross, slotted, and hex labels are provided, along with blank labels for your customization

Please use a computer to modify the text for the corresponding size
