YoloBox Ultra VESA Mount
Print Profile(1)
Description

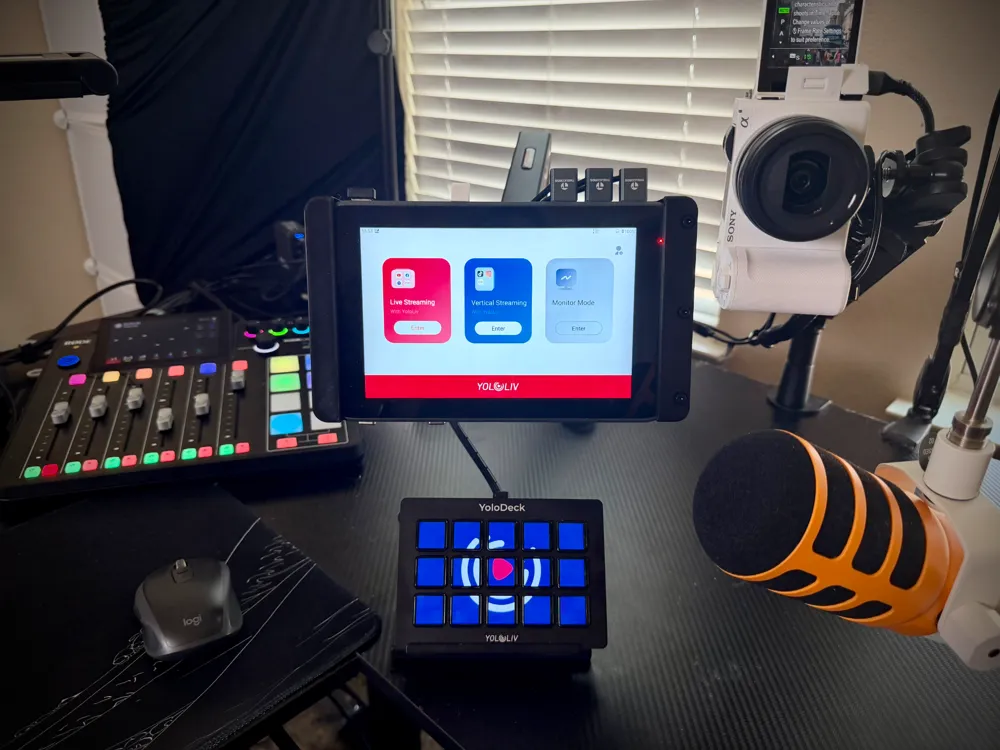

This is a Vesa Compatible Mount (adapter) for YBU (Yolobox Ultra)
an All in One Live Streaming Solution which I use daily.

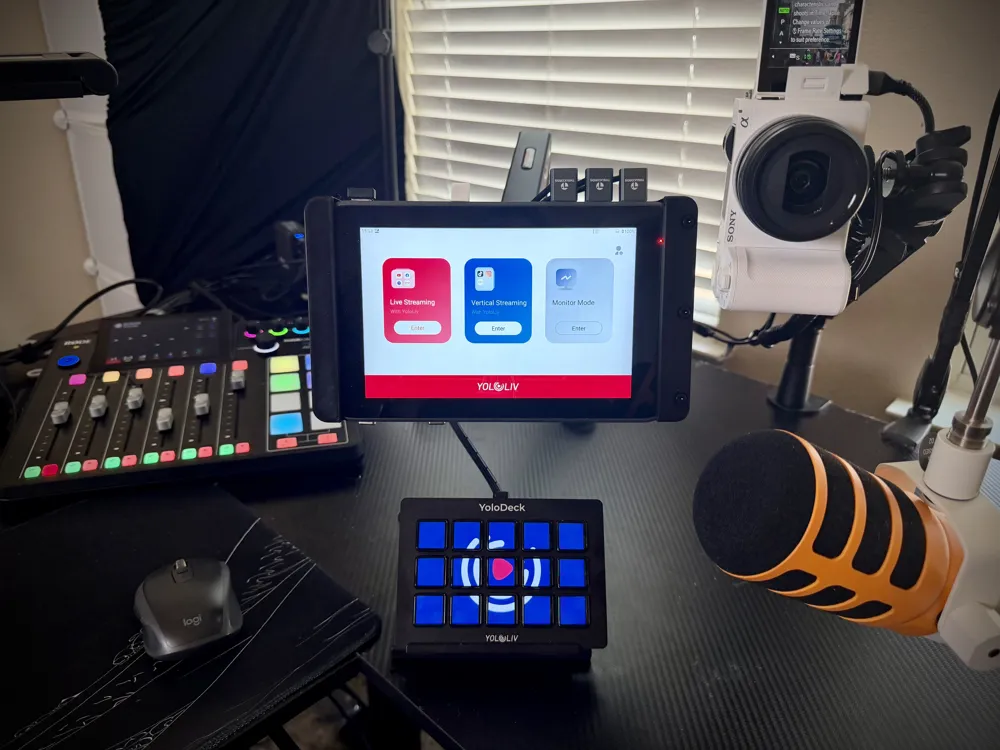

My main reason of making this is, so that I can push the unit away when I need the deskspace.

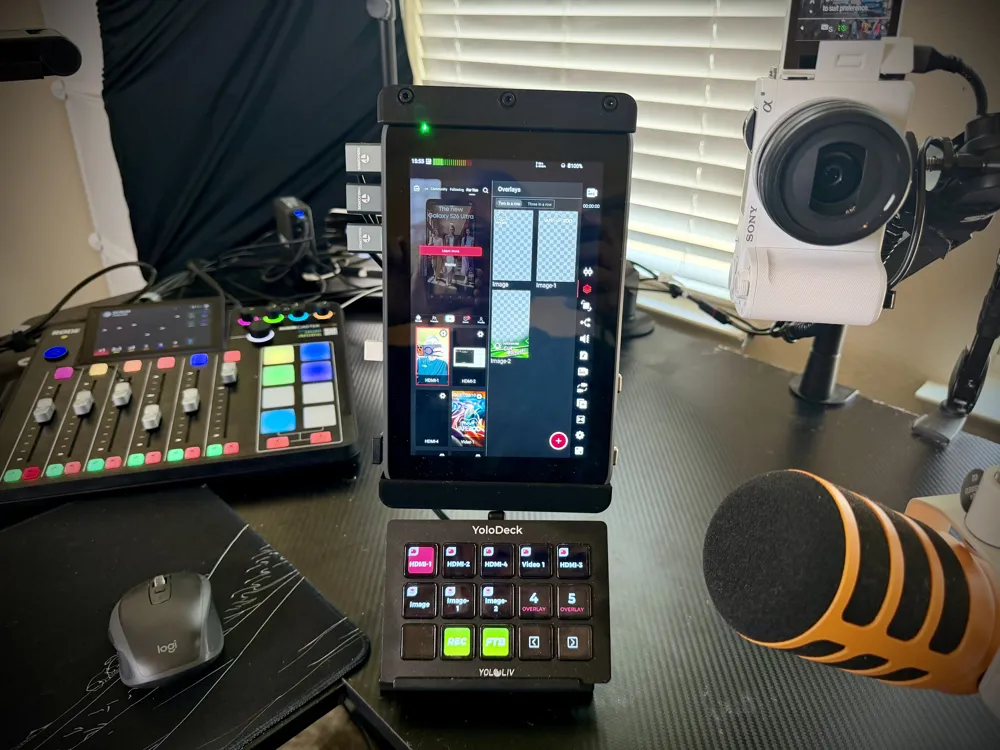

It is usable in both vertical and horizontal mode...
You should be able choose any VESA compatible desk arm, but I personally really like this one by Jinraiko >>
https://www.amazon.com/dp/B0FVTQY4Q7?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
It was designed for laptop, I just don't use the "clamp".
The design itself is pretty simple, just have to figure out where to hold the unit without interfering all the cabling while remaining pretty stable,
The last change I made was to add the “ribs” for the lack of a better word… the intention is to let some air pass through however little there is, in hope that it will help reduce the possible hear buid up.

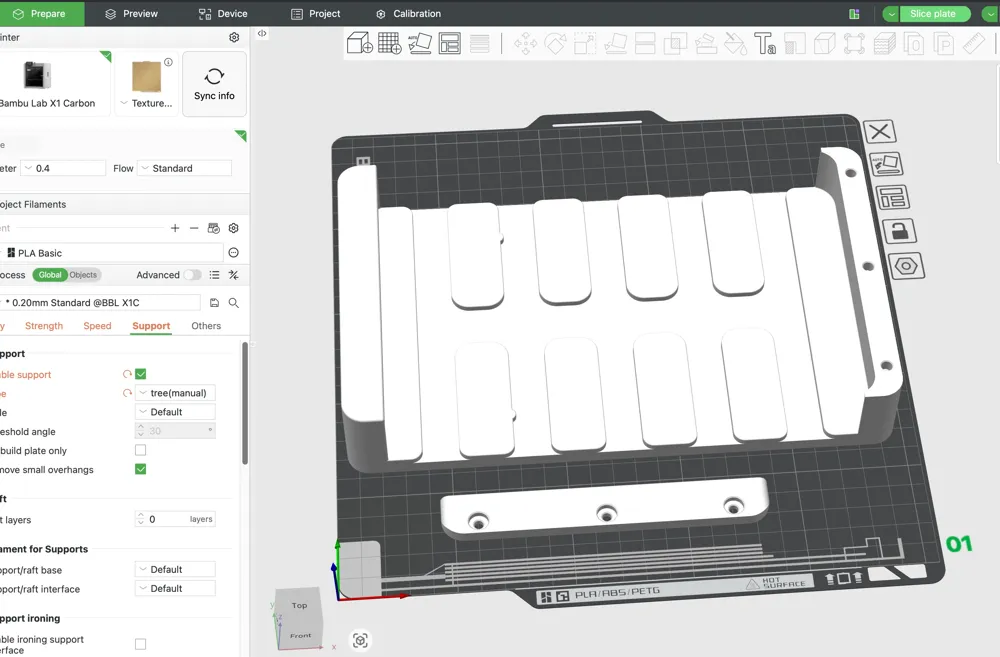

This is a single plate project, pretty simple… I use PLA, you can choose your own filament…

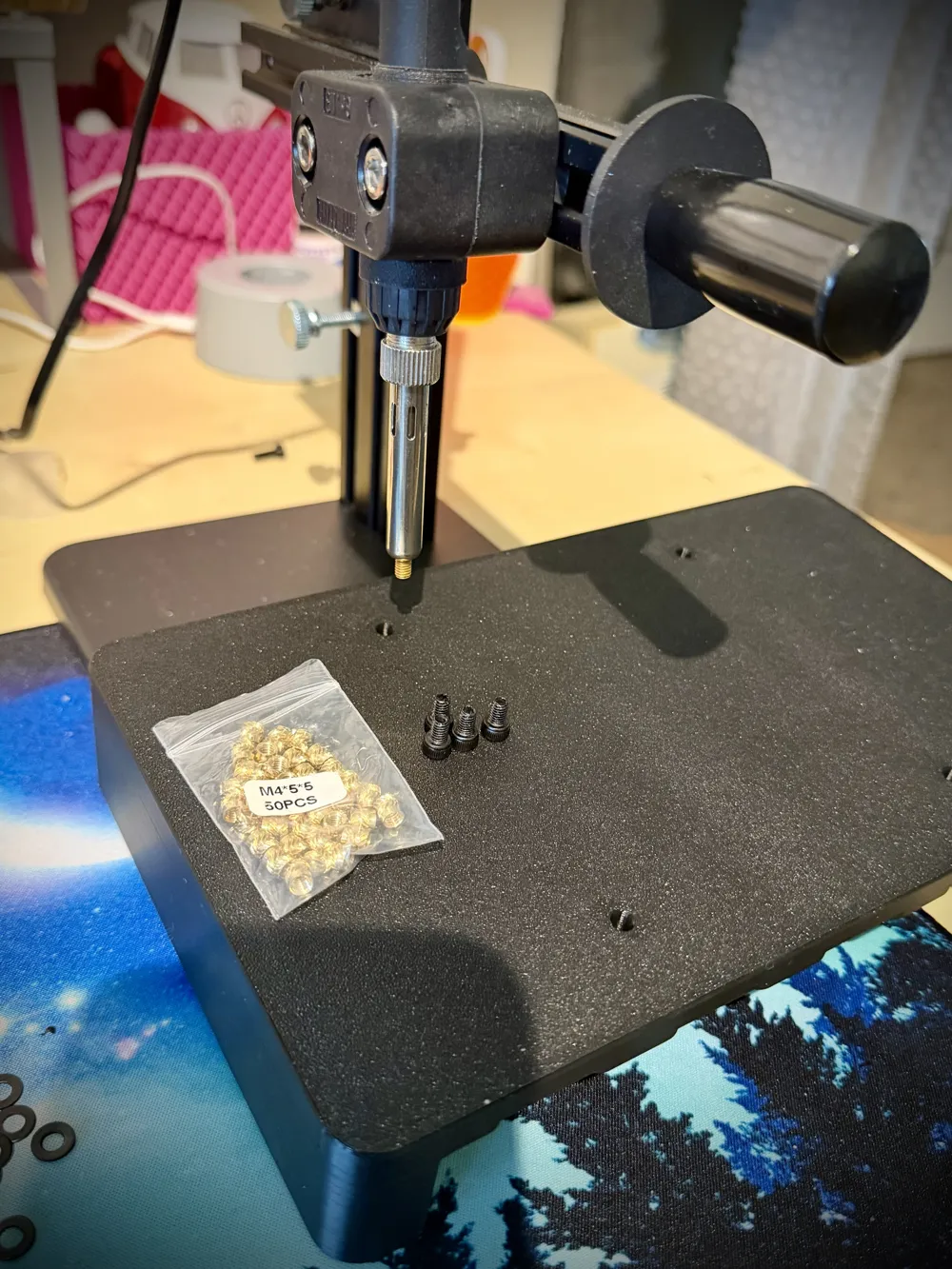

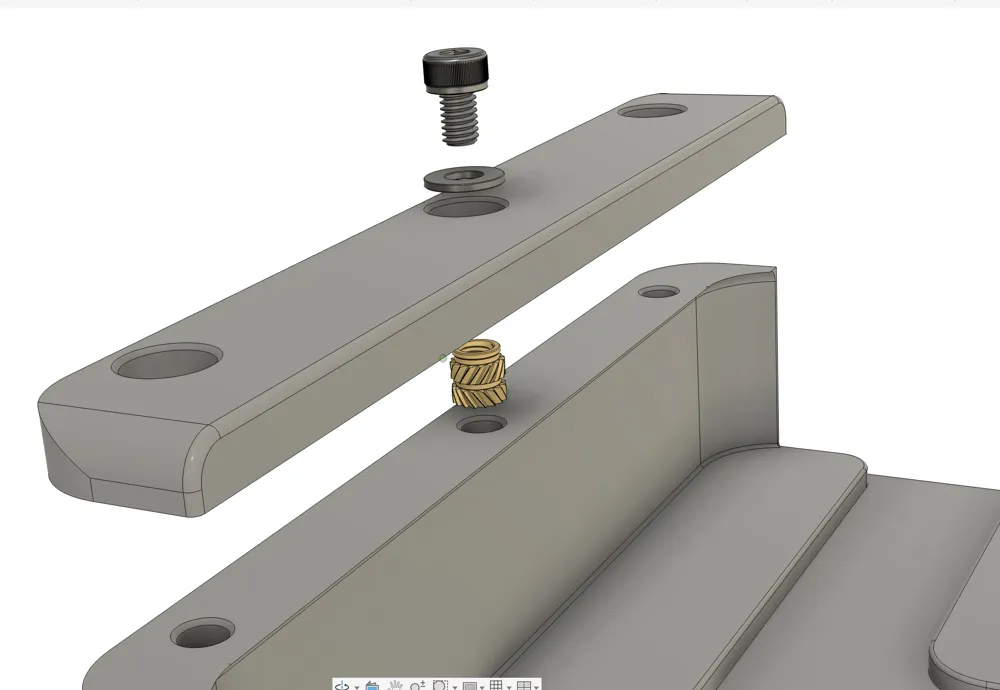

We use M4 threaded heat brass insert and M4 Head Cap Screws plus the washers
Installation should be pretty straight forward, just make sure the brass insert are straight.

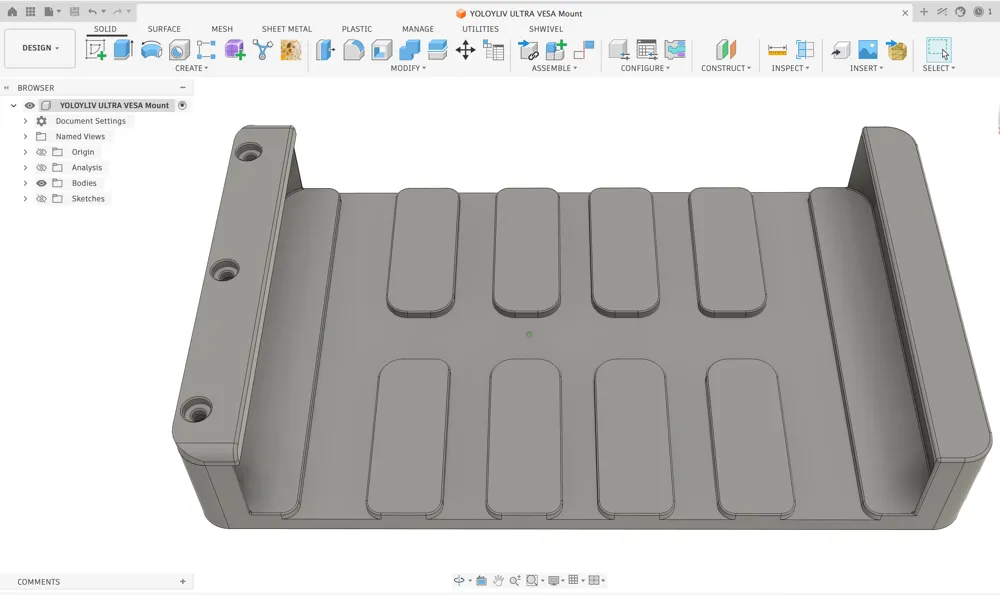

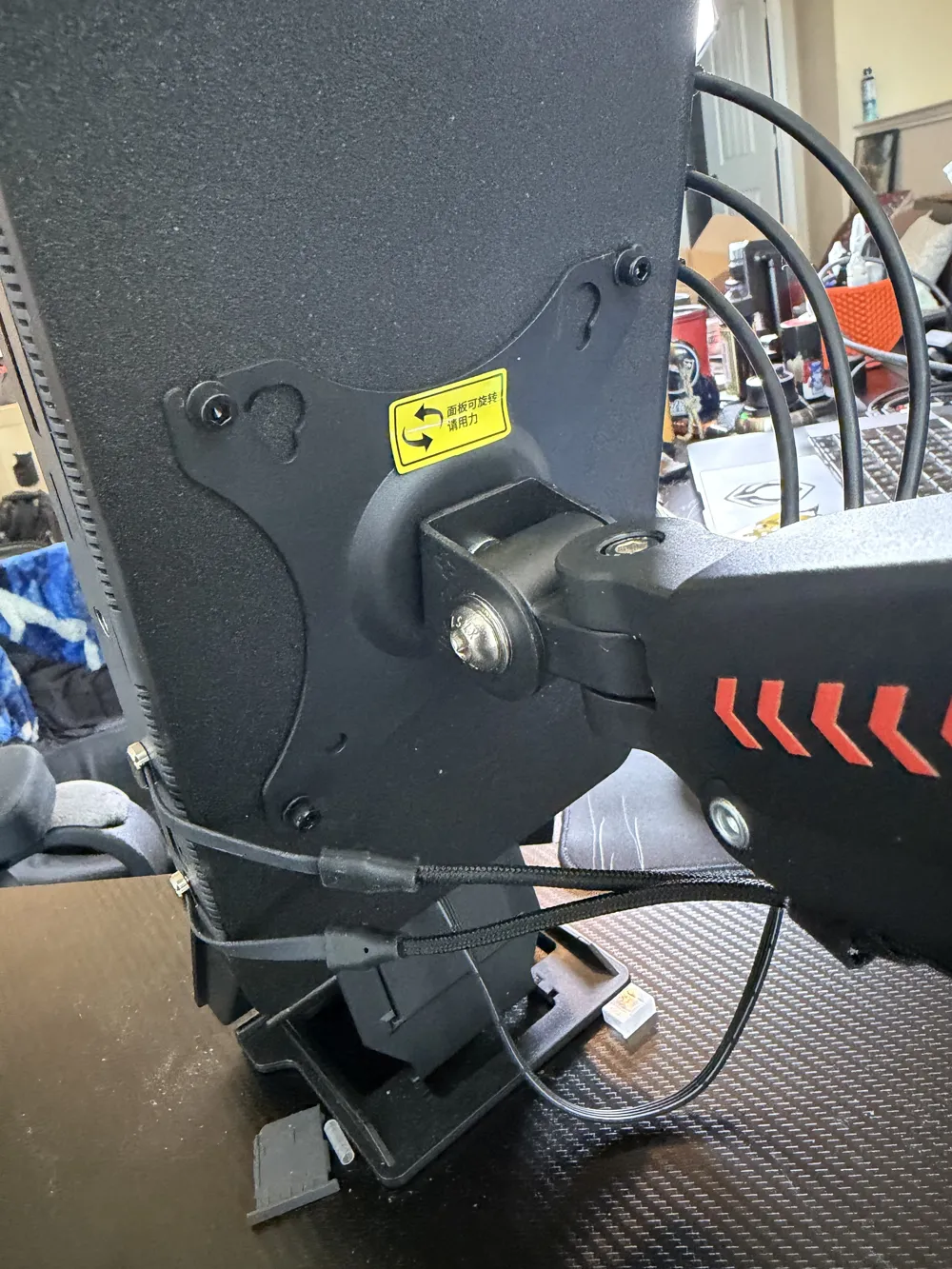

I have modeled the holes at the back for the VESA mount
and and front top to clamp the YBU in place.
Additional notes:

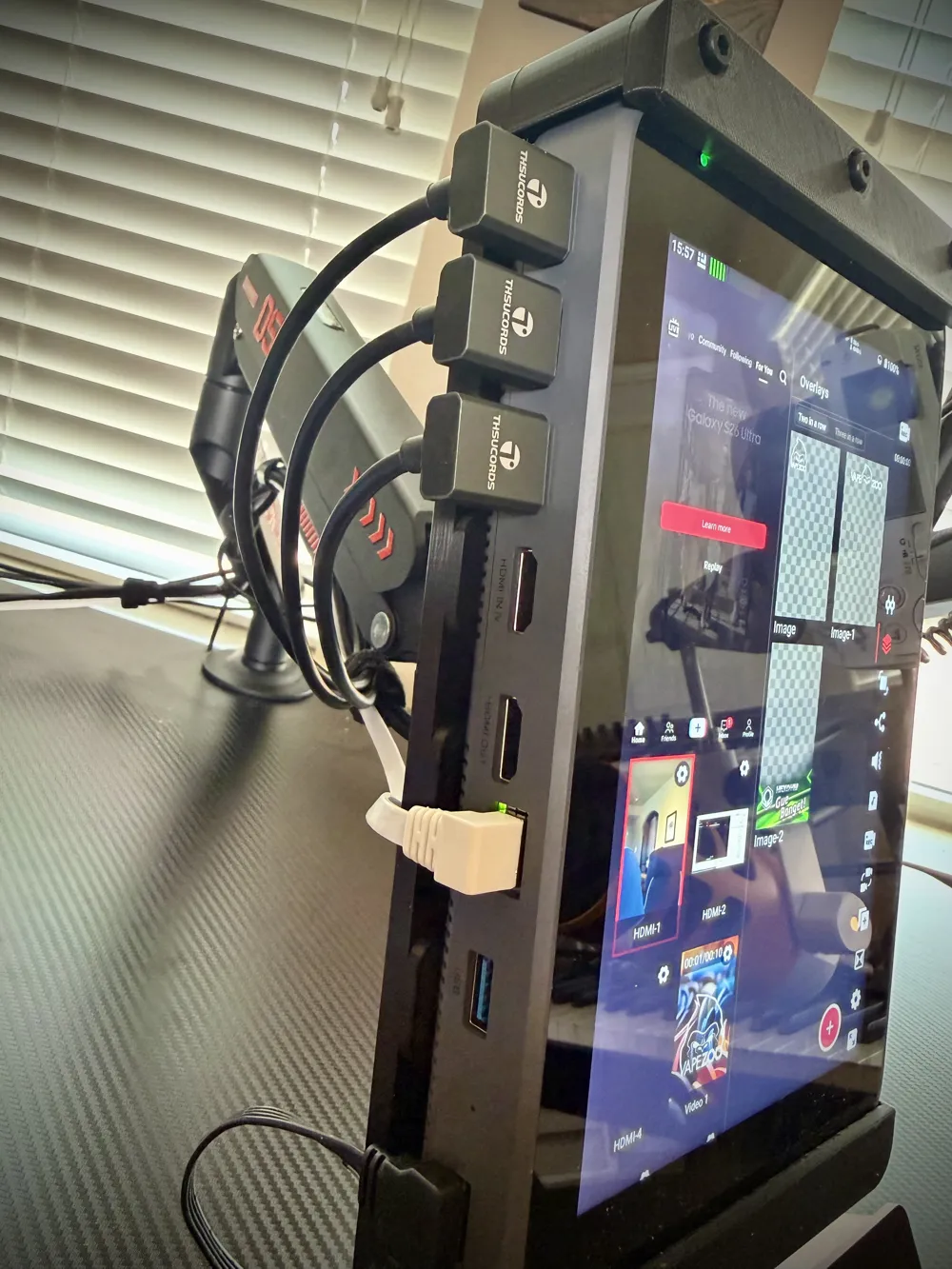

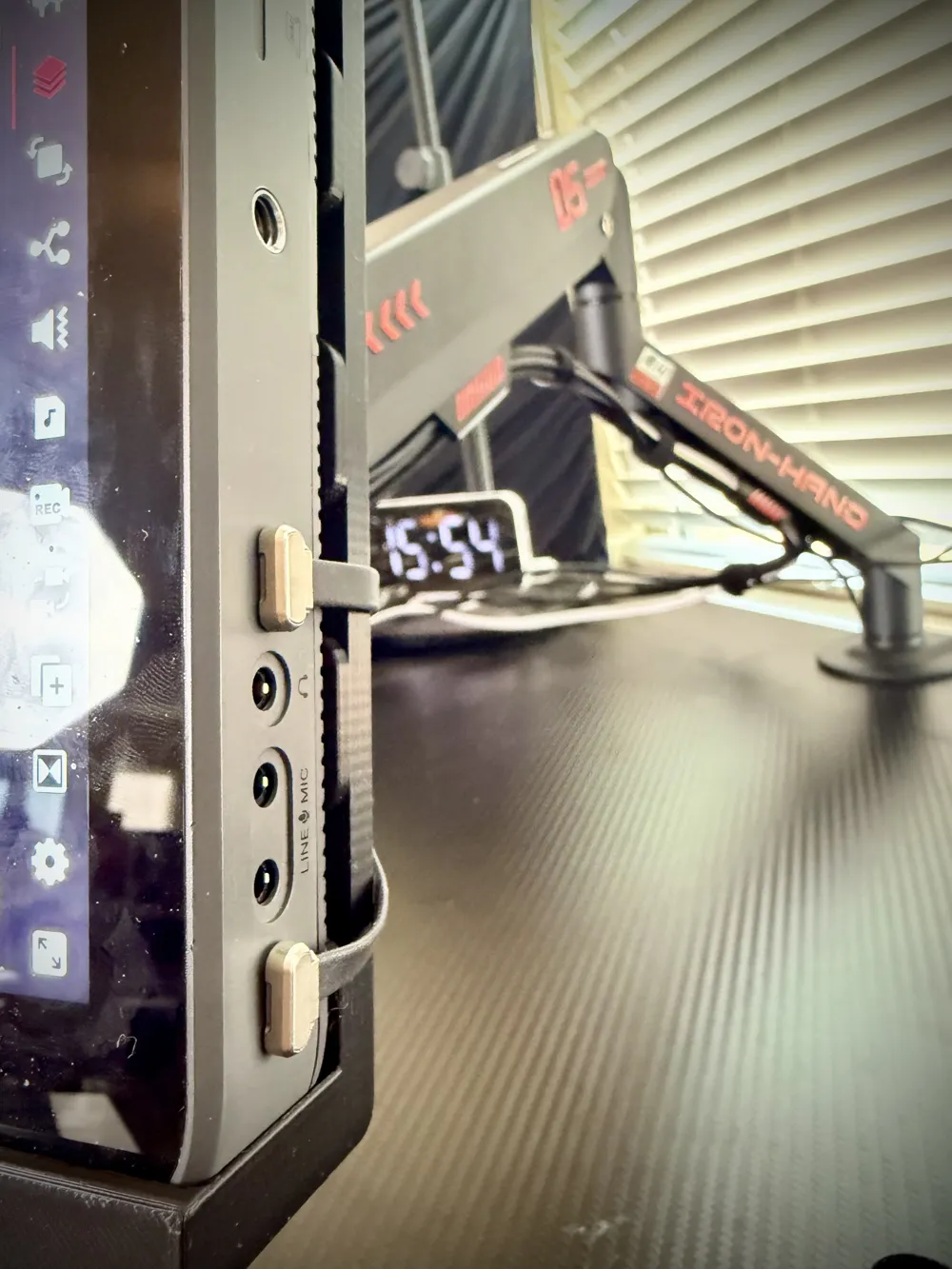

To keep the cabling tidy... I chose a 90 dgrees "Up angle" cables for HDMI, USB and ethernet.. so they don't stick out
for the HDMI I use these (chose the right length for yourself)
https://www.amazon.com/dp/B0D1QLSBNQ?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1
for the USB-C
https://www.amazon.com/dp/B0C7GCQVC6?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_5&th=1
and ethernet
https://www.amazon.com/dp/B0CM8VYJVK?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_4&th=1
These are not affiliated links…
