Description
🎬 Overview

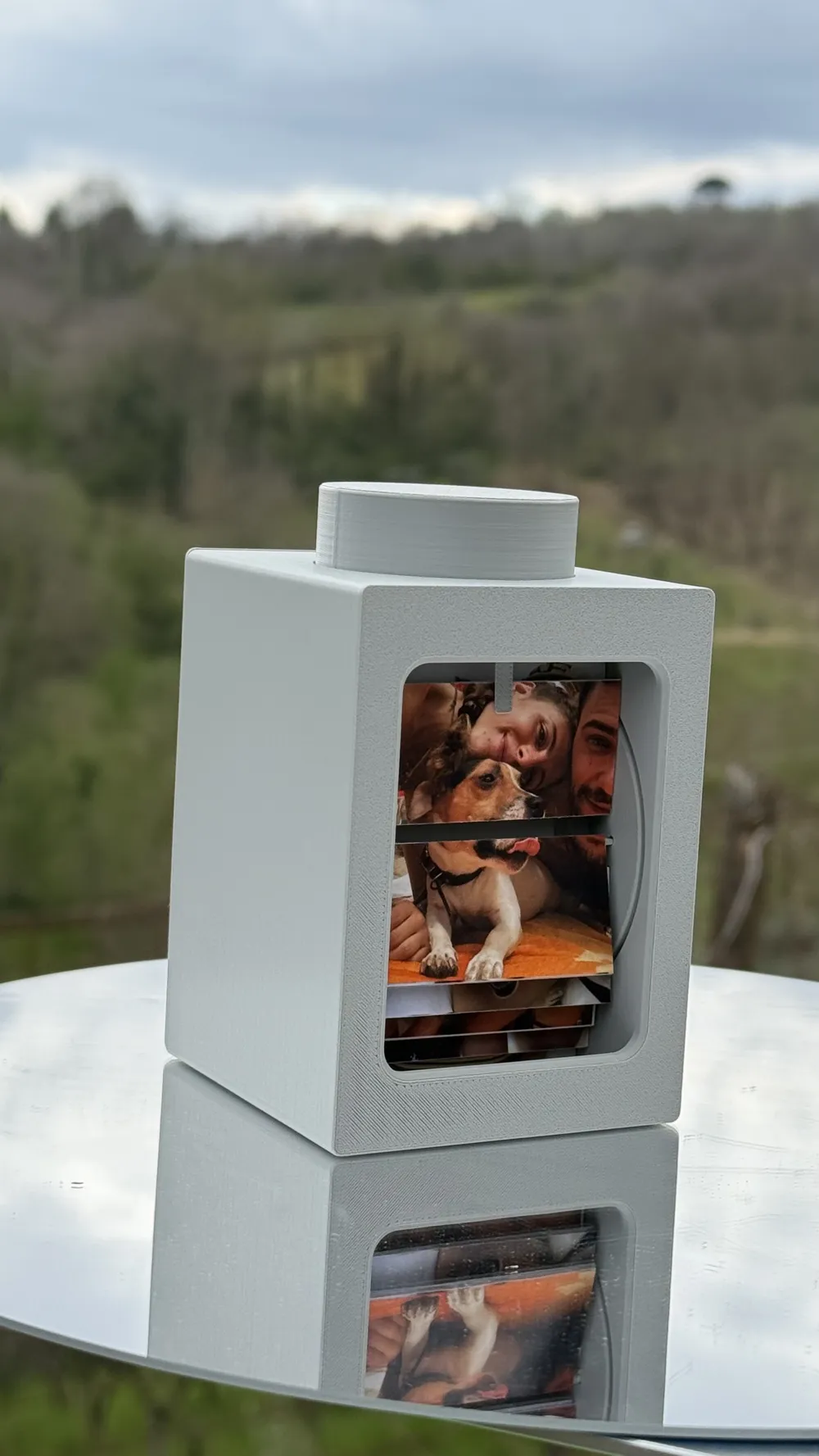

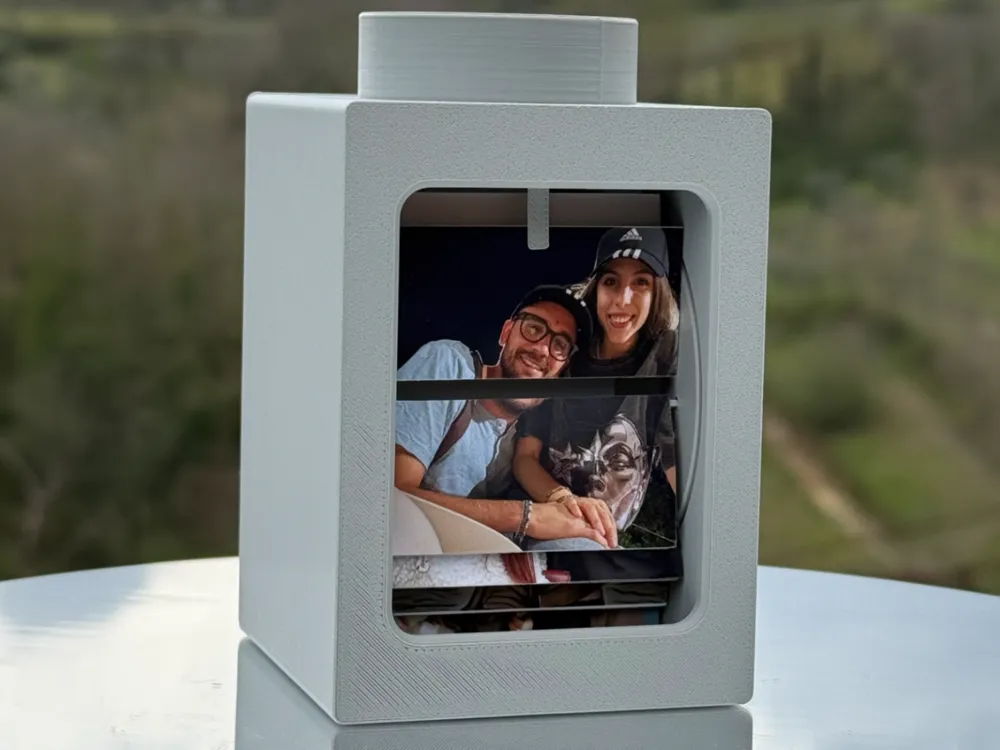

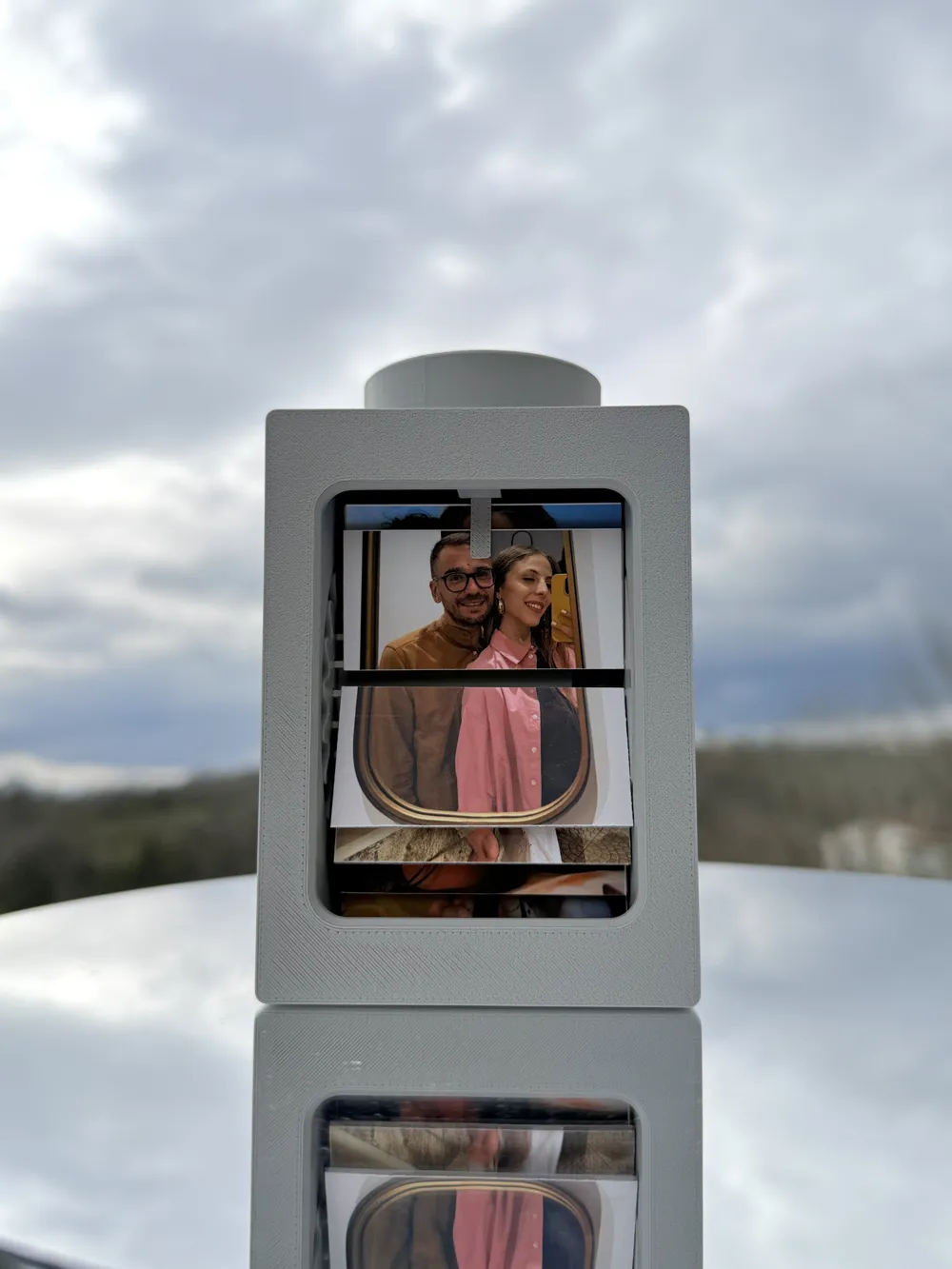

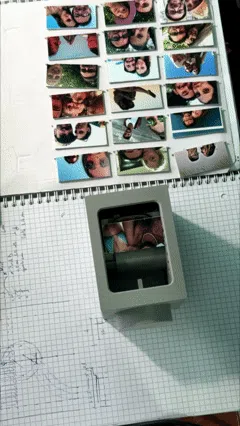

Compact version of my Photo Slider: an object that transforms simple photos into an interactive experience.

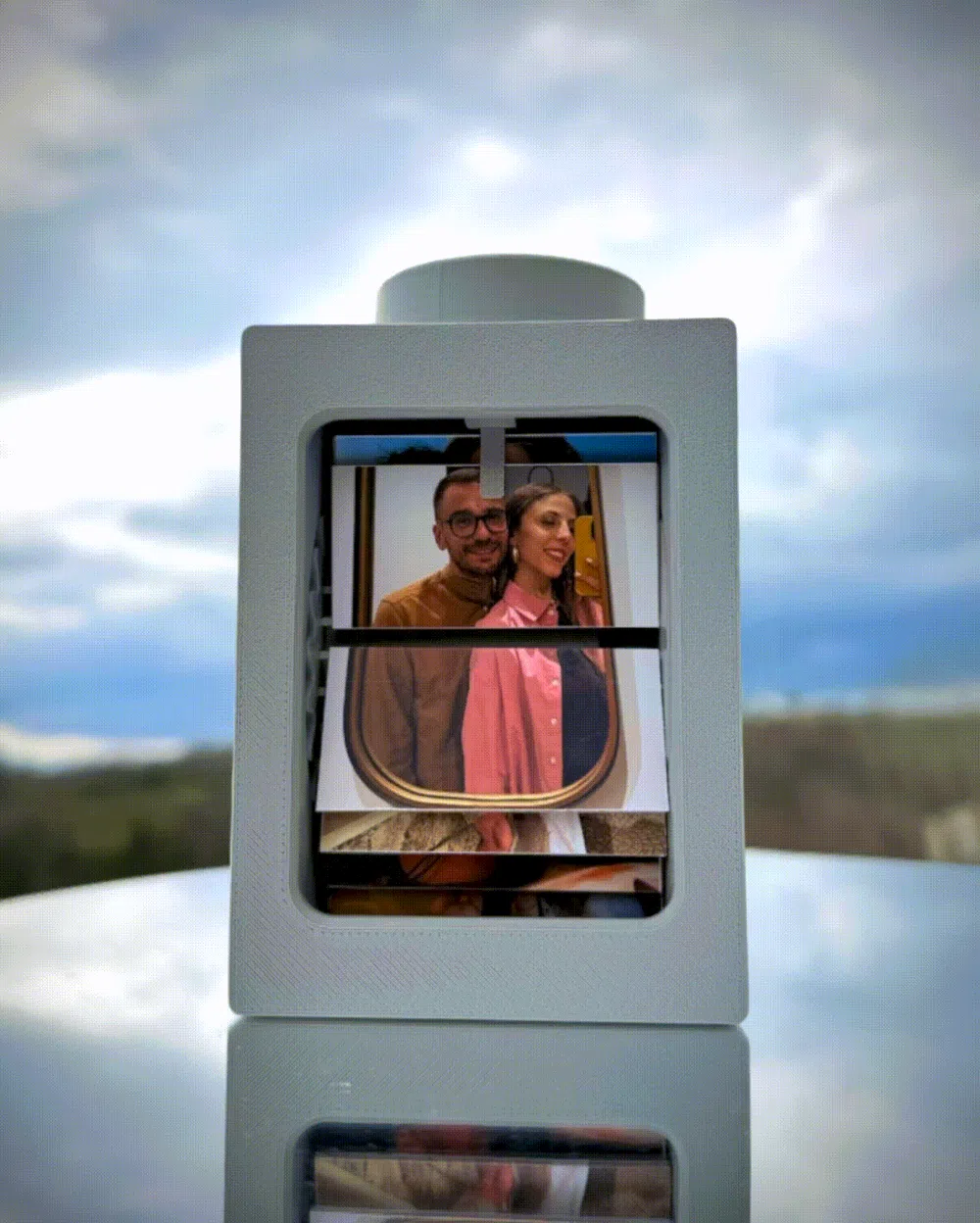

By turning the knob, images scroll in sequence, creating a dynamic and engaging effect, like a small analog presentation.
This version is designed to be:
- smaller
- faster to print
- more accessible
⚙️ How it works

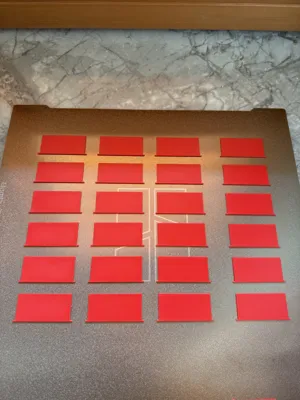

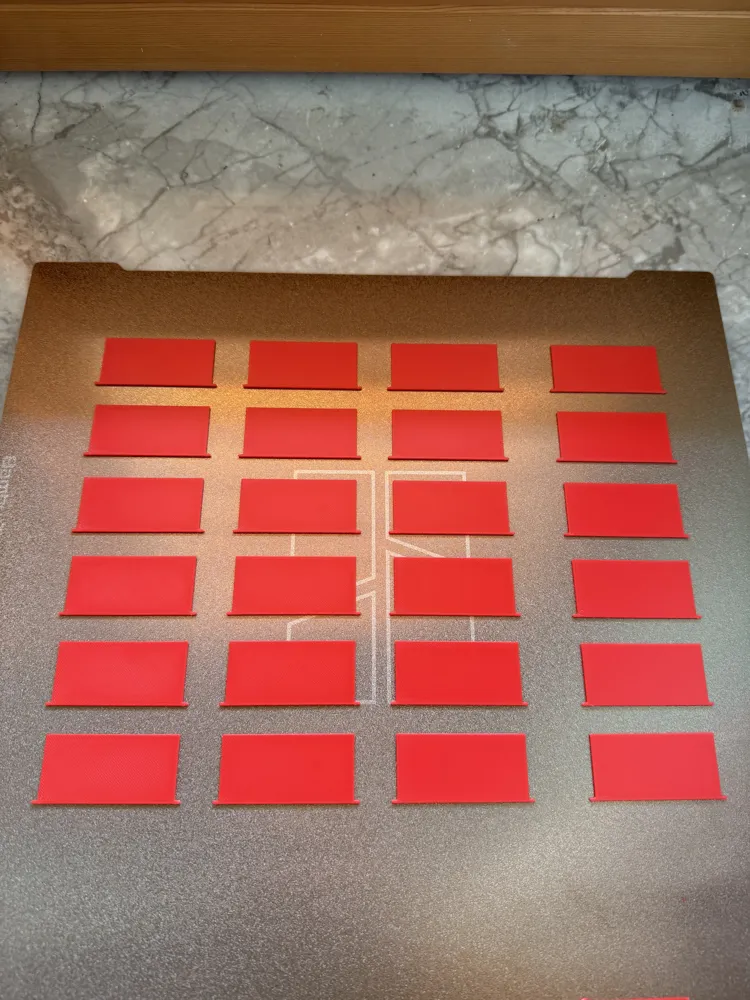

Photos are glued onto palettes that rotate around a central cylinder.
By operating the knob:
- the cylinder moves
- the images scroll one after another
Total capacity: 24 photos
🧩 Components
The model includes:
- Case / container
- Main cylinder (part + counterpart)
- Small wheel
- Small wheel cap
- Knob
- Knob wheel
- Knob wheel cap
🔧 Assembly
- Simple and intuitive assembly
- The wheels must be fixed with their respective caps
- It is recommended to use a small amount of glue
- Allow to dry completely
⚠️ For smooth scrolling:
- lightly sand the case openings
- finish the cylinder housing
- check the knob insertion

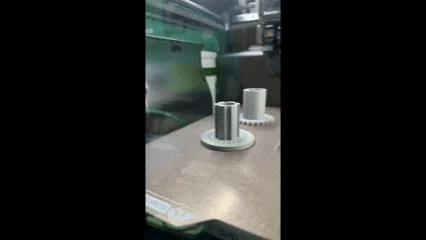

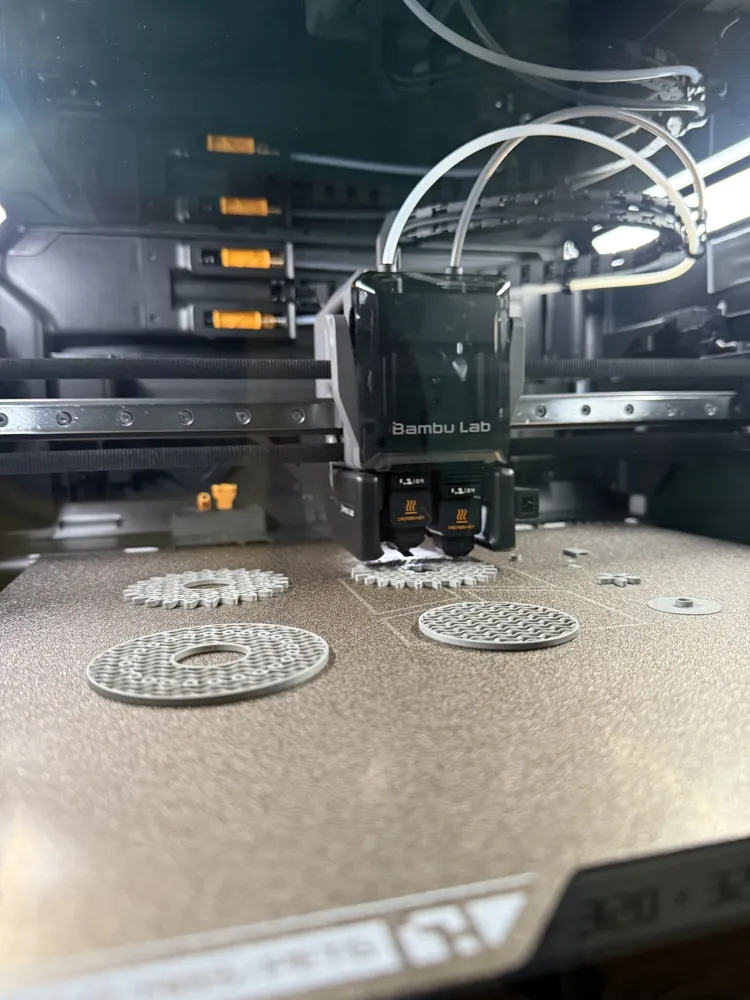

🖨️ Print

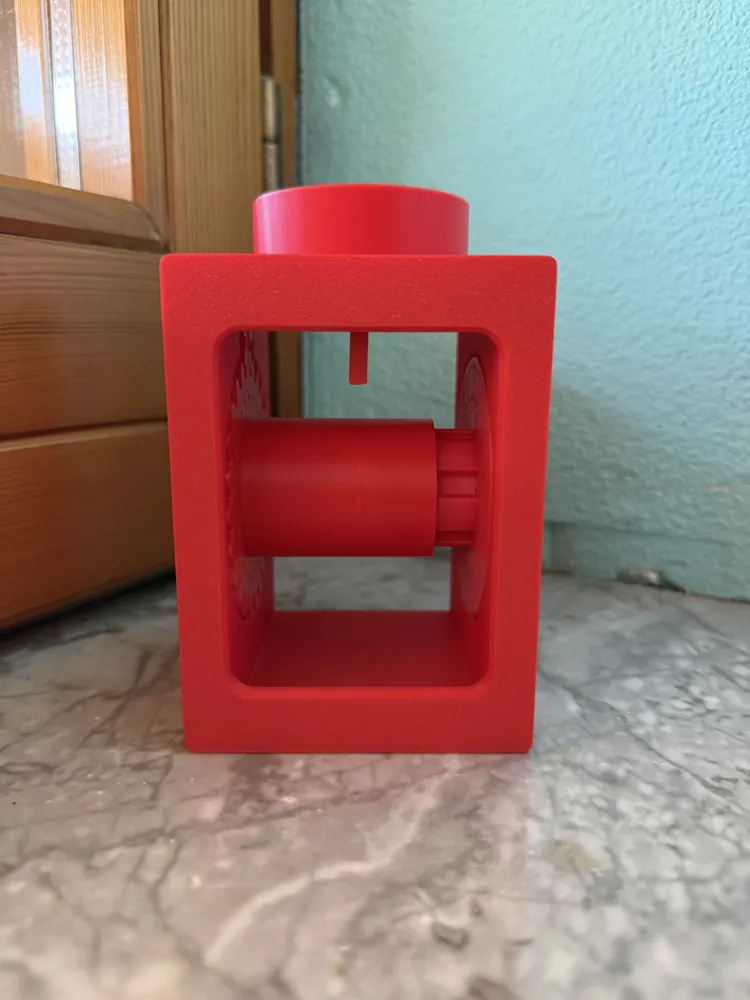

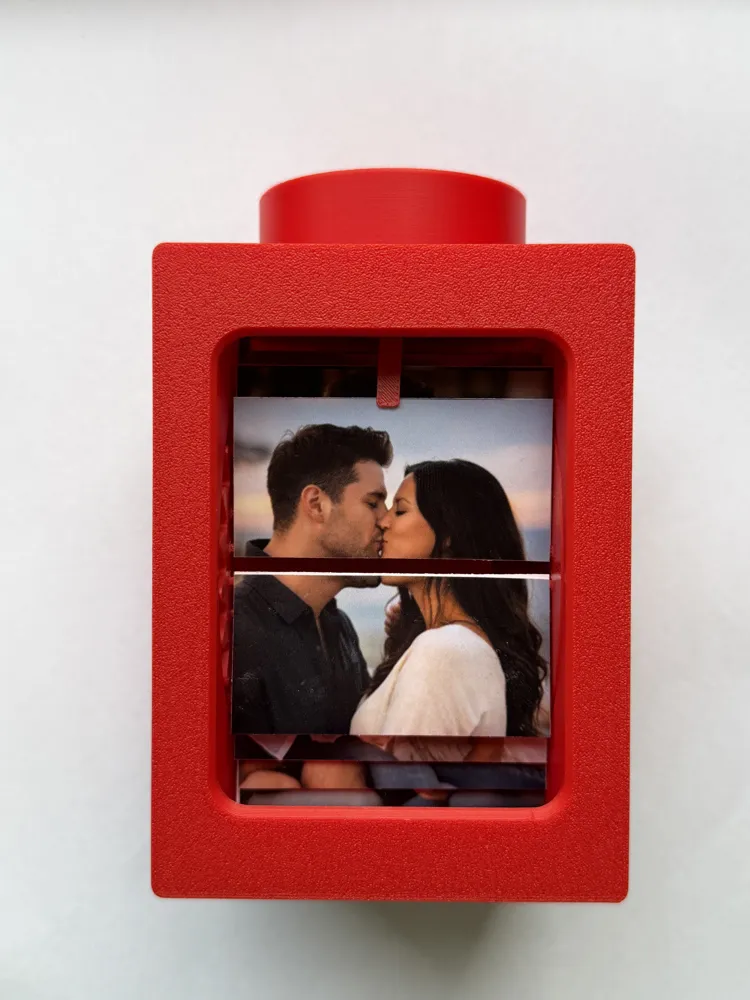

- Material: PLA (tested in gray and red)

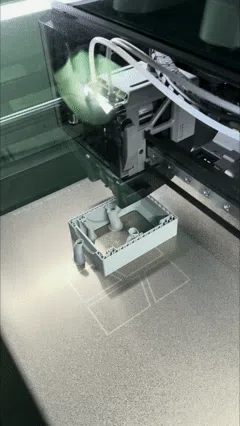

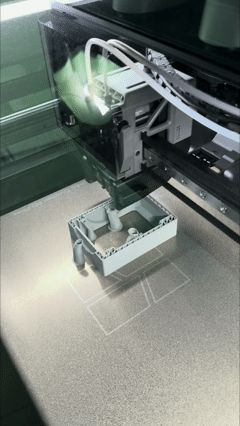

- Total print time: approximately 12 hours
- Supports: only for the case
- tree supports recommended
Post-processing:
- easy support removal
- light sanding recommended

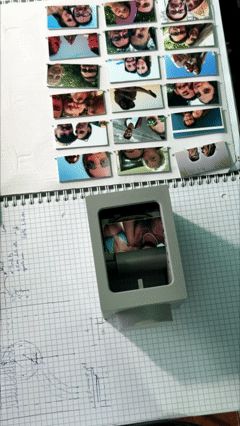

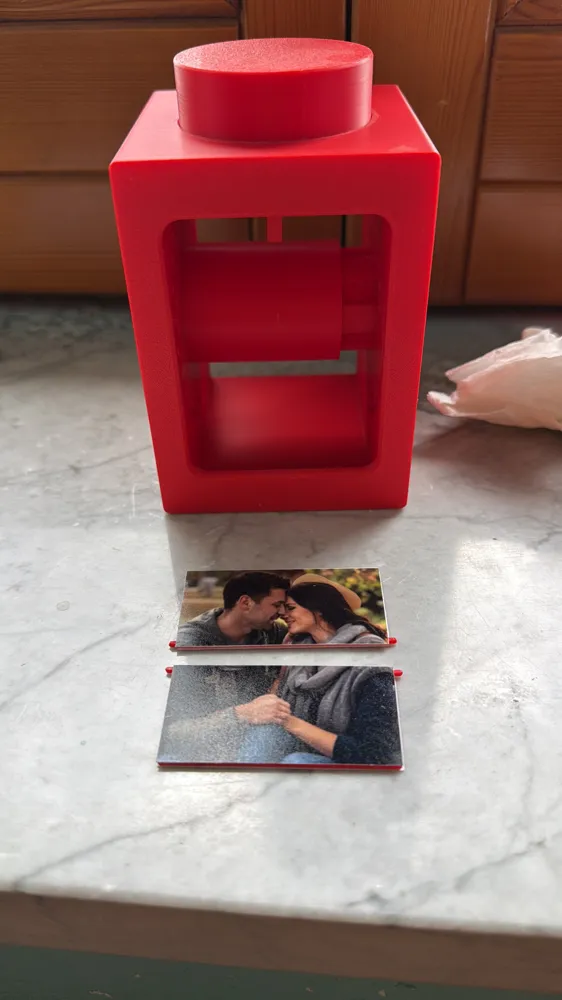

📸 Photo specifications
- Format: 1:1 (square)
- Size: approximately 53 x 53 mm
Tips:
- align photos with the outer edges of the palettes
⚠️ Important notes

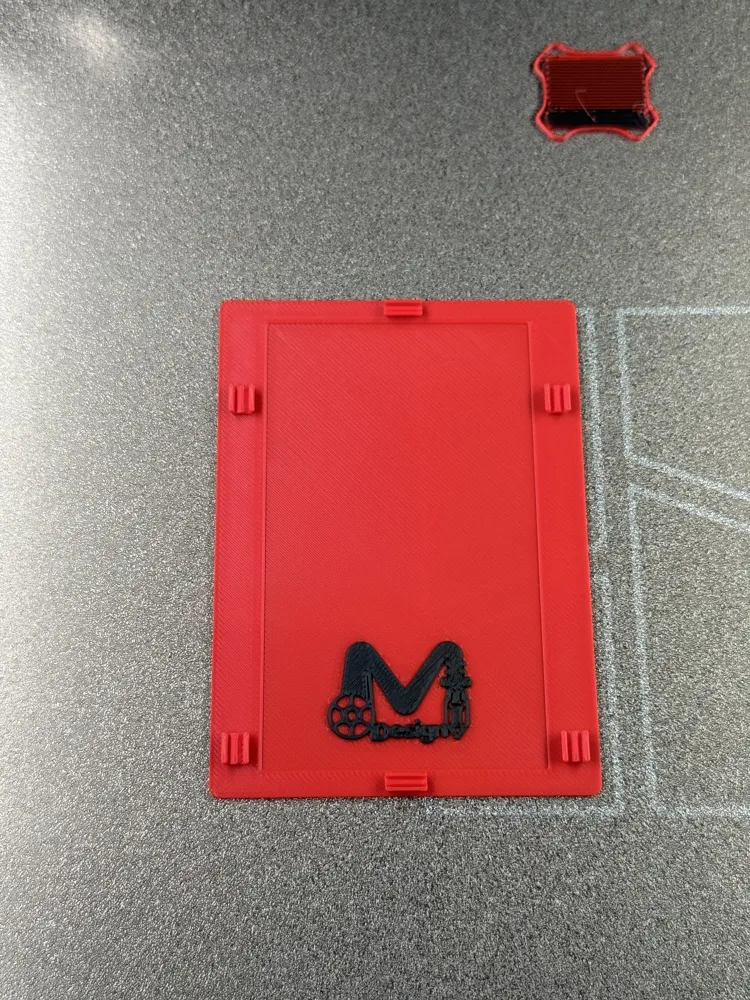

- The palettes can be delicate
👉 avoid bending them too much
✔️ Recommended to print some extra palettes
- Photos completely fill the internal space once mounted
- Replacement is possible, but requires attention
📏 Dimensions
- Object: approximately 75 x 75 x 102 mm
🎯 Project goal

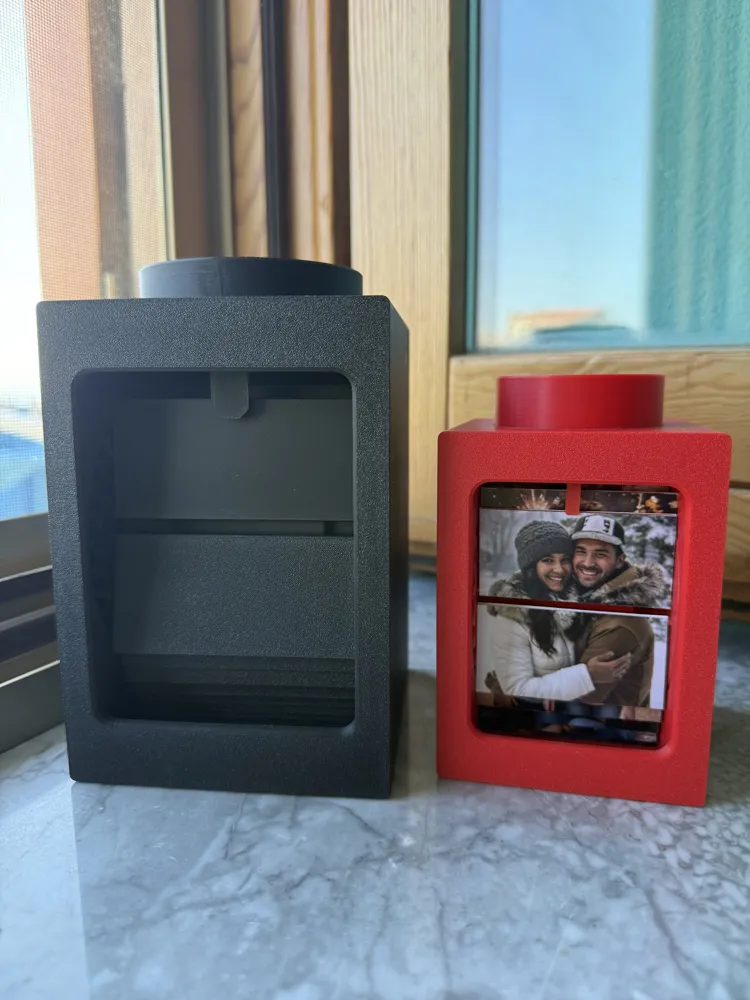

This version was created as a more compact evolution of the original model.
Perfect as a:
- gift idea
- creative object
- personalized gadget
🔁 Original version
If you are looking for a larger version with more capacity:
👉 Also check out the original model (32 photos)
(https://makerworld.com/it/models/2684524-photo-slider-box-foto-sequenza-photo-viewer?from=search#profileId-2973618)
