BMCU Respooler Base – remix for Auto-Rewinder
Print Profile(1)
Description

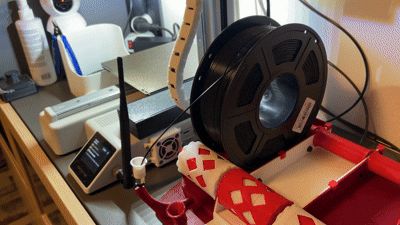

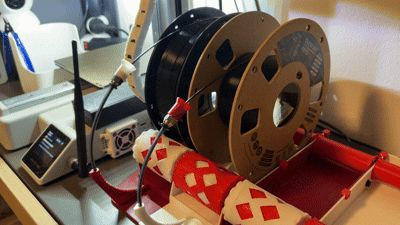

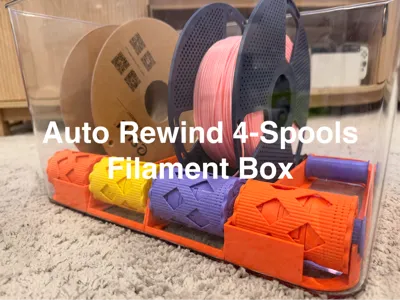

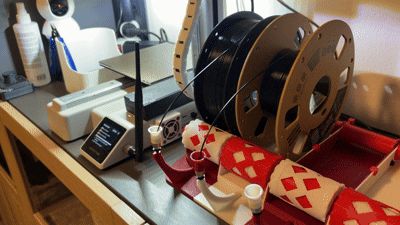

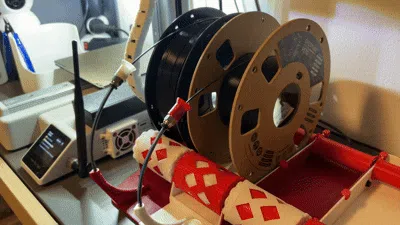

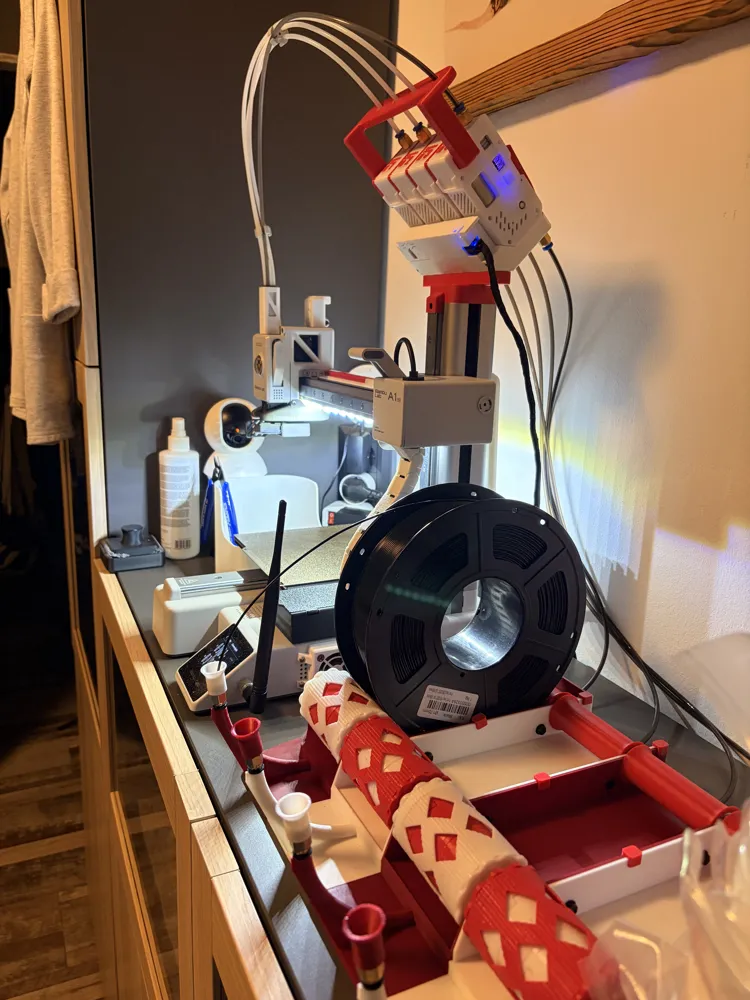

This is a functional remix of the Filament Box by Nemesis. As I use the system as an open standalone solution, I developed this base to optimize stability and hose routing. This system combines Nemesis' proven mechanics with Phil Caruso's respooler drums (standalone version).
🛠️ Features & Changes

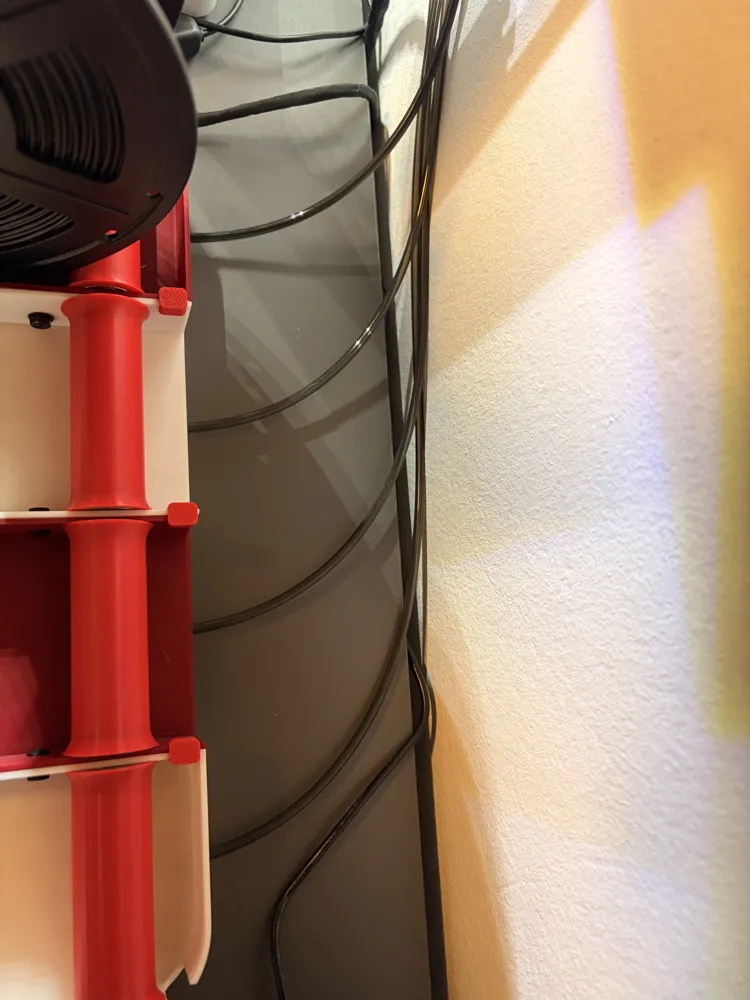

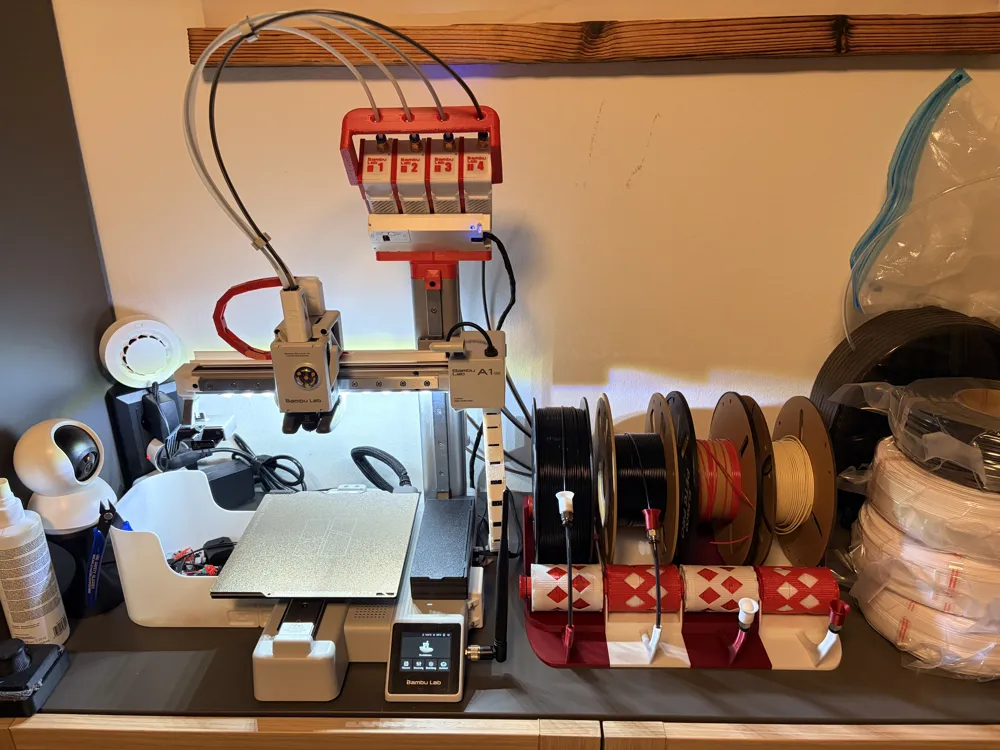

- Optimal Routing: The PTFE tubes are routed out the back of the base.

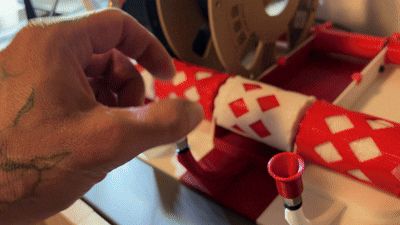

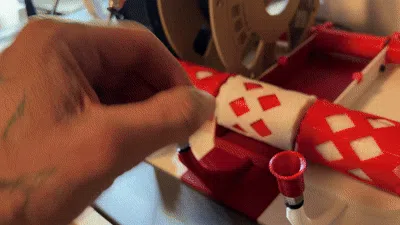

- Easy Loading: The filament is conveniently loaded from the front.

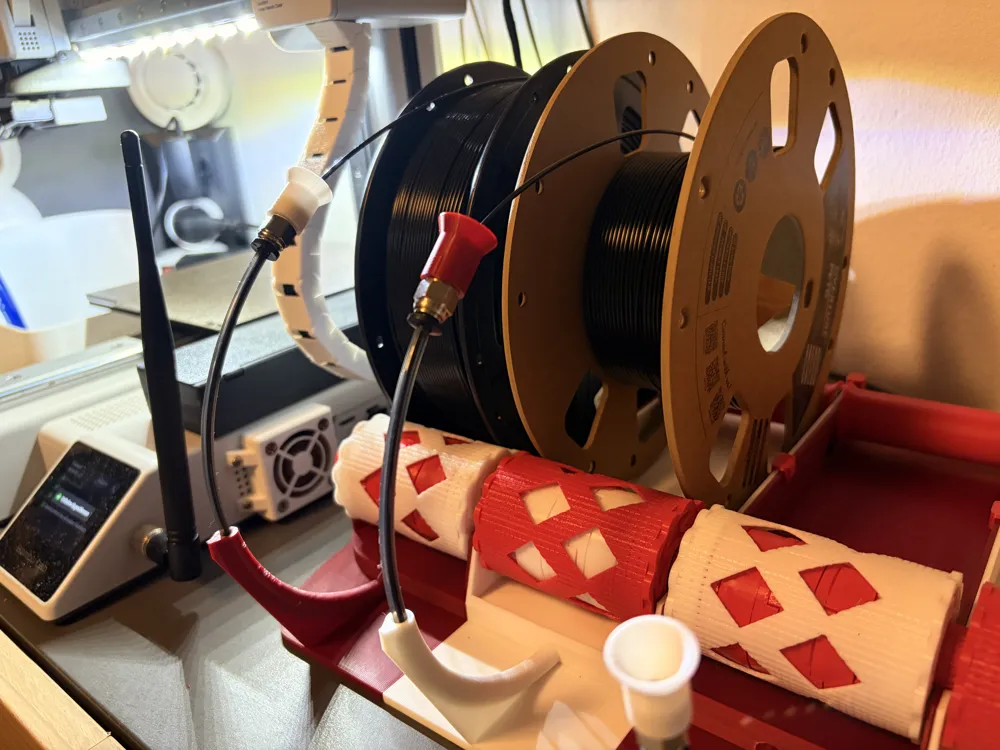

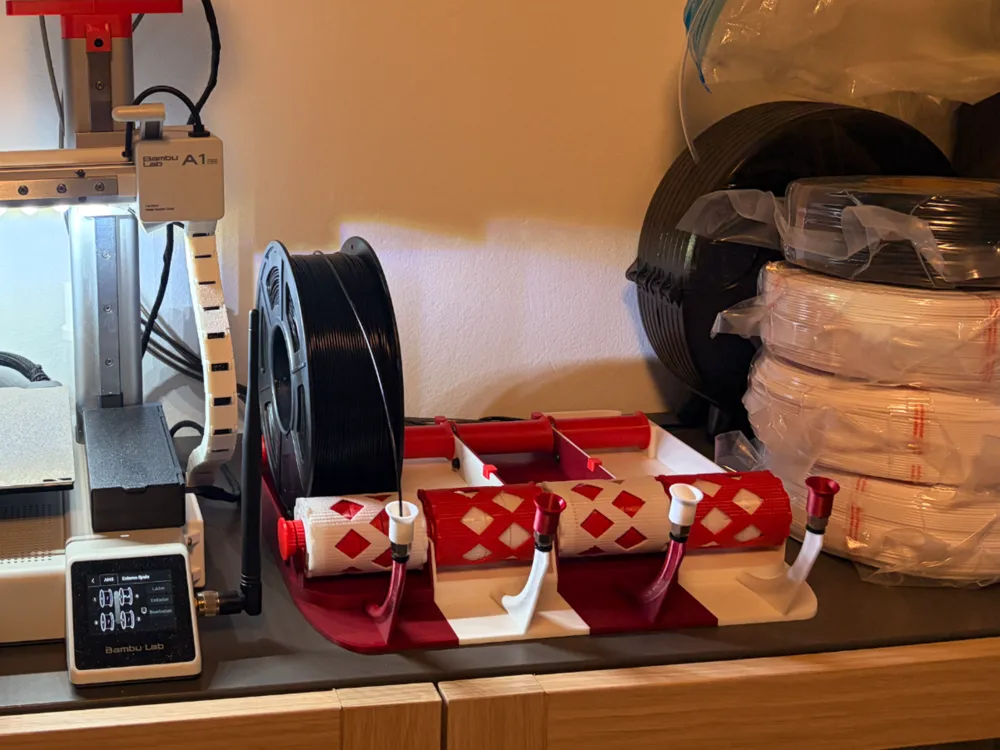

- Funnel Integration: Compatible with the EasyFeed Filament Funnels (PC4-M10) for smooth filament insertion.

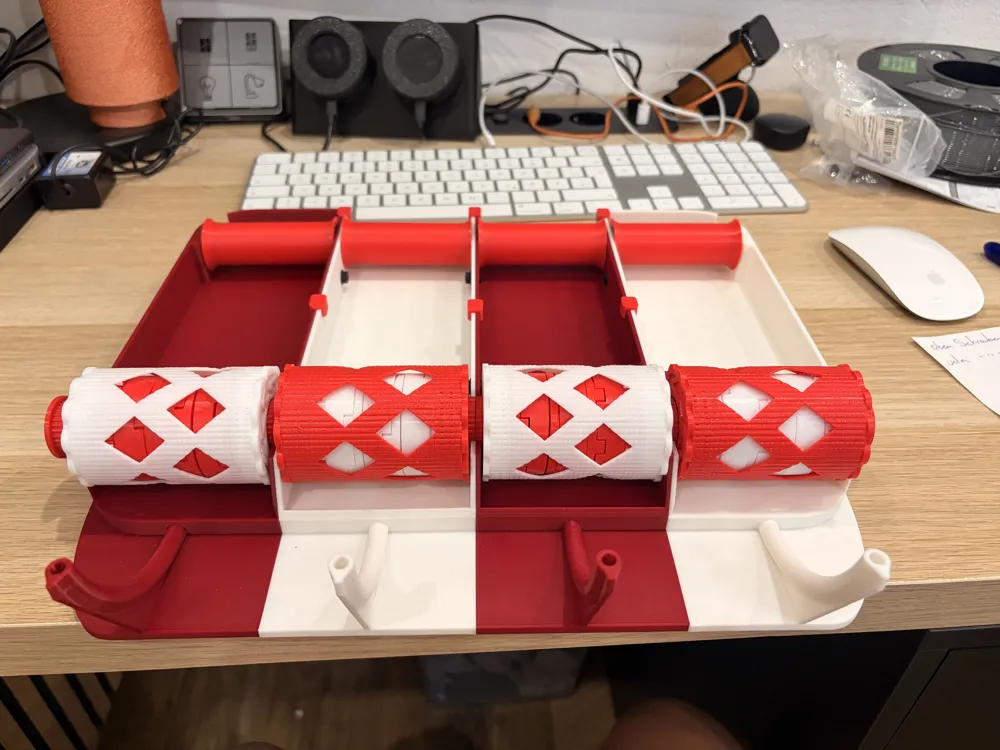

Stable Construction: The base consists of four main parts that are screwed together firmly.
📋 Required Accessories
For assembling the base, you will need:
- 6x M4*8 Screws (pan head recommended) for connecting the main parts.
- 6x M3*18 Screws for securing the bottom.
- 16x 608 Ball Bearings
- PTFE tubes for connecting to your printer, BMCU, AMS, or MMS.
- Filament Funnel: EasyFeed Filament Funnel.
Documentation (1)
This remix is based on
