Dedicated Storage Box for Table Tennis Sponge Cleaner | no supports Print in Place

🌟 Project Introduction

A dedicated sponge cleaner storage box designed for table tennis enthusiasts, compatible with 100×60×20mm table tennis sponge cleaners, addressing the pain points of sponges easily getting dirty, lost, or having nowhere to store them. Print in Place, no assembly required, no supports needed. The buckle-style opening eliminates the need for magnets. The lightweight design saves filament and prints quickly, making it super convenient to carry in your bag when playing!

📐 Dimensions

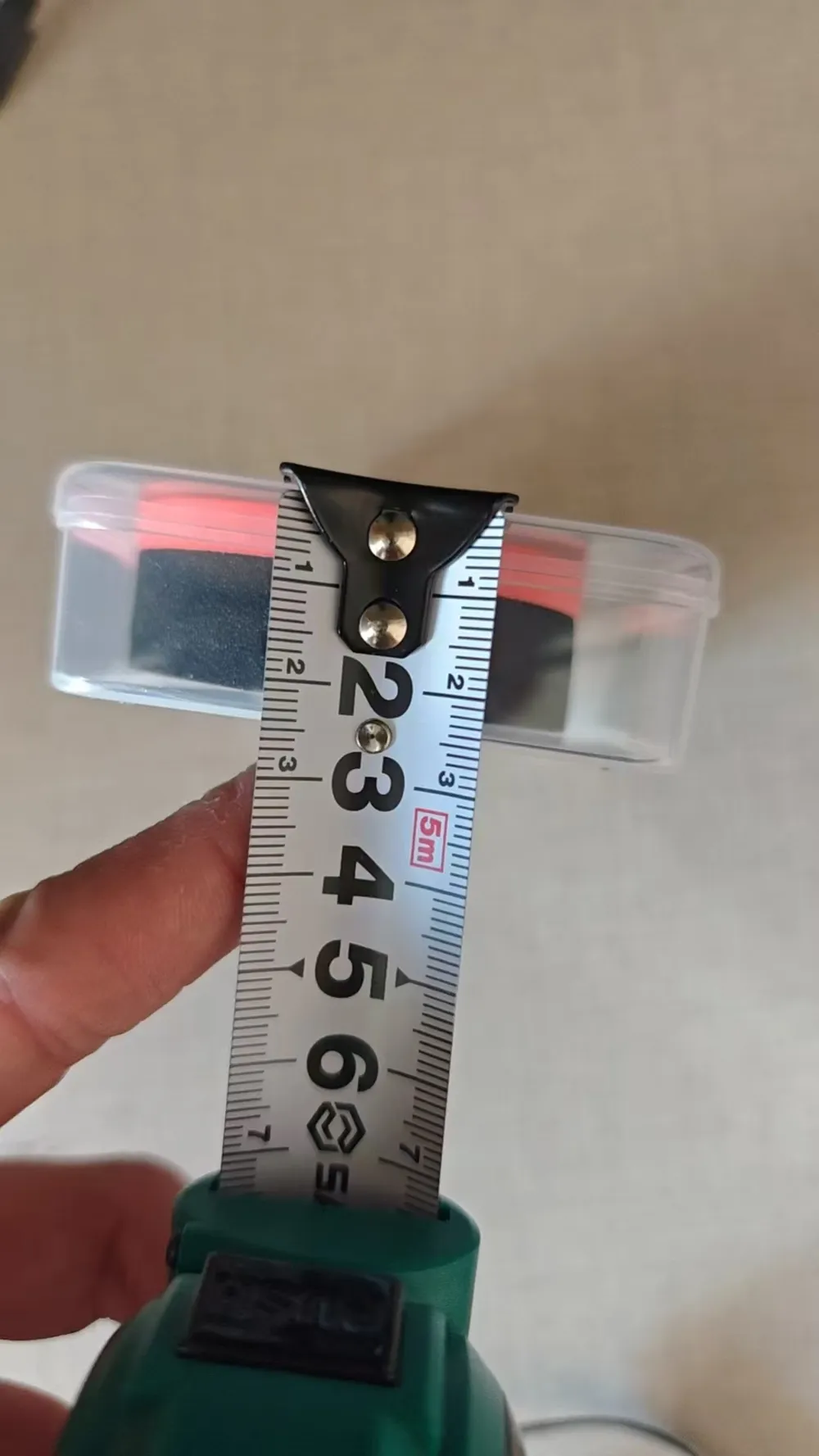

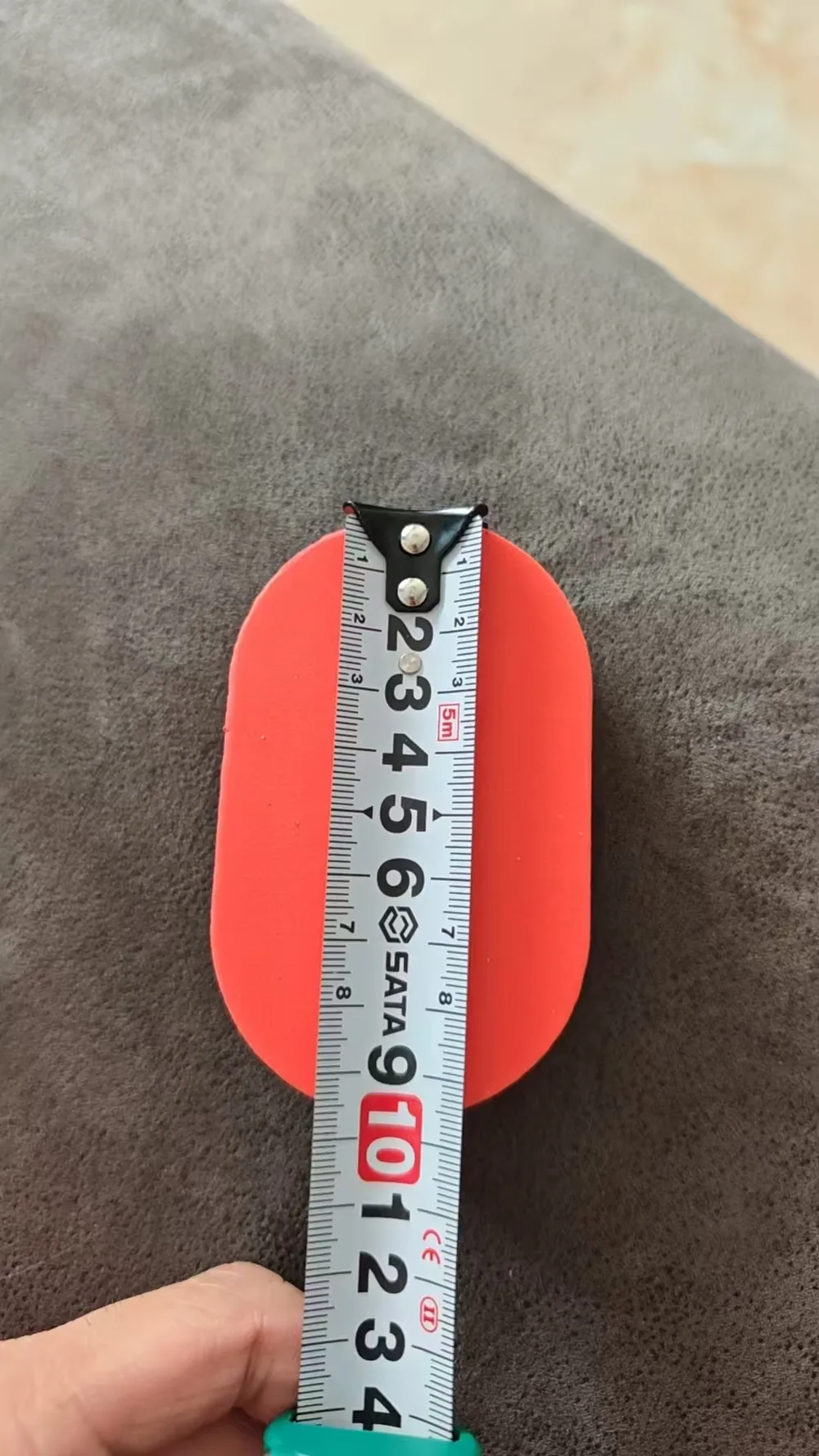

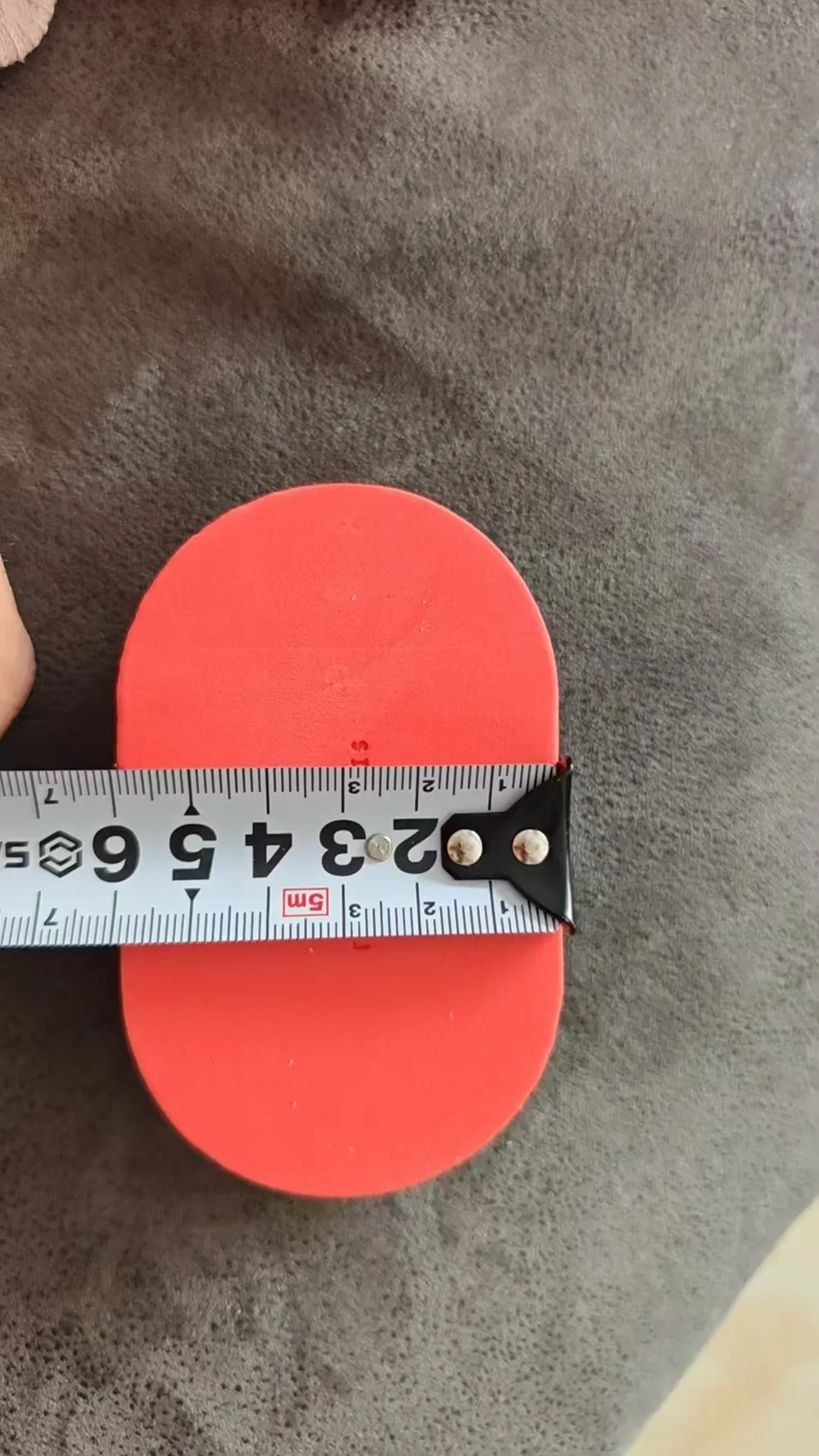

- Internal dimensions: 100 × 65 × 26 mm (perfectly accommodates a 10×6×2cm sponge cleaner, with clearance to prevent squeezing or shaking)

- External dimensions: 104 × 69 × 30 mm (compact and space-saving, easily fits into the side pocket of a ball bag)

✨ Design Highlights

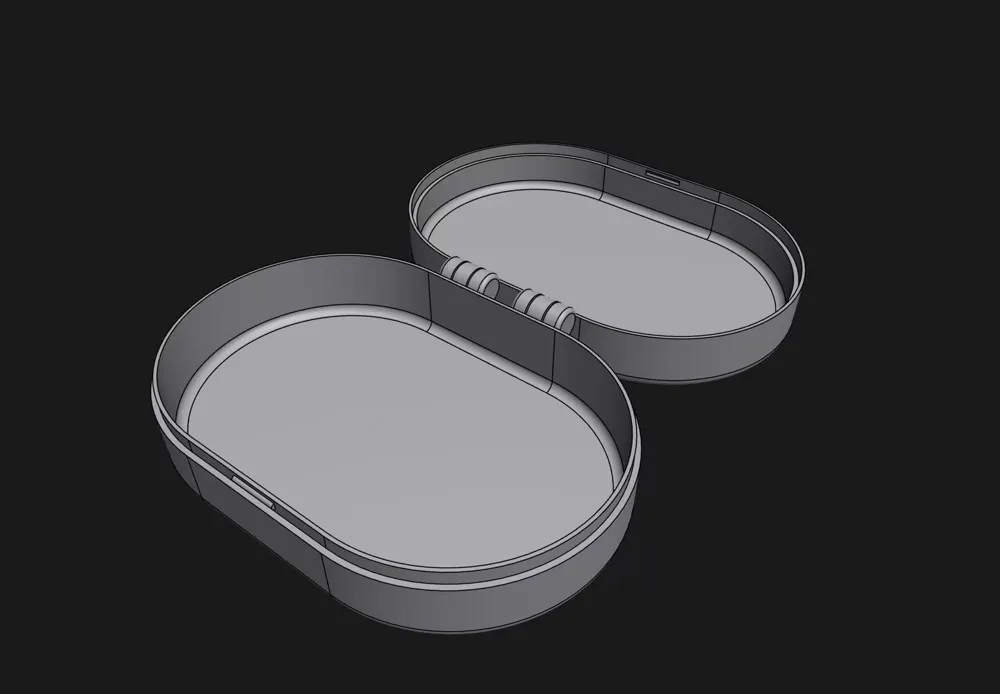

1. No Supports Print in Place: Hinges, body, and buckle are all Print in Place, with no parts needing assembly. Simply slice and print directly, even beginners can succeed on the first try!

2. Buckle-style Closure: Pure mechanical buckle design, no magnets required. The opening and closing are crisp and secure, preventing accidental opening even during bumpy play, keeping the sponge cleaner clean and hygienic.

3. Lightweight and Filament-Saving: The entire piece only requires 41g of filament, with a print time of approximately 1 hour, producing a finished product quickly without wasting material or tying up printer time.

4. Compatible with Mainstream Sponge Cleaners: Optimized for common table tennis sponge cleaner sizes on the market, fitting snugly without shaking, and with a bit of extra space reserved so even a damp sponge cleaner can be easily inserted.

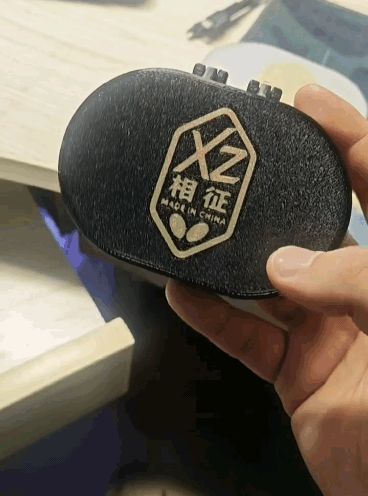

5. Customizable Exclusive Logo: The box surface has a reserved area for custom patterns/text, where you can add your name, initials, or exclusive logo to create unique table tennis gear!

🖨️ Printing Suggestions

- Printing Material: PETG (general filament is sufficient, with enough toughness for daily use)

- Layer Height: 0.2mm (balances detail and print speed)

- Infill: 15%-20% (lightweight without affecting structural strength)

- Supports: No supports needed, just use default slicing

- Print Orientation: Place the box flat, opening facing up, no special adjustments needed

💡 Small Tips

After printing, it is recommended to let it cool down before slowly opening and closing the hinge and buckle a few times to make the structure smoother; you can also fine-tune the box body size in modeling software according to your sponge cleaner's dimensions to fit different sizes of sponge cleaners~
