Folding handle for 8-battery organizers.
Print Profile(1)
Description
This design is strictly for PERSONAL USE ONLY. If you want to legally sell physical 3D prints of this model (excluding the territory of Poland), please obtain a Commercial License on my Patreon: patreon.com/teddi33
My new project — handles for my 8-battery organizers with brand logos.

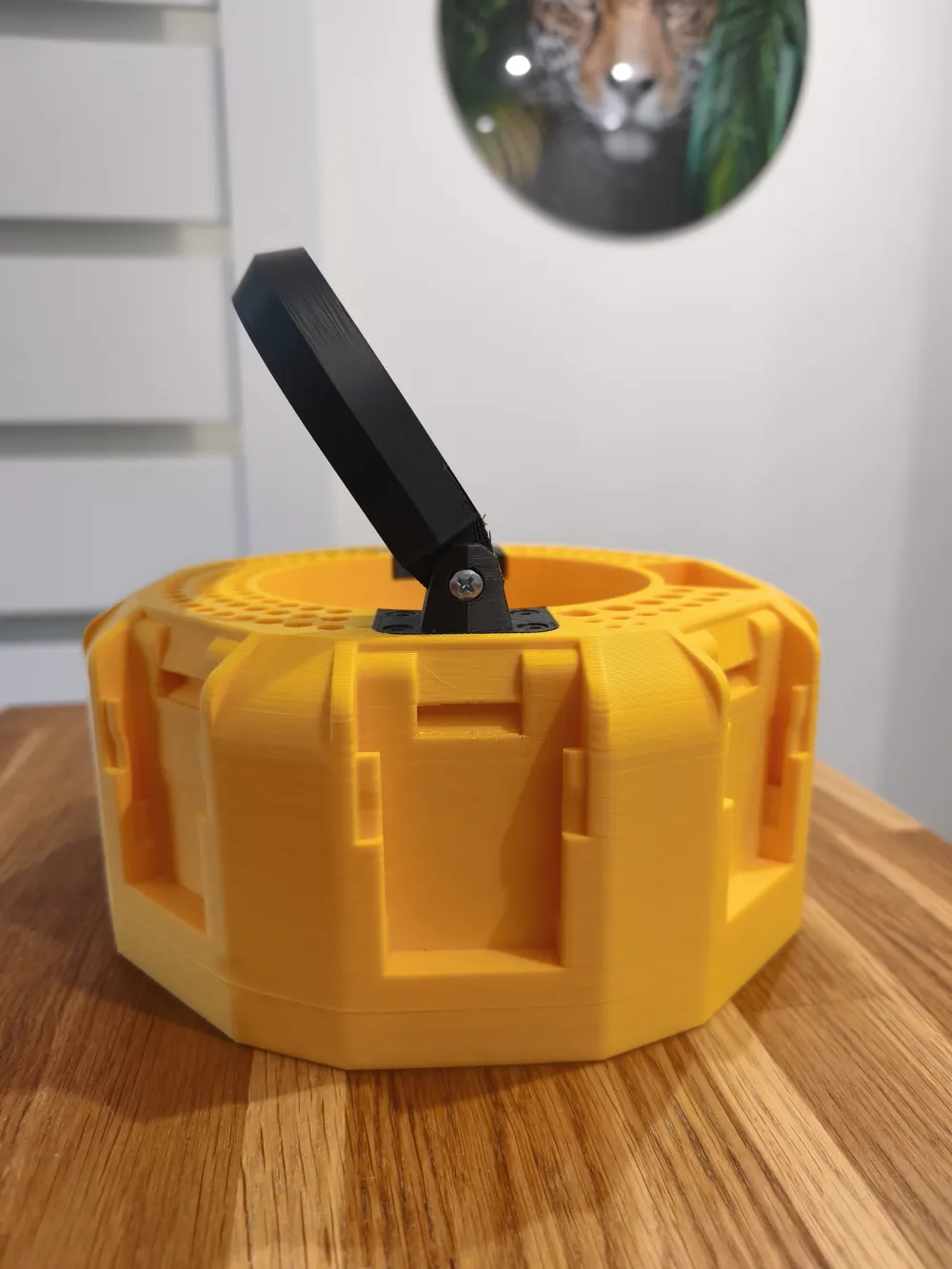

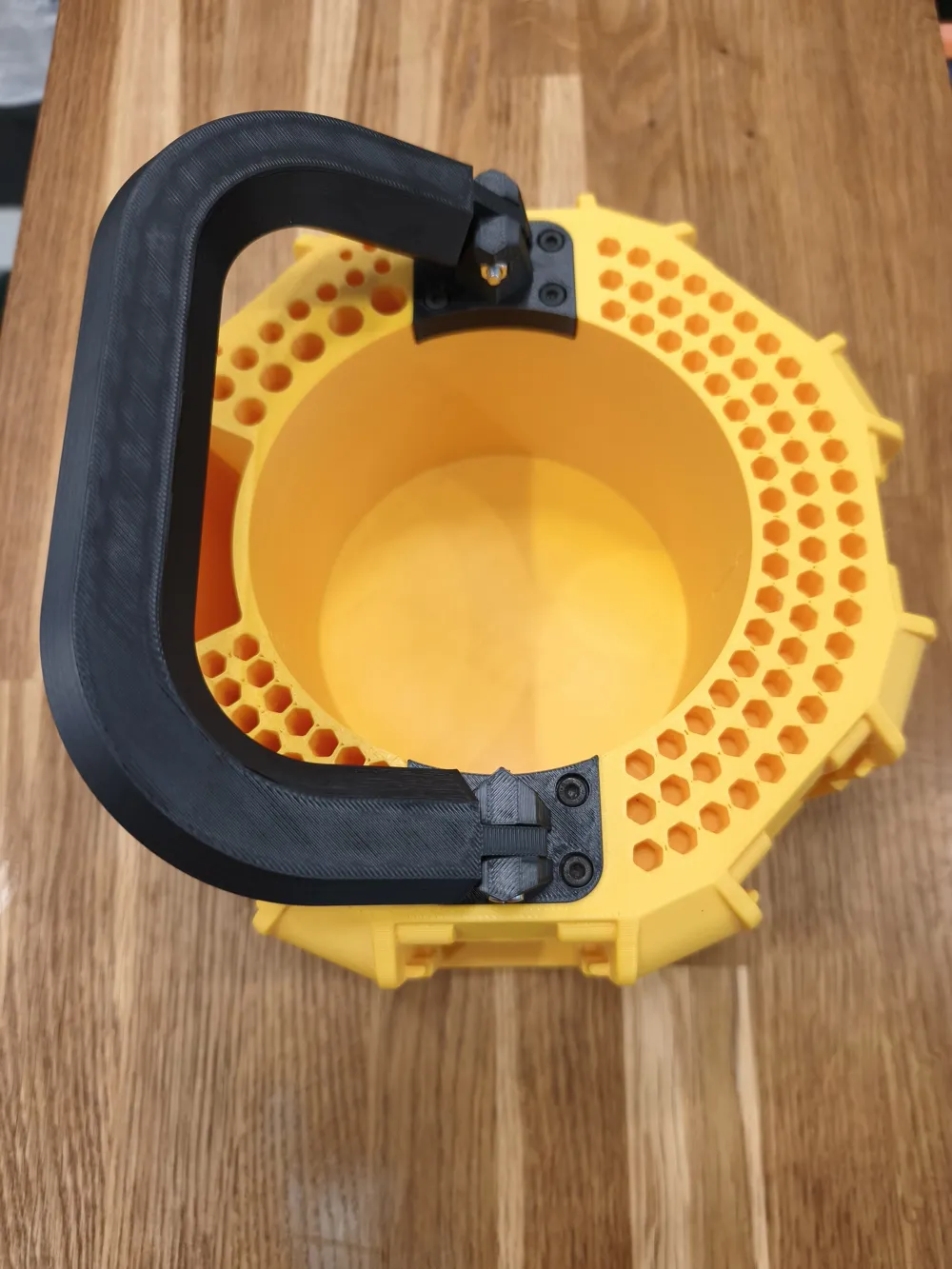

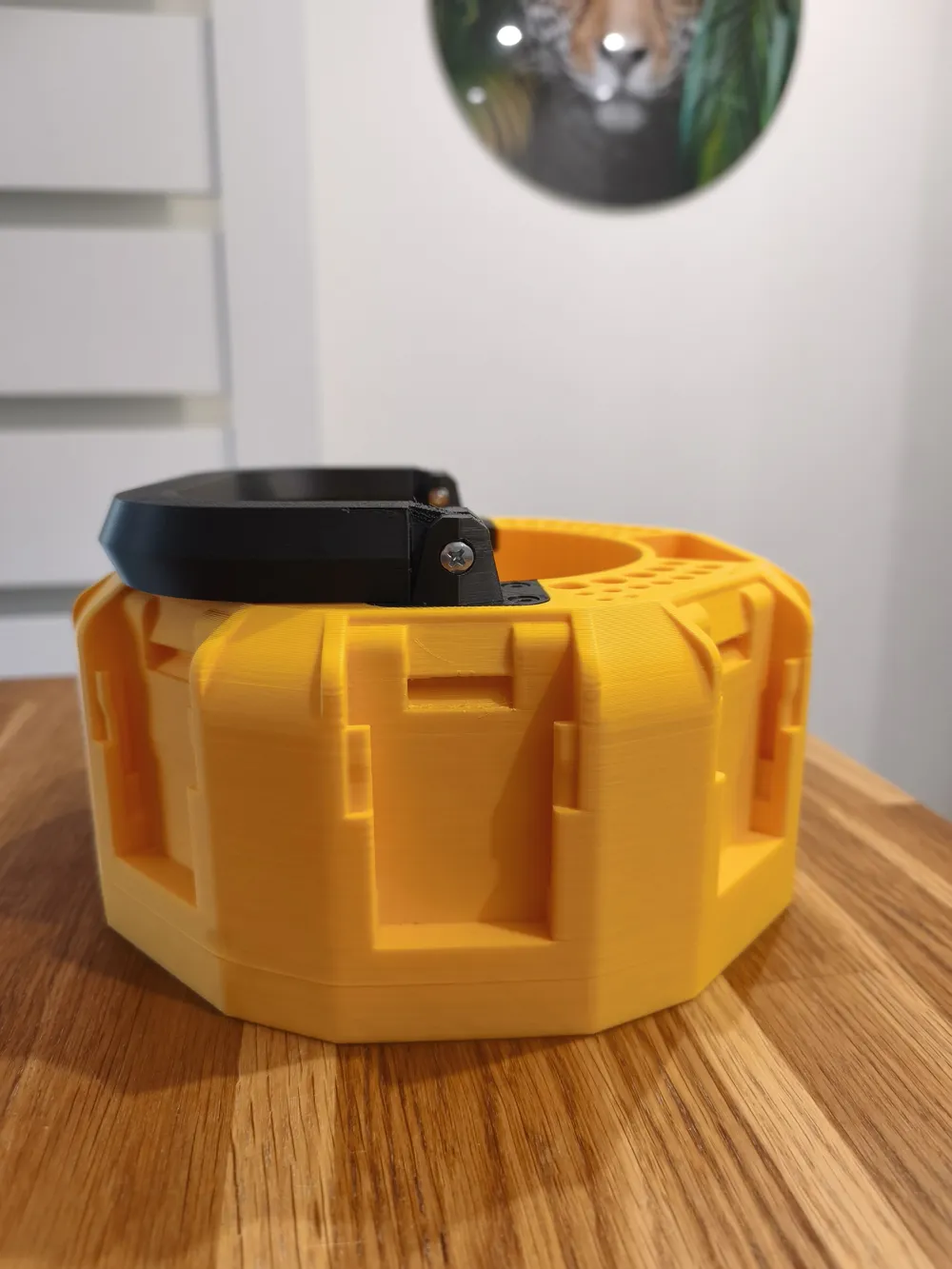

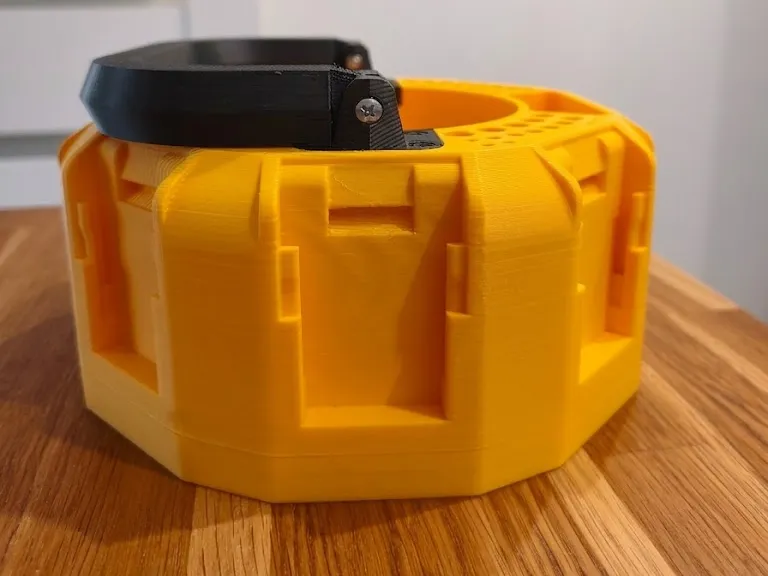

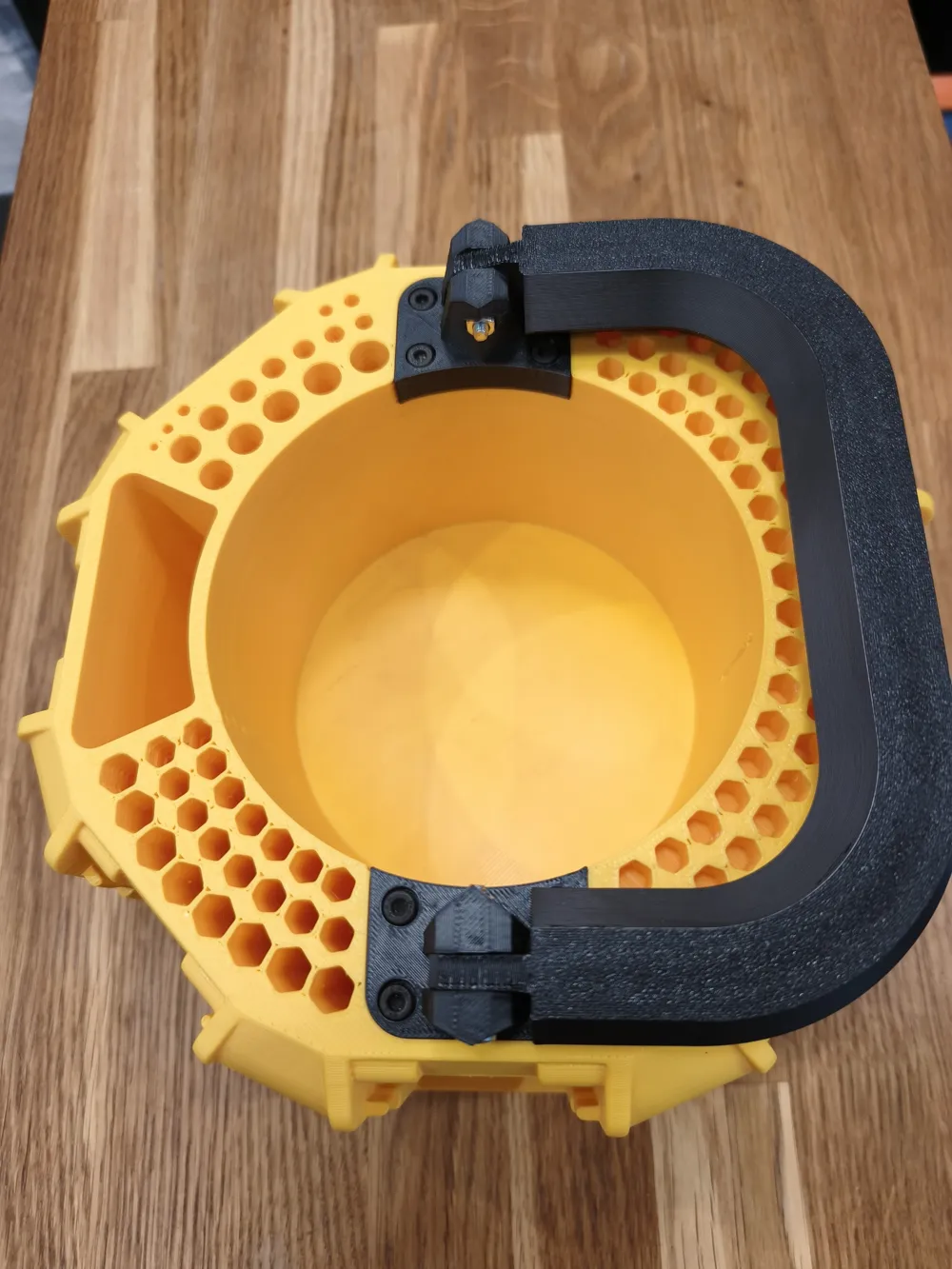

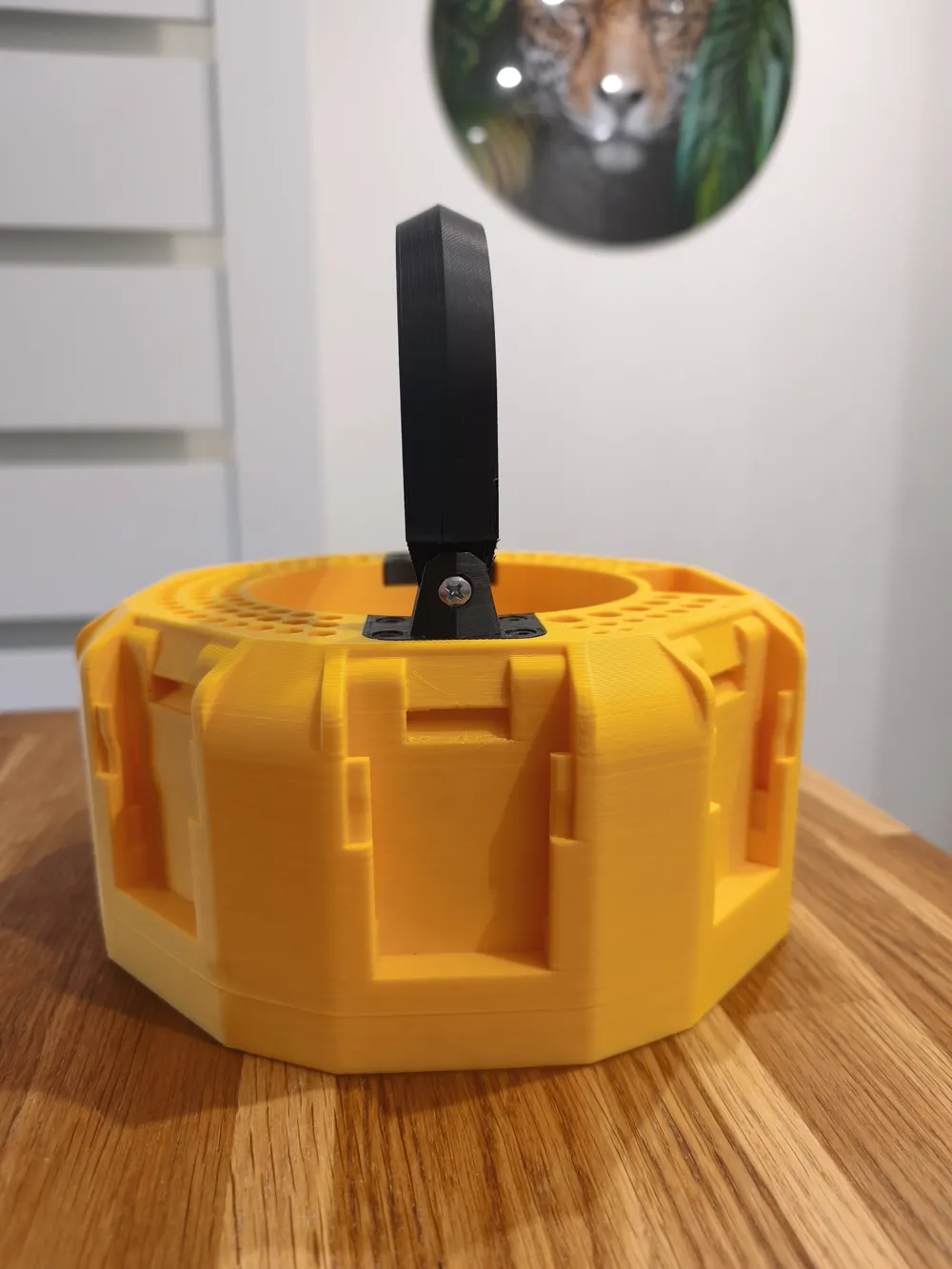

Folding handle for 8-battery organizer

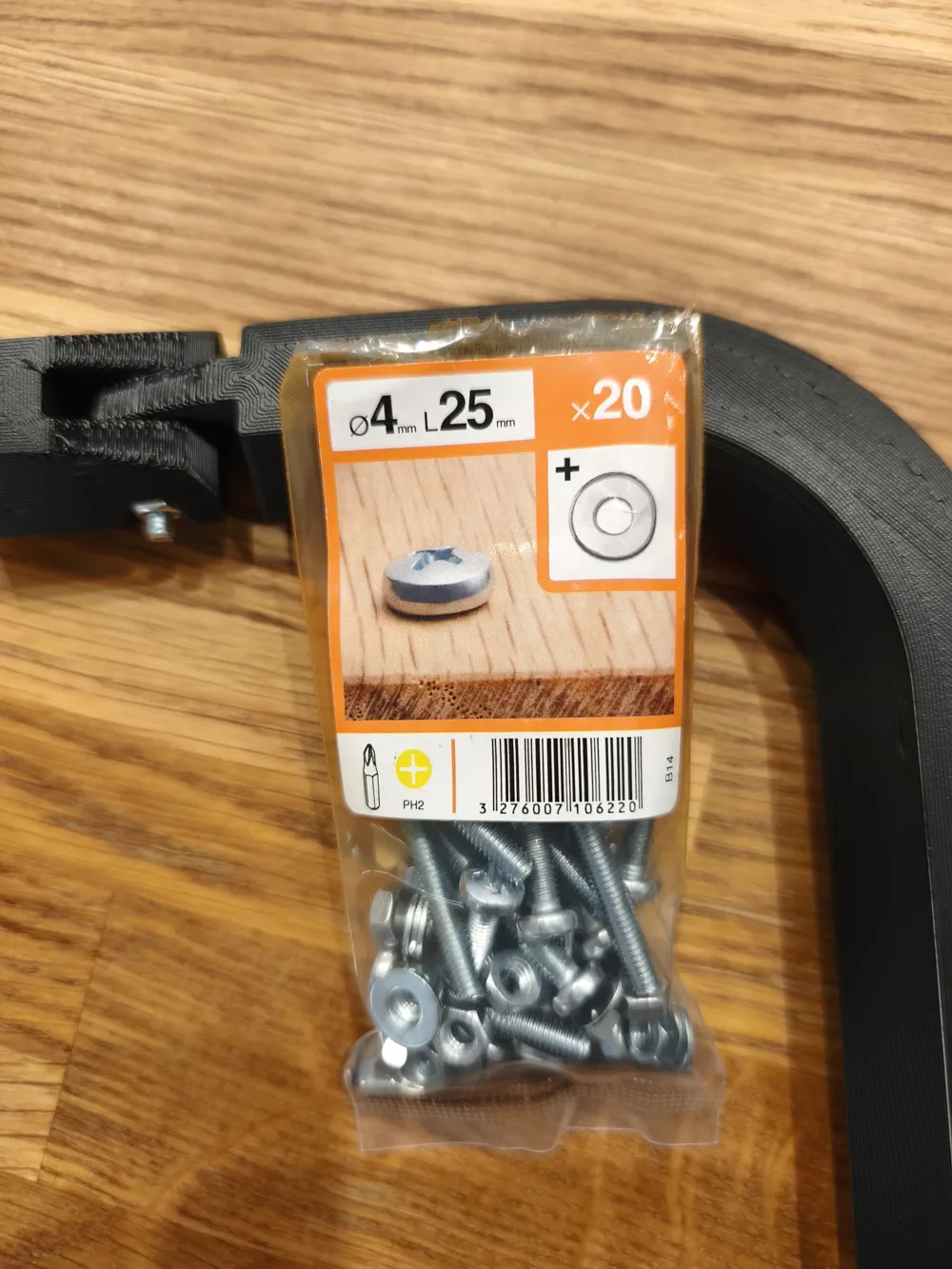

The handle is designed for my 8-battery organizers. Assembly requires two M4 nuts and two M4x25 screws.
It’s better to use two nuts for the folding handle to prevent it from loosening — slightly avoid fully tightening the screw (tighten it until the handle starts moving stiffly, then loosen it back by half to one full turn). After that, install the second nut and tighten it by one turn.
Please either print using my profile or set at least 7–8 perimeters for the parts of the handle that attach it to the корпус.
