Cable Clips for AMS lite for Bambu Lab A1

Description of the Cable Clips

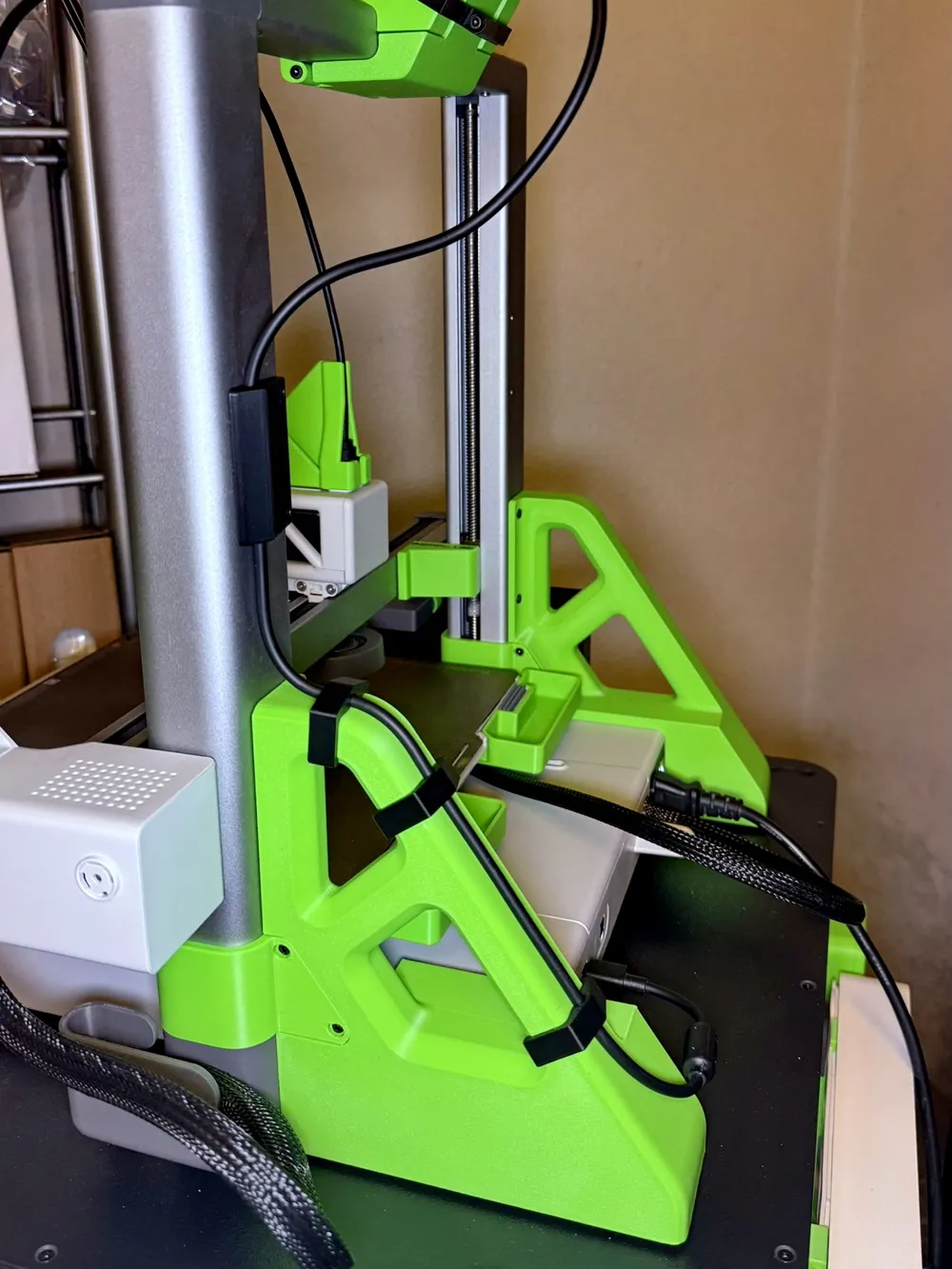

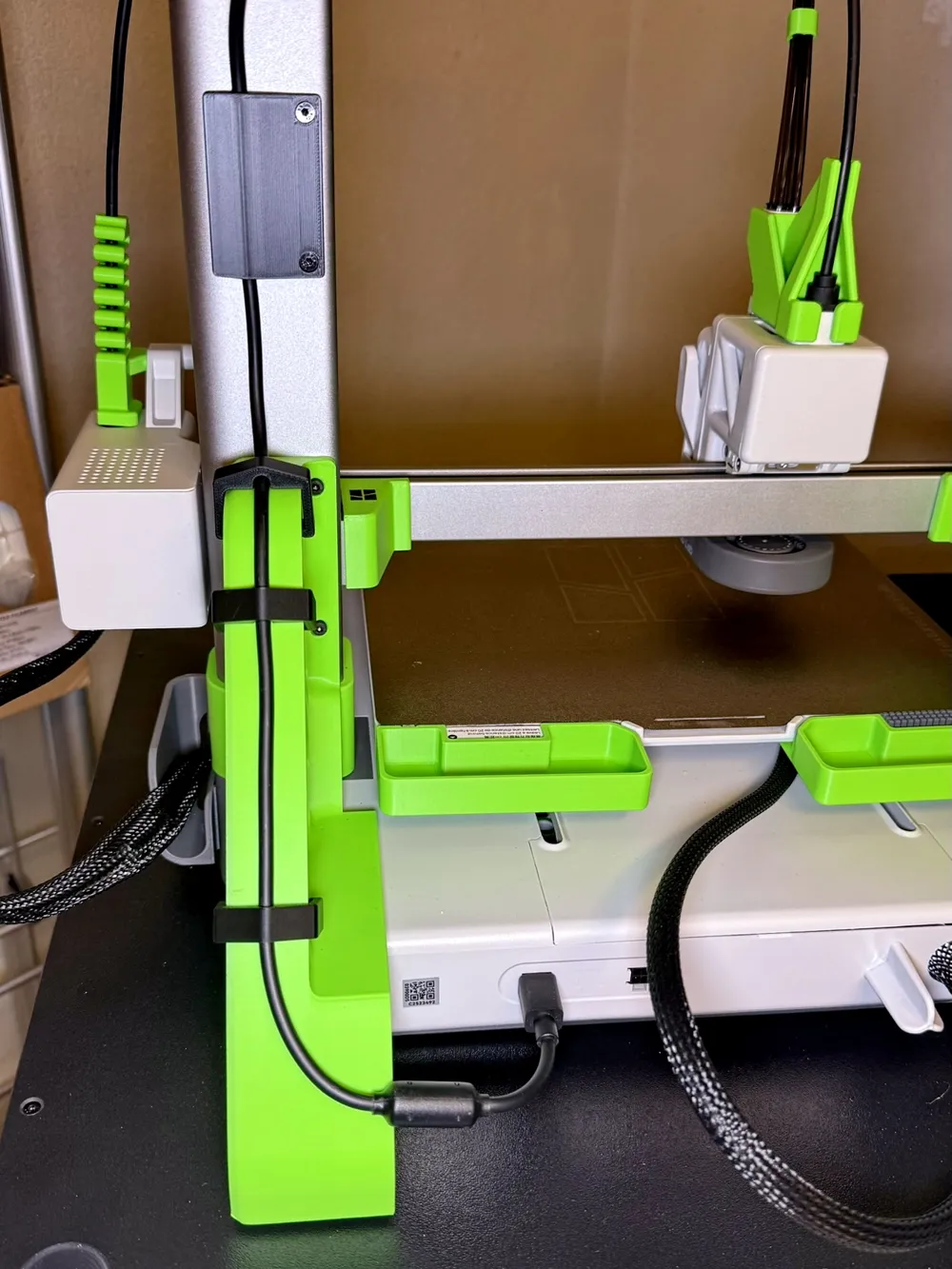

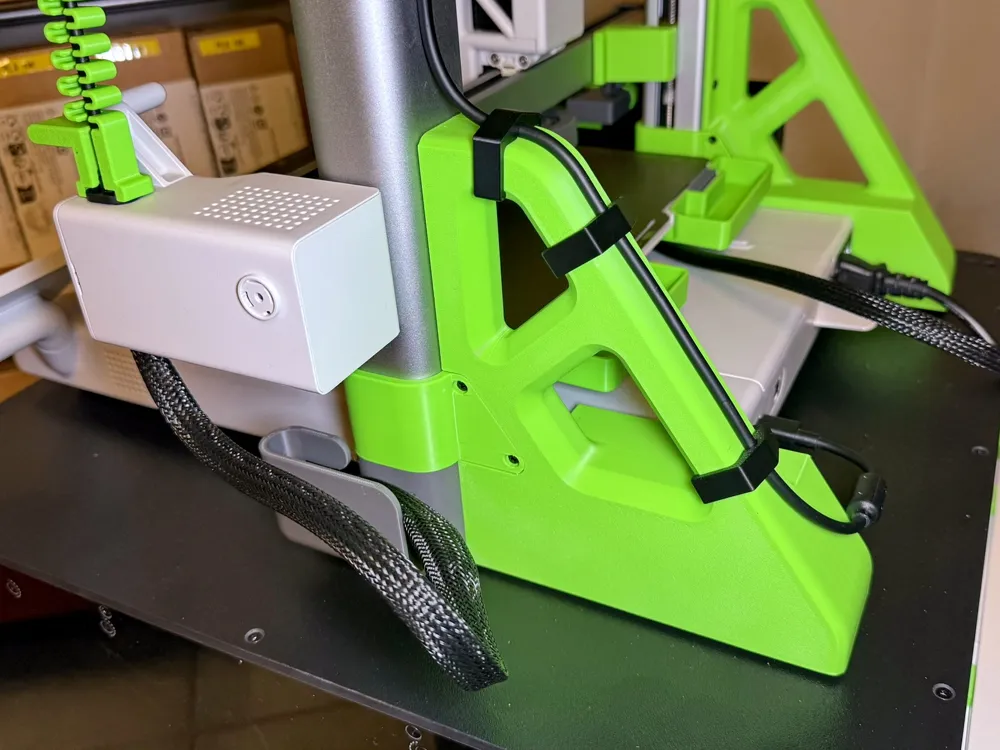

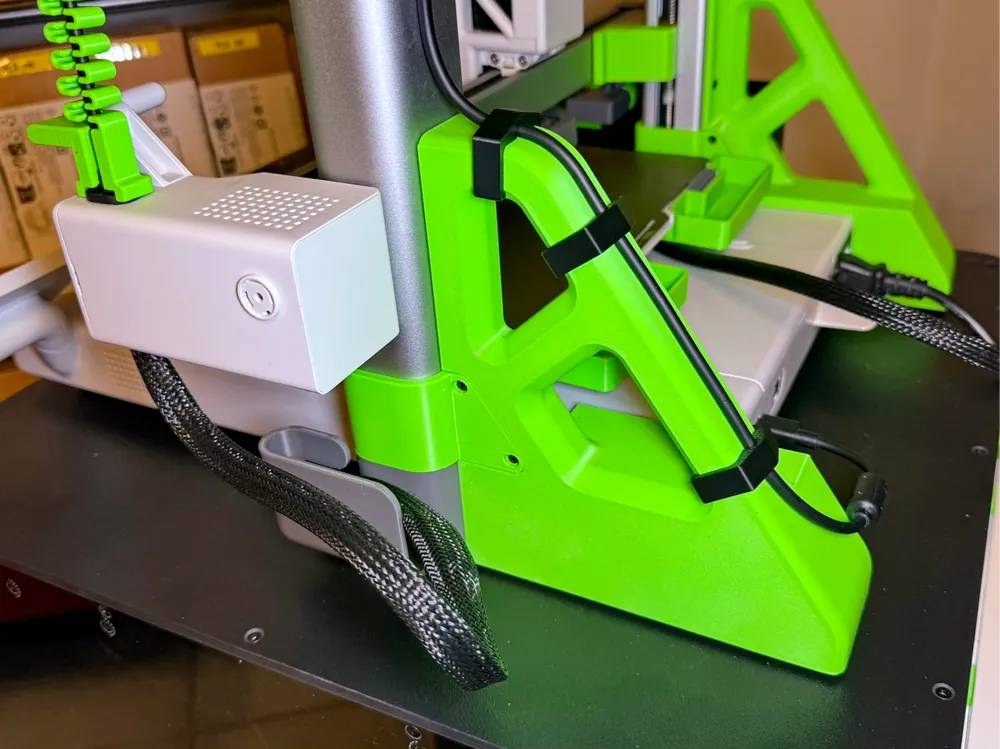

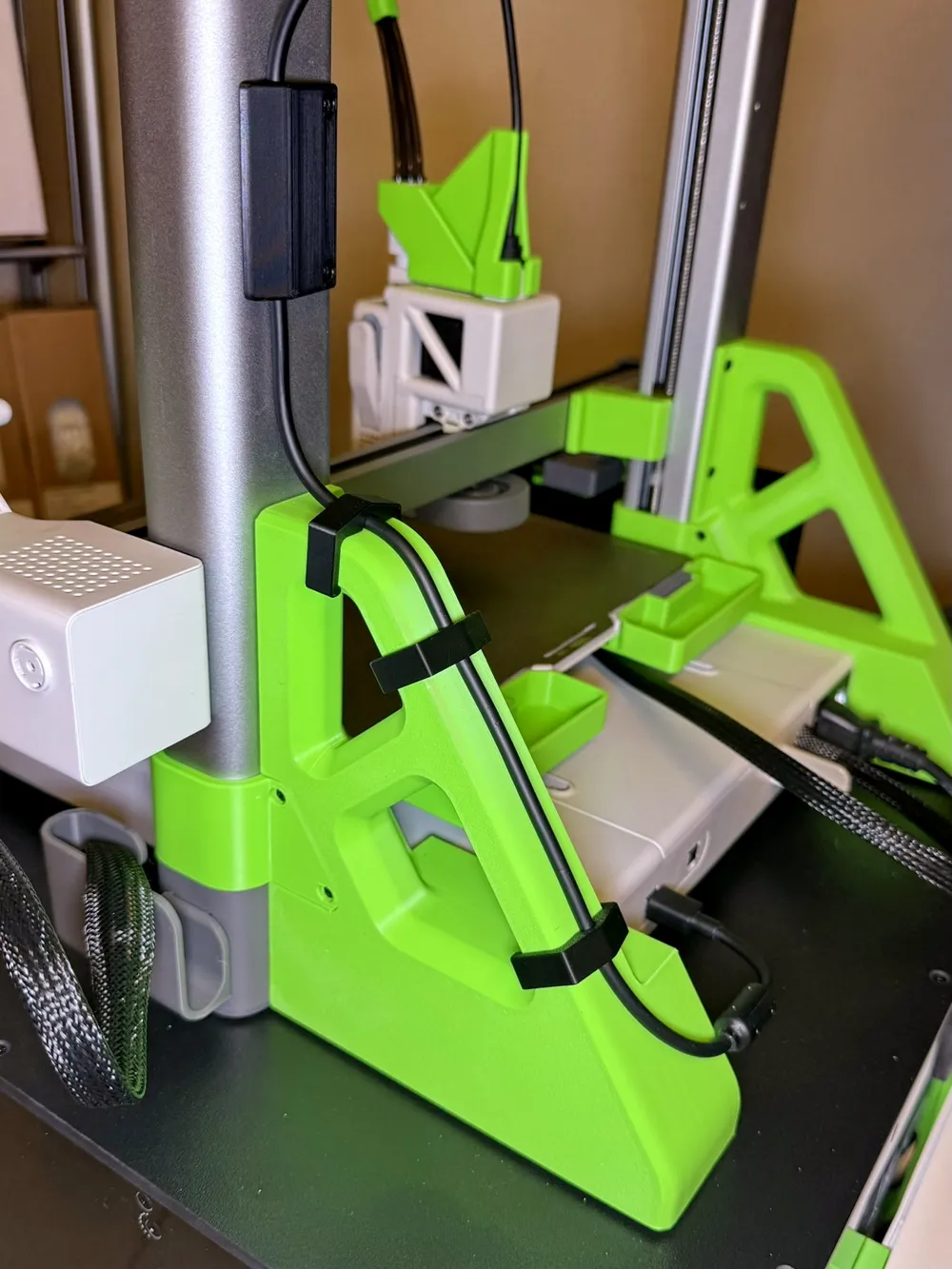

The cable clips are designed to securely attach the AMS cable to your 3D printer's rear Z-axis reinforcement. This prevents the cable from tangling or interfering during operation.

Compatibility and Expansion

This extension was specifically designed for the original AMS lite top mount for the A1 developed by Bambu Lab (https://makerworld.com/de/models/92486-ams-lite-top-mount-for-a1#profileId-100105), ensuring optimal integration and functionality.

Assembly of the Clips and Plate

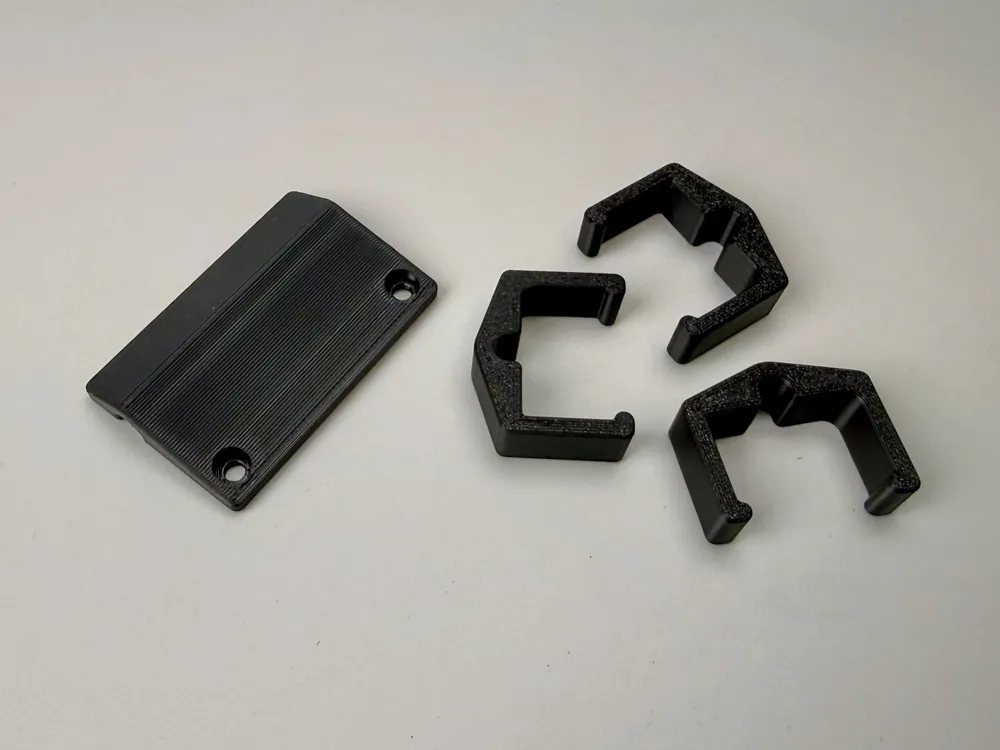

The clips can be easily attached to the Z-axis reinforcement, enabling quick and straightforward installation. The accompanying plate is securely fastened with two M3x10mm screws into the existing threaded holes of the Z-axis, providing additional stability.

Recommended Print Material and Printing Notes

PETG is recommended as the printing material for these parts. The individual components should be printed sequentially, with a greater distance required between them. This results in a cleaner print and higher quality finished parts.

Two M3x10mm screws are required for fastening the plate to the Z-axis.
