Kallax Rack Modul 5x5 – PRED Gridfinity Toolcases

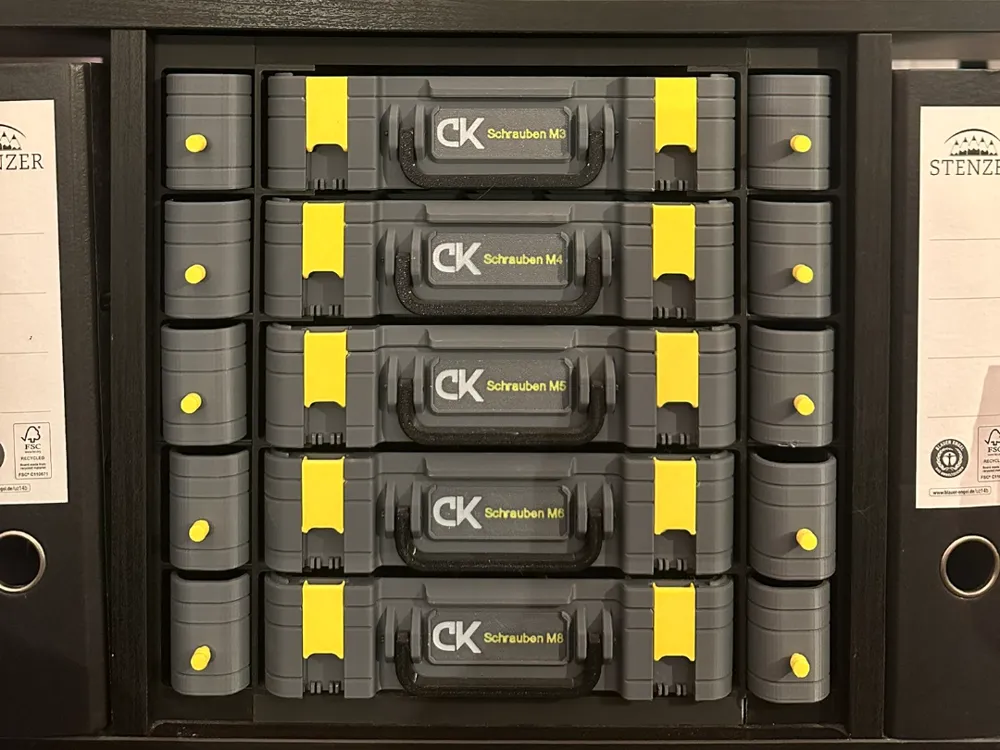

This 3D printable Kallax Rack Module was designed to neatly and space-efficiently organize Pred's Gridfinity Toolcases (6U 5x5) in the IKEA Kallax shelving unit Click here for the 5x4 version
The boxes can be easily inserted and removed without additional guides or hardware

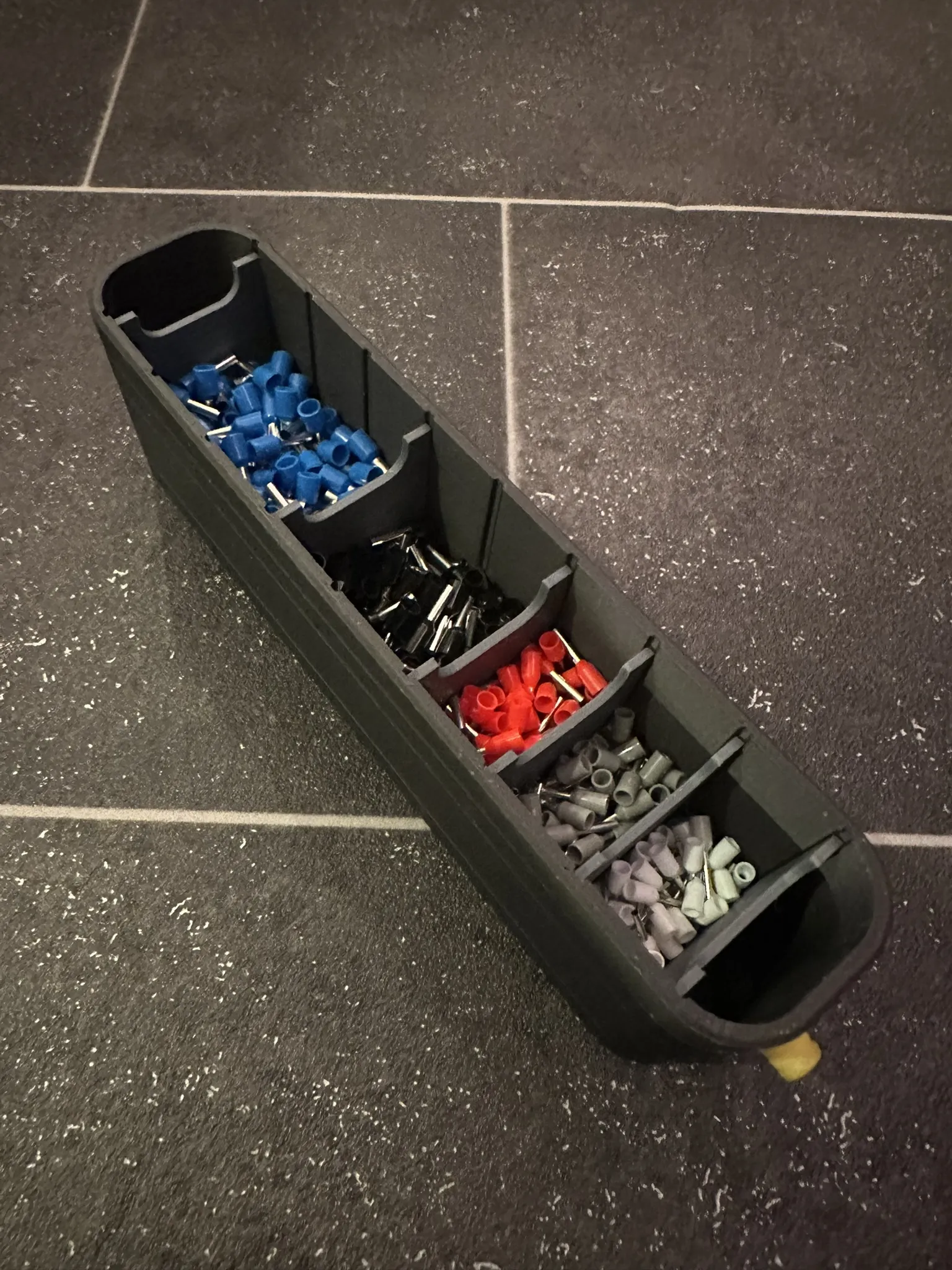

On the left and right sides are additional small parts compartments, ideal for screws, nuts, bits, or other small items
Each side compartment can be flexibly subdivided with up to 8 plug-in dividers, allowing the compartments to be adapted to individual needs, with the last 3 compartments being larger than the rest

Note:

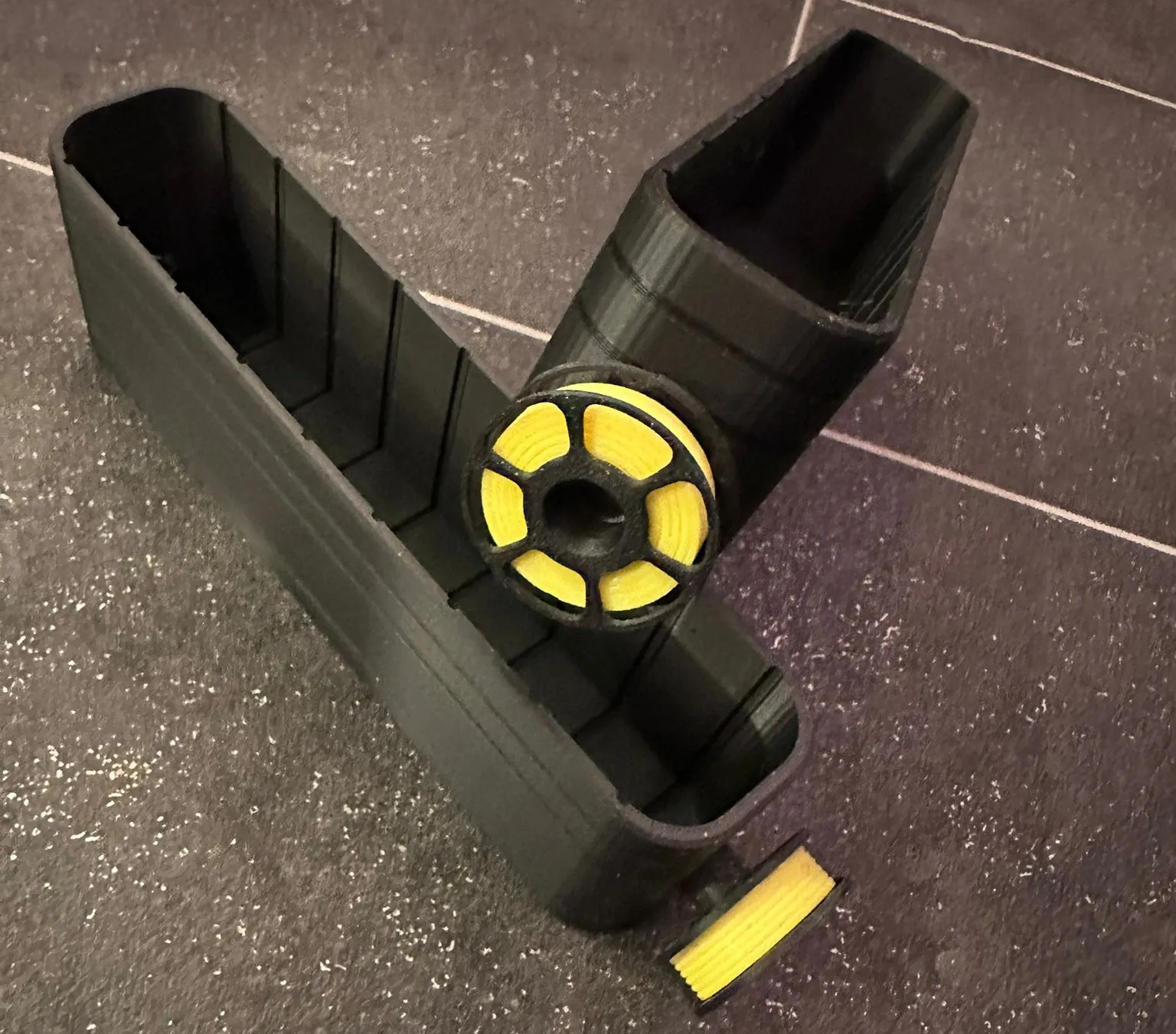

For the side pull knobs (to easily pull out the compartments), 10 M3x8 screws are needed (1 screw per knob) As an additional variation, I have also uploaded filament spool door knobs as a separate project
The dividers and knobs are optional, the system can also be used without them

Version 1 – Glue Assembly:
The rack is printed in several parts and then flush glued
A version with interlocking guides is planned

Features

• Perfect fit for IKEA Kallax
• Compatible with Pred Gridfinity Toolcases (boxes not included)
• Side compartments for small parts left & right
• Up to 9 dividers per side compartment usable (plug-in, variable)
• Optional: Pull knobs with M3x8 screws (10 pieces needed)
• Modular design, glueable after printing
• Clean front appearance, tidy workbench integration

Print Recommendations

• Layer height: 0.20 mm (0.16 mm possible for visible front surfaces)



• Material: PLA+ or PETG
• Infill: 15–20 %
• Supports: no supports
• Post-processing: Glue edges flush


Note on Print Time and Material Requirements:

• This rack is a larger module and therefore requires significant print time and material
  For the complete version (including side compartments and dividers), you should expect approximately 2.1 kg of filament and a print time of about 2 days and 5 hours (depending on printer, layer height, and speed)
