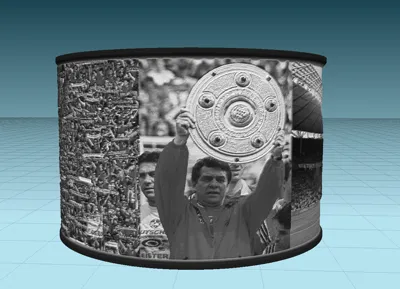

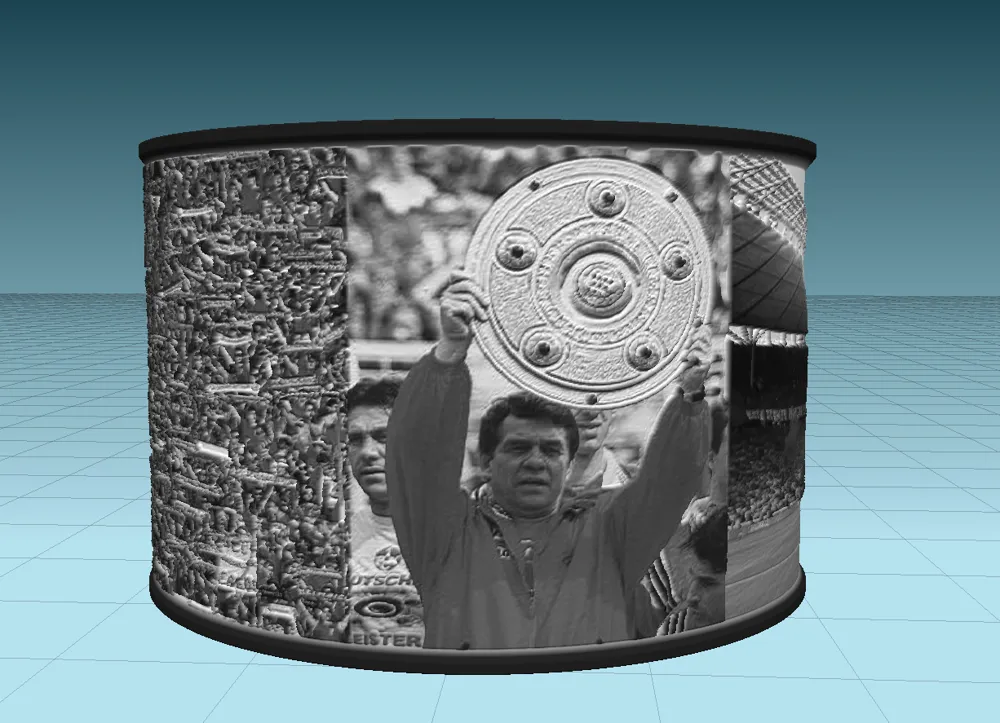

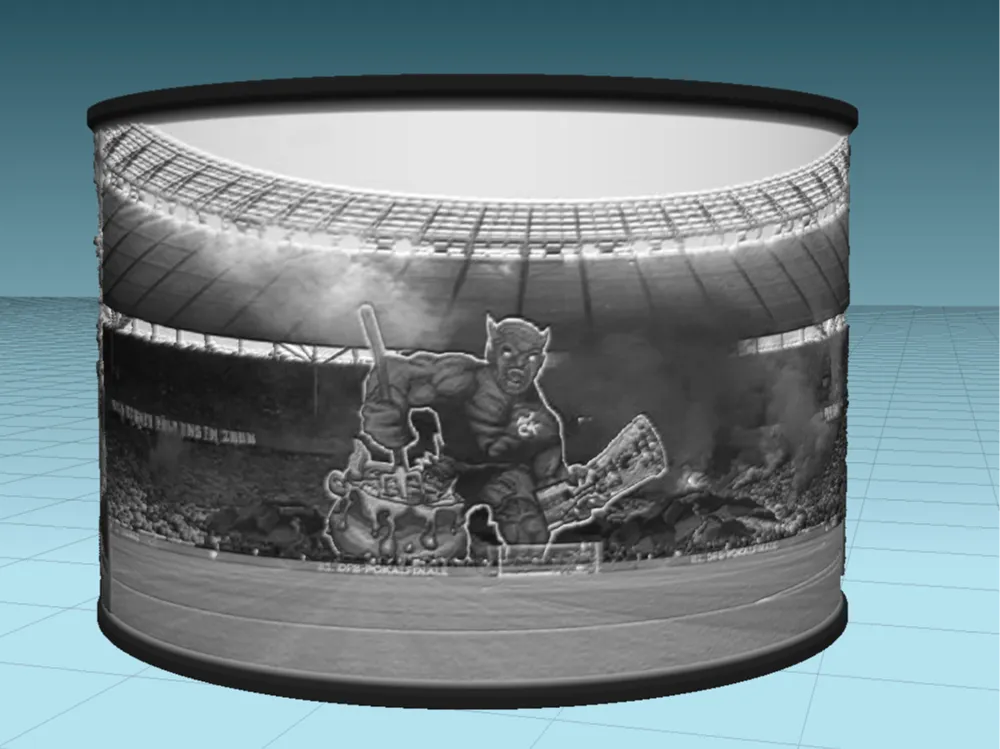

1. FC Kaiserslautern Litophane

I made this lamp from a request here from Maker World. Fans of 1FC K seem to be everywhere….. ;)

Pictures will follow as soon as the lamp is printed

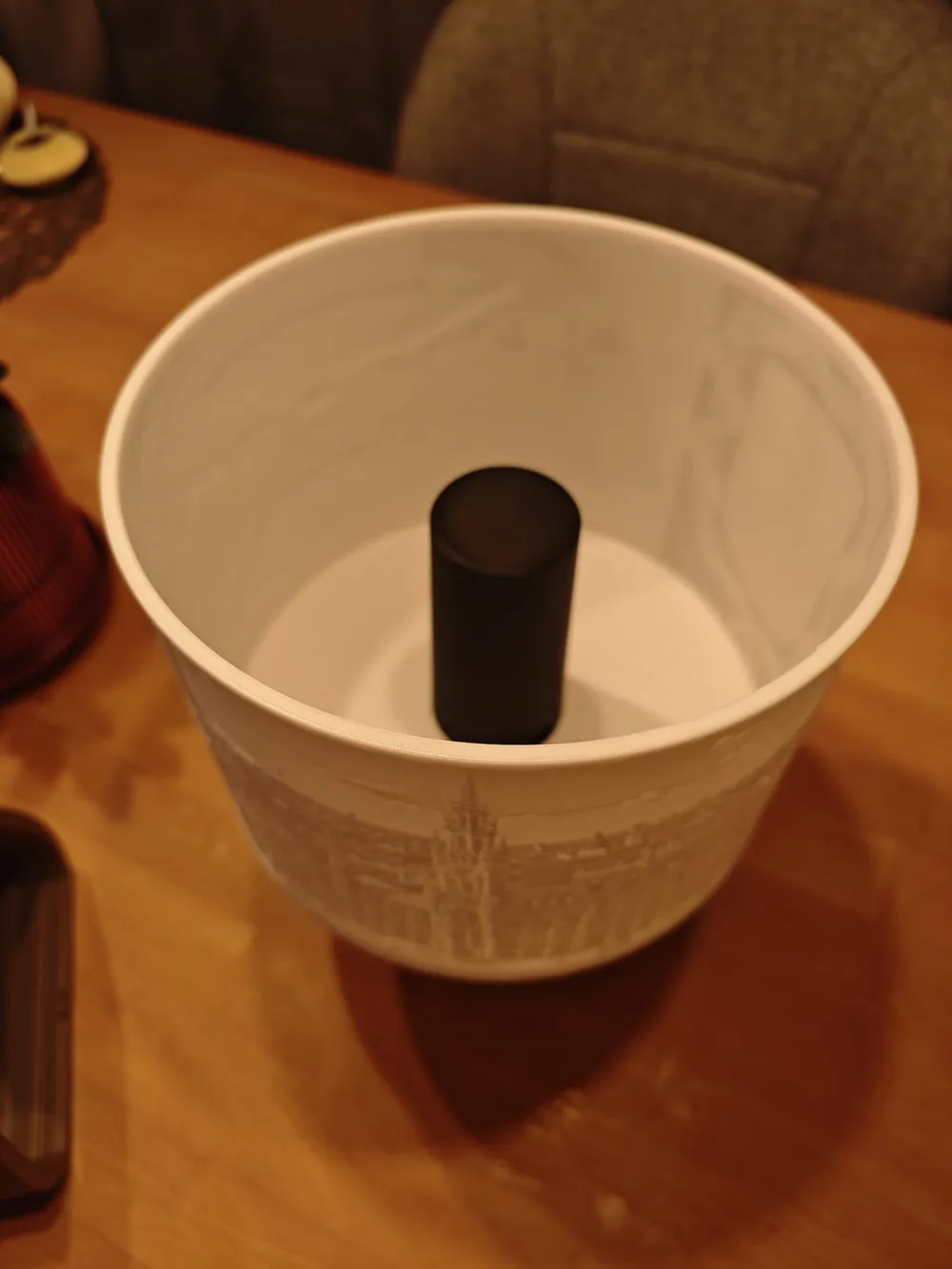

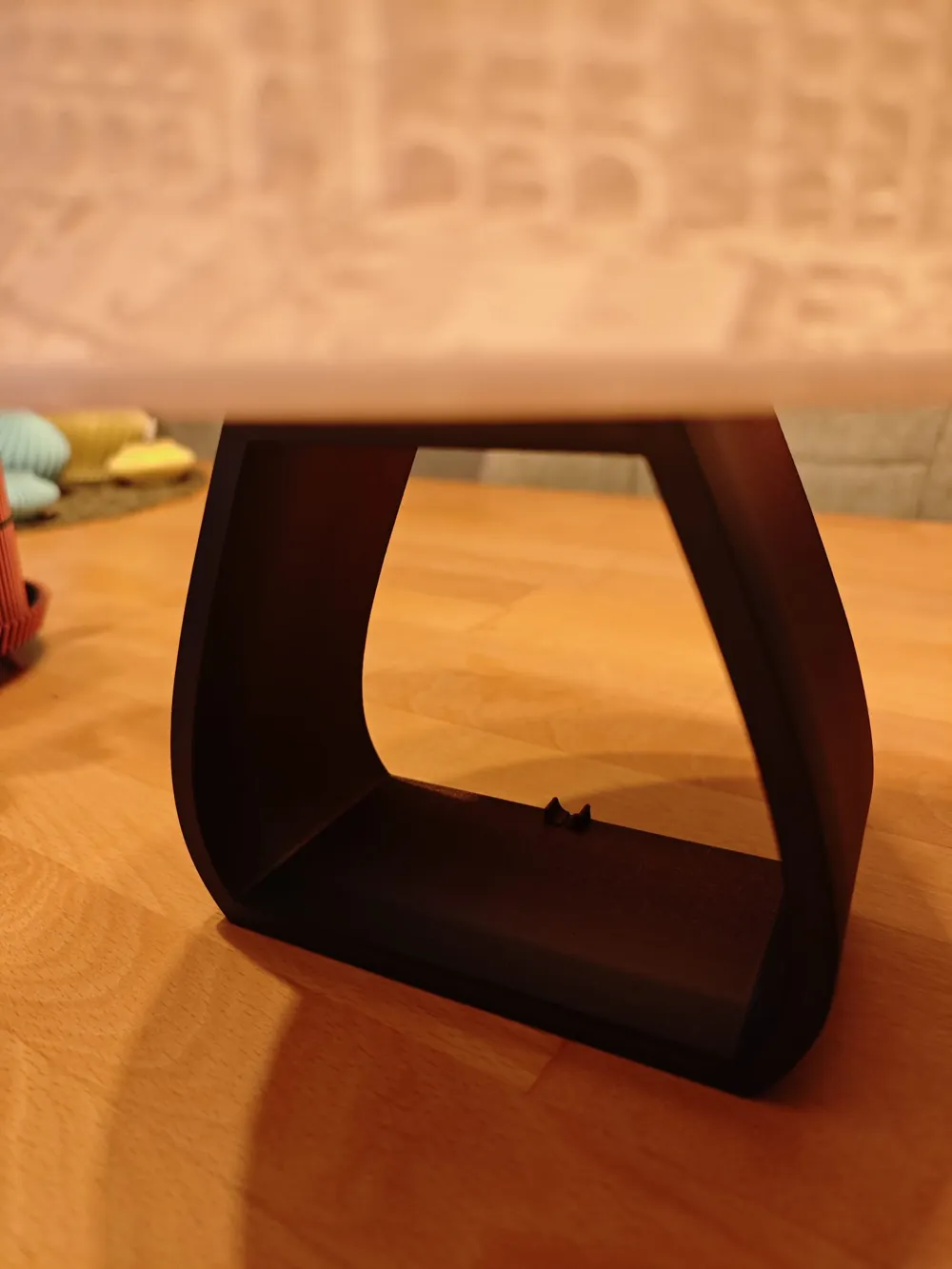

lithophane base or frame for lithophane lamps suitable for cylinders or spheres

E27 screw-in socket

Have fun printing

If anyone wants an E14 socket, I can gladly adapt the model

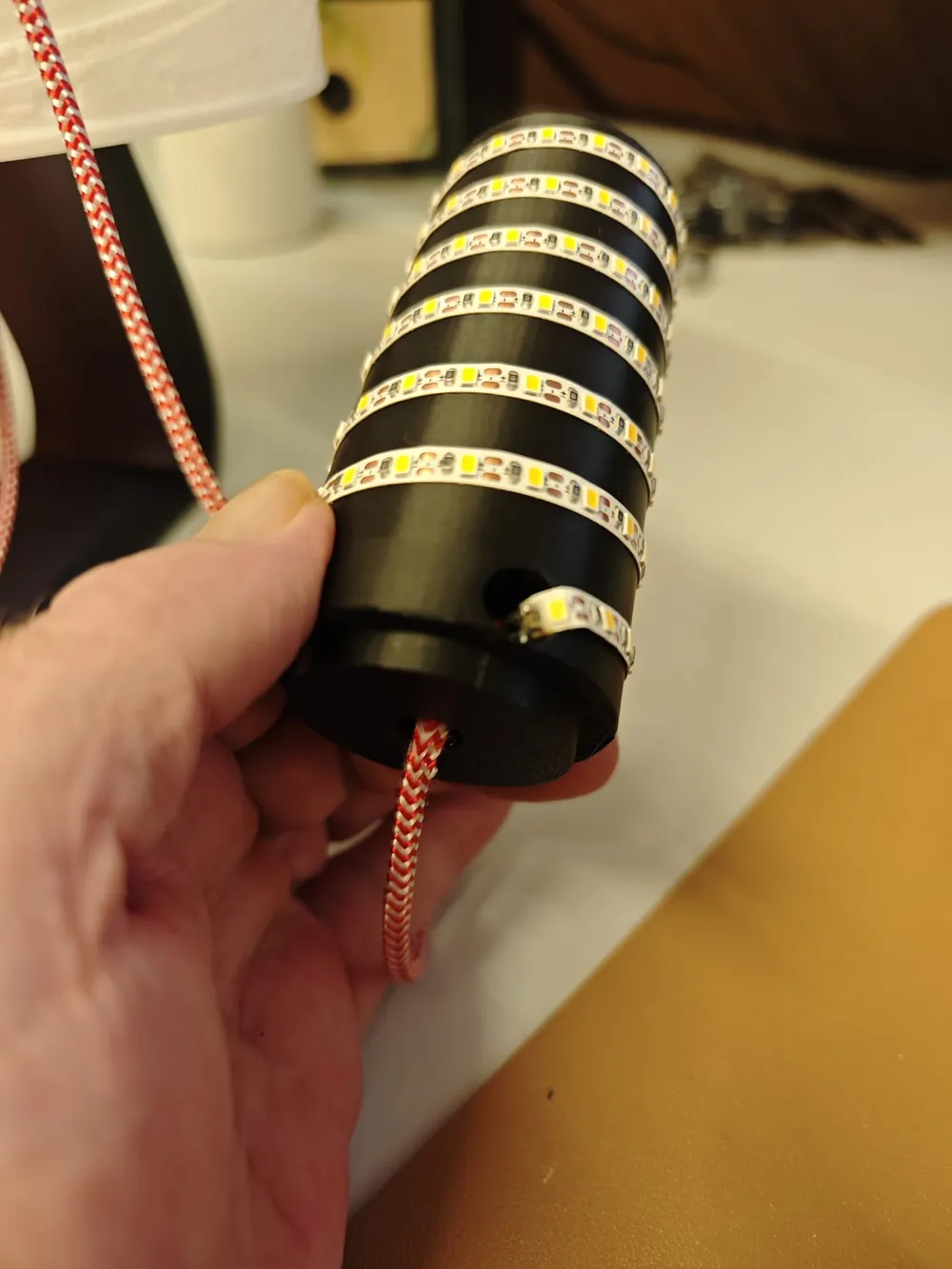

I have adapted the whole thing for LED

All parts for individual download

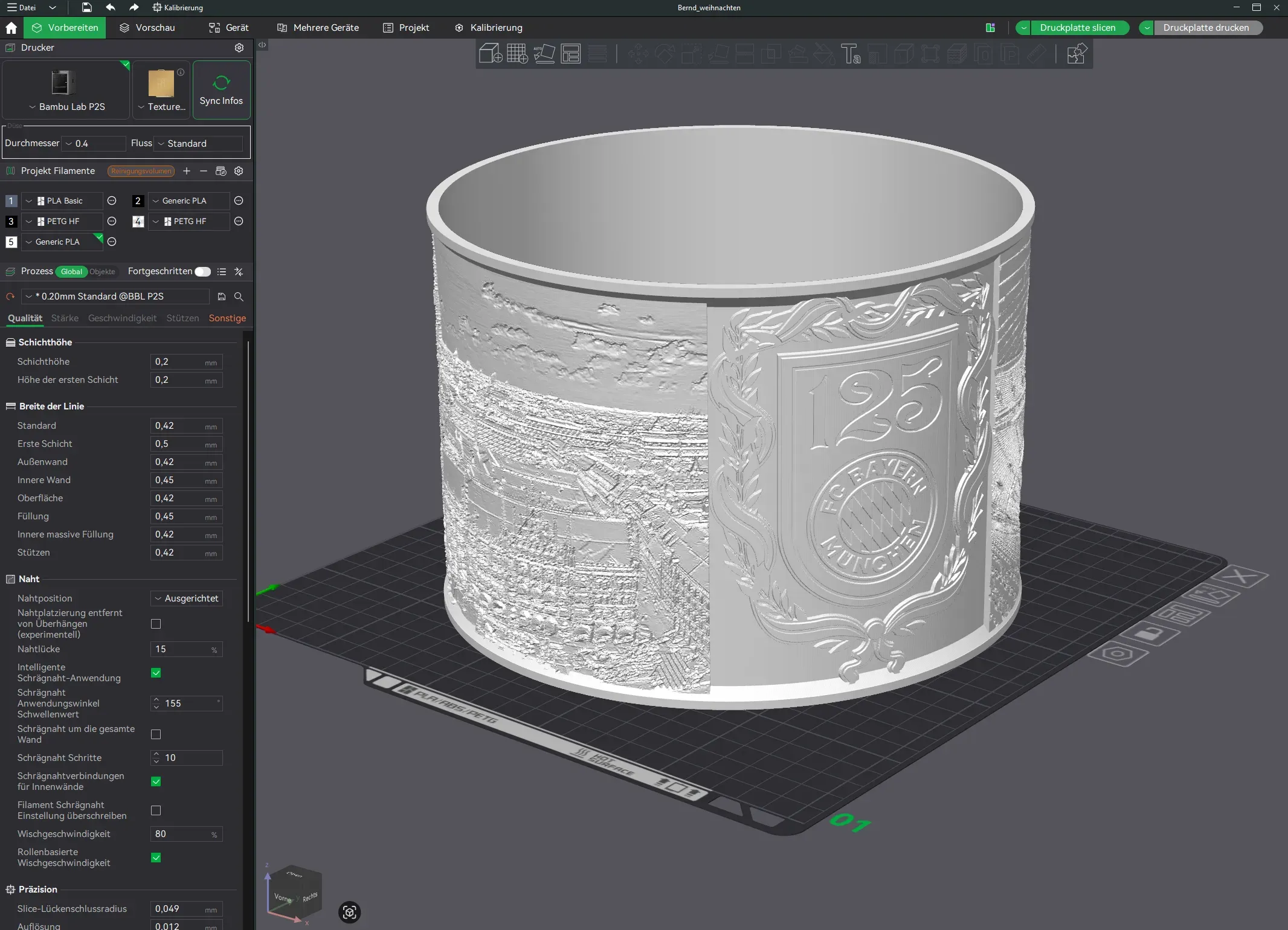

First, the lithophane should be processed before printing

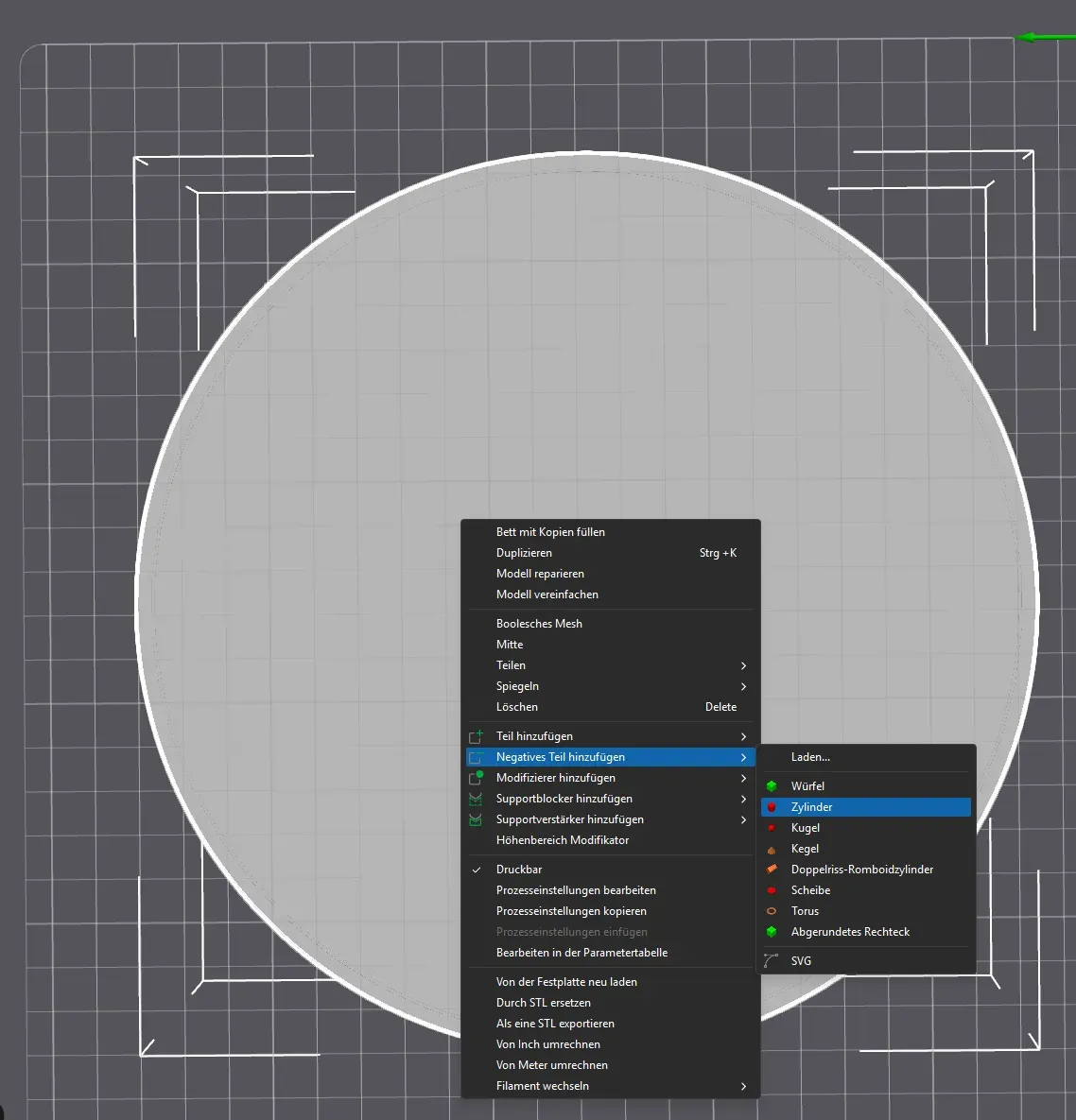

We create a (negative part) cylinder

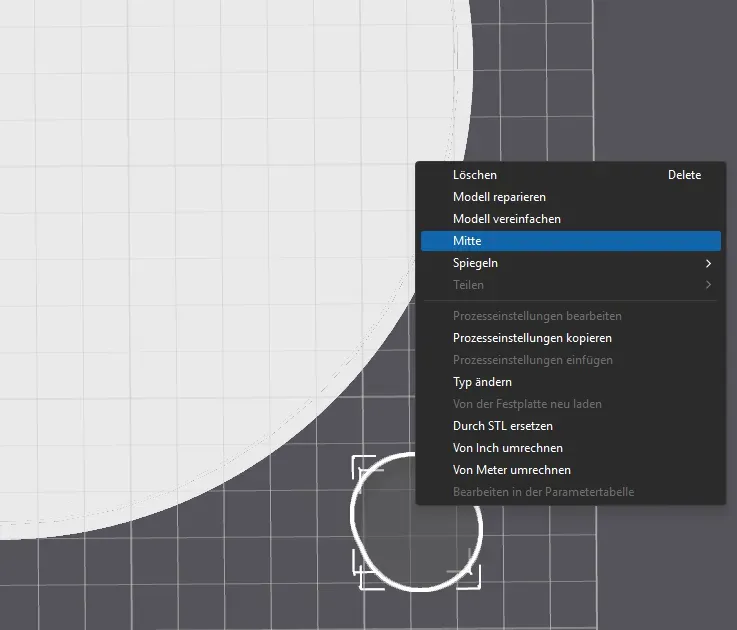

Then it is moved to the center via right-click

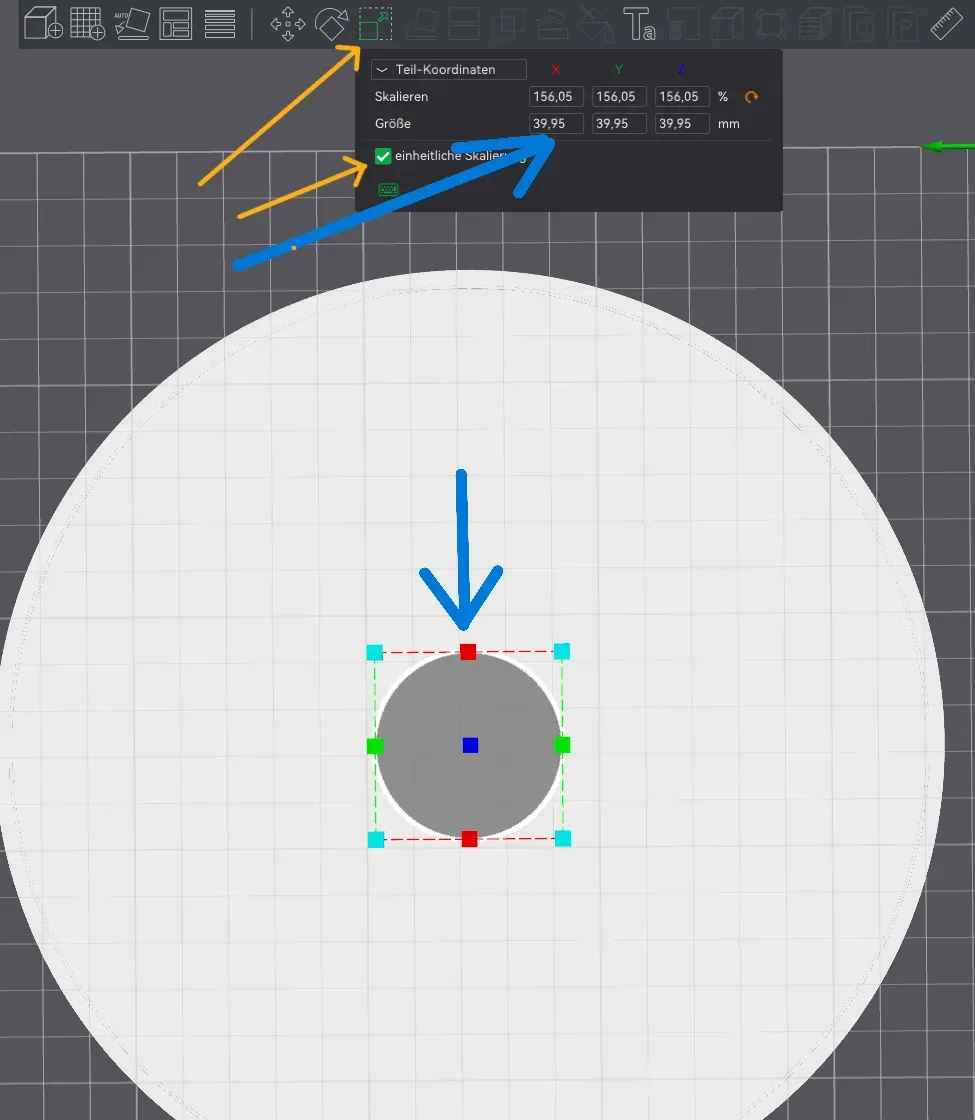

Next, the size is adjusted. We need a 39.95mm hole for the E27 and especially for the LED holder. Therefore, we set the size to 39.95mm

That would be almost everything now…… You still need to print it out.
