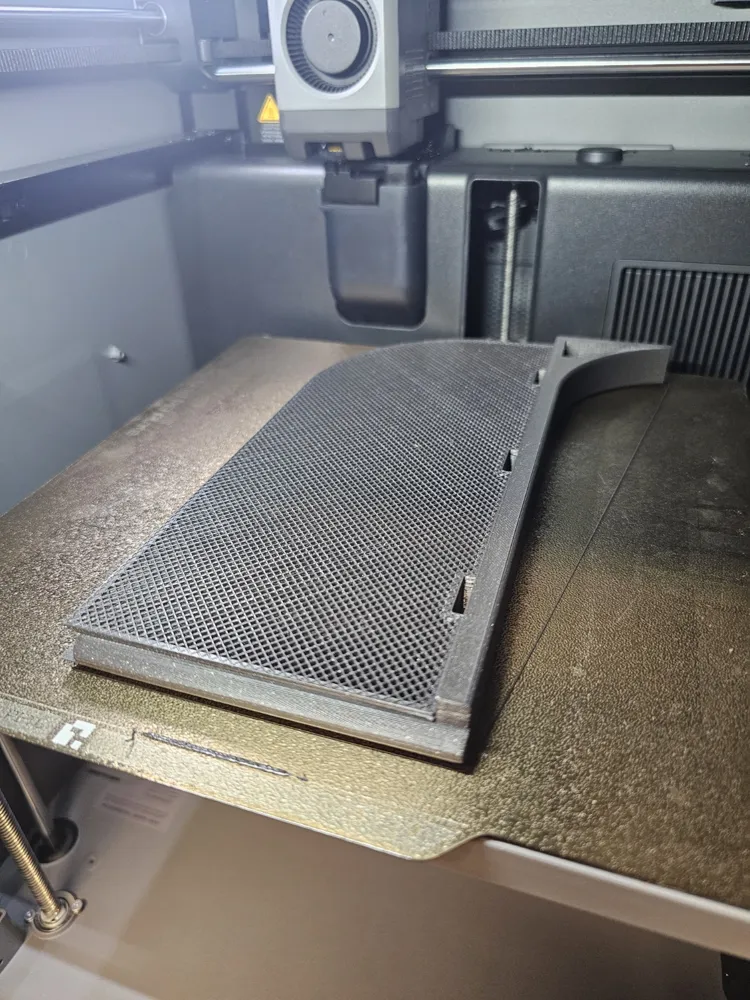

<p><strong>Recommend to use 3mf file where everithing is set</strong></p><p><strong>PRint with ASA or similar UV and heat resistance</strong></p><ul><li>0.2 mm layer</li><li>3 walls global</li><li>5 walls for hooks and web part</li><li>15% gyroid infill</li><li>40% grid infill for web parts + 0 top and bottom solid infill layers</li><li>no supports</li></ul>

0.2mm layer, 3 walls, 15% infill

https://www.printables.com/model/1389782-vw-t5-ventilation

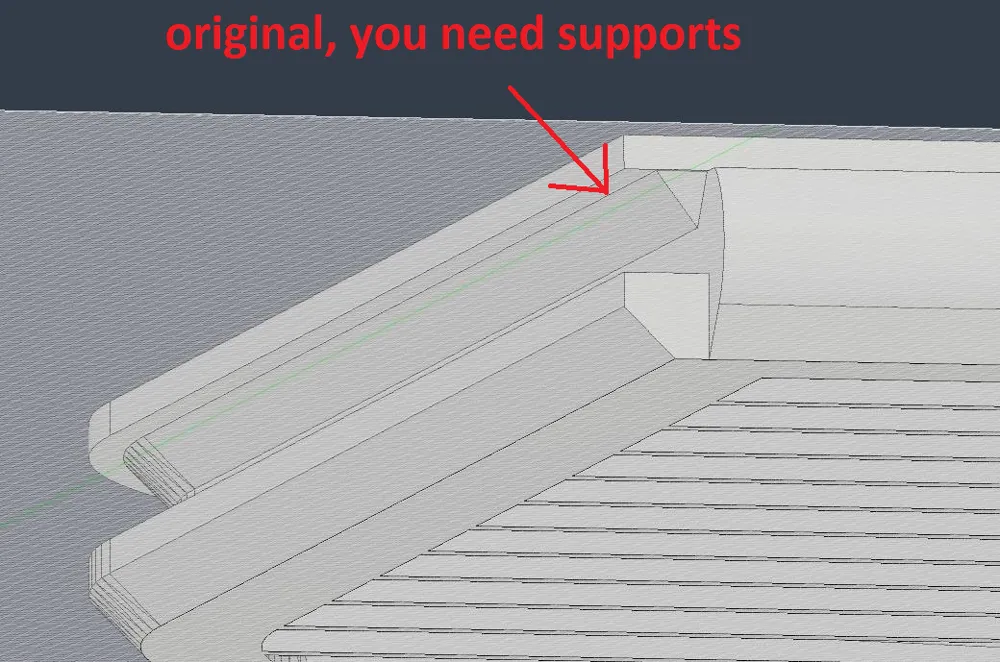

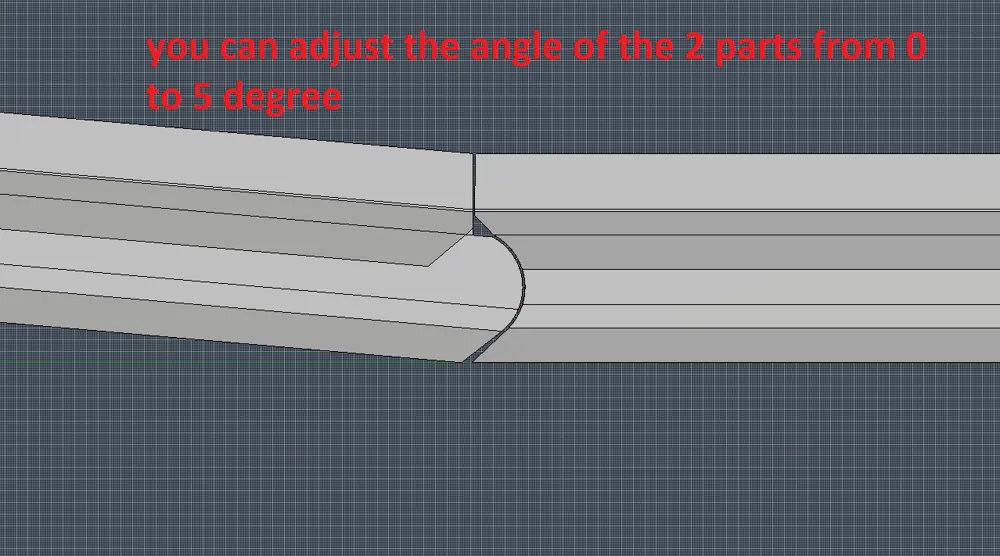

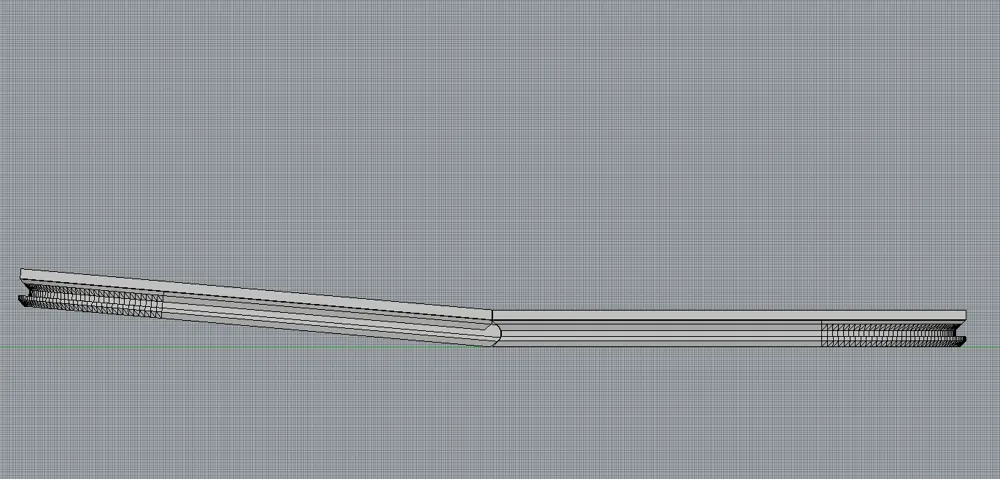

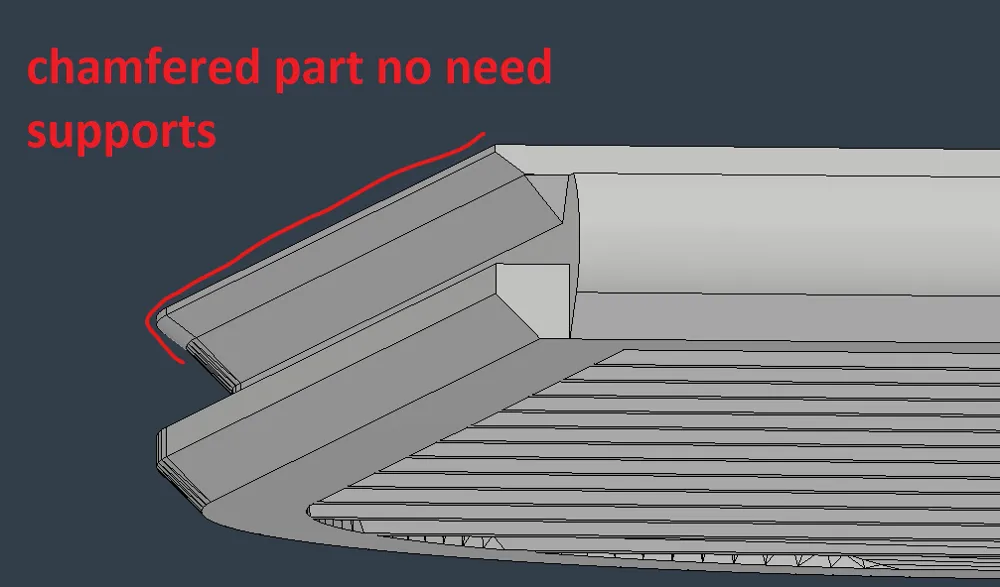

<boostme><boosttitle>Boost Me</boosttitle></boostme><h2><strong>VW T5 ventilation improved</strong></h2><ul><li>modified part of the joint, due to the curvature of the window.<br>I recommend not gluing the 2 parts together, but leaving them separated</li><li>blind holes for screws</li><li>beveling for support-free printing</li><li>each of the 2 parts is divided into 2 more parts, so there is no need to use modifiers. Just download the 3mf file where everything is set up</li></ul><h2>Print settings</h2><ul><li>0.2 mm layers</li><li>3 walls (global)</li><li>5 walls for web parts and hooks</li><li>15% gyroid infill</li><li>30% grid infill for web part + 0 top and bottom solid infill layers)</li><li>no supports</li></ul>

VW T5 ventilation REMIXed

ASIA

Print Profile(1)

Description

VW T5 ventilation improved

Print settings
