🎣 Ultimate Customizable Soft Bait Mold (OpenSCAD)

Stop buying overpriced lures and start pouring your own! This professional-grade 2-part mold generator allows you to create high-action soft plastic lures tailored to your local waters. Whether you are targeting Perch, Zander, or Bass, this mold is engineered for perfect results.

✨ Key Features

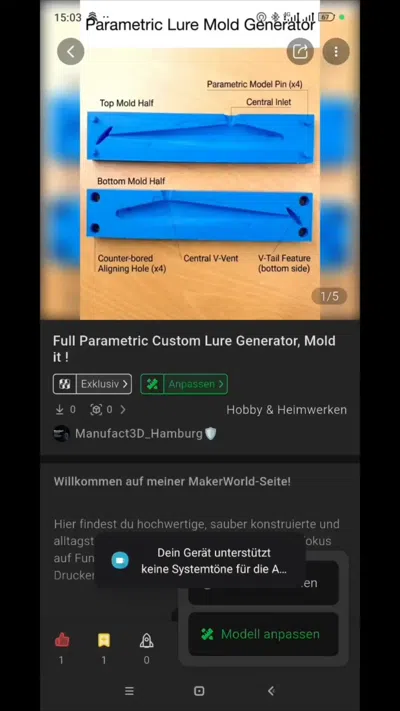

• Fully Parametric: Adjust length, width, and height via OpenSCAD.
• High Action: Includes a Paddle Tail option and a realistic Lateral Line for underwater acoustics.
• Pro Details: Pre-configured slots for 3D eyes and realistic fin structures.

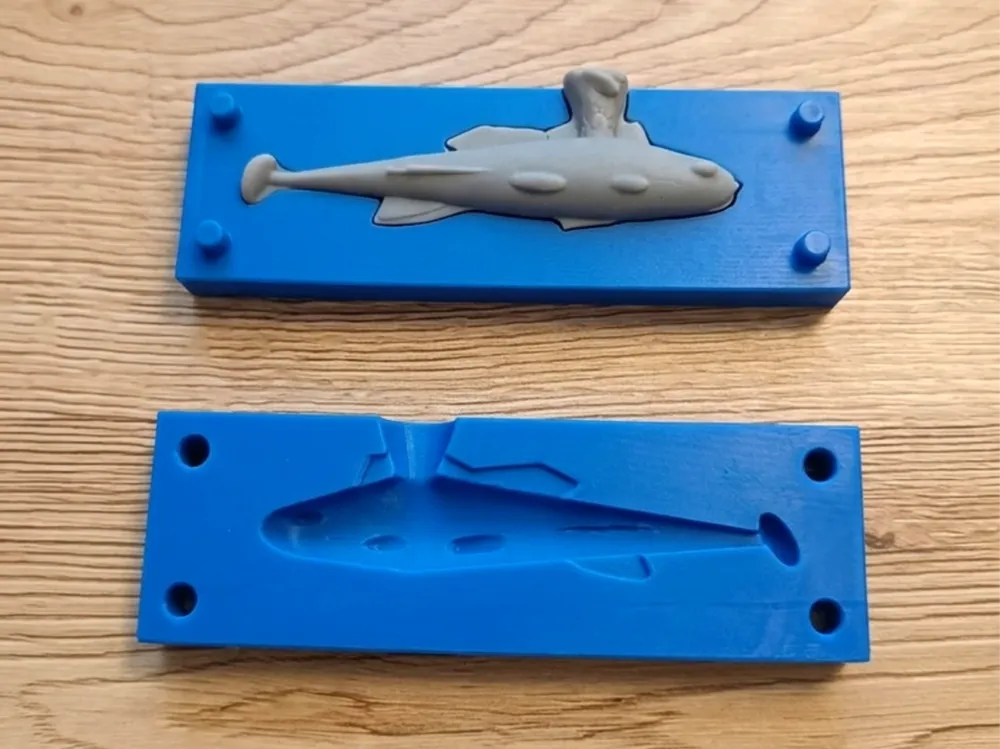

• Smart Alignment: Integrated Pin & Hole system for a perfect fit without "flashing."
• Easy Pour: Optimized funnel for smooth flow and fewer bubbles.

🧪 Material & Customization

• The Lure: Use standard soft bait Plastisol. Mix in glitter, pigments, or scents (shrimp/anise) to create your secret weapon.
• Hardness: Choose your blend (Soft, Medium, Hard) to control the vibration and durability.

❄️ Pro-Tip: Pouring with PETG (The "Cold-Mold" Method)

Since liquid plastisol (170°C+) is hotter than the softening point of PETG, use these tricks to keep your mold from warping:

1. The Freezer Hack: Place the mold in the freezer for 20 minutes before pouring to create a thermal buffer.
2. Silicone Barrier: Use silicone spray as a release agent; it also acts as a micro-thin heat shield.
3. The Water Bath: Place the clamped mold in a shallow cold water bath while pouring to dissipate heat instantly.
4. Quick Cool: Submerge the entire mold in cold water immediately after the pour is finished.

🛠 Quick Start

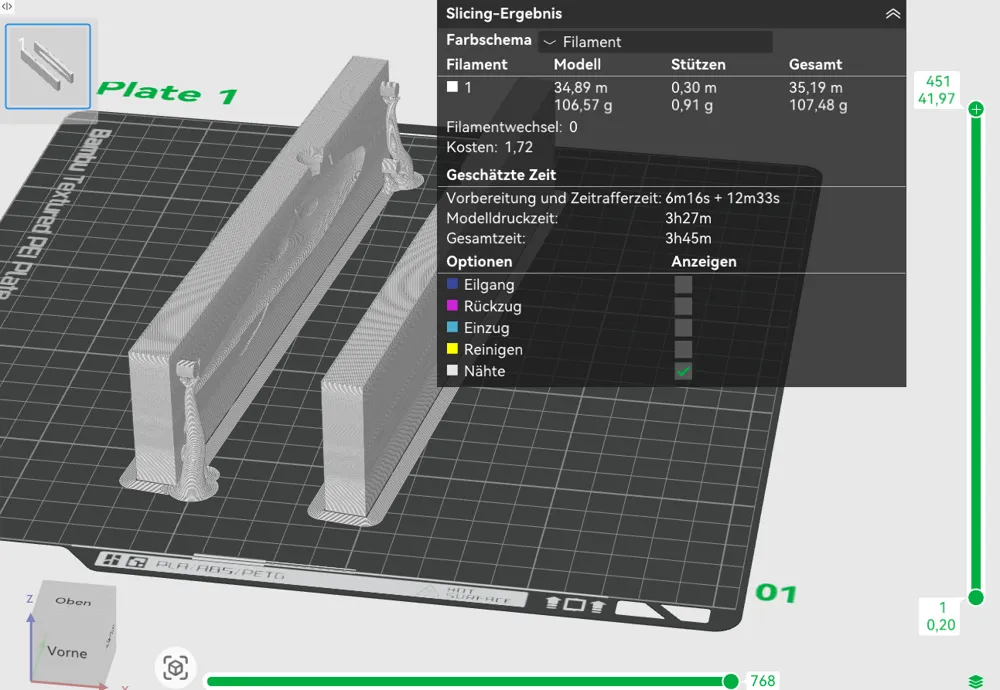

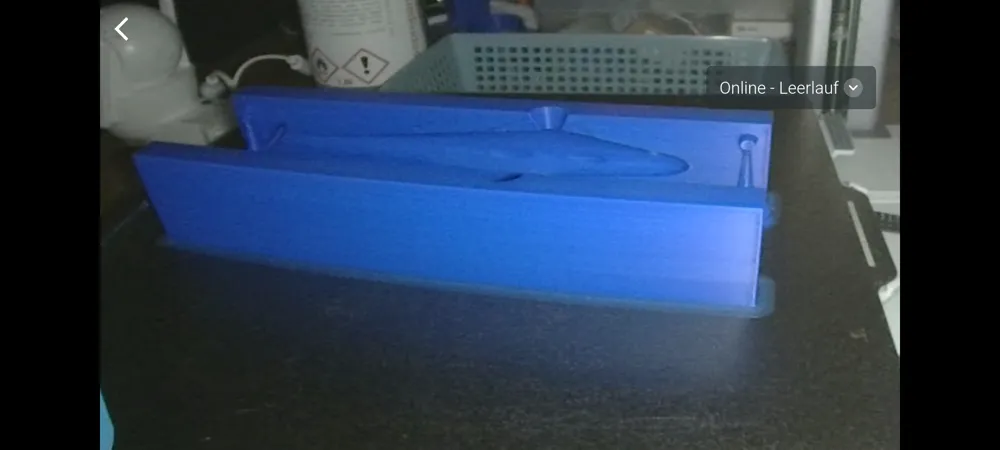

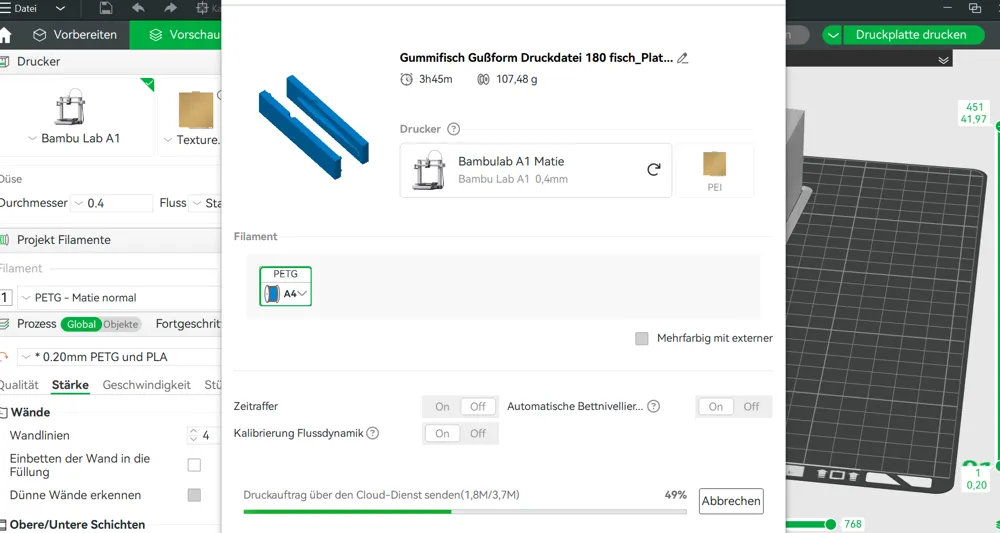

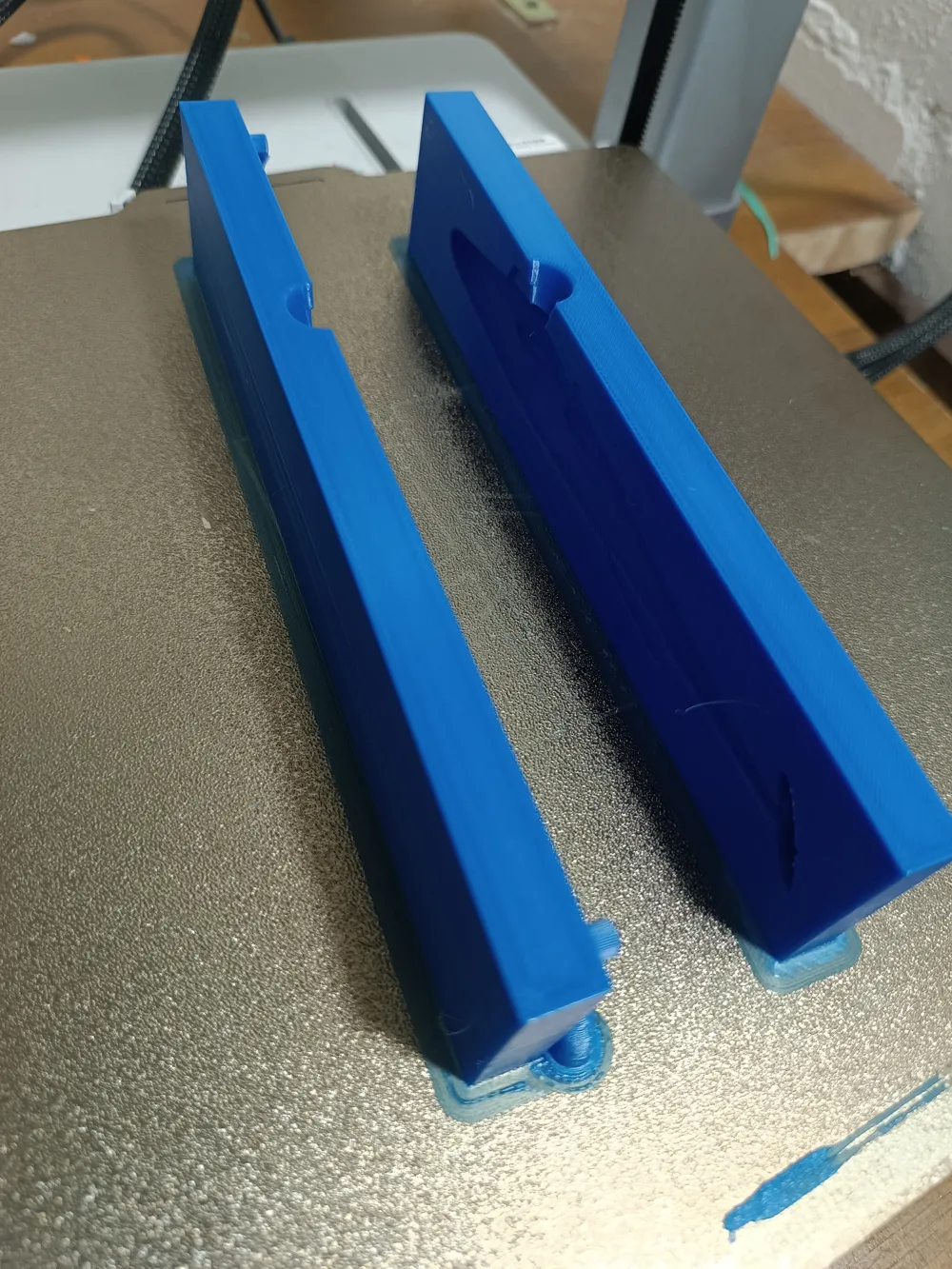

1. Print: Use PETG, ASA, or High-Temp Resin (0.1mm - 0.15mm layer height).
2. Prep: Apply a drop of worm oil or silicone spray.
3. Clamp: Secure both halves tightly.
4. Pour & Fish: Let it cool, rig it up, and tight lines!

The "Generator" version is coming soon! Download the script now to start customizing your dream lure. Tag your catches with #CustomLures – show us what you landed! 🐟
