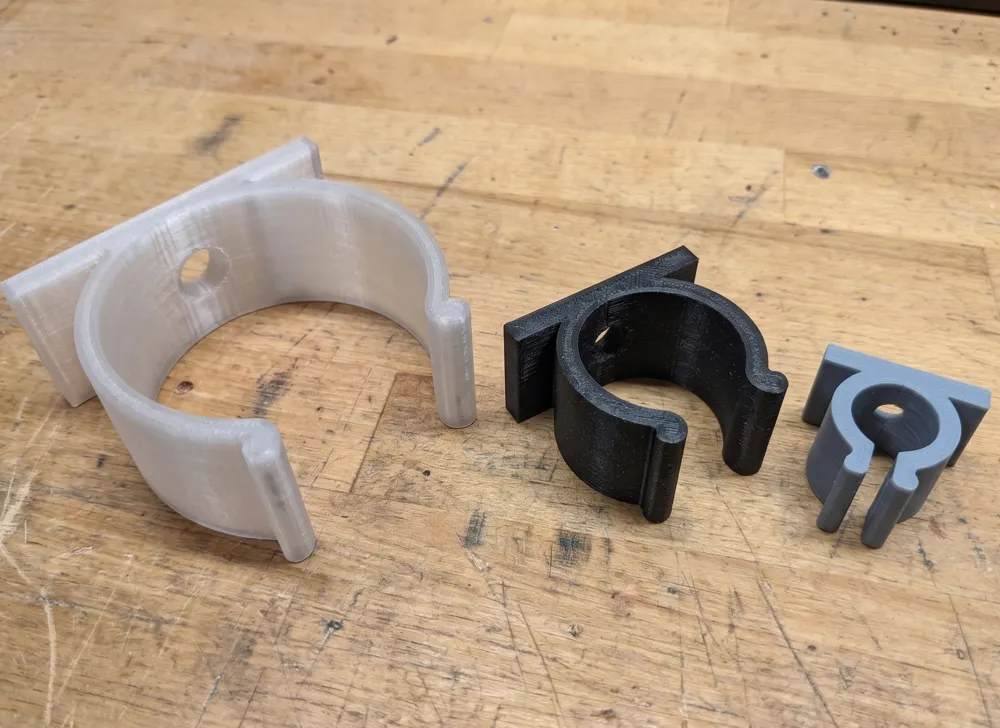

Fully Parametric Snap-In Pipe & Hose Clamp

This versatile, wall-mountable clamp is designed to securely hold pipes, hoses, or cables in any workshop, garage, or household setting. It features a flat base for stable mounting and a built-in countersunk screw hole for a clean, flush finish. The rounded, flared lips ensure a smooth "snap-in" action while maintaining a firm grip on the inserted object.

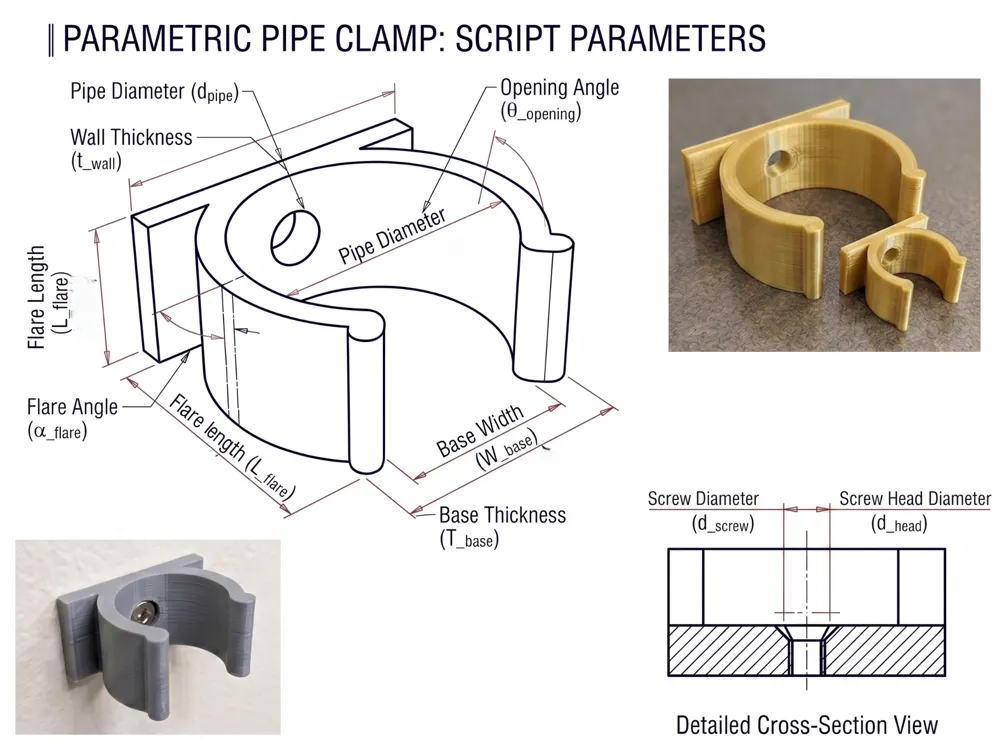

Customization via Configurator

Using the built-in configurator, you can adjust every aspect of the clamp to fit your specific needs:

• Exact Sizing: Set the precise outer diameter of your pipe and the desired height of the mount.





• Strength & Flex: Modify the wall thickness and opening angle to control how much force is needed to snap the pipe in.





• Mounting Specs: Customize the screw thread and head diameters to match your existing hardware.





• Lip Geometry: Fine-tune the flare length and angle for optimal ergonomics.





Printing & Materials

• Objects: This is a single-part print.





• Colors & Materials: Print multiple units in various colors to color-code your plumbing, electrical conduits, or pneumatic lines.
• Durability: While PLA works for light tasks, PETG, ASA, or ABS are highly recommended for their superior flexibility and resistance to fatigue, especially if the clamp will be under constant tension or used outdoors.

Recommended Print Settings

• Material: PETG or ABS (for functional springiness)
• Perimeters: 3–4 (crucial for arm strength)

Looking for Saddle bracket? Check my configurator here:
