Pin Holder for soldering GEN2
Print Profile(2)
Description
MEET THE SECOND GENERATION OF PIN HOLDER FOR SOLDERING š§š©
Because your PCB shouldn't need a third hand just to sit still.

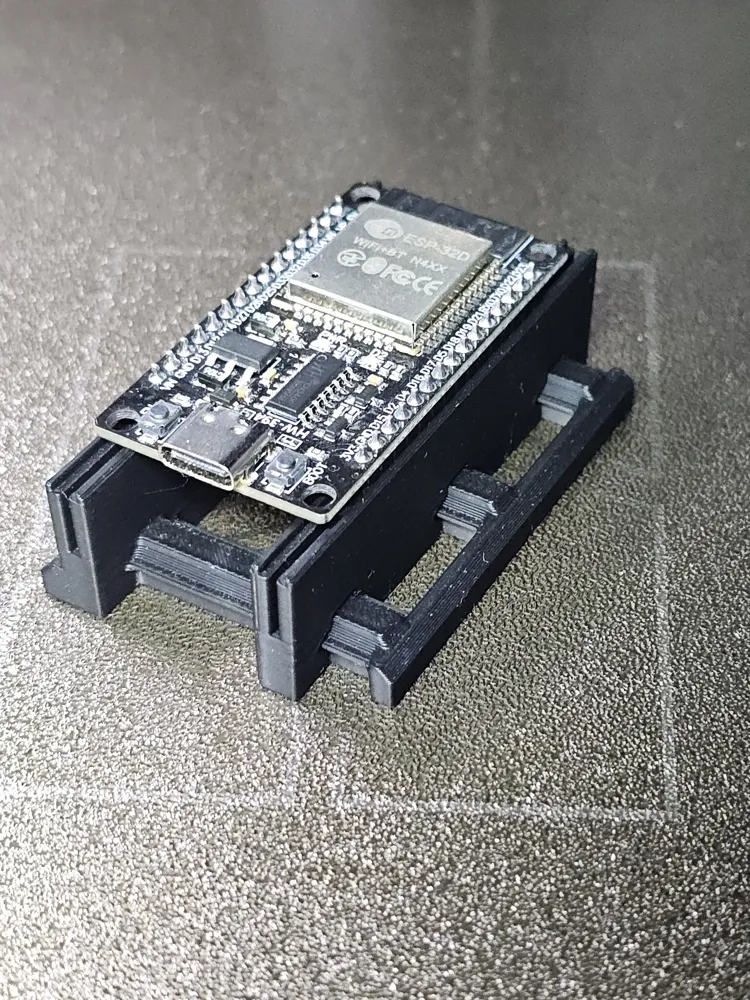

Tired of your ESP module doing a little dance every time you try to solder a pin header? This jig holds your board steady, upright, and perfectly aligned so you can focus on making clean joints ā not chasing components across your desk. No more crooked pins, no more burns from grabbing a board that decided to slide mid-solder.
Why you'll actually use this one:

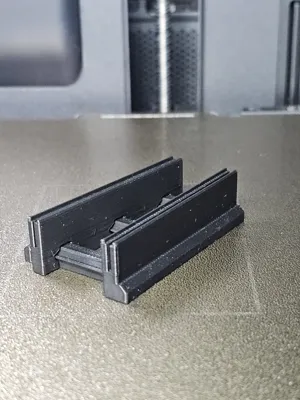

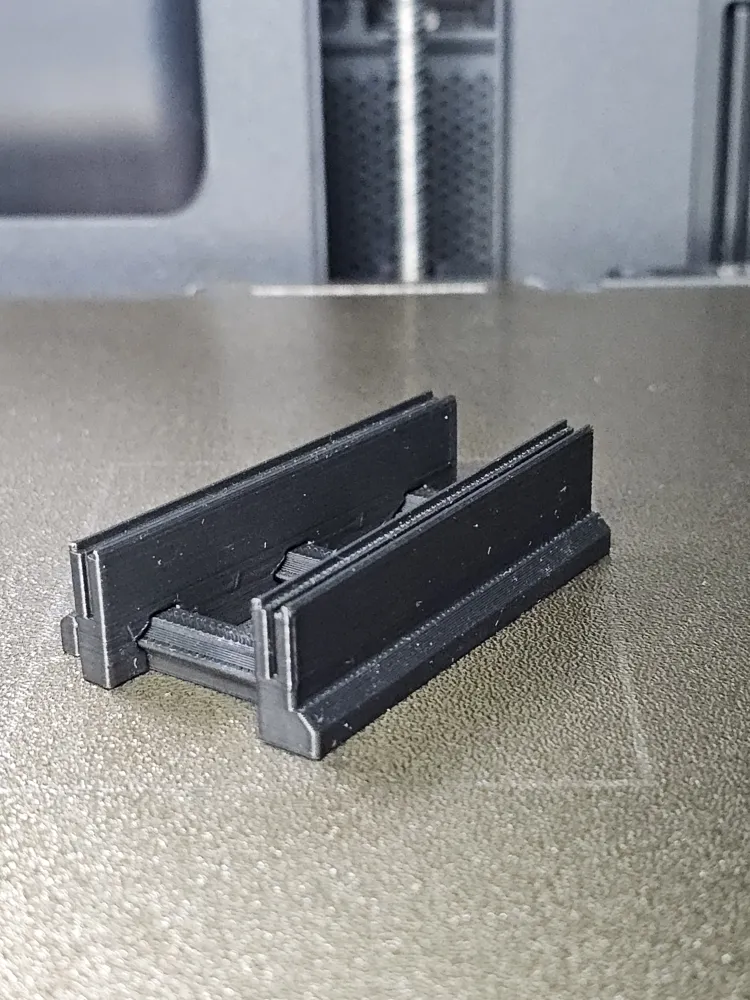

- šÆ Holds PCBs securely in vertical position ā pin headers slot in perfectly, no wobble, no drama
- š Built-in guide rails keep your board perfectly square while you work

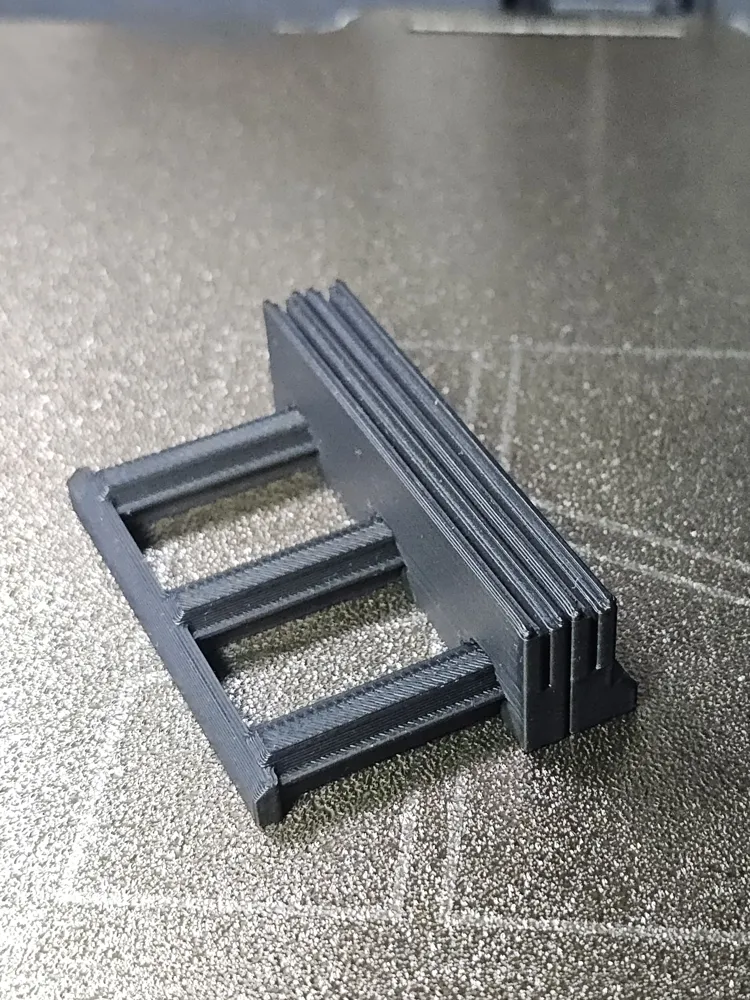

- š§± Sturdy ladder-style structure gives it rigidity without using extra filament
- šØļø Print-in-place friendly ā no supports needed, no assembly required
Before: You're holding the PCB with one hand, the soldering iron with the other, and somehow trying to apply solder with your chin.
After: Both hands free. Board locked in. Every pin straight. You feel like a professional. Your setup looks like a professional's.
Perfect for:

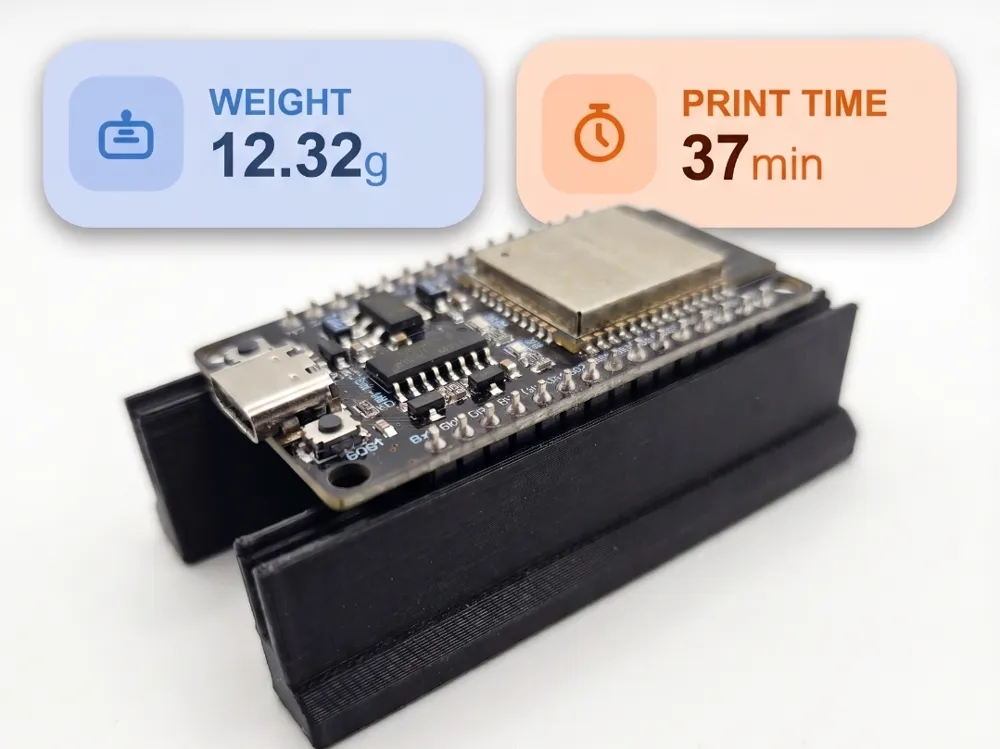

- ā” Soldering pin headers onto ESP8266 / ESP32 modules

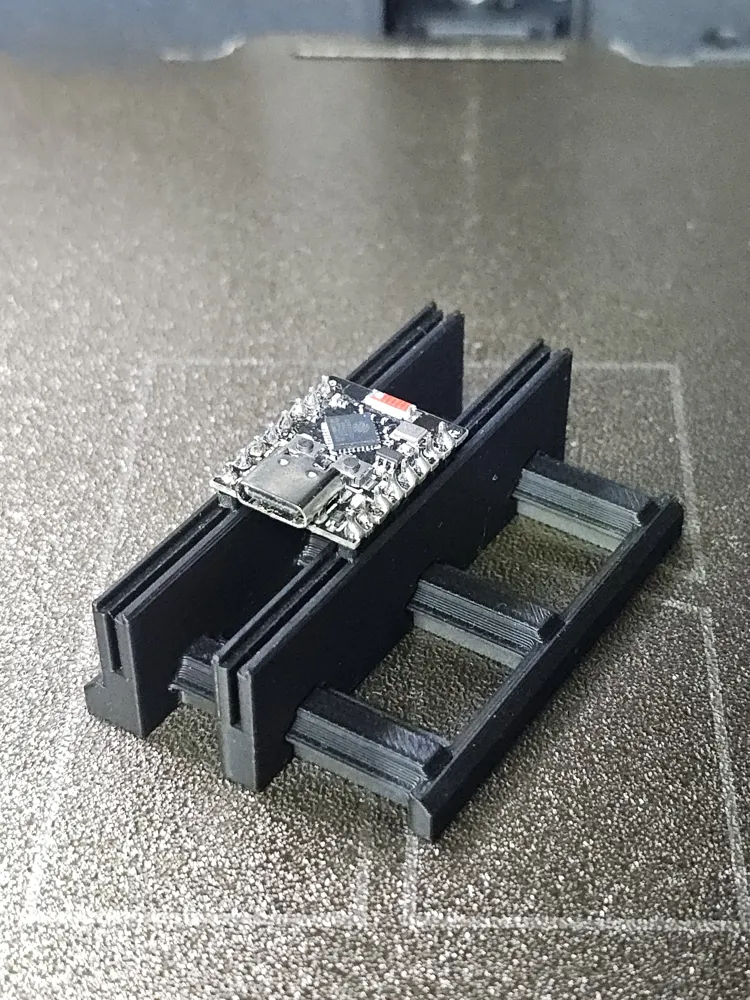

- š Any small dev board that refuses to sit still
- š ļø Quick prototyping sessions where you need repeatable results
- š Your workbench, drawer, or "I'll clean this up someday" pile
- š Feeling unreasonably good about soldering straight pins for once
