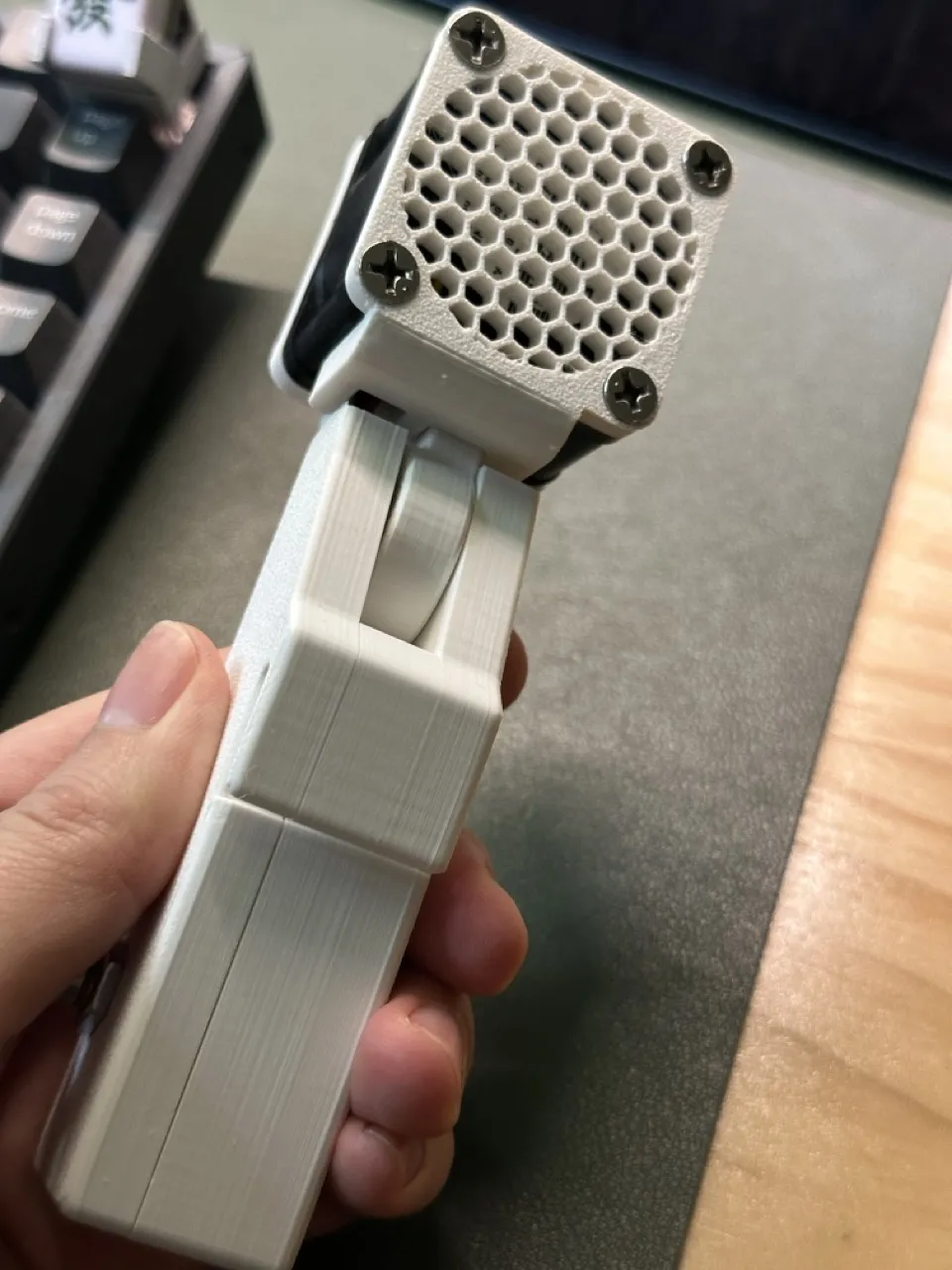

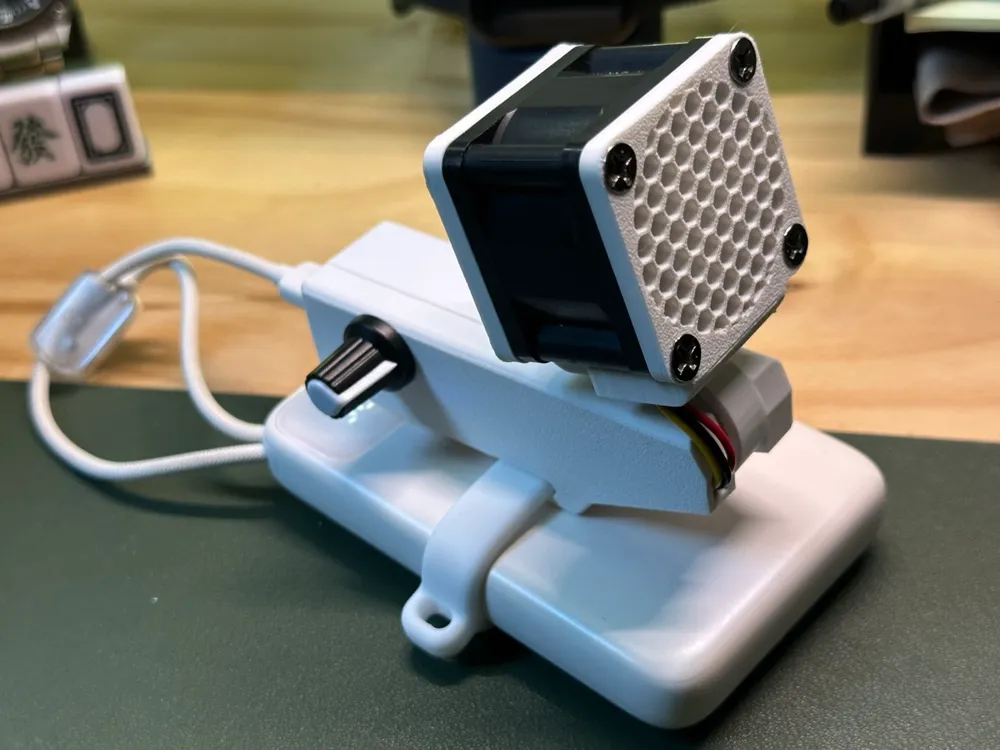

Handheld High-Speed Fan (Power bank powered version, compatible with 40x40x28 high-speed fans, articulated clip for fan retention, only 8 M3 screws)
Print Profile(1)
Description
Turbofan modified into a power bank handheld fan!
The fan head angle uses a 3D printed structure (using the geared limit damping joint mechanical mechanism by 蒙野骨手 @GLB_stark.xia , which is easy to print and assemble), and can be adjusted and fixed!
Only 8 M3 screws are needed for the entire assembly!

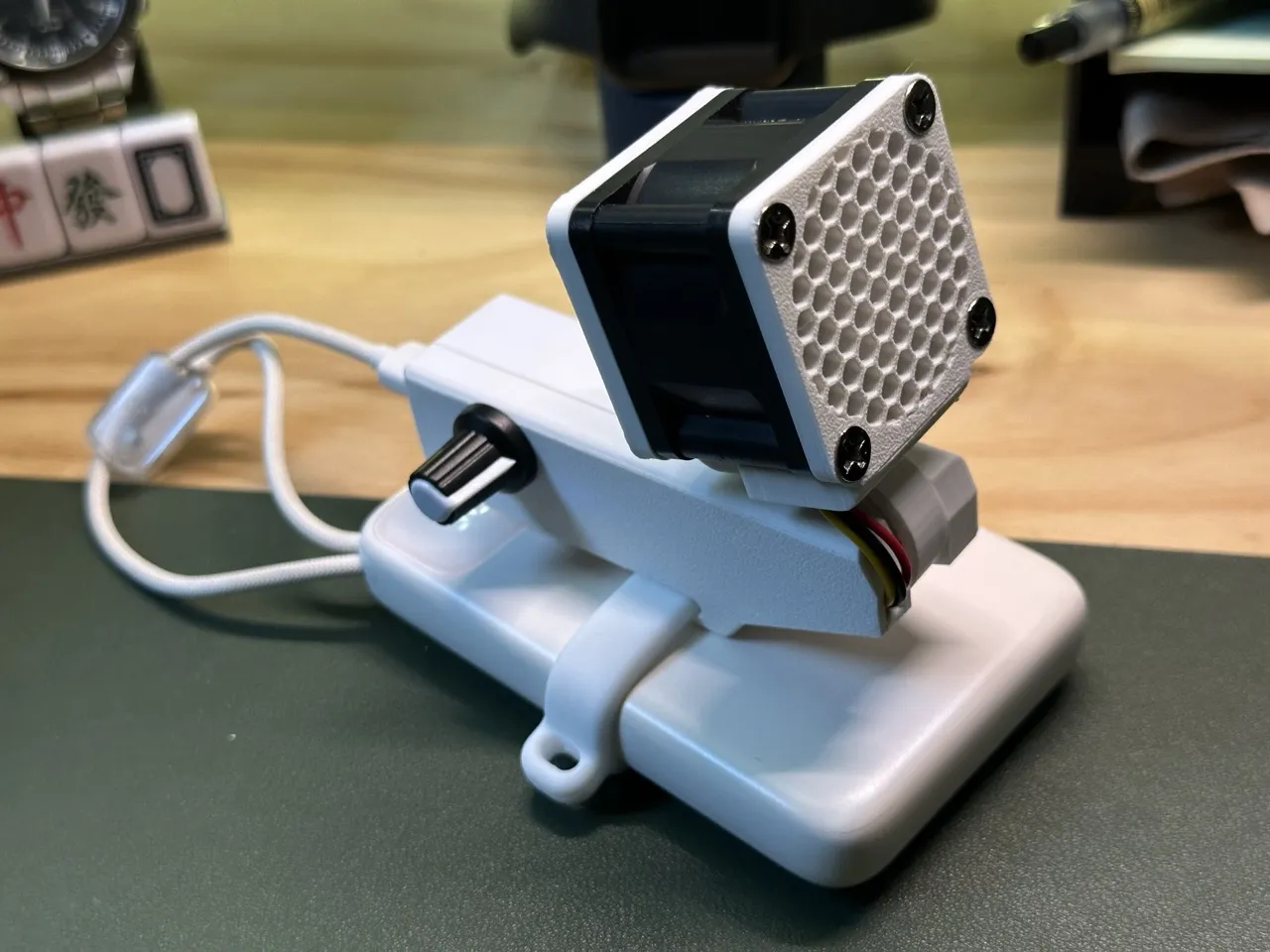

Powered by Type-C power bank (no built-in power supply), so your idle power bank can be put to good use!
Required accessories:

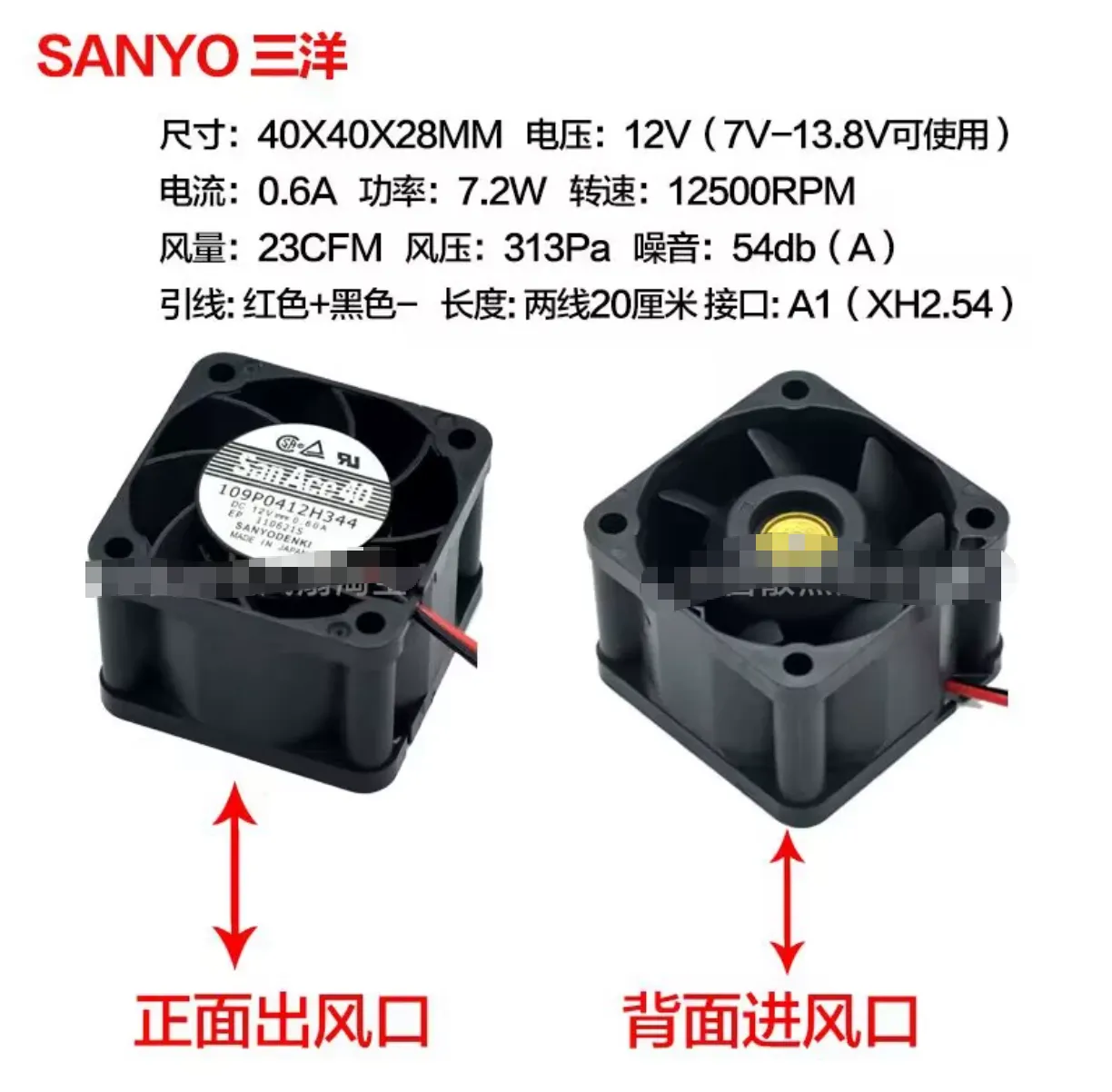

1. 40x40x28 Turbofan (within 12V 0.6A, choose B3 or 4pin PWM interface, cable length around 15cm is more suitable, you can ask the seller for 8 mesh mounting screws)

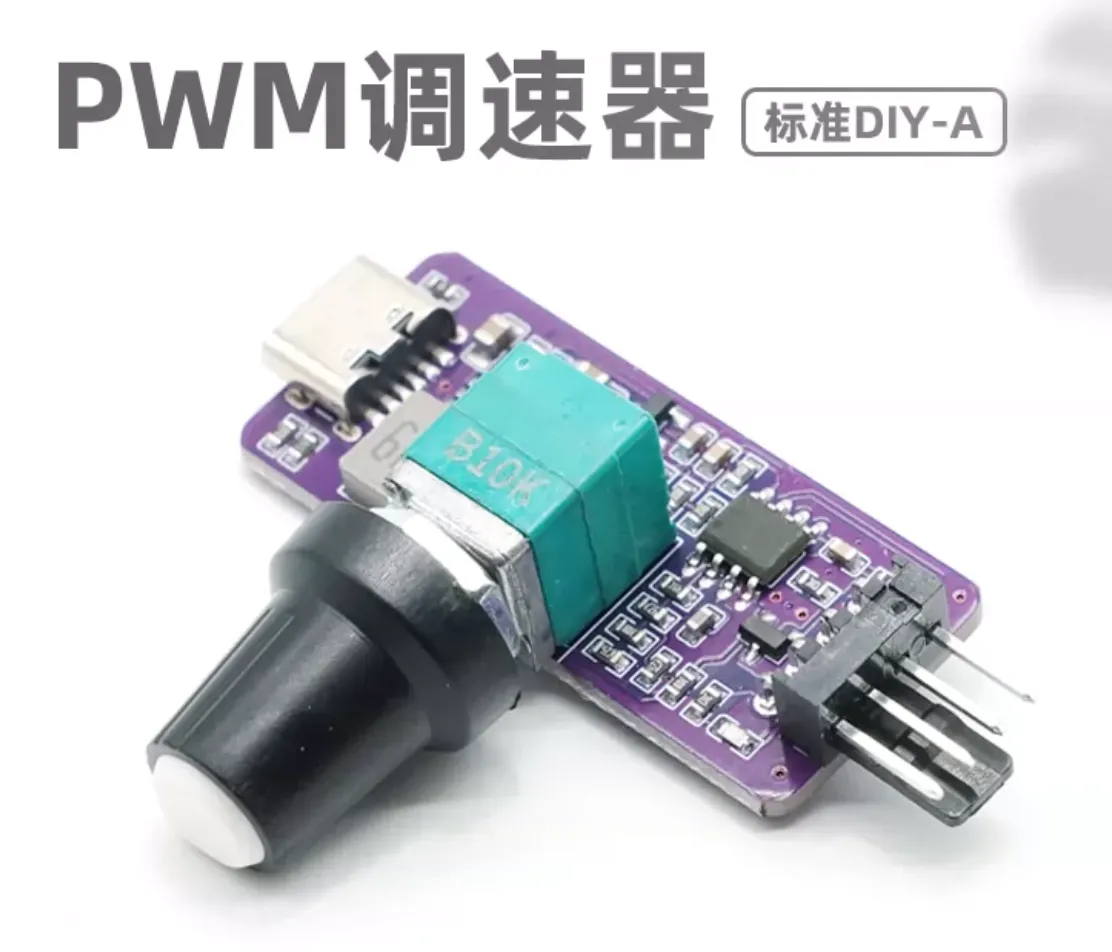

2. Fan driver board (using Peng Peng PWM speed controller Small 4P B3 4-wire fan speed controller TYPE-C USB powered, input 5V output 12V 0~0.7A)

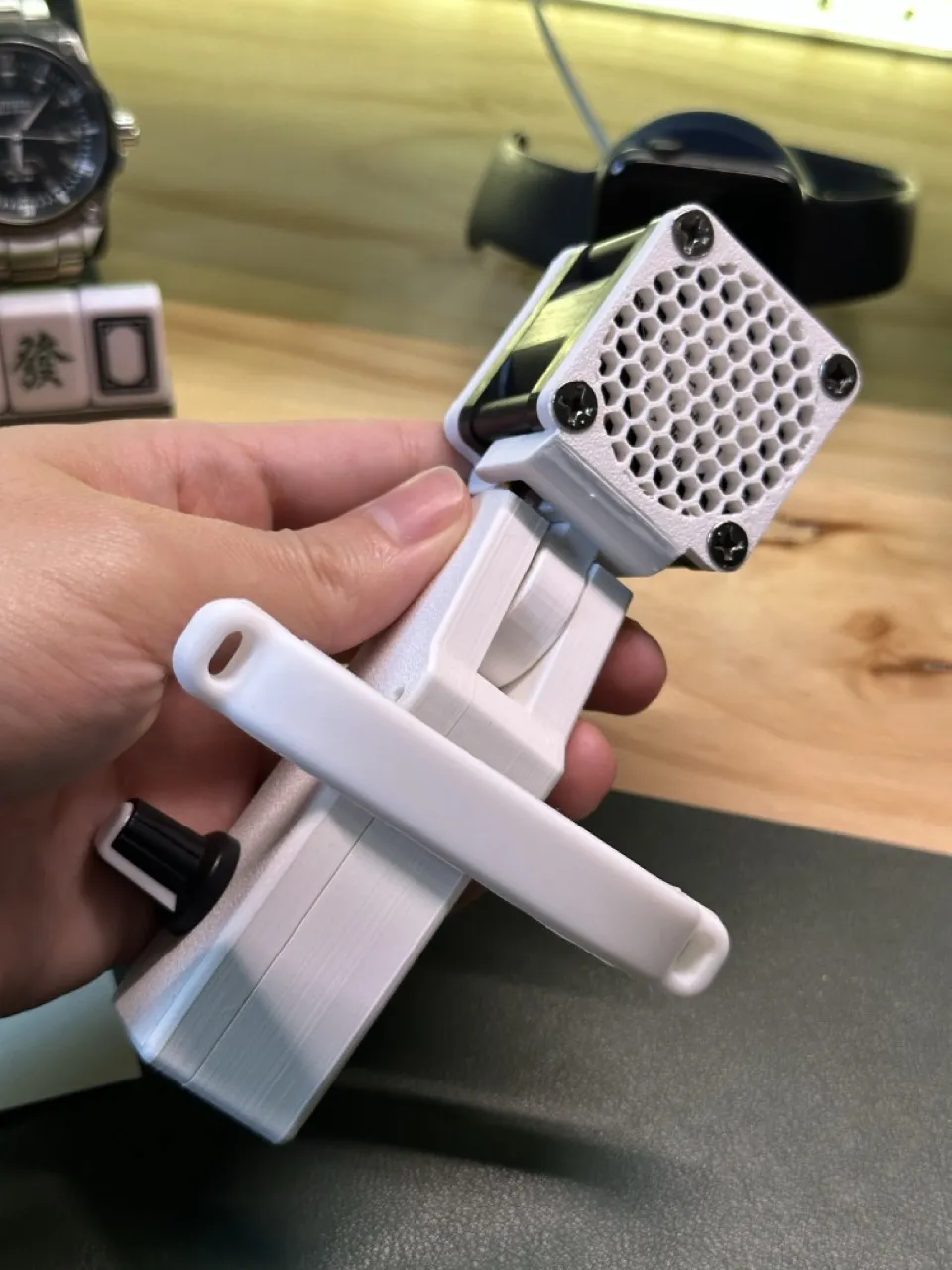

3. Silicone ring handle + neck strap (optional, secures both power bank and fan, for hands-free neck use)
------------------------------------------------------------------------------------------------------------
Installation steps:

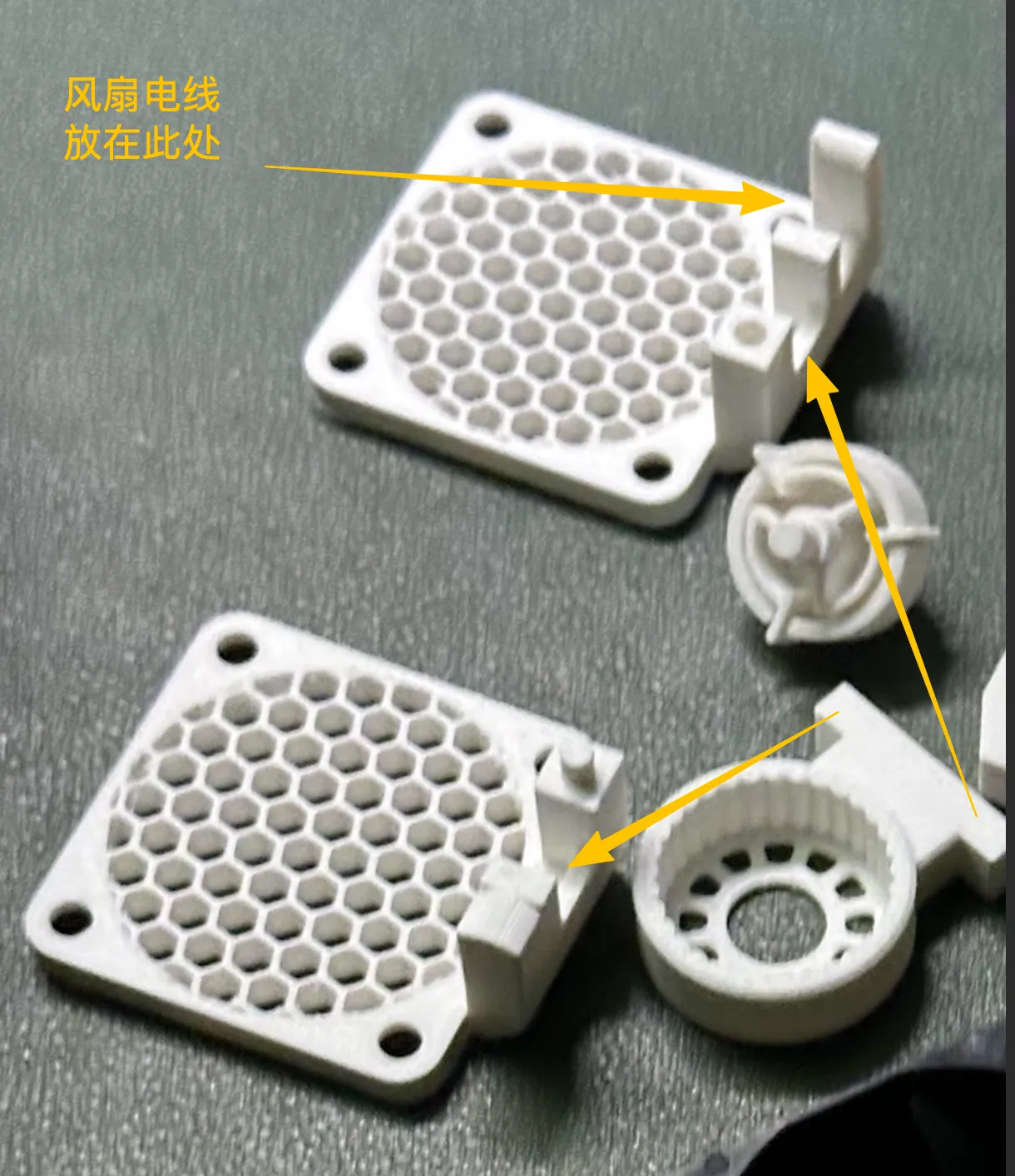

1. Insert the fan cable into the slot of the upper [Fan Base];

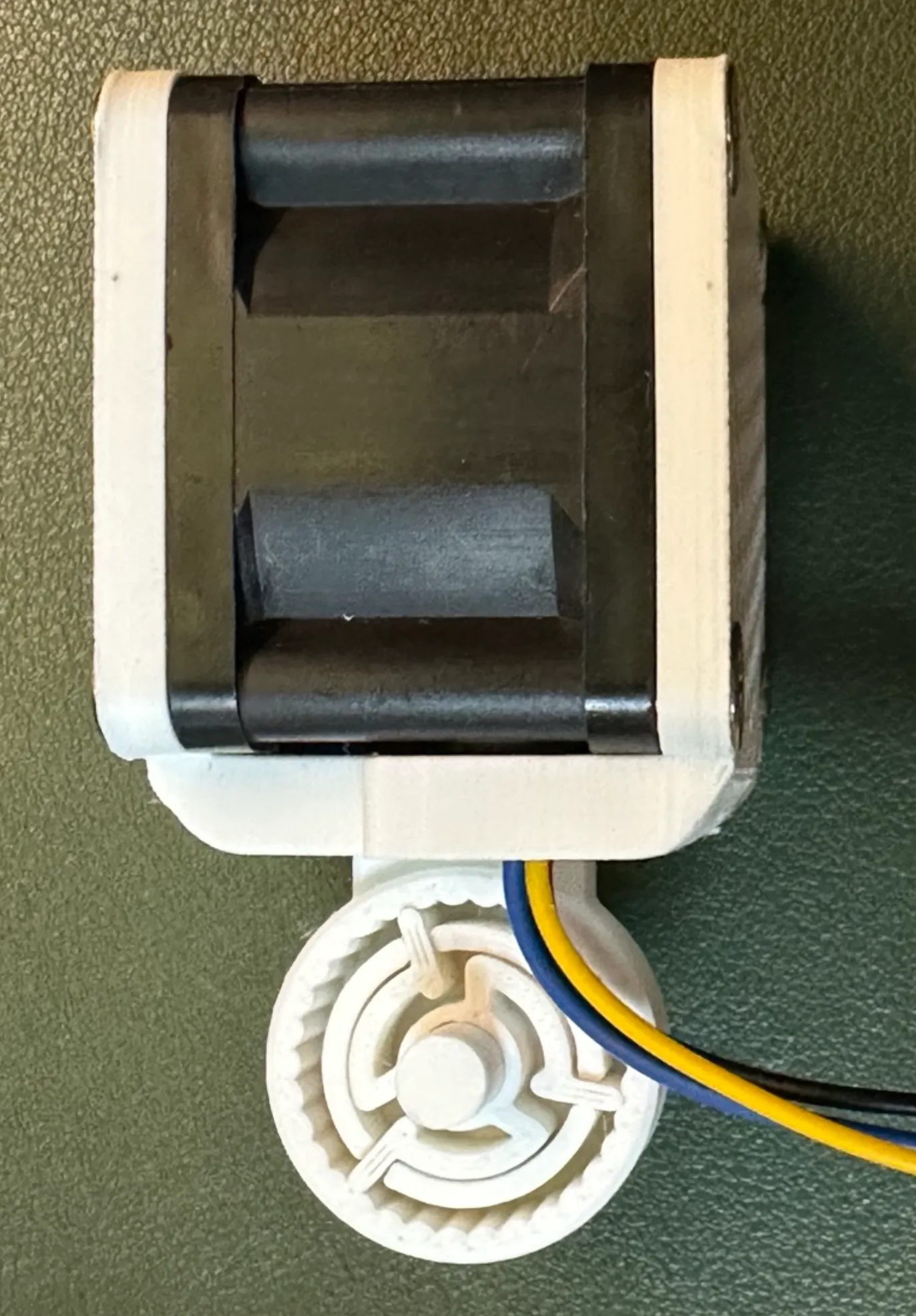

2. The central part of the [Fan Base] is used to secure the [Rotating Casing];
3. After the [Fan Base] clamps the fan and [Rotating Casing], tighten the screws. Place the [Inner Core] and [Catch Pin] inside the rotating casing.

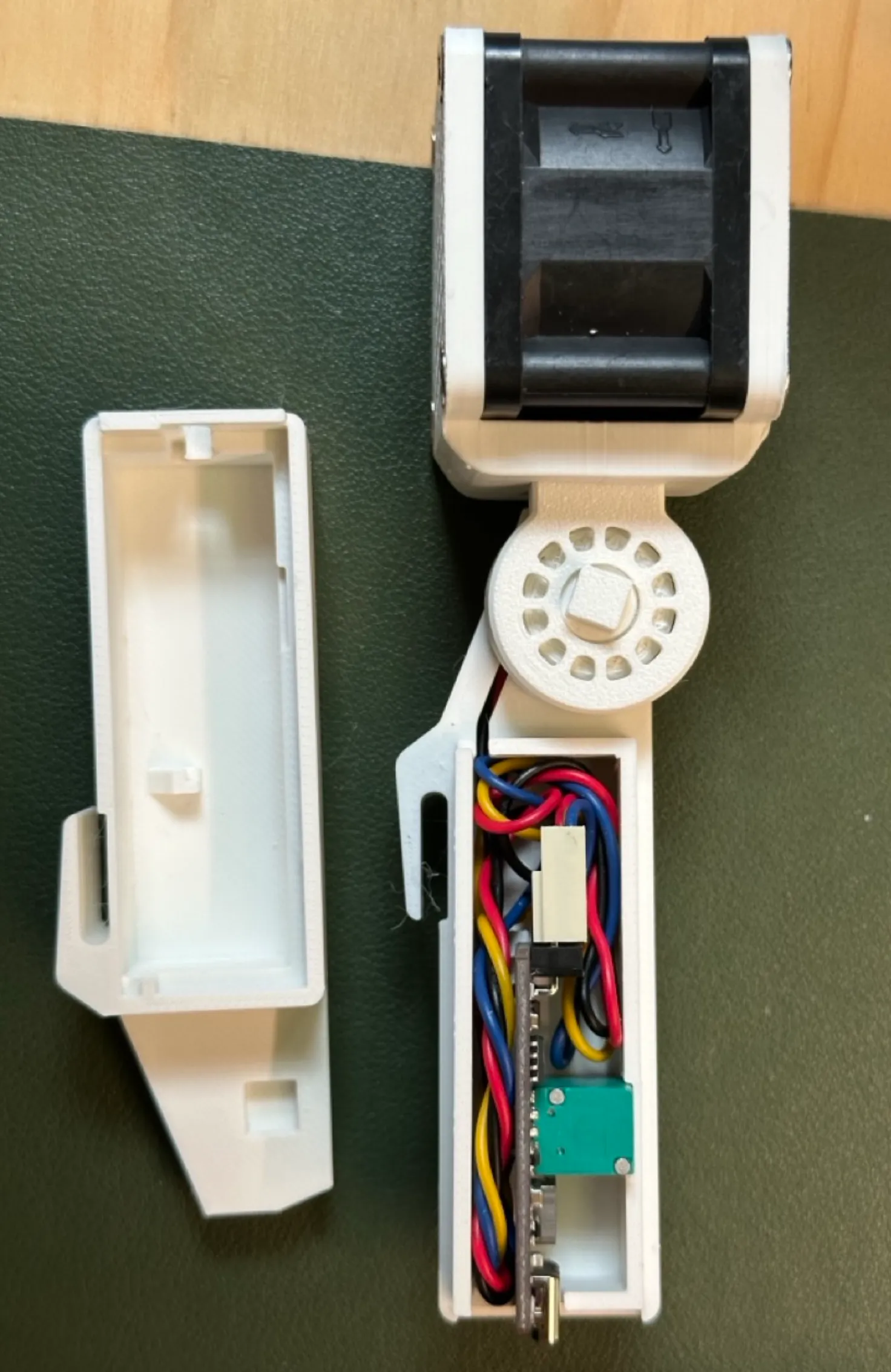

4. Install the fan driver board into the [Speed Controller Casing - Right]. Route the fan wires through the wire outlet, organize the wires, and based on the shape of the [Inner Core]'s fixing structure (cylindrical into [Speed Controller Casing - Right], square column into [Speed Controller Casing - Left]), snap on the [Speed Controller Casing - Left] to complete the installation!
