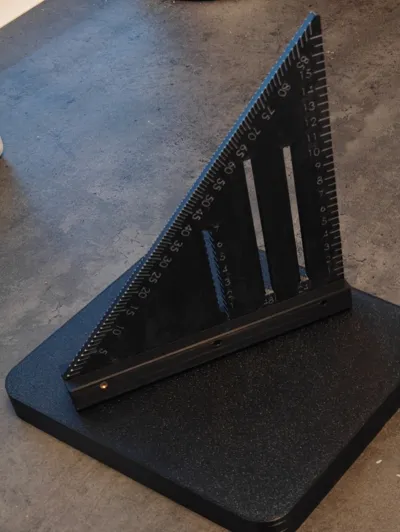

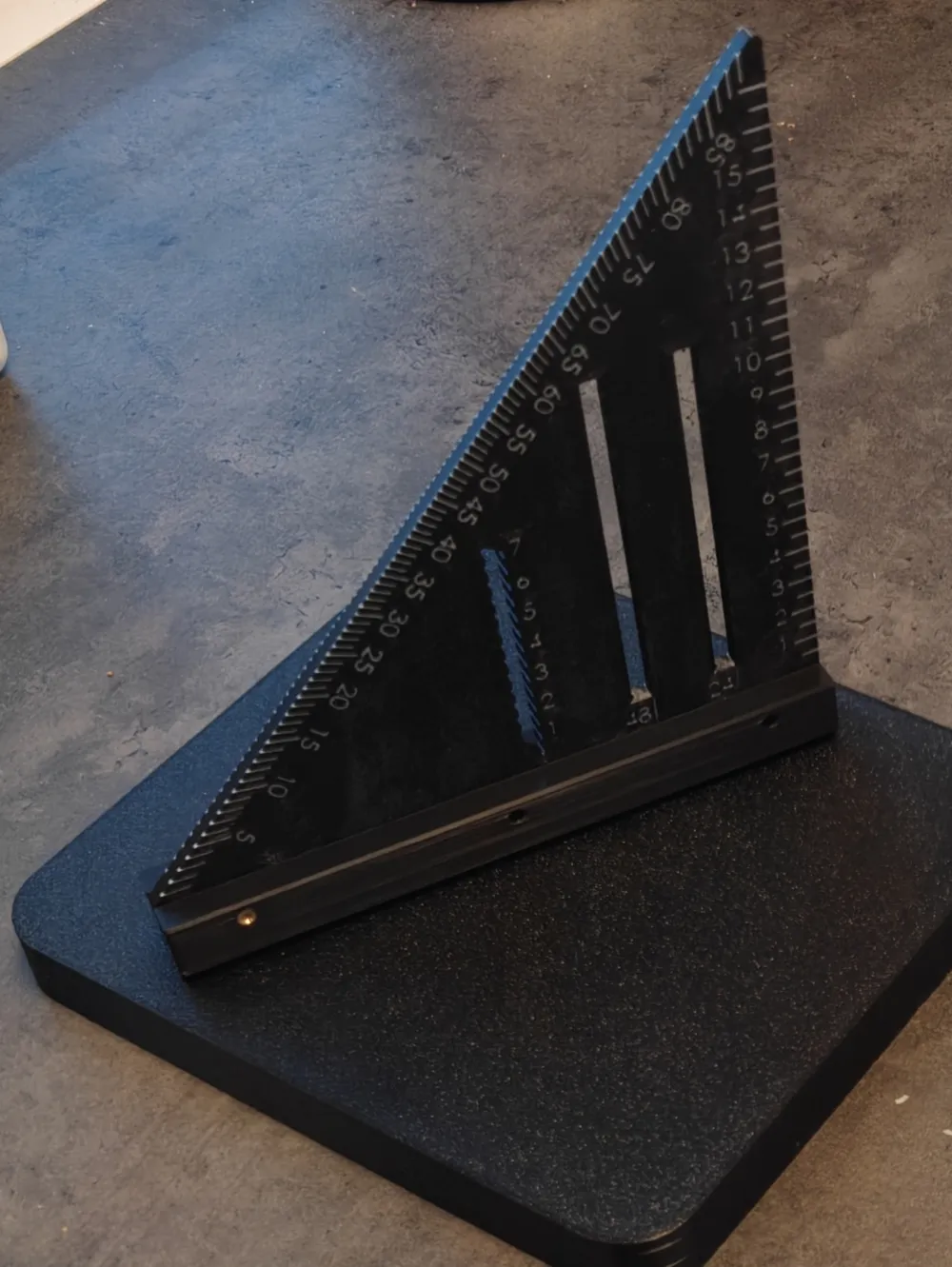

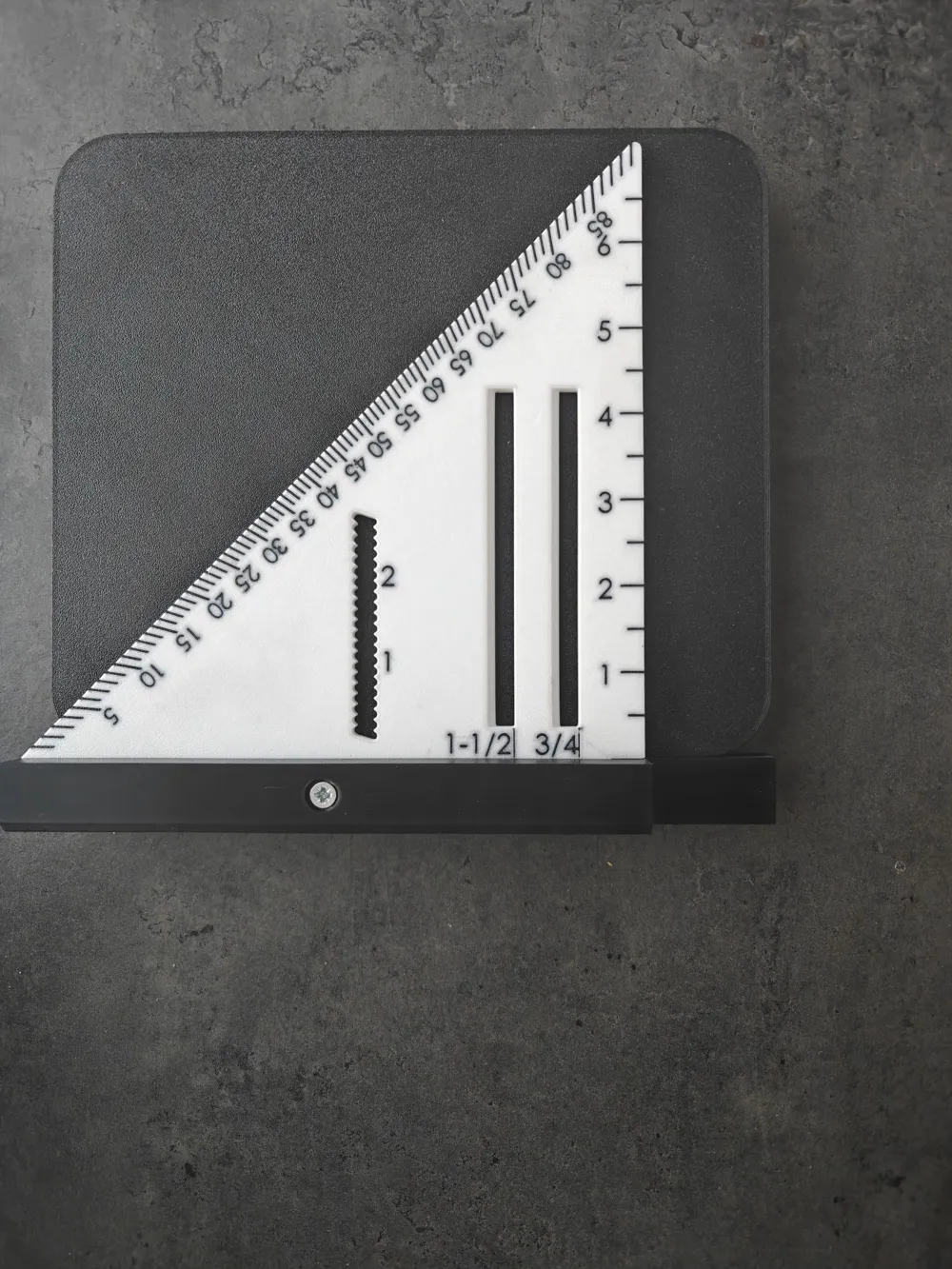

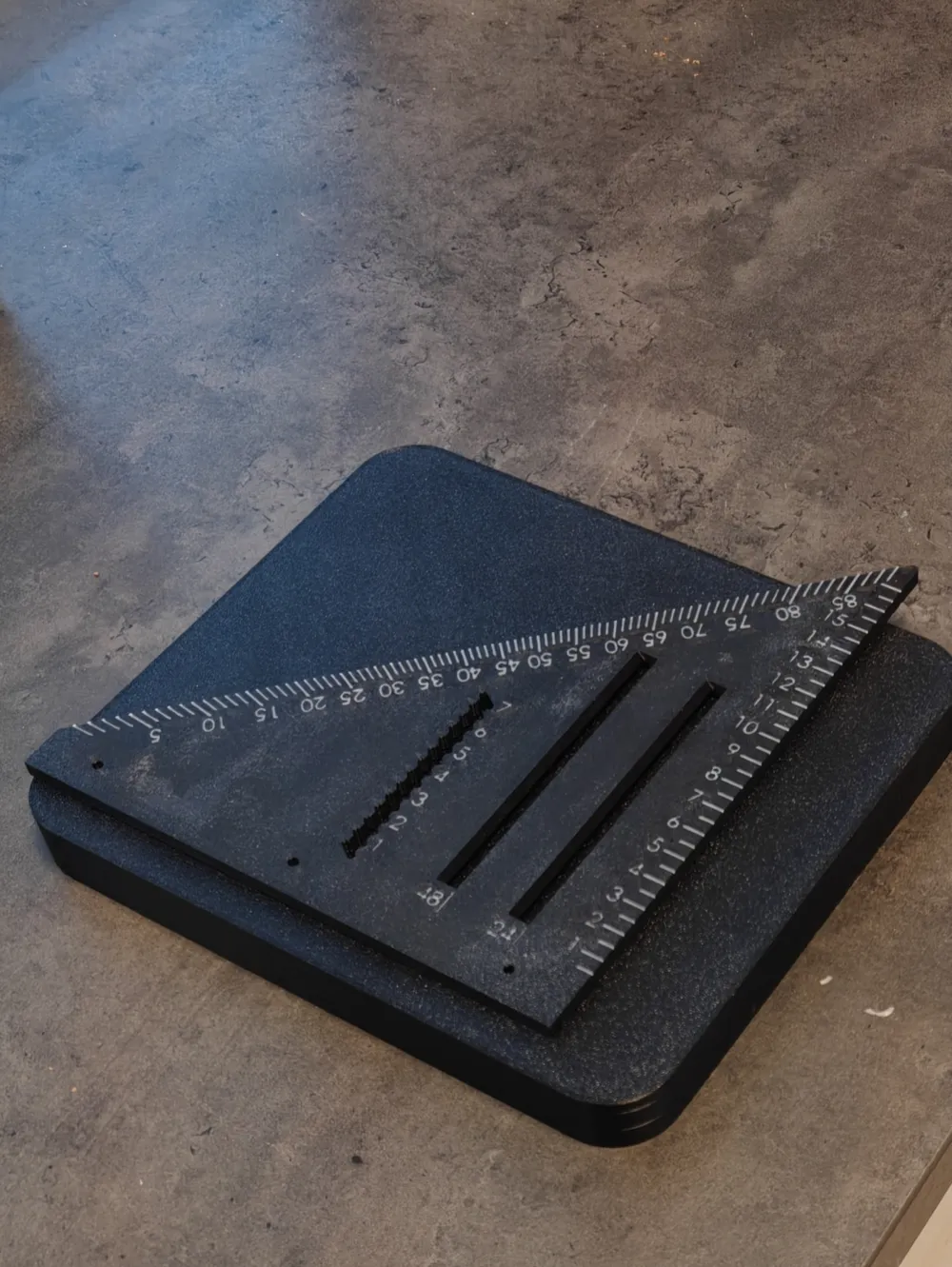

Ultimate Precision Speed Square – Metric & Imperial
This is my custom take on the classic speed square, redesigned with unique features to speed up your workflow and increase accuracy. Whether you are framing walls or doing fine woodworking, this version offers more functionality than a standard square.
Key Features:

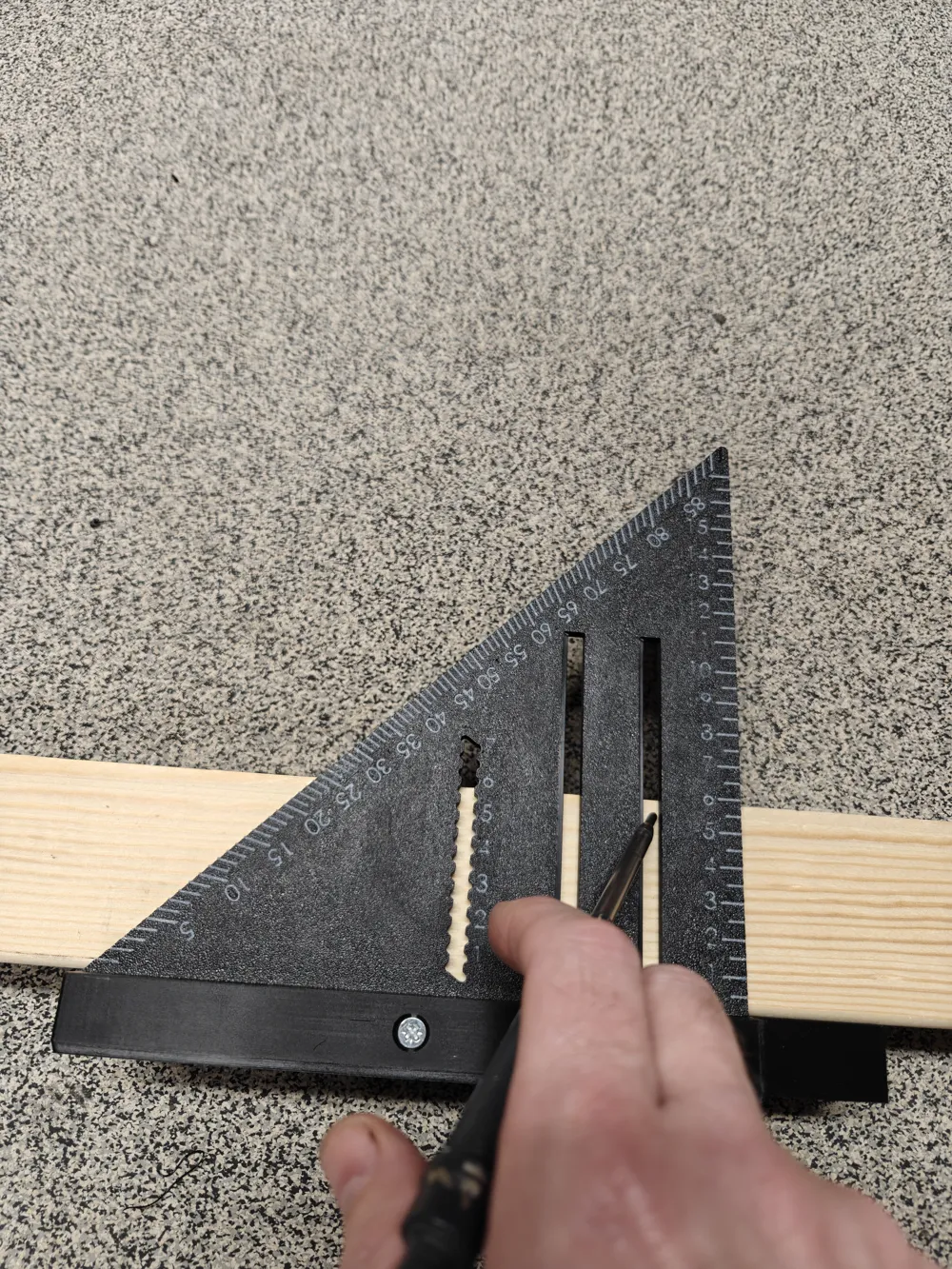

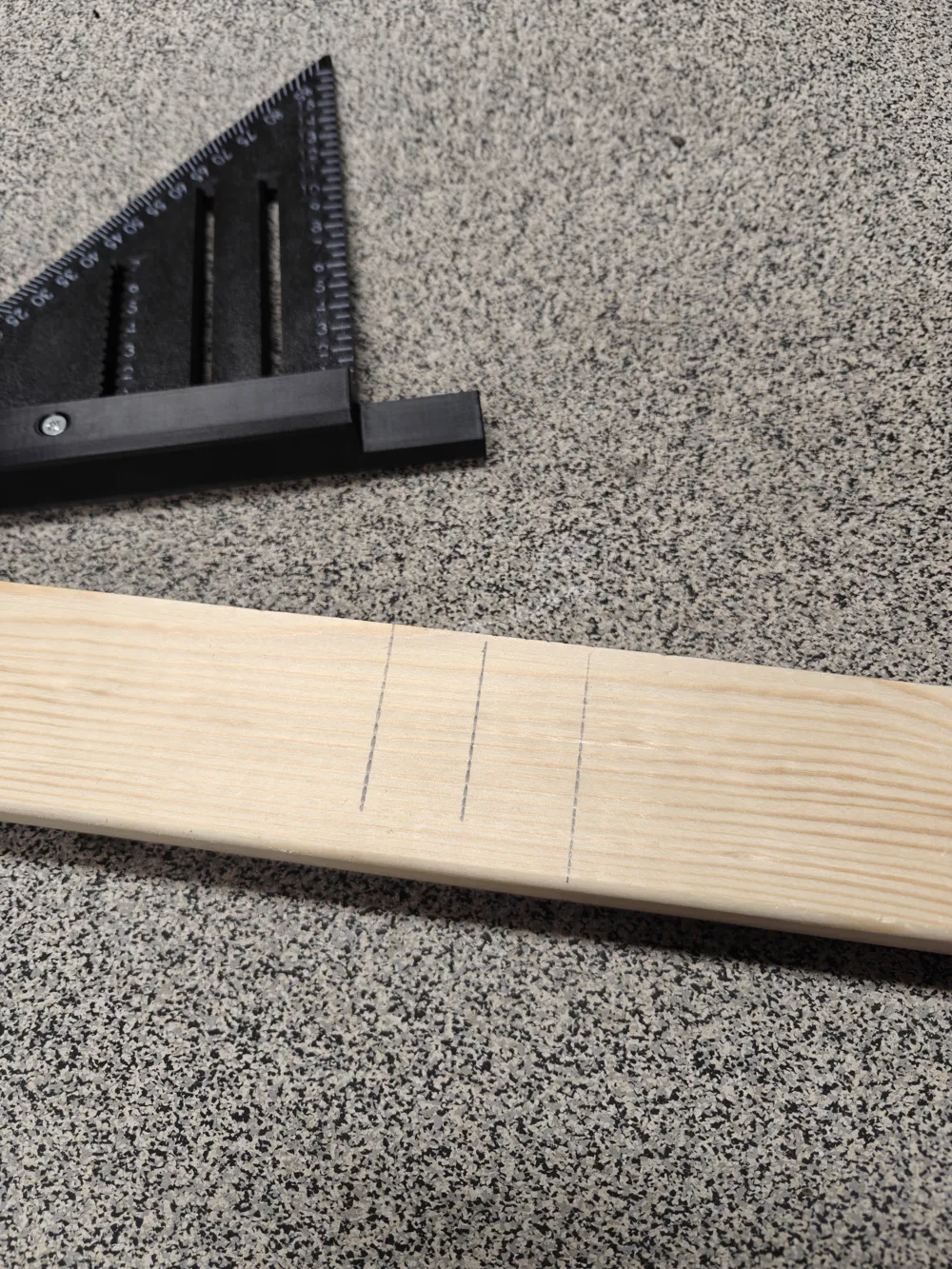

- Framing Alignment Notches: Built-in slots to mark both the edges and the center point of a standard framing stud simultaneously. No more double-measuring.
- High-Precision Scribing:

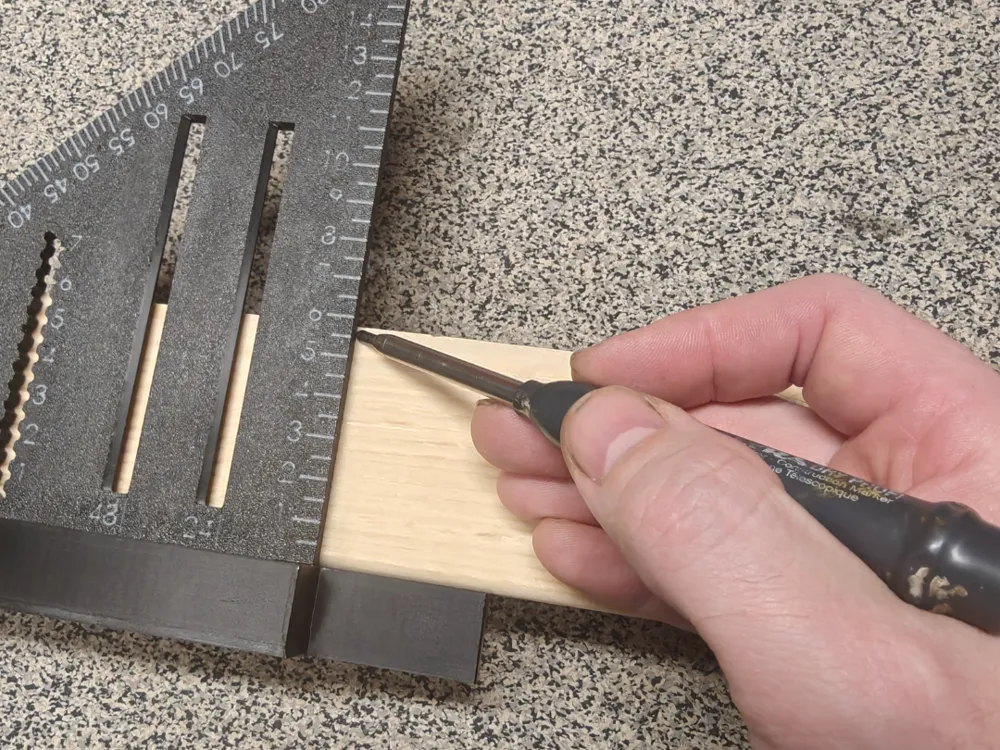

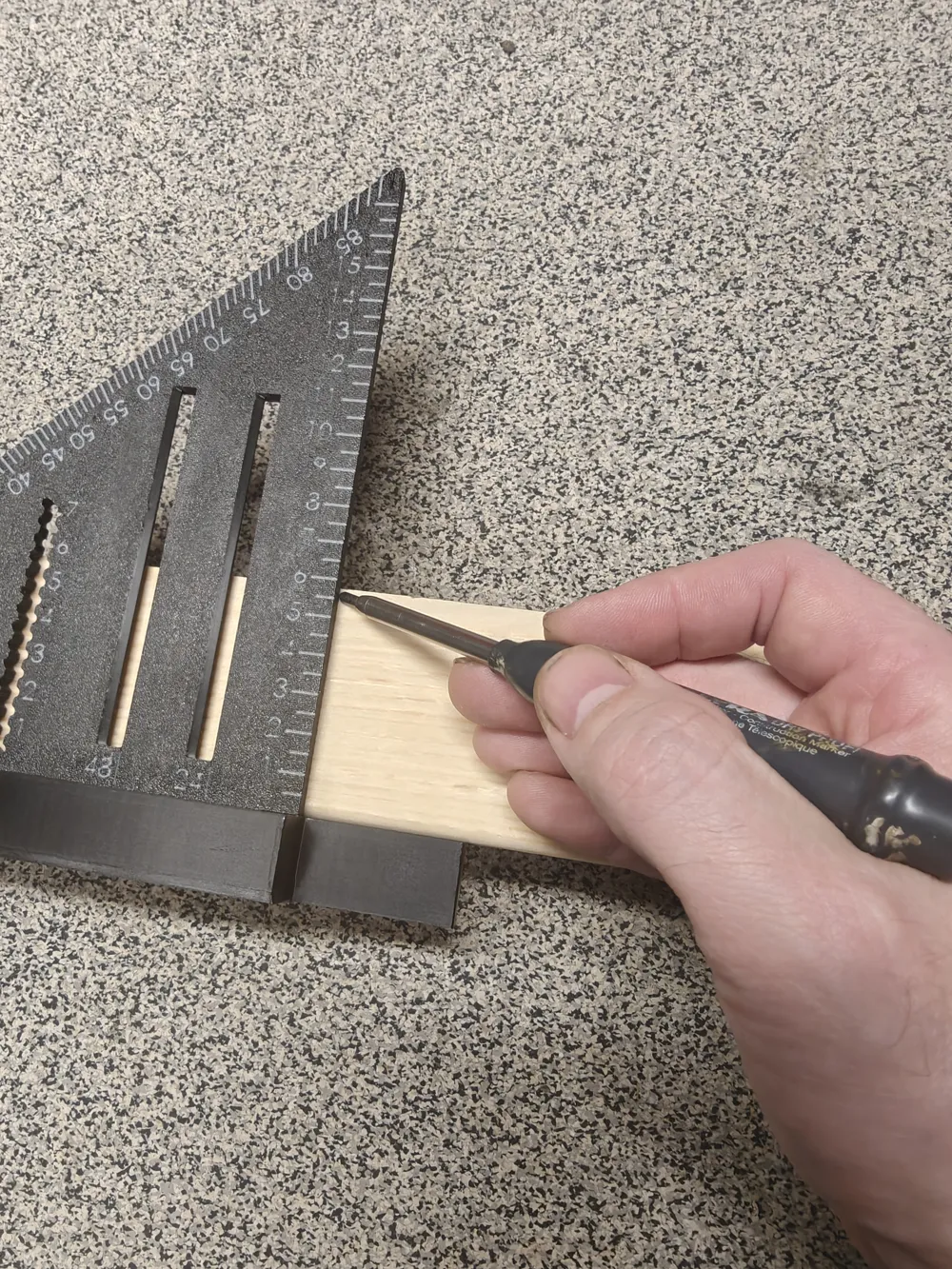

- Metric Version: Scribing notches at 0.25 mm intervals
- Imperial Version: Scribing notches at 1/16" intervals

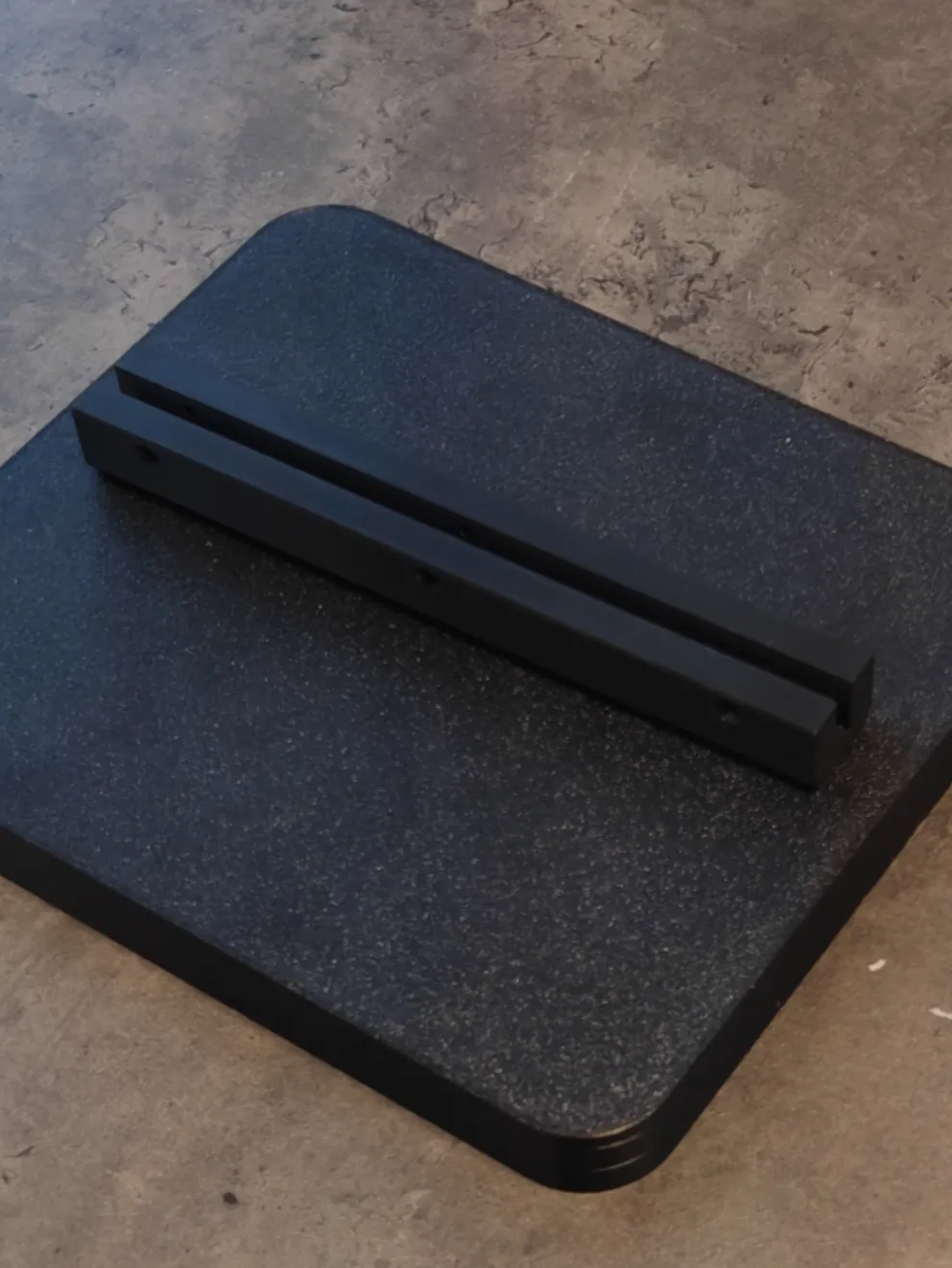

- Dual Ledge System: The download includes two different ledge designs:
- Standard Ledge: For traditional use

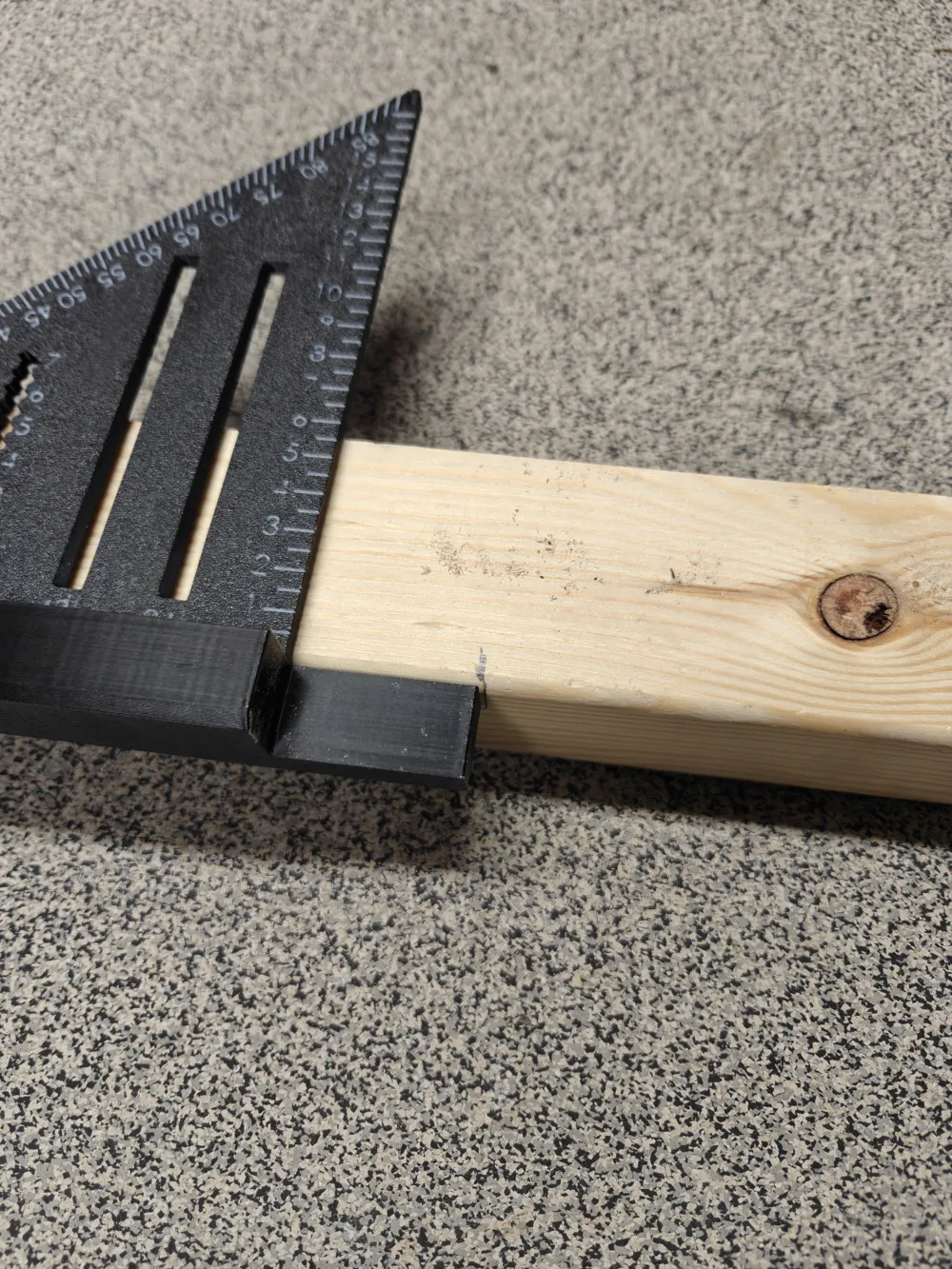

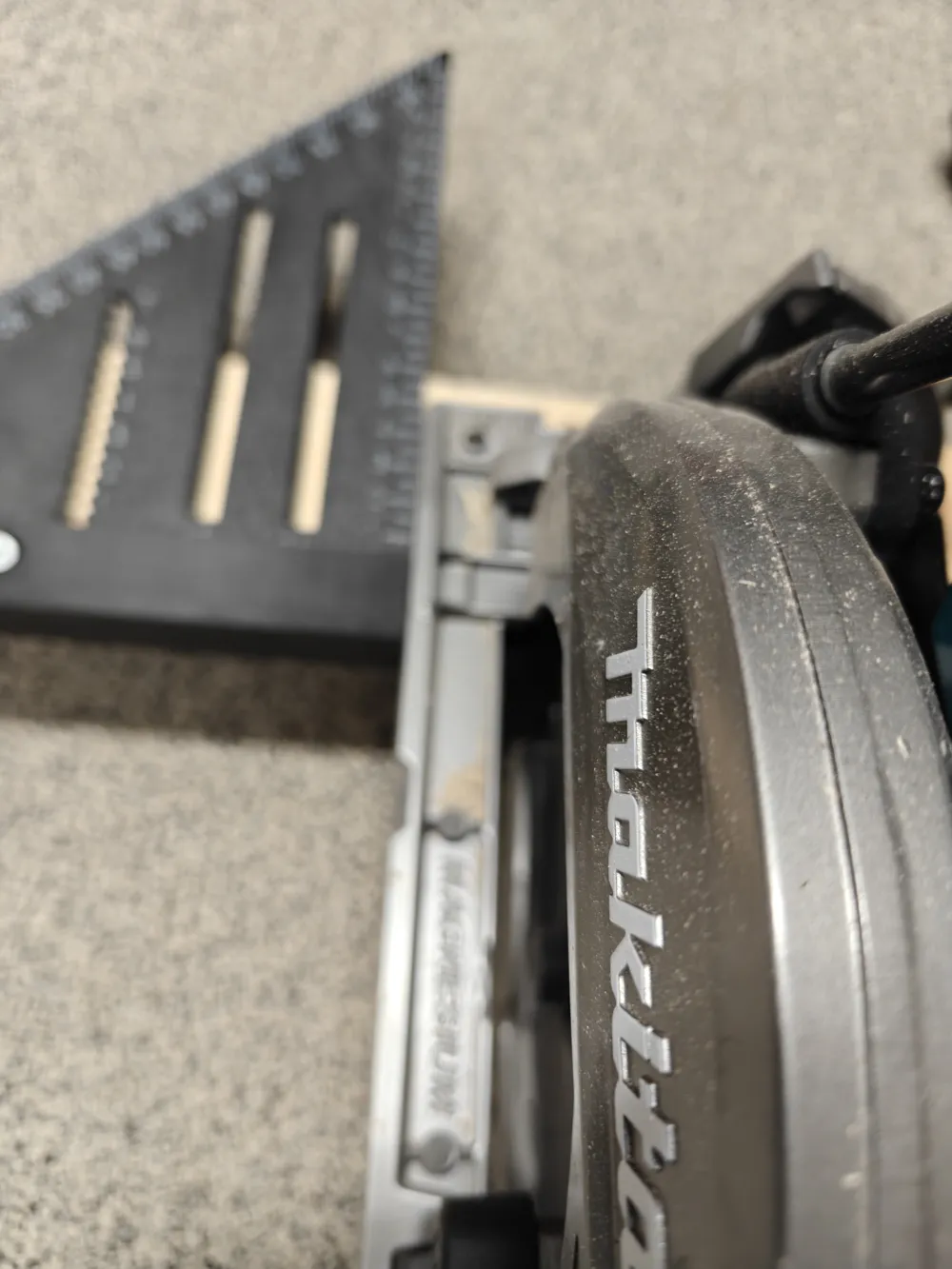

- Cut-Line Indicator Ledge: After your first cut, this ledge shows you exactly where the blade will hit, allowing for perfect "zero-clearance" alignment on every subsequent cut.
Hardware Required:
To assemble the ledge to the square, you will need:
- 1x M4x30mm Countersunk Screw (uppokanta)
- 1x M4 Heat-Set Insert
Be sure to check out my other designs as well
Please don't hesitate to let me know if you have any requests for changes
