Gap Measurement Wedge Tool
Print Profile(2)
Description
Description:

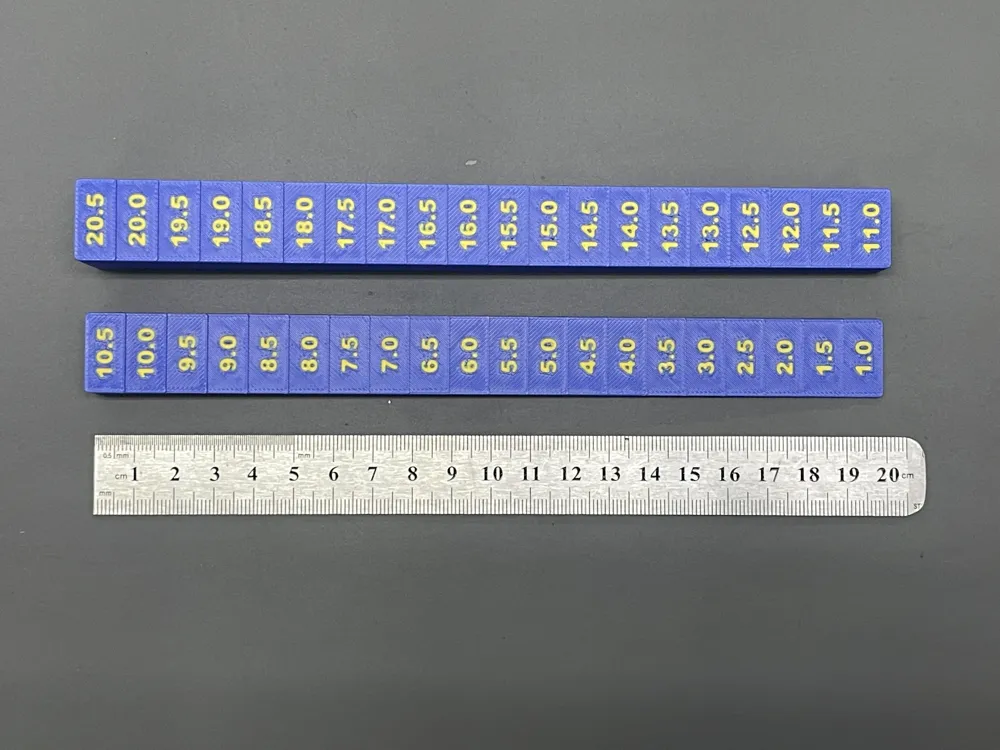

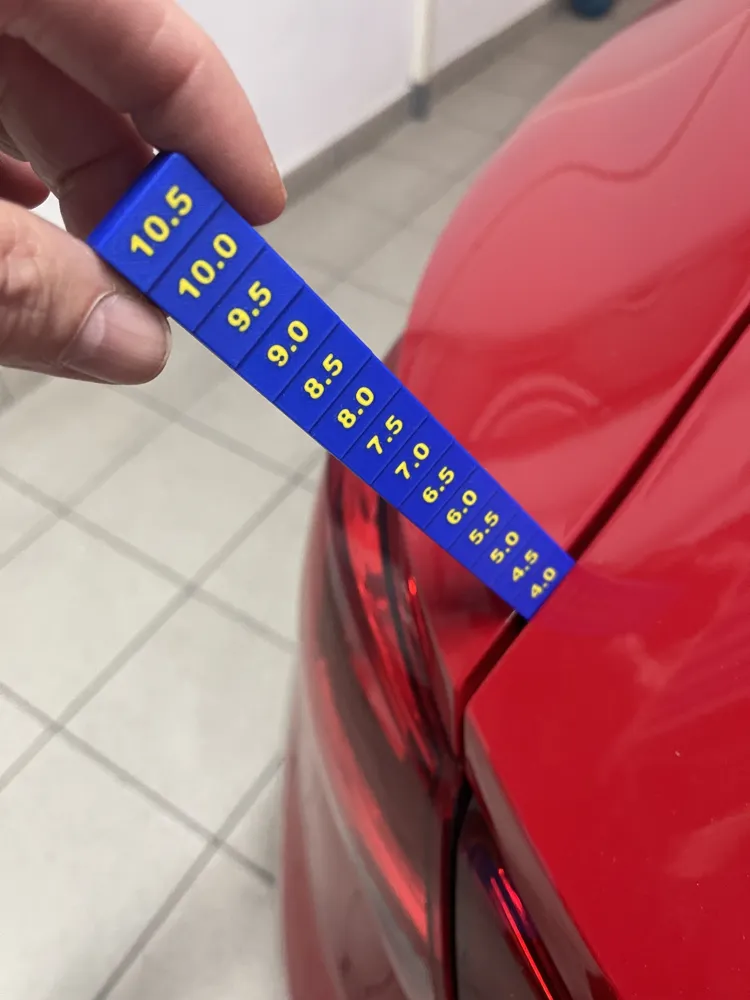

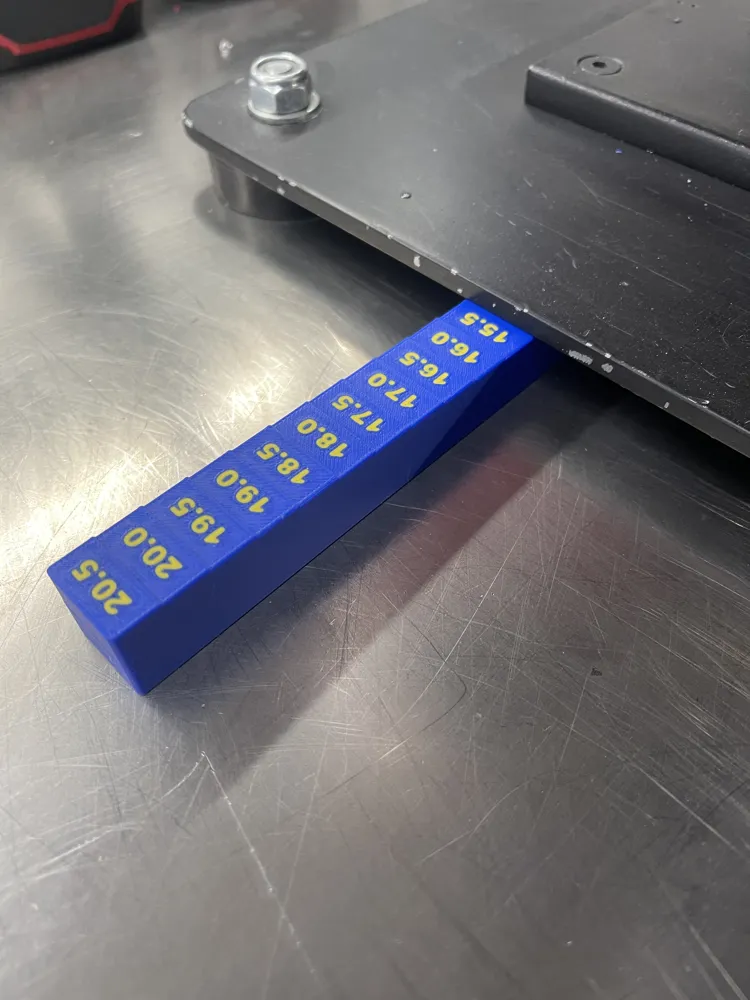

I created these two measurement wedges to help take measurements in hard-to-reach areas where a ruler or caliper cannot easily fit.

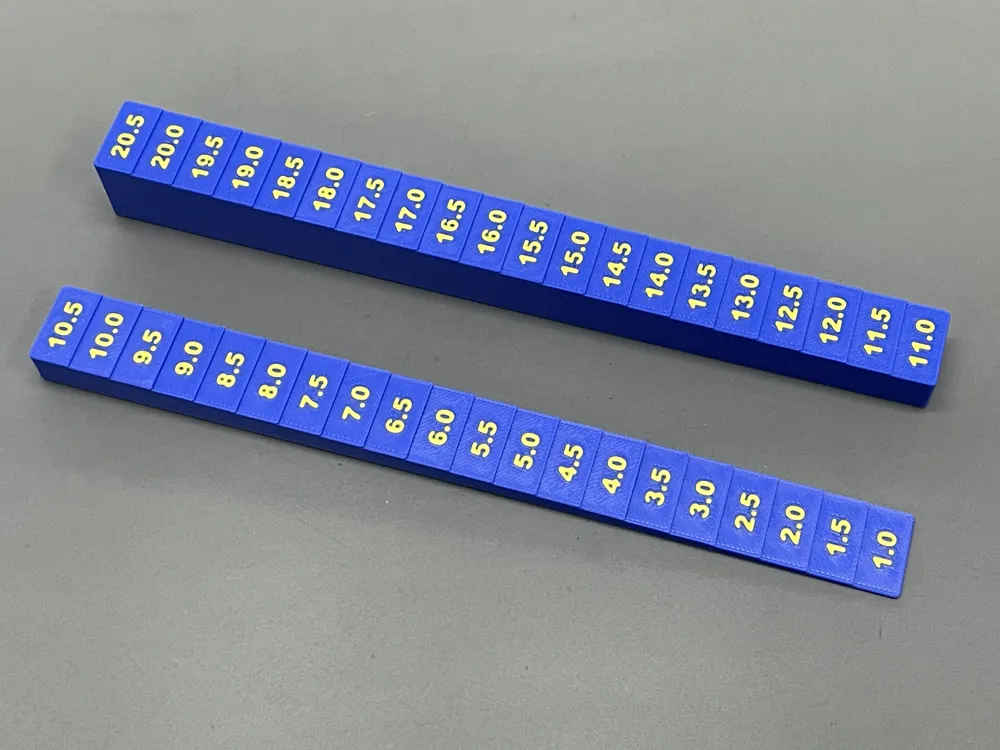

You will find profiles for two versions:
a dual-color version
a single-color version with recessed engraved text

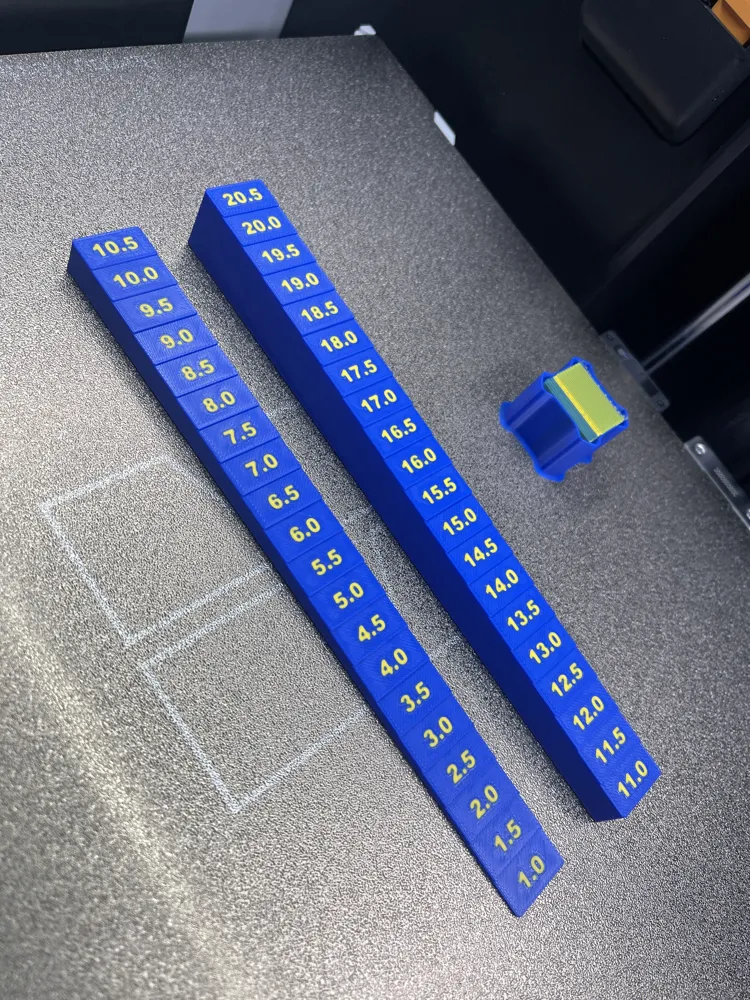

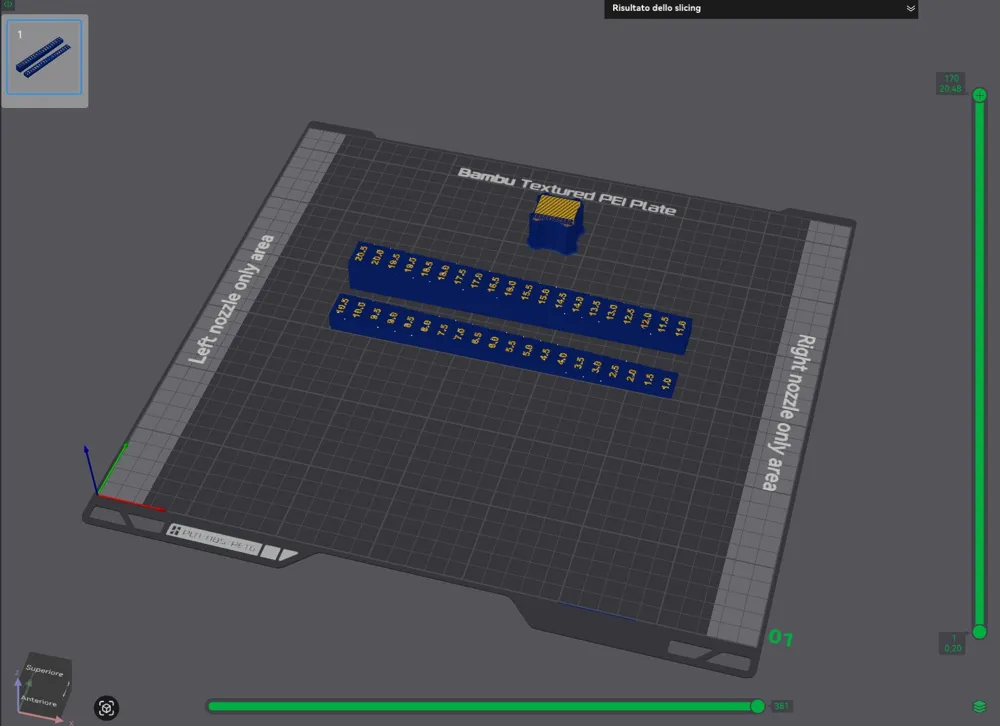

The model is very easy to print and does not require supports.

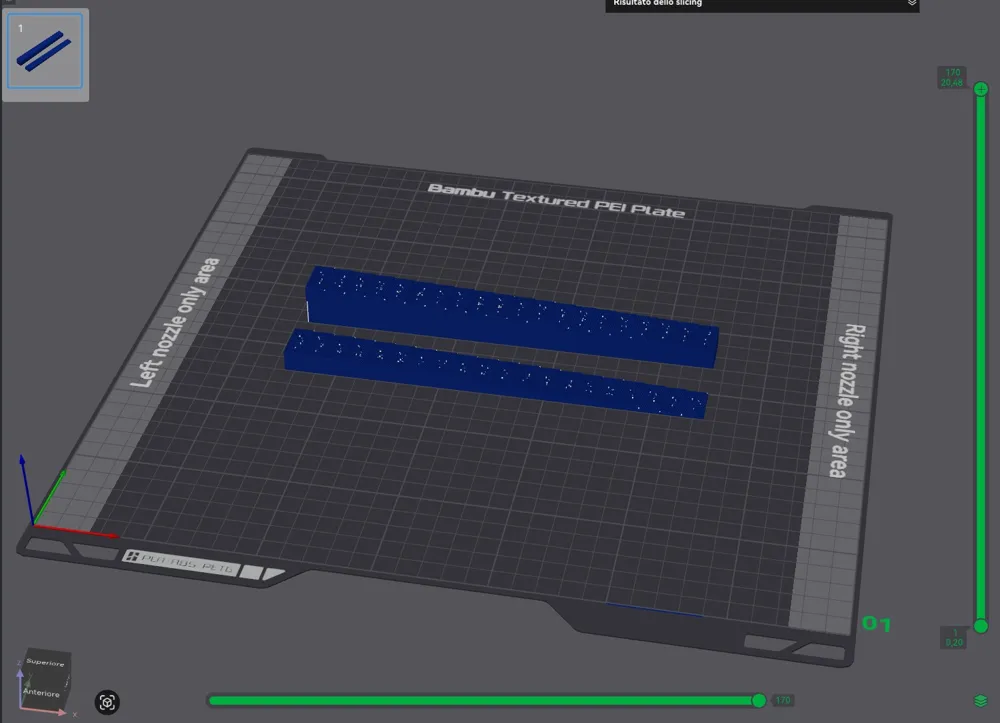

For the best mechanical accuracy and reading precision, it is recommended to use a 0.12 mm layer height profile.
The Fusion 360 (.f3d) source file is included,
allowing easy modification of dimensions to adapt the holders to different socket sets.
This model was printed with Bambu Lab PLA Basic in the following colors:
Blue 10601 https://eu.store.bambulab.com/it/products/pla-basic-filament?id=42911327912155
Yellow 10402 https://eu.store.bambulab.com/it/products/pla-basic-filament?id=49636014031196
