Wall Mount for Folding Chairs
Print Profile(1)
Description

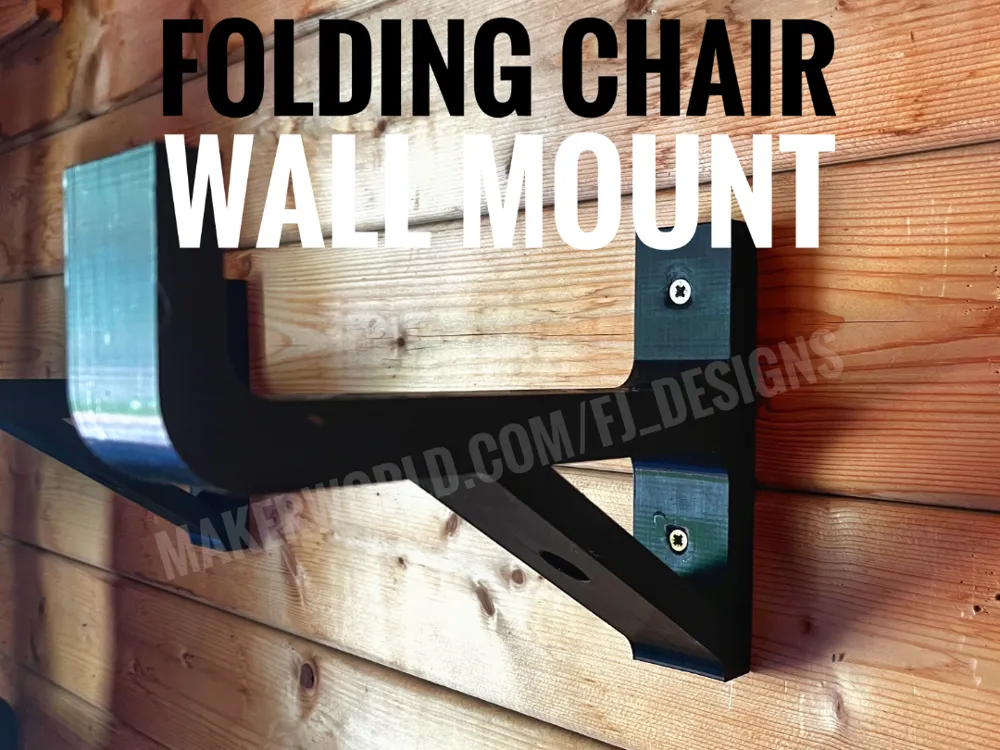

I designed a holder for my folding chairs so they can hang on the wall.

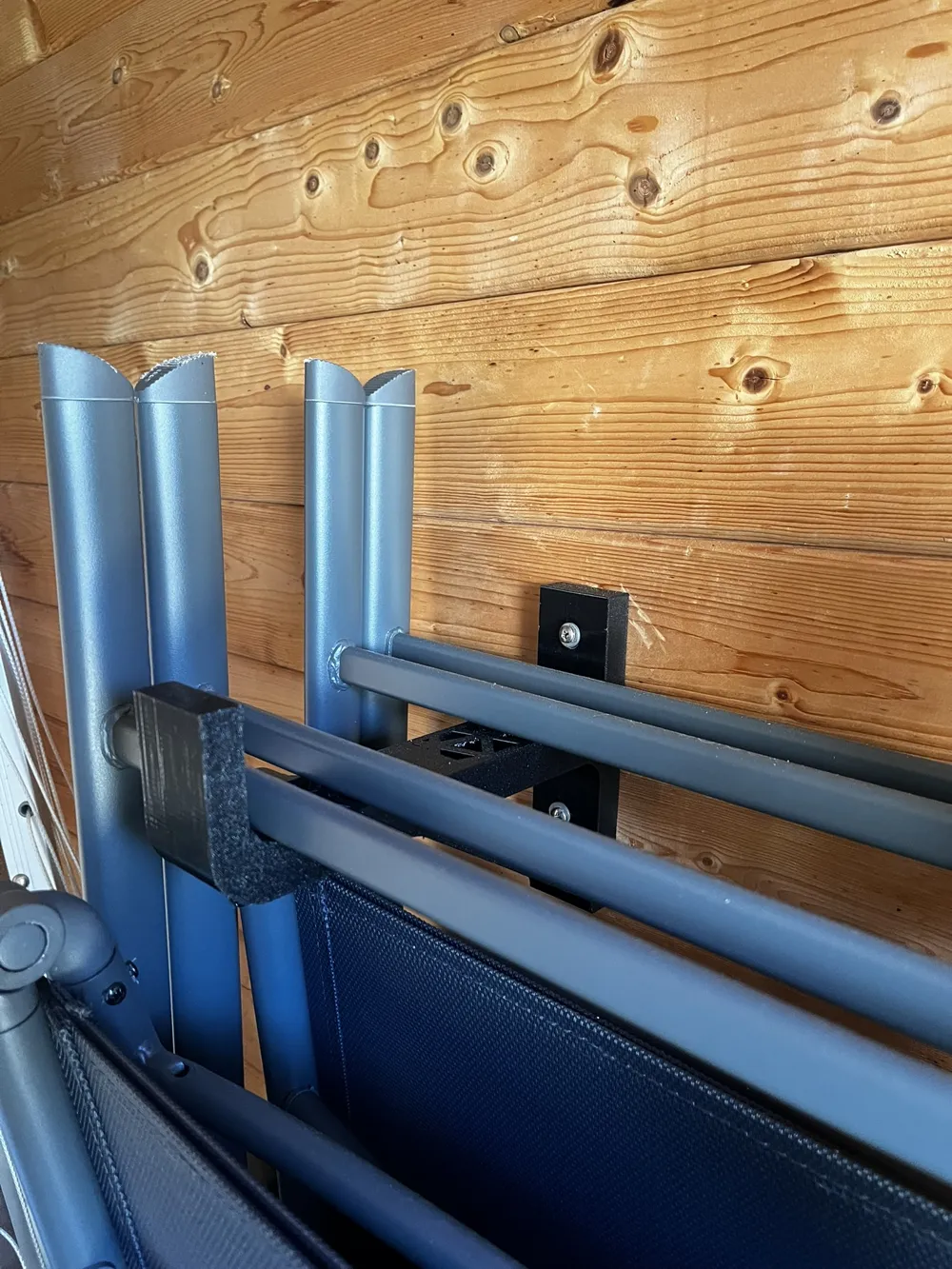

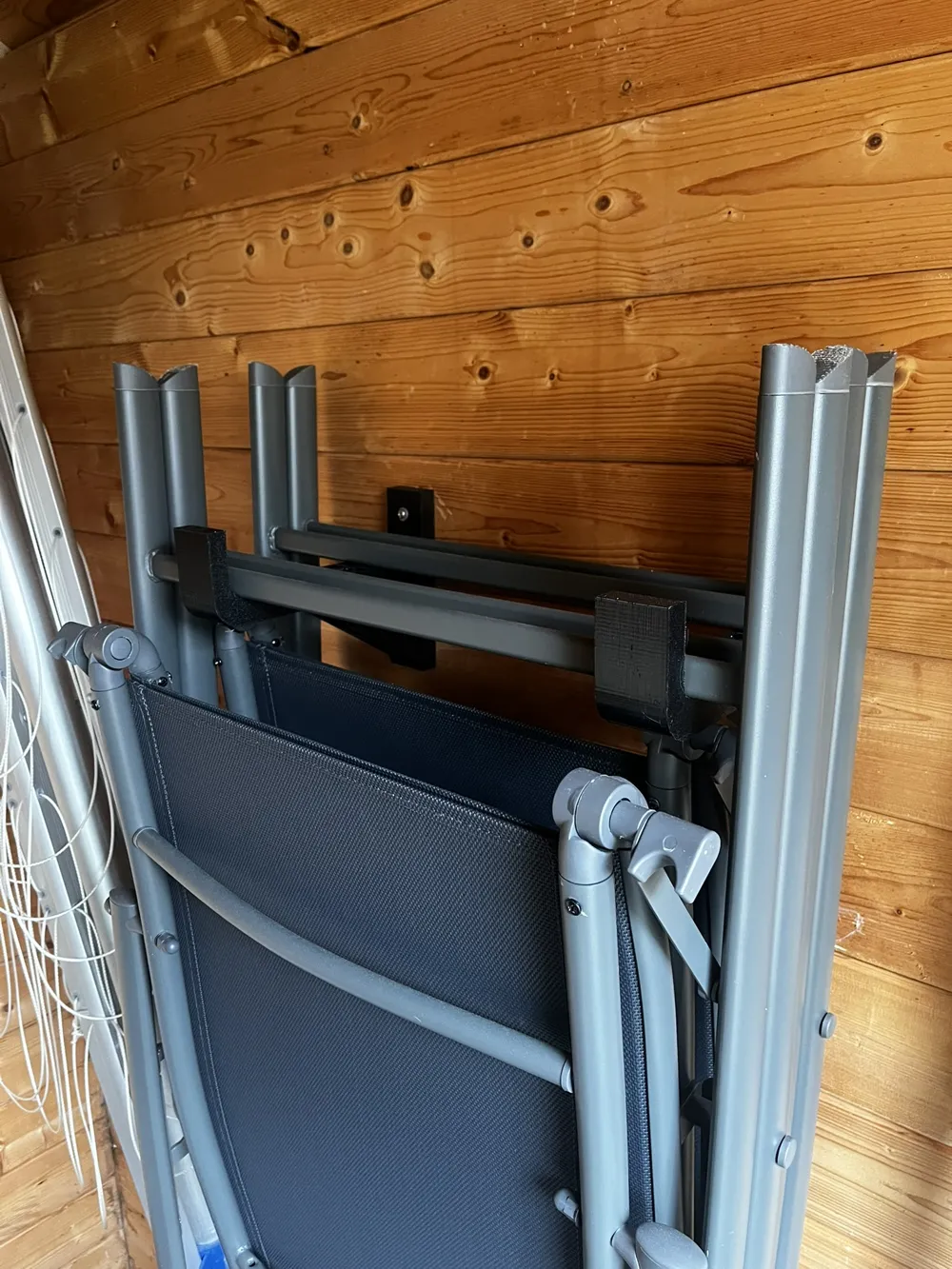

Two chairs always fit on the holder, facing opposite directions.
For either 1 or 2 chairs, 2 holders are needed.

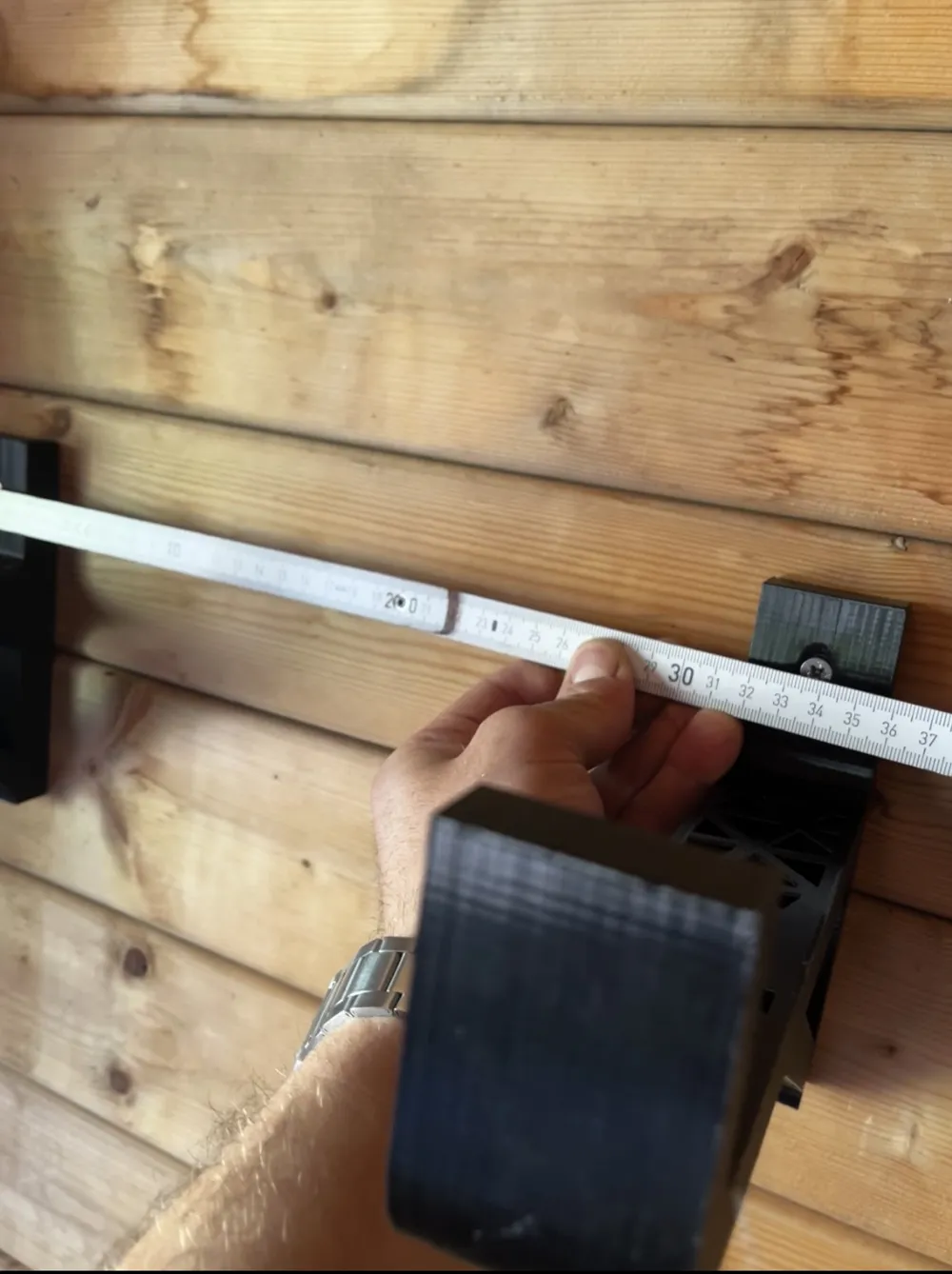

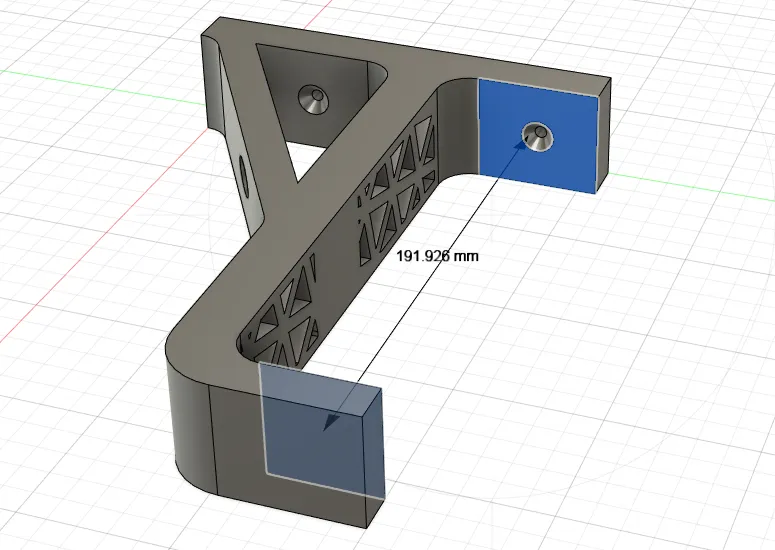

Please note the dimensions found in the pictures.
I printed the holders in PETG because they are located in my garden shed.
If the holders are outdoors, the filament may need to be changed to ABS or ASA.

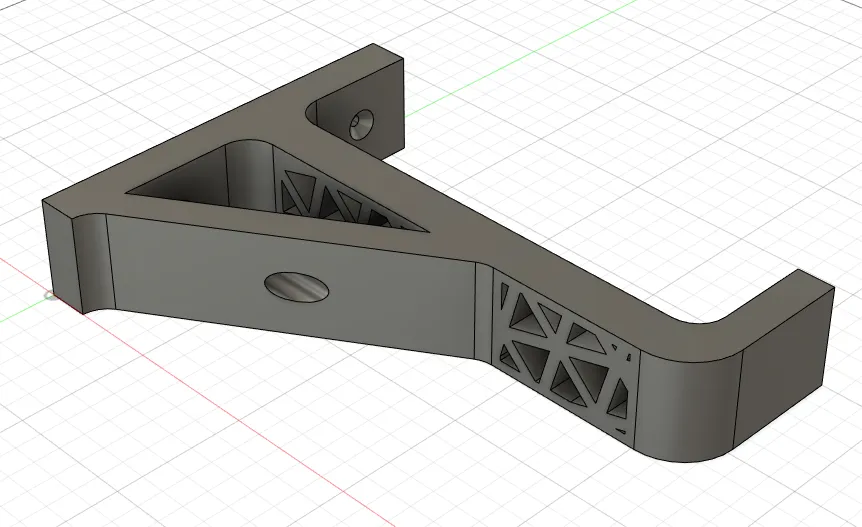

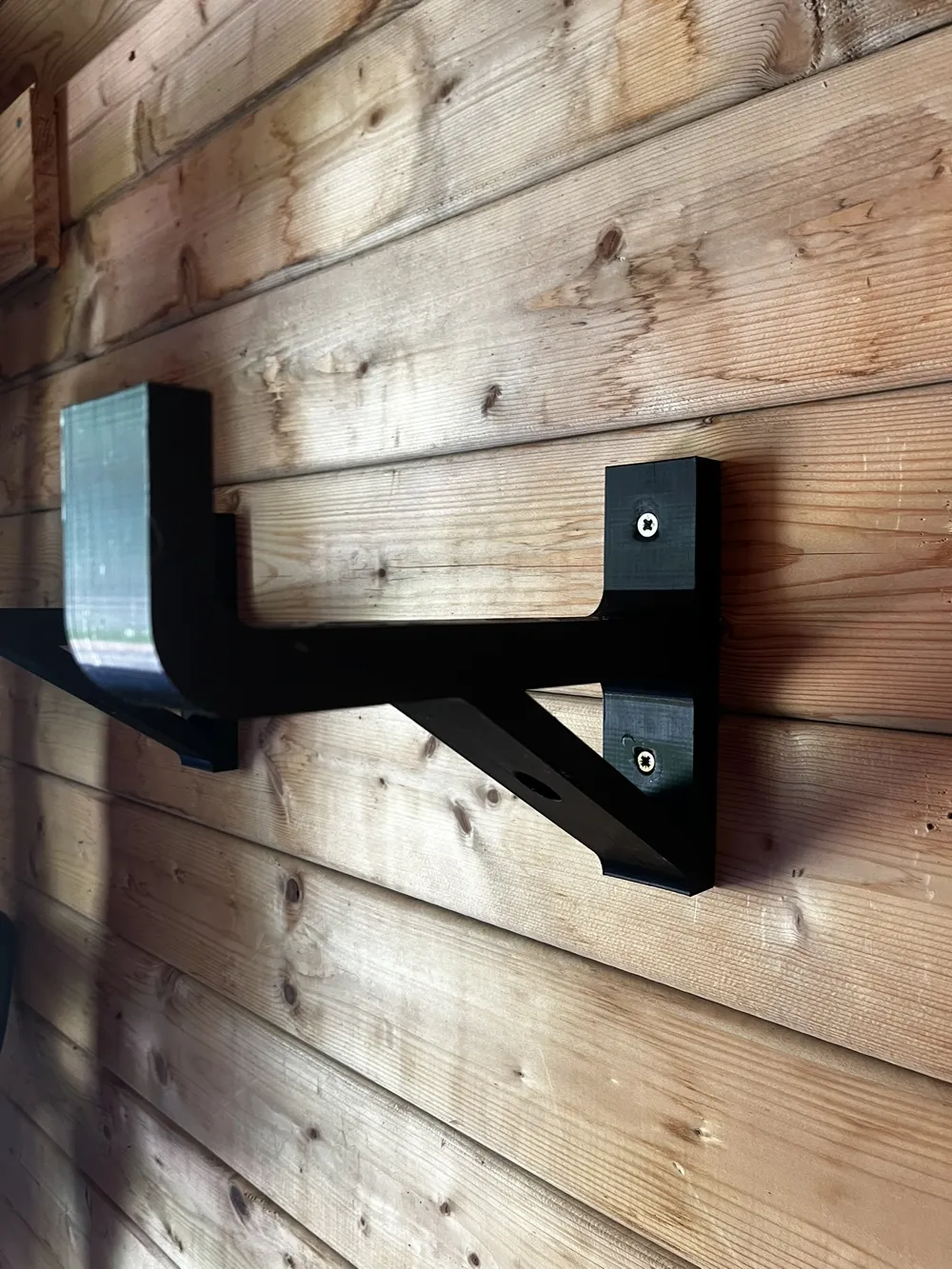

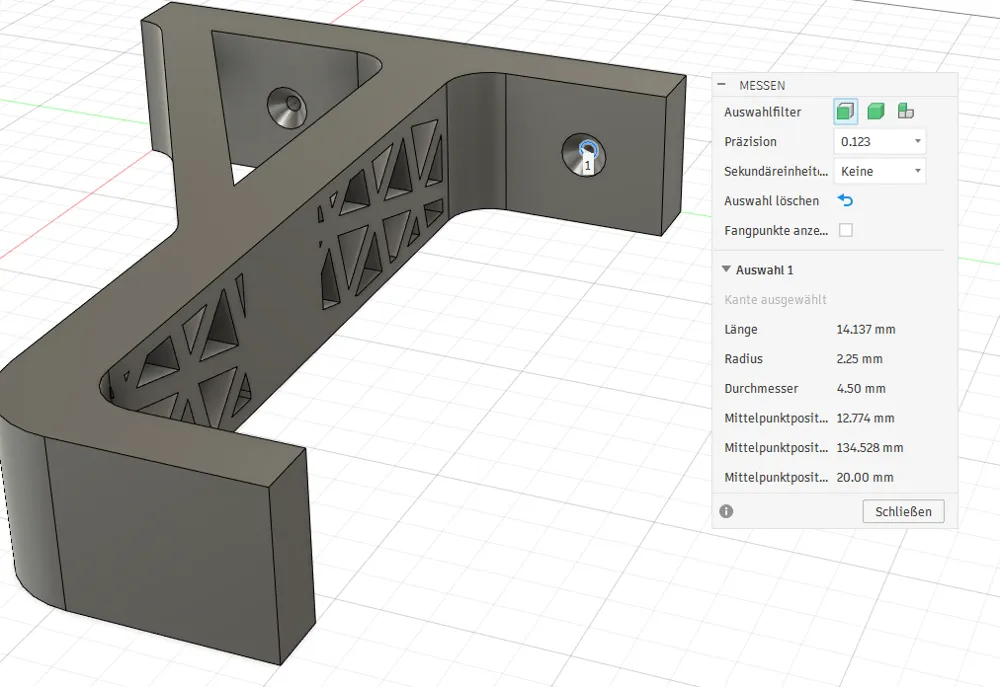

For mounting, I used 4.0 x 40mm countersunk screws. The holes have a diameter of 4 mm. For attaching the lower screw, there is a passage for a screwdriver.
Please note: I do not guarantee that the holders will withstand the load. Mounting the holders and loading the chairs is at your own risk and responsibility,
