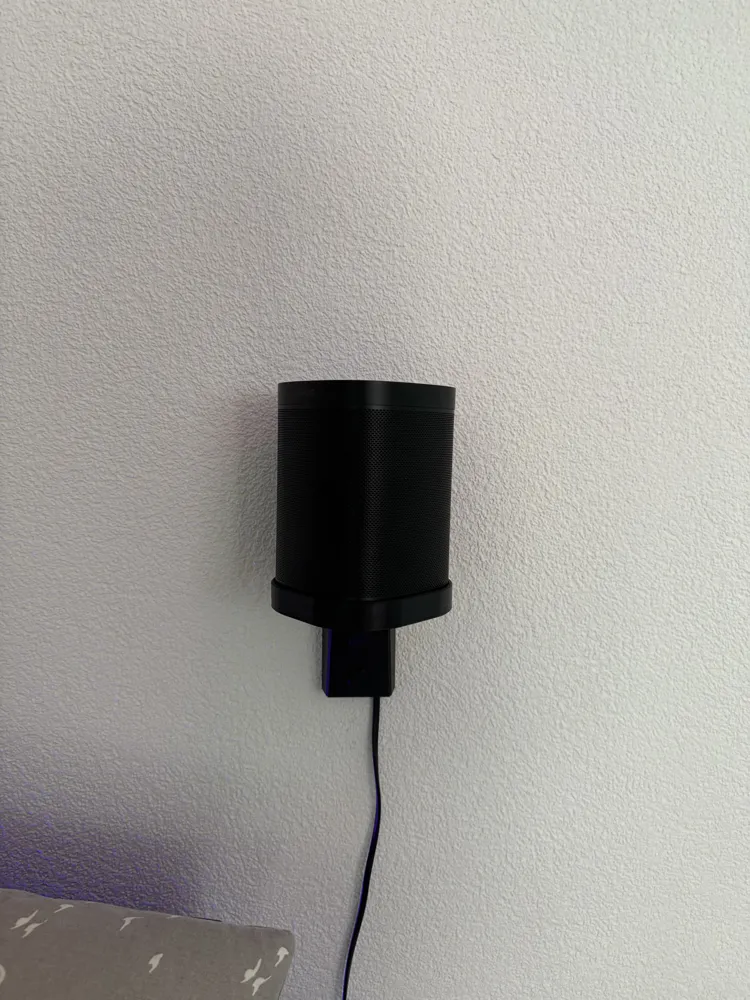

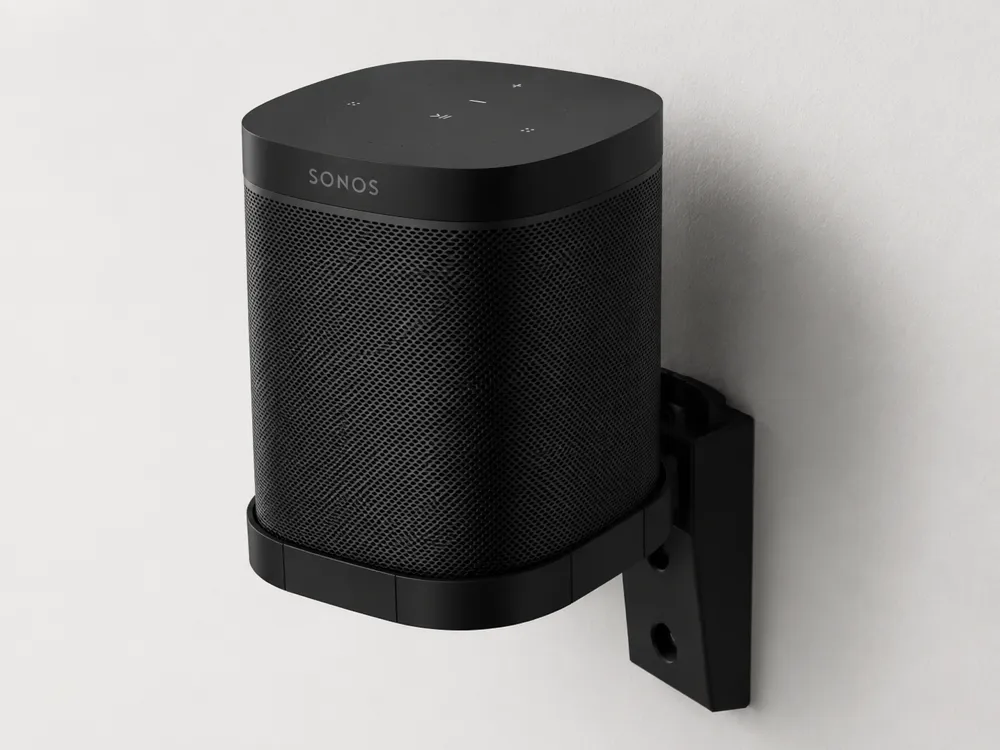

Sonos One Wall Mount – swiveling with cable management
This compact and stable wall mount was specially developed for the Sonos One and is ideal for clean and elegant wall mounting.

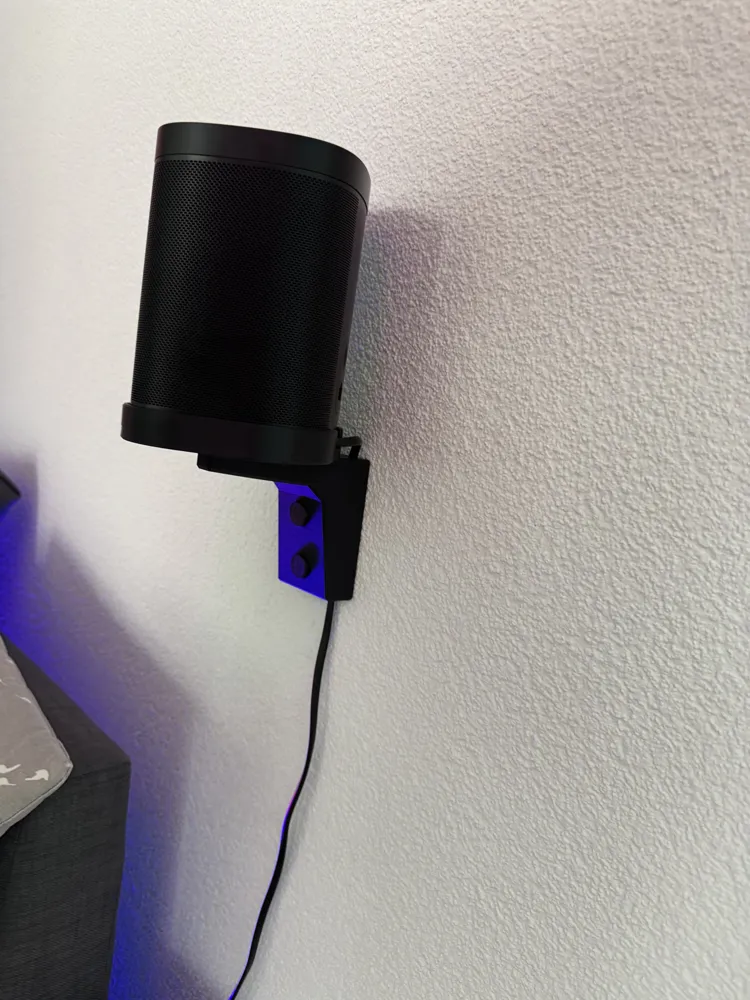

The mount has an integrated cable channel in the wall mounting part, allowing the power cable to be neatly routed downwards. This makes the installation look significantly tidier and more modern.

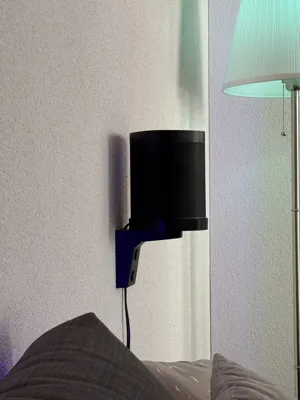

The Sonos One can be rotated by approx. 80° after mounting. The desired position can be securely fixed with a locking screw.
Required Screws
For the Mount
- 2× M4x12 mm screws
- 2× M4x8 mm threaded inserts
Important
As far as possible, no countersunk screws should be used for the movable/connecting parts, as countersunk heads can push the printed layers apart. Cylinder head or pan head screws work much better.
Wall Mounting
For wall mounting, you will need:
- Screws with 4–5 mm diameter
- 2x 5mm wall plugs
- approx. 20 mm length
Countersunk screws can be used here without any problems, as matching washers with a chamfer can be printed along with them.
I am currently working on minor optimizations such as radii and fit accuracy. As soon as I have these, I will upload them as well.
I wish you much joy with the wall mounts.
Print Notes
- Recommended material: PETG
- PLA also works, but should not be permanently subjected to additional stress (pets, etc.)
- At least 4 wall layers recommended
- 30–40% infill recommended
The mount was designed for stability, easy assembly, and the most inconspicuous look possible.
