Ultimate Parametric ikea Skadis Board Perfect Fit

Say goodbye to boring, standard-sized pegboards! 🚀

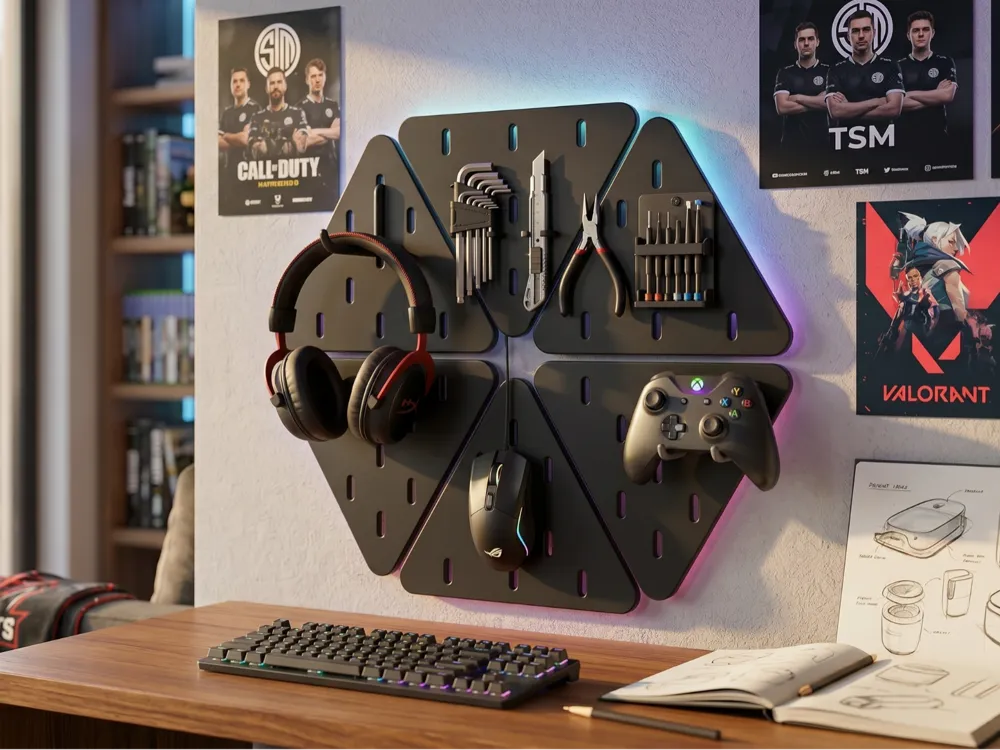

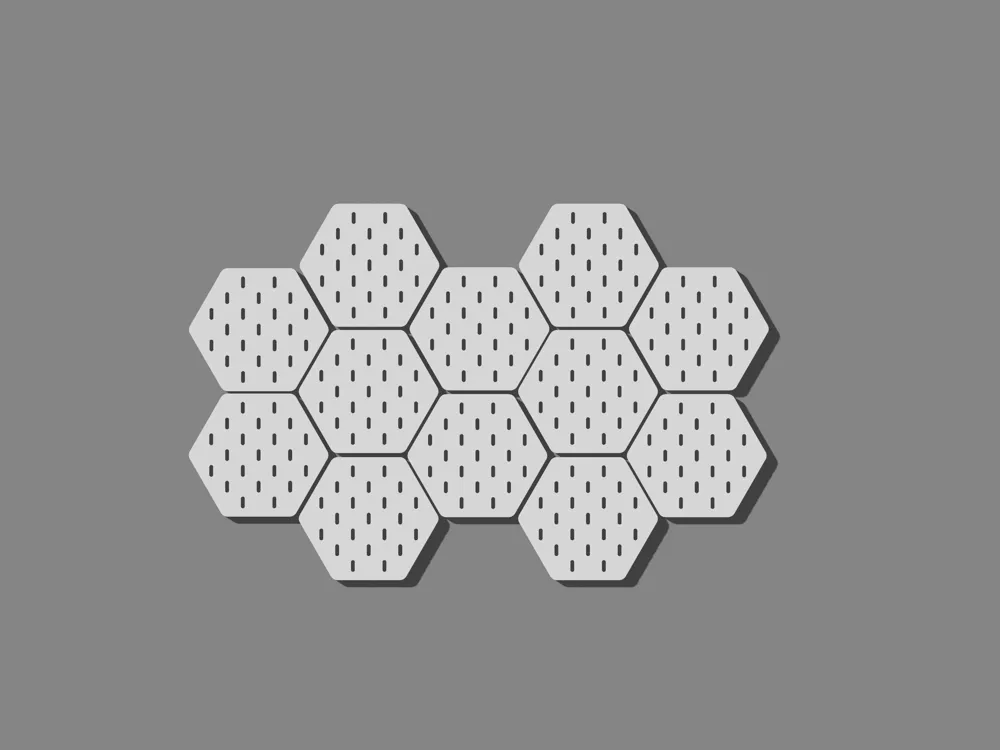

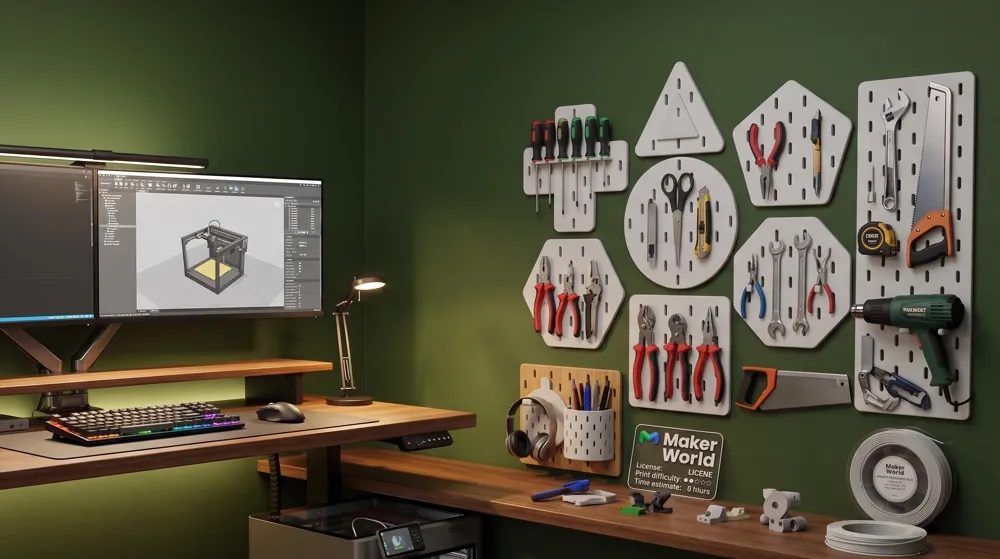

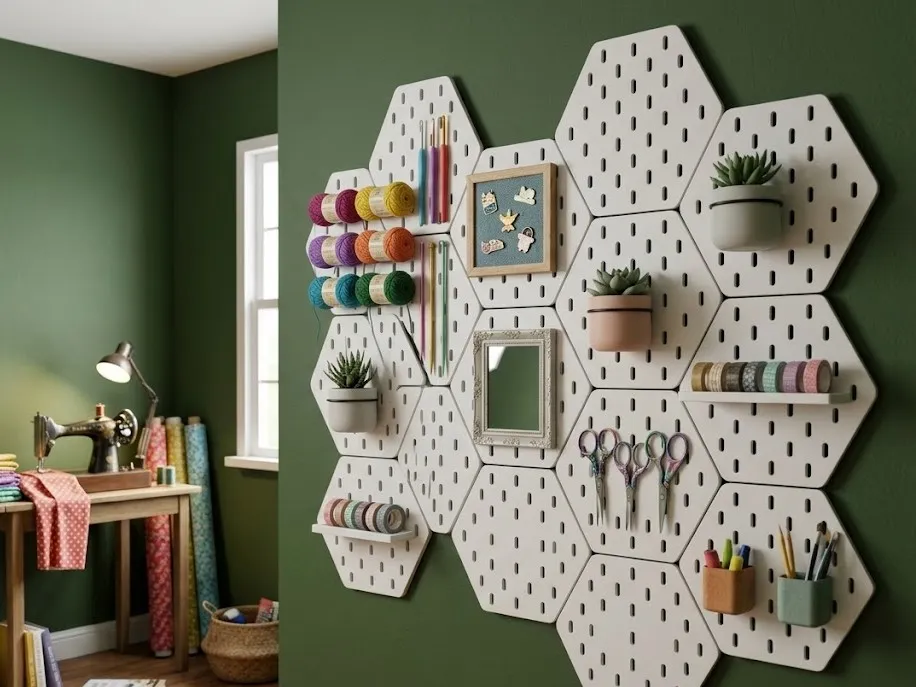

Welcome to the Ultimate Parametric IKEA Skadis Generator. Whether you need a massive hexagon for your gamer setup, a sleek circle for your minimalist desk, or a specific shape to fit that awkward corner, this OpenSCAD model does it all.

• ✨ Key Features

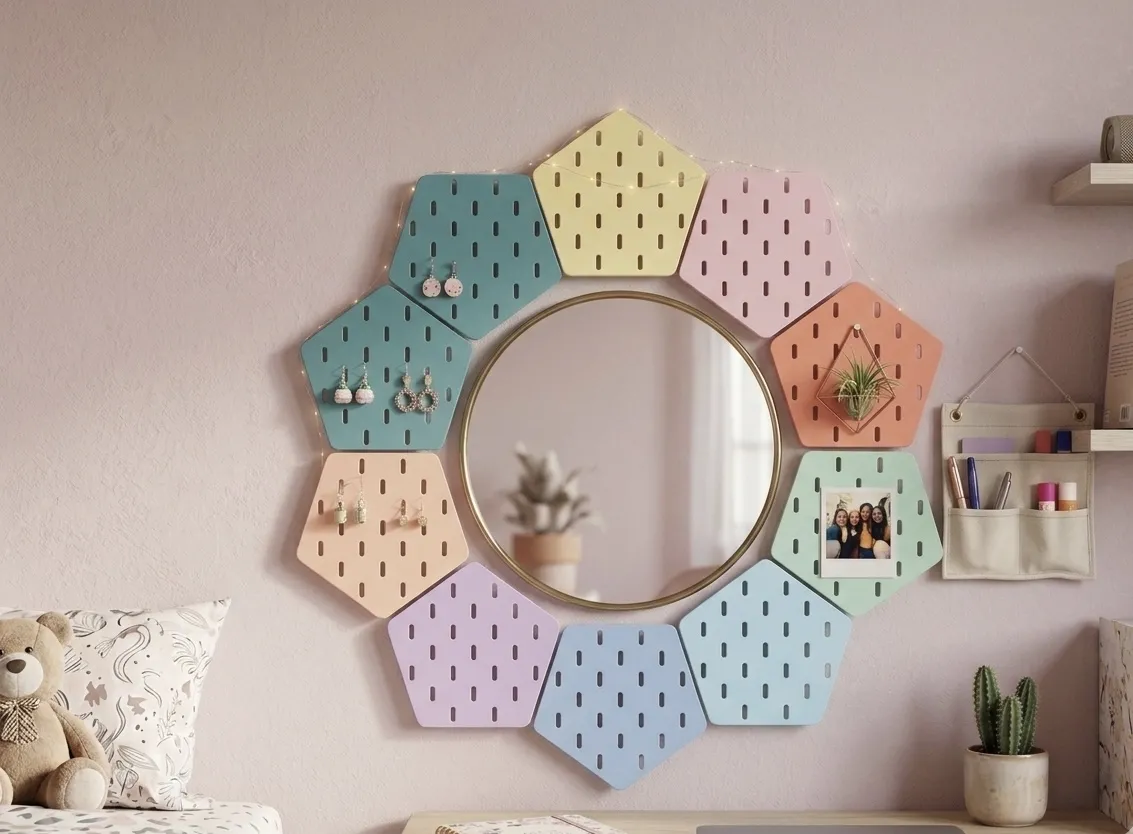

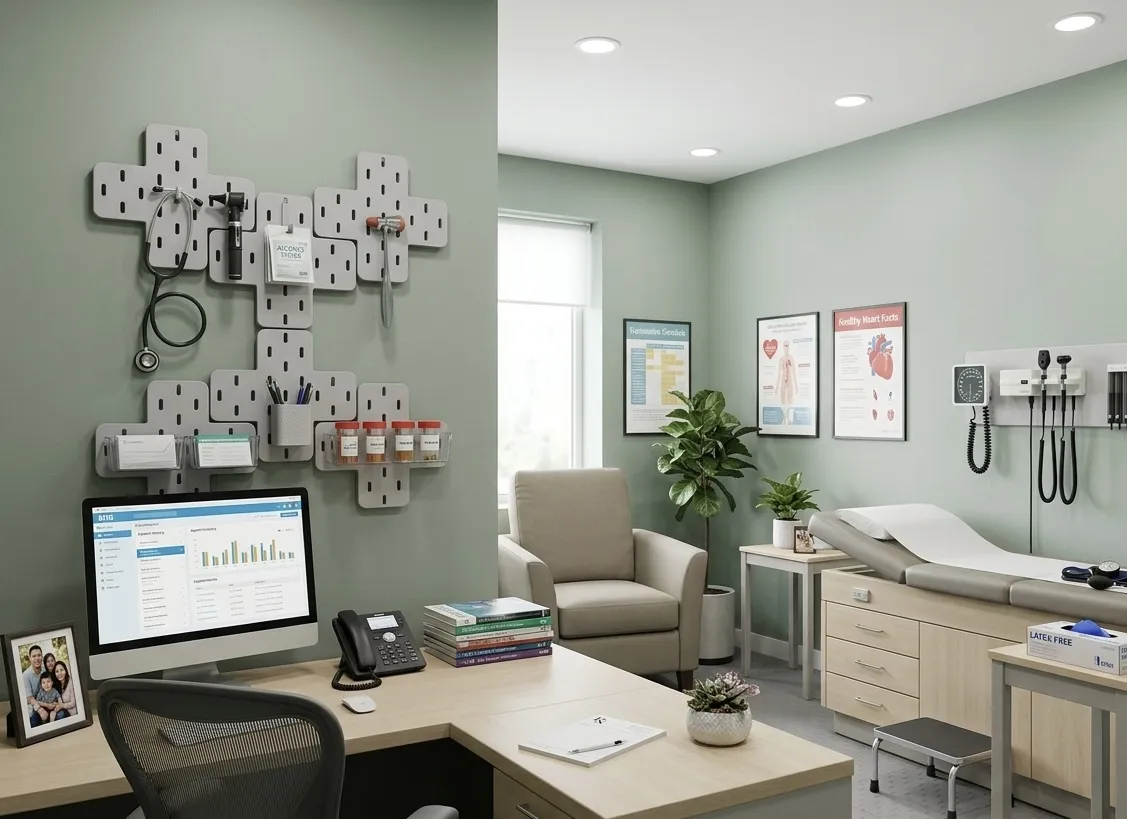

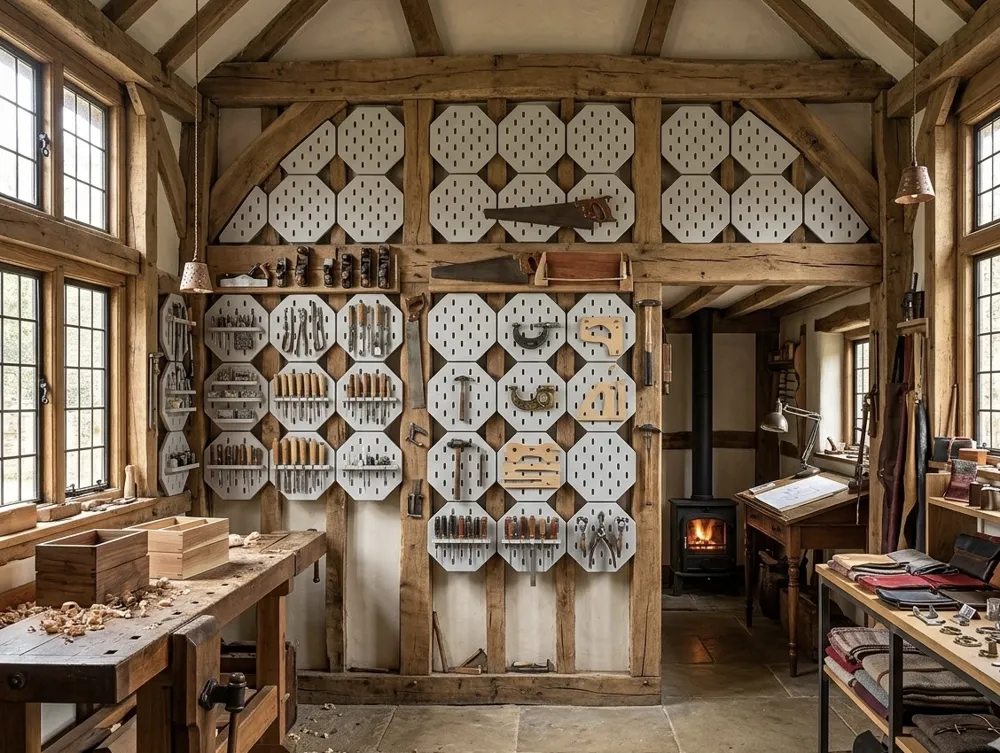

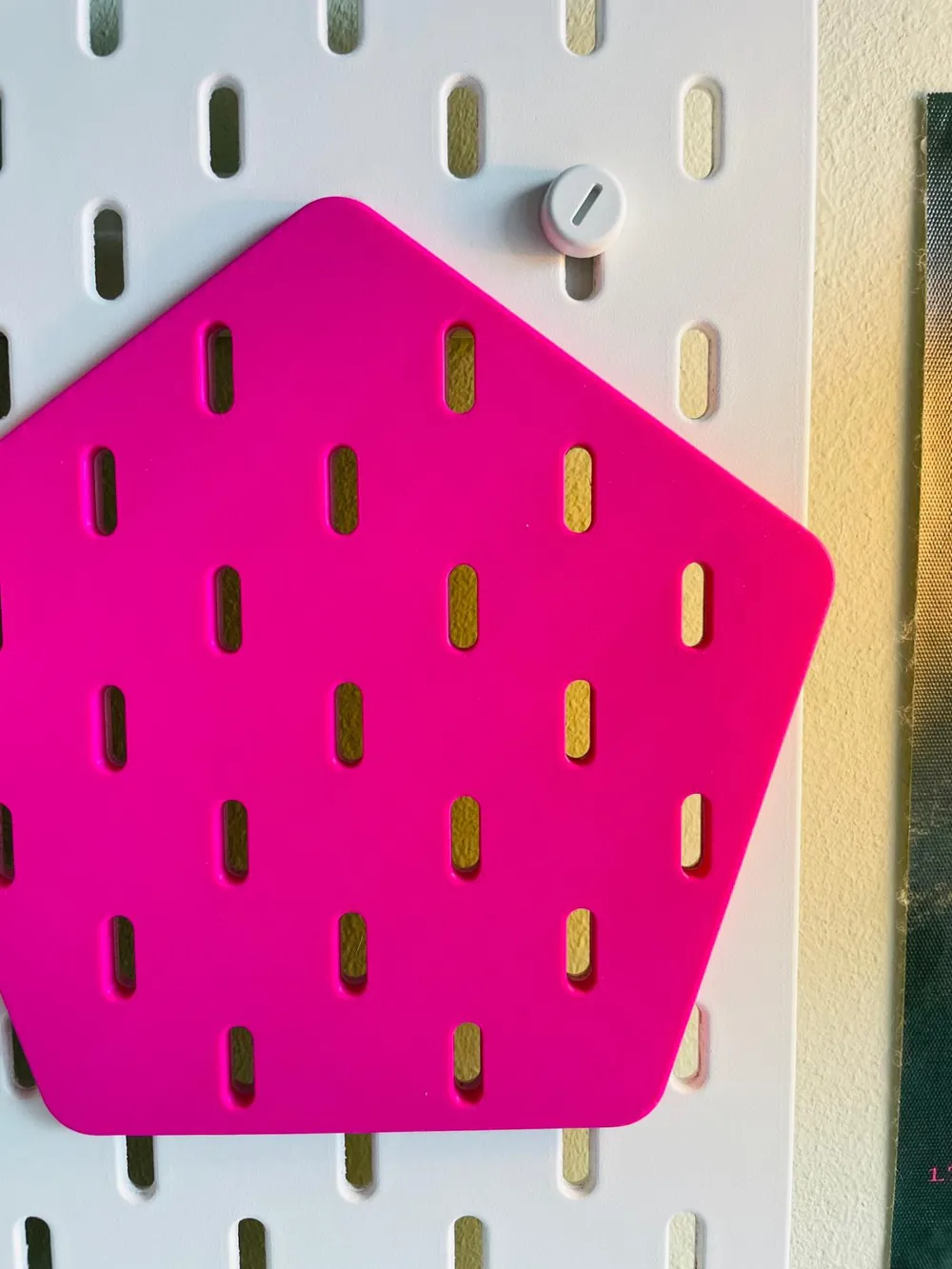

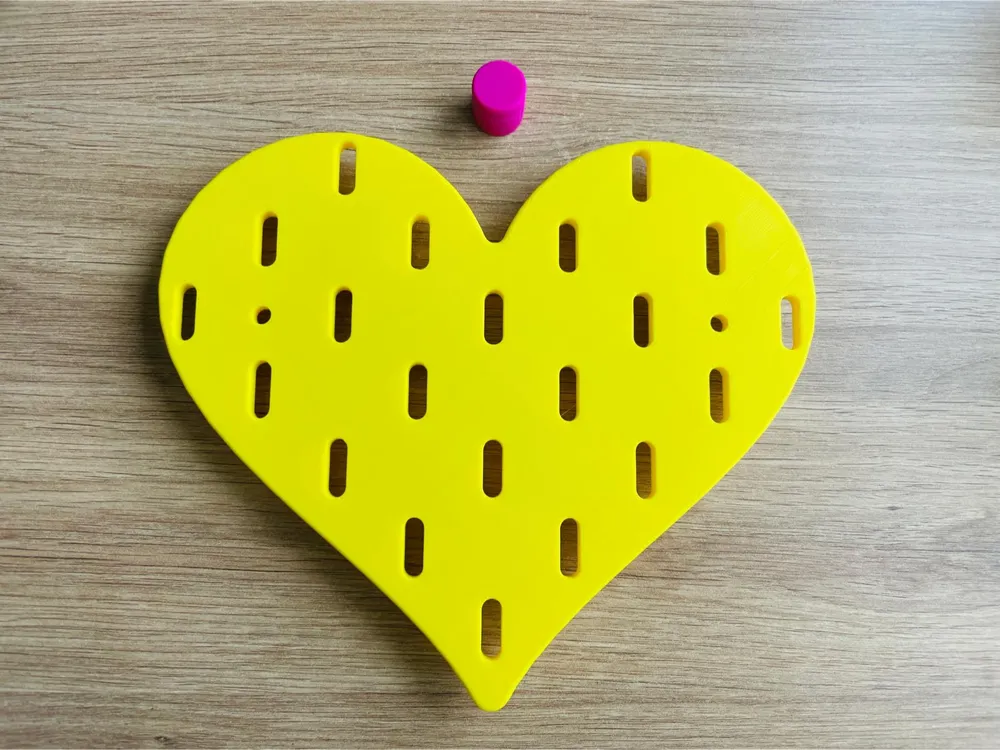

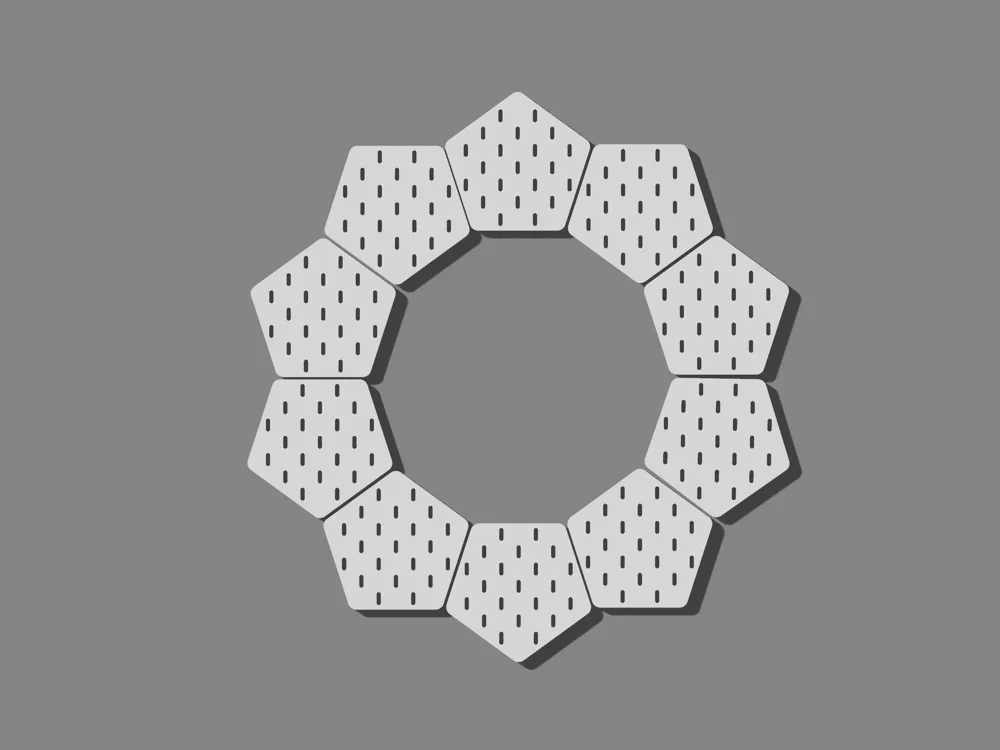

• 📐 8 Geometric Shapes Choose from Rectangle, Circle, Triangle, Hexagon, Pentagon, Octagon, Cross  or Heart. Perfect for filling specific wall gaps or creating decorative organizers.
• 🔄 Independent Rotation Logic Rotate the board at any angle (0-360°) while the Skadis holes remain perfectly upright. This ensures your tools always hang correctly, regardless of the board's orientation.
• 🛡️ Intelligent Edge Protection & Safety Margin The generator automatically hides incomplete holes near the edges. It dynamically calculates a safety buffer based on your edge fillet radius to ensure structural integrity and a clean, professional finish.

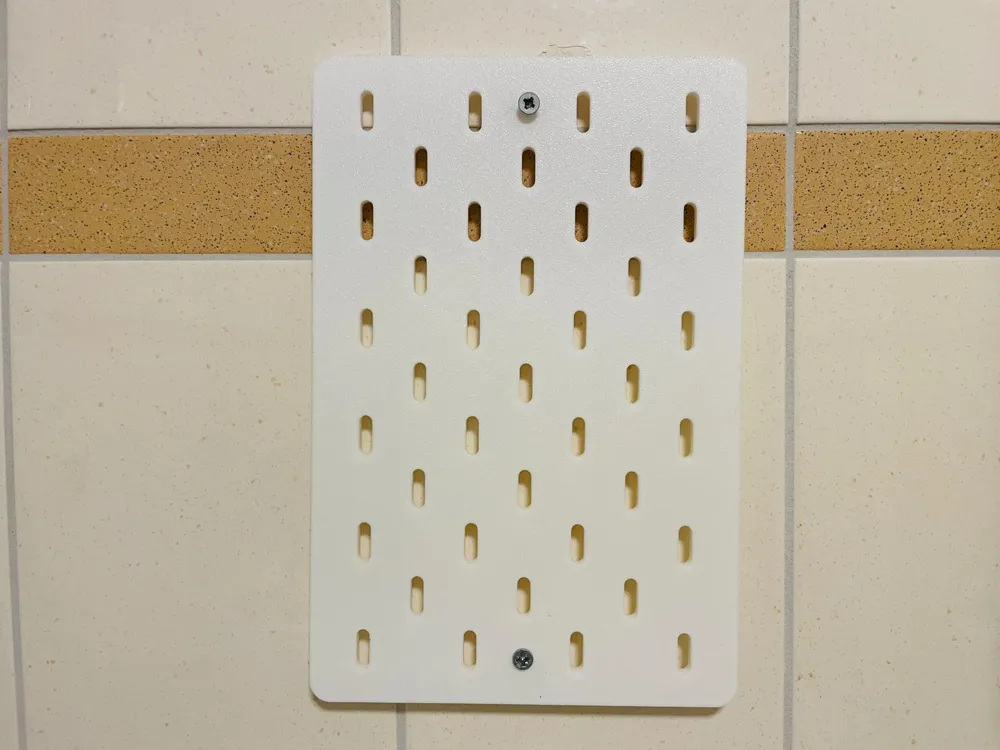

• 🔩 Precision Mounting System Configure up to 4 custom mounting holes. Switch between Absolute (mm) for precision or Relative (%) mode for easy placement without manual measuring.
• 🎨 Industrial Aesthetics (Z-Axis Fillets) Fully parametric outer edge fillets give your prints a smooth, premium feel—no sharp edges, just like an injection-molded product.
• 📏 FDM-Ready Tolerance Control Built-in print_tolerance settings allow you to compensate for material shrinkage, ensuring your Skadis accessories fit perfectly right off the build plate.

• 🖨️ Printing Recommendations

• Material: PLA or PETG (Recommended for toughness) .
• Wall Loops: 3-4 layers for maximum hook strength.
• Infill: 10% - 20%.
• Standard Compliance: Holes strictly follow the 5x15mm (20mm pitch) IKEA standard.

**************************************************************************

🎉 Major Update: Introducing the Decorative Infill Pegboard!

Click [Lightweight Customizable Skadis Pegboard] to download the Lightweight version.

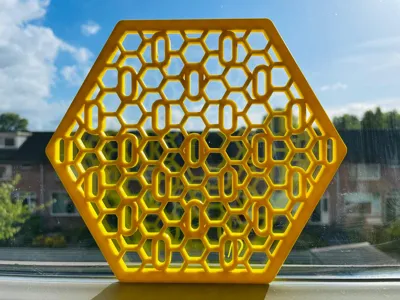

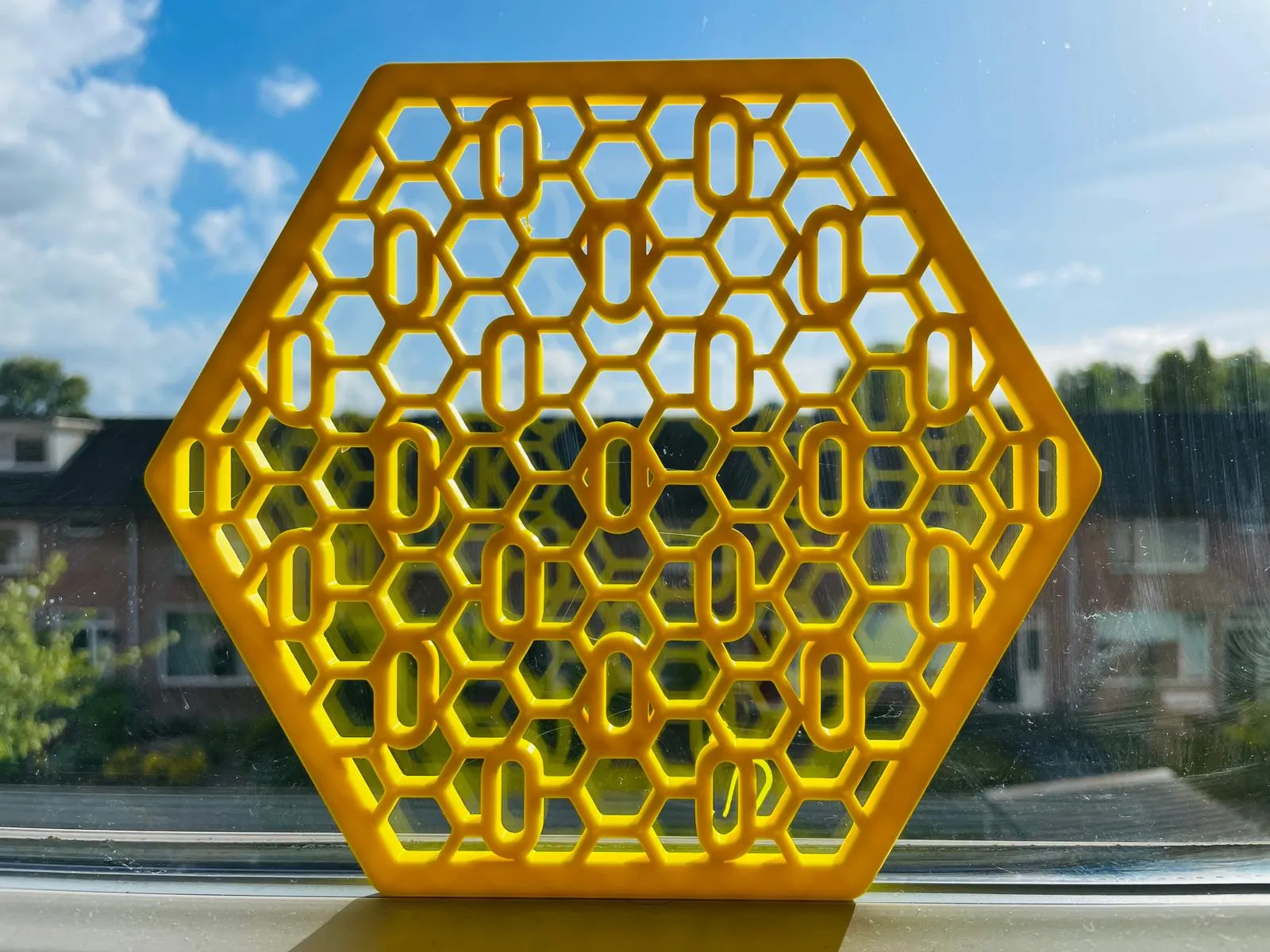

I have just added a brand new OpenSCAD file to this project! You can now generate stunning hollowed-out / patterned pegboards directly in the Parametric Model Maker.

Not only does this new version look fantastic and give your setup a unique aesthetic, but it also saves on filament and print time!

What's New in this File:

• 🎨 8 Decorative Infill Patterns: Choose from Hexagon, Triangle, Octagon, Circle, Square, Rhombus, Star, or Cross.
• ⚙️ Fully Customizable: Freely adjust the infill size, wall thickness, and even rotate the pattern to get the exact look you want.
• 🛡️ Smart Edge Protection: Automatically calculates safe margins so the pattern won't interfere with your Skadis peg holes or the outer borders.
• ✨ Same Great Features: Still includes all the fan-favorite options like multiple outer shapes (Heart, Hexagon, Cross, etc.), 3D rounded edges, and custom hole offsets.

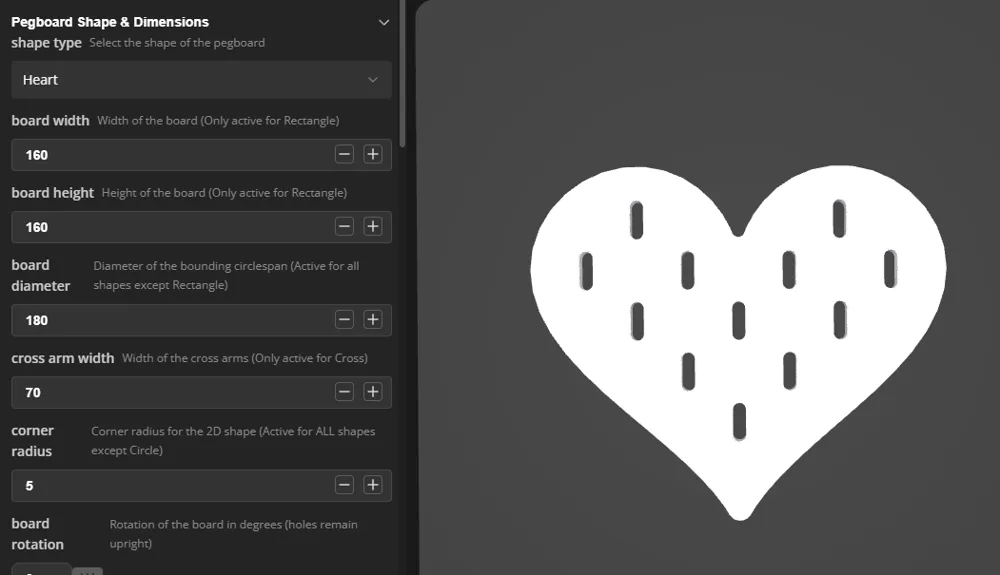

Open the Parametric Model Maker now, select the new Infill file, and start customizing your ultimate stylish pegboard!

**************************************************************************

Stop compromising on your organization. Customize, print, and level up your workspace today! Don't forget to upload your makes—I can't wait to see what shapes you create! 📸

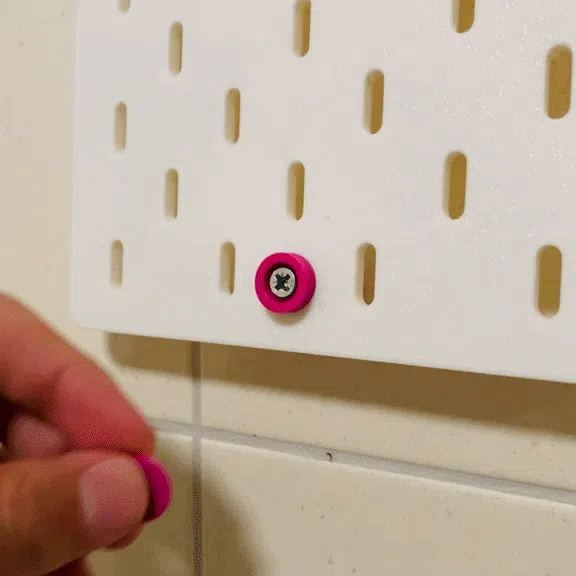

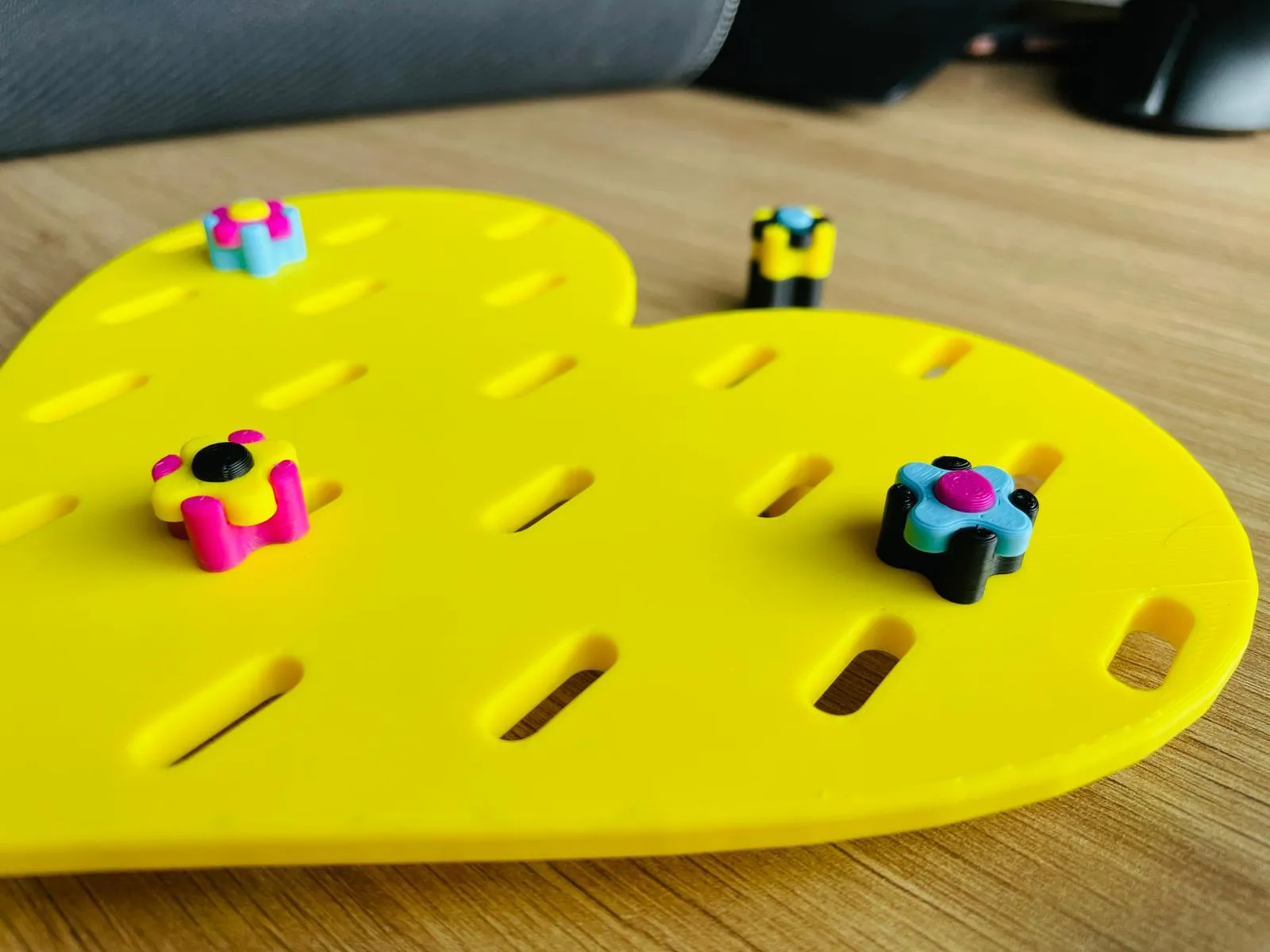

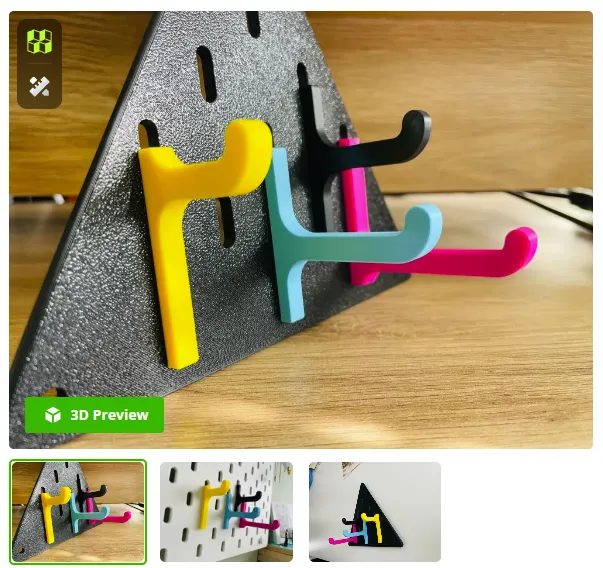

Wall Mounting Note: This model is compatible with my IKEA Skadis Universal Mounting Kit , Ikea Skadis Mounting Kit Decorative Flower Caps and Parametric Skadis Hook You can download the spacers, screw retainers, and decorative caps , click op the pic
