Slam Dunk Print - 4-color Overlay Print

Software used:

Bilibili CreatorDa Pang Fei Mao open source softwareLumina-Layers

Filaments used:

• Bambu PETG White
• Bambu PETG Red
• Bambu PETG Yellow
• Bambu PETG Blue
• Bambu PETG Black
• Bambu PETG Gray

Printing information:

The work can be printed directly.

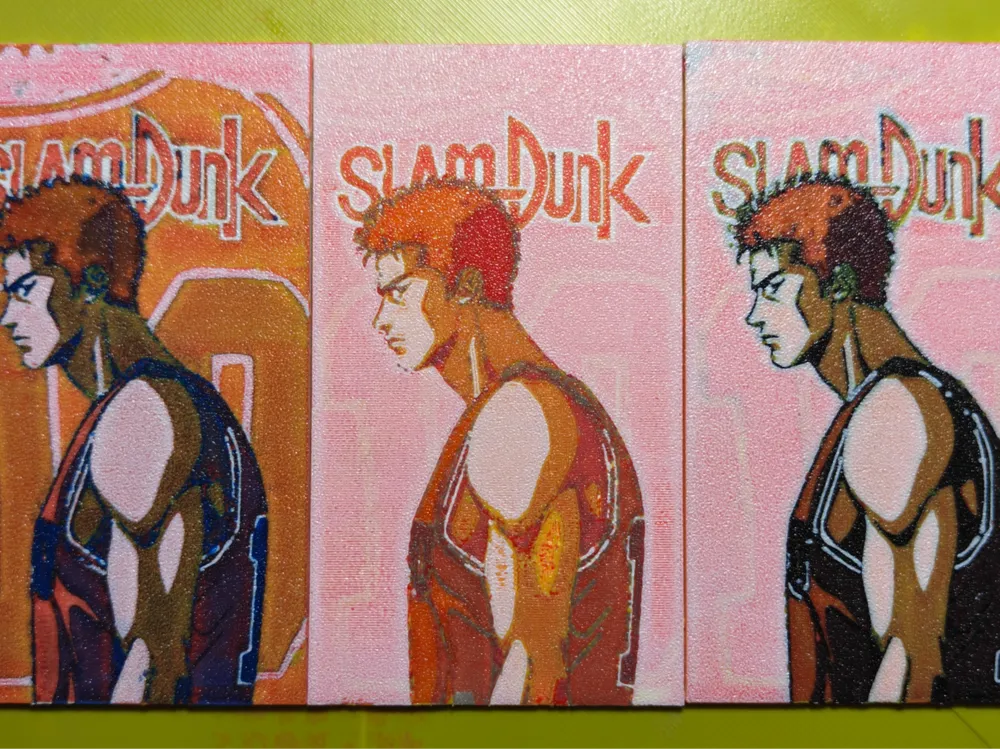

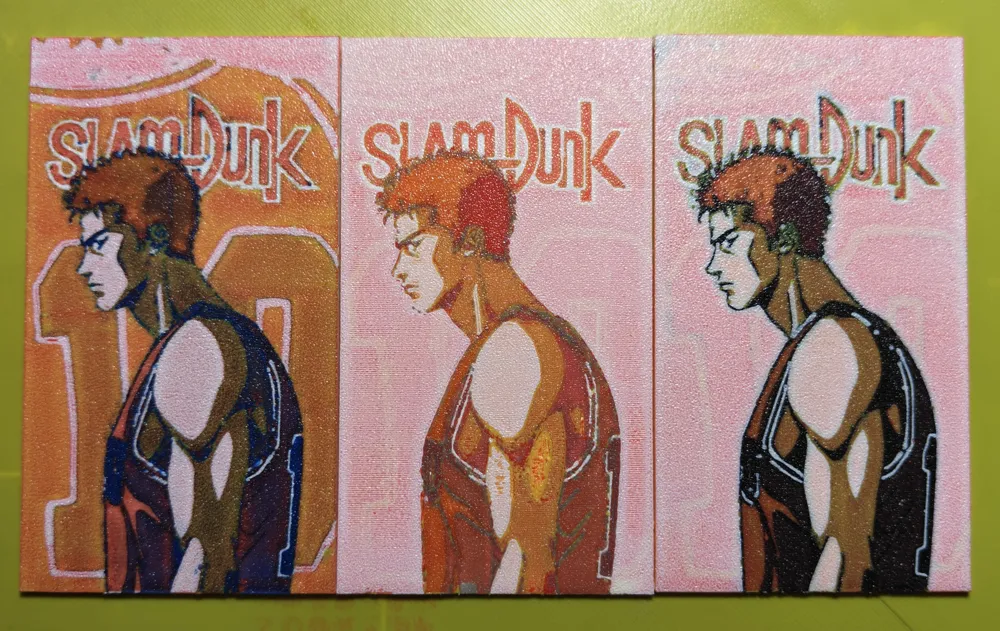

From left to right, white, red, yellow and blue are used; white, red, yellow and gray; white, red, yellow and black

The effect presented will vary depending on the filament and colors you use. For more effects, please try them yourself.

Note:

• A 0.4mm nozzle can also be used; these 3 prints were all completed with a 0.4mm nozzle.
• Enable bed leveling before printing

• The default flow rate of 0.95 for Bambu filament is too low; it is recommended to increase the flow rate to about 1.1



• It can be scaled by yourself, but be careful not to reduce the Z-axis height to less than 1.68mm, as this will damage the overlay layers. Also, check if layers 1-5 after slicing show lines that are too small to be routed, and if so, increase them.
