IKEA UPPDATERA MEETS SKÅDIS

Short Description

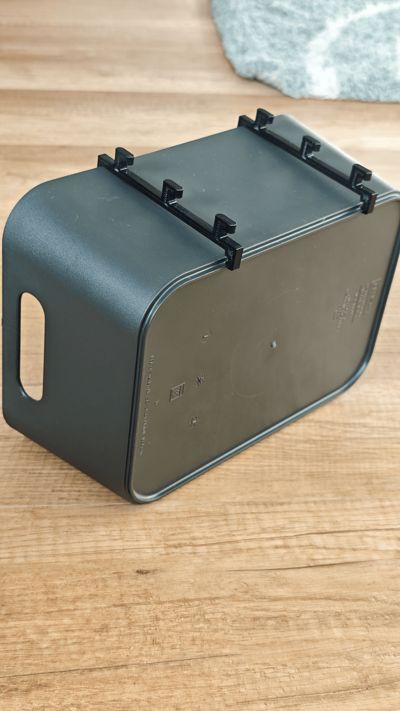

A lightweight, modular holder that lets you mount the IKEA UPPDATERA box onto the SKÅDIS system with maximum efficiency and minimal filament use. Designed to be fast, sturdy, and practical. The main feature of this combination is its cost effectiveness. Up to date the UPPDATERA box can be bought for under 2 € in Germany. With around 280 gram weight (≈0.6 lb), even with a low filament spool price of under 10€/kg you cant beat that price by printing your own storage solution with similar properties.

I made a 2 Week load test to get an overall feeling if this design is sturdy. Starting with 1kg (≈ 2.2lb) in the first week and adding another 1kg (≈ 2kg/4.4lb in sum) for another week. Just using 2 mounts. Everything worked out very well without issues.

Key Features

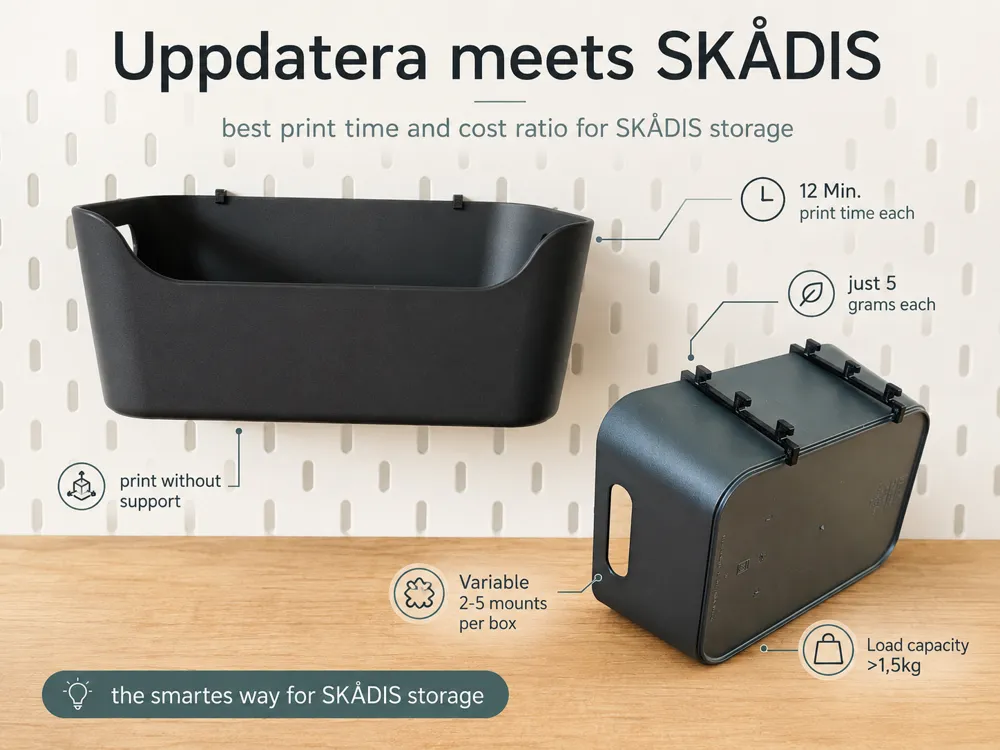

• Extremely efficient design: each holder weighs only ~ 5 g and prints in about 12 minutes, fully support‑free.
• Strong despite minimal material use - engineered to feel reliable, not flimsy.
• Modular setup: use 2 to 5 holders per box, depending on the weight you need to support.
• Recommended materials: PETG, ABS, or ASA for long‑term durability and resistance to deformation.

• Load‑testing completed:

  I made a 2 Week load test to get an overall feeling if this design (printed in PETG) is sturdy. Starting with 1kg (≈ 2.2lb) in the first week and adding another 1kg (≈ 4.4 lb in sum) for another week. Just using 2 mounts. Everything worked out very well without issues.

  • Following my recommendation for a day to day use
  • <0,75kg (≈<1,65lb) use 2 holders
  • 0,75 - 2.0kg  (≈<4.41 lbs) use 3 holders
  • >2.0kg (≈>4.41 lbs) use 4 holders
  • Please consider: IKEA rates each peg board with a maximum load of 3kg/5lb
• Designed specifically for the IKEA UPPDATERA 24×17 cm box (205.464.67) - an affordable, sturdy, and visually appealing storage option available in multiple colors.
• Created as a practical alternative to many SKÅDIS storage prints that are either slow to produce, filament‑heavy, or not stable enough.
• Simple, tool‑free mounting: the holder snaps securely into SKÅDIS and supports the box without screws or glue.
• Clean, minimal aesthetic that blends seamlessly with the SKÅDIS system.
• There are lot of 3D-models available for the Uppdatera box like gridfinity or custom segmenting models

⚠️ Disclaimer

This model has been tested successfully with a load of 2 kg using two hooks. However, real‑world performance can vary depending on several factors:

• Wall type and mounting method: The wall and fasteners must be able to support the applied load. Weak or hollow walls may significantly reduce stability.
• Print settings and printer calibration: Layer adhesion, extrusion quality, and overall print accuracy can affect strength.
• Material differences: Not all PETG behaves the same. Different brands, formulations, and drying conditions can lead to different mechanical properties.
• User responsibility: Please assess your own setup and environment. My load recommendations are conservative guidelines with a safety buffer, not guaranteed limits.

By using this model, you agree that you are responsible for evaluating the safe load capacity in your specific situation.
