Monitor and TV Cable Management

VESA 100mm Cable Management Mounts

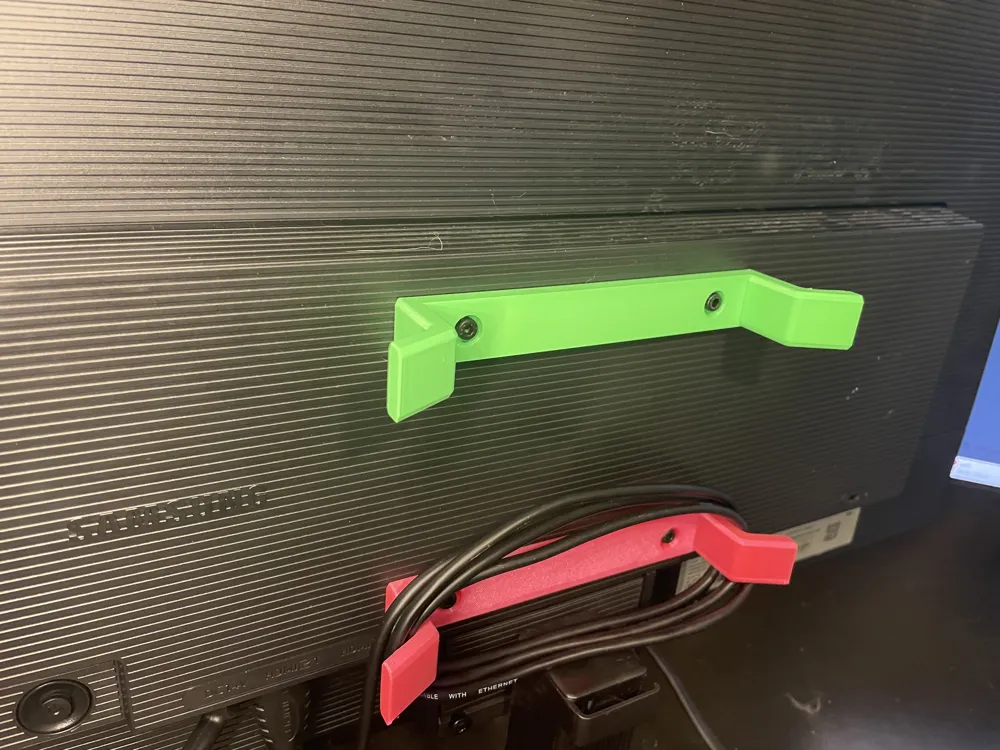

Tired of cable clutter hanging behind your screens? These 3D-printable brackets are a sleek, mechanical solution for the "cable nest" behind your setup. By utilizing the existing mounting points on your monitor or TV, they provide a rock-solid way to wrap, tuck, and route your cables without relying on messy adhesives.

Features

• Standard VESA Spacing: Designed with a 100mm hole-to-hole width, making them a perfect fit for the most common VESA mounting patterns.
• Dual Hardware Support: Built to accommodate either M4 or M5 screws, covering the vast majority of computer monitors and small-to-medium TVs.

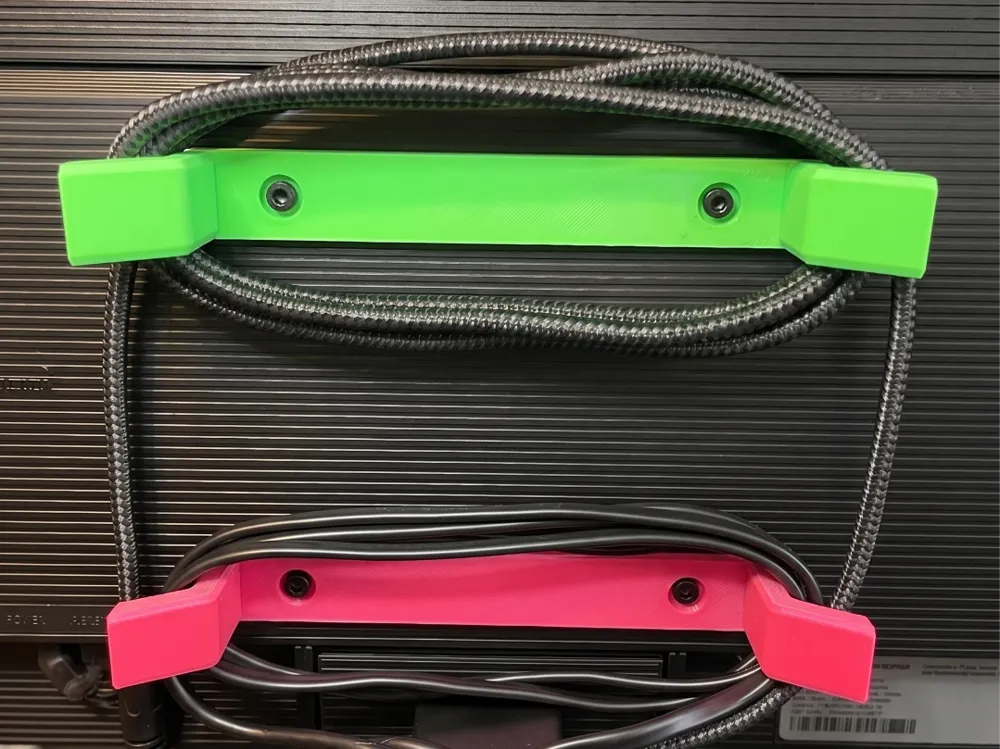

• High Capacity: The wide "cradle" design easily holds thick power cables, HDMI cords, and Ethernet lines simultaneously.
• Non-Destructive: Uses the hardware points already on your device—no sticky residue or drilling required.

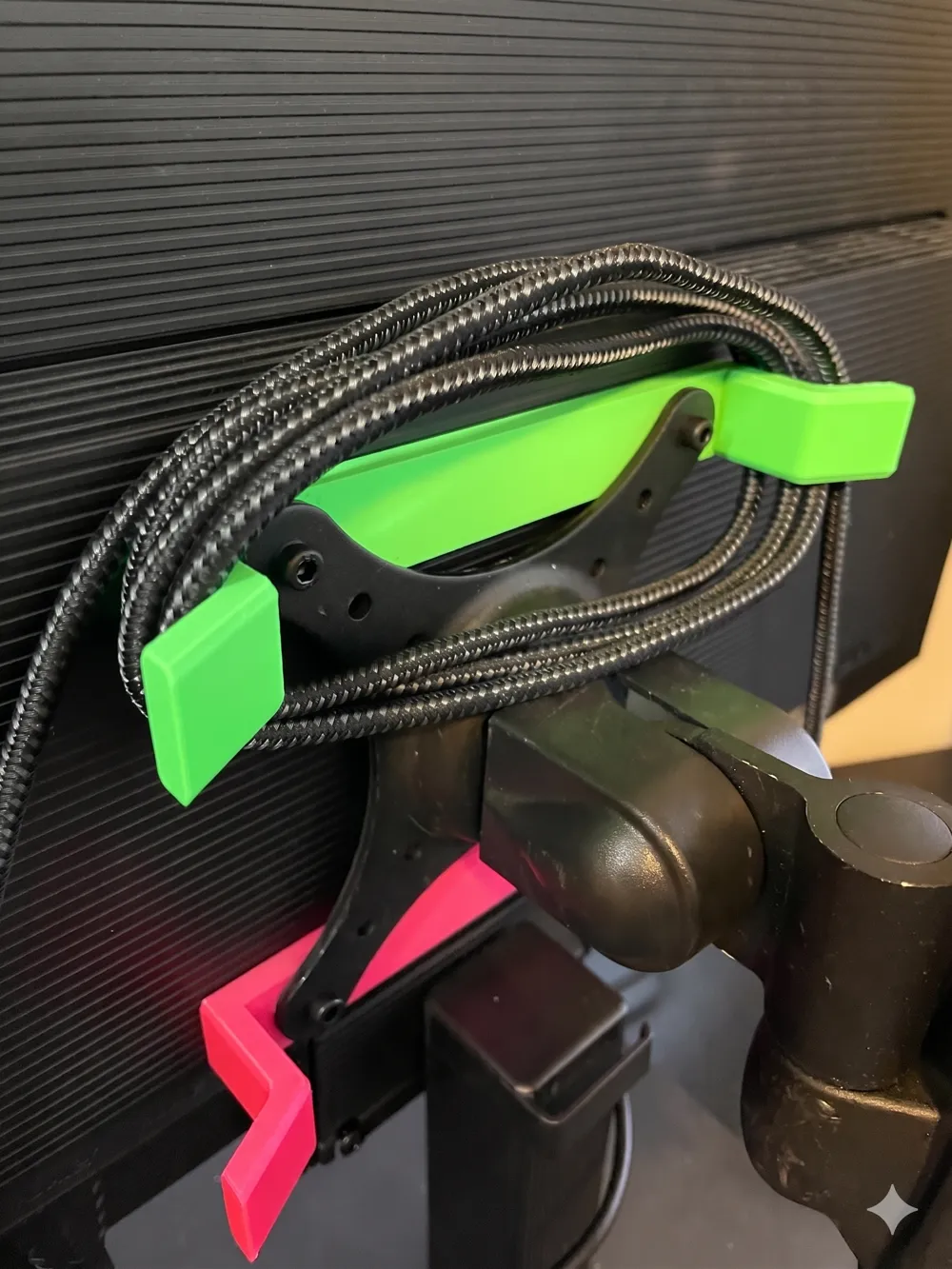

• Mount and Arm Compatible: Use it with your existing wall mount or desk mounting arm and have a cleaner desk.

Print Settings

• Material: PLA, PETG, or ABS (PETG is a great choice if your monitor generates significant heat).
• Orientation: Print with the flat "back" side on the build plate.
• Supports: None! This is a support-free print.
• Walls/Perimeters: 3–4 walls recommended to ensure the screw holes are strong and won't crack under tension.
• Infill: 15–20%.
