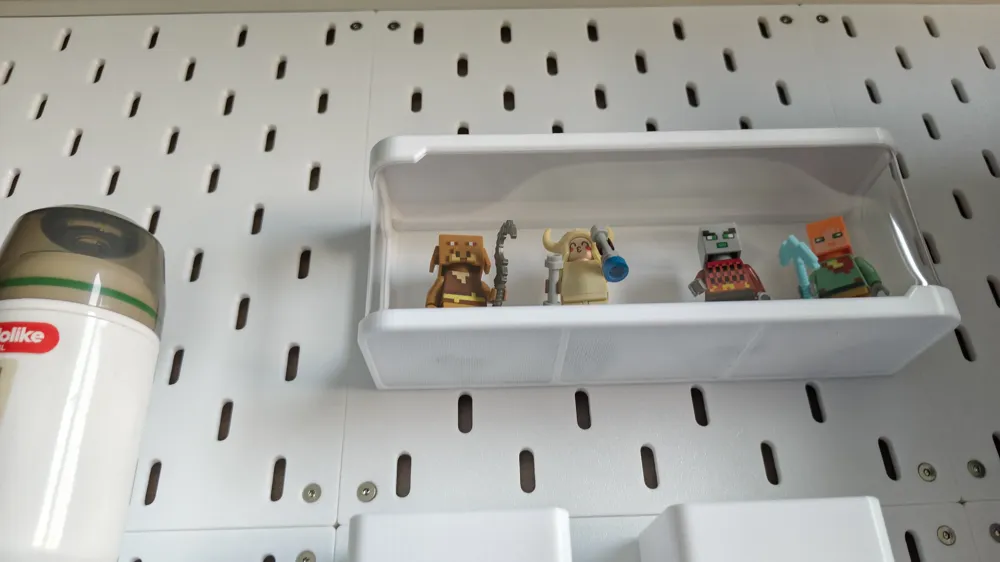

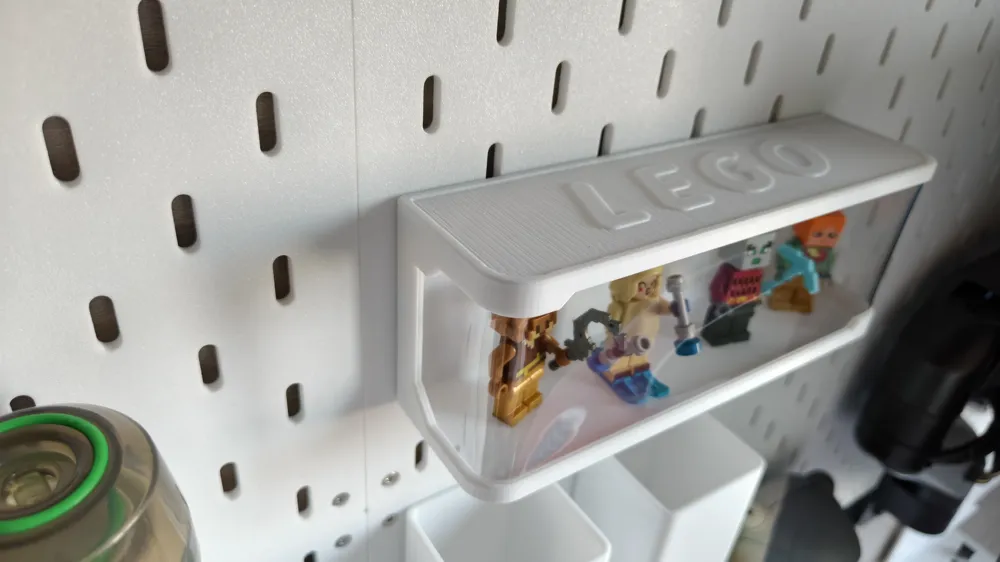

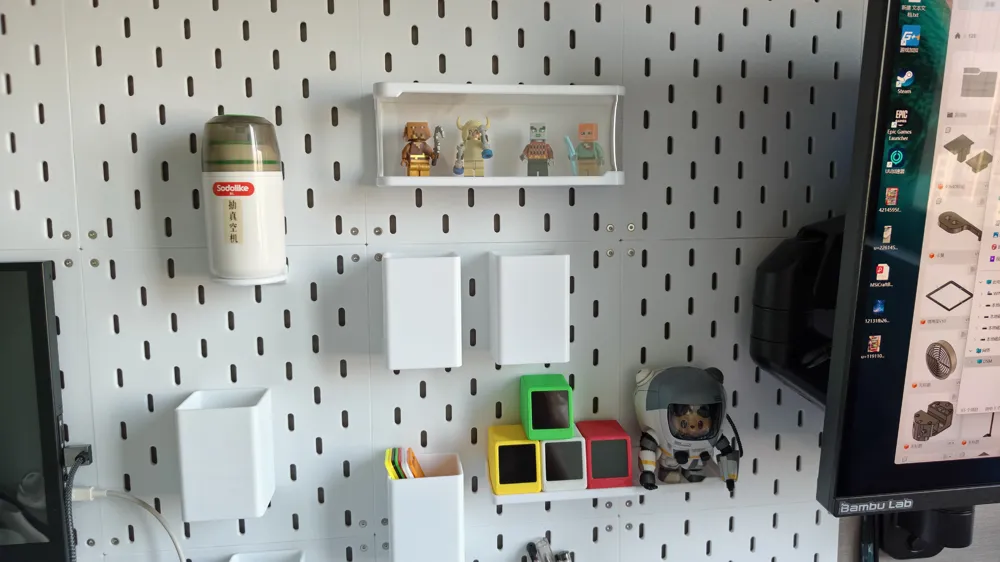

LEGO minifigure sea view house display stand (IKEA Skadis pegboard version)

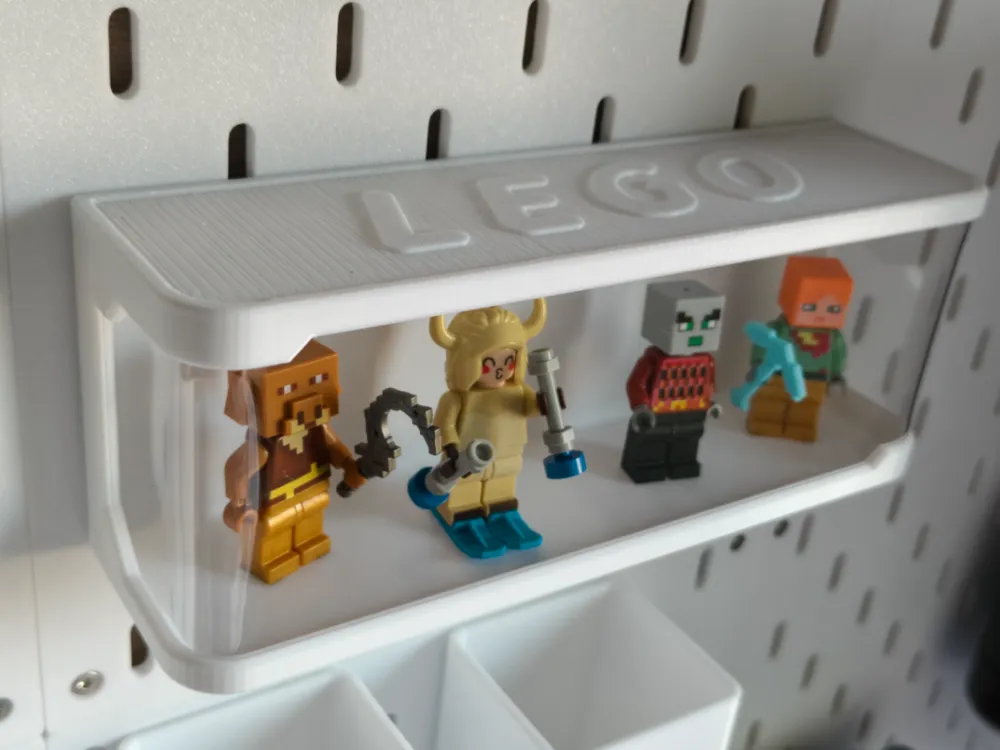

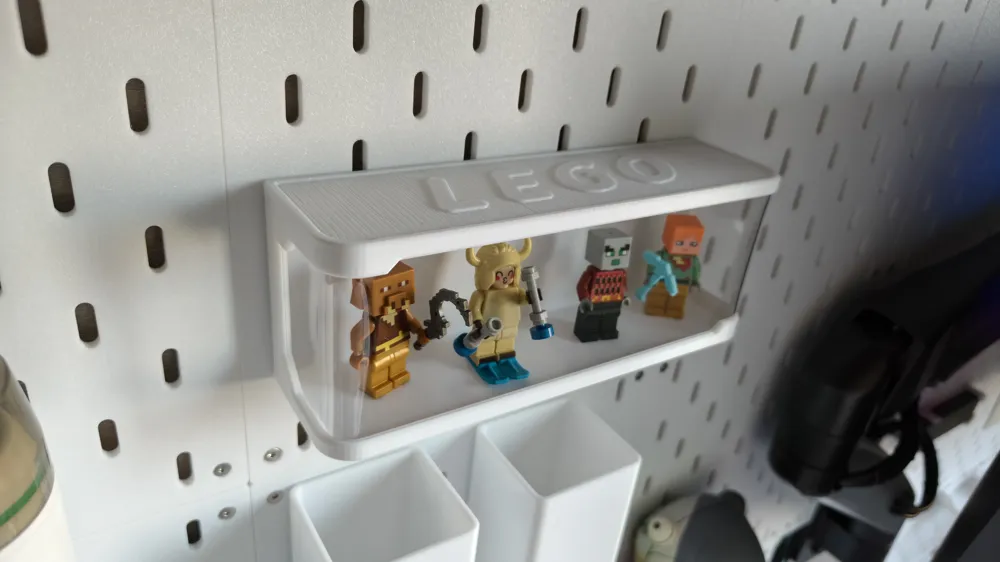

LEGO Seaview House Minifigure Display Stand (IKEA Pegboard Version)

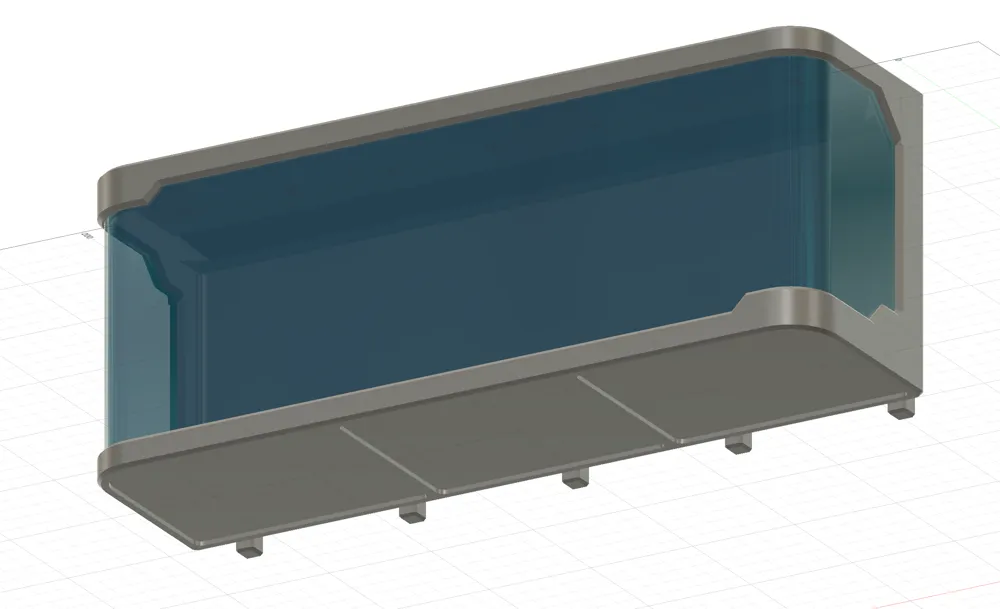

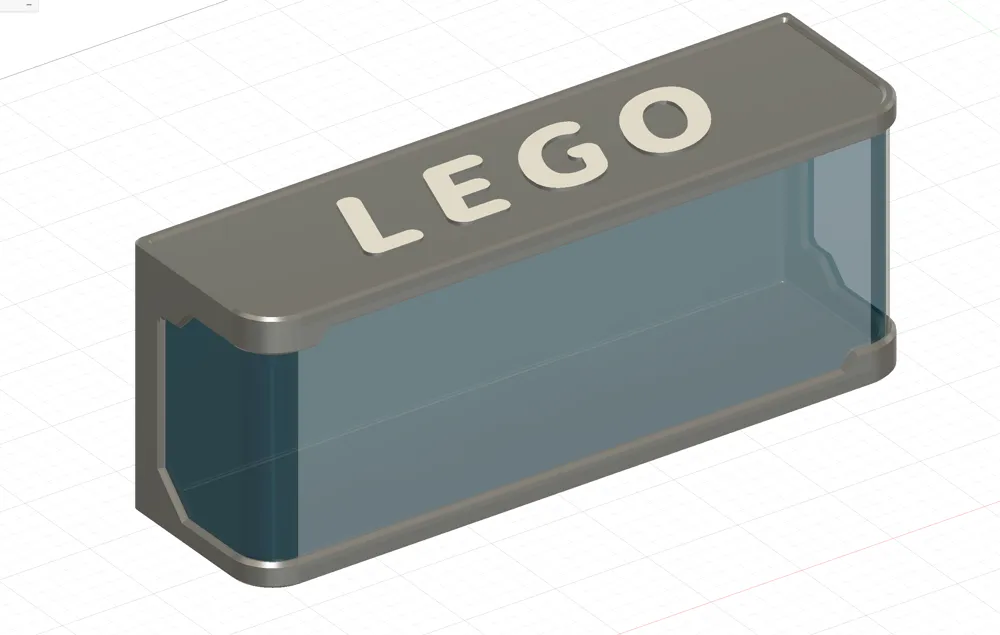

Model dimensions: Length 180mm X Width 50mm X Height 70mm (Internal height 64mm)

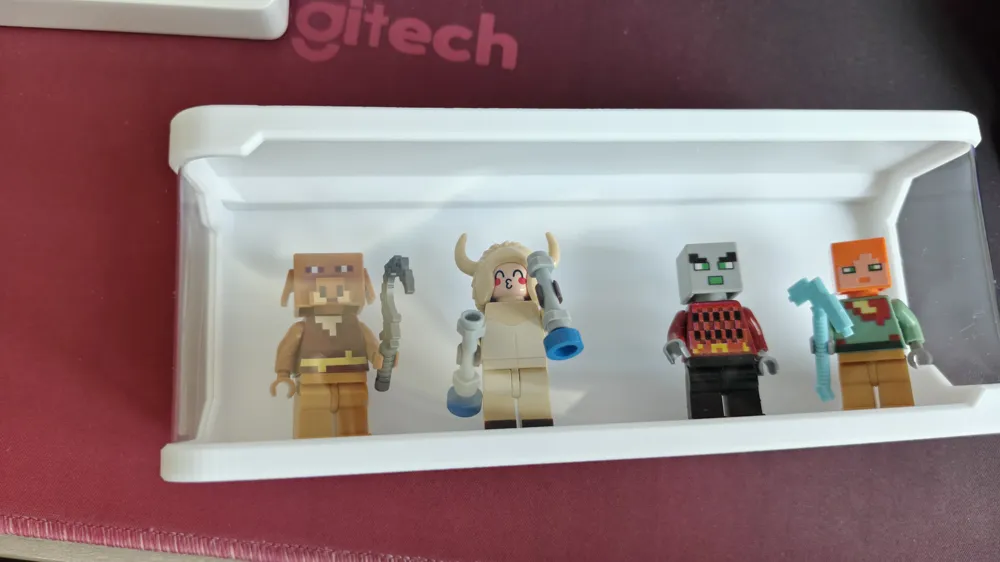

Compatible with 99% of minifigure models, both LEGO minifigures and anime figures can be placed inside

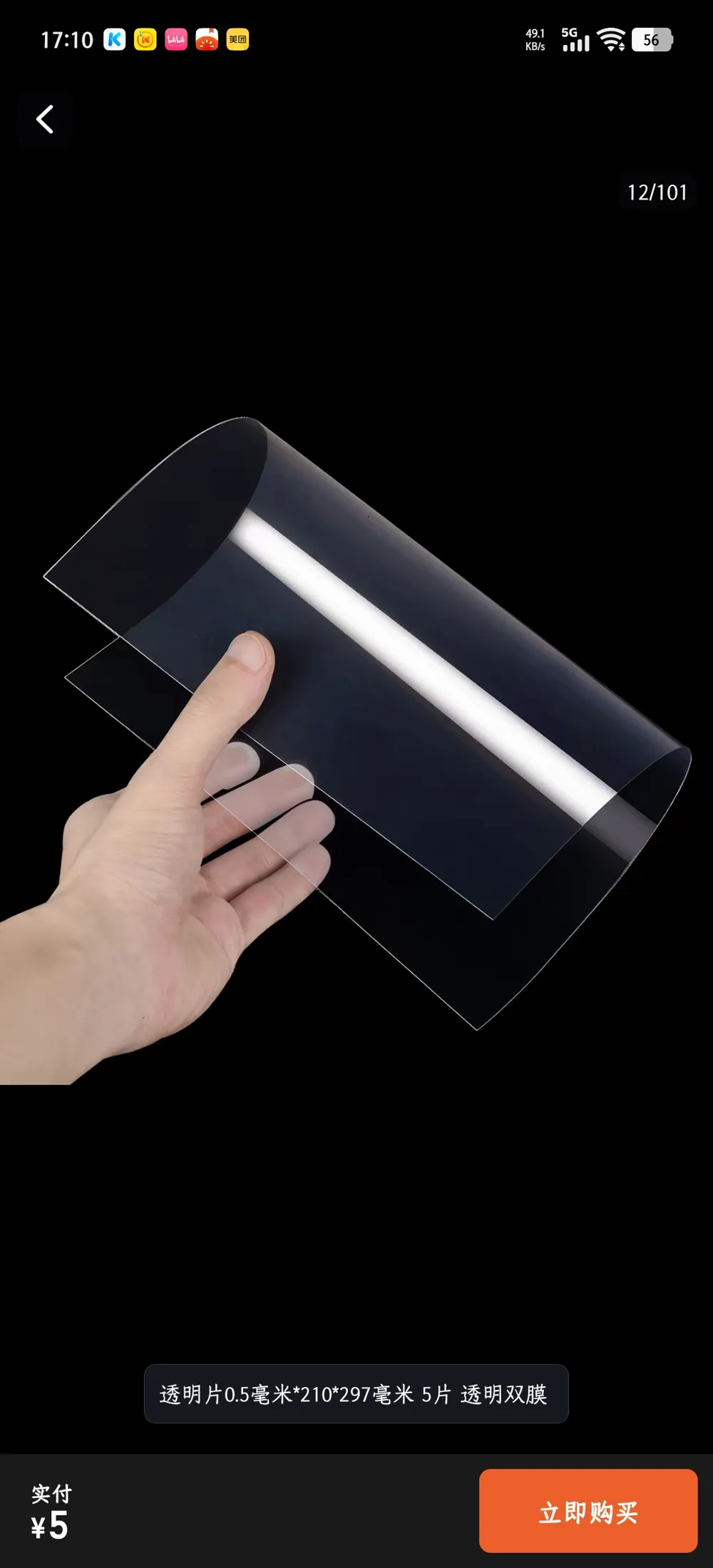

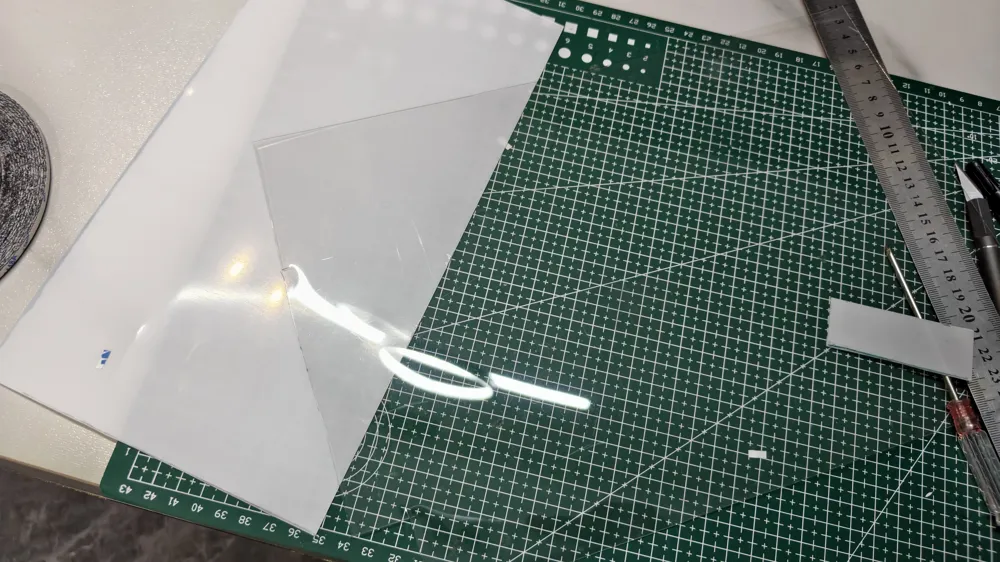

The display uses a 0.6mm PP transparent sheet, with guidance provided in the pictures above. Use a ruler to cut to 250mm length X 63mm width. When assembling, try not to peel off the protective film first to avoid scratching the PP transparent sheet. Available for purchase on Taobao Yisuda PDD

For the R-angle slots, the PP sheet needs to be bent slightly. Do not use excessive force to avoid creasing the sheet surface. After snapping it in, close the top cover beforehand. Use a hairdryer (note: not a heat gun) on a high heat setting to evenly blow hot air up and down the R-angle position to shape the PP sheet. When heating, avoid peeling off the protective film to prevent fingerprints. After blowing for 2 seconds, you must observe the change in the R-angle of the PP sheet. Once softened, it will automatically form the R-angle. Always blow for a moment, then pause and observe. Excessive high-temperature blowing can lead to severe deformation of the flat surface

(Note: Most PDD sellers require purchasing 1.2mm thick PP sheets, but these are non-standard, and the actual size is 0.6mm. If the seller does not specify the error range, it is basically a non-standard 0.6mm PP transparent sheet. PDD products are relatively cheap, about 30 for 1.2m x 2m. Make sure to buy with shipping insurance; if the dimensions are incorrect, return it directly. Taobao Yisuda has standard 0.6mm or 0.5mm sizes, but they are very expensive!!!)

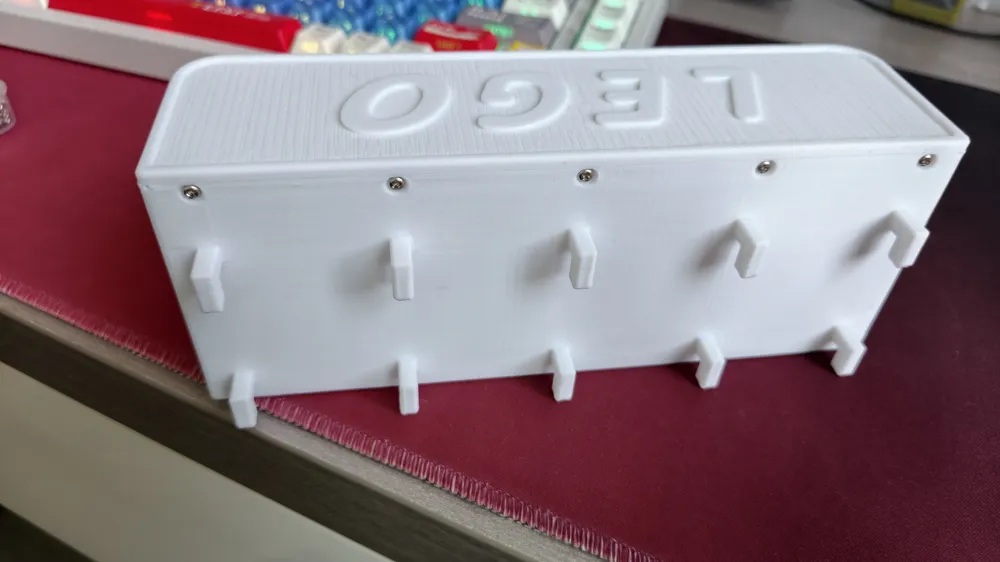

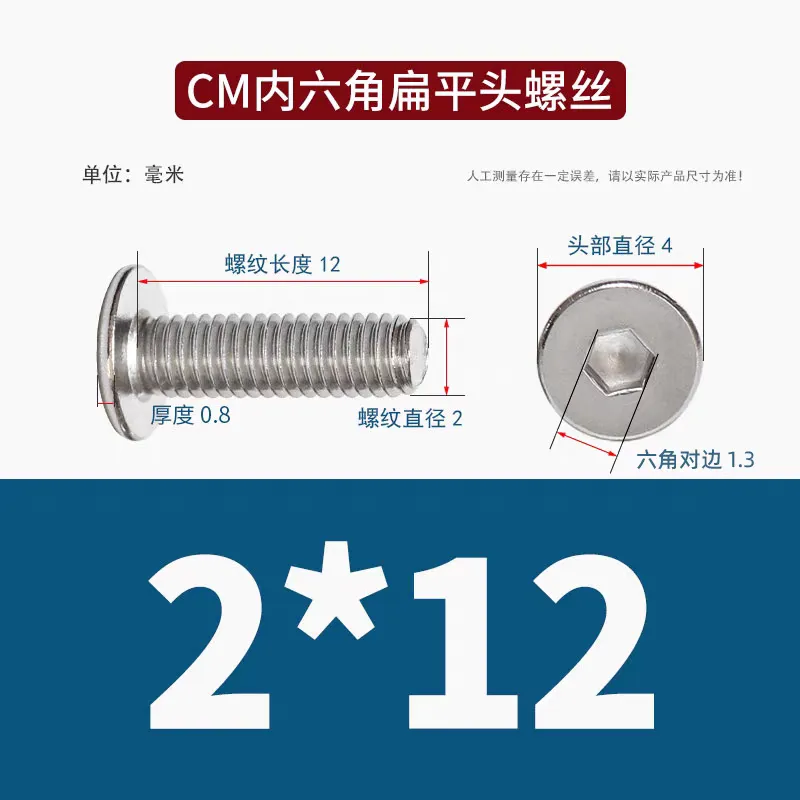

Screw usage: M2x12mm or M2x8mm screws. Try to choose flat head hex socket screws; I used round head Phillips screws. The screw cap must be within 1mm, otherwise it will not fit or will scratch the pegboard.

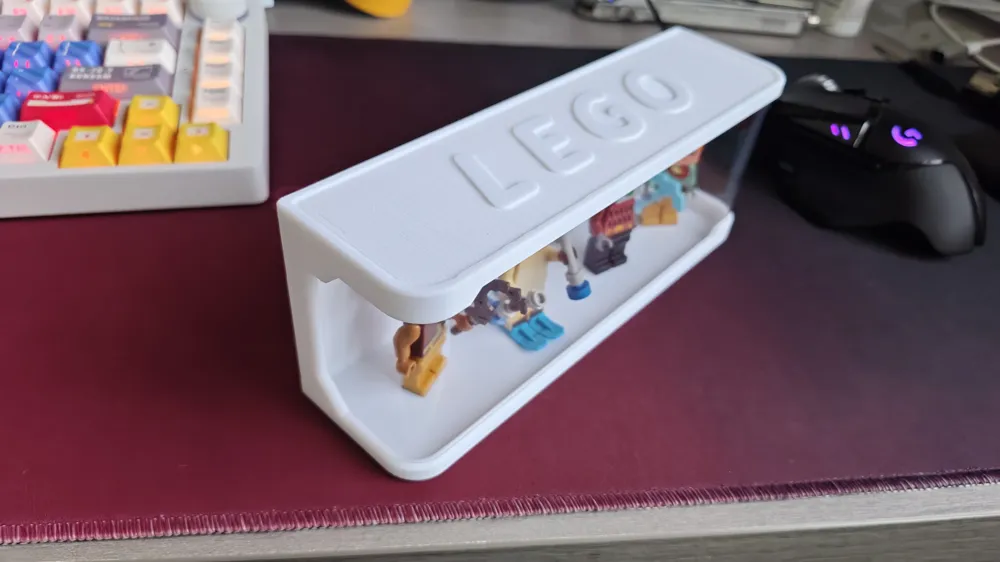

If only for desktop display, you can choose the display stand without hooks version.

More shared models are available on the homepage. Thank you for your support!!!
