Description

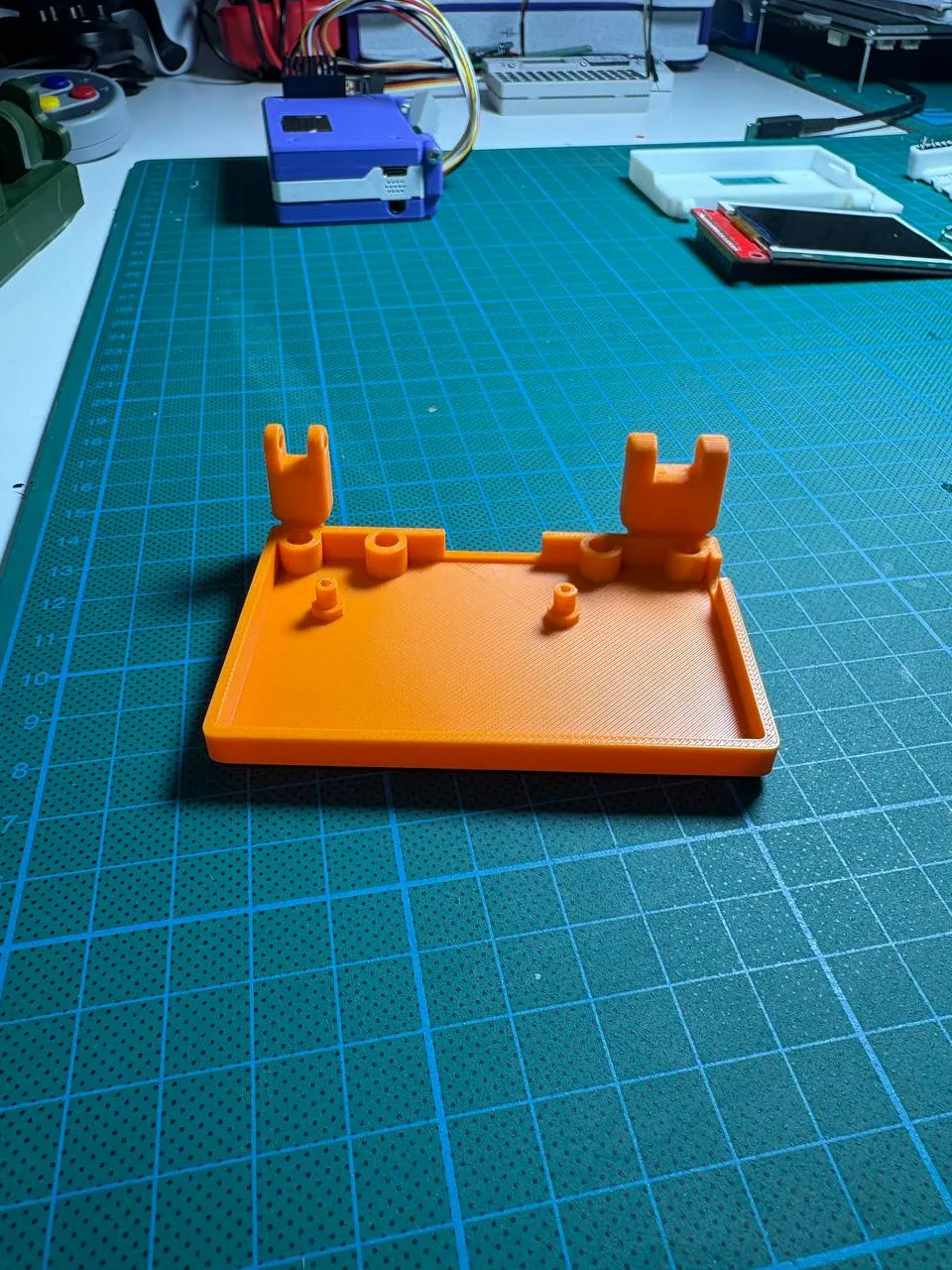

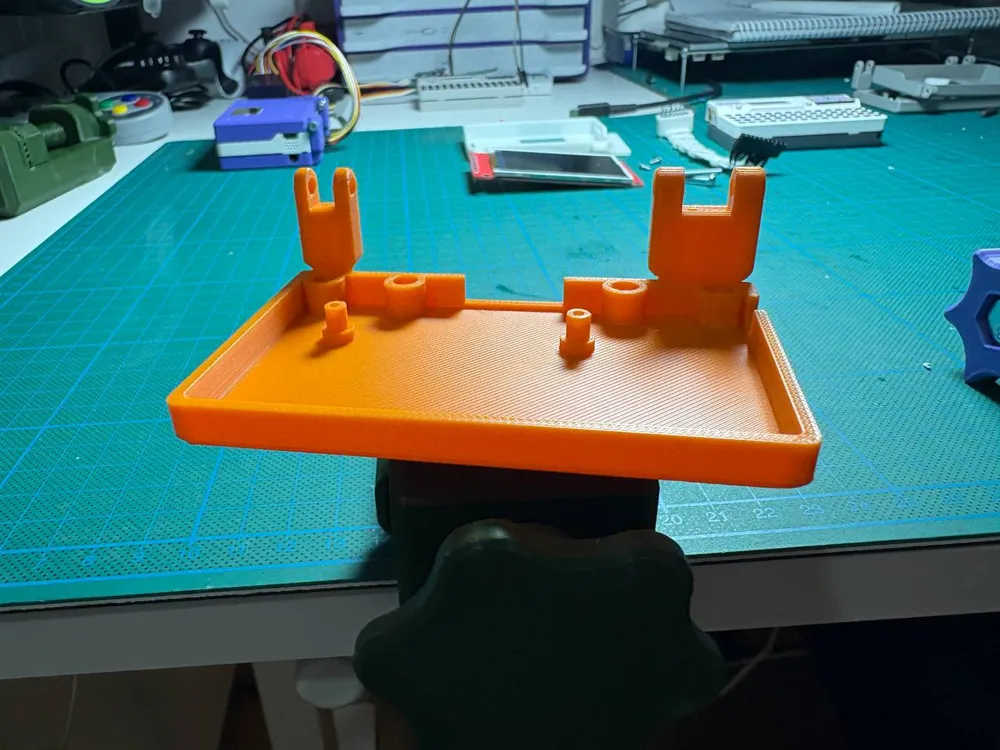

This is the universal bottom cover for my Cardputer ADV external display mods.
The design includes integrated hinges and works with both of my display versions:
- 2.4” display version
- 2.8” XL display version

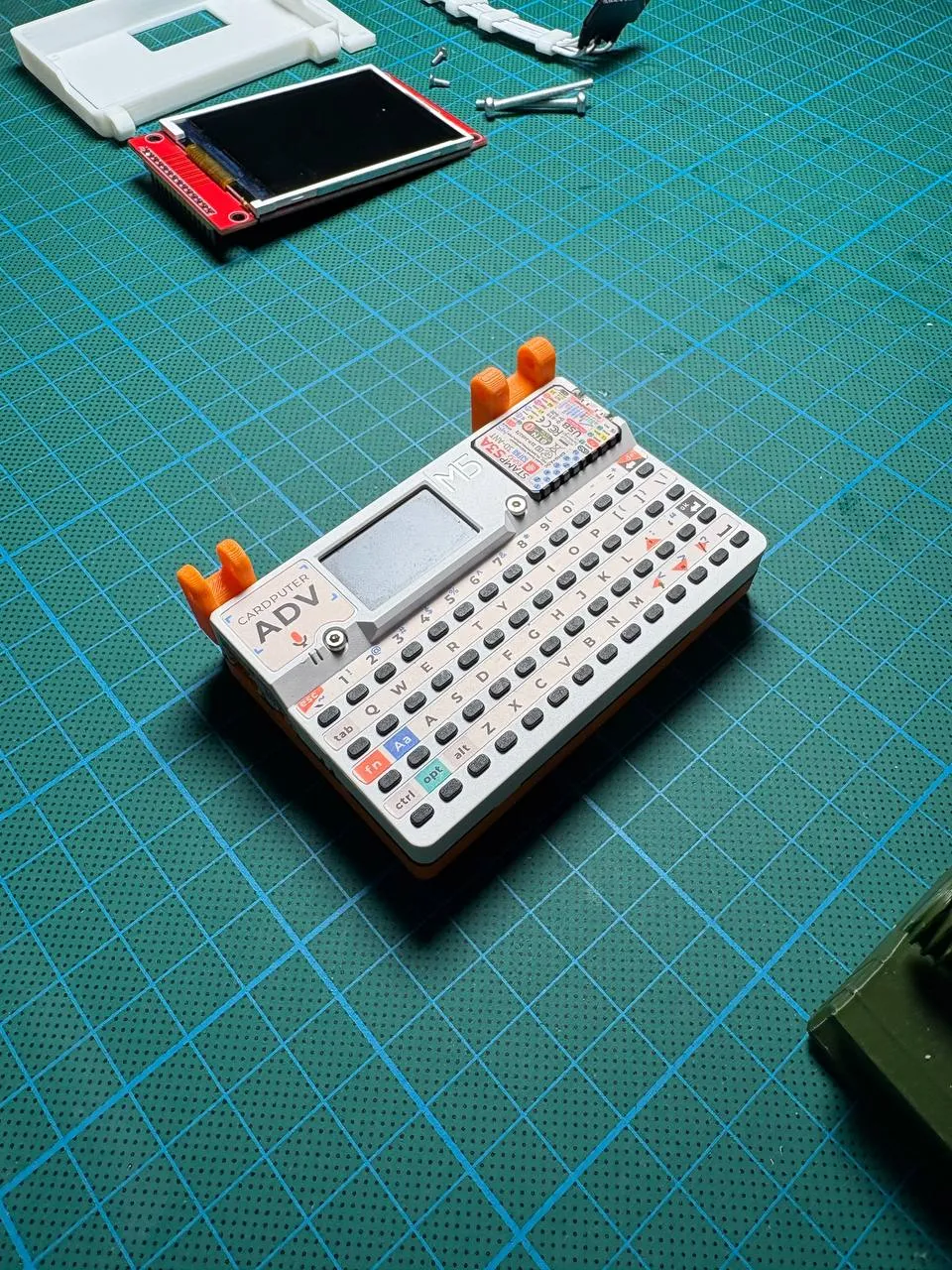

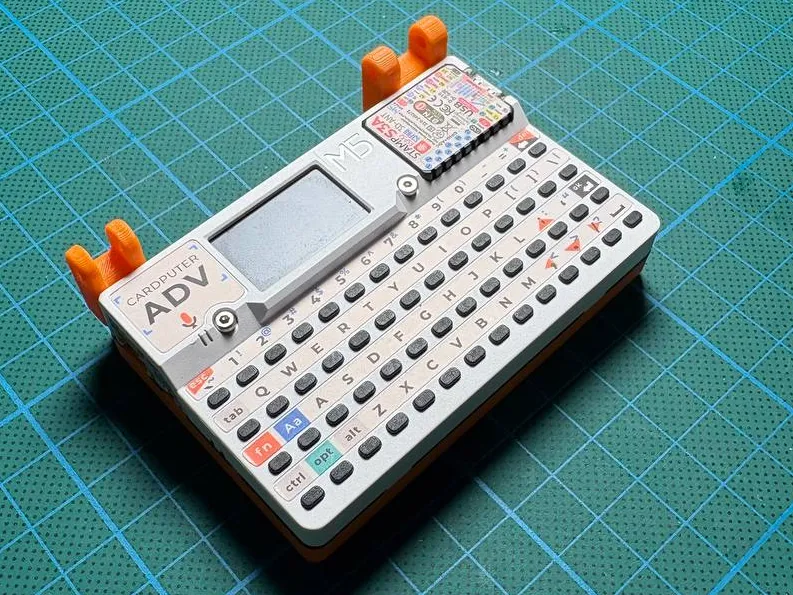

Instead of modifying the original Cardputer case, this part fully replaces the bottom cover while keeping the mod reversible and clean.

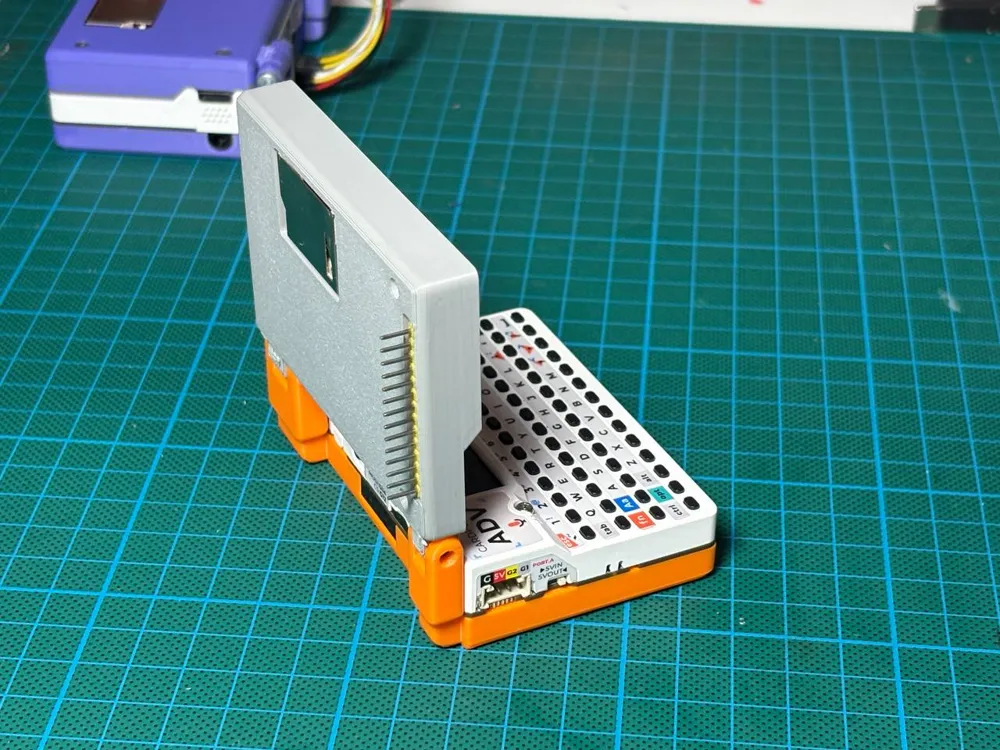

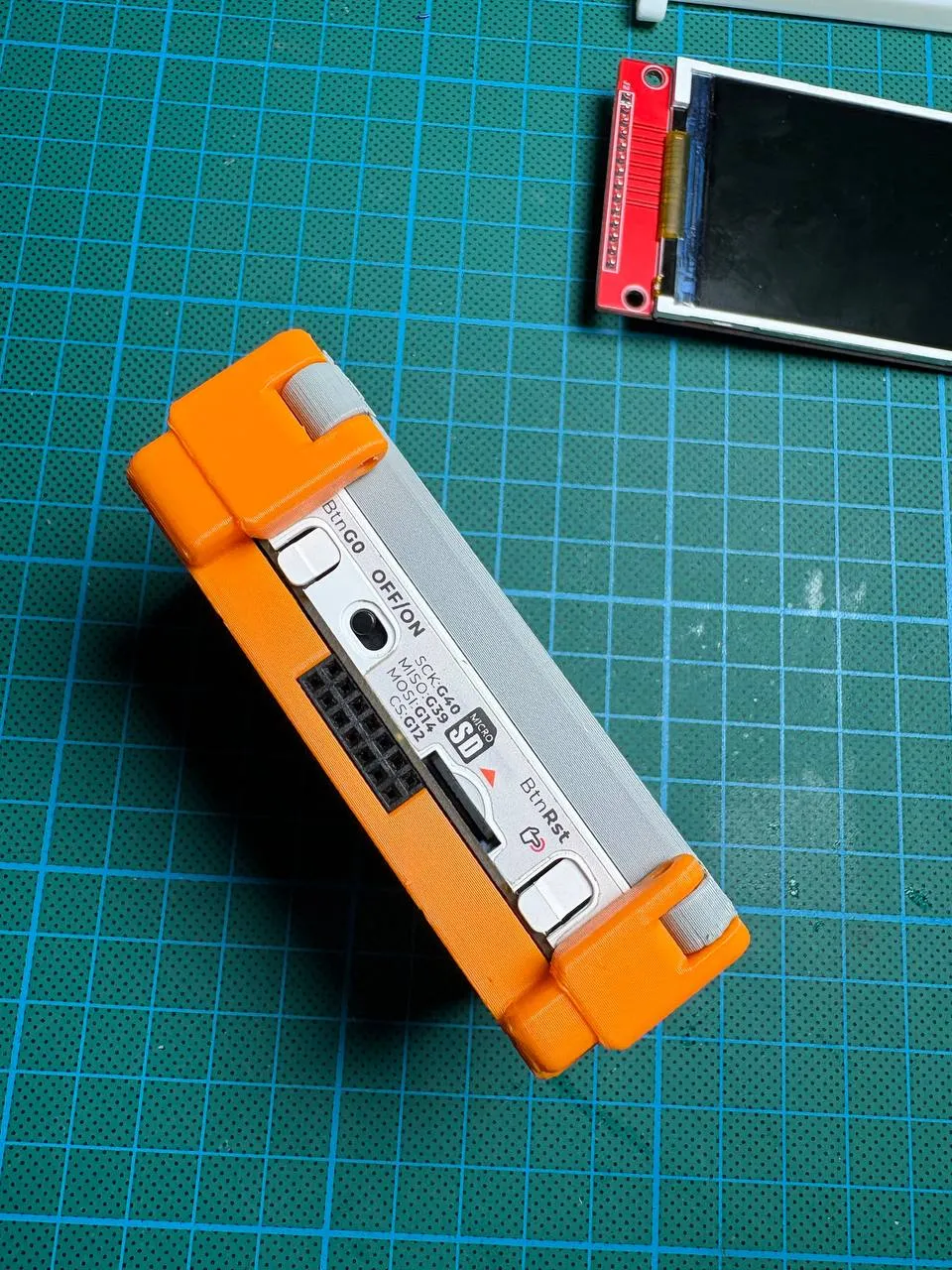

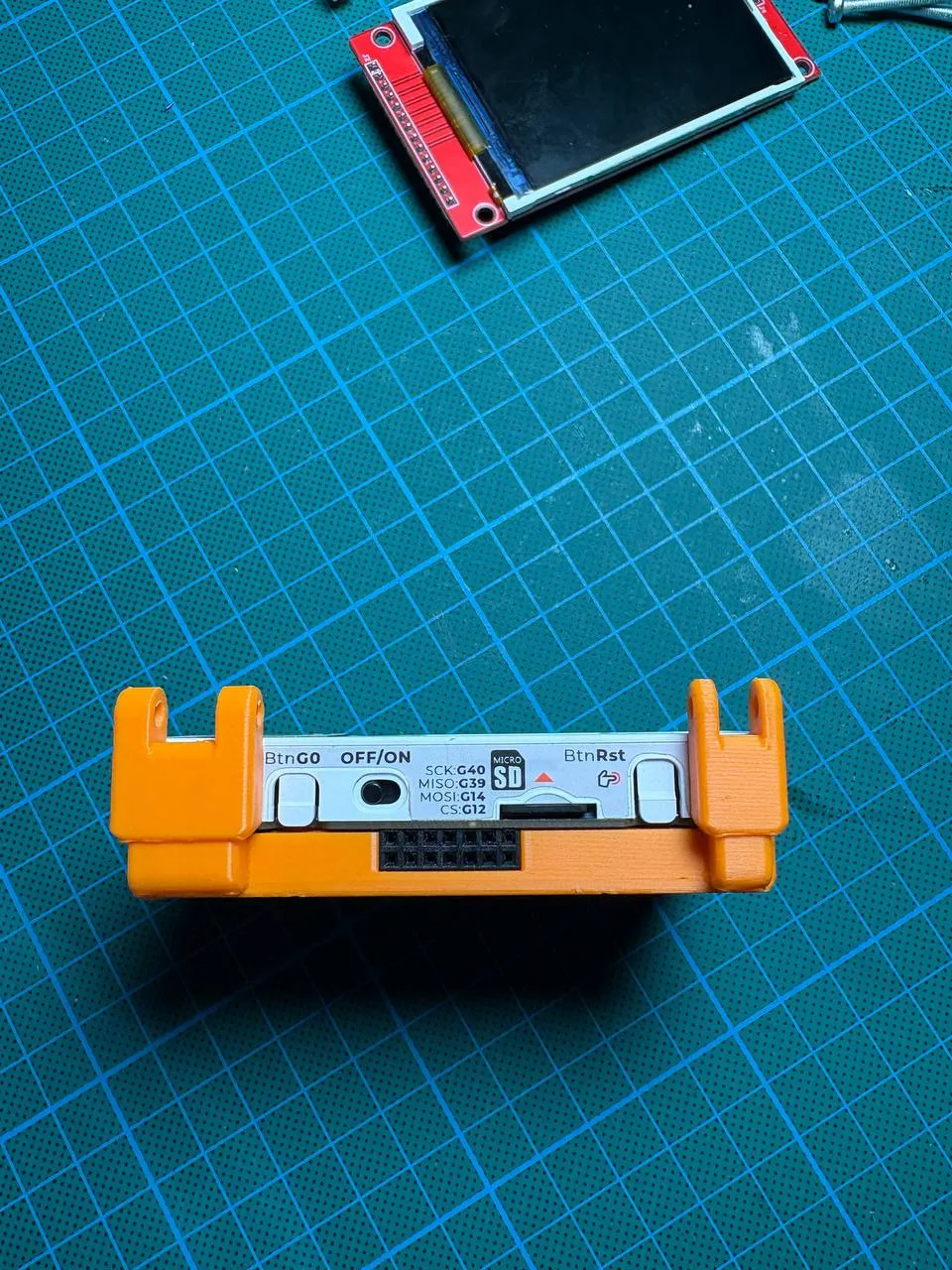

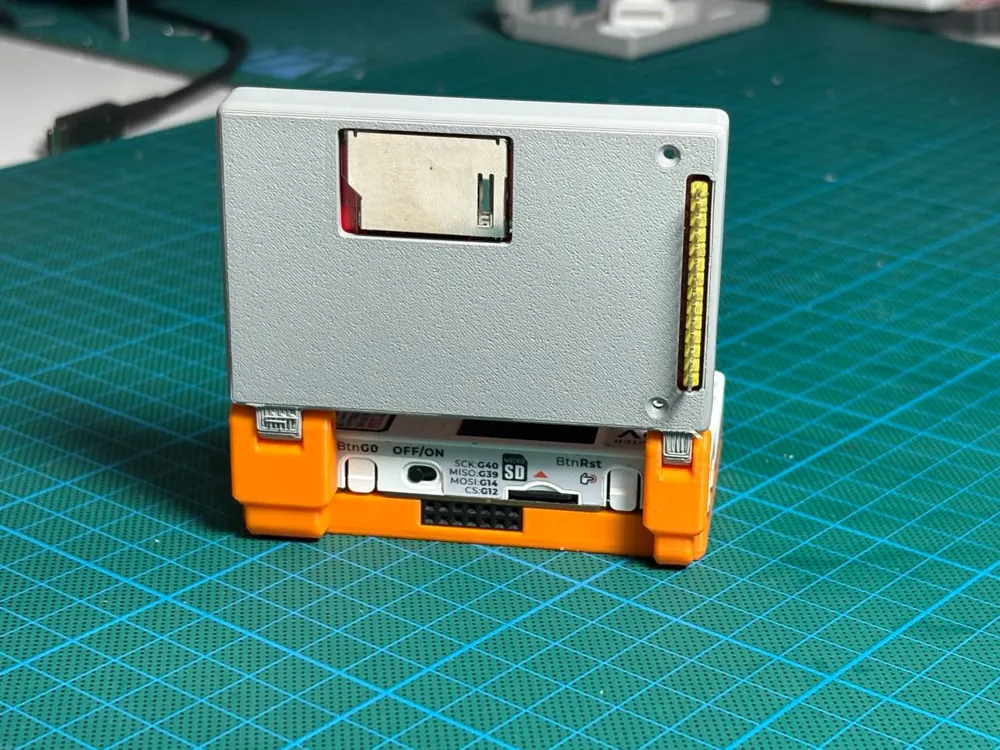

The hinge mechanism is built directly into the model, allowing the display assembly to open like a Nintendo DS.
## Features
- Compatible with both display mod versions
- Integrated hinge system
- Fully reversible modification
- Designed specifically for Cardputer ADV
- Nintendo DS-style opening mechanism
## Hardware
- Uses standard M3 screws for hinge axes
## Printing Notes
- Supports required
- Drill hinge holes with a 3 mm drill after printing
- Carefully remove supports around hinge areas
## Important Notes
- Prototype design — future revisions are possible
- Designed for my custom Cardputer ADV display mods
