IKEA Style Pegboard
Print Profile(3)
Description

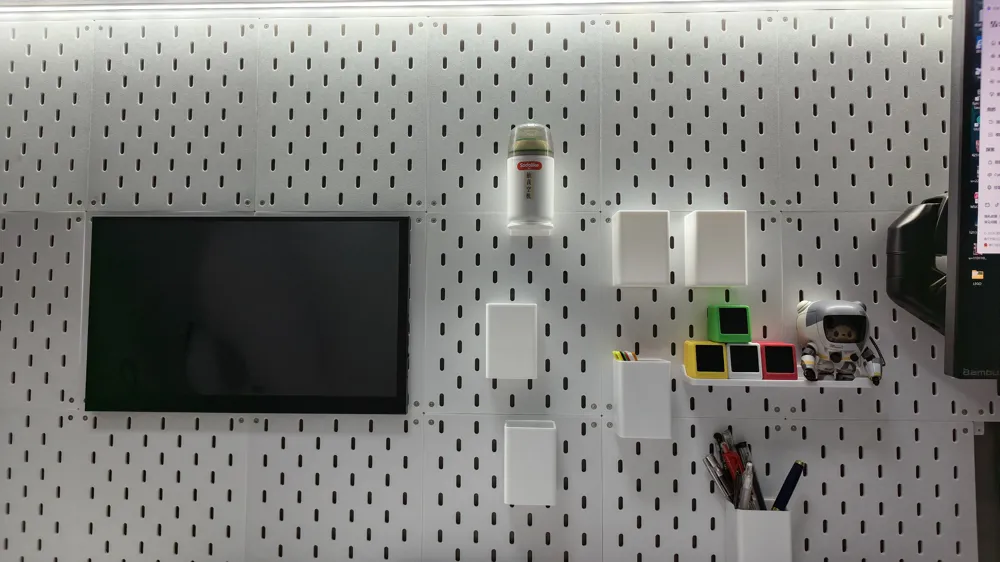

Multi-size 4mm IKEA Style Pegboard
This ultra-thin 4+6mm 4+9mm pegboard is available in 180x180, 200x200, 230x200 sizes. It won't take up too much desk space by protruding excessively and also saves on filament costs. Each board averages about 120g; print as needed.

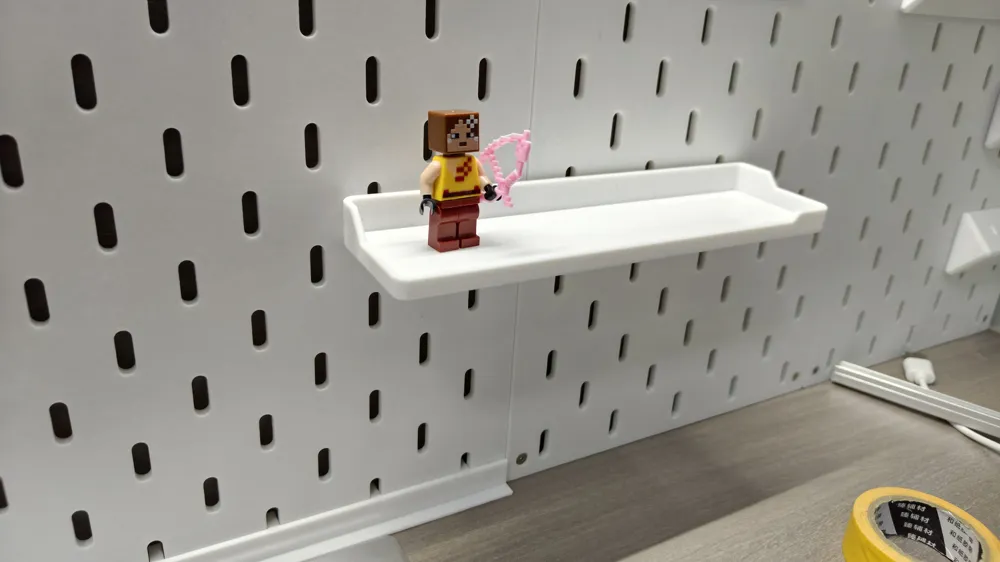

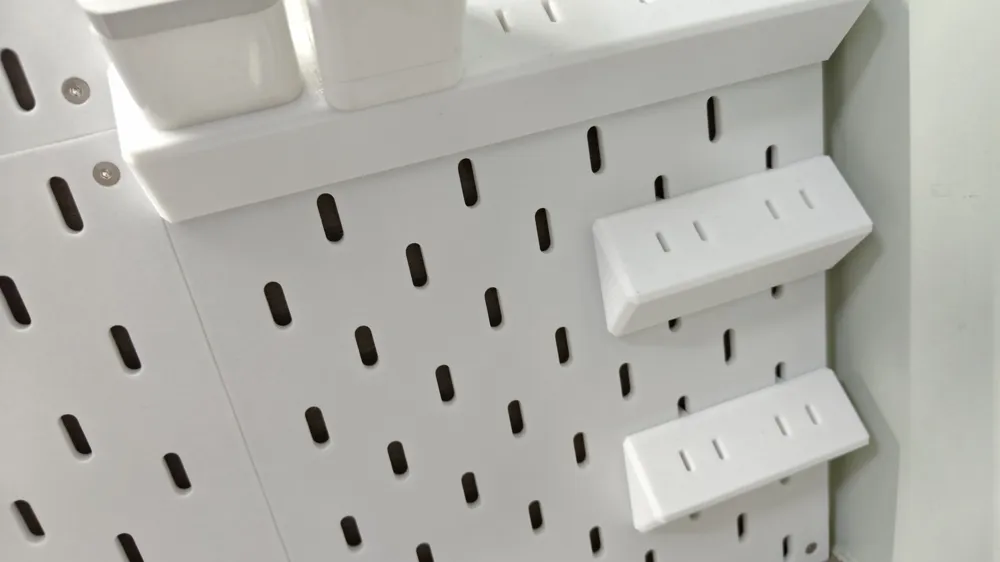

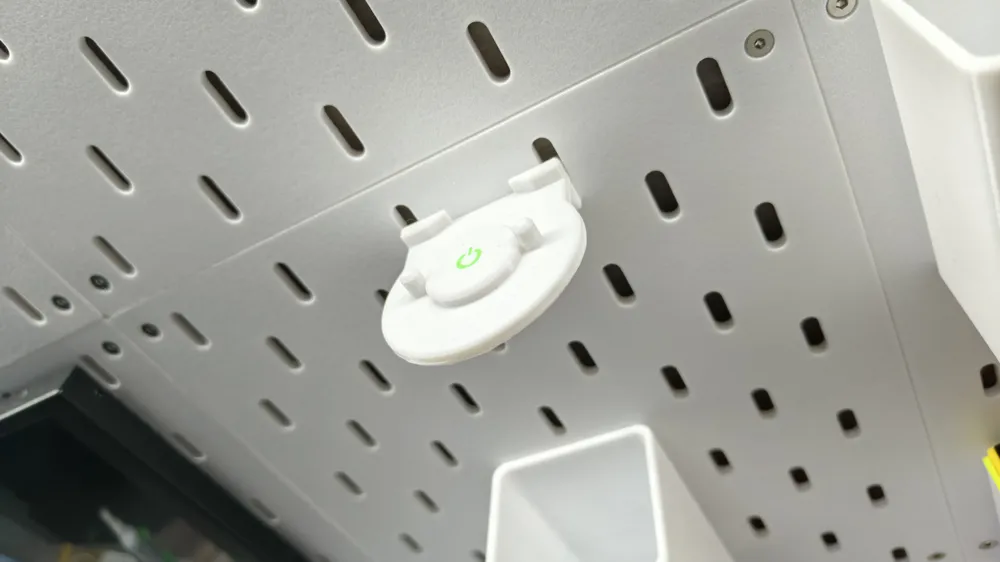

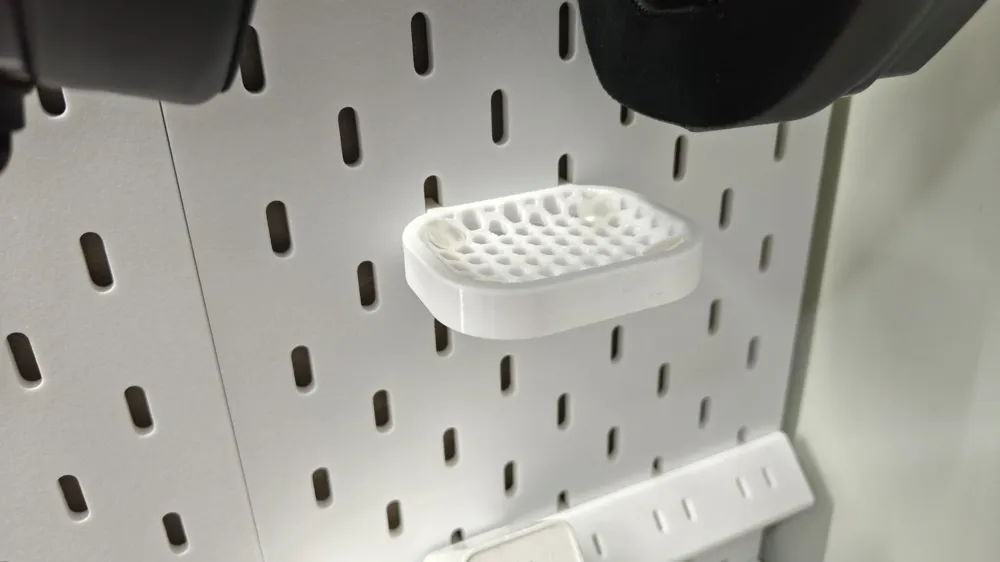

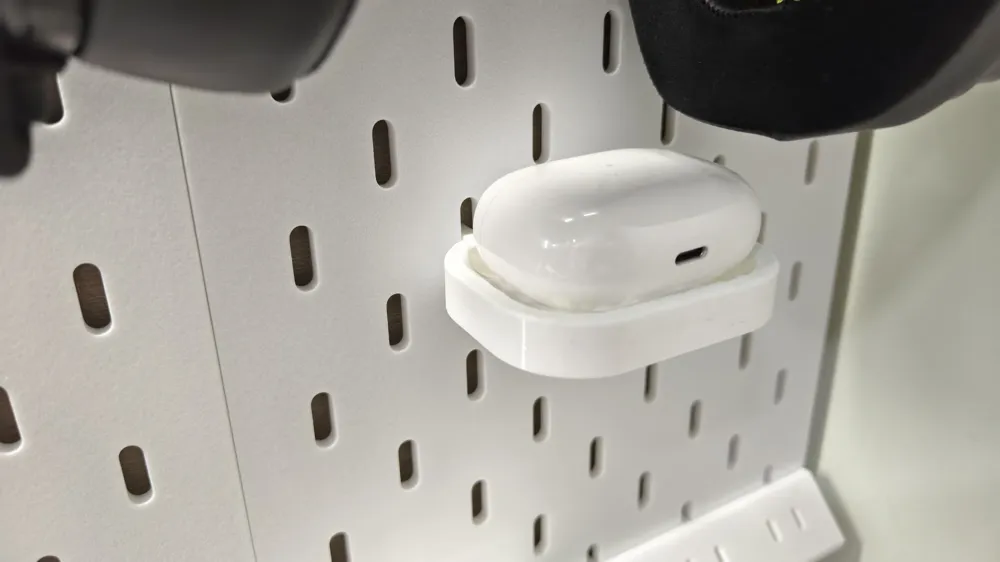

Various small storage parts can be downloaded and printed from the homepage
If you have any questions, leave a comment or join the QQ group: 319315012

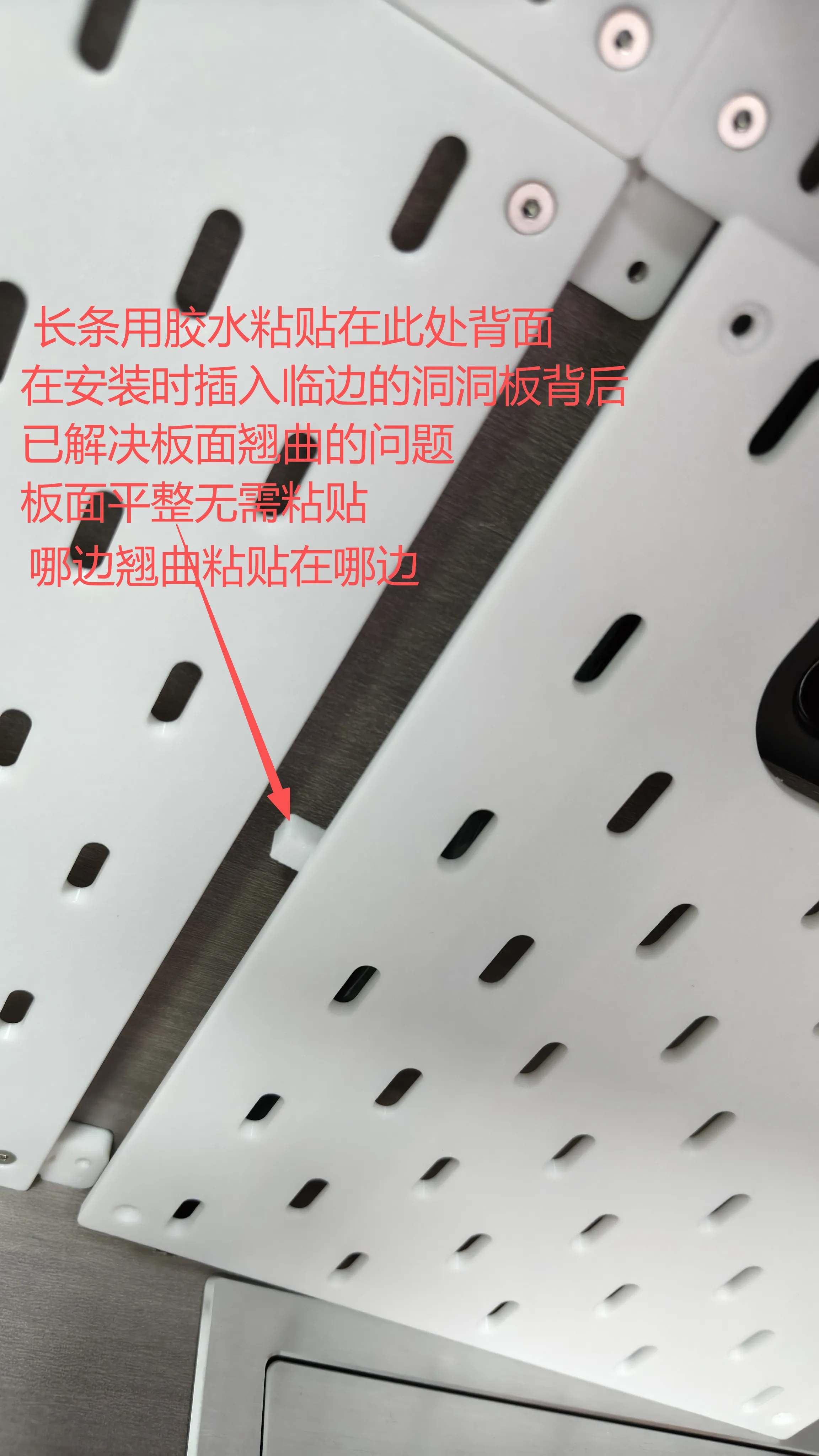

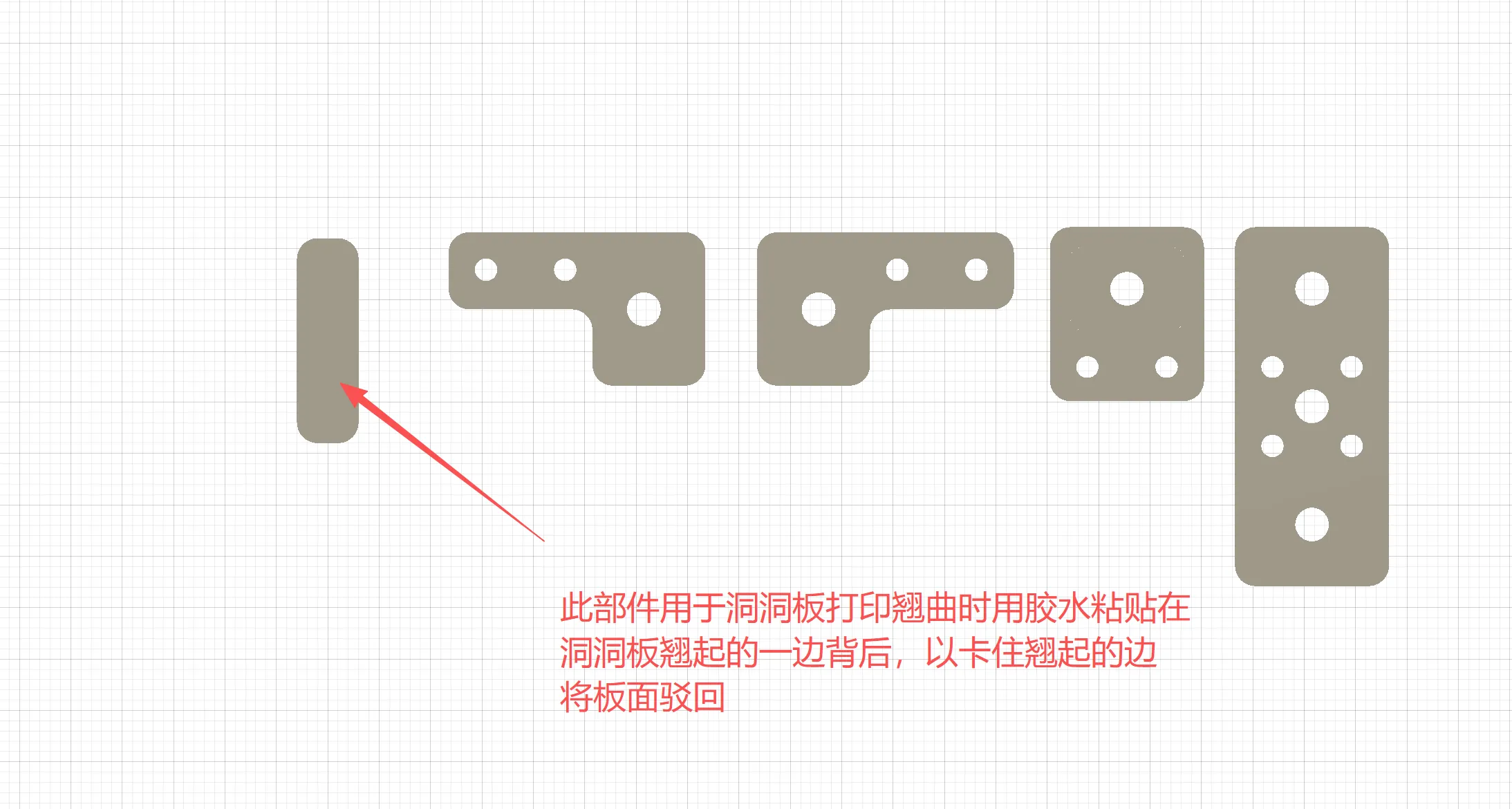

Note: The board may warp during printing. You need to use a rectangular correction block without holes with glue to adjust the flatness of the board surface. Glue the side that is warped. Insert and install after the glue dries.

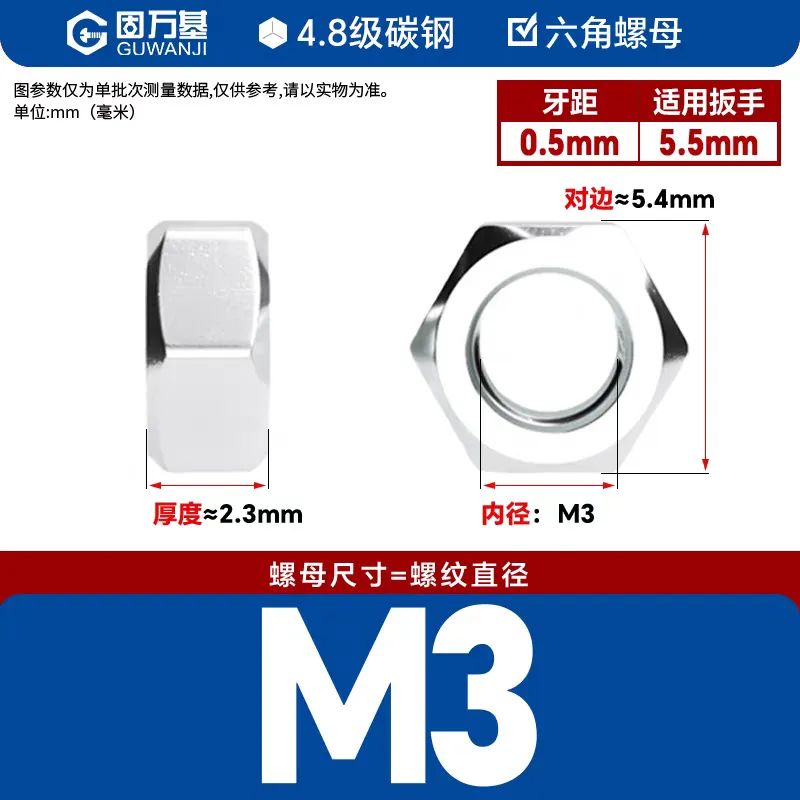

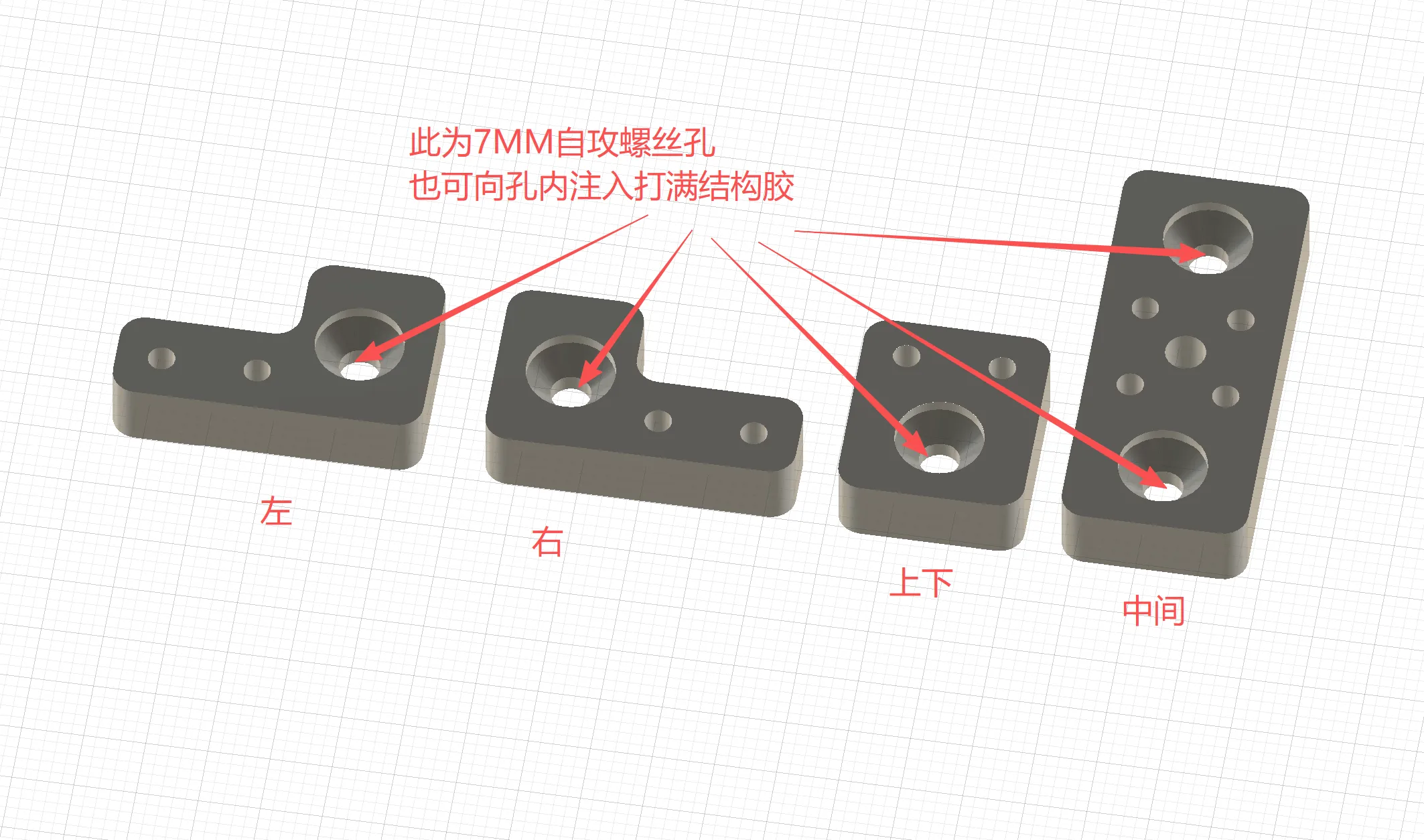

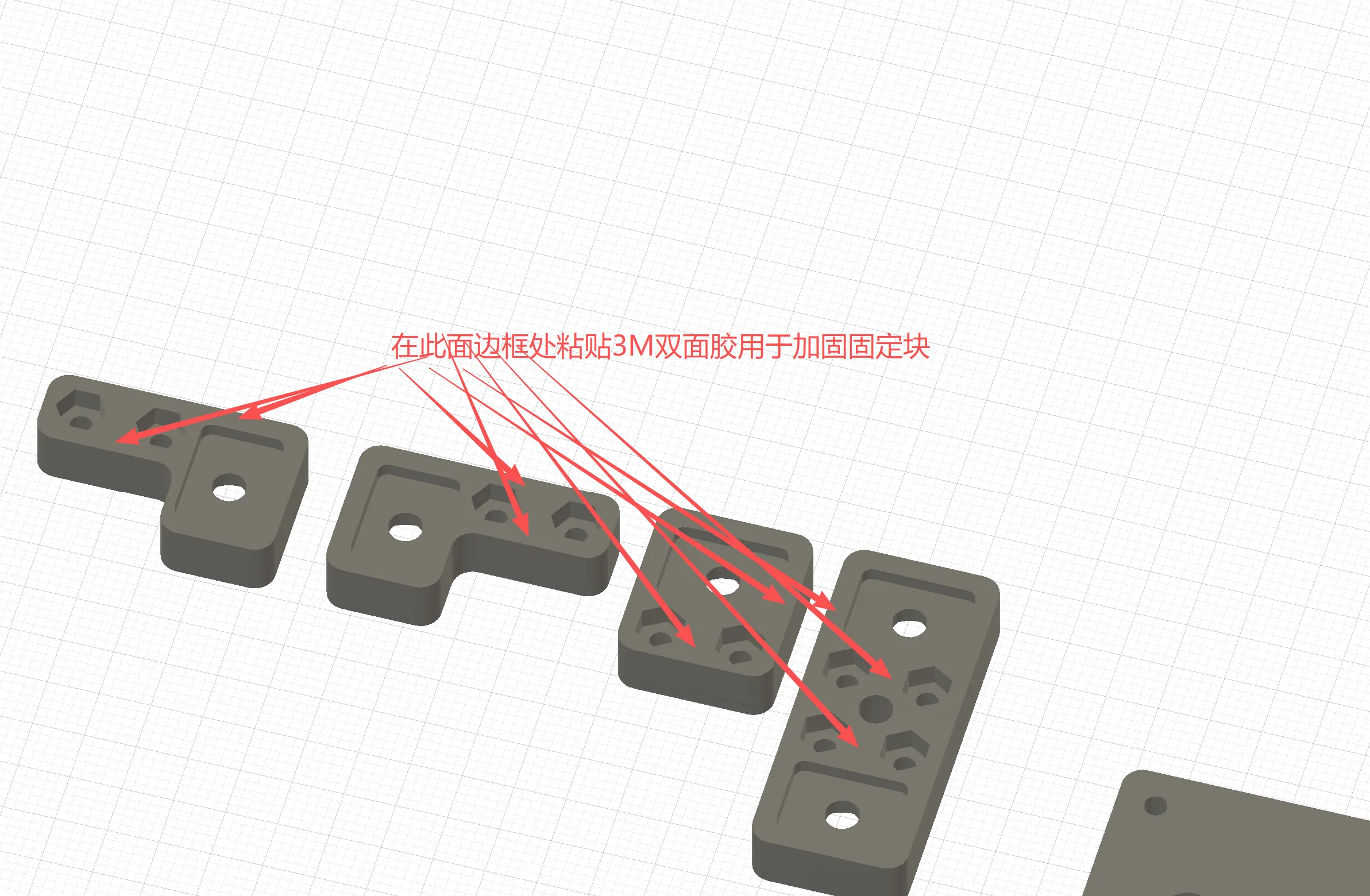

Make sure to differentiate the left and right board pads, as they are marked. The pads have 3.3mm holes for injecting structural adhesive or directly driving self-tapping screws. The frame is fixed to the wall with 3M double-sided tape to facilitate glue injection or screw installation. 3M double-sided tape can be applied to all positions after installing nuts, except for the glue injection points.

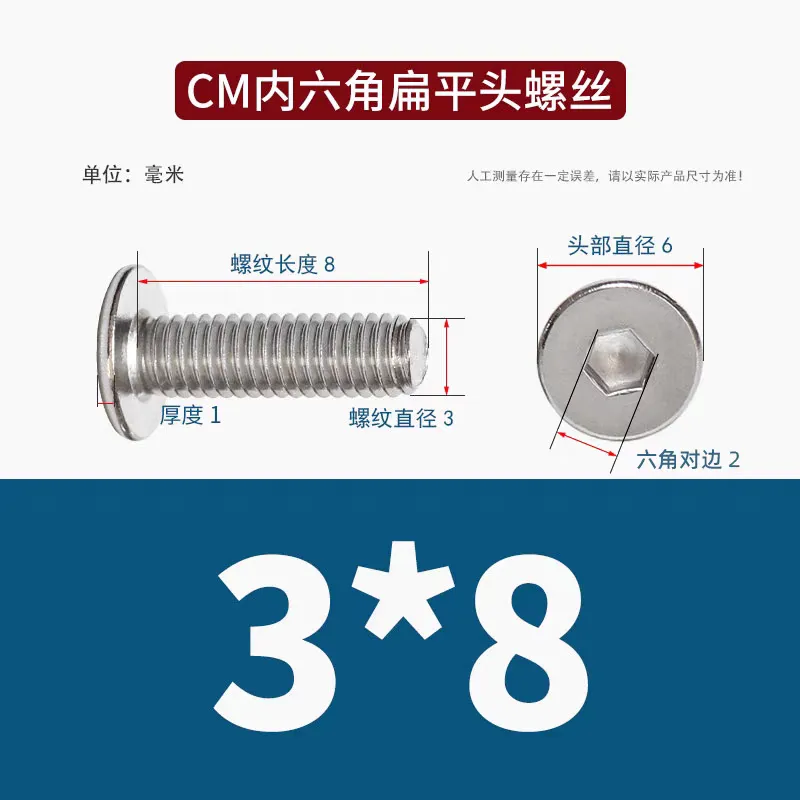

6MM pads must use M3x8mm screws, and 9MM pads must use M3x12 screws, otherwise, the pegboard pads may be pushed off.
If there is a concave area in the middle, a rectangular correction block can also be used for adjustment.
If you have questions, join the QQ group: 319315012
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
