Redcat Ascent 18 Scout II Battery Tray Relocation
Print Profile(1)
Description

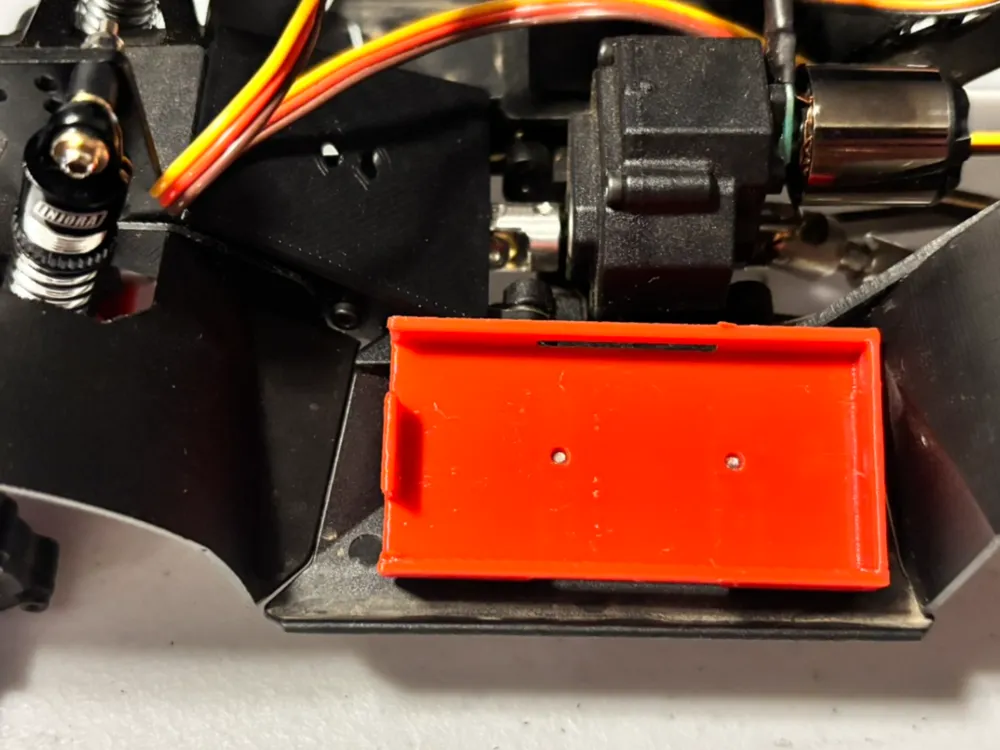

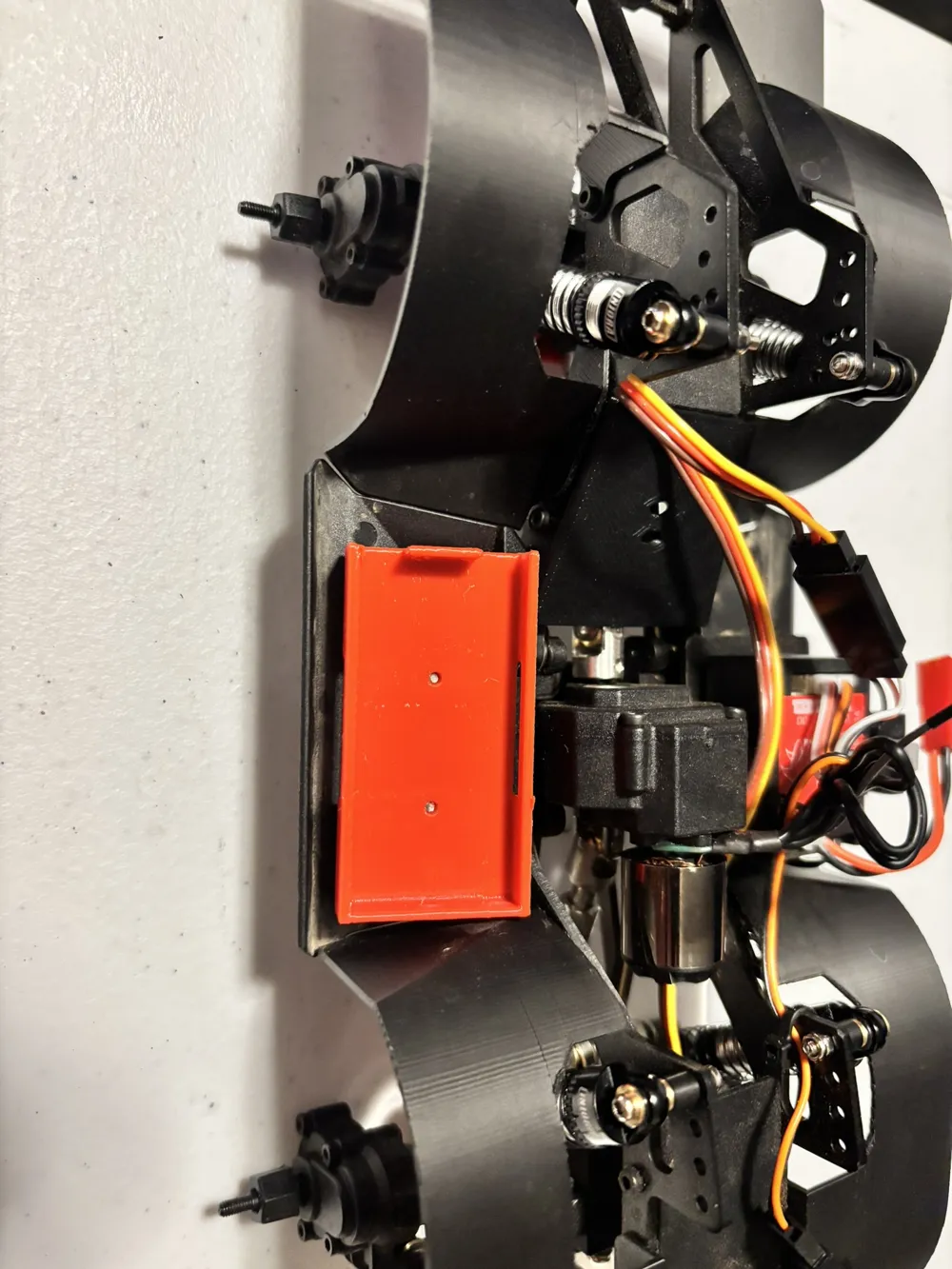

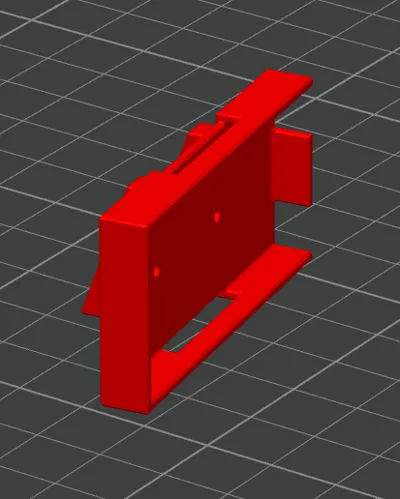

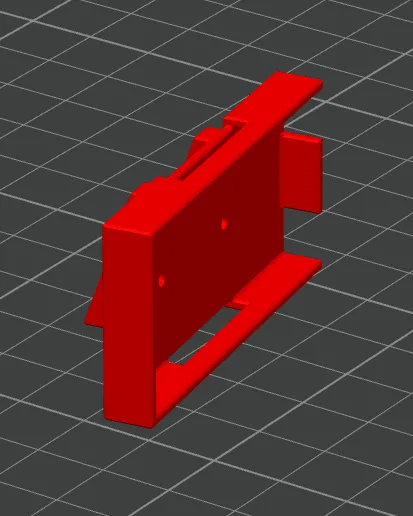

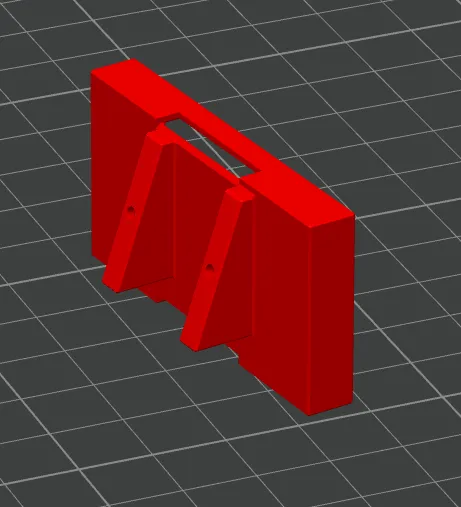

Battery tray relocation piece. relocates battery tray to the slider. 2 holes must be drilled and 2x socket or button M2 screws for mounting. utilizes original velcro strap. Use the thru-hole to drill a small pilot hole once lined up, then drill out the slider to 2-2.1mm, then install hardware.
Tray size is 50x24.6 internal size. smaller battery than stock. 450mAh is what i designed it around.
