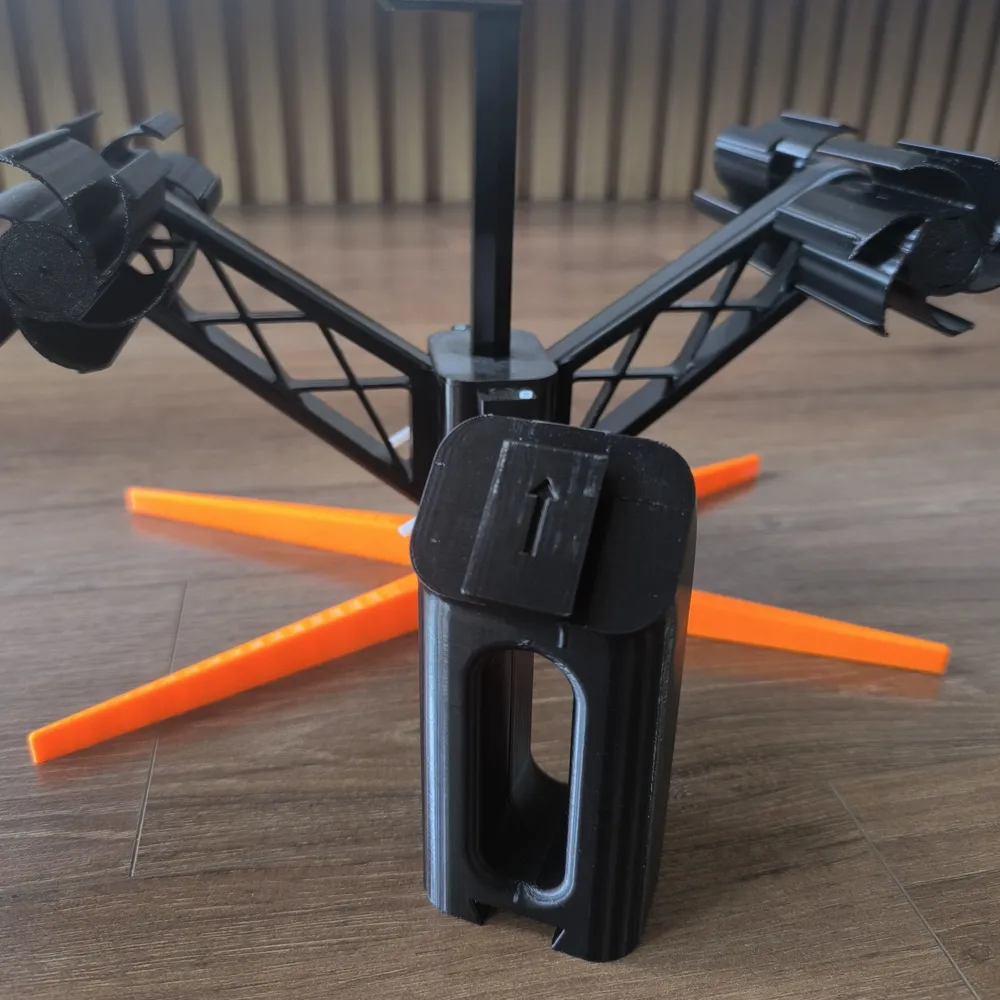

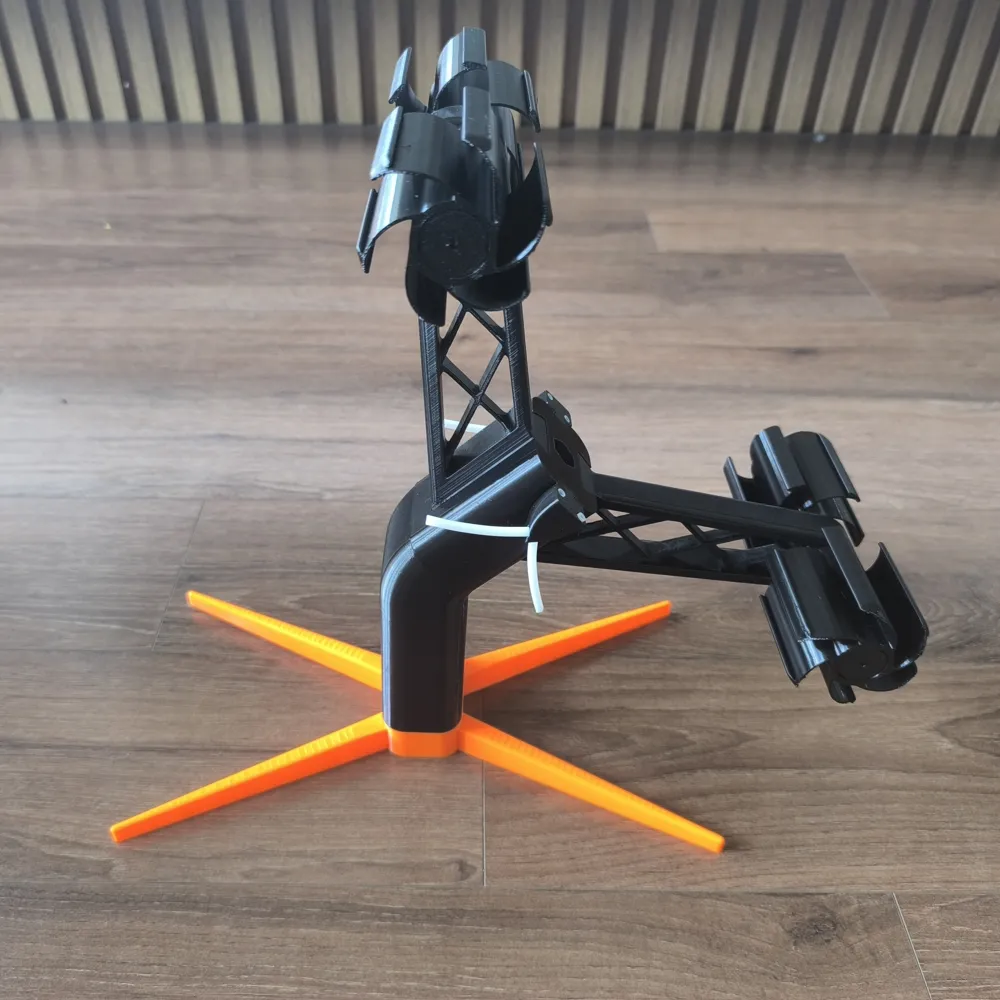

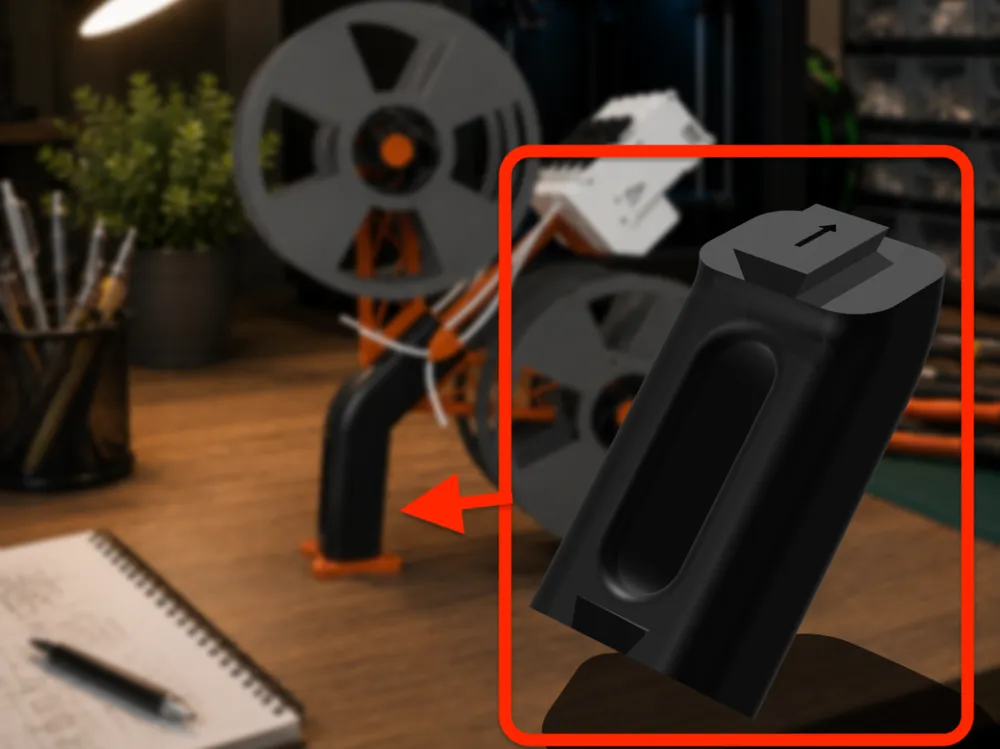

45° Angled Mount – Spool Holder part
Print Profile(1)
Description
The Angled Mount is a specialized module designed to enhance the ergonomics and functionality of your filament management system. By tilting the spool holder at a precise 45-degree angle, it optimizes space and improves the feeding path for multi-material setups.
👉 Download the complete Modular Spool Holder V2 system here: https://cults3d.com/:3313701
🚀 Why Use the Angled Mount?

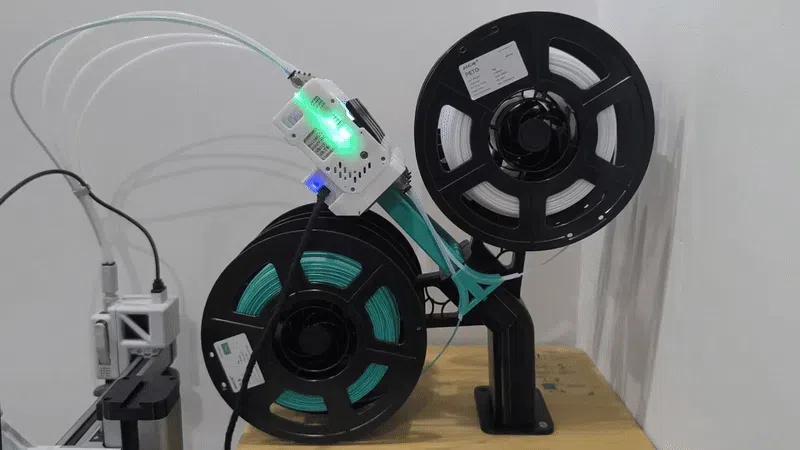

- Optimized Filament Path: Perfect for AMS or BMCU 370 users. The 45° tilt reduces tension on the filament as it pulls into the feeder, ensuring smoother extrusion and fewer retractions issues.
- Space Efficiency: Ideal for tight spaces or shelf mounting where a vertical setup might be too tall or difficult to access.
- Ergonomic Access: Makes swapping spools much easier when the holder is mounted high on a wall or inside a printing cabinet.
- Seamless Compatibility: Built with the V2 "No-Screw" slide-in rails, it fits perfectly between your Wall/Desk base and the main Base Mount.
🛠 Installation Instructions
- Primary Connection: Slide the Angled Mount into the tracks of your Wall Base Mount or Stand Leg.
- Holder Integration: Slide your Base Mount (the central hub) into the top guide tracks of the Angled Mount.
- Security Check: Ensure both slide-in connections are fully seated. The weight of the spool will naturally help lock the tapered dovetail joints in place.
