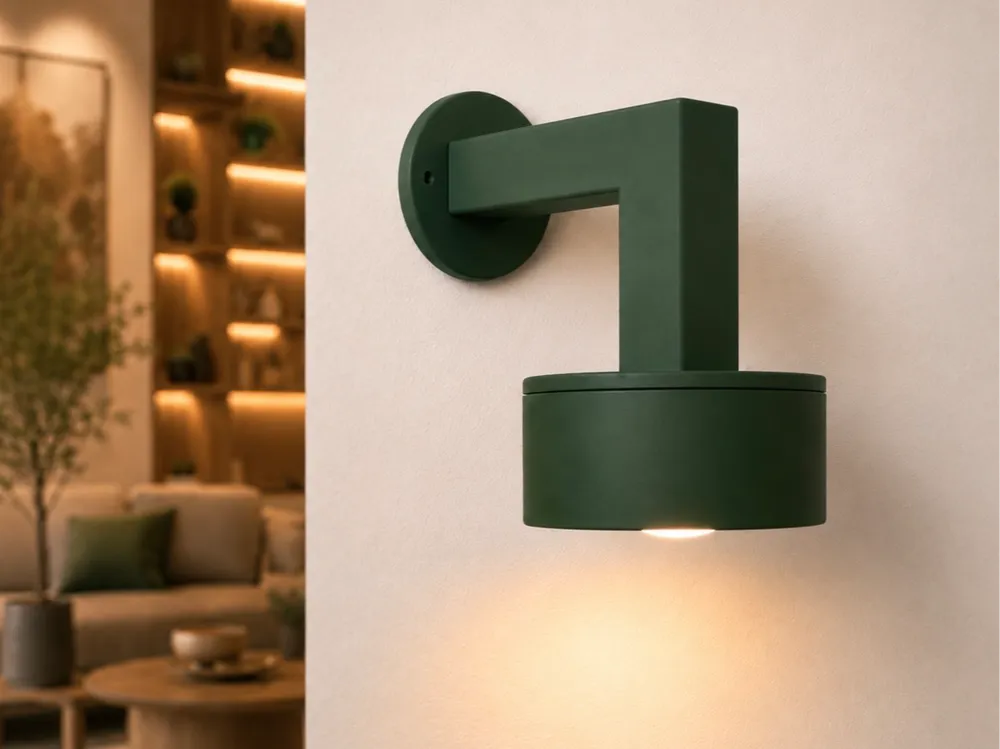

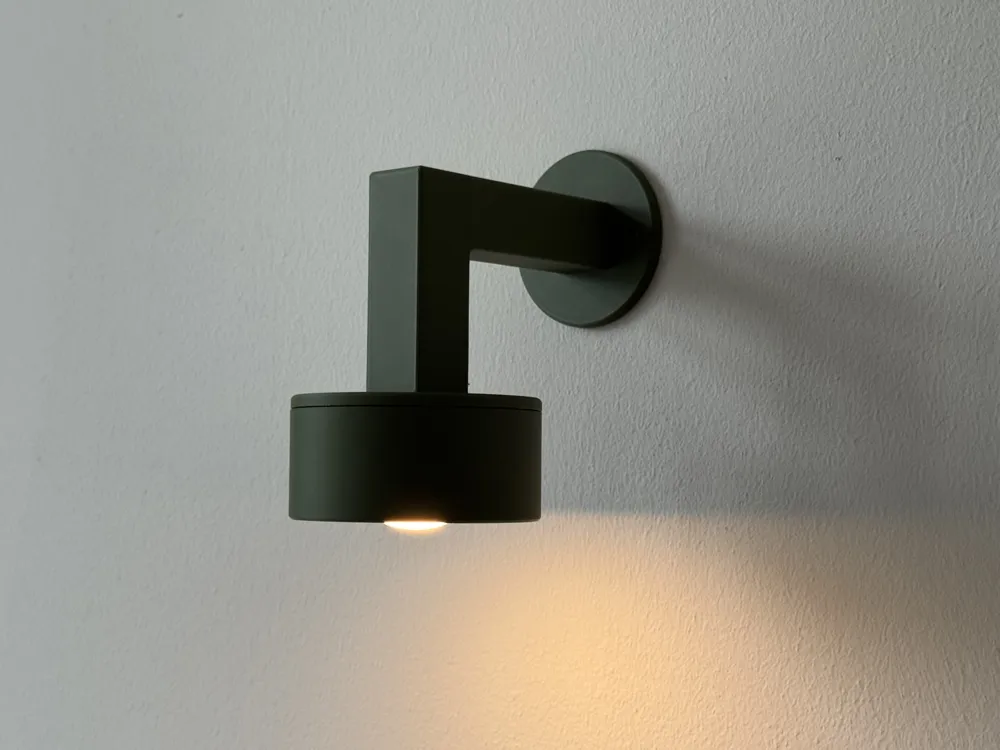

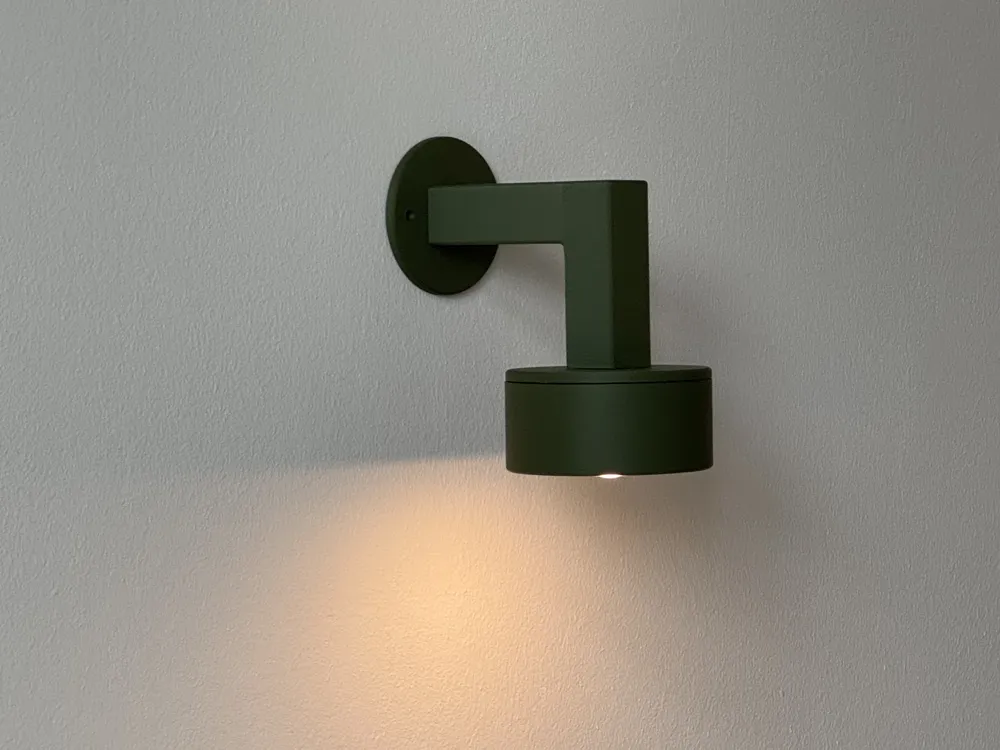

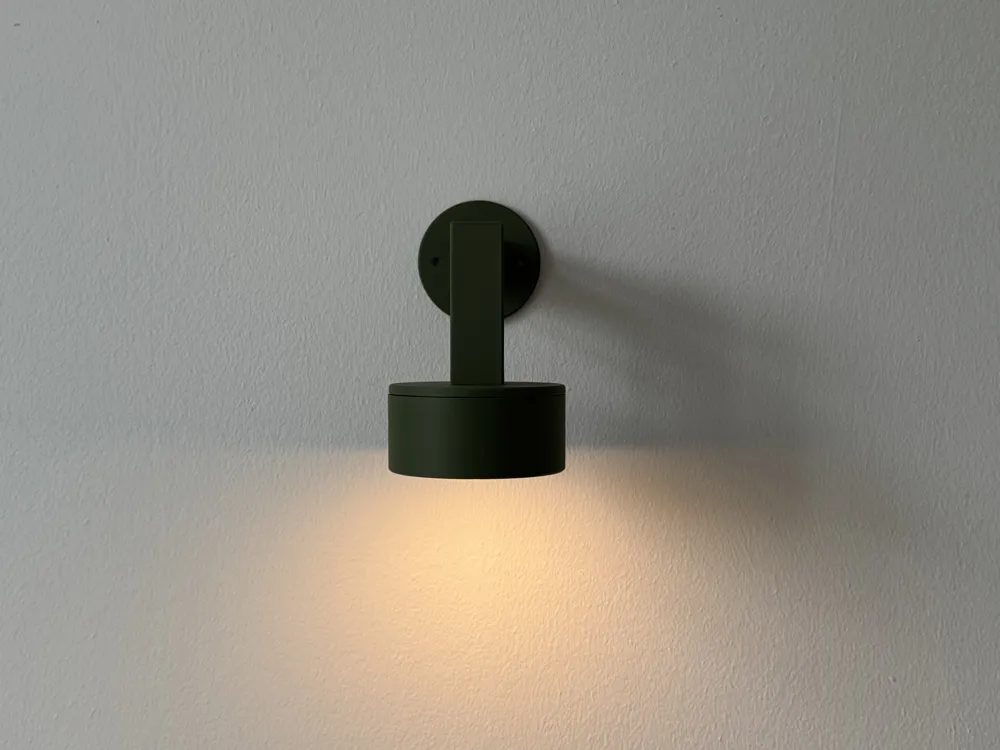

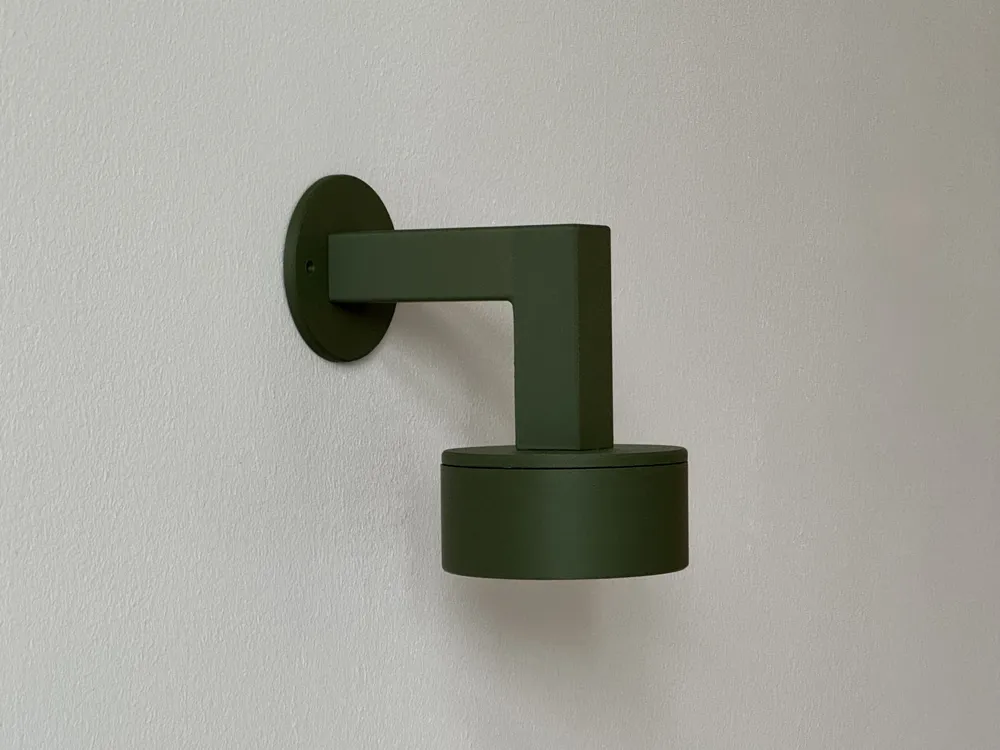

A modern battery-powered LED puck wall sconce designed for the Bambu Lab KC007 LED Puck.
This wall lamp combines a clean minimalist shape with a slightly industrial look, making it a stylish lighting accent for bedrooms, living rooms, hallways, desks, or cozy ambient corners.
The lamp is fully 3D printed in three main parts and uses printed threads for assembly — no glue required. The KC007 LED puck simply sits inside the dedicated holder, while the screw-on cover keeps it accessible at all times. This makes battery changes quick and easy without removing the entire lamp from the wall.
With the included KC007 remote control, the lamp can be switched on and off easily, and color changes can be controlled at any time.
⸻
Features
- Modern wall-mounted LED puck lamp
- Designed for the Bambu Lab KC007 battery-powered LED puck
- Clean minimalist / industrial design
- No wiring required
- No glue required
- Printed threaded connections
- Easy access for battery replacement
- Remote control compatible
- Warm ambient wall lighting
- Suitable for living rooms, bedrooms, hallways, offices, or bedside use
⸻
Dimensions
Approx. overall size including wall mount:
100 × 160 × 165 mm
⸻
Assembly

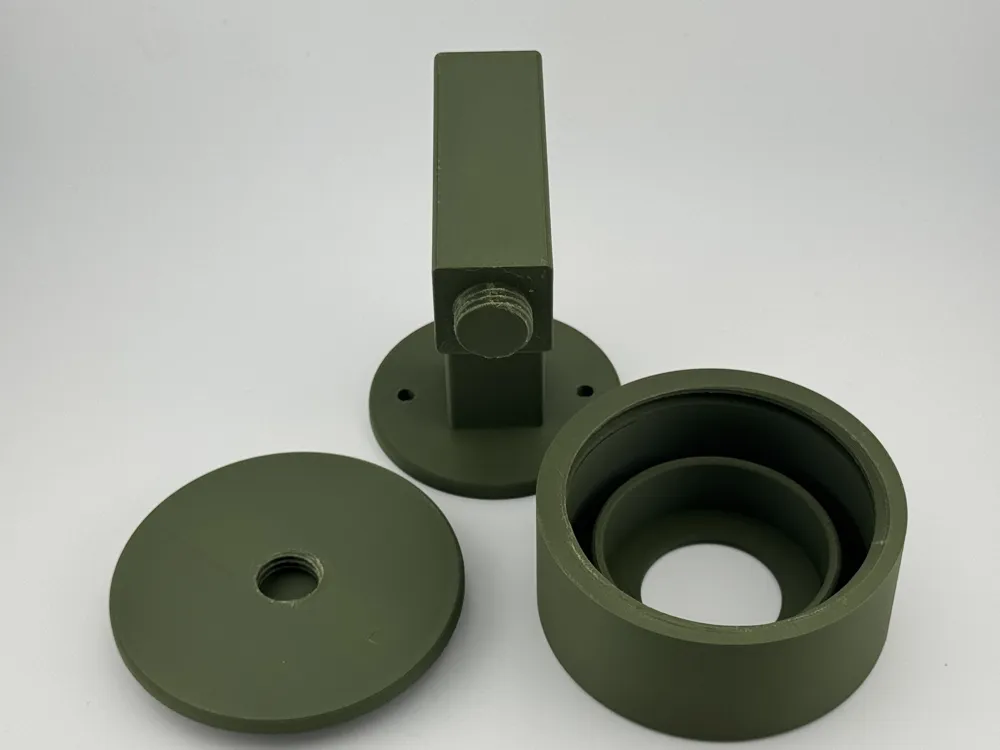

The lamp consists of 3 printed parts, which are connected using printed threads:
- Print all 3 parts.
- Place the Bambu Lab KC007 LED puck into the dedicated holder.
- Screw on the cover.
- Screw the arm/rod into the cover.
- Mount the lamp securely to the wall.
⸻
Wall Mounting
The mounting plate includes 2 screw holes for secure wall installation.
- Hole diameter: 5.5 mm each
⸻
Print Profile
A print profile is included.
Settings used:
- 10–20% infill
- 3–5 walls
- Gyroid infill on all parts
- A few Tree Supports are used
⸻
Recommended Use
This lamp works especially well as:
- Bedside wall light
- Ambient living room light
- Hallway accent light
- Reading corner light
- Desk or office wall lamp
- Minimalist decorative lighting
A simple, functional and stylish wall sconce for anyone who wants to use the KC007 LED puck in a clean 3D printed housing.
