H2 Filament Changer Vertical Mount Bracket
Print Profile(2)
Description
Boost Me (for free)
20260529 Update
Added an extended version, optimized PTFE tube curvature
Recommended PTFE tube lengths are as follows
24cm to connect the right extruder and the outer interface of the filament changer
19cm to connect the left extruder and the inner interface of the filament changer
------------------------------------------------------------

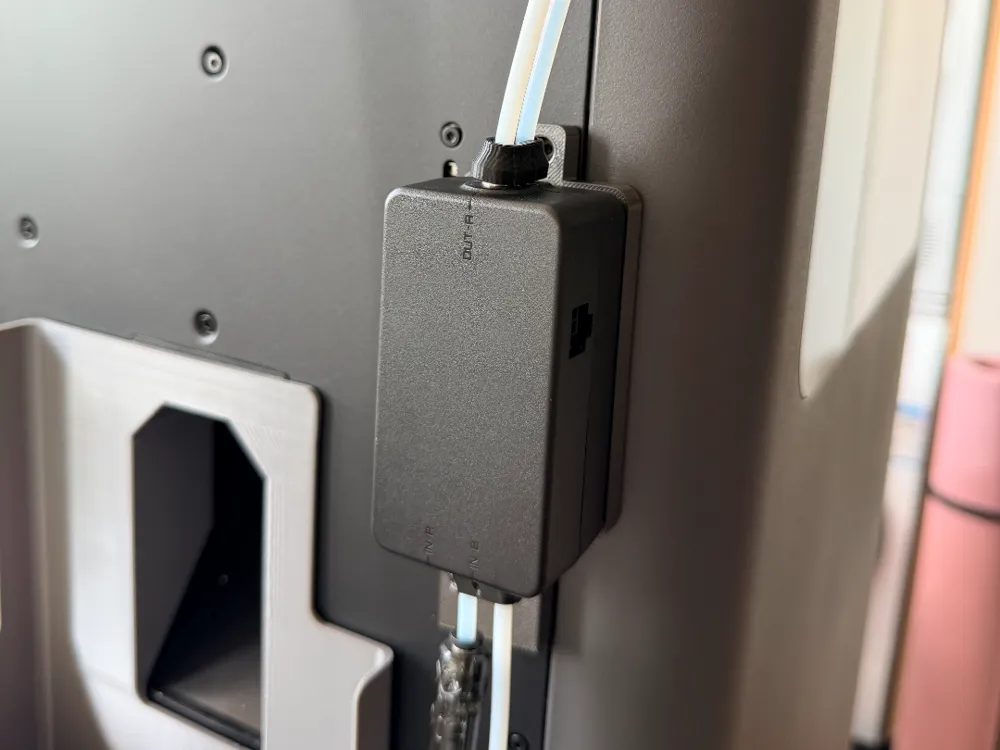

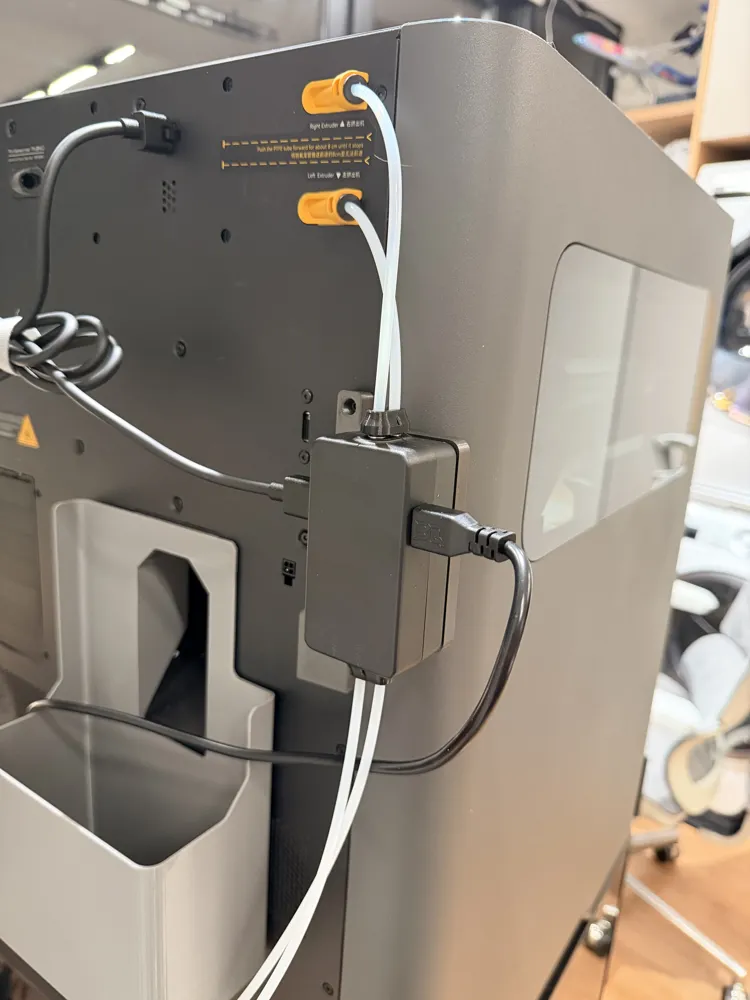

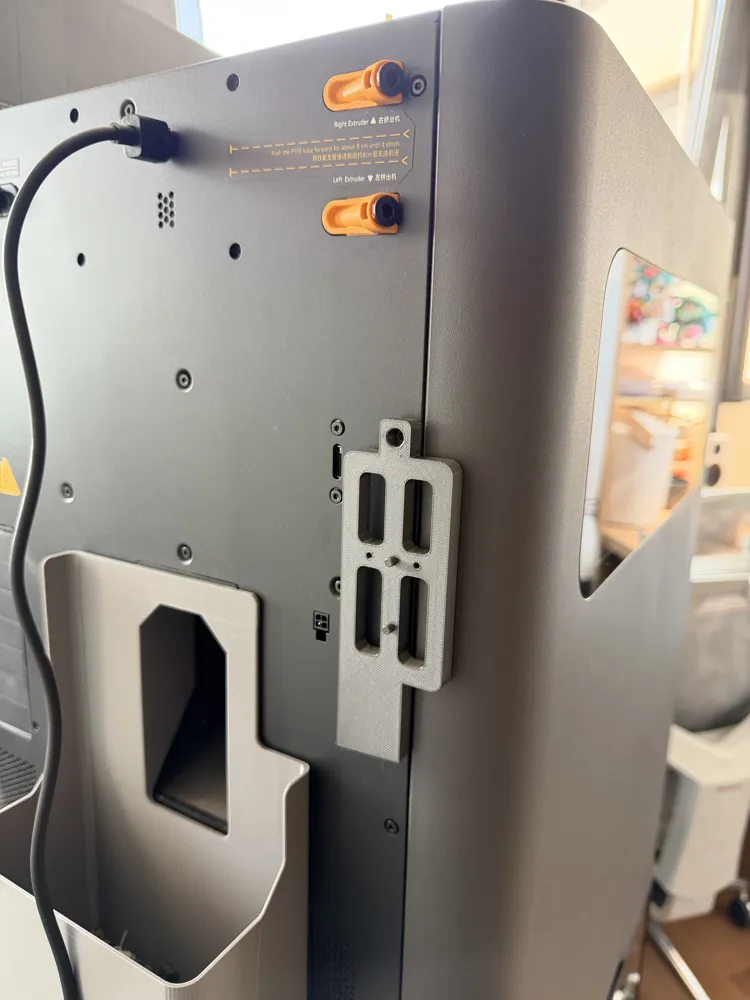

Vertical mounting bracket for H2 dual-head printer dedicated filament changer, tested and working
Better adapts to scenarios where the AMS is placed on the left side of the printer or below the printer
Installation method is consistent with the TPU boost module
The PTFE tube from the filament changer to the buffer needs to be adjusted to an appropriate length to avoid excessive bending causing too much feed resistance
