AMS HT storage drawe
Print Profile(1)
Bill of Materials
Description

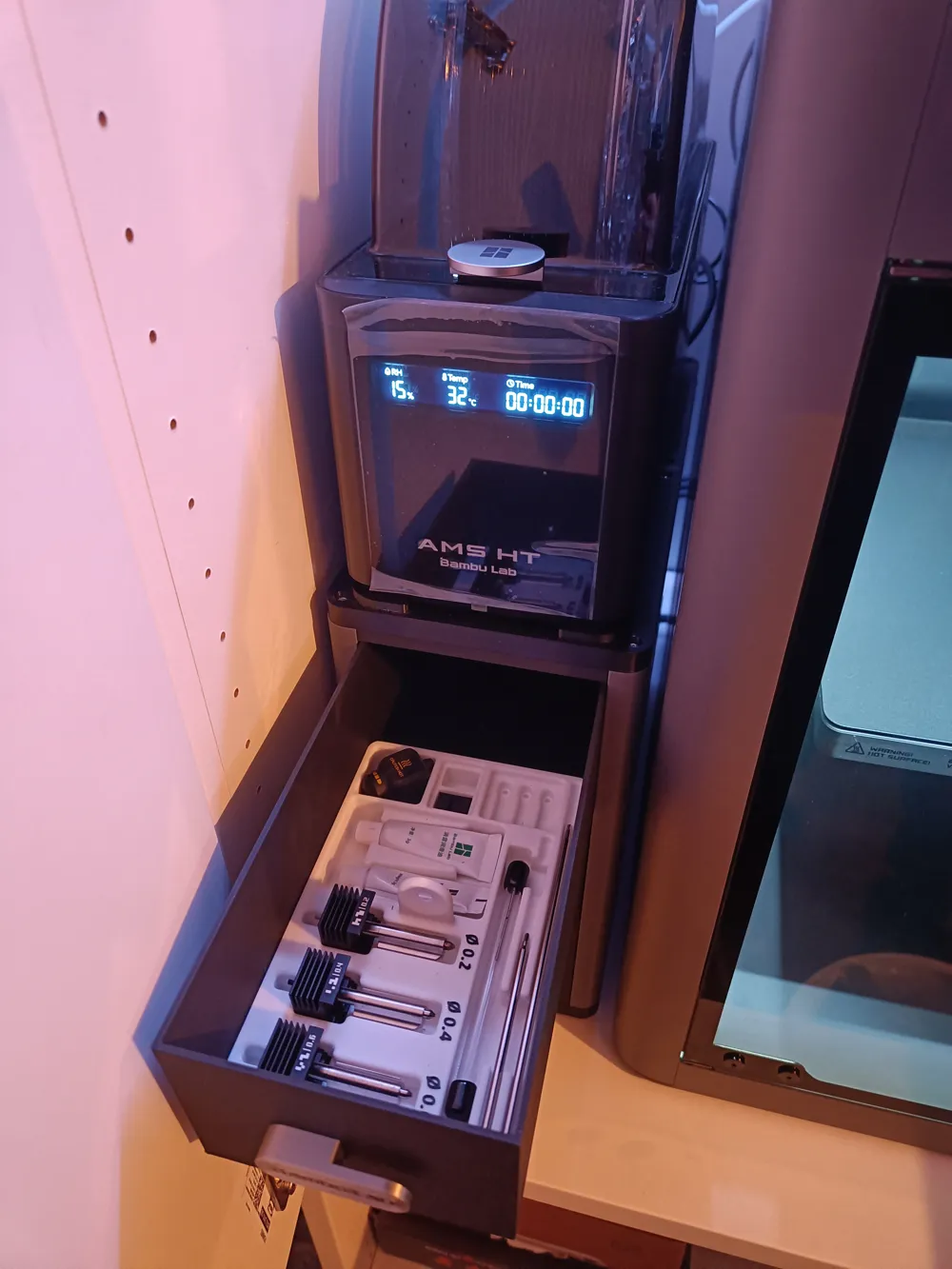

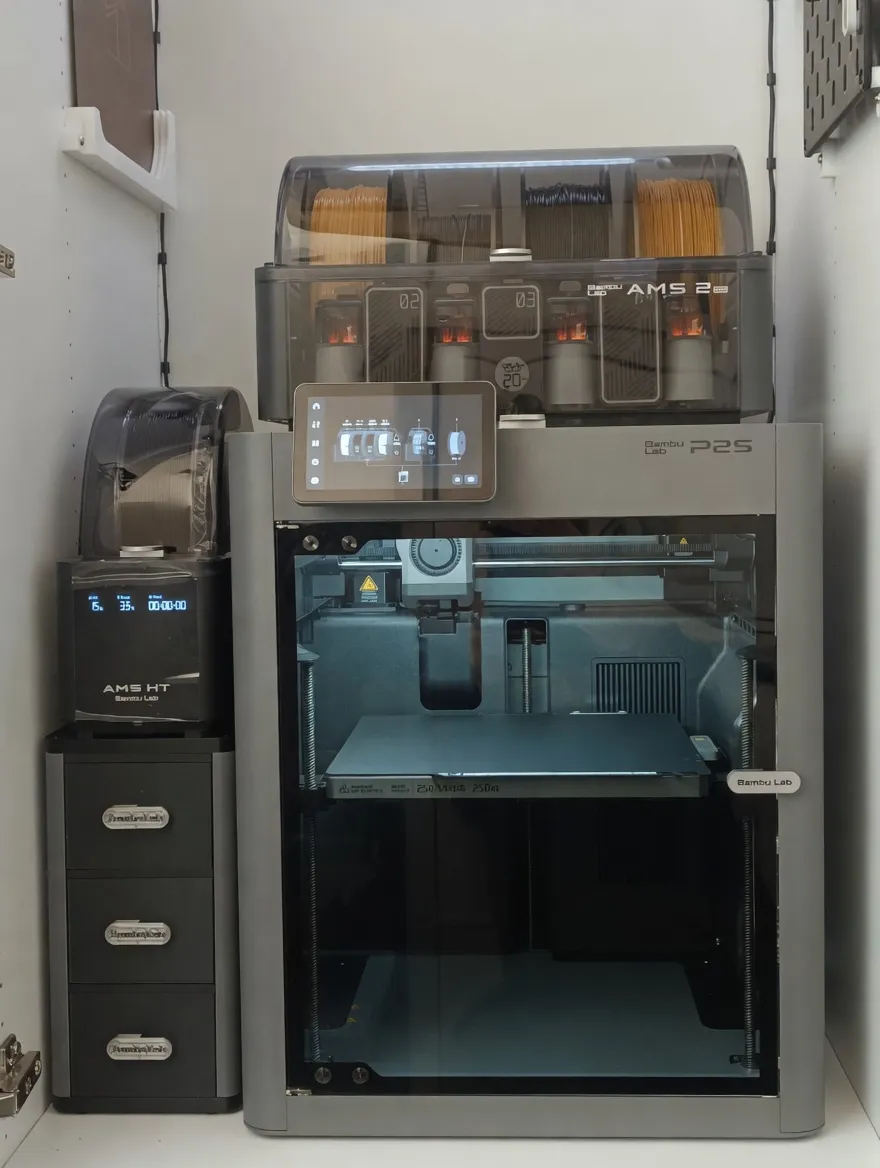

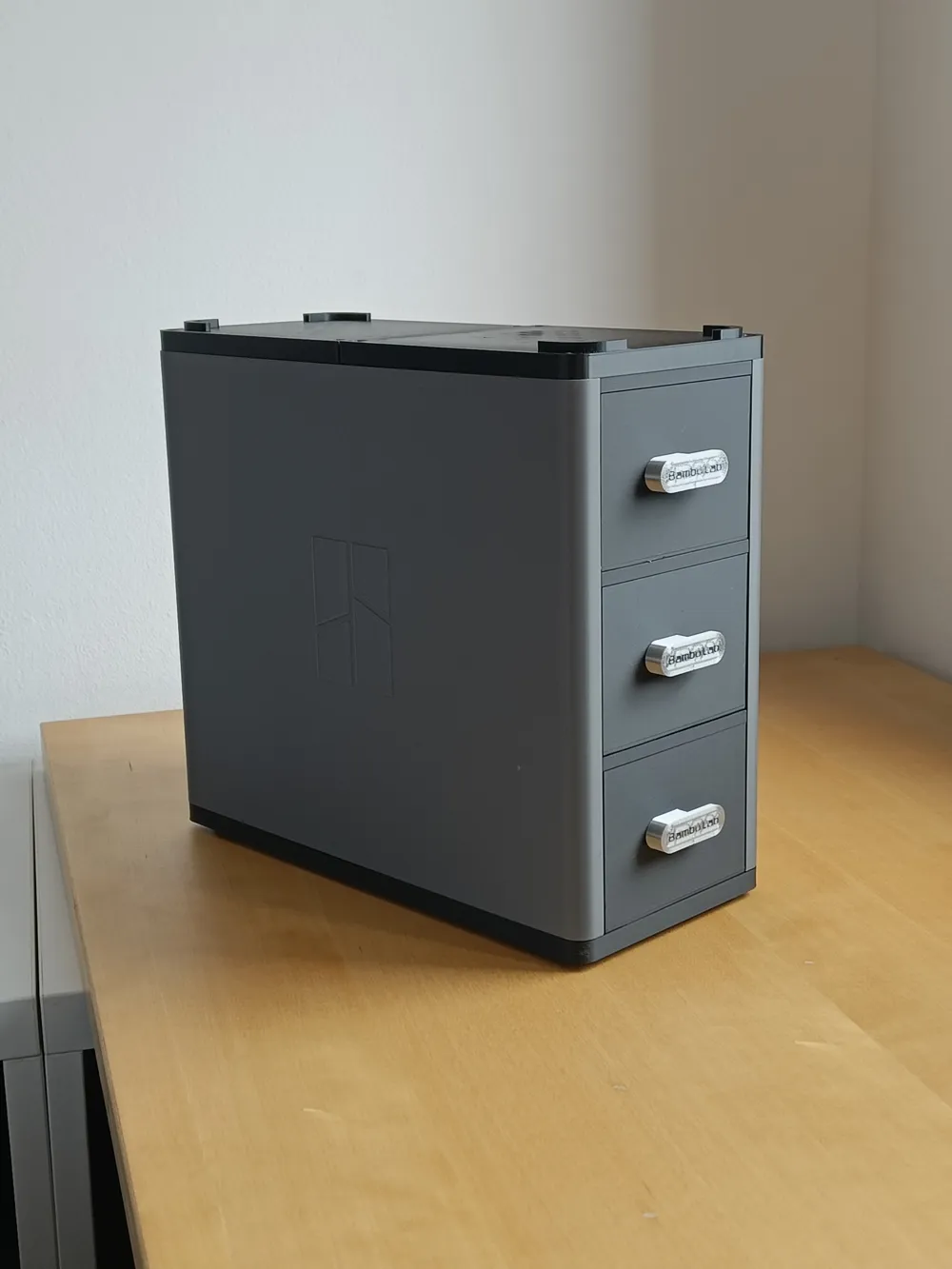

Storage drawer unit to place under the Bambu Lab AMS HT and raise it
Printed in PLA, except for the top covers which have been prepared to be printed in ABS or PETG due to the heat received from the AMS. However, with the heat received from the Bambu Lab AMS HT, PLA is sufficient
You need 10 screws of 3x8mm and 28 screws of 3x10mm
It is necessary to print several units of some plates, listed below:
Plate 1: 1 unit - right cover
Plate 2: 1 unit - left cover
Plate 3: 3 units - drawers
Plate 4: 2 units - top cover
Plate 5: 2 units - bottom cover
Plate 6: 3 units - drawer support
Plate 7: 1 unit - handles
Plate 8: 1 unit - back cover
For assembly:

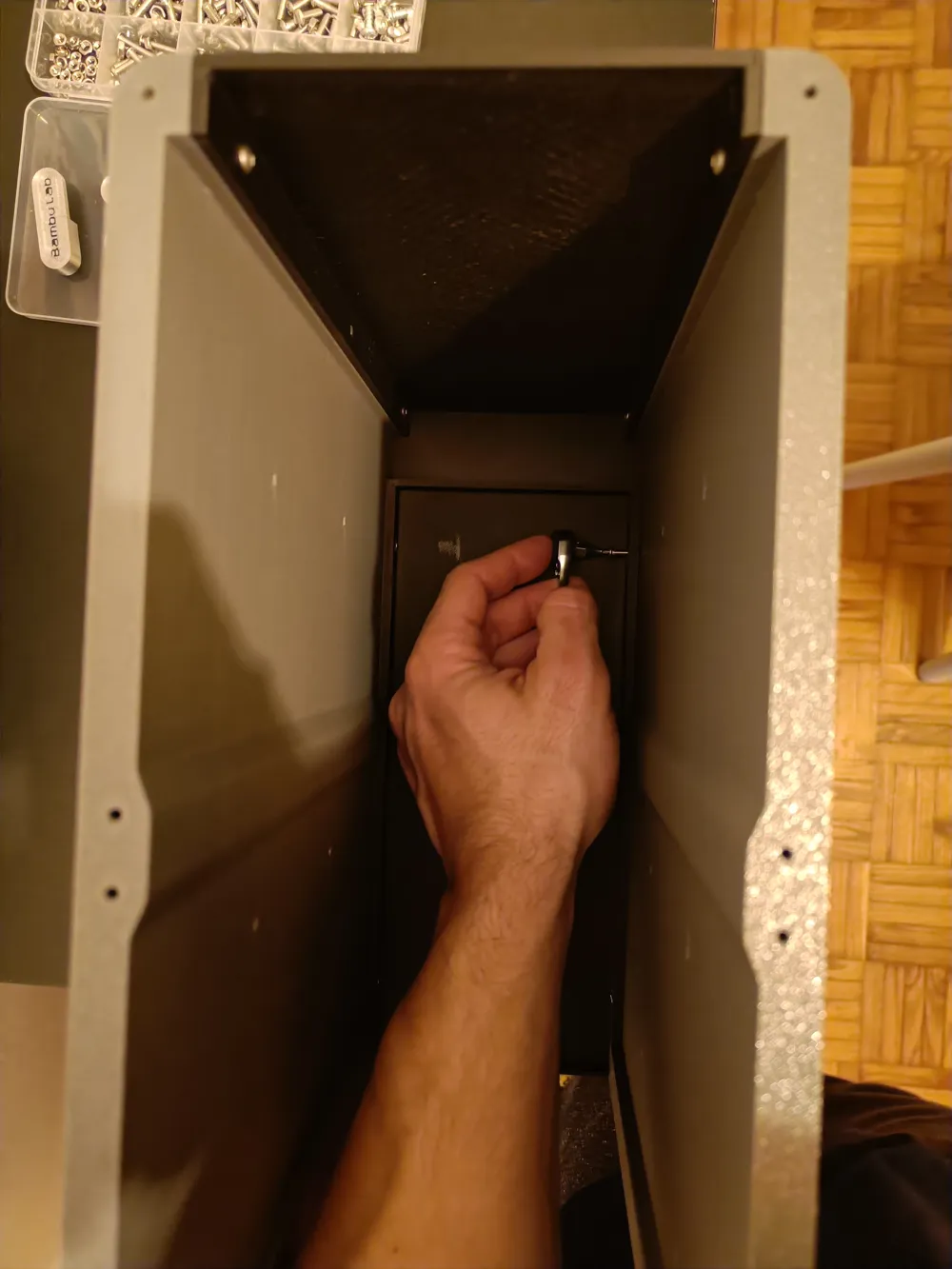

1- Join the right cover with the back cover using 2 3x8mm screws
2- Join the left cover with the back cover using 2 3x8mm screws
3- Place the top drawer support, joining it to the right and left covers with 2 3x10mm screws to each of them. The model is prepared to use an additional intermediate screw, but it is not necessary
4- Place the intermediate drawer support, in the same way as the top one
5- Place the bottom drawer support, in the same way as the previous two
6- Place the 2 bottom covers using 4 3x10mm screws in each of them
7- Place the 2 top covers using 4 3x10mm screws in each of them
8- Place the handles on the drawers, using two 3x8mm screws

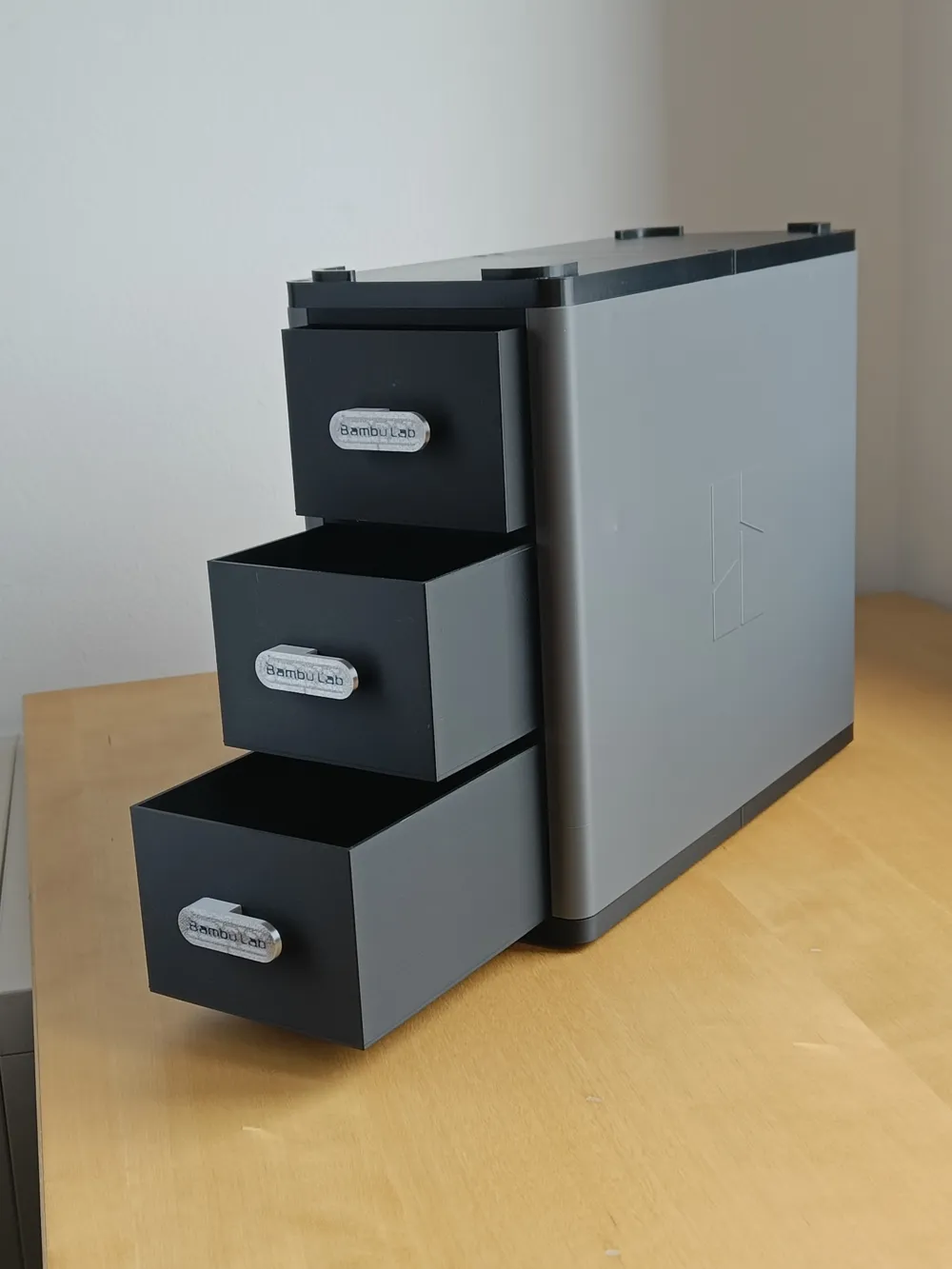

9- Insert the drawers into the cabinet
Do not overtighten the screws, as the thread could be damaged
